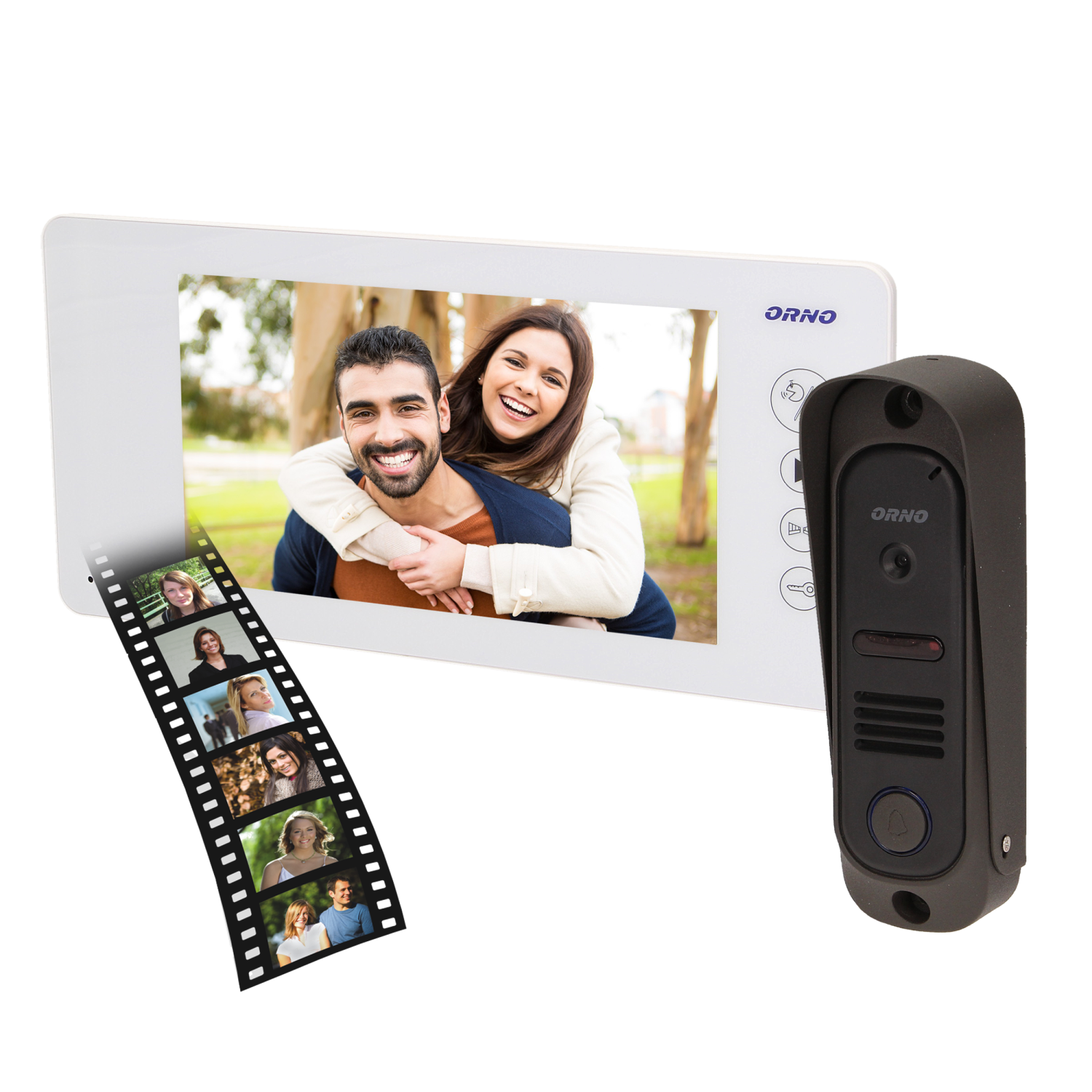

Zestaw wideodomofonowy kolorowy, ultra płaski monitor bezsłuchawkowy LCD 7˝, obsługuje dwa wejścia (możliwość podłączenia 2 kamer wideodomofonowych), dotykowy panel monitora w dwóch kolorach (biały i czarny) z podświetlanymi przyciskami, moduł pamięci wewnętrznej monitora zapamiętuje ok. 20 kolorowych obrazów, zapis zdjęć w trybie automatycznym, płynna regulacja parametrów monitora (jasności obrazu oraz głośności rozmowy i dzwonka), 9 dźwięków dzwonka do wyboru, kamera CCD typu „pin-hole” w wandaloodpornej obudowie, montaż natynkowy, daszek ochronny w zestawie, oświetlenie podczerwienią umożliwia widzenie w nocy, dodatkowe sterowanie bramą, zasilanie prądem stałym z zasilacza do gniazdka 13,5V DC, elektrozaczep o napięciu stałym i poborze prądu nie większym niż 500mA nie wymaga dodatkowego zasilania.
| General information: |
|---|
| Type: | single-family |
| Number of wires: | 4+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | Yes |
| Possibility of extension by an additional monitor: | Yes |
| Possibility of extension by an additional video uniphone: | No |
| Gate opening: | Yes |
| Current supply of the electric strike: | power supply from a videodoorphone |
| Connection system: | 4-wire |
| Possibility of extension by an additional cctv camera: | No |

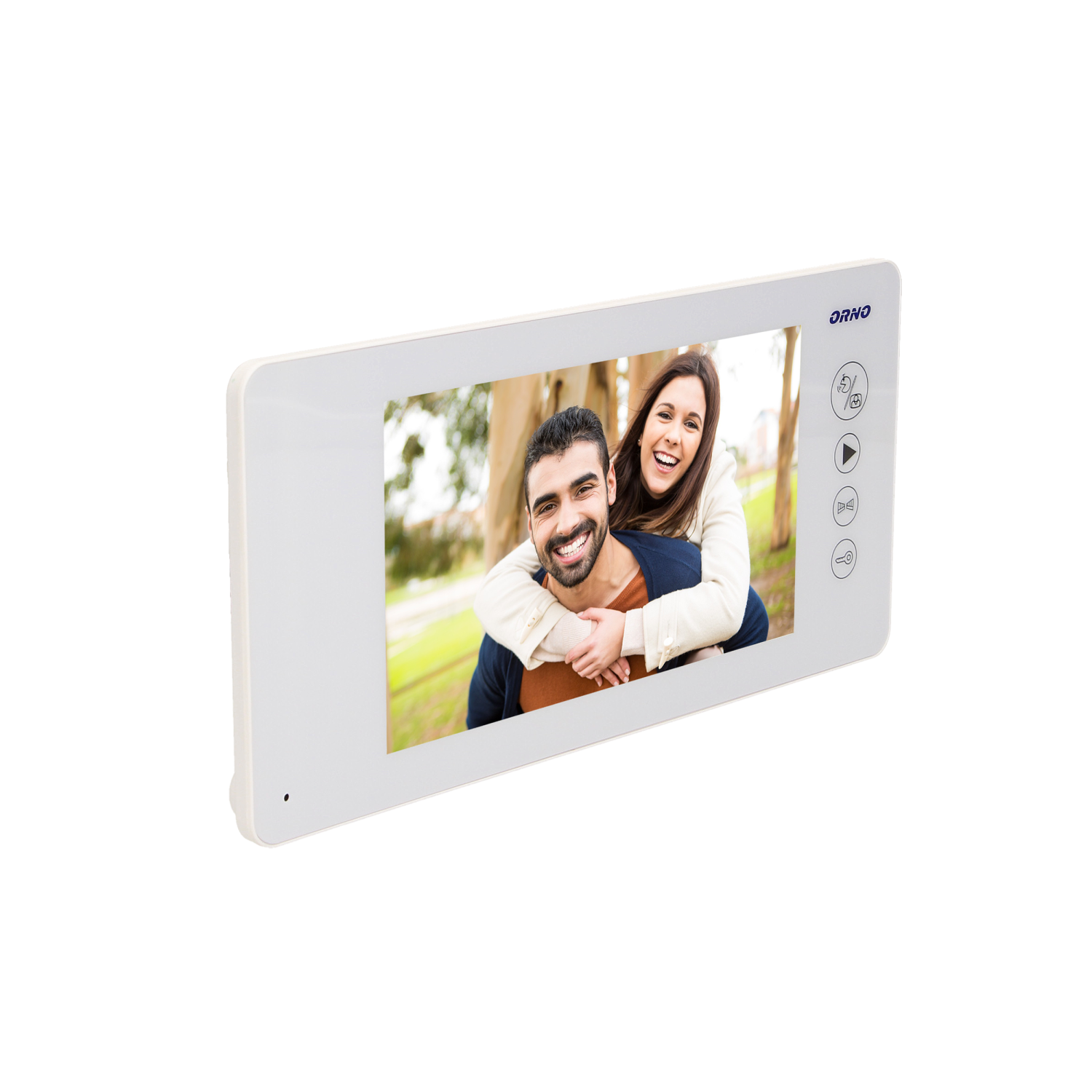

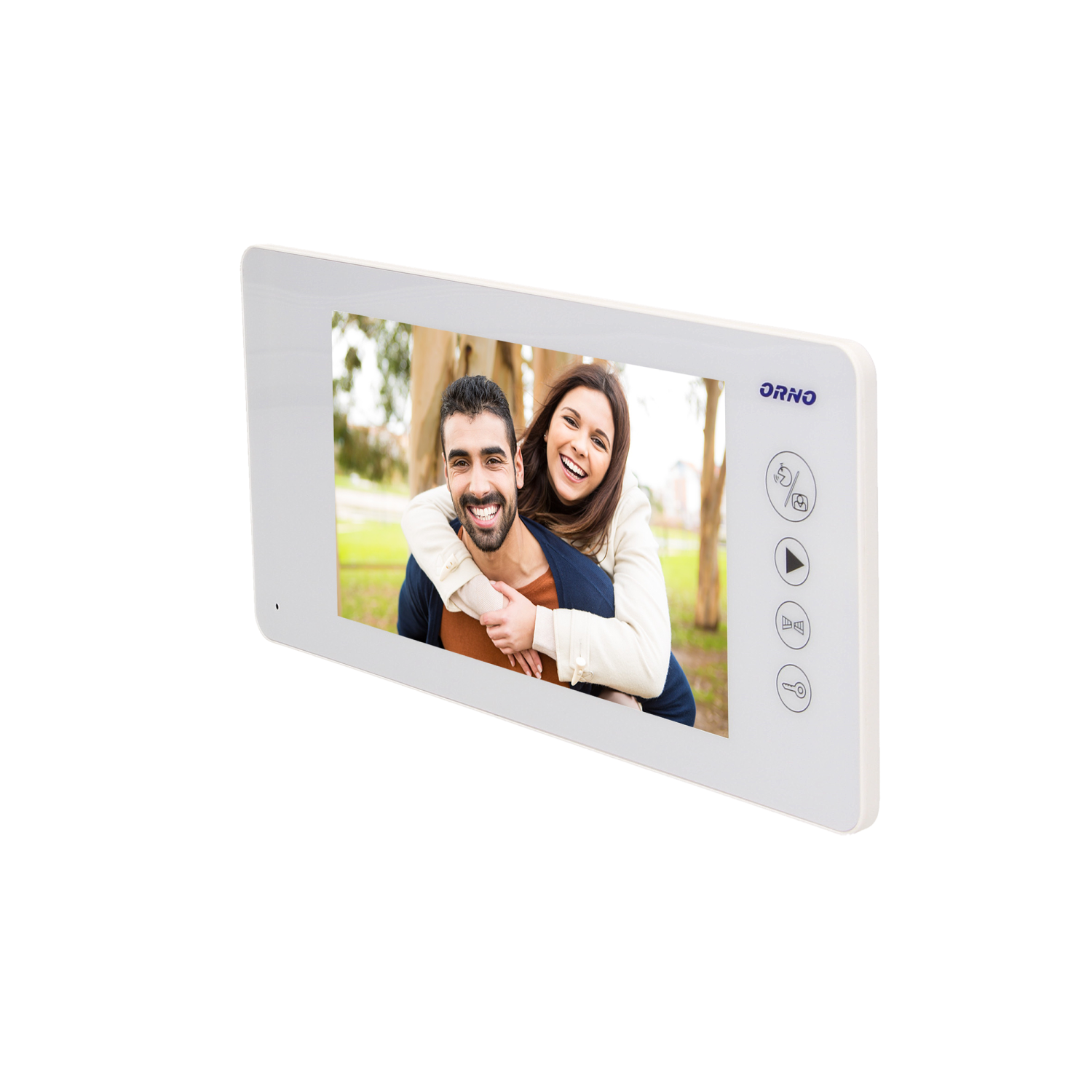

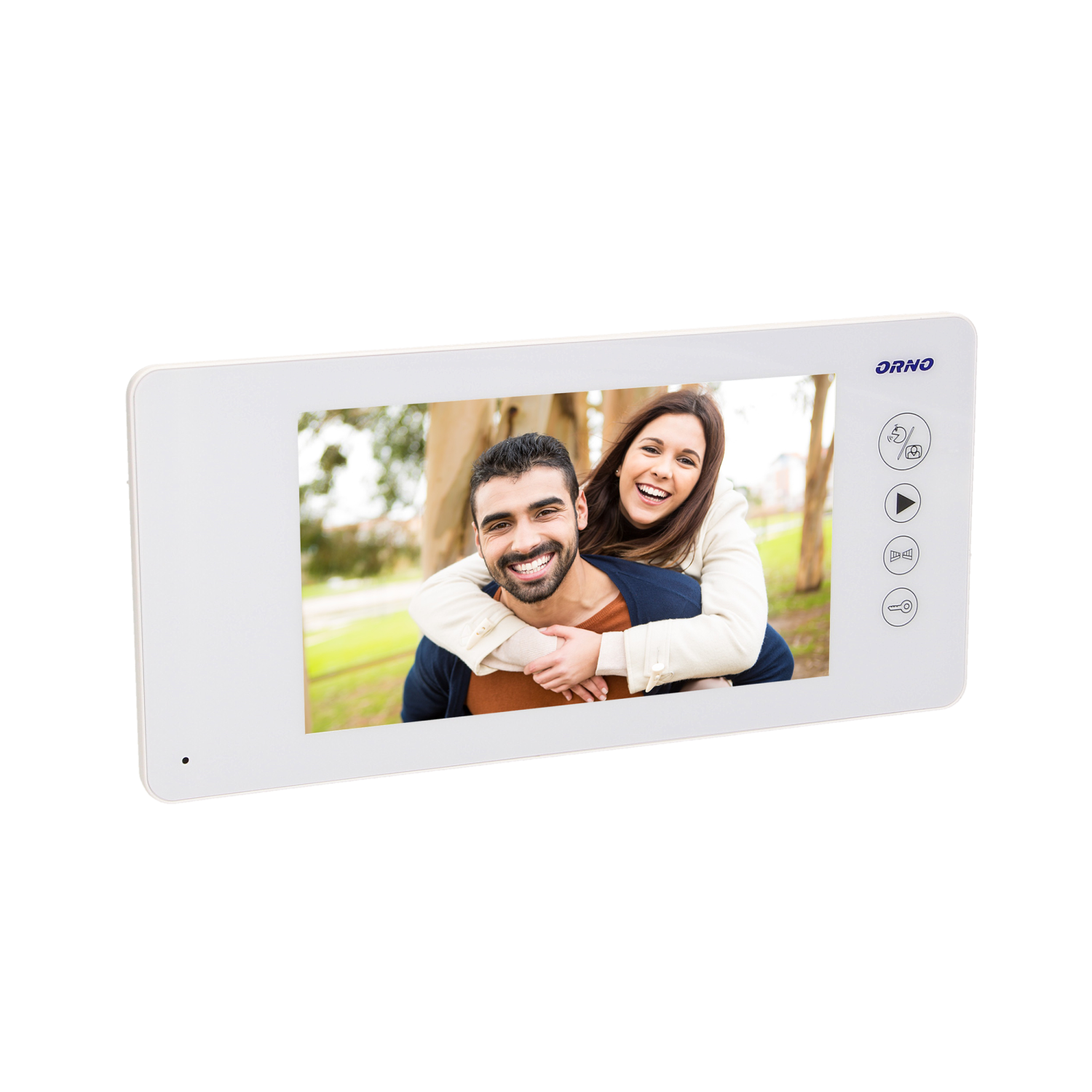

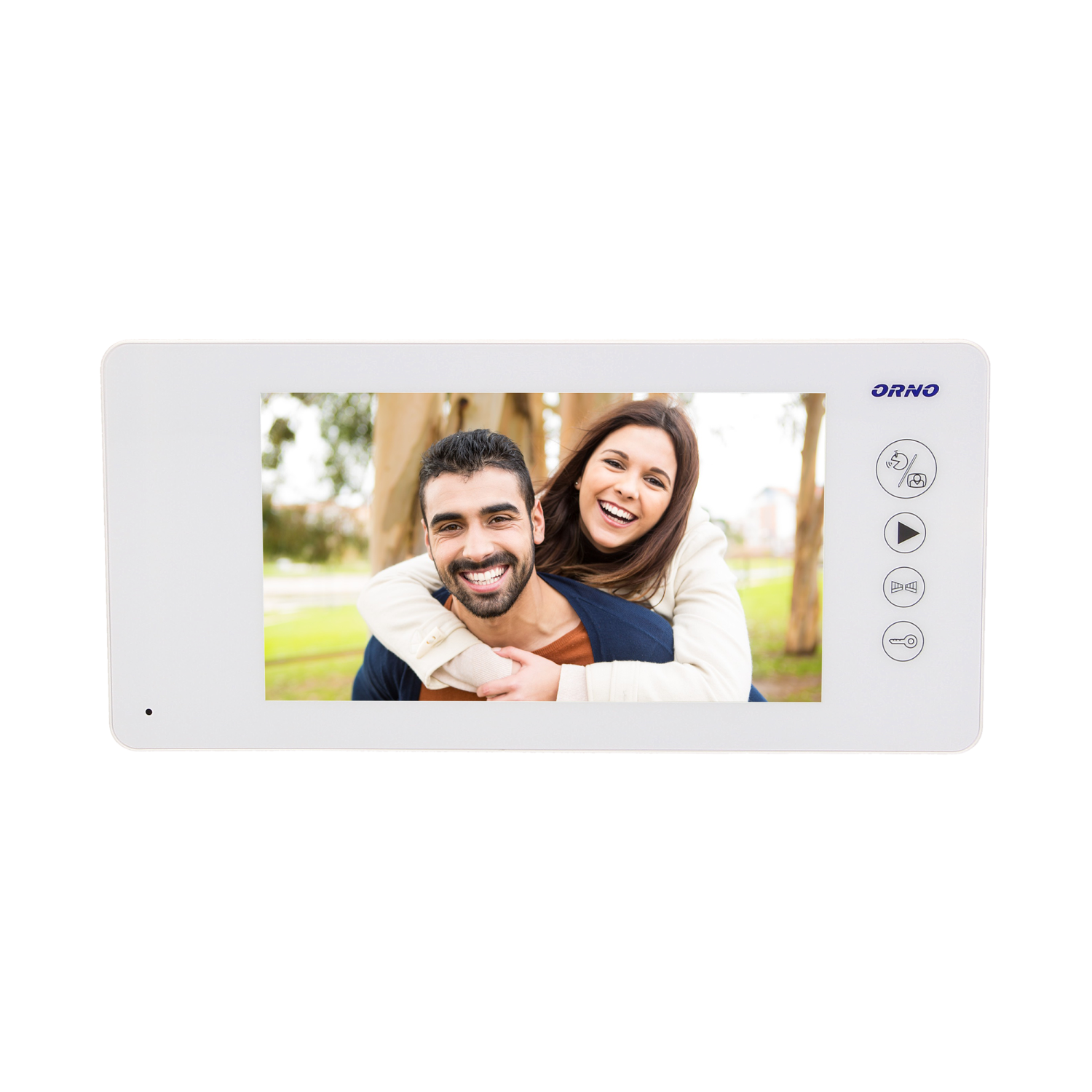

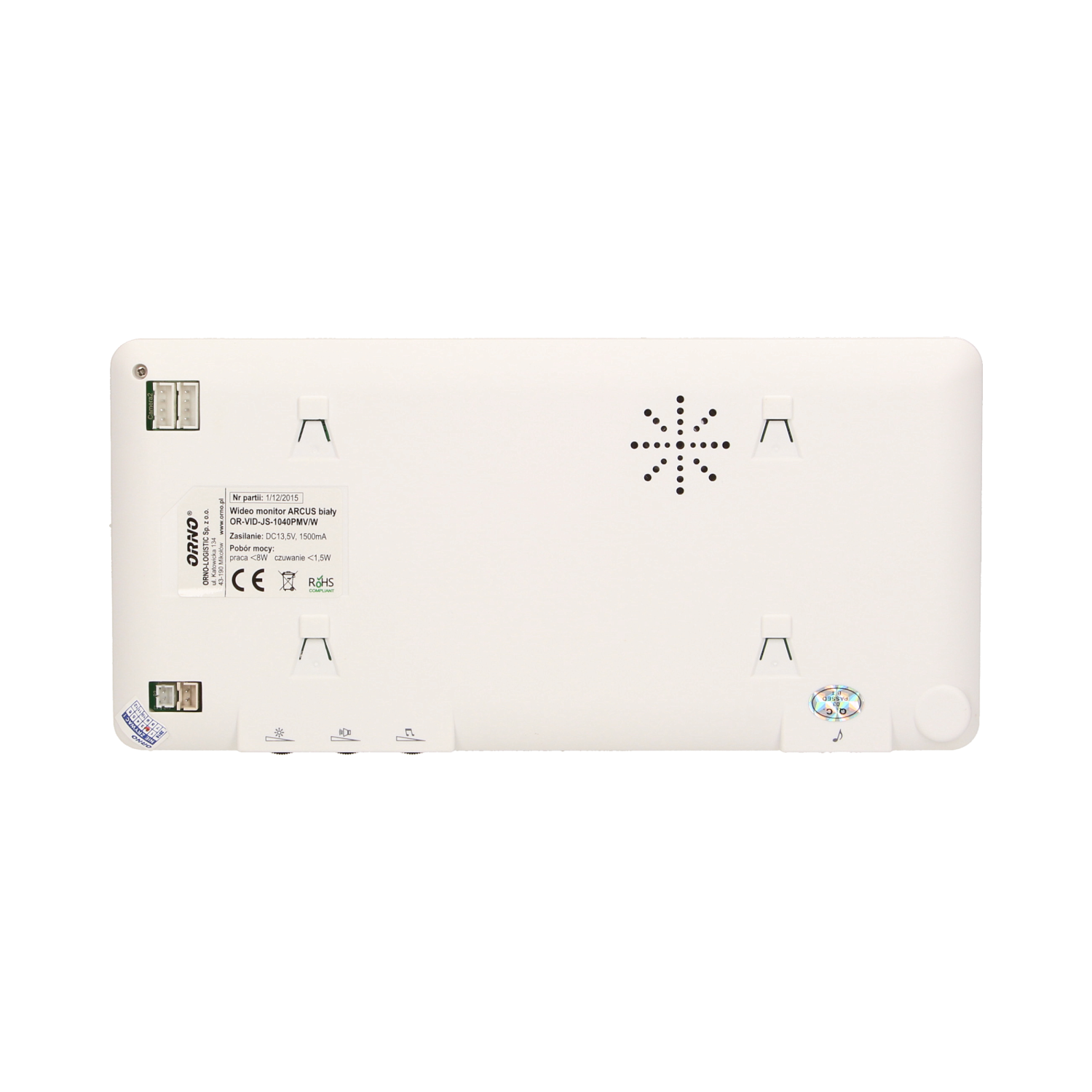

| Monitor: |
|---|
| SD card reader: | No |
| Number of ringtones: | 9 |
| Operation: | via speakerphone |
| Display: | 7 " |
| Resolution of the monitor's screen: | 800 / 480 |
| Colour of the monitor: | white |
| Memory: | Yes |
| Intercom function: | No |
| Touch screen: | No |
| Dimensions of the of the monitor - width (mm): | 114 mm |
| Dimensions of the of the monitor - height (mm): | 240 mm |
| Dimensions of the of the monitor - depth (mm): | 12 mm |

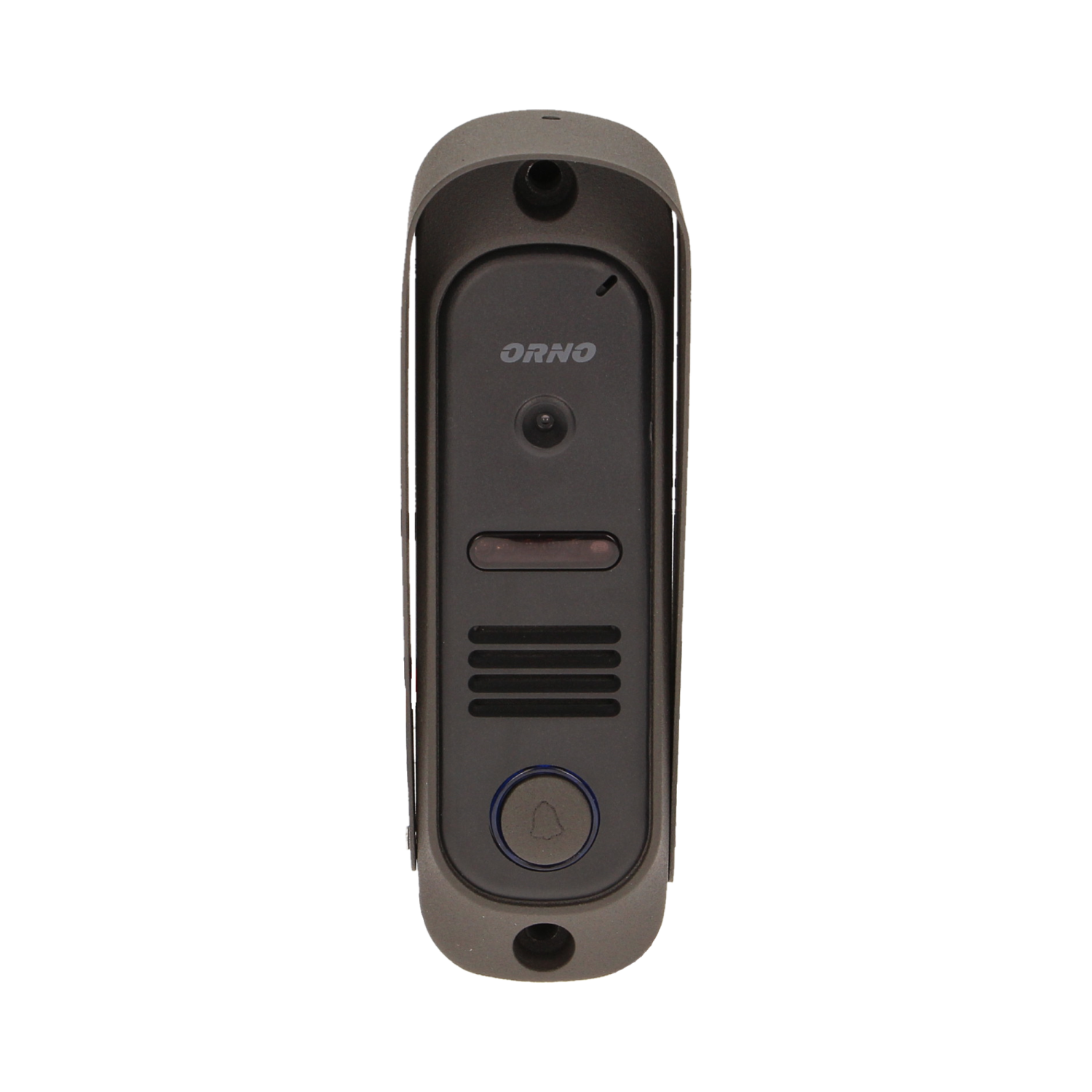

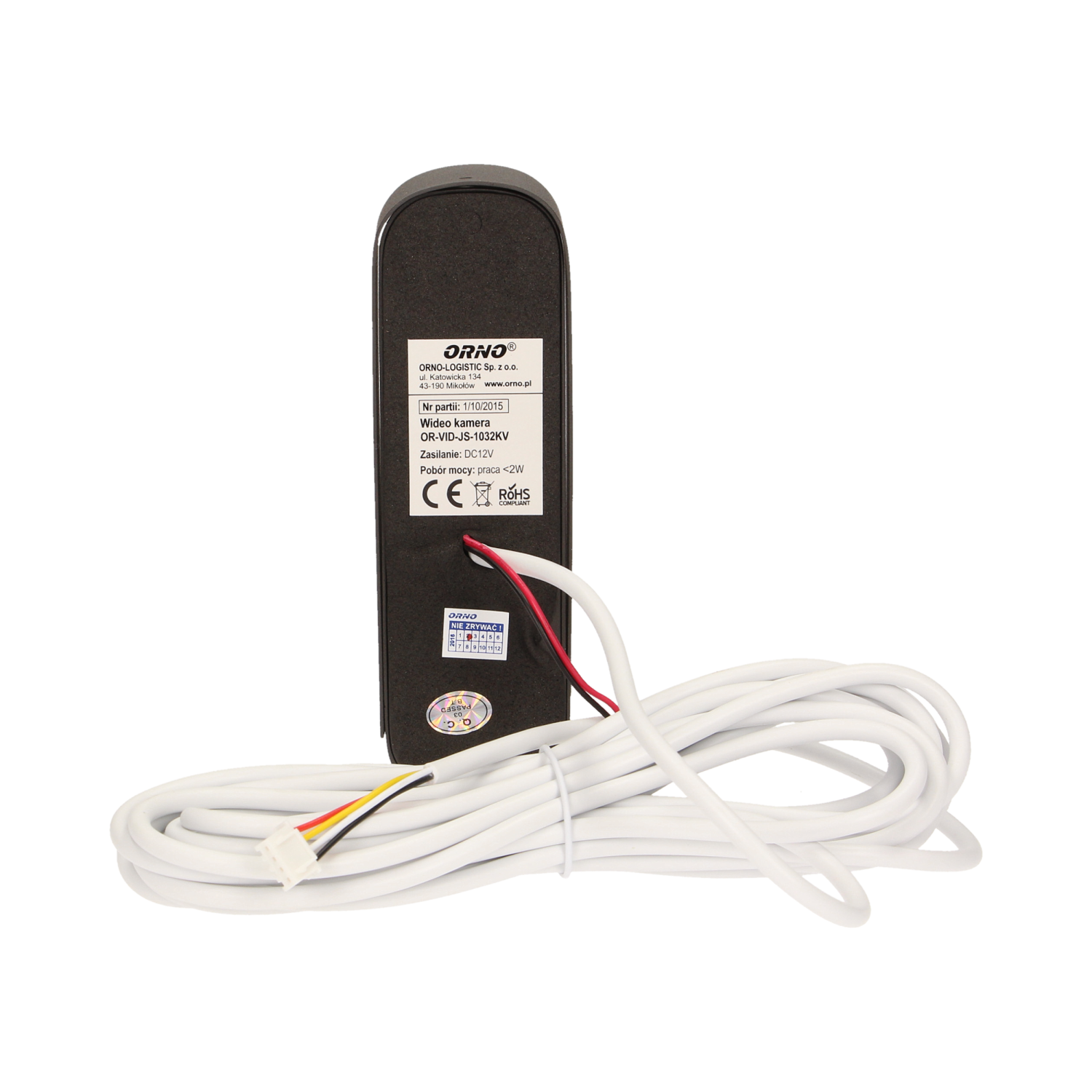

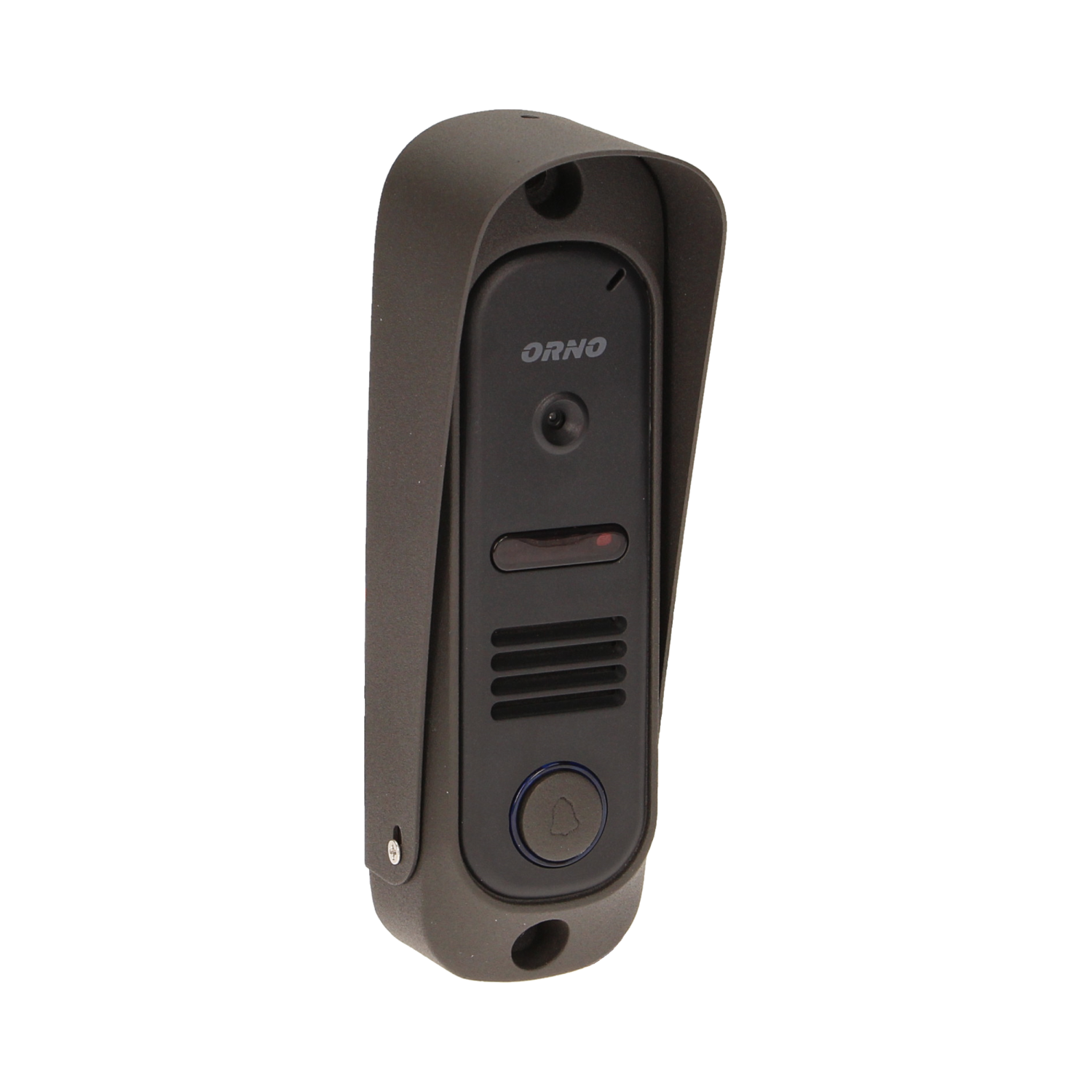

| External panel with a camera: |
|---|
| Resolution of the camera: | 0,3 Mpix |
| Vertical/horizontal camera's view angle: | 32st. / 34st. |
| Card and proximity tags reader: | No |
| Type of camera: | pinhole |
| Installation: | surface mounting |
| Keypad: | No |
| Night lighting: | infrared |
| Dimensions of the external panel - depth: | 29.3 mm |
| Dimensions of the external panel - width: | 43.2 mm |
| Dimensions of the external panel - height: | 140.6 mm |
