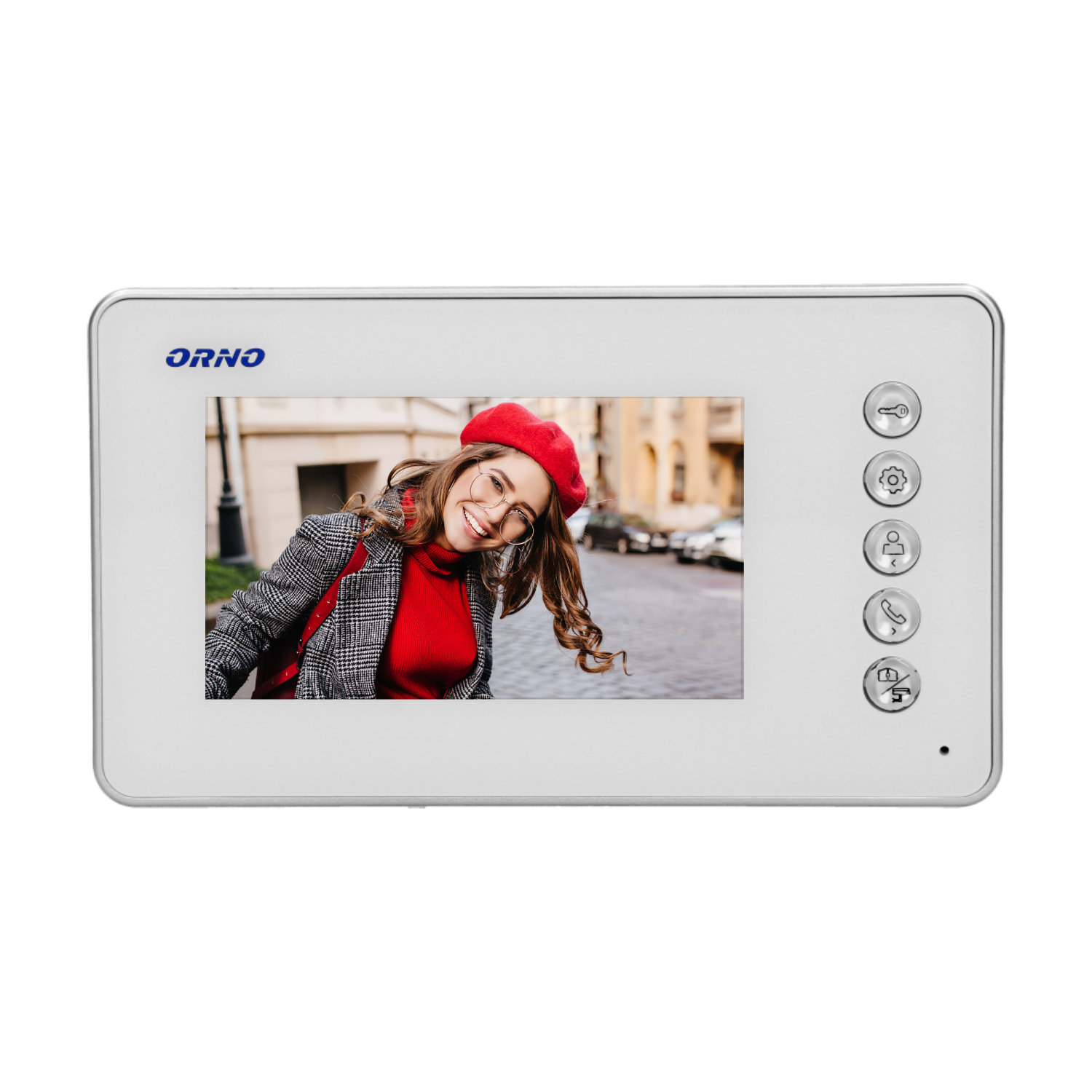

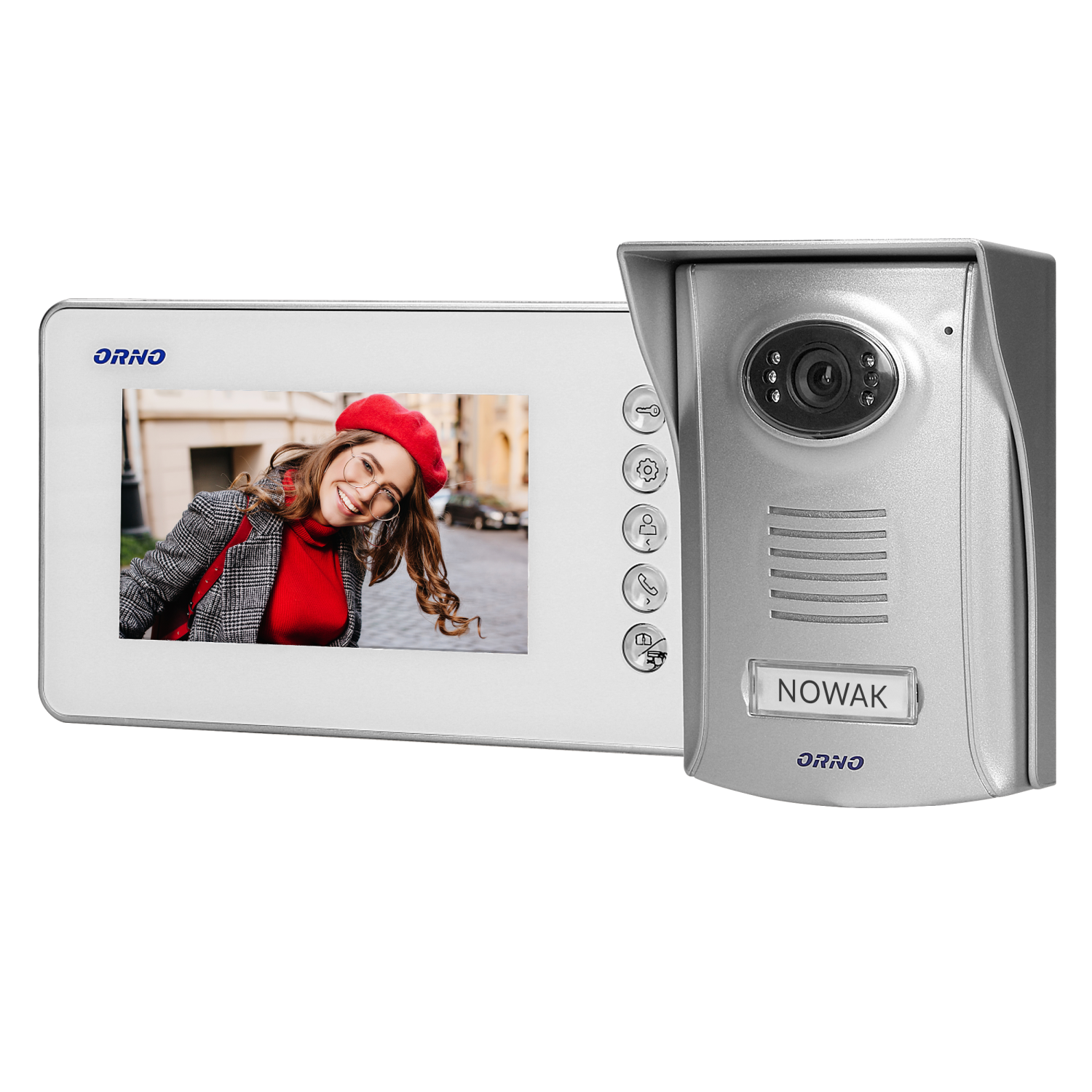

It is a modern videodoorphone equipped with an ultra slim 4,3" LCD monitor with smooth adjustment of parameters (brightness, color contrast, volume tone & conversation), 10 selectable ringtones and an additional gate control function. External panel with CMOS camera requires surface mounting. It's equipped with infrared lighting that enables night vision and backlit place for name activated by the twilight sensor. Numeric keypad allows one to open the lock with a code. DC power supply from the power supply to the 15V DC socket. Electric strike doesn’t require additional power supply.
| General information: | |
|---|---|
| Type: | single-family |
| Number of wires: | 4+2 |
| Type of power supply: | mains power supply |
| Type of transmission: | wired |
| Possibility of extension by an additional external panel: | No |
| Possibility of extension by an additional monitor: | No |
| Possibility of extension by an additional video uniphone: | No |
| Gate opening: | Yes |
| Current supply of the electric strike: | power supply from a videodoorphone |

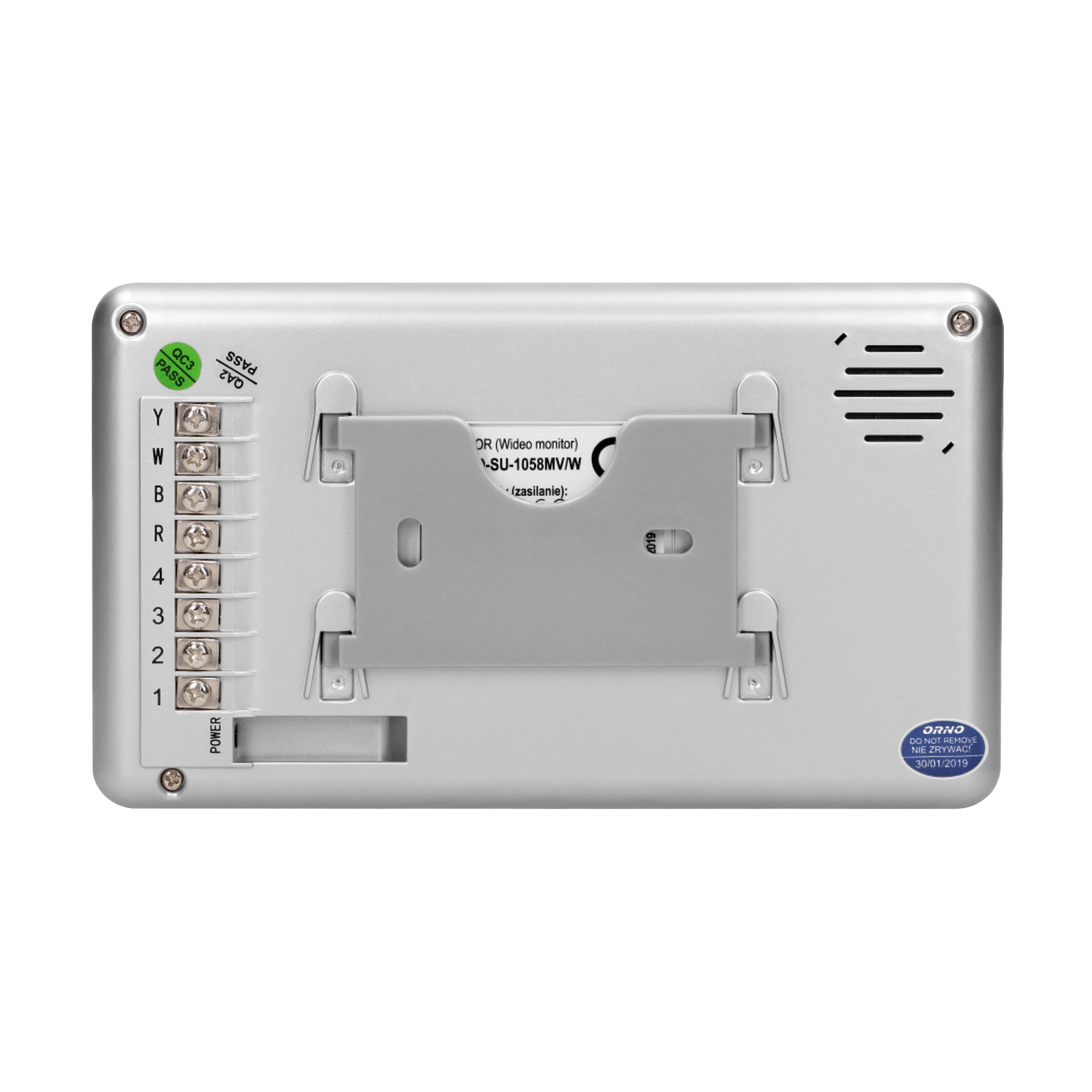

| Connection system: | 4-wire |
| Possibility of extension by an additional cctv camera: | Yes |

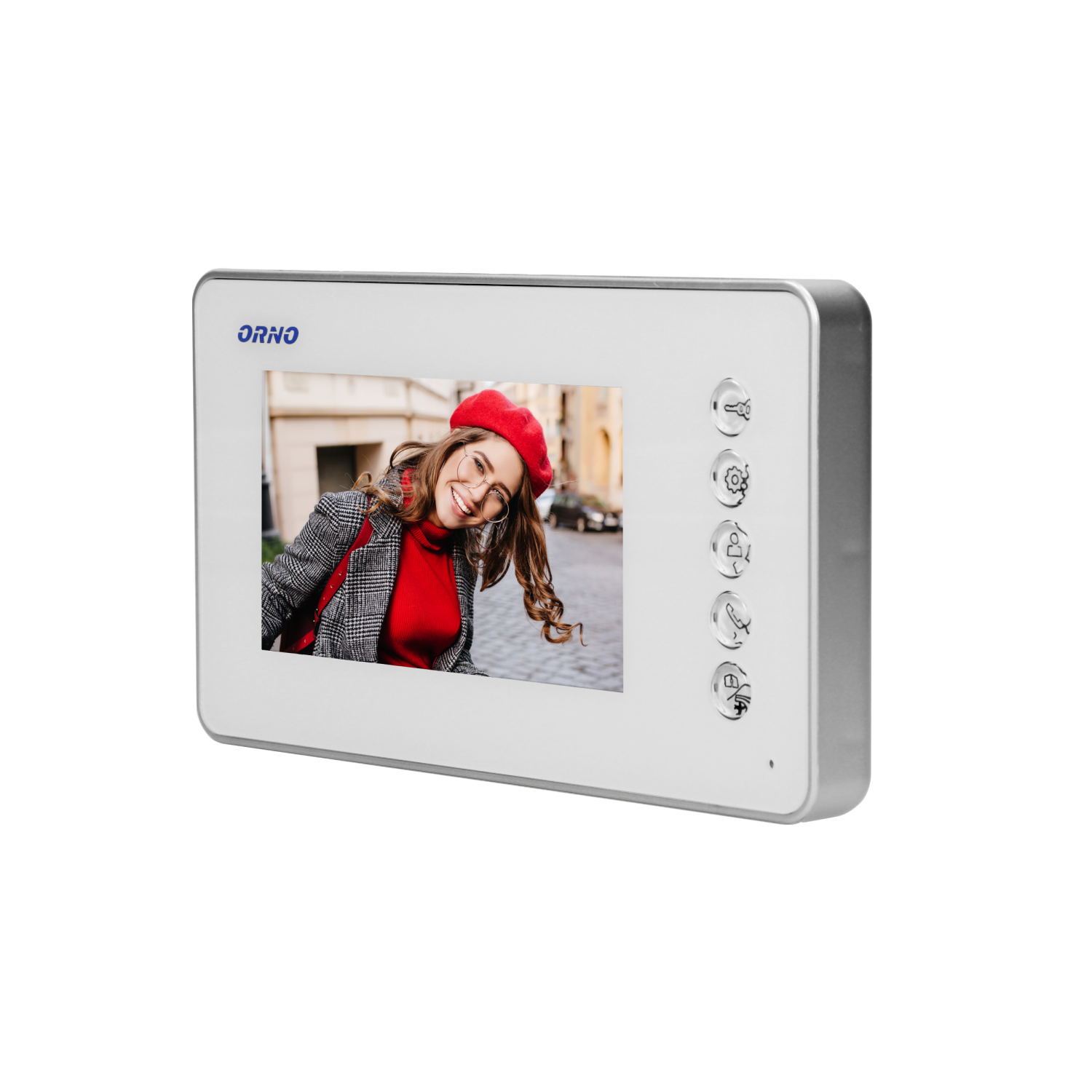

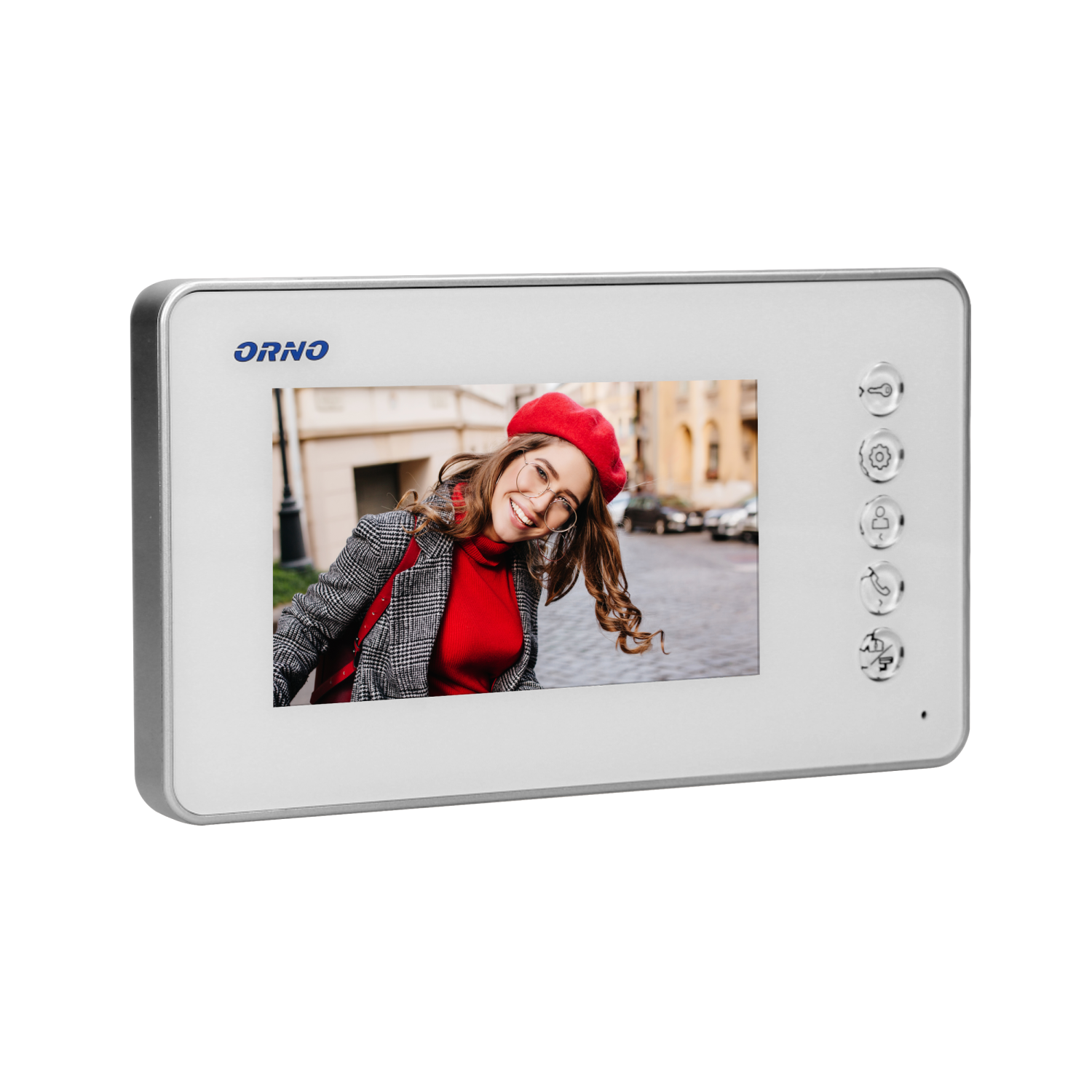

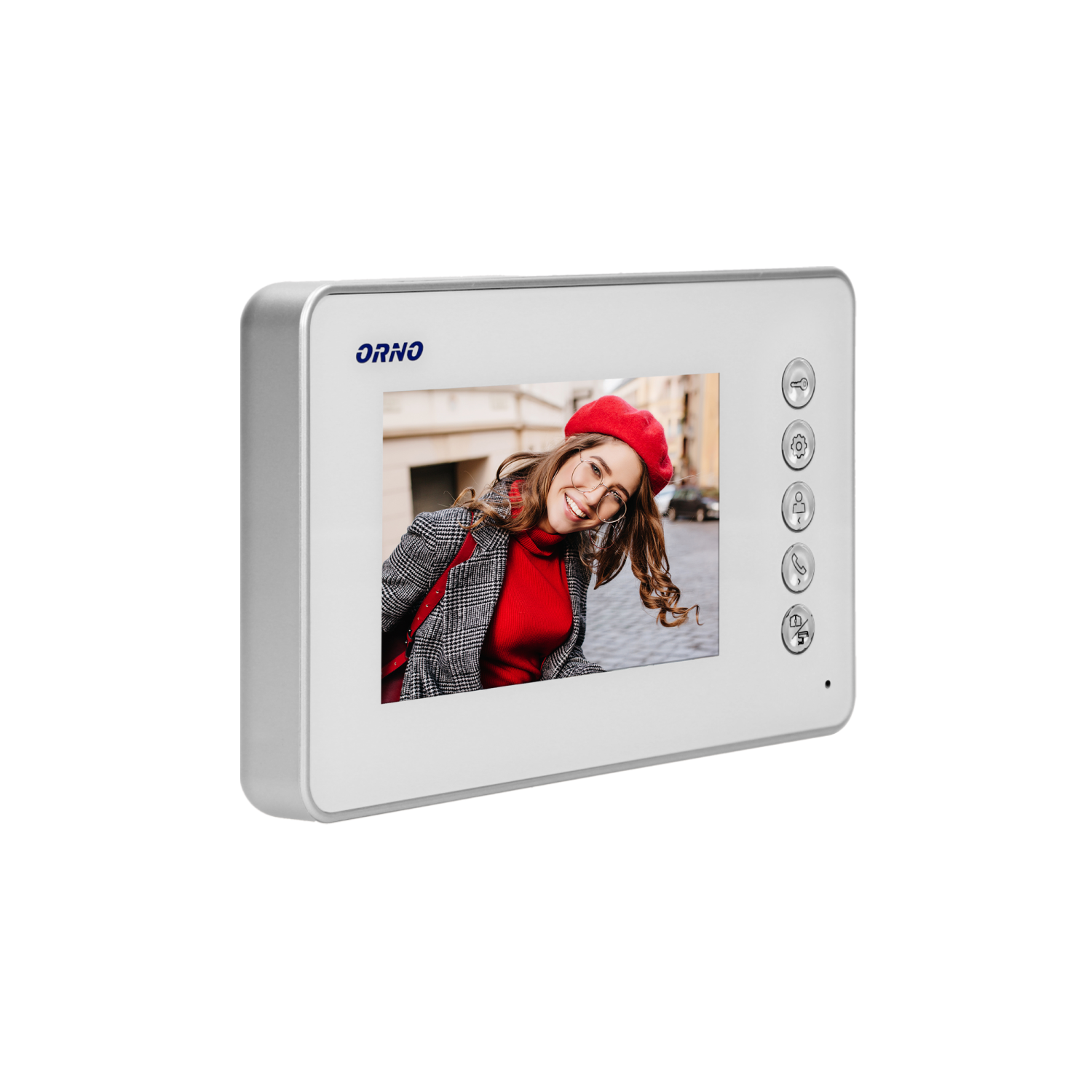

| Monitor: | |
|---|---|
| SD card reader: | No |
| Number of ringtones: | 10 |
| Operation: | via speakerphone |
| Display: | 4.3 " |
| Resolution of the monitor's screen: | 480/272 |
| Colour of the monitor: | white |
| Memory: | No |
| Intercom function: | No |
| Touch screen: | No |
| Dimensions of the of the monitor - width (mm): | 166 mm |
| Dimensions of the of the monitor - height (mm): | 95 mm |
| Dimensions of the of the monitor - depth (mm): | 21 mm |

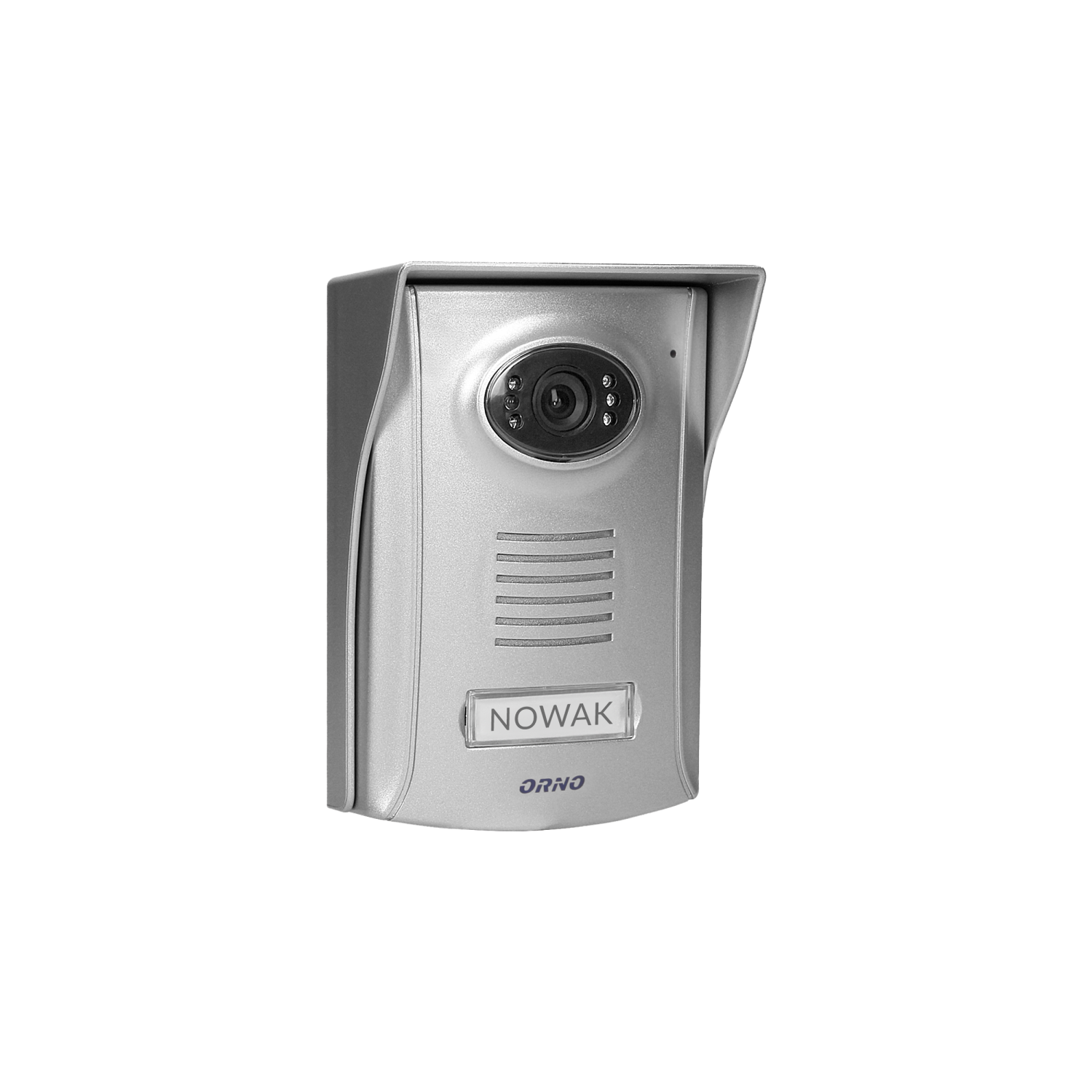

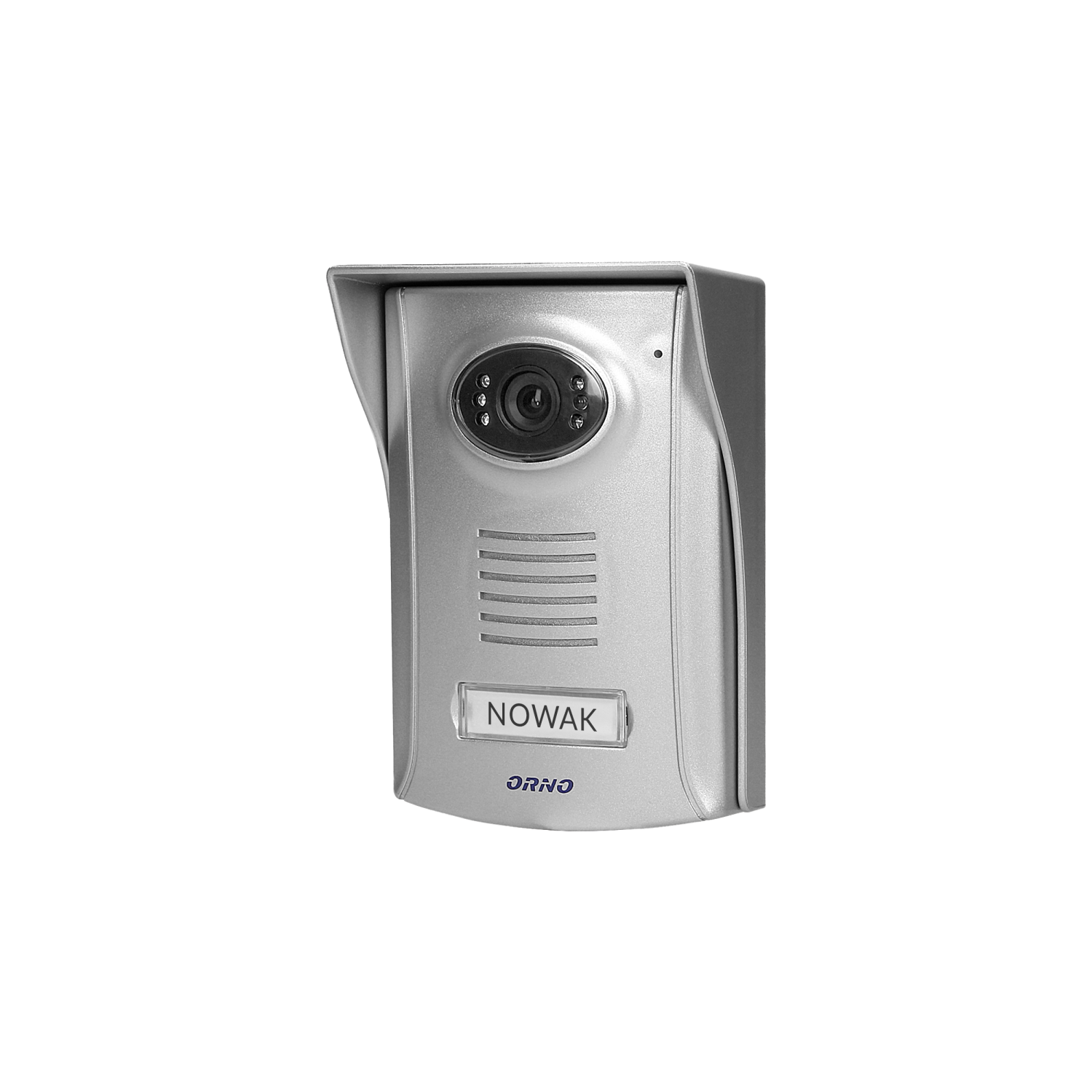

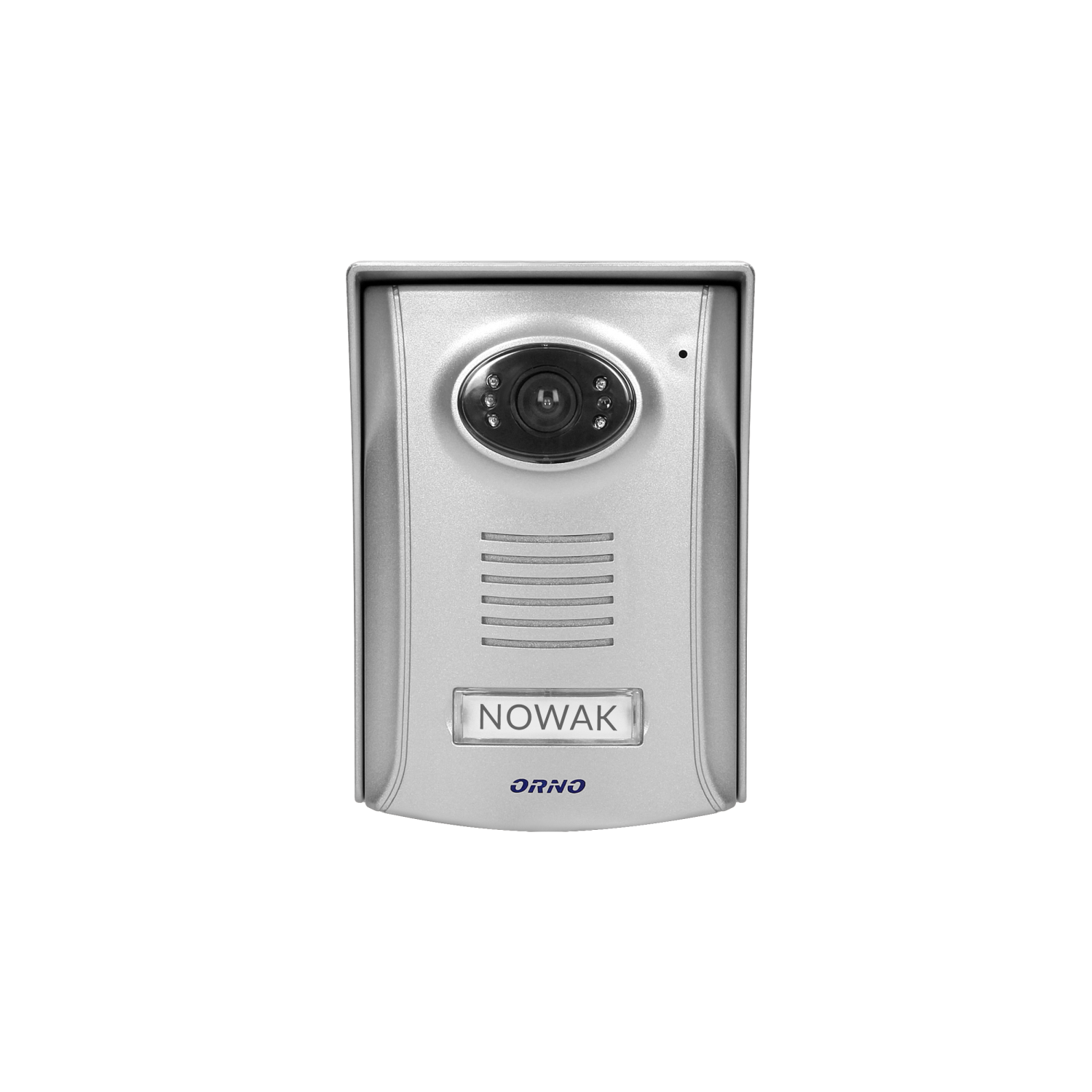

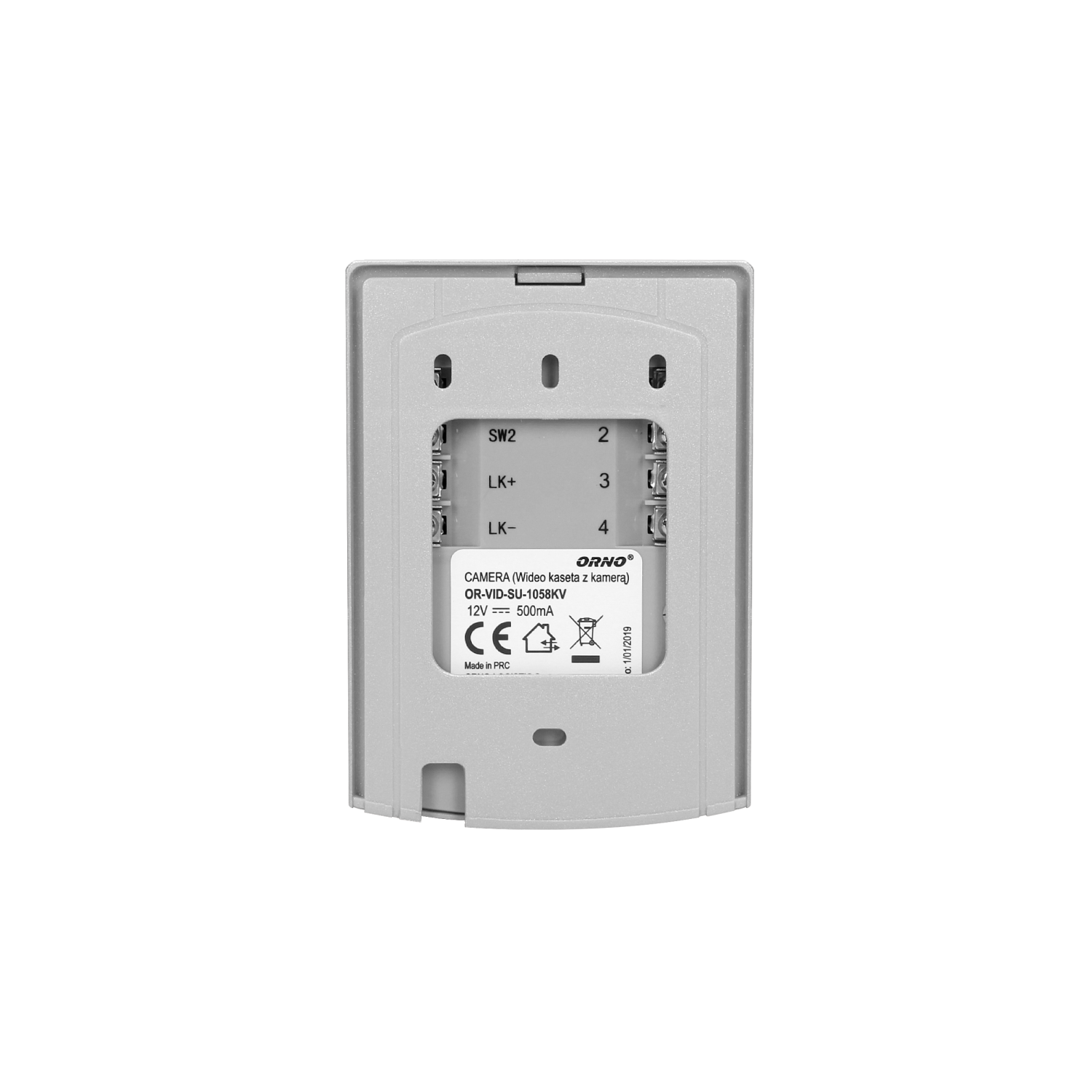

| External panel with a camera: | |
|---|---|
| Resolution of the camera: | 420 TVL |
| Card and proximity tags reader: | No |
| Type of camera: | traditional lens |
| Installation: | surface mounting |
| Keypad: | No |
| Night lighting: | infrared |
| Dimensions of the external panel - depth: | 50 mm |
| Dimensions of the external panel - width: | 95 mm |
| Dimensions of the external panel - height: | 133 mm |
