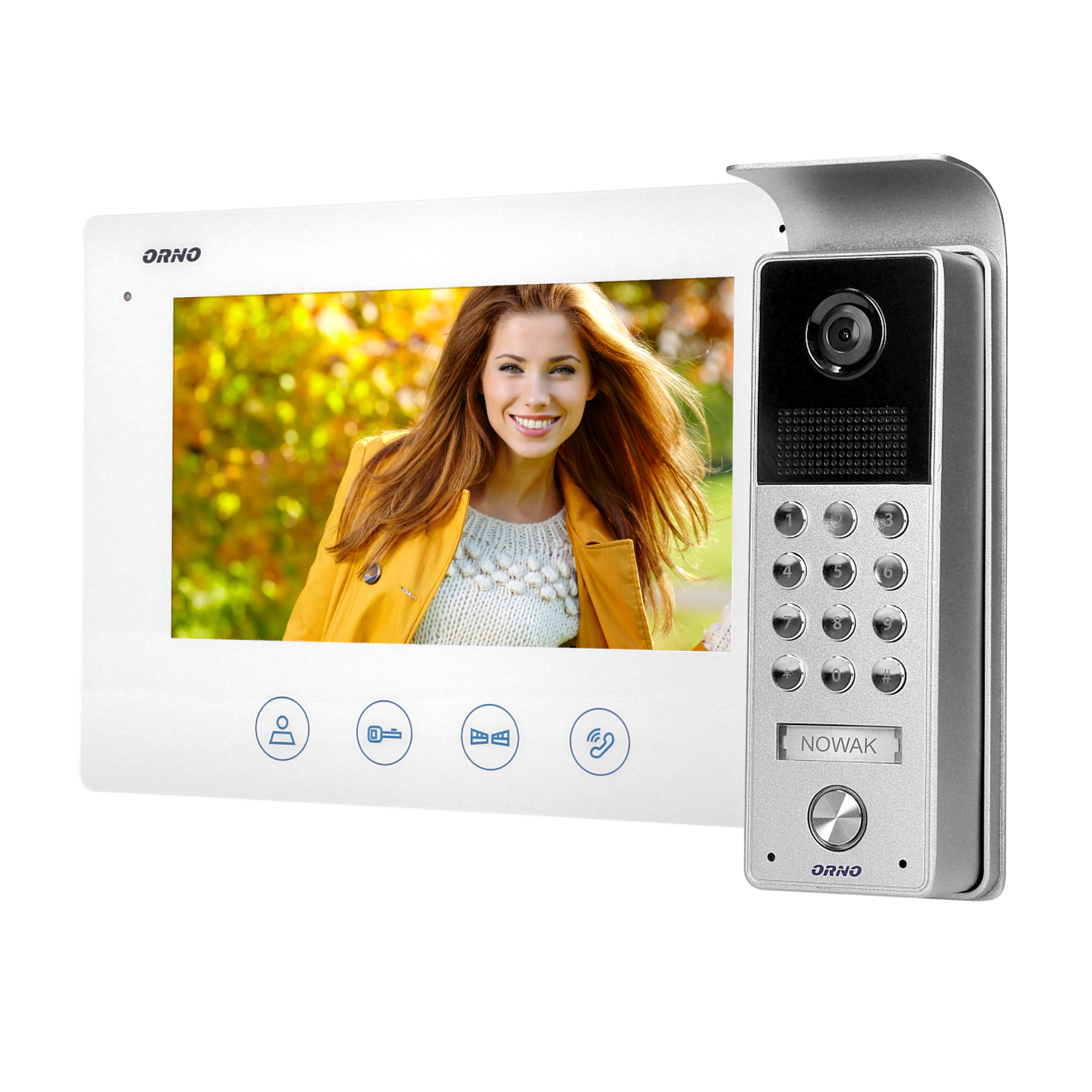

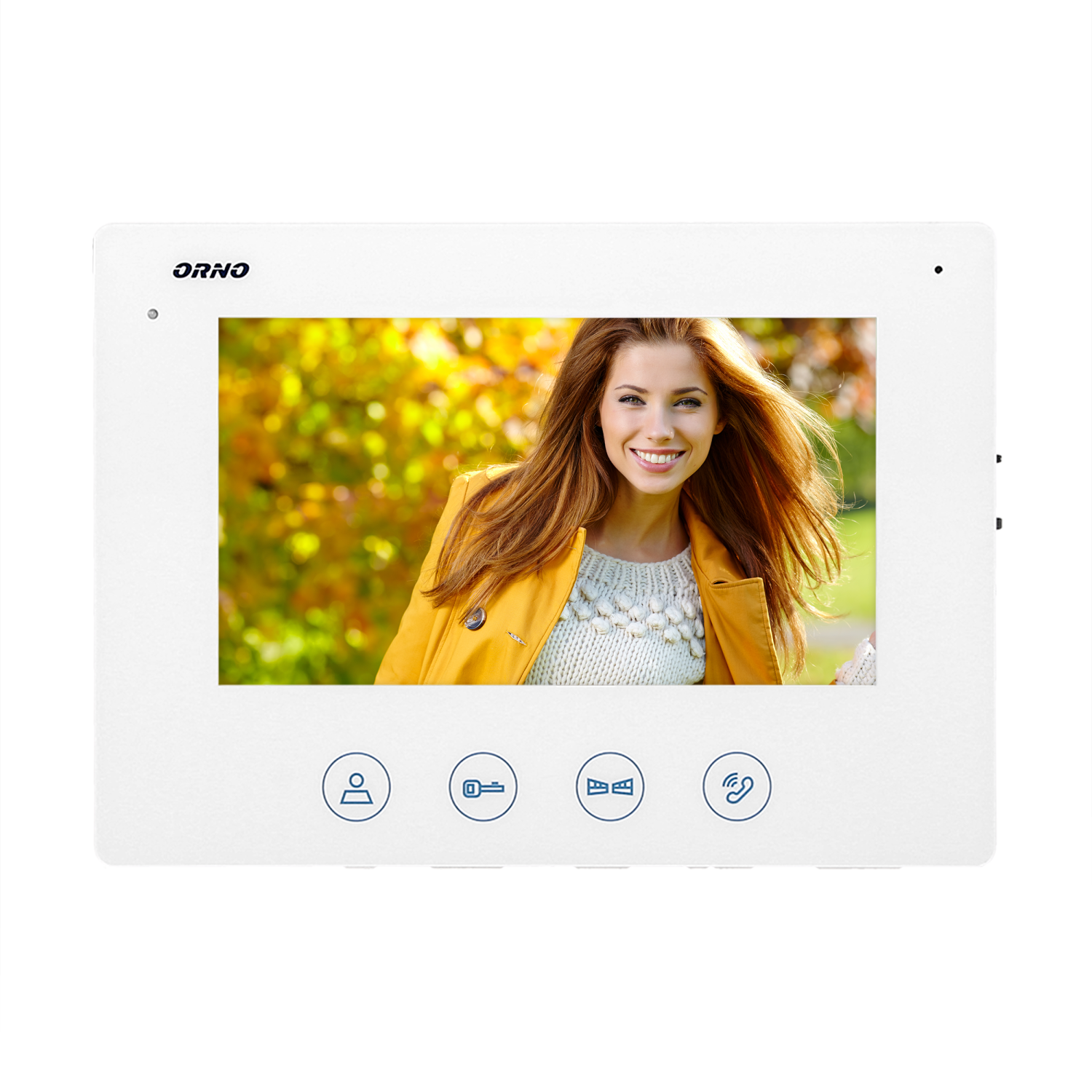

It is a modern videodoorphone equipped with an ultra slim LCD monitor with smooth adjustment of parameters (brightness, color contrast, volume tone & conversation), 16 selectable ringtones, a touch panel with backlit buttons and an additional gate control function. External panel with CMOS camera requires surface mounting. It's equipped with infrared lighting that enables night vision and backlit place for name. Numeric keypad allows one to open the lock with a code. DC power supply from the power supply to the 15V DC socket. Electric strike doesn’t require additional power supply.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 12V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 2 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |

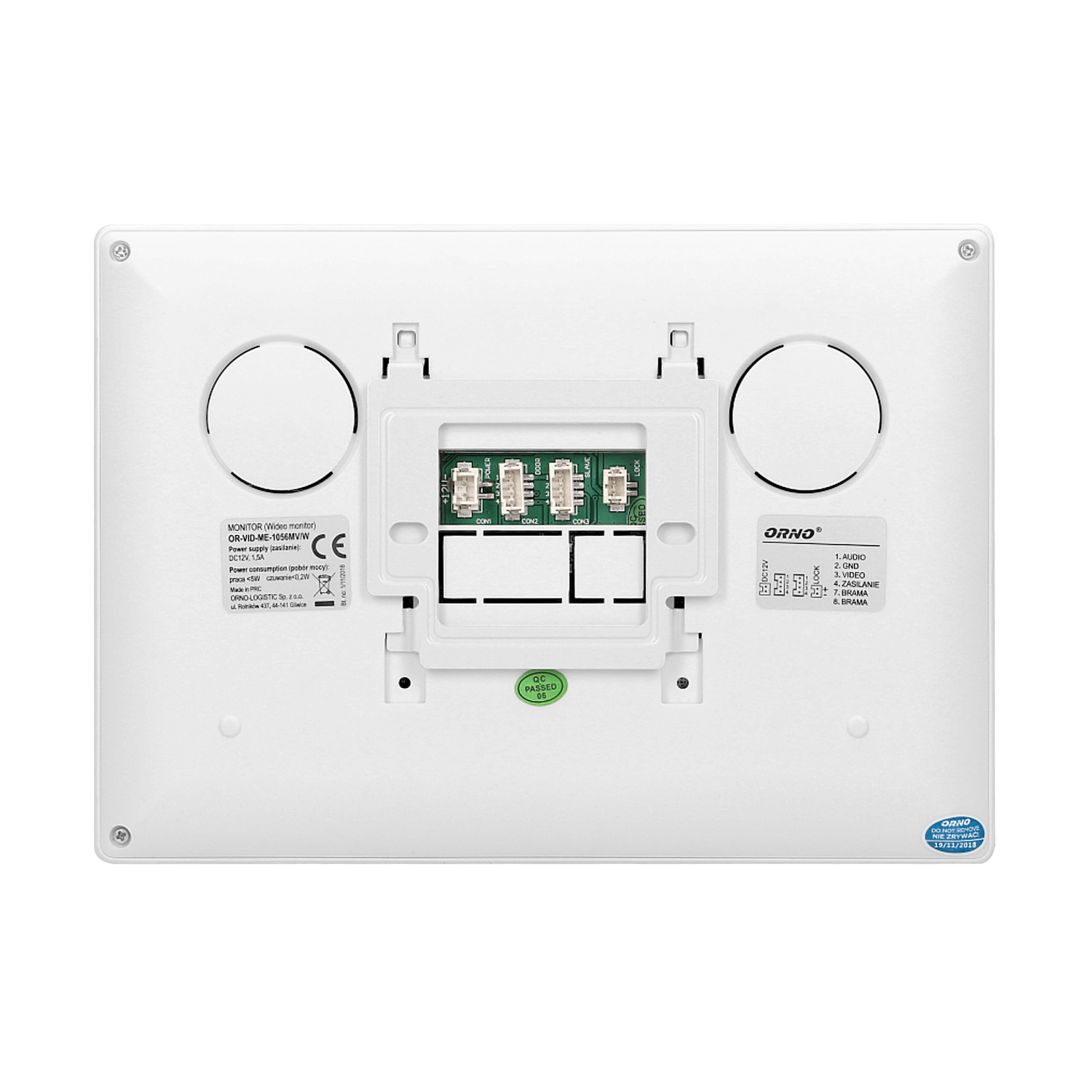

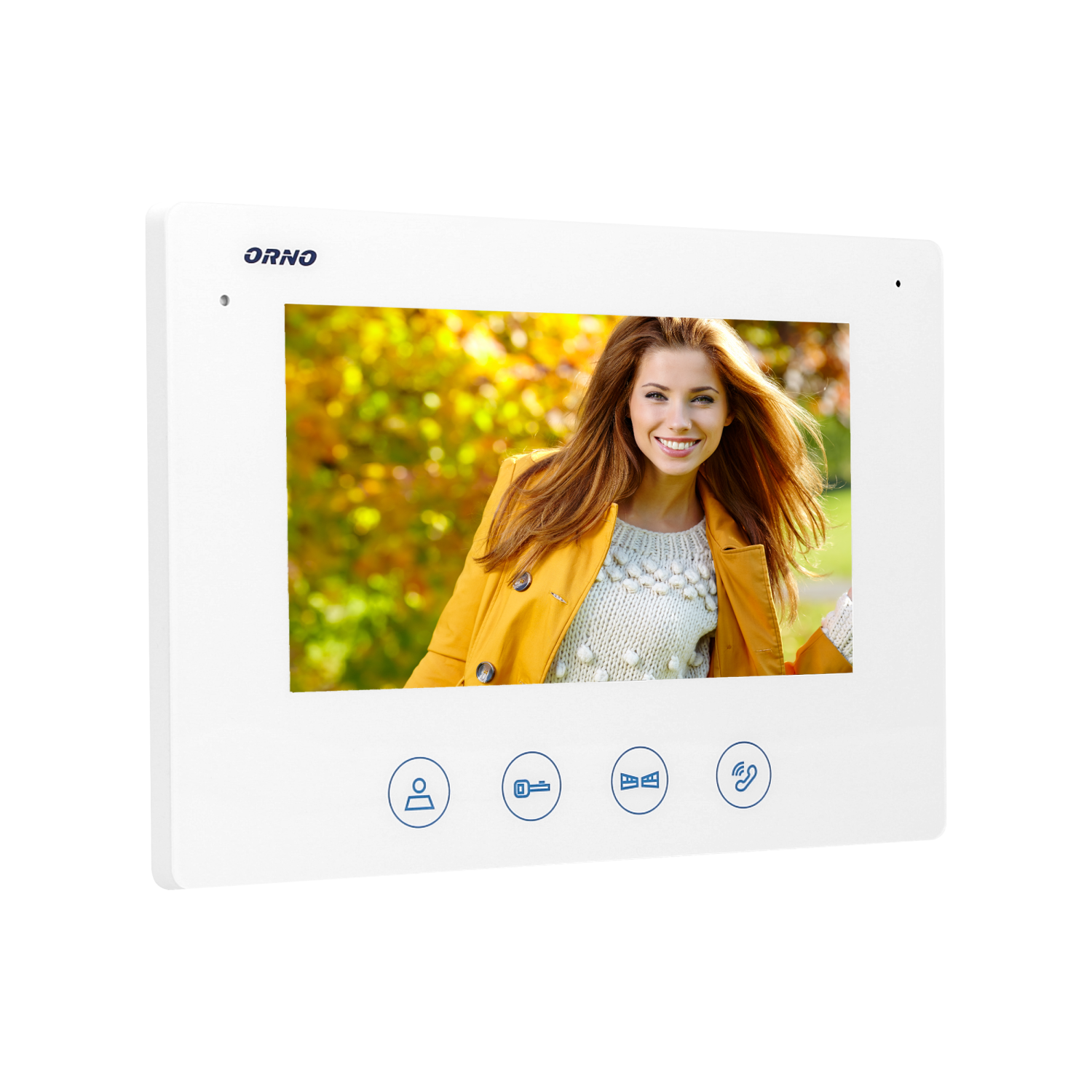

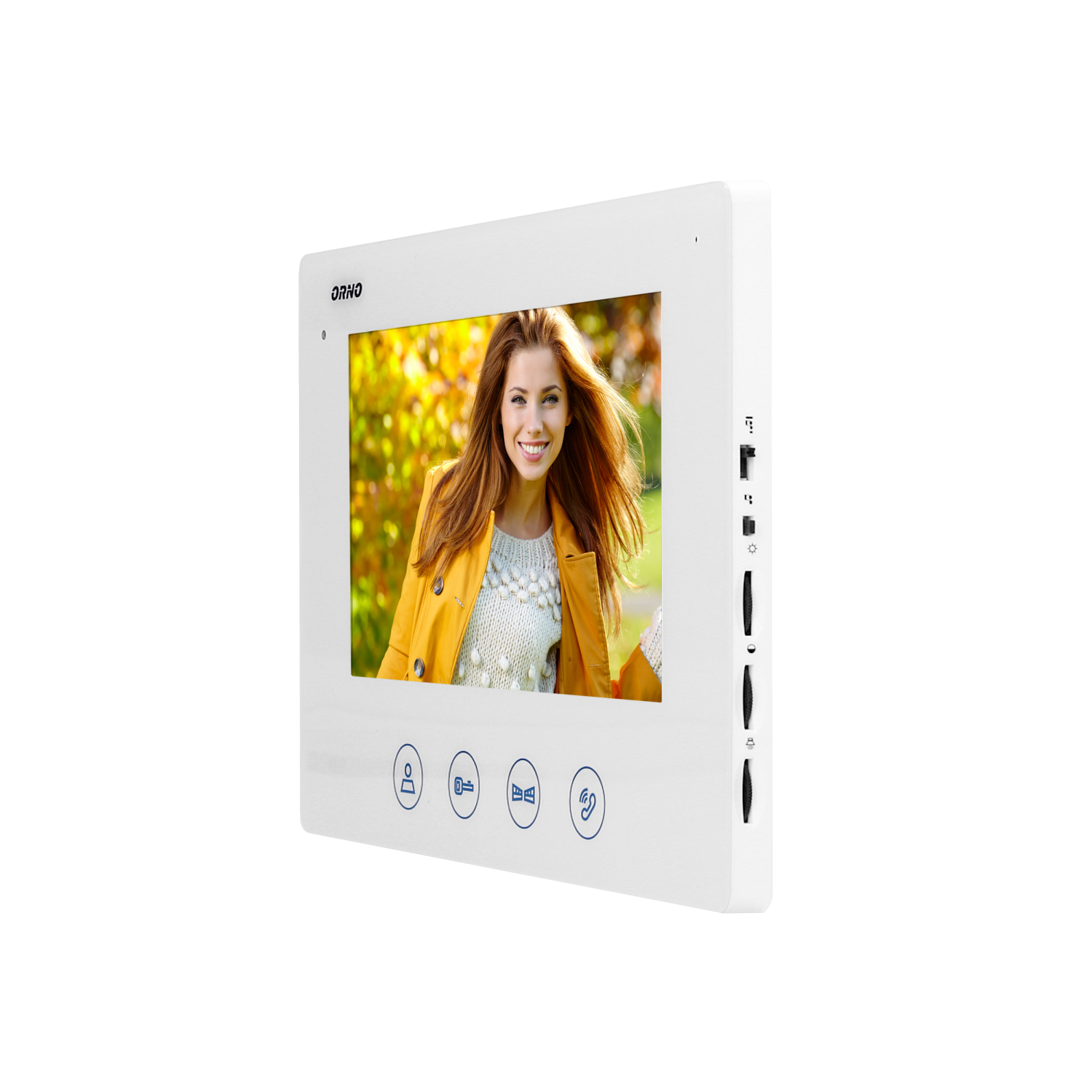

| Monitor: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 7" |
| Screen resolution: | 800x480 |
| Touch screen: | nie |
| Property picture system: | Kolor |
| With memory function: | nie |
| Internal communication: | nie |
| Number of ringtones: | 16 |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Dimensions of the monitor - Width [mm]: | 214 |
| Dimensions of the monitor - Height [mm]: | 152 |
| Dimensions of the monitor - Depth [mm]: | 18 |

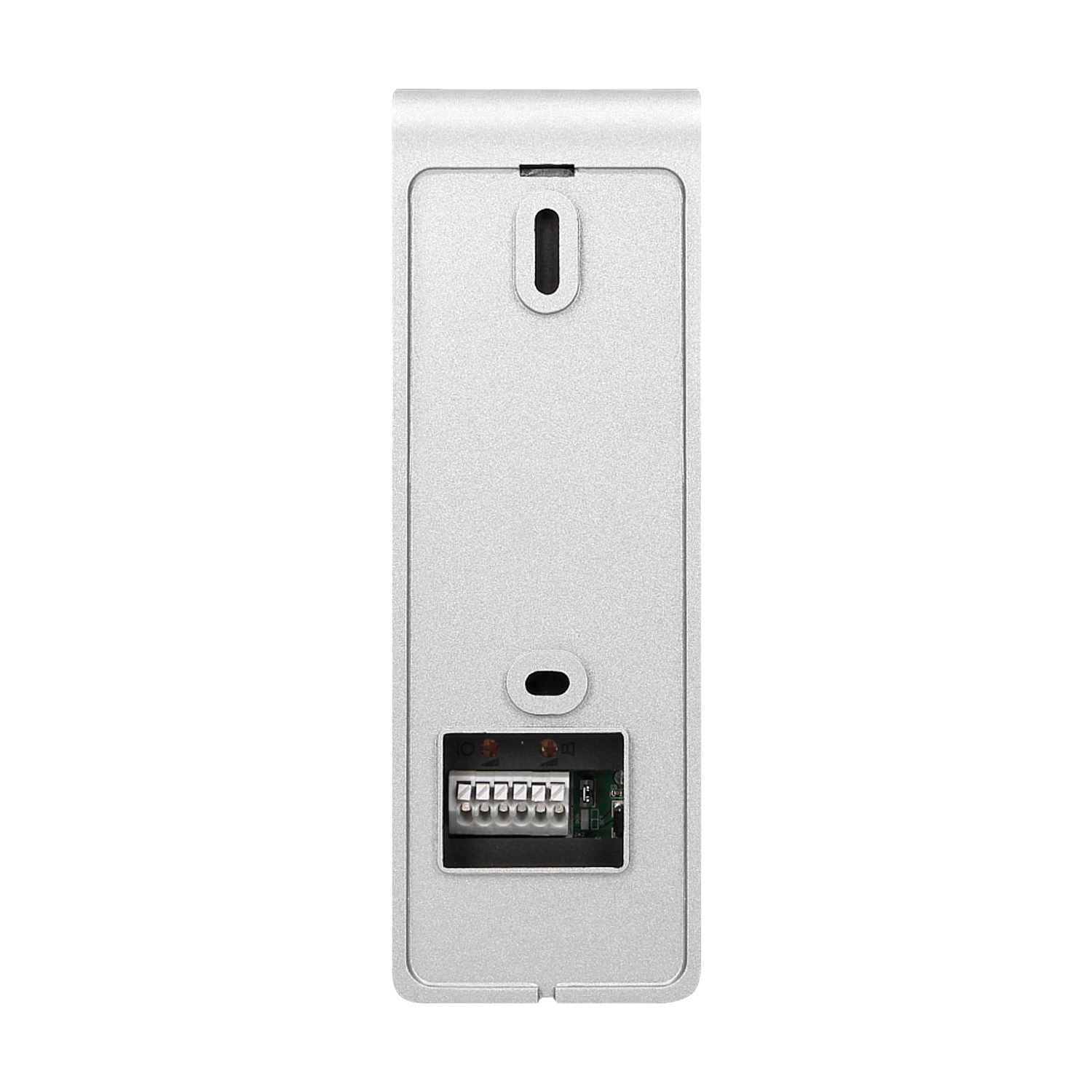

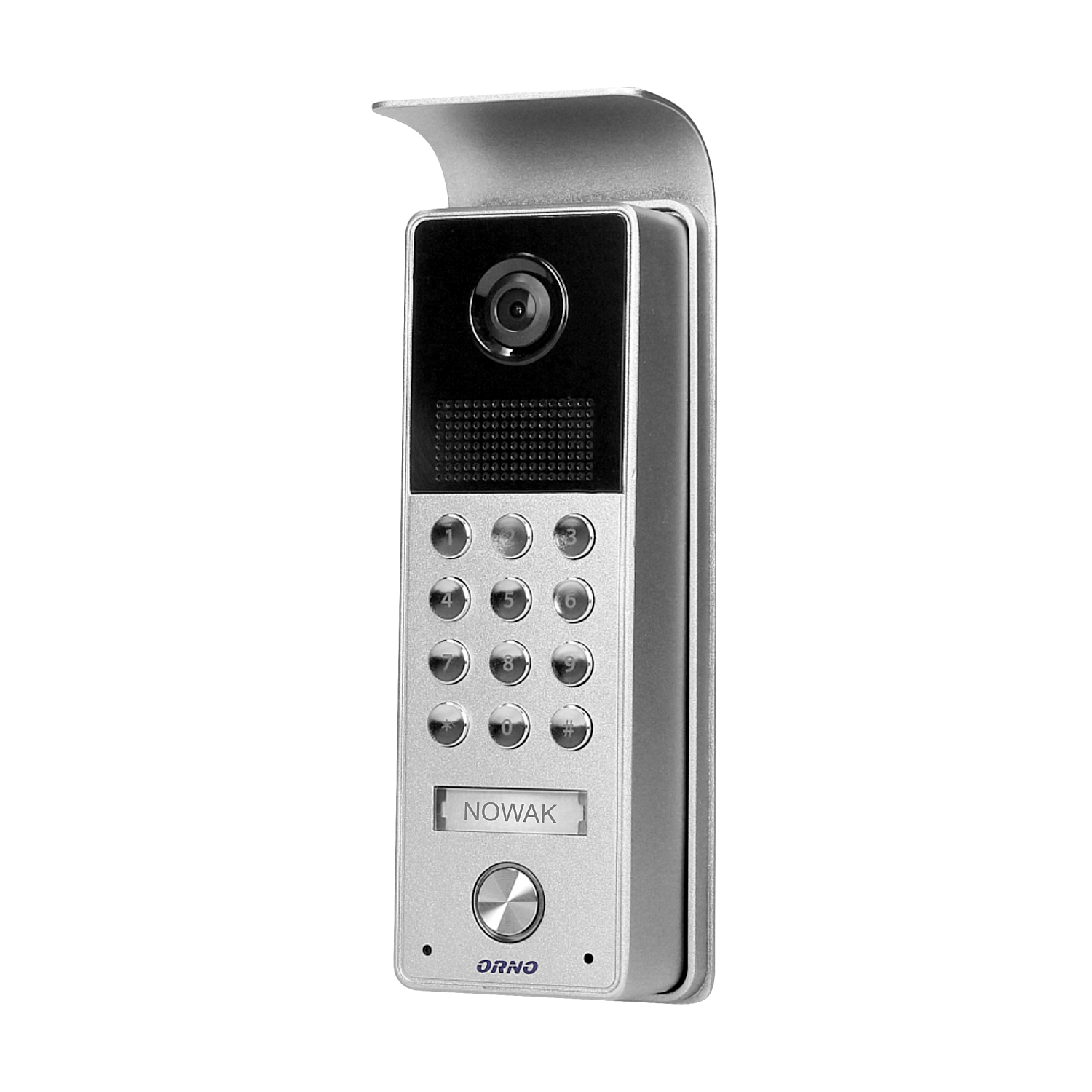

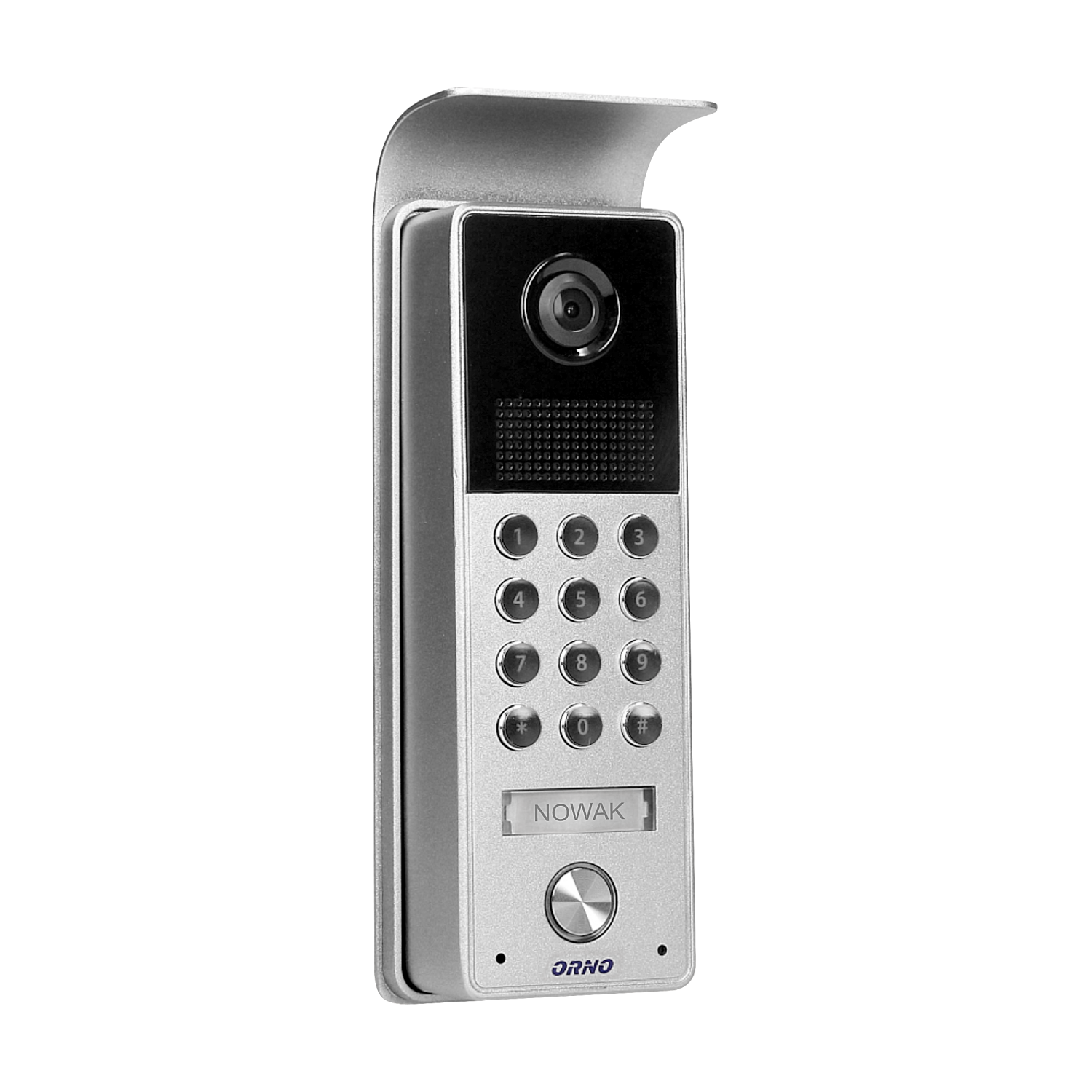

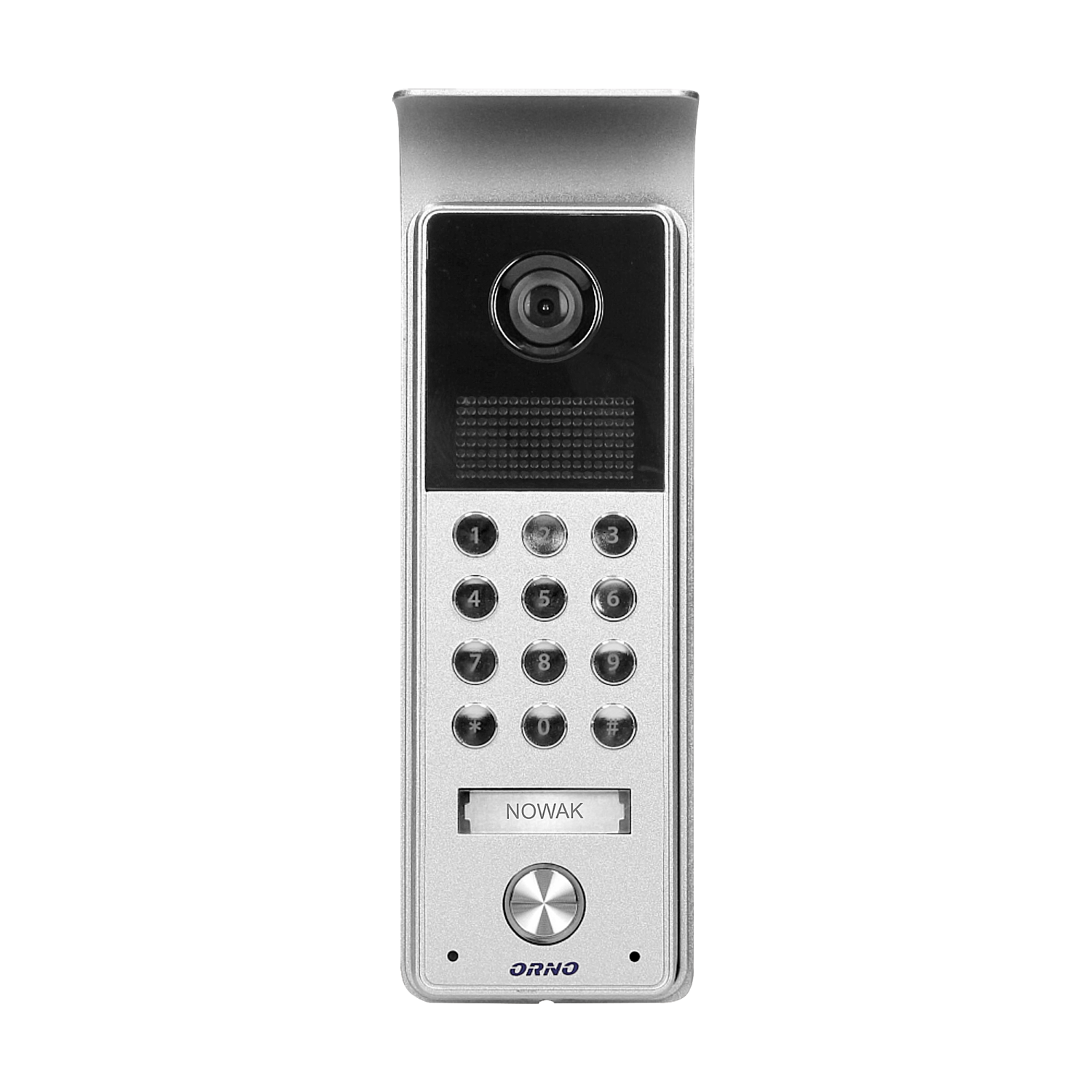

| External panel: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 700 TVL |
| Camera view angle (vertical): | 77 ° |
| Camera view angle (horizontal): | 100 ° |
| Night light: | IR |
| With digital door code: | tak |
| Card and proximity tags reader: | nie |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP65 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 50 |
| Height [mm]: | 150 |
| Depth [mm]: | 26 |
