Single-family videodoorphones
Until on stock

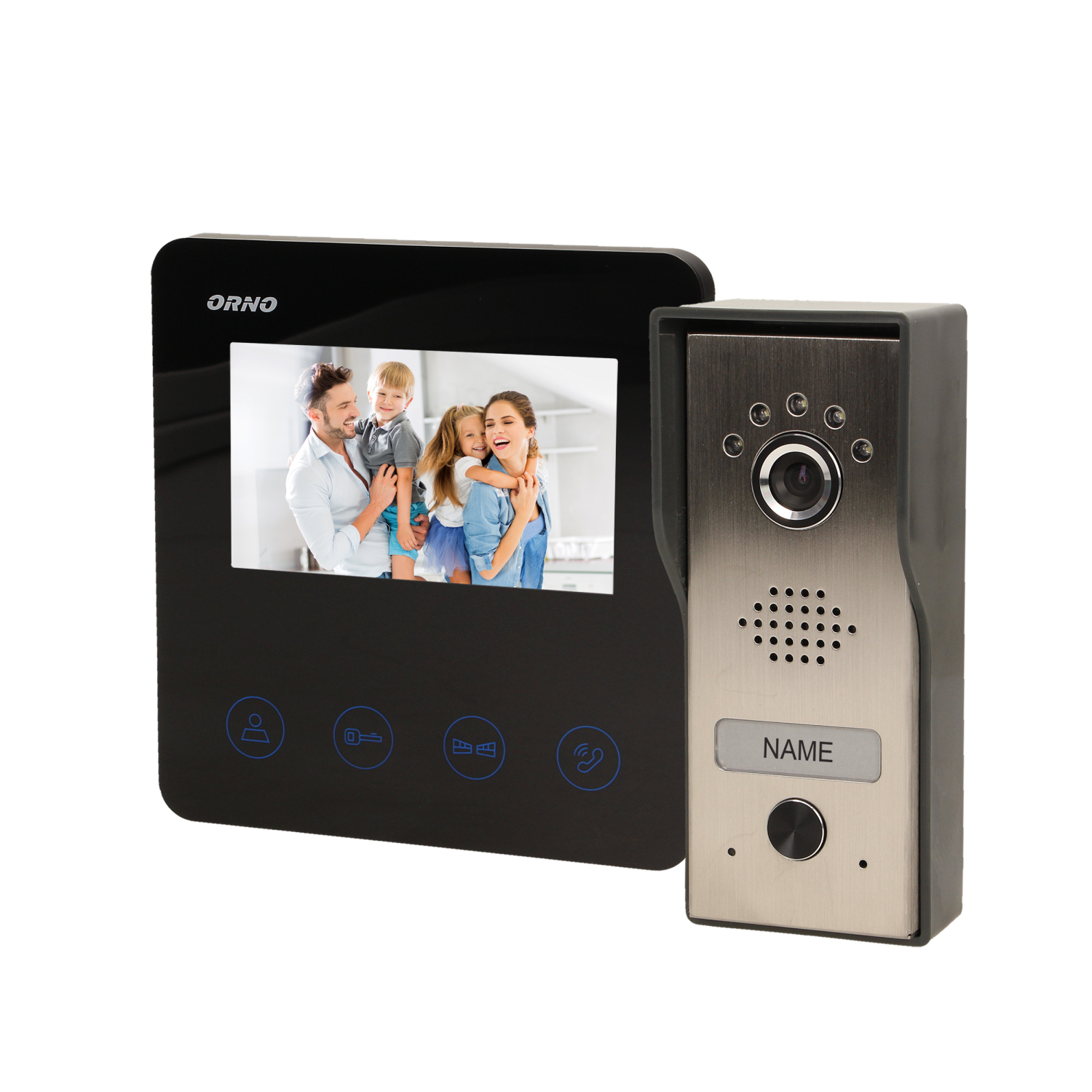

Ultra slim LCD monitor, with smooth adjustment of parameters (brightness, colour & volume) 16 selectable ringtones A touch panel with backlit buttons External panel with camera requires surface mounting It's equipped with super bright LEDs that enable night vision Additional gate control function Electric strike doesn't require additional power supply The intercom function (after the application of an additional monitor) enables communication between monitors.
| General information: | |
|---|---|
| Type: | jednorodzinny |
| With video: | tak |

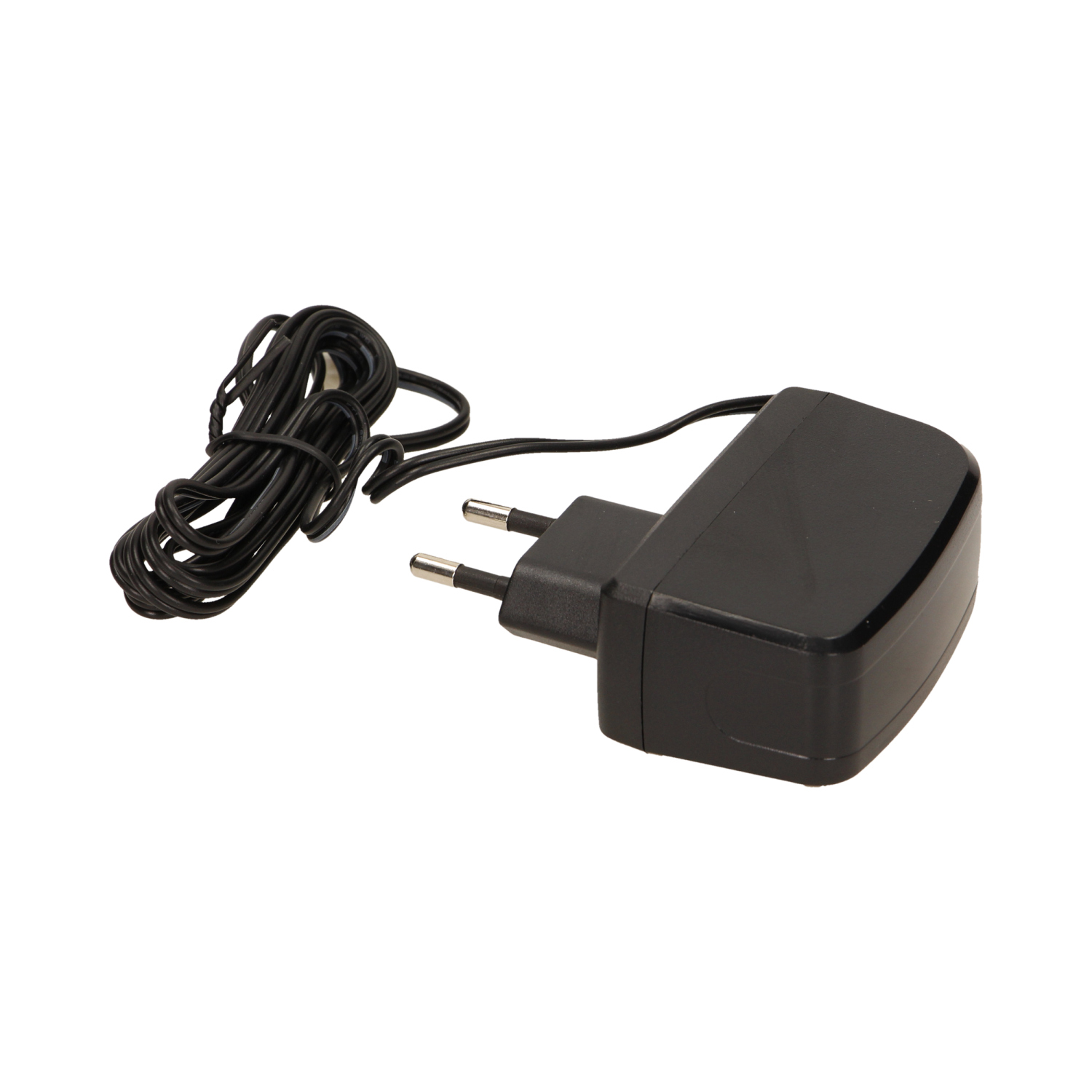

| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 12V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | System wieloprzewodowy |

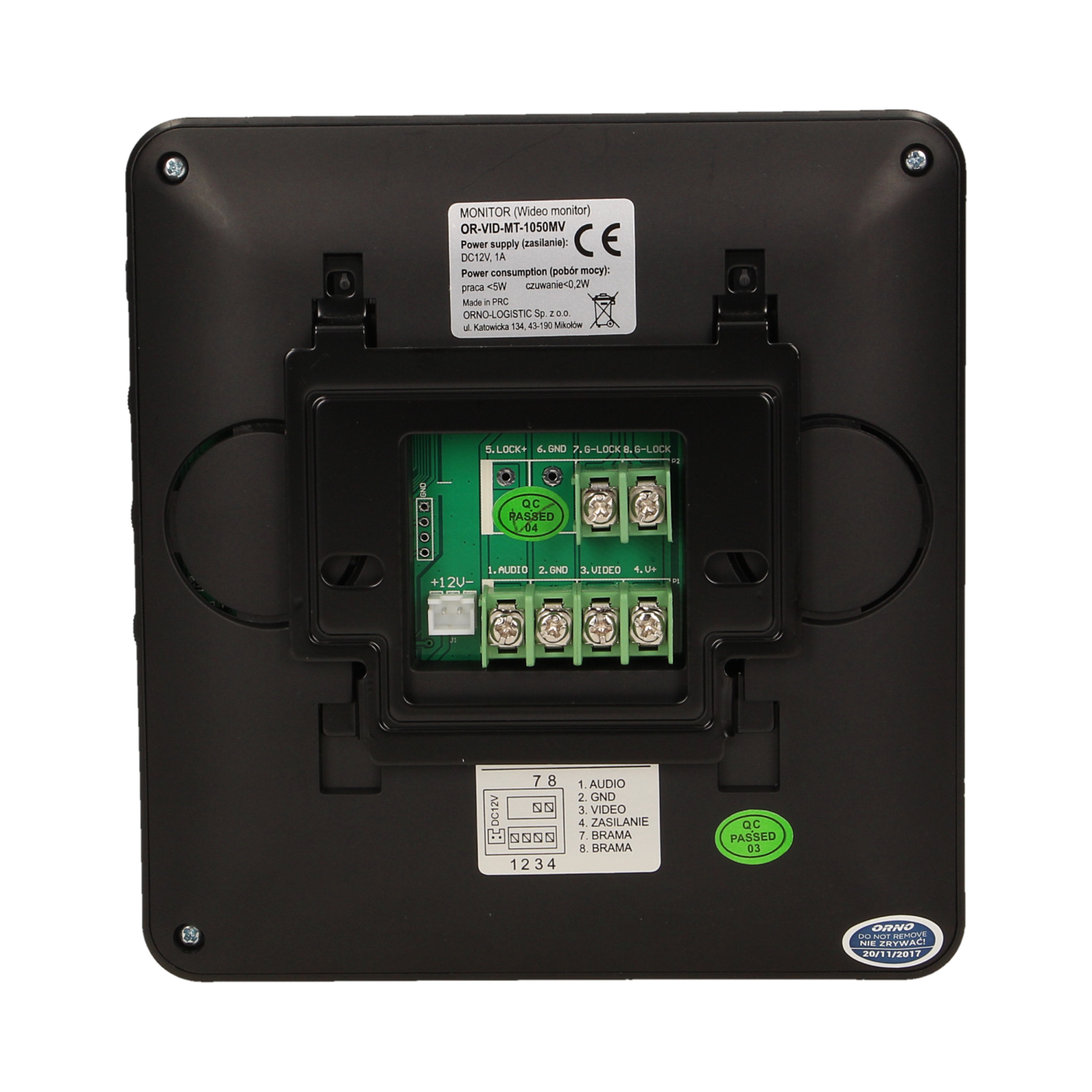

| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 2 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |

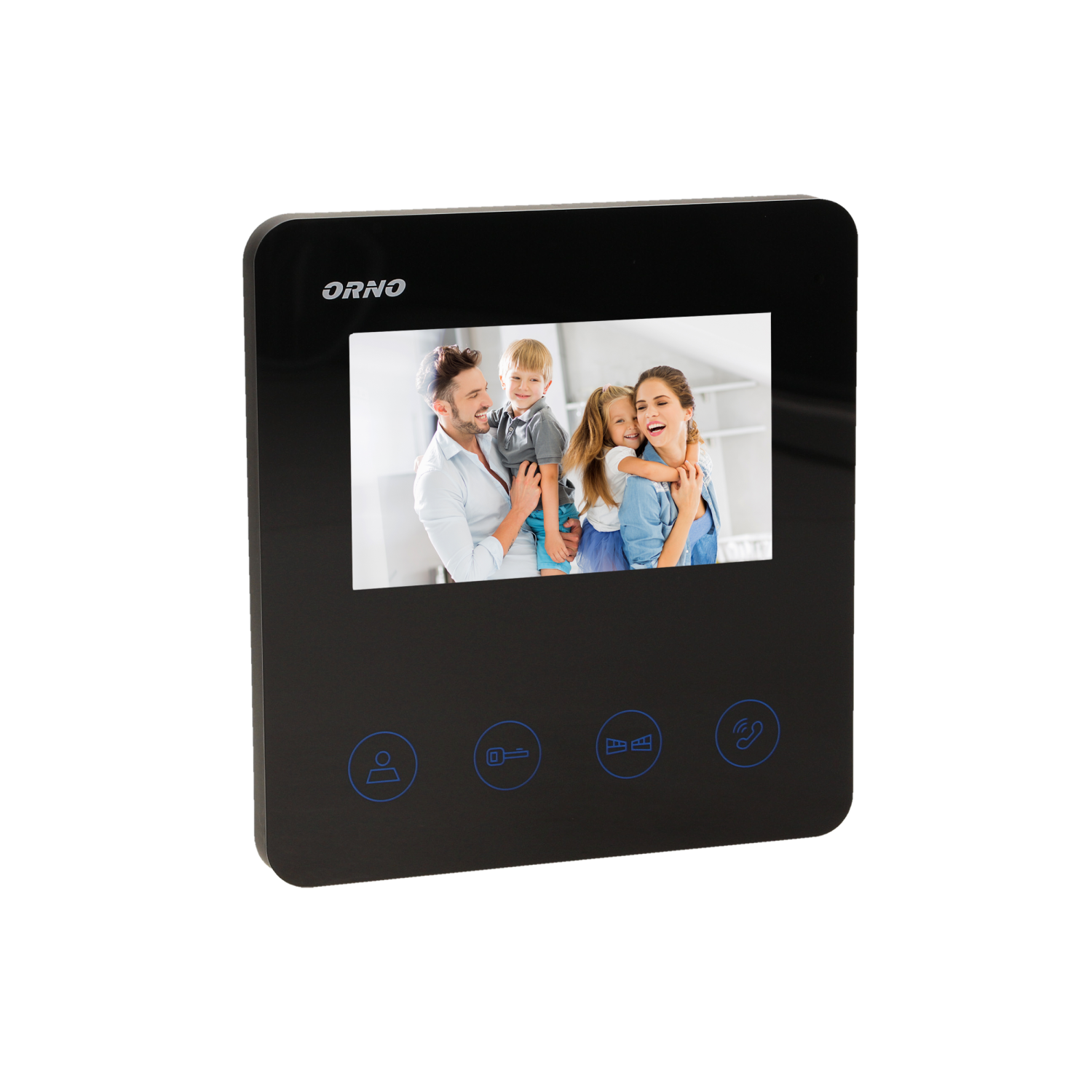

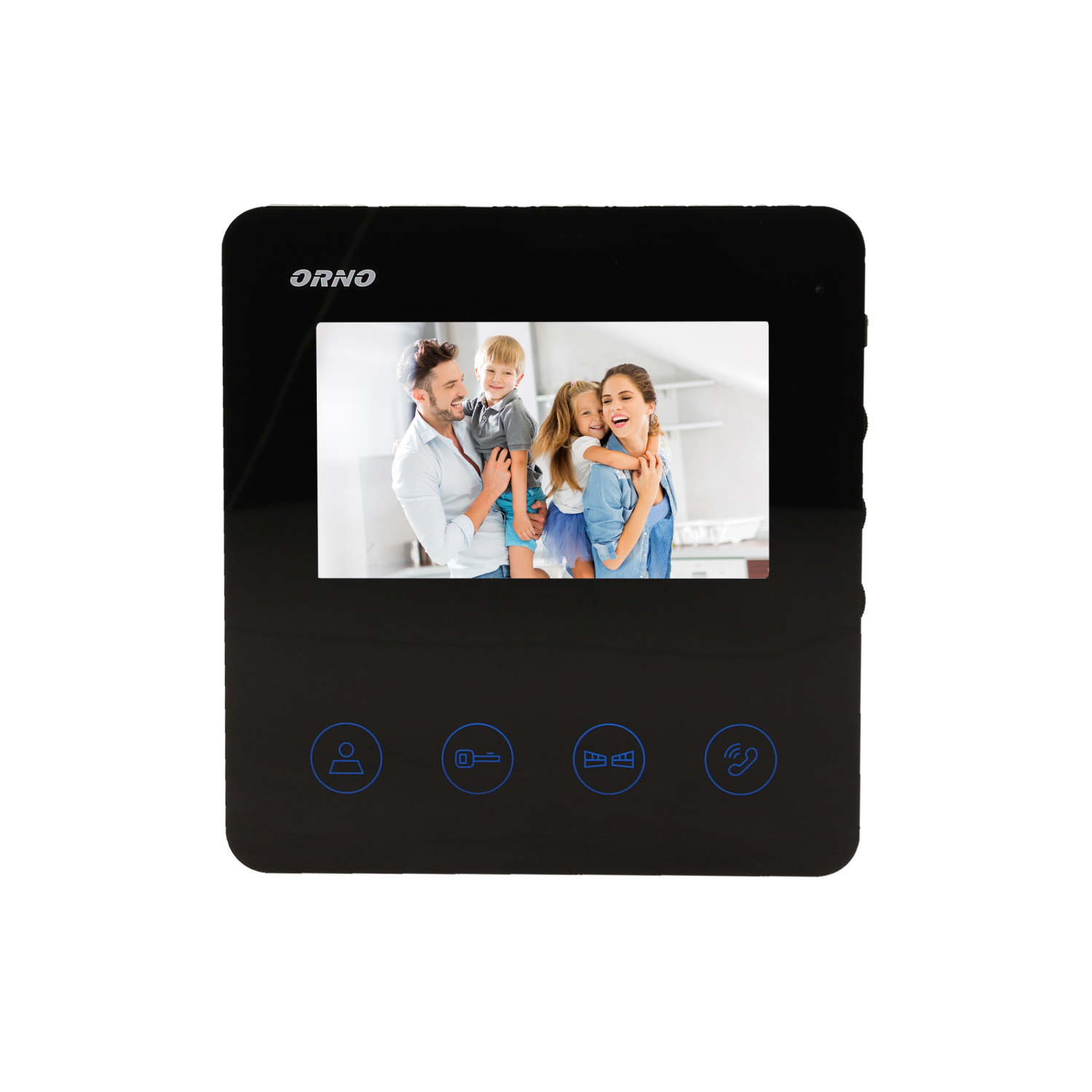

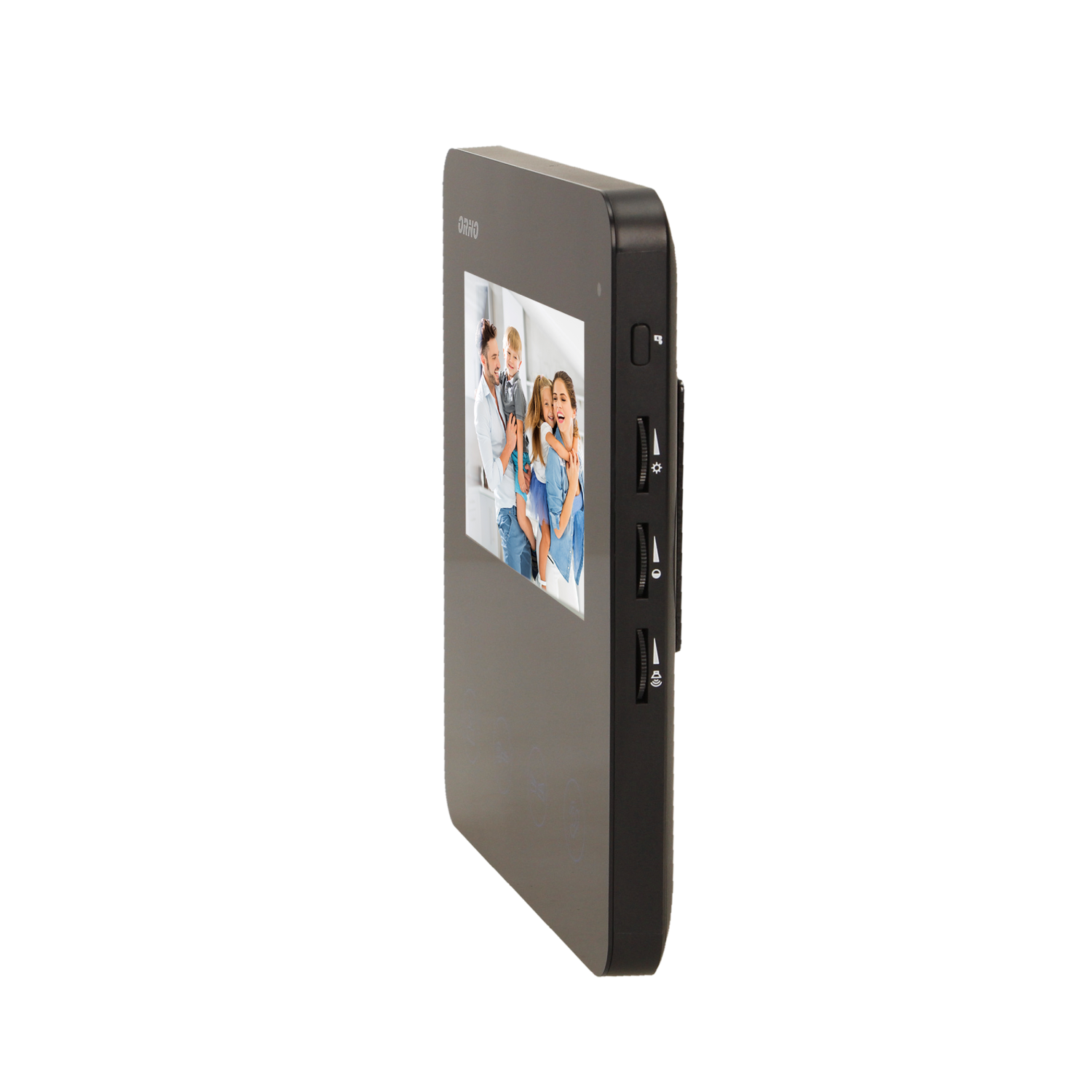

| Monitor: | |
|---|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 4.3" |
| Screen resolution: | 480x272 |
| Touch screen: | nie |
| Picture system: | PAL/NTSC |
| Property picture system: | Kolor |
| With memory function: | nie |
| Internal communication: | tak |
| Number of ringtones: | 16 |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarny |
| Dimensions of the monitor - Width [mm]: | 142 |
| Dimensions of the monitor - Height [mm]: | 145 |
| Dimensions of the monitor - Depth [mm]: | 19 |

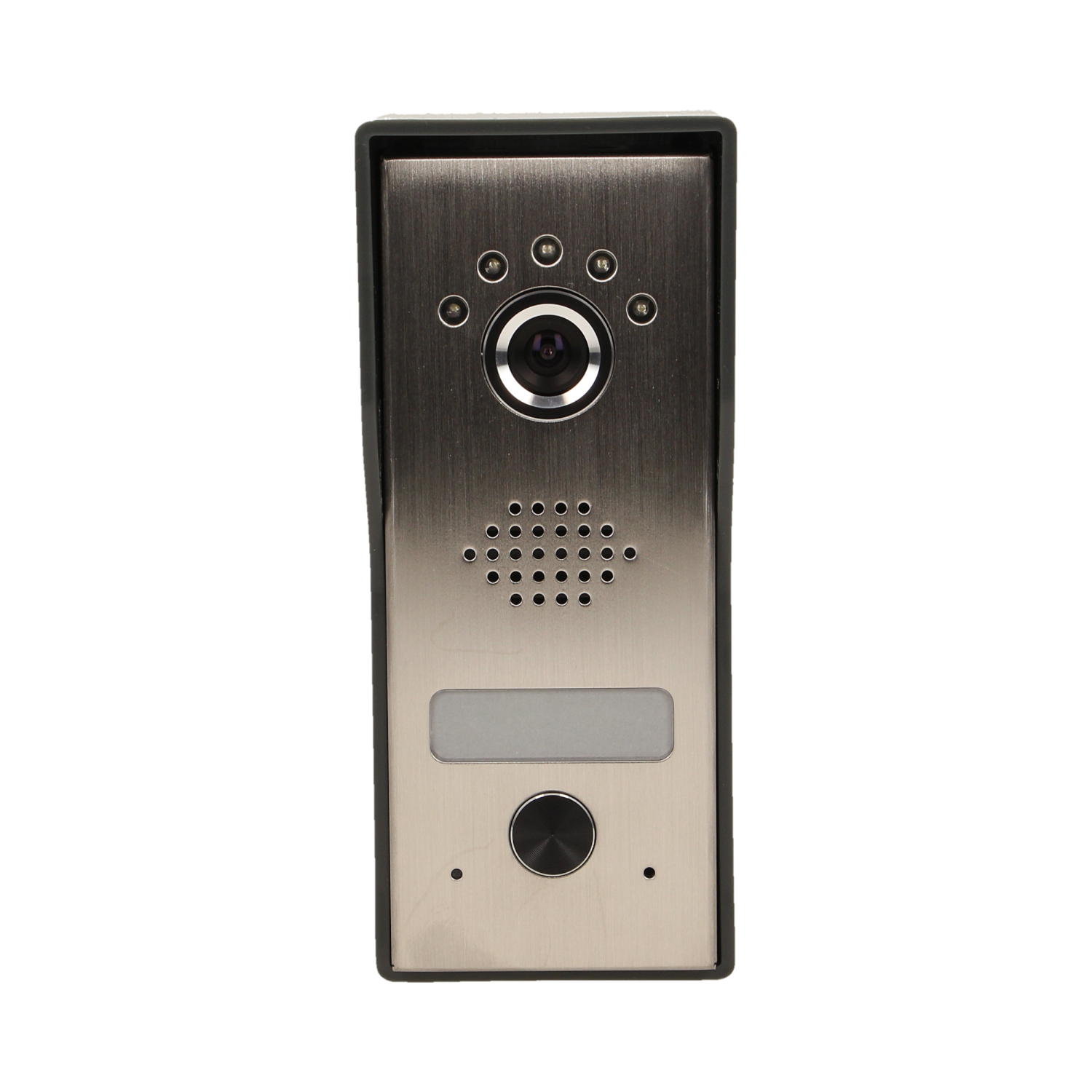

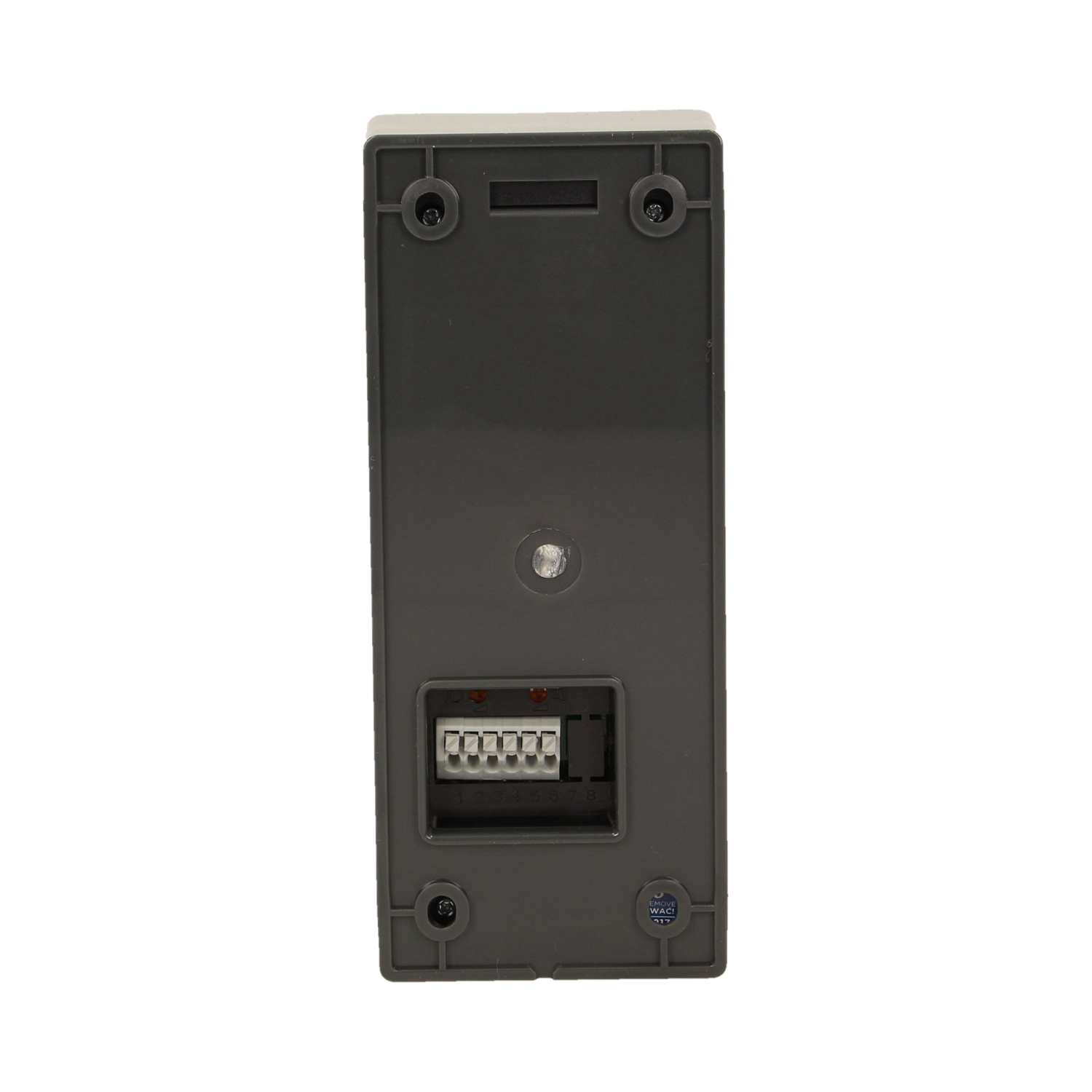

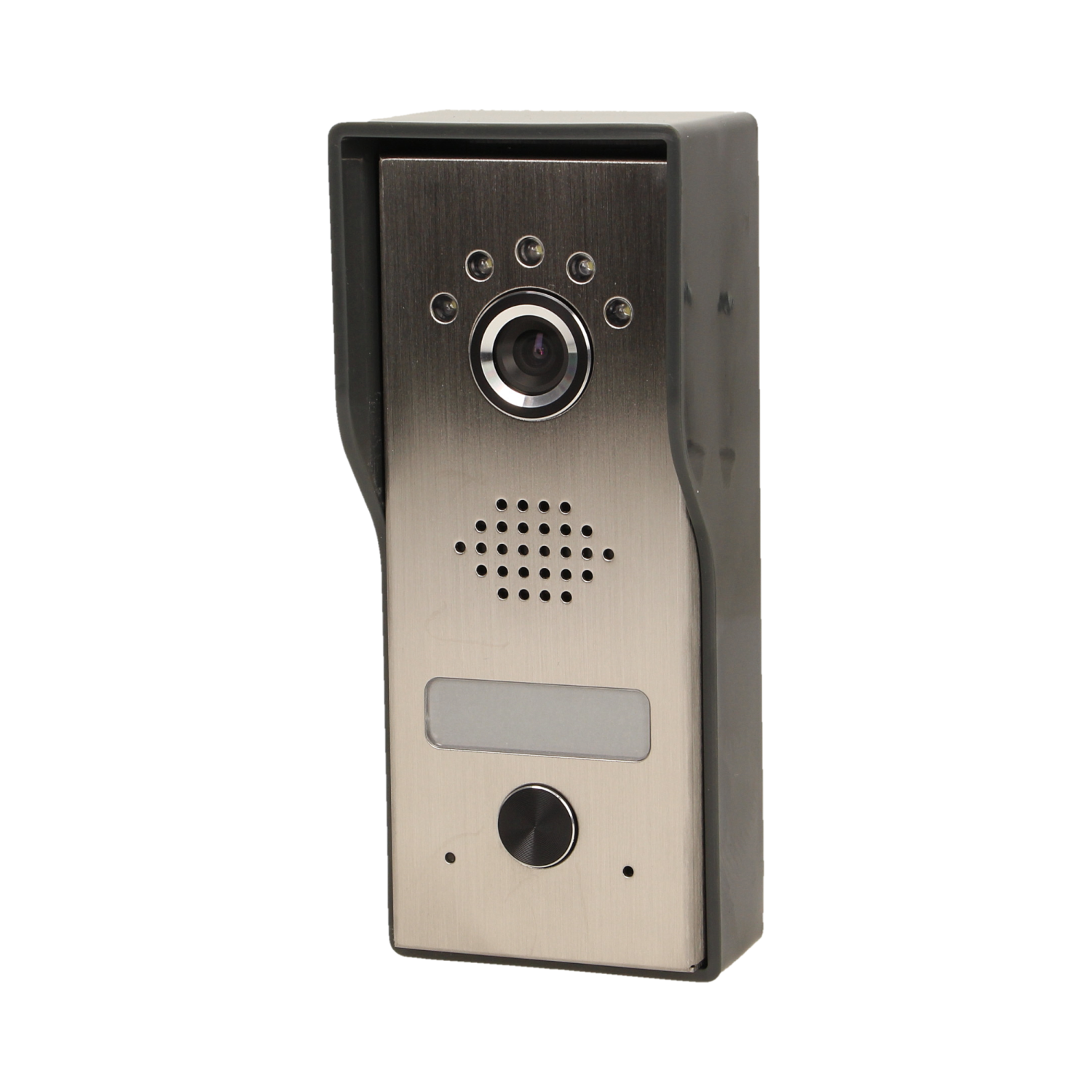

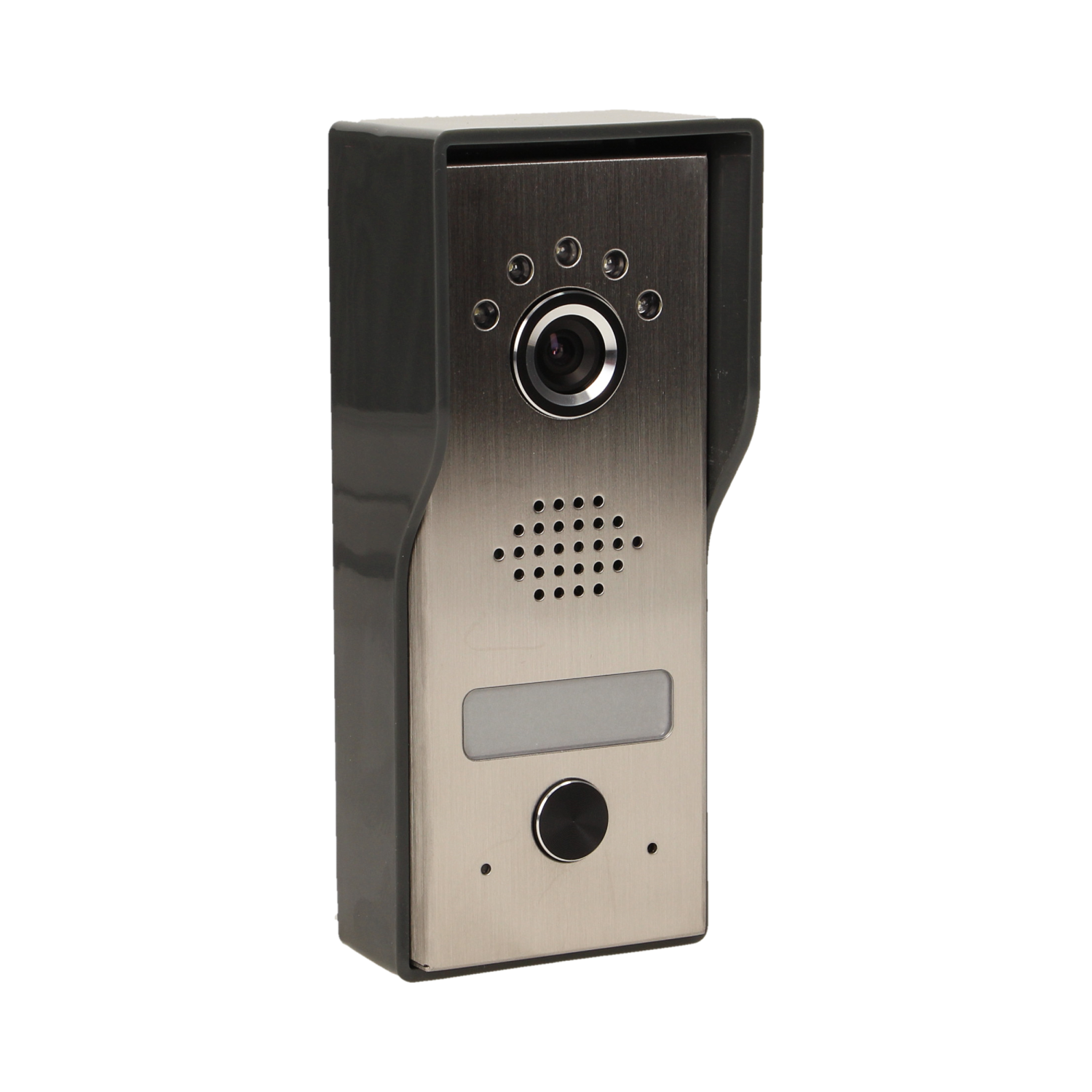

| External panel: | |
|---|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 700 TVL |
| Camera view angle (vertical): | 36 ° |
| Camera view angle (horizontal): | 49 ° |
| Night light: | białe LED |
| With digital door code: | nie |
| Card and proximity tags reader: | nie |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IP44 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 58 |
| Height [mm]: | 145 |
| Depth [mm]: | 30 |
