Single-family videodoorphones
Until on stock

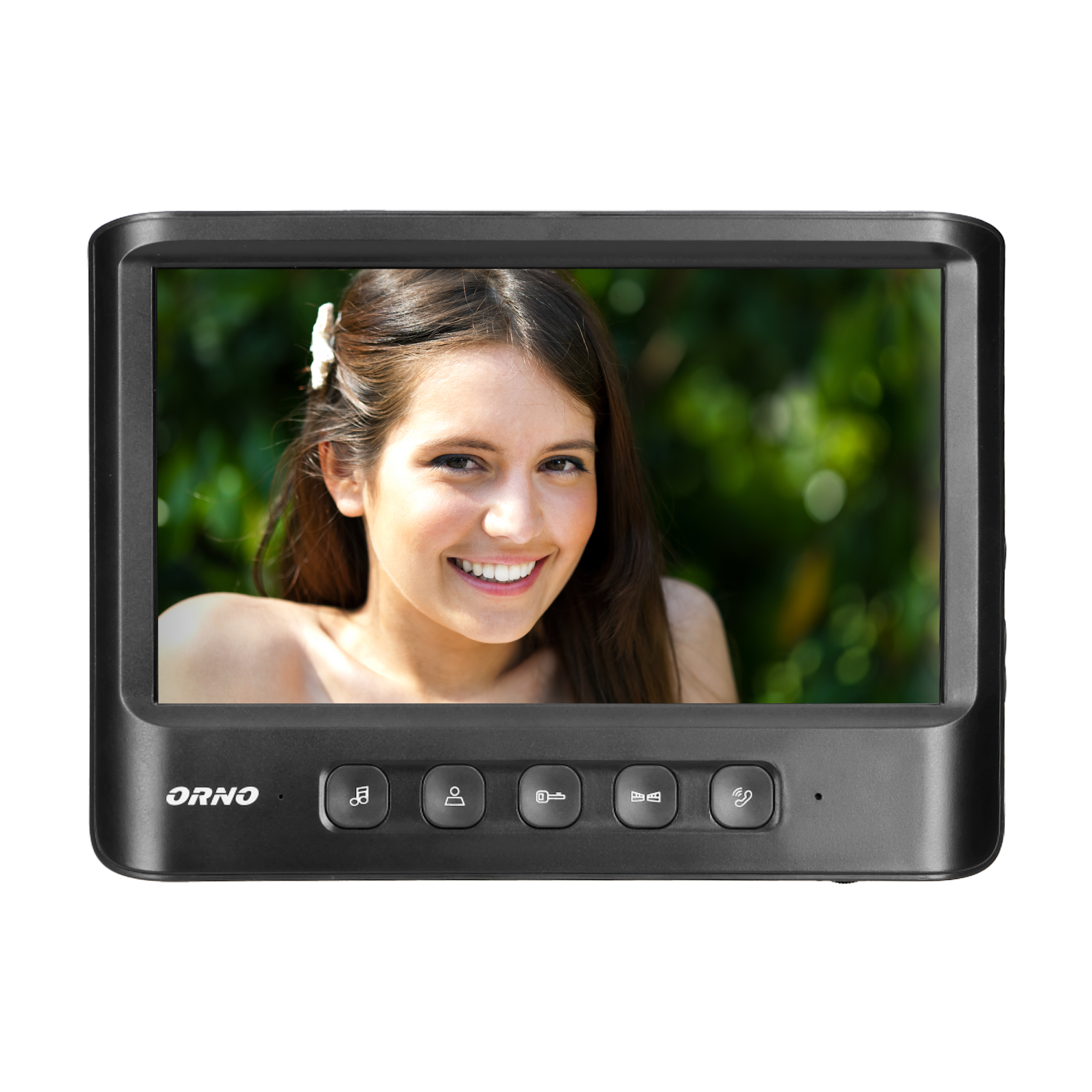

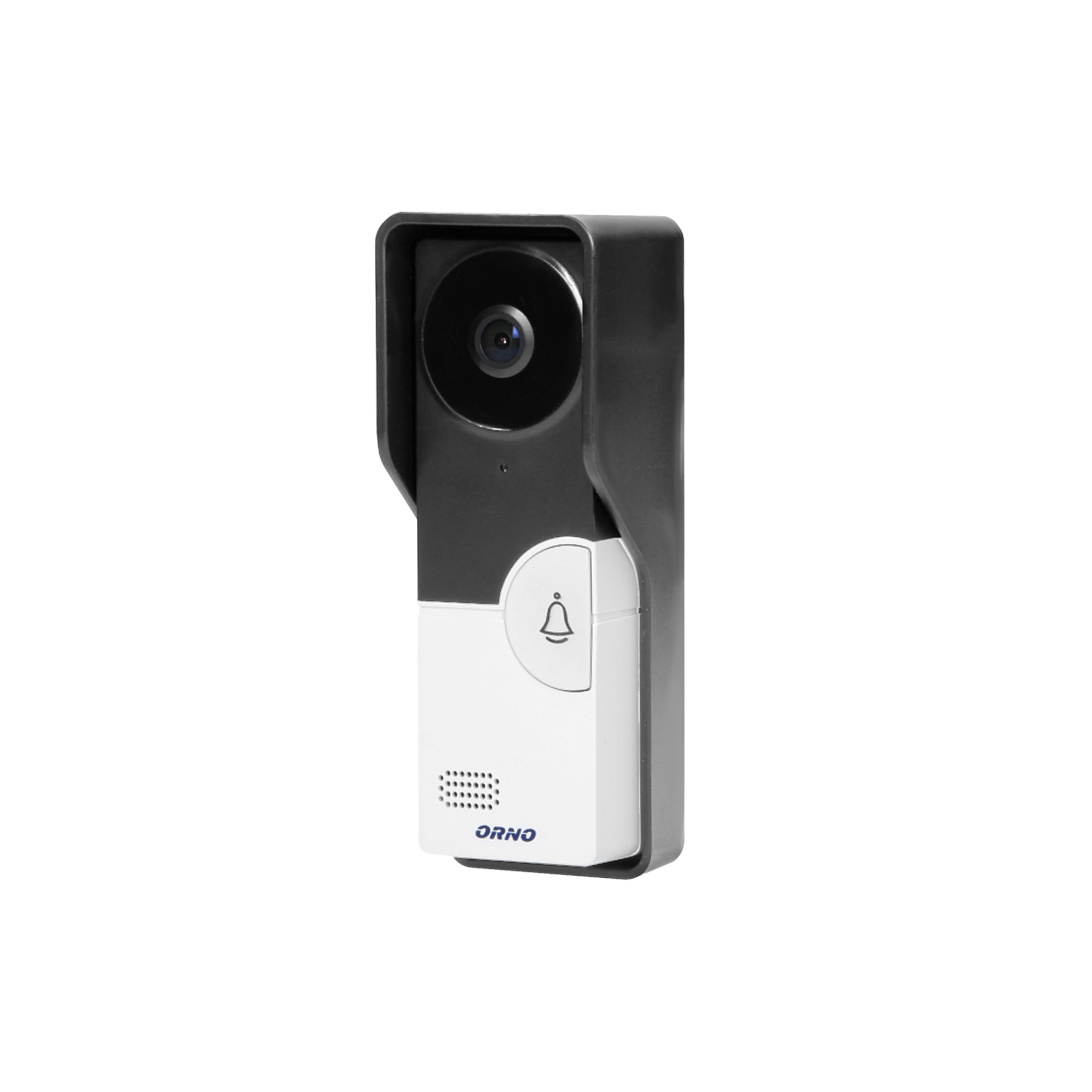

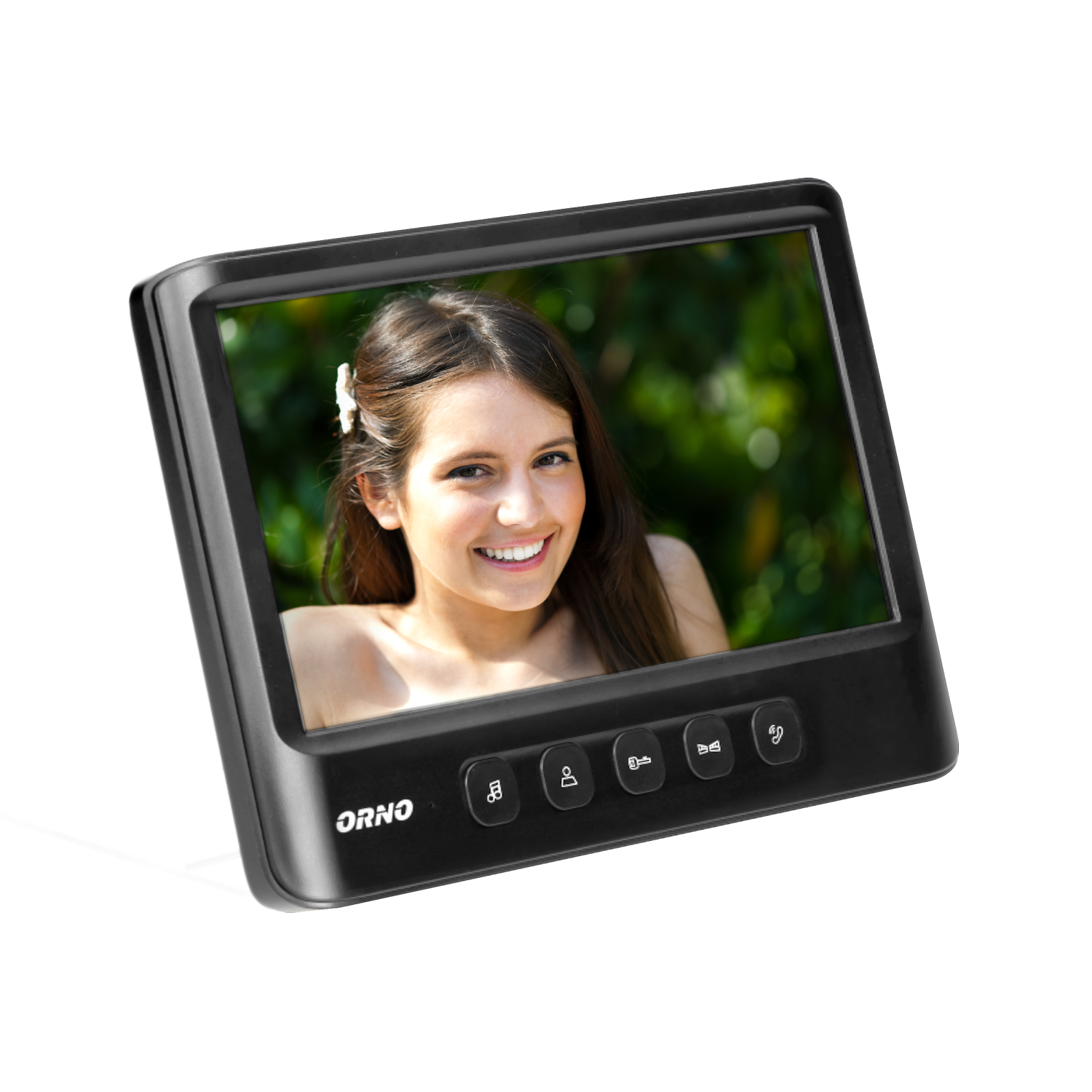

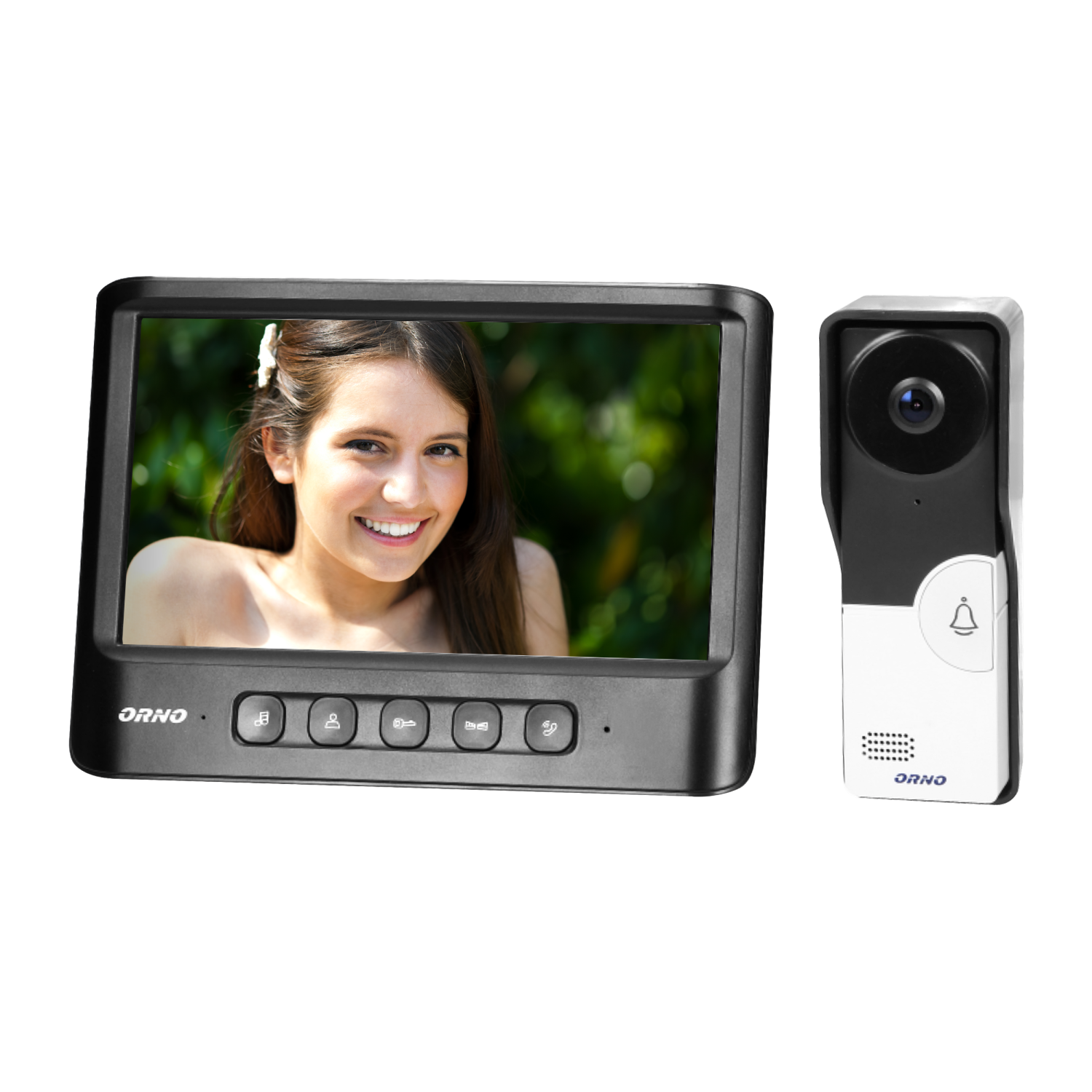

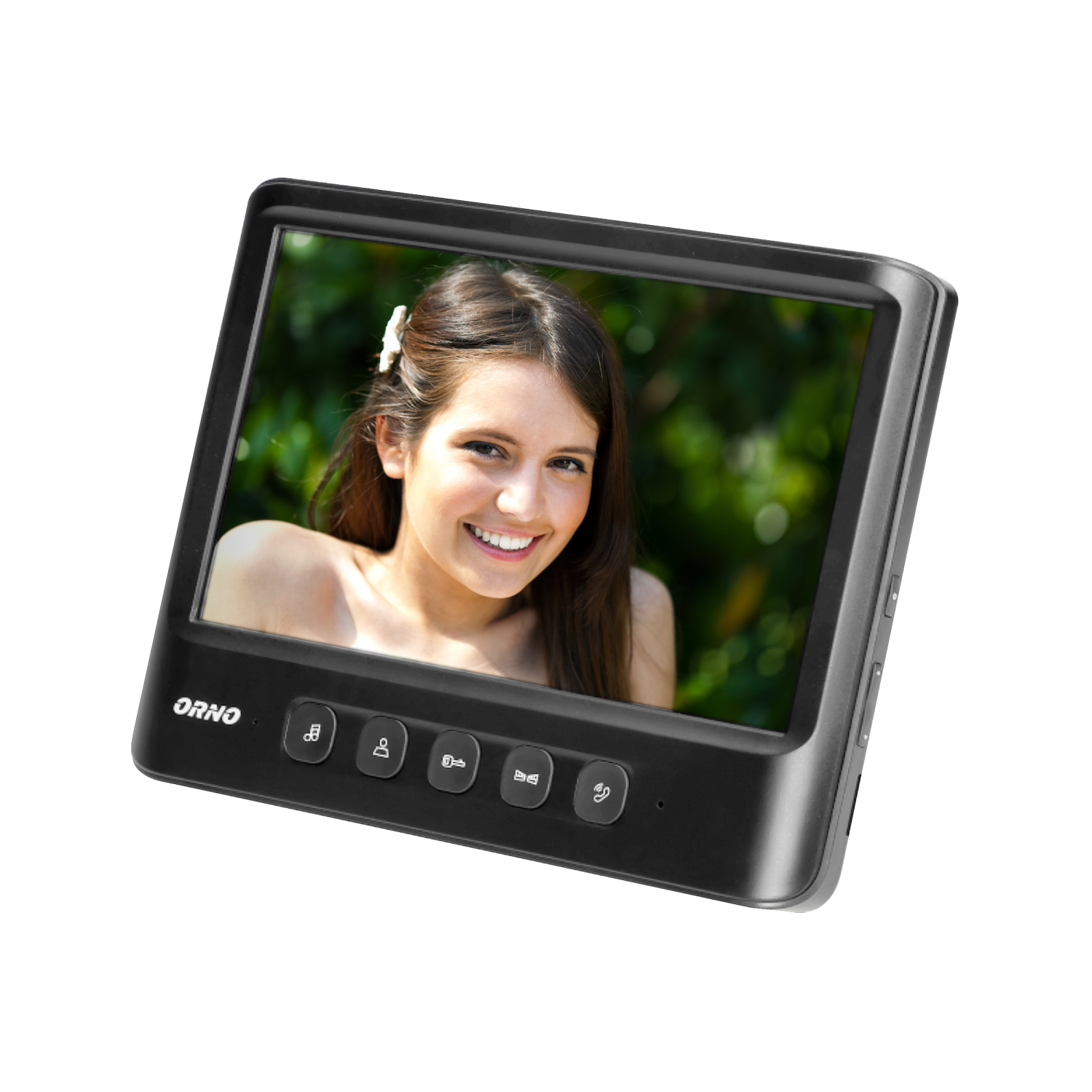

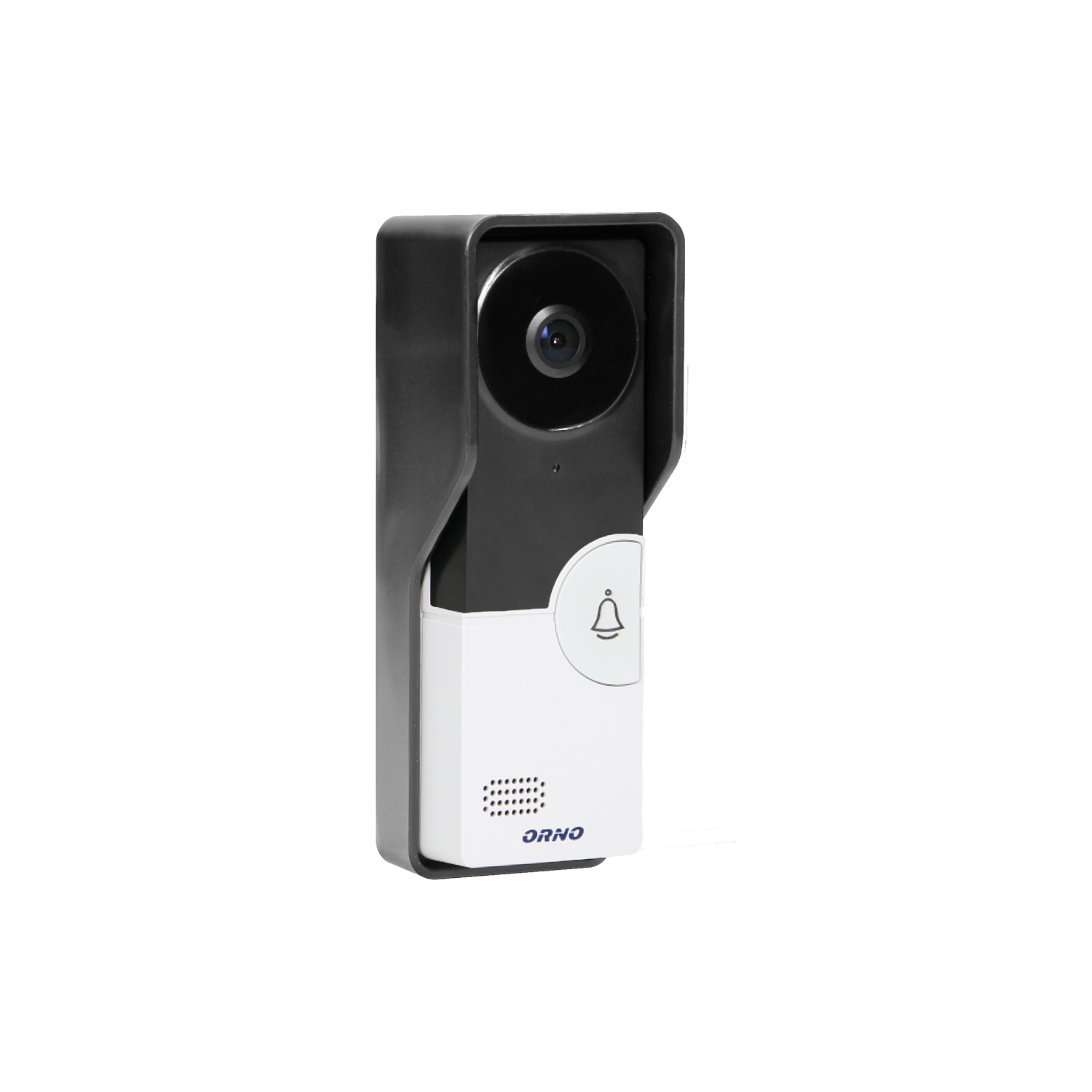

A modern videodoorphone, available in two colours (white and black), equipped with an ultra slim 7" LCD monitor with smooth adjustment of parameters (brightness, color contrast and volume of conversation), 16 selectable ringtones and an additional gate control function. External panel with CMOS camera requires surface mounting (protective rain cover included). It’s equipped with infrared lighting that enables night vision and an additional gate control function. DC power supply from the power supply to the 12V DC socket. Electric strike with power consumption of no more than 500mA does not require additional power supply.
| General information: | |
|---|---|
| Type: | jednorodzinny |
| With video: | tak |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 12V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 4 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 2 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |
| With day/night function: | tak |
| Monitor: | |
|---|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Screen diagonal [inch]: | 7" |
| Screen resolution: | 800x480 |
| Touch screen: | nie |
| Property picture system: | Kolor |
| With memory function: | nie |
| Internal communication: | nie |
| Number of ringtones: | 16 |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarny |
| Dimensions of the monitor - Width [mm]: | 182 |
| Dimensions of the monitor - Height [mm]: | 133 |
| Dimensions of the monitor - Depth [mm]: | 19.5 |

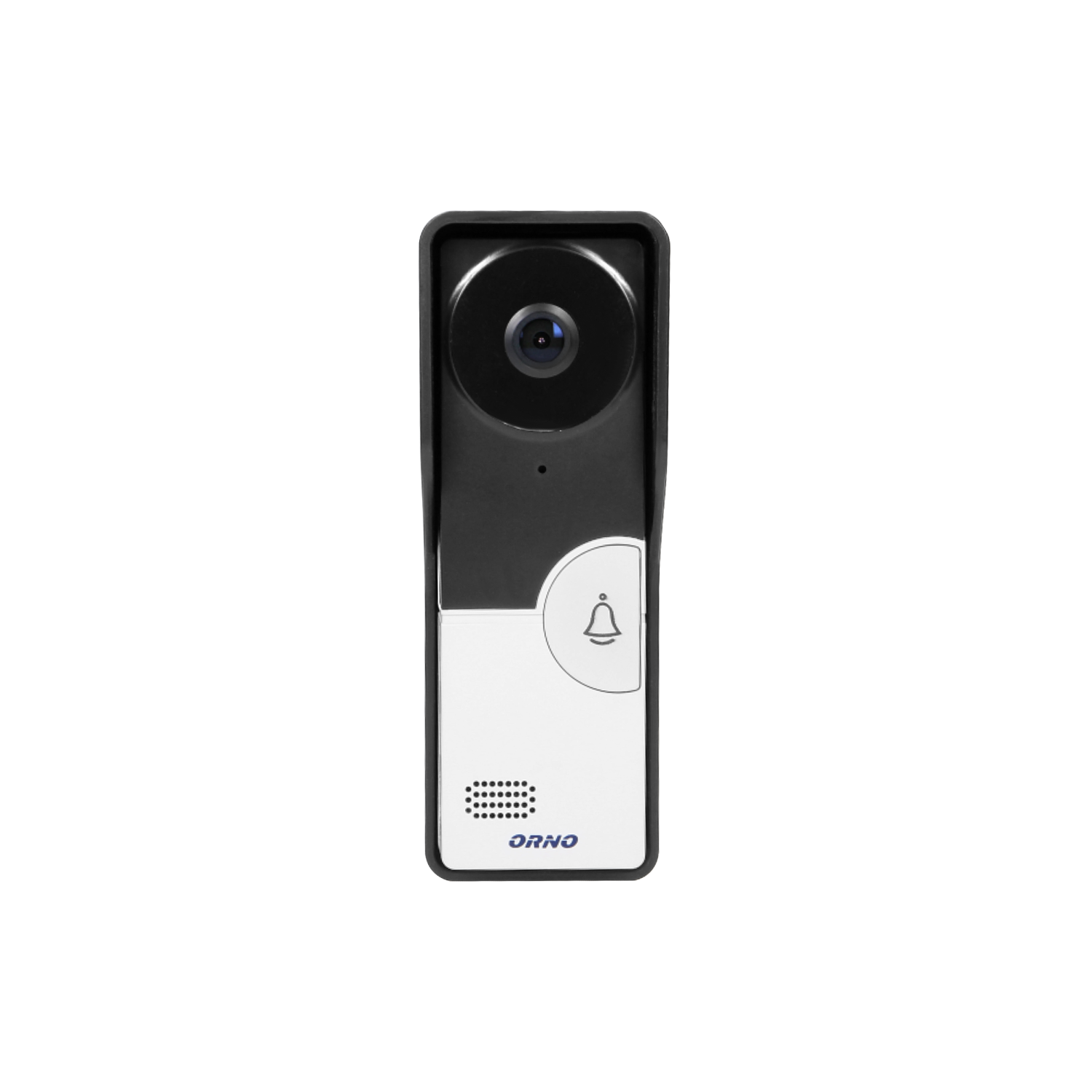

| External panel: | |
|---|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Camera resolution: | 600 TVL |
| Camera view angle (vertical): | 66 ° |
| Camera view angle (horizontal): | 86 ° |
| Night light: | IR |
| With digital door code: | nie |
| Card and proximity tags reader: | nie |
| Label space/information surface: | nie |
| With cover: | tak |
| Degree of protection (IP): | IP65 |
| Material outdoor station: | Tworzywo sztuczne |
| Colour outdoor station: | Biało-Czarny |
| Width [mm]: | 44.5 |
| Height [mm]: | 124.5 |
| Depth [mm]: | 42 |
