Single-family doorphones
Until on stock

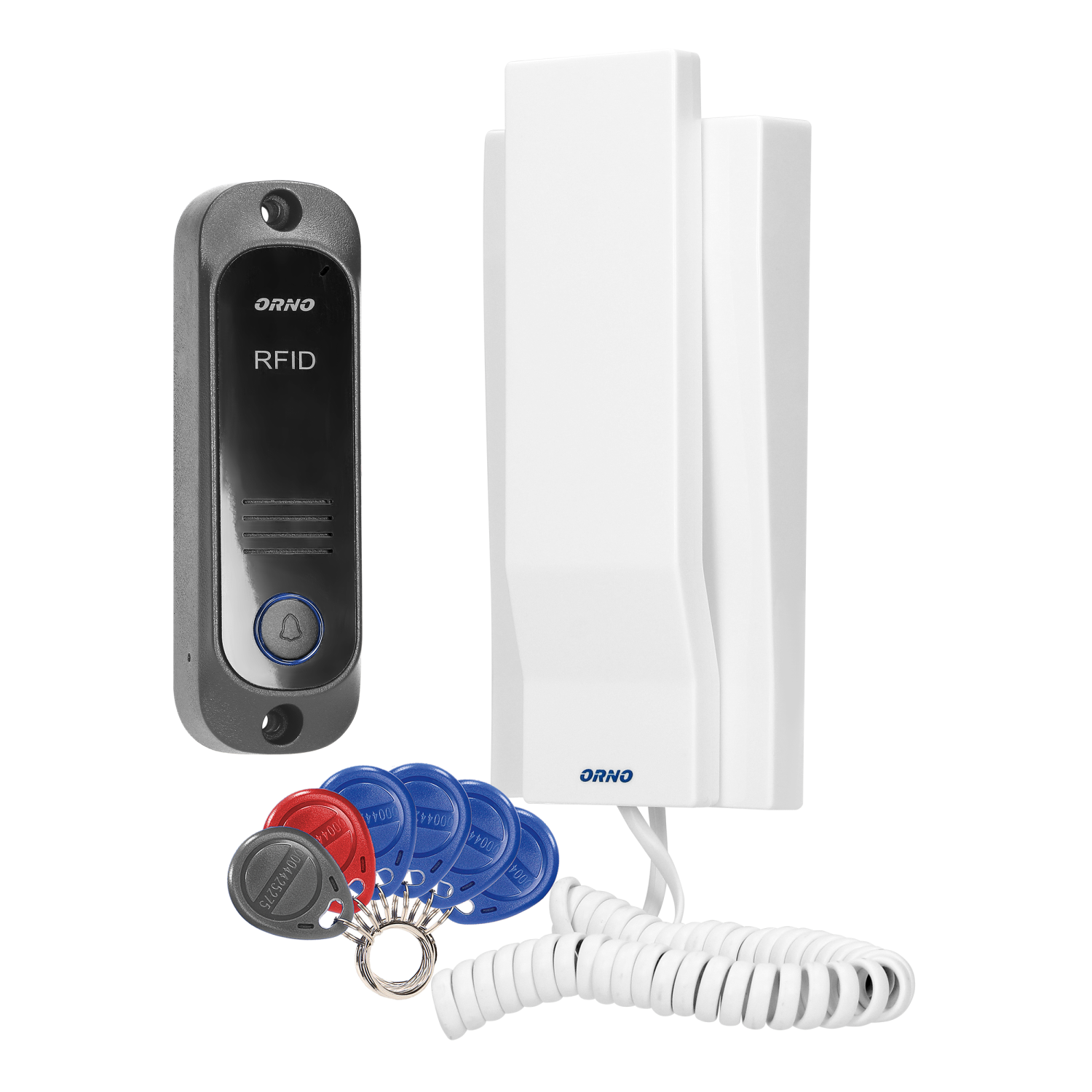

AVIOR single-family audio doorphone set includes a compact outdoor panel, ideal for installation on narrow posts and an elegant handset uniphone which integrates ideally with any interior. The set can be expanded with an additional external panel and an additional uniphone, thus enabling internal intercom communication between two uniphones (intercom) and remote communication and control of the entrance from different places in the house. Intuitive and easy connection allows installation by the user. The set enables easy electric lock opening with proximity tags and it has an additional push-button to open the gate from the uniphone.
| General information: | |
|---|---|
| Type: | jednorodzinny |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 13,5V DC |
| Type of transmission: | przewodowy |
| Installation technique: | System wieloprzewodowy |
| Number of wires (*from outdoor station to electric strike): | 3 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 2 |
| Expandable to max. number of outdoor stations: | 2 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| : | z panelem zewnętrznym |
| With automatic door opener: | tak |

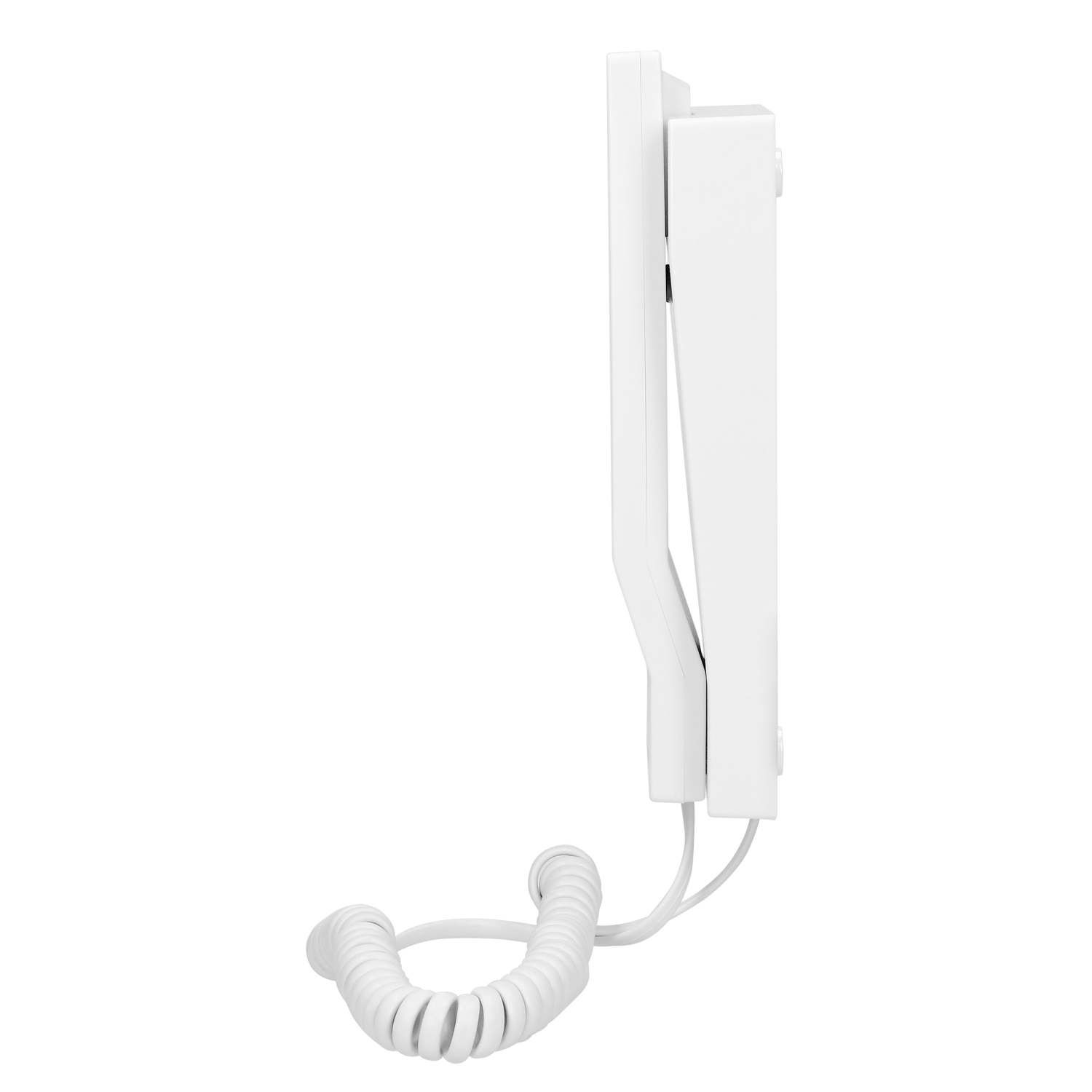

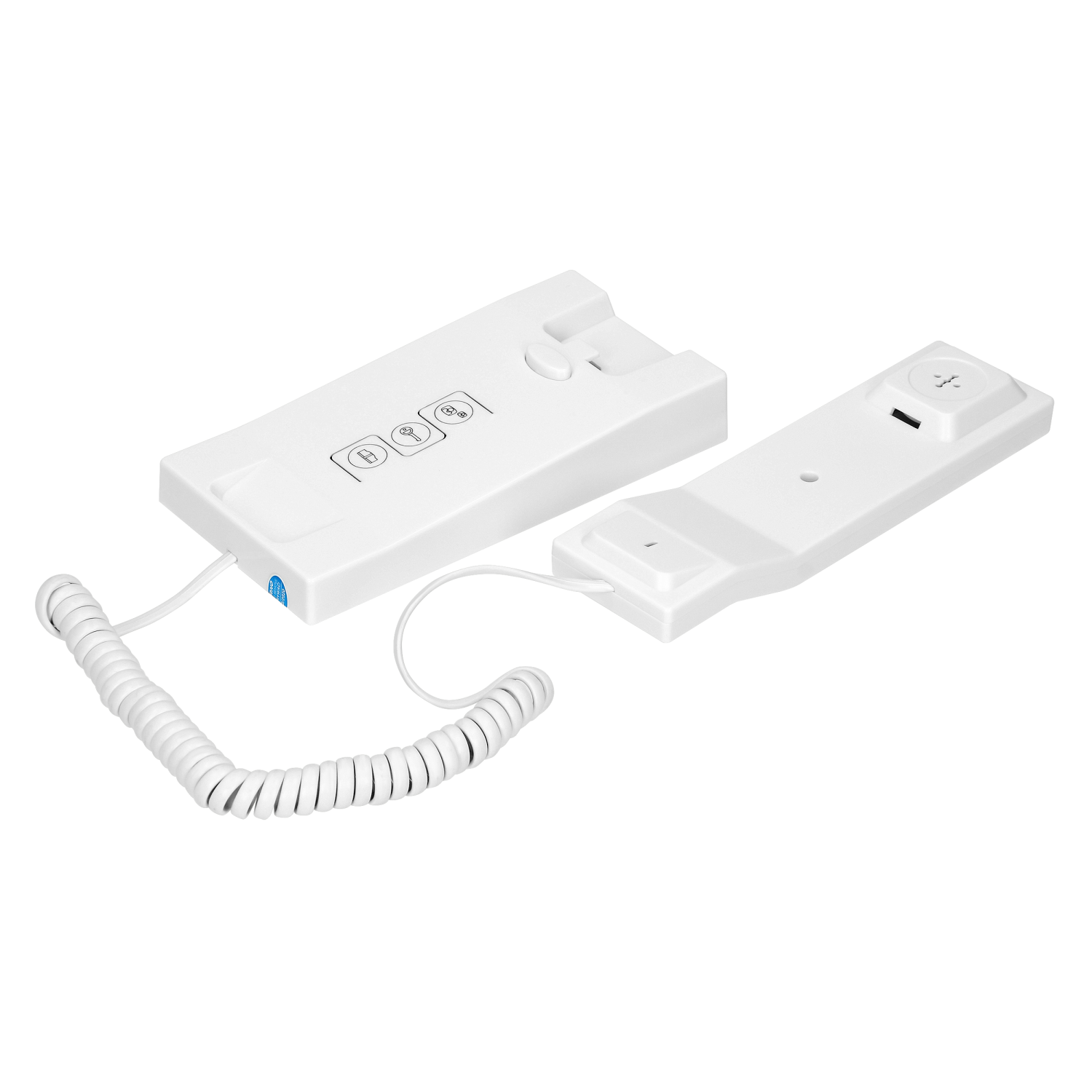

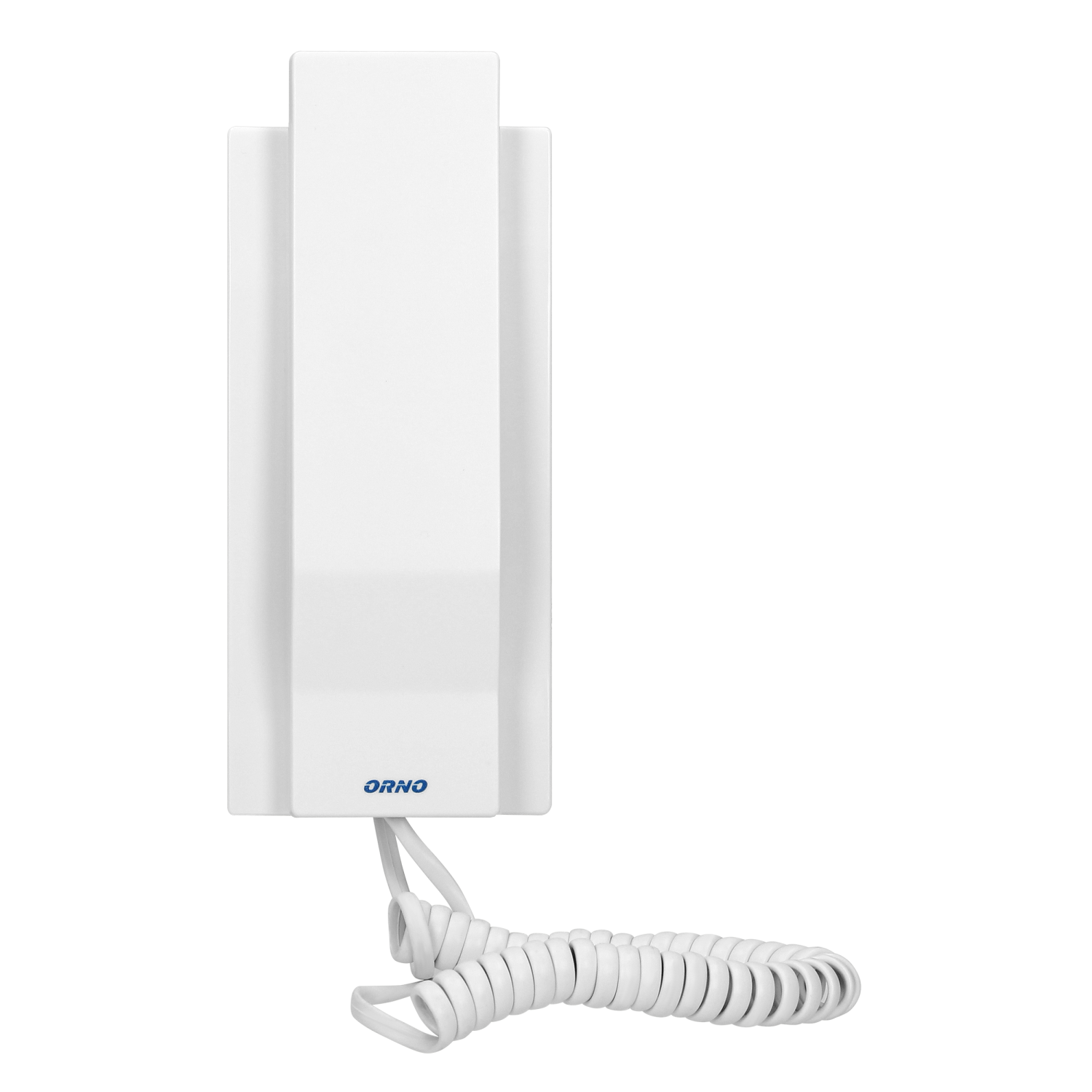

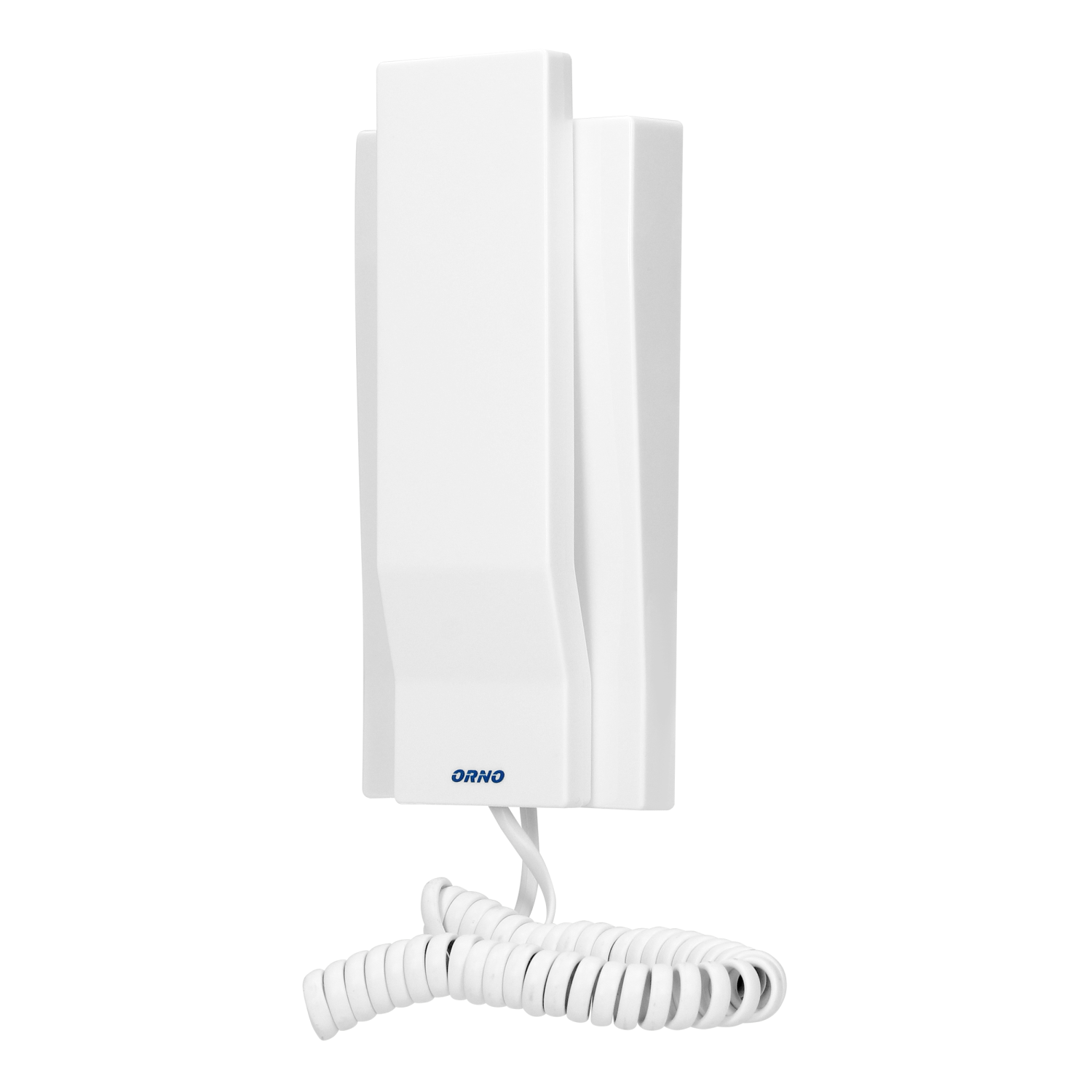

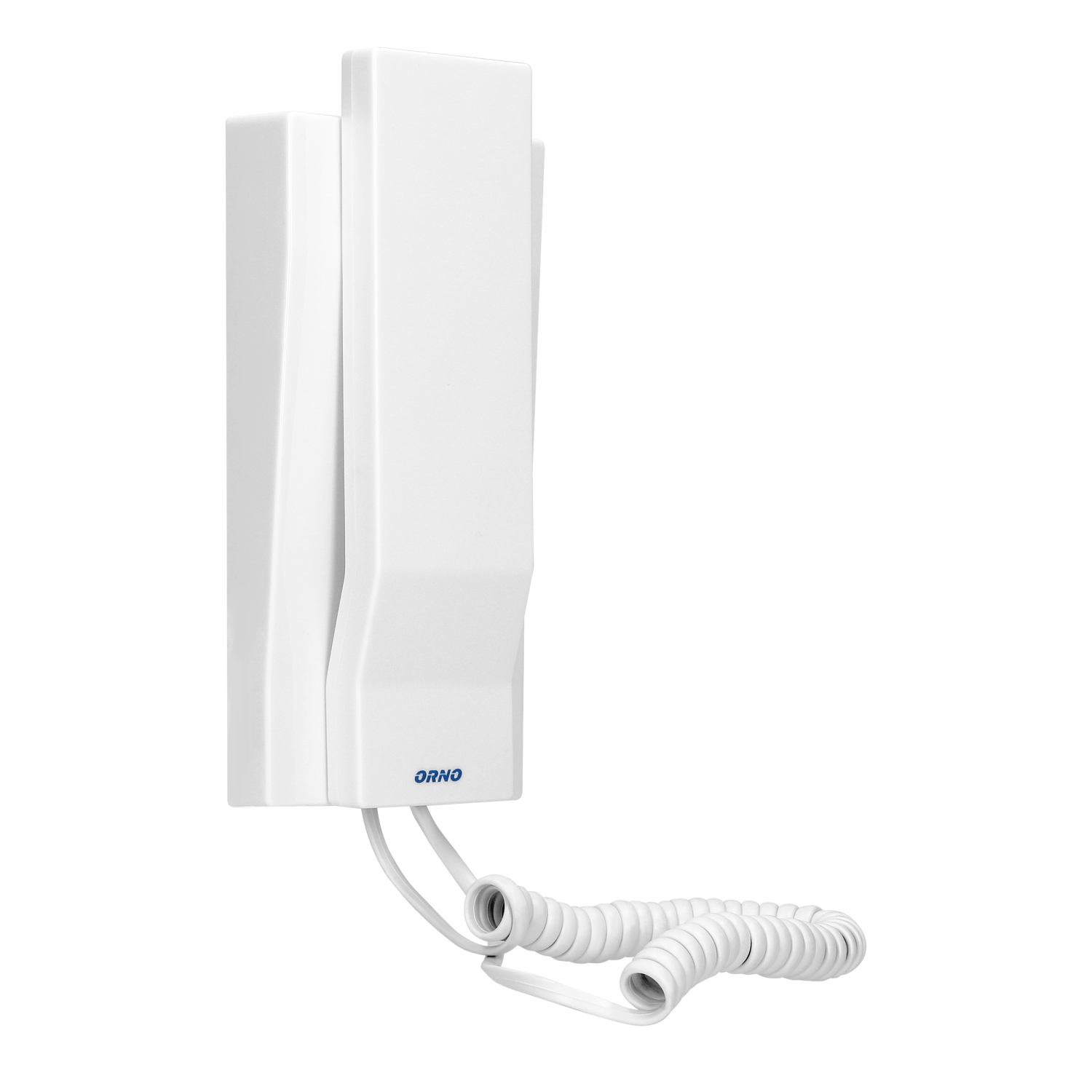

| Indoor panel: | |
|---|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | tak |
| Number of ringtones: | 1 |
| Loudness control: | tak |
| Mutable call tone: | nie |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Width [mm]: | 82 |
| Height [mm]: | 180 |
| Depth [mm]: | 40 |

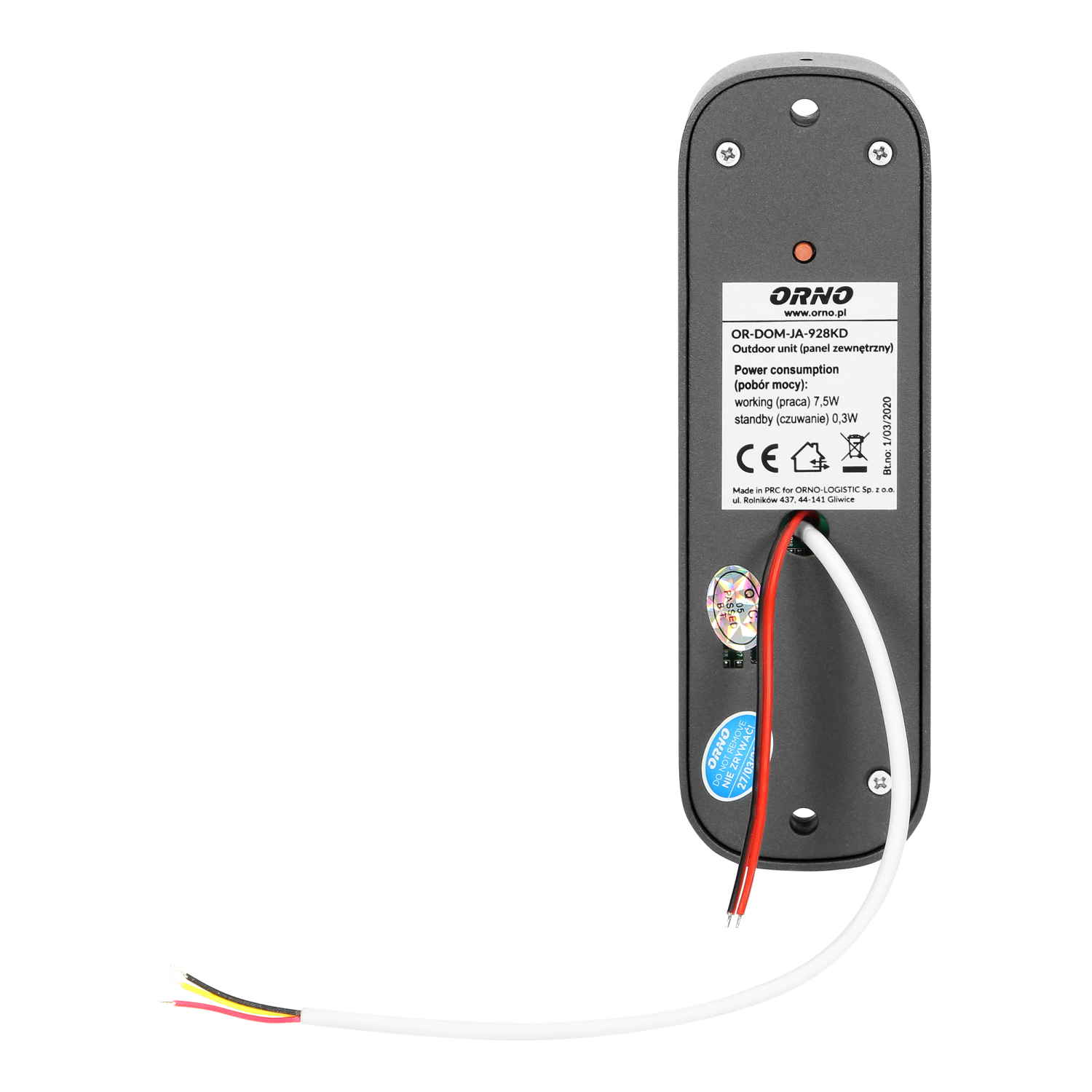

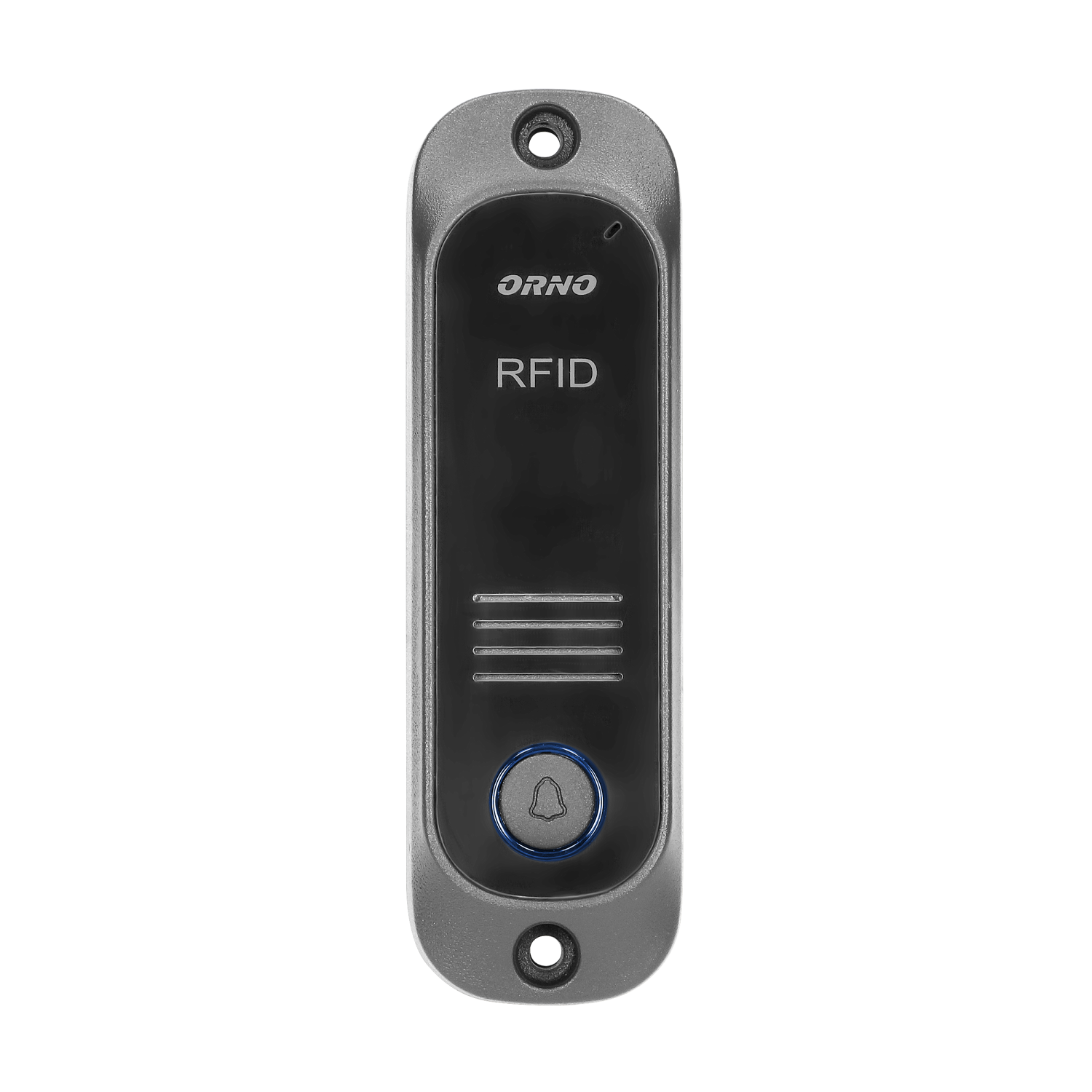

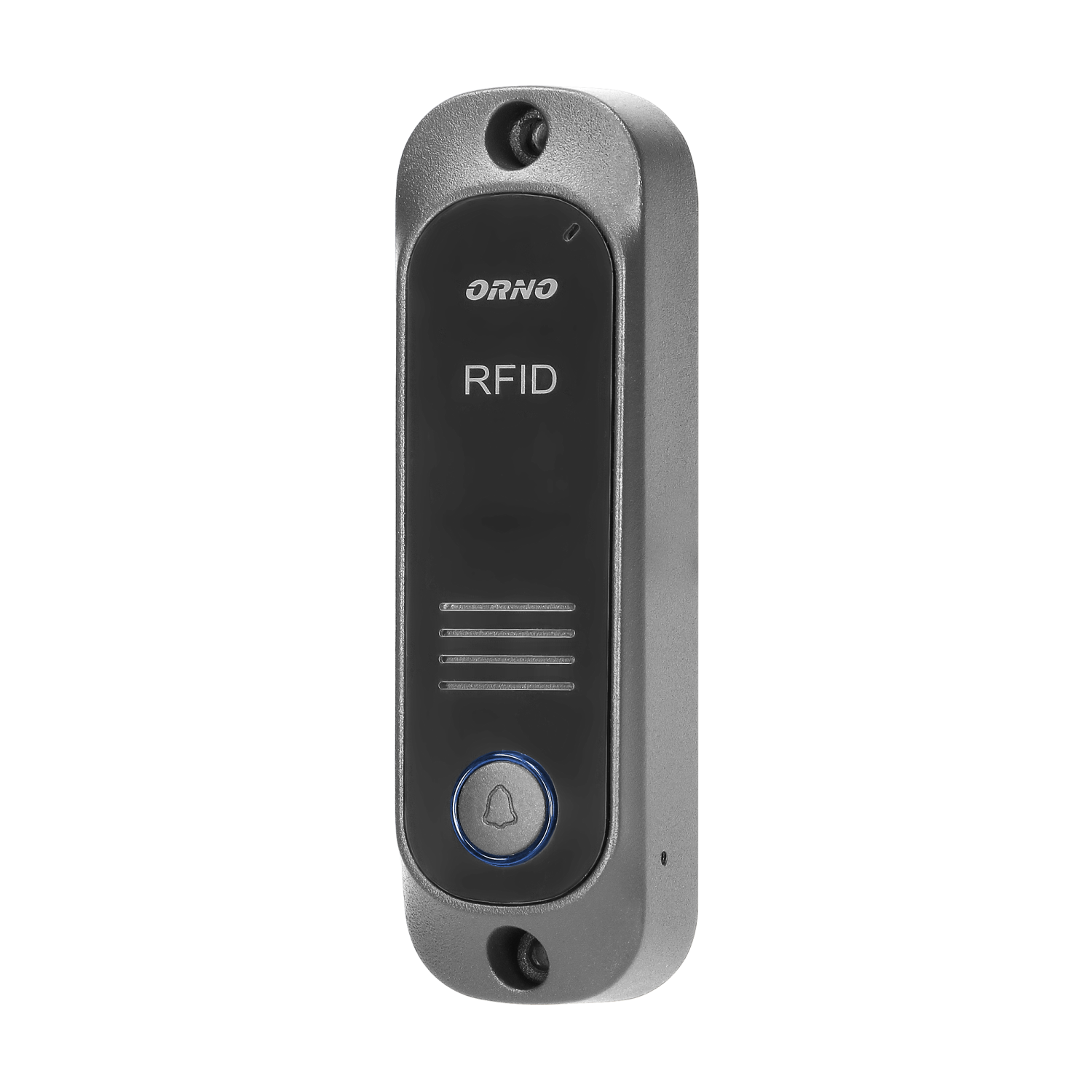

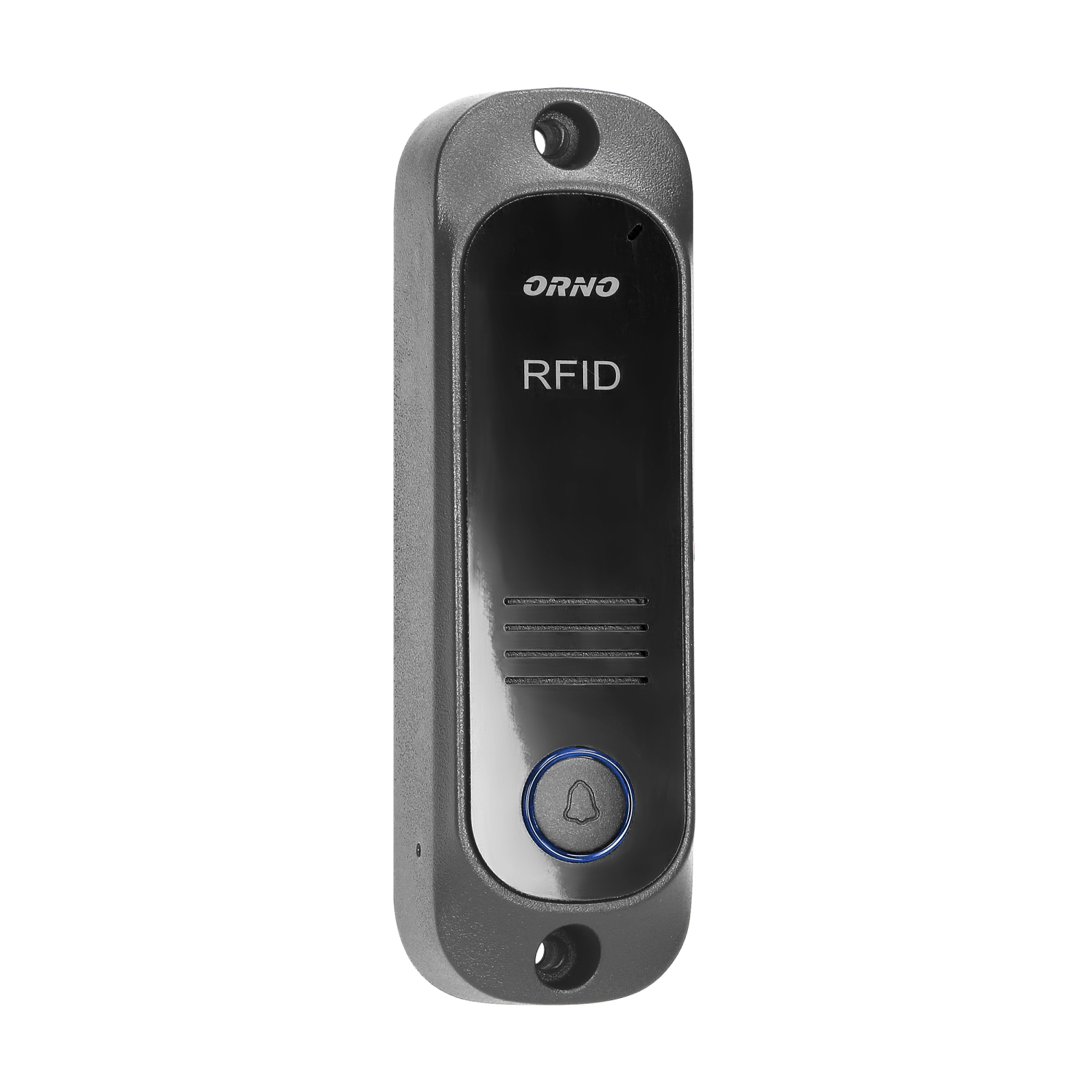

| External panel: | |
|---|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| With digital door code: | nie |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | nie |
| With cover: | nie |
| Degree of protection (IP): | IP44 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Szary |
| Width [mm]: | 43 |
| Height [mm]: | 140 |
| Depth [mm]: | 29 |
| Other features: | RFID - max. 10 użytkowników (breloki w zestawie: 4 użytkownika + 2 administracyjne) |
