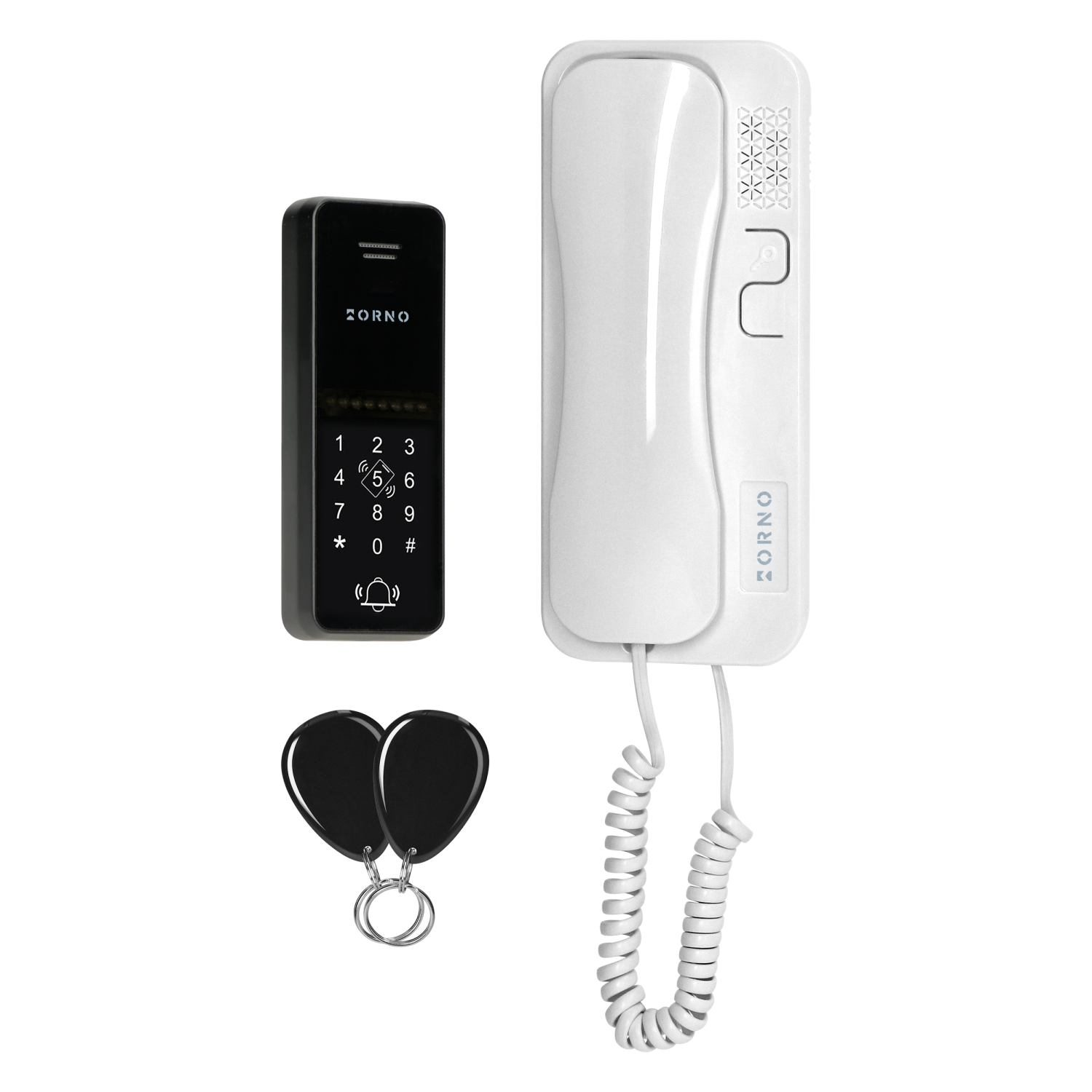

ERIN audio doorphone set is perfect solution for single-family houses. If you want a high level of security and comfortable access management to your property, then ERIN will be an ideal choice.

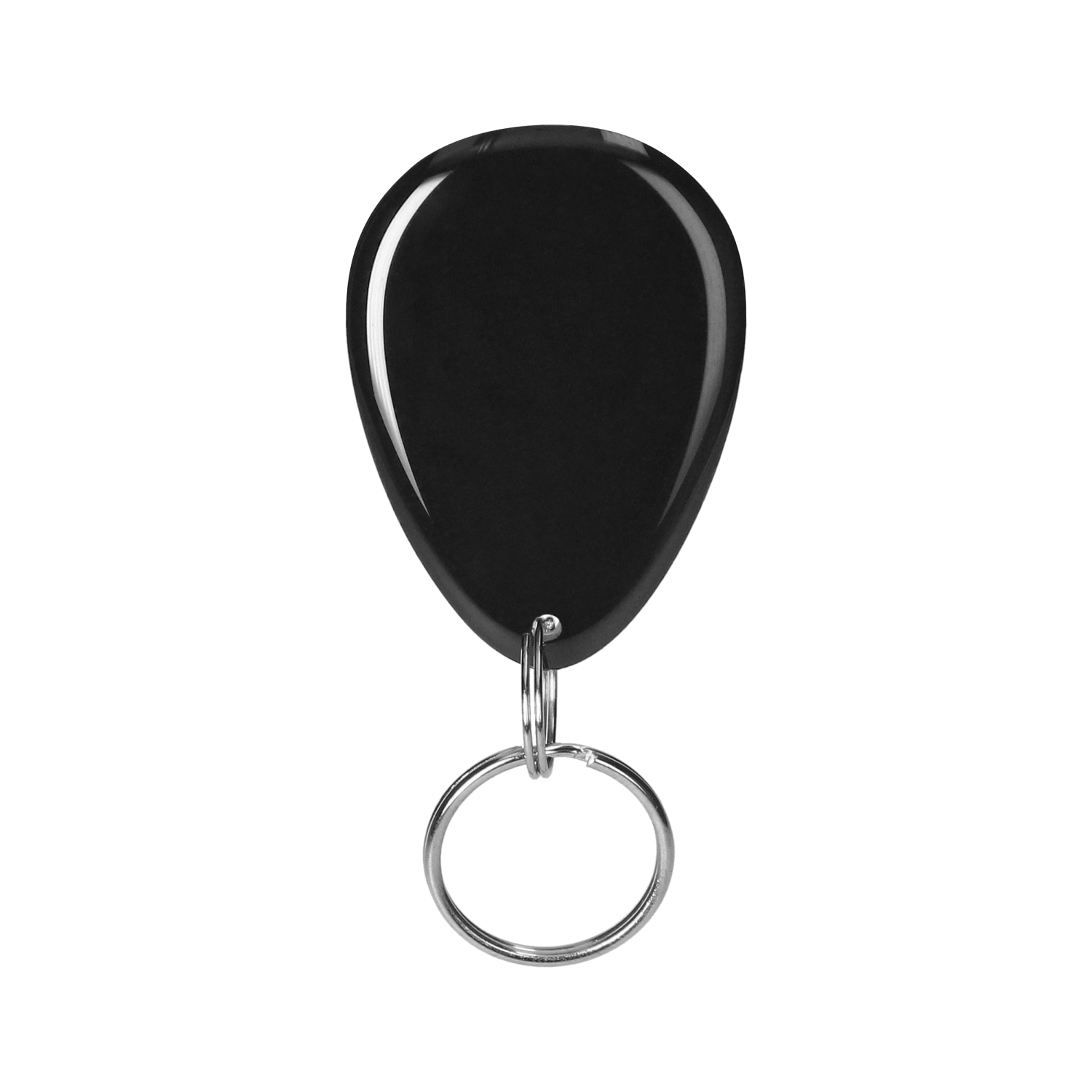

The outdoor unit and even the electric door strike are powered from the uniphone, so an additional power supply is not required and therefore no need to run wires through the entire garden. The simple and quick installation of the set is possible, thanks to a reduced number of wires leading to the gate or wicket - only two wires are required for the installation, so it is possible to use a bell wiring for this purpose. The uniphone also enables remote control of the wicket, gate and even the electric door strike: a keypad supporting PIN codes enables easy entry, while the RFID proximity system supporting 13.56MHz cards and key tags facilitates the use of the intercom, and allows independent control of the wicket and secure access management for householders or authorised users. In addition, the electric door strike can be powered directly from the outdoor unit. The device's memory allows up to 200 key tags to be encoded.

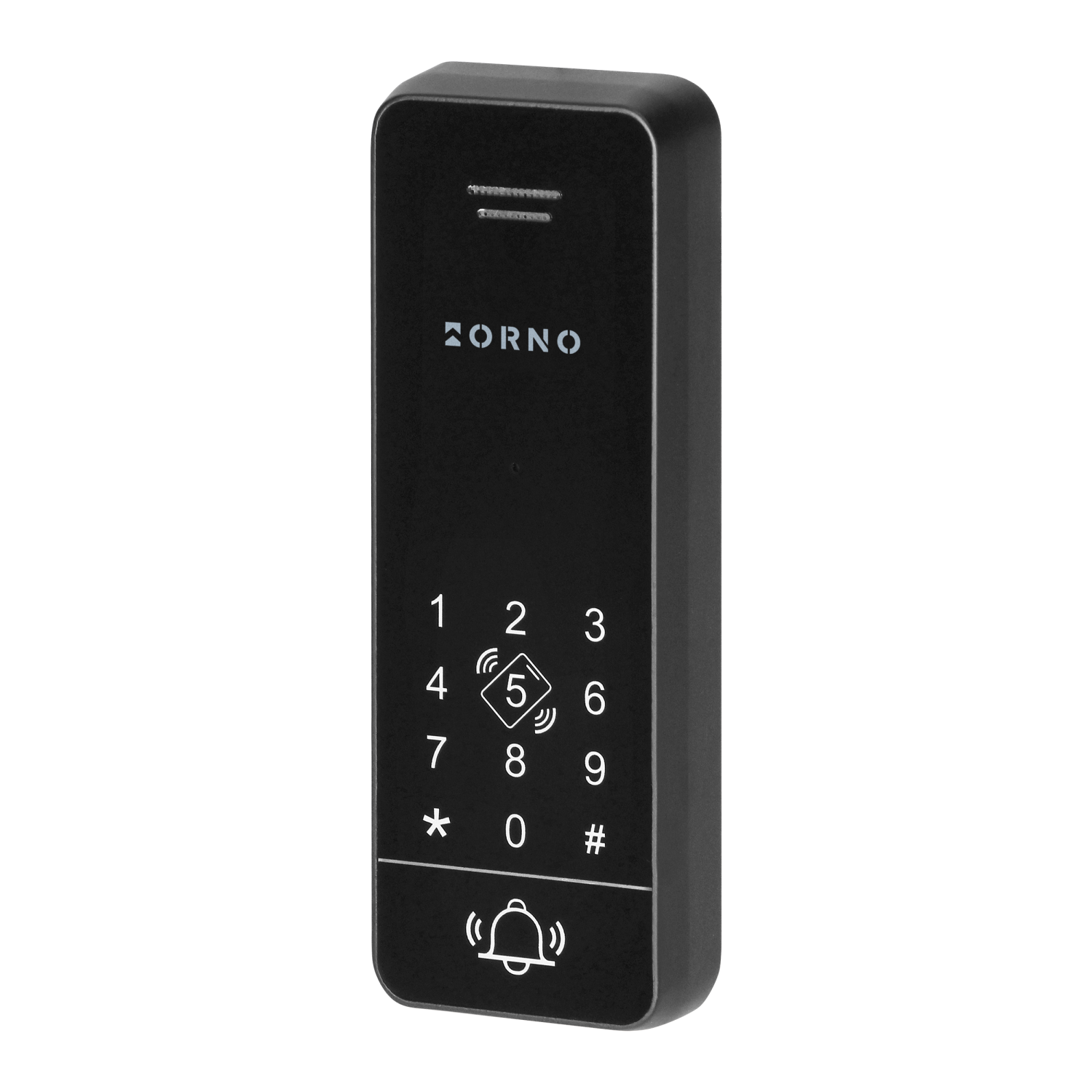

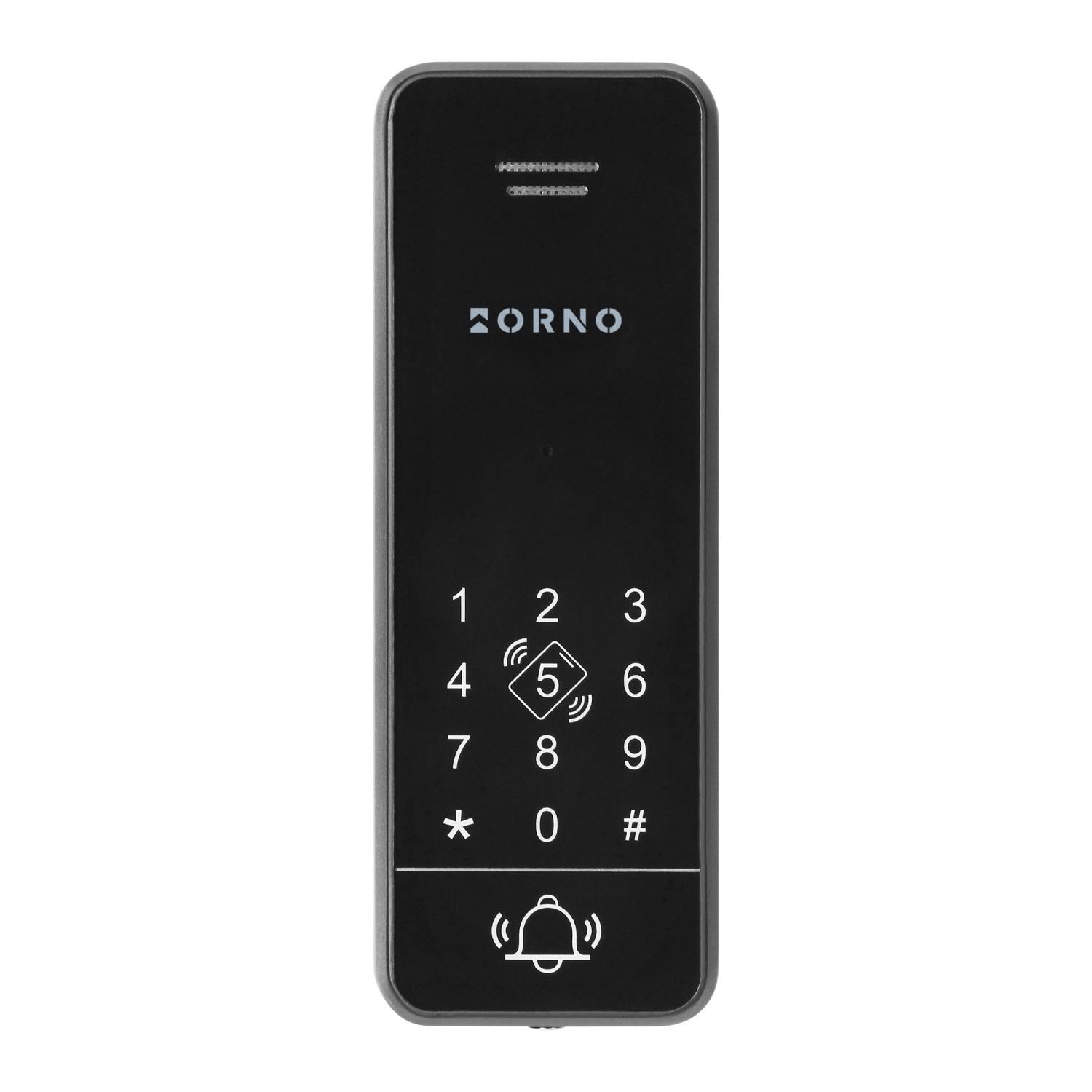

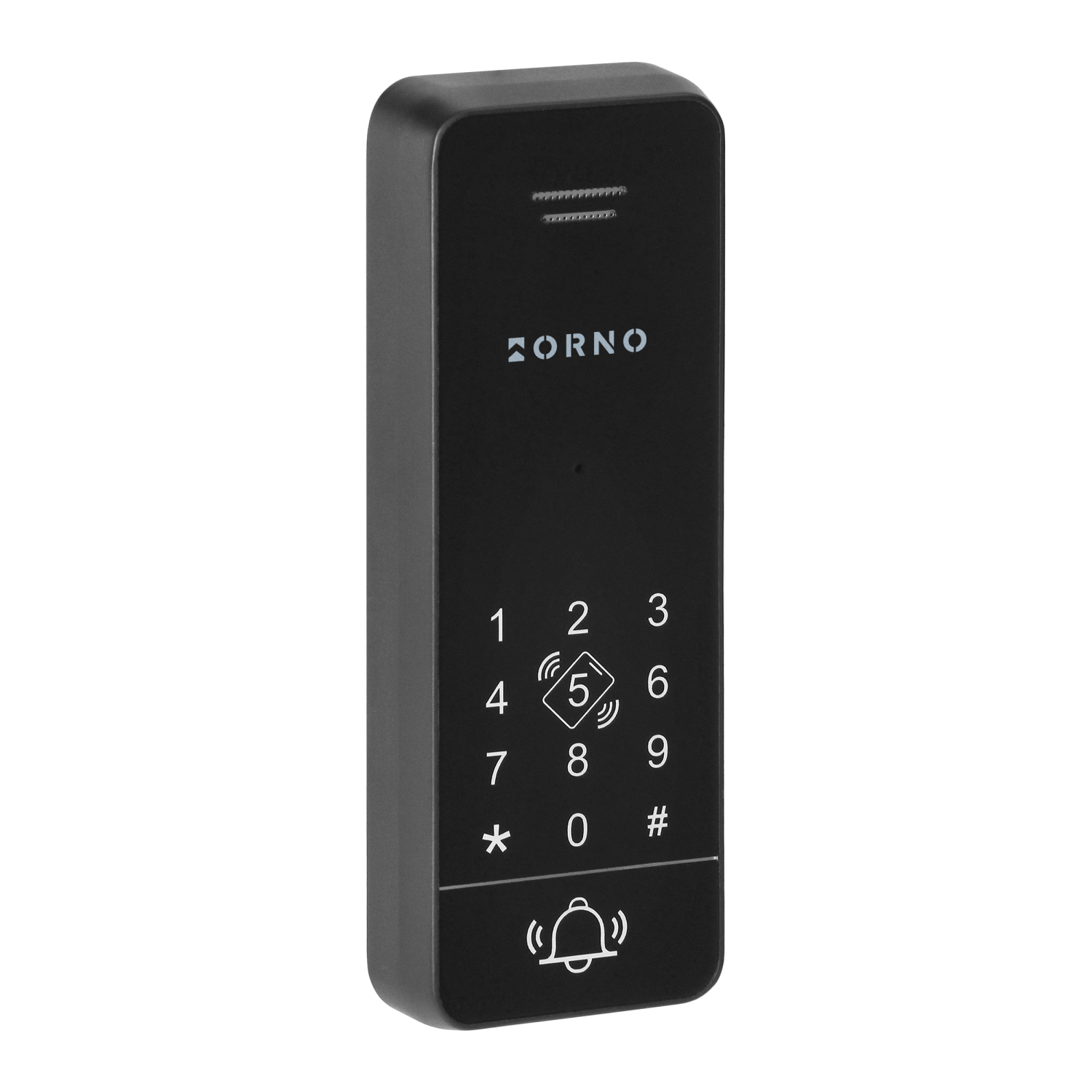

The outdoor unit is splash-proof and weatherproof, with an IP65 rating, ensuring peace of mind for
years of use. It is also important to note the dimensions - the outdoor unit is narrow, which will allow it to be mounted even on a small fence post or in a small recess.

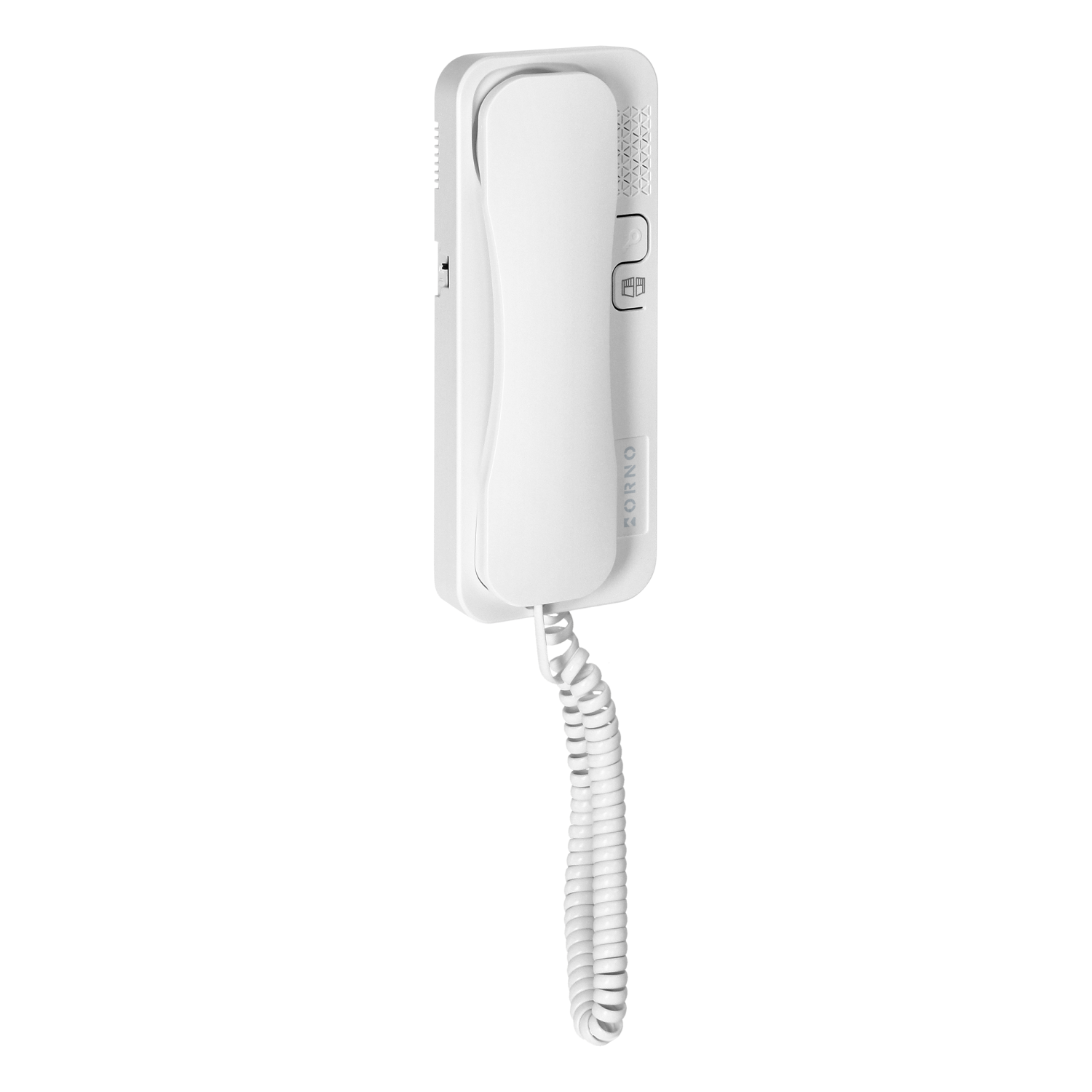

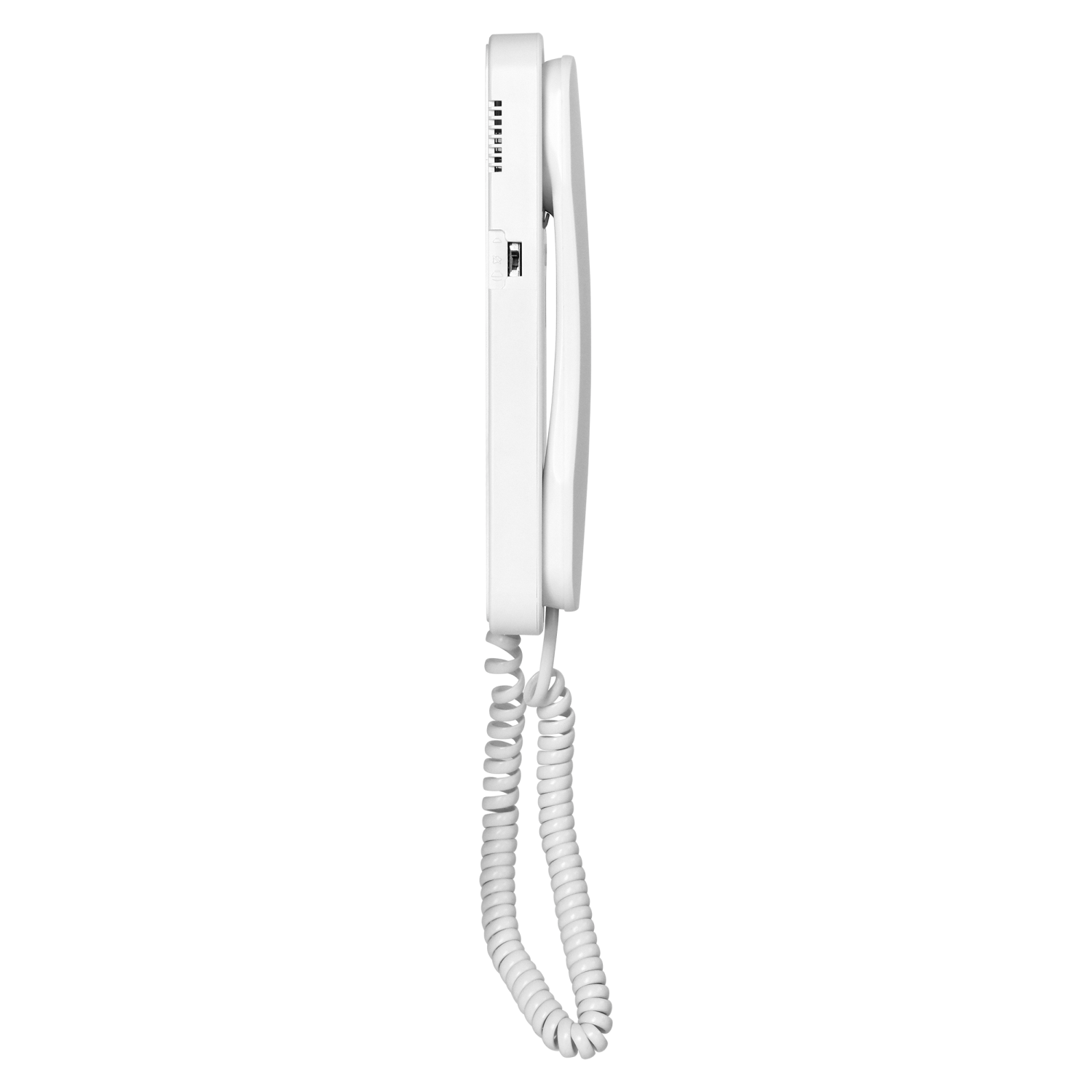

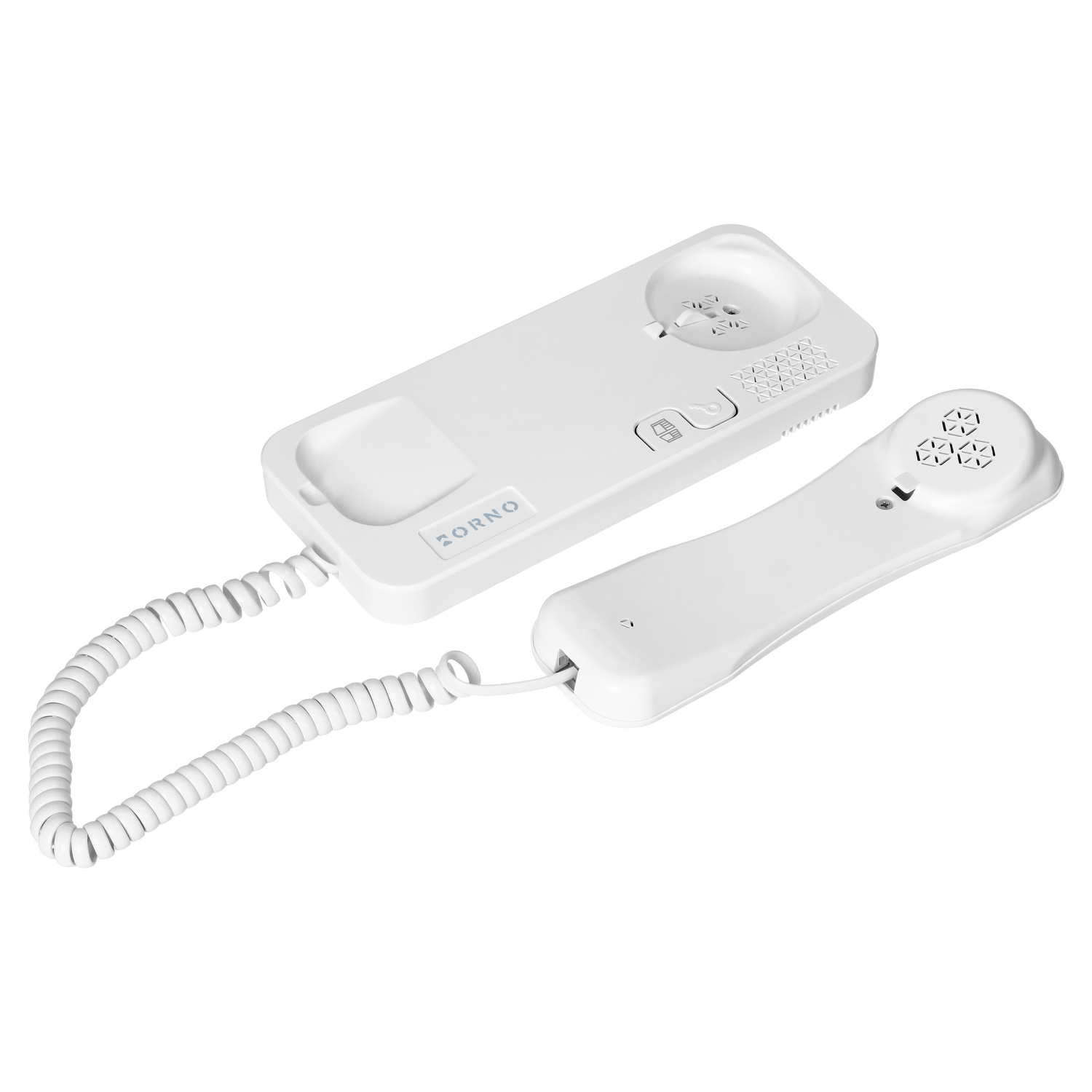

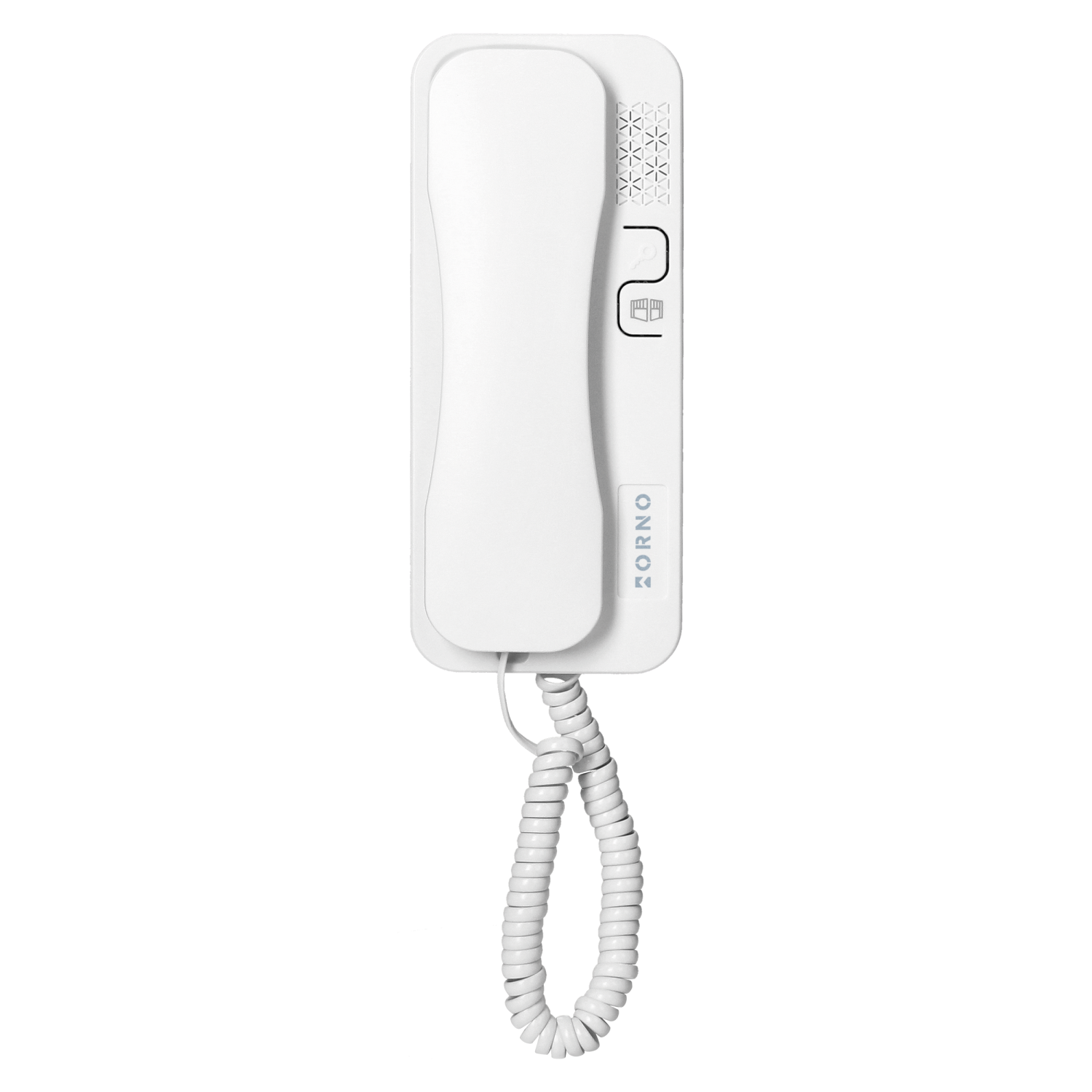

Designed for installation in the home or flat, the uniphone is made of high-quality plastic that is aesthetically pleasing, dirt-resistant and durable, and is designed to hang on the wall. ERIN's design is simple and classic, making it integrate well with the décor of almost any interior, and the handset is sturdily suspended and very portable. The device offers a number of conveniences, such as a three-stage volume control and the possibility to mute the ringer for a child's nap.
| General information: |
|---|
| Type: | jednorodzinny |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 15V DC |
| Type of transmission: | przewodowy |
| Installation technique: | Dwużyłowe |
| Number of wires (*from outdoor station to electric strike): | 2 |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 1 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| : | z panelem zewnętrznym |
| With automatic door opener: | tak |
| Indoor unit: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | nie |
| Number of ringtones: | 1 |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Width [mm]: | 84 |
| Height [mm]: | 197 |
| Depth [mm]: | 35 |
| Outdoor unit: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| With digital door code: | tak |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 13,56MHz |
| Label space/information surface: | nie |
| With cover: | nie |
| Degree of protection (IP): | IP65 |
| Material outdoor station: | Stal nierdzewna |
| Colour outdoor station: | Czarny |
| Width [mm]: | 48 |
| Height [mm]: | 133 |
| Depth [mm]: | 22 |
