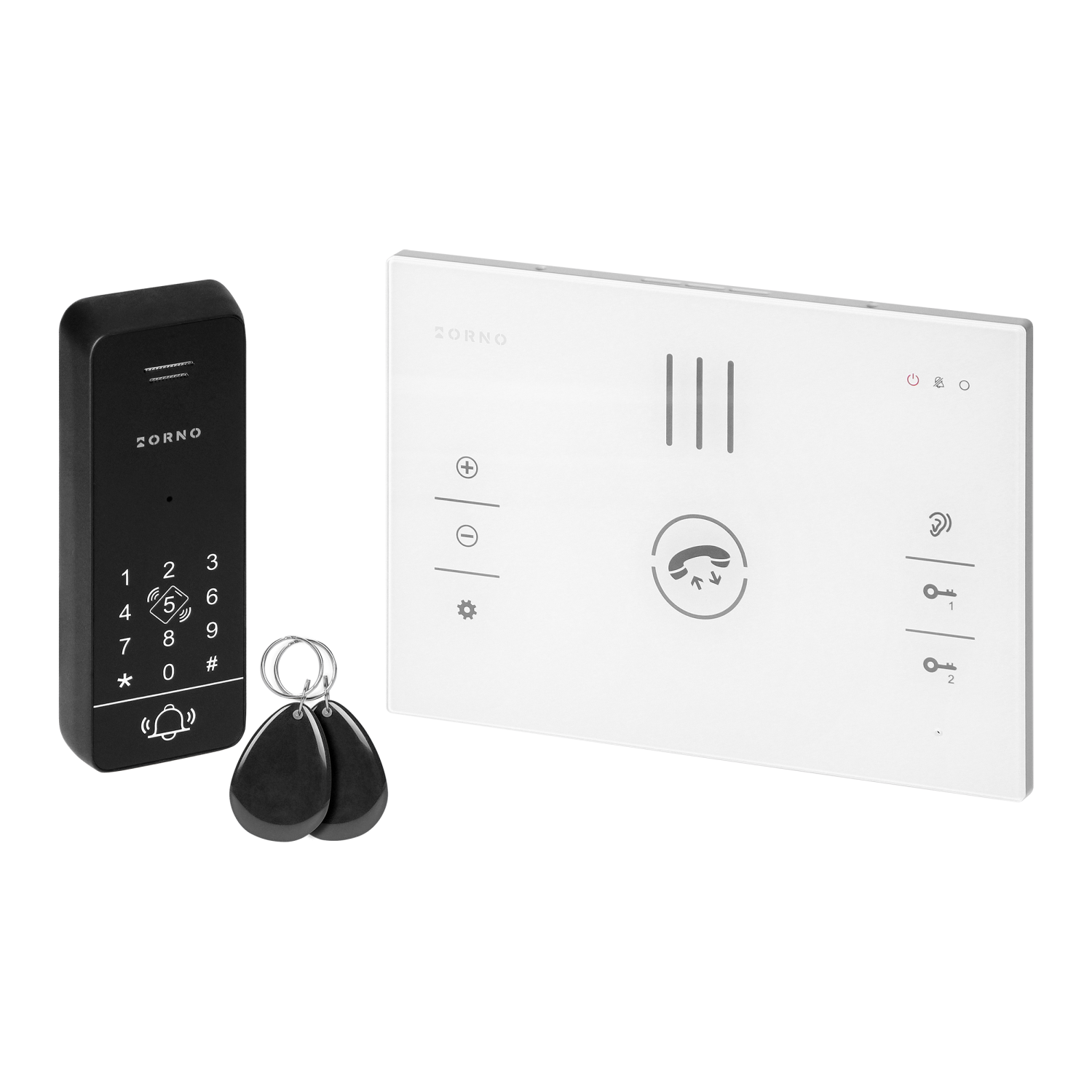

The SANDI audio doorphone set is a modern and design-oriented device that makes it easy to control the entrance to the property. SANDI has been designed primarily with the safety of the householders, comfort of use in mind, and its innovative style will blend in with any type of interior, whether a single-family home or a small office.

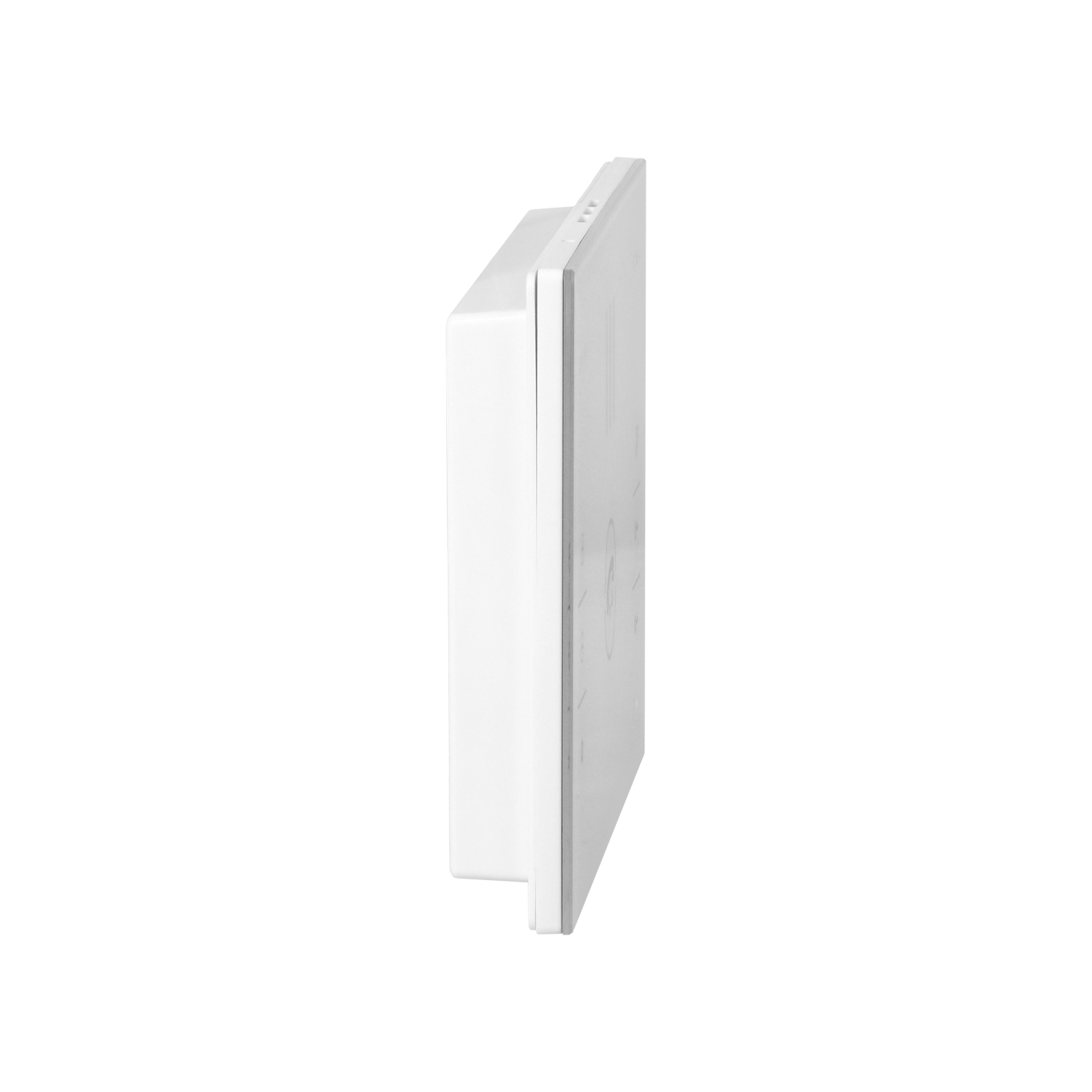

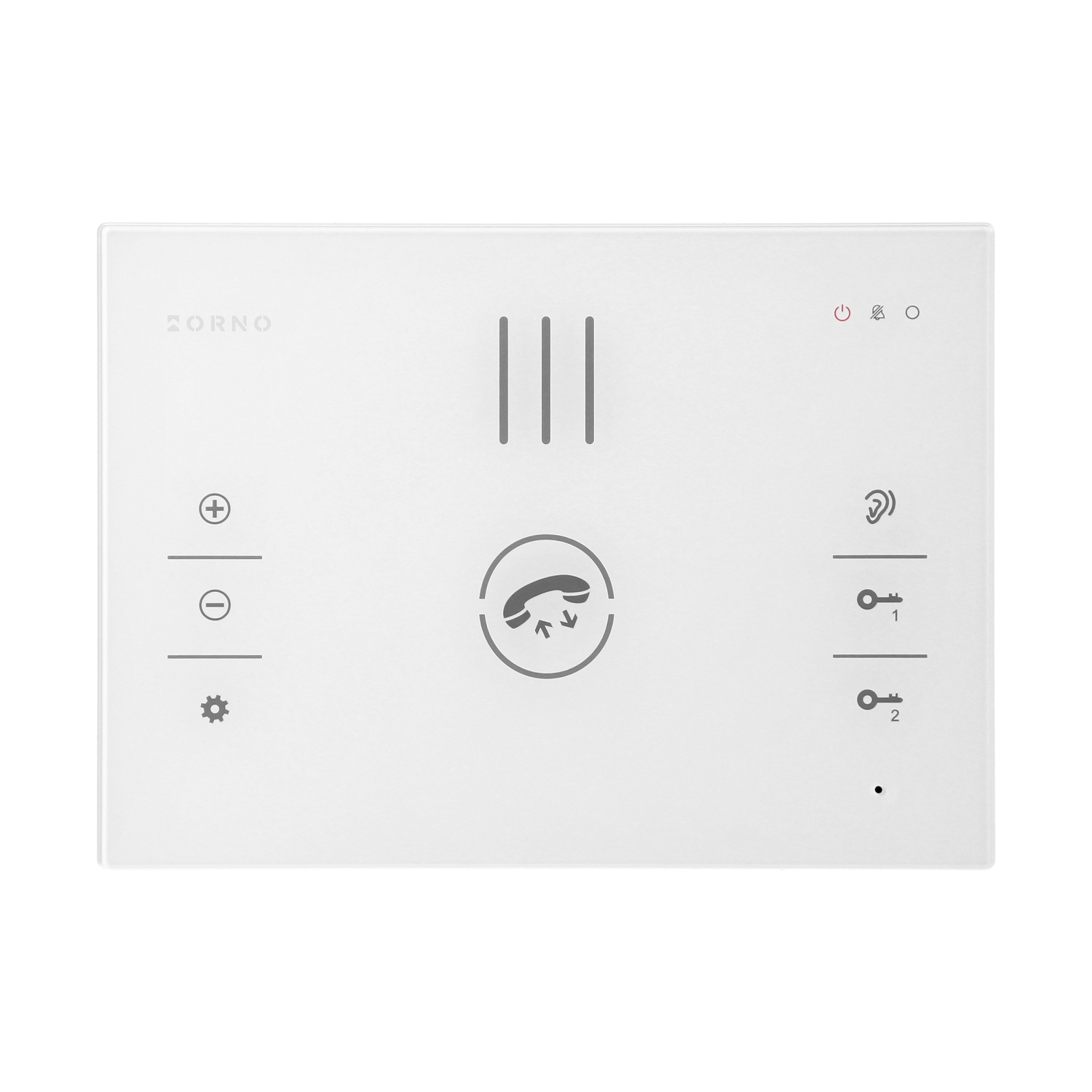

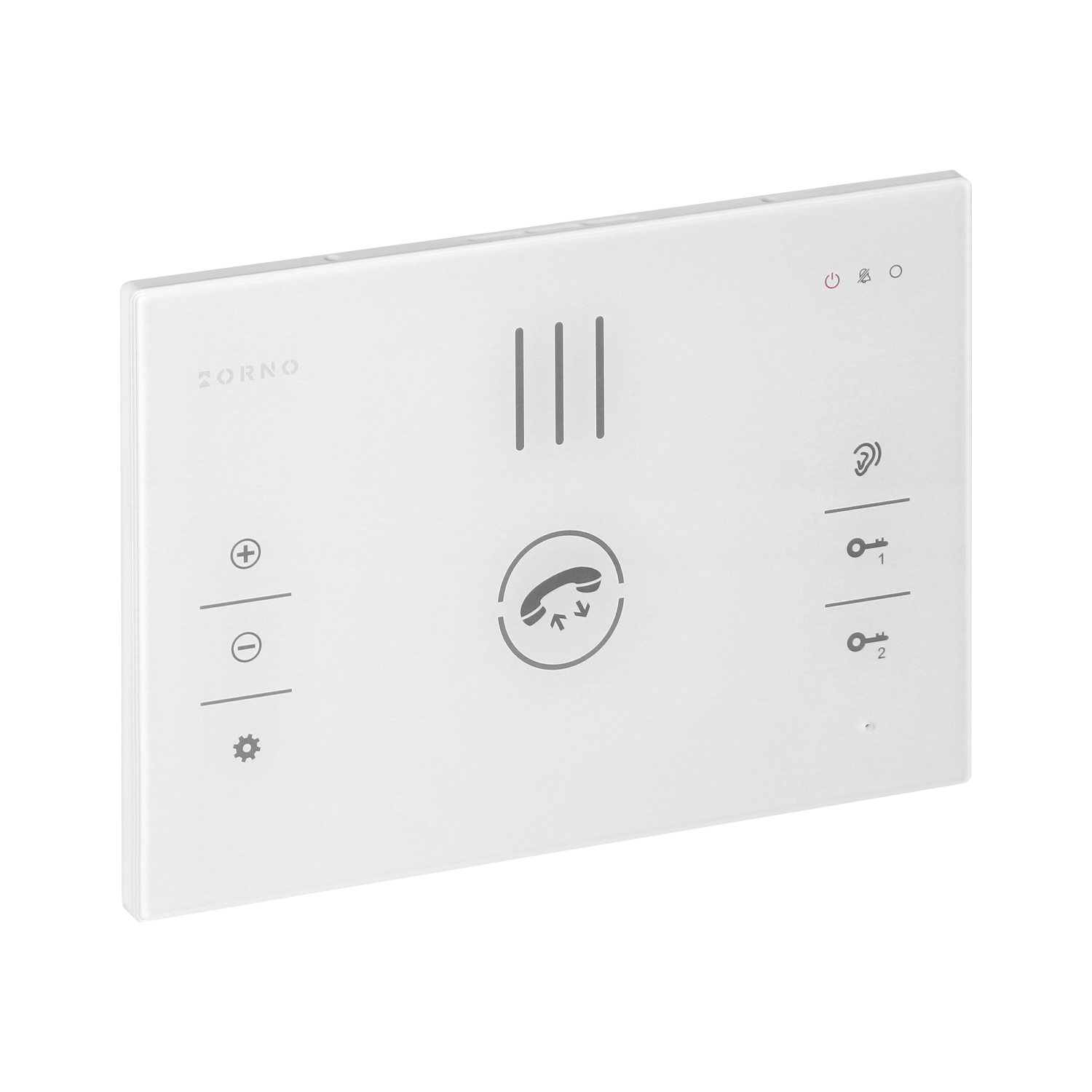

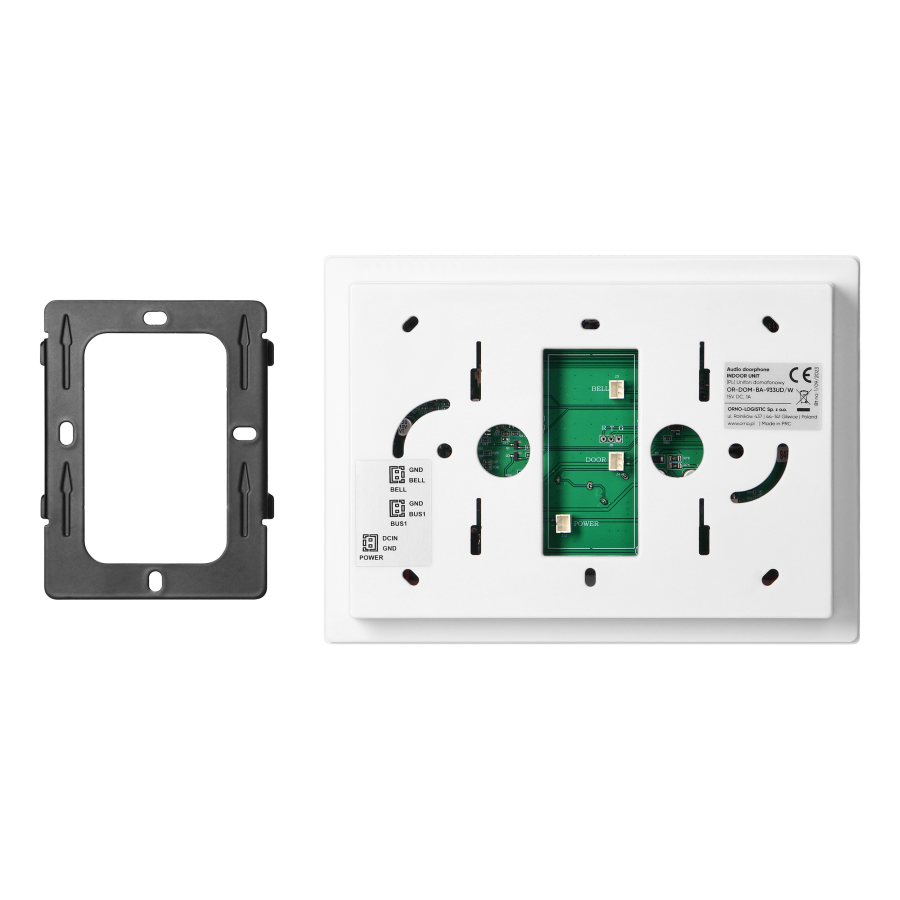

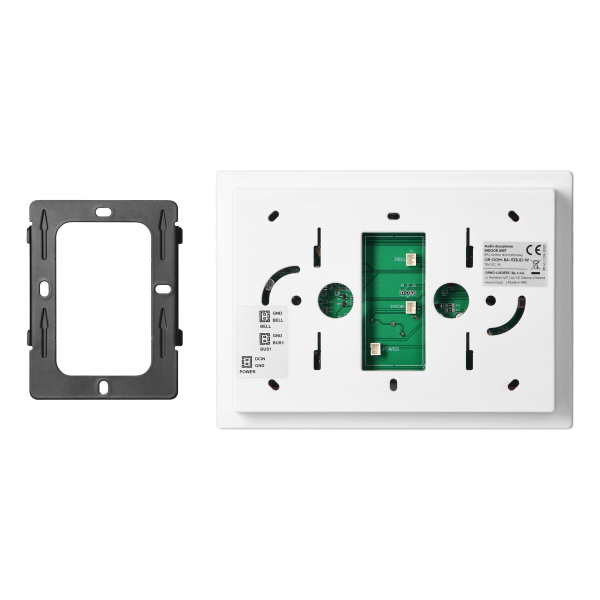

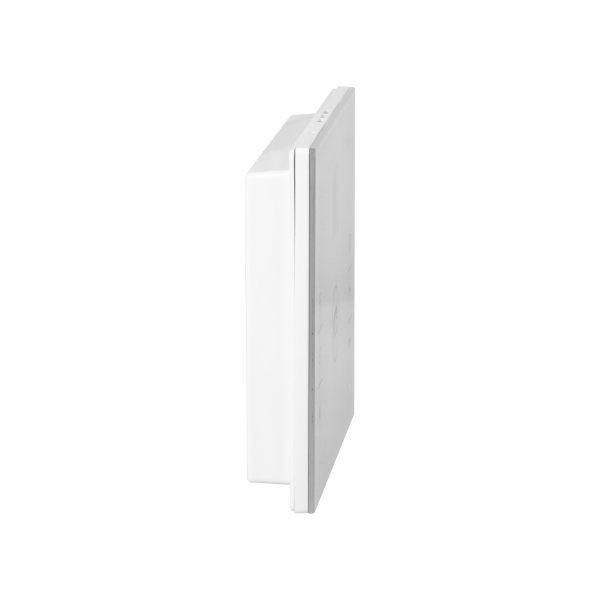

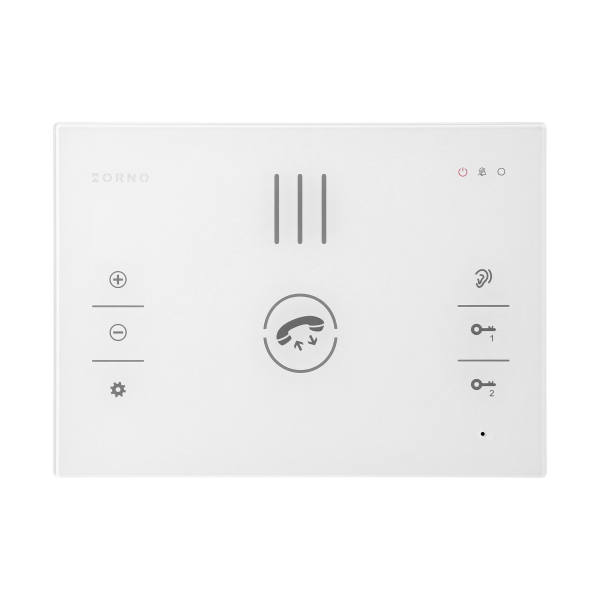

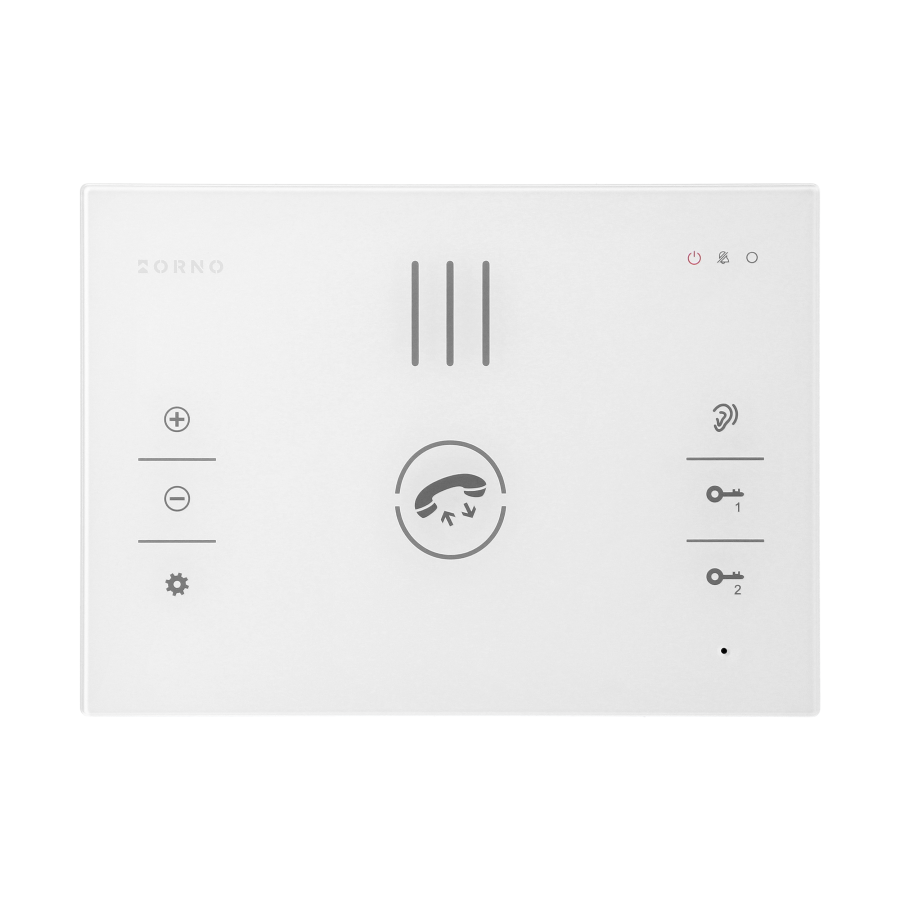

The indoor unit of the presented model is equipped with a touch function, with extremely simple, intuitive operation. Pressing a single button starts a conversation, and controlling the electric strike and automatic gate controller allows the wicket or gate to be opened remotely from the indoor unit. The convenient lack of a handset deprives the user of the cumbersome need to pick it up and hang it up. The device is made of white plastic and measures 180 x 130 mm. Surface mounting.

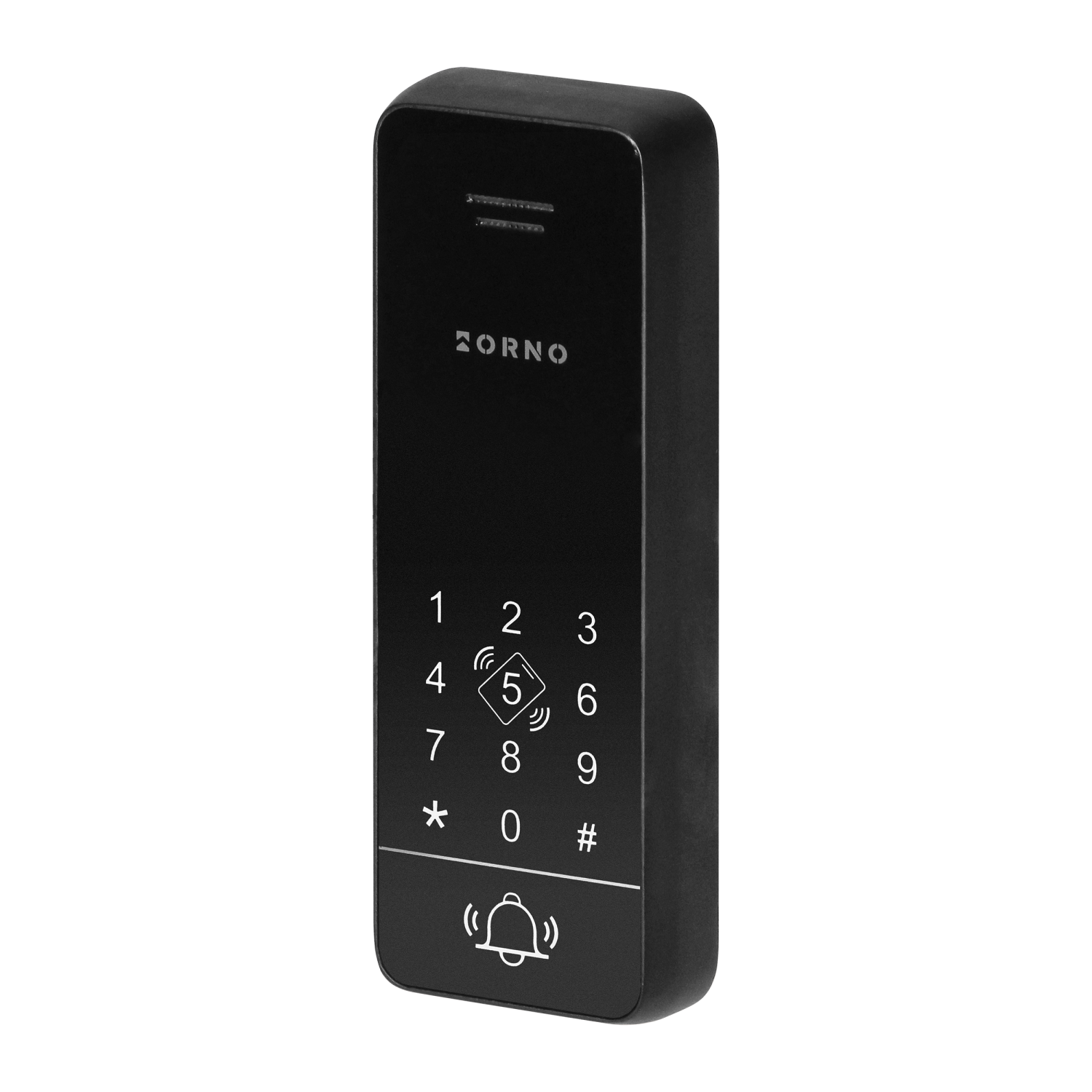

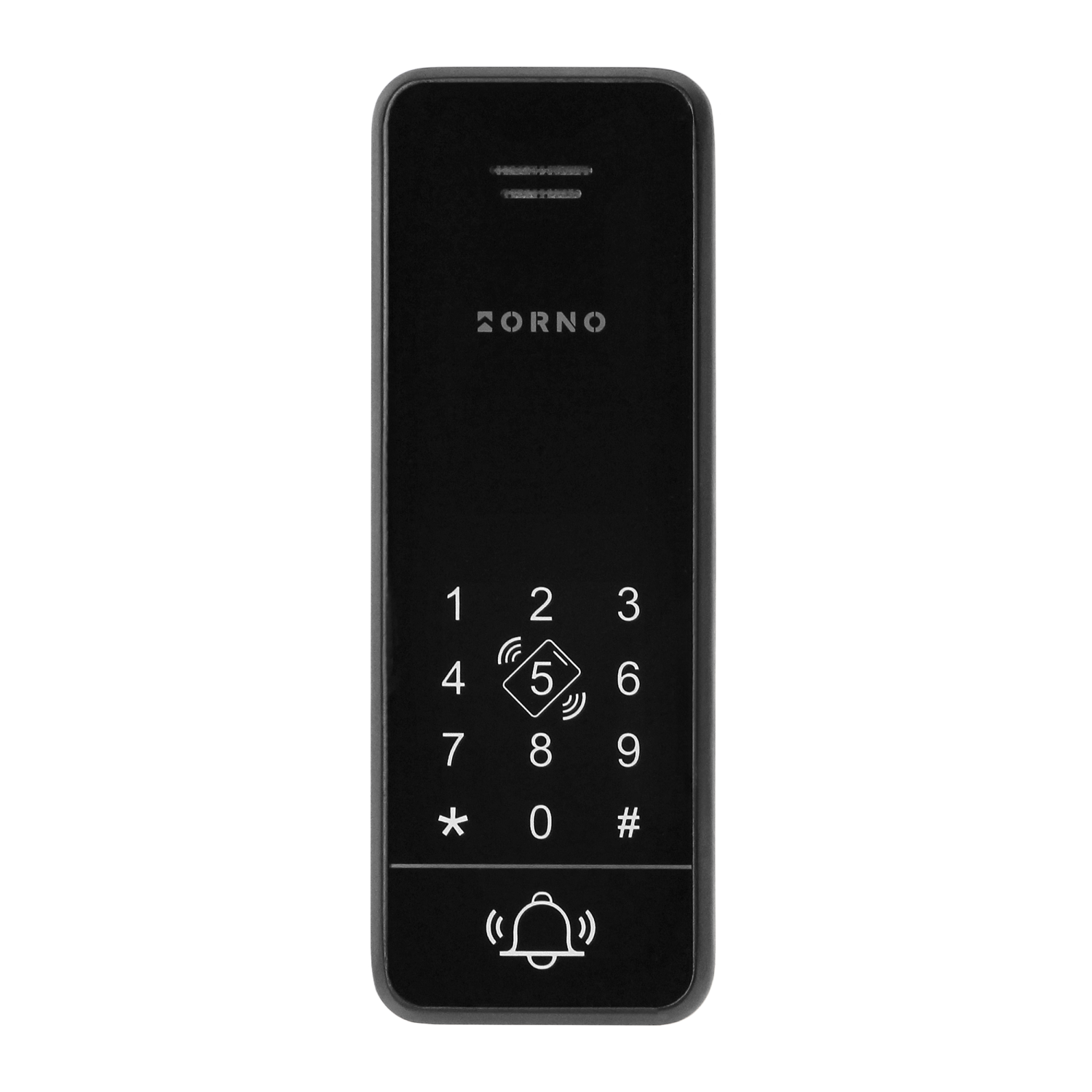

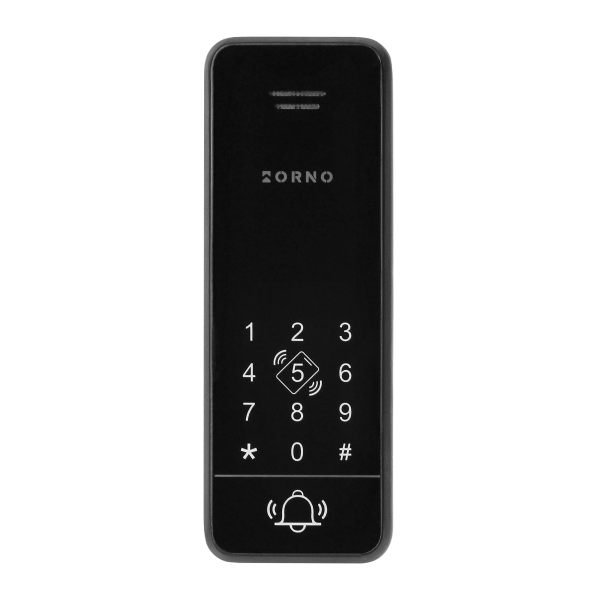

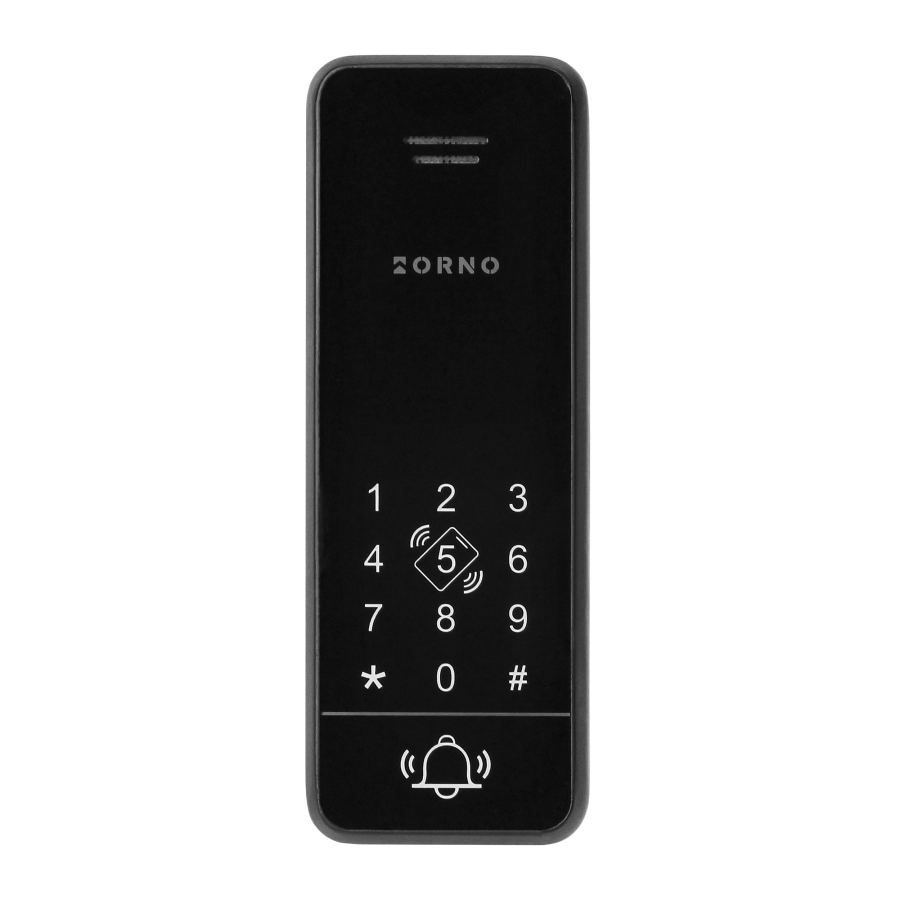

The outdoor unit has a built-in keypad with an RFID reader, allowing access to the property using not only a code but also a key tag or Mifare proximity card. It is characterised by its small dimensions and will even fit on a narrow fence post (only 48 mm wide). The high IP65 protection level gives peace of mind about the durability of the device, even under a large spray of water. The product is made of stainless steel, in black.

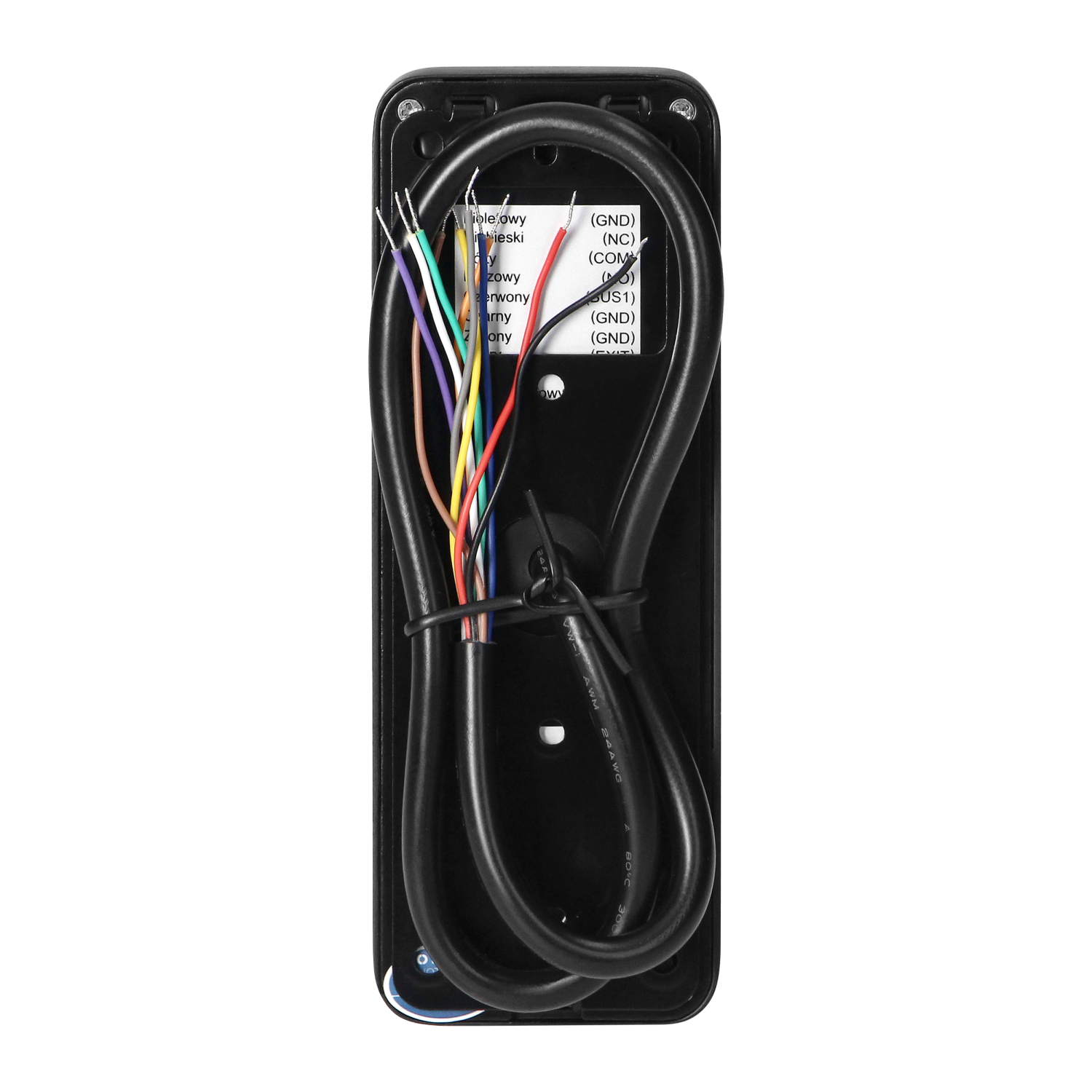

Power for the outdoor unit is provided from the indoor unit. There is no need to supply additional power to the outdoor unit or to the electric strike (max. 300mA), which reduces the number of wires running through the garden. A 2-wire set means quick and easy installation. What's more, if you want to connect a gate automat, the wires to it can easily be connected directly from the outdoor unit.
The SANDI handsetfree audio doorphone has an option to adjust the volume of the ringer, depending on your preference, as well as the option to choose a melody from 12 different sounds. The device will also be suitable for families with small children - the call bell can be silenced, e.g. during the child's nap time.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | nie |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage [V]: | 15V DC |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | Dwużyłowe |
| Number of wires (*from outdoor station to electric strike): | 2 |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 1 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| : | z panelem zewnętrznym |
| With automatic door opener: | tak |
| Indoor unit: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | tak |
| Internal communication: | nie |
| Number of ringtones: | 12 |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Width [mm]: | 180 |
| Height [mm]: | 130 |
| Depth [mm]: | 26 |
| Outdoor unit: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| With digital door code: | tak |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 13,56MHz |
| Label space/information surface: | nie |
| With cover: | nie |
| Degree of protection (IP): | IP65 |
| Material outdoor station: | Stal nierdzewna |
| Colour outdoor station: | Czarny |
| Width [mm]: | 48 |
| Height [mm]: | 133 |
| Depth [mm]: | 22 |
