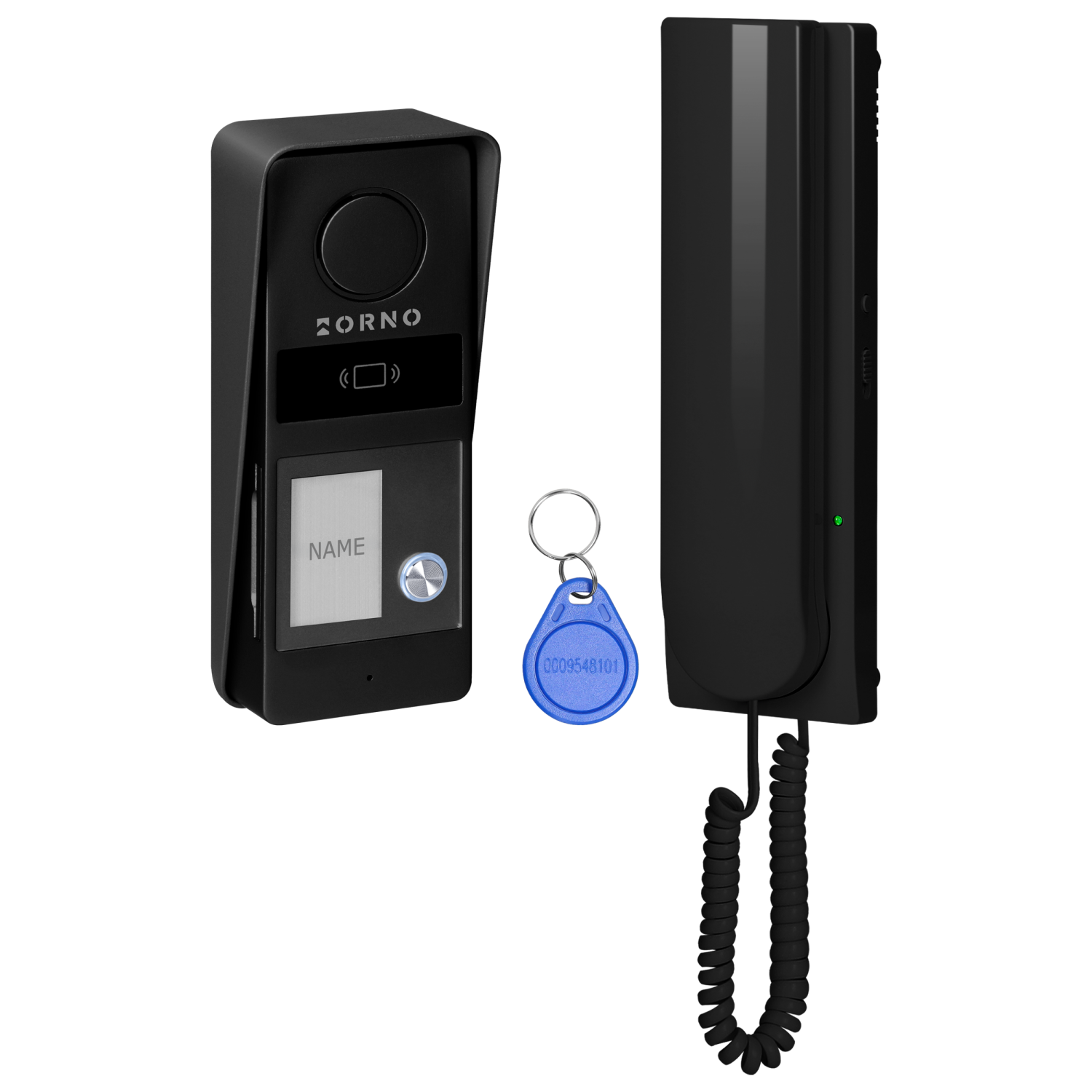

Open the wicket without leaving your home – with the ATIN doorphone set. It allows you to remotely open the gate or wicket from the indoor unit, while the built-in RFID card and tag reader (125 kHz) lets you and your family access the property with a single gesture—simply hold the card or tag near the reader.

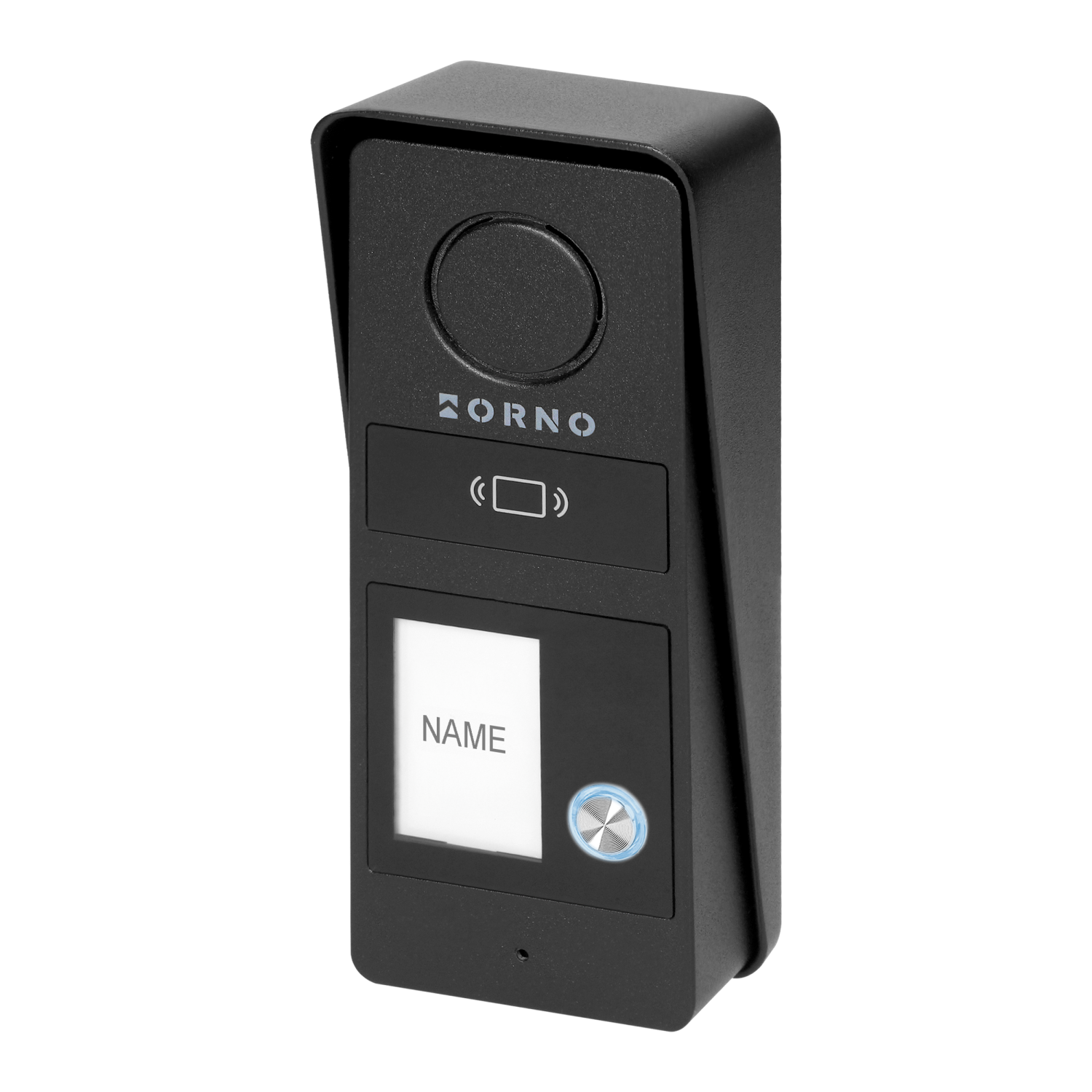

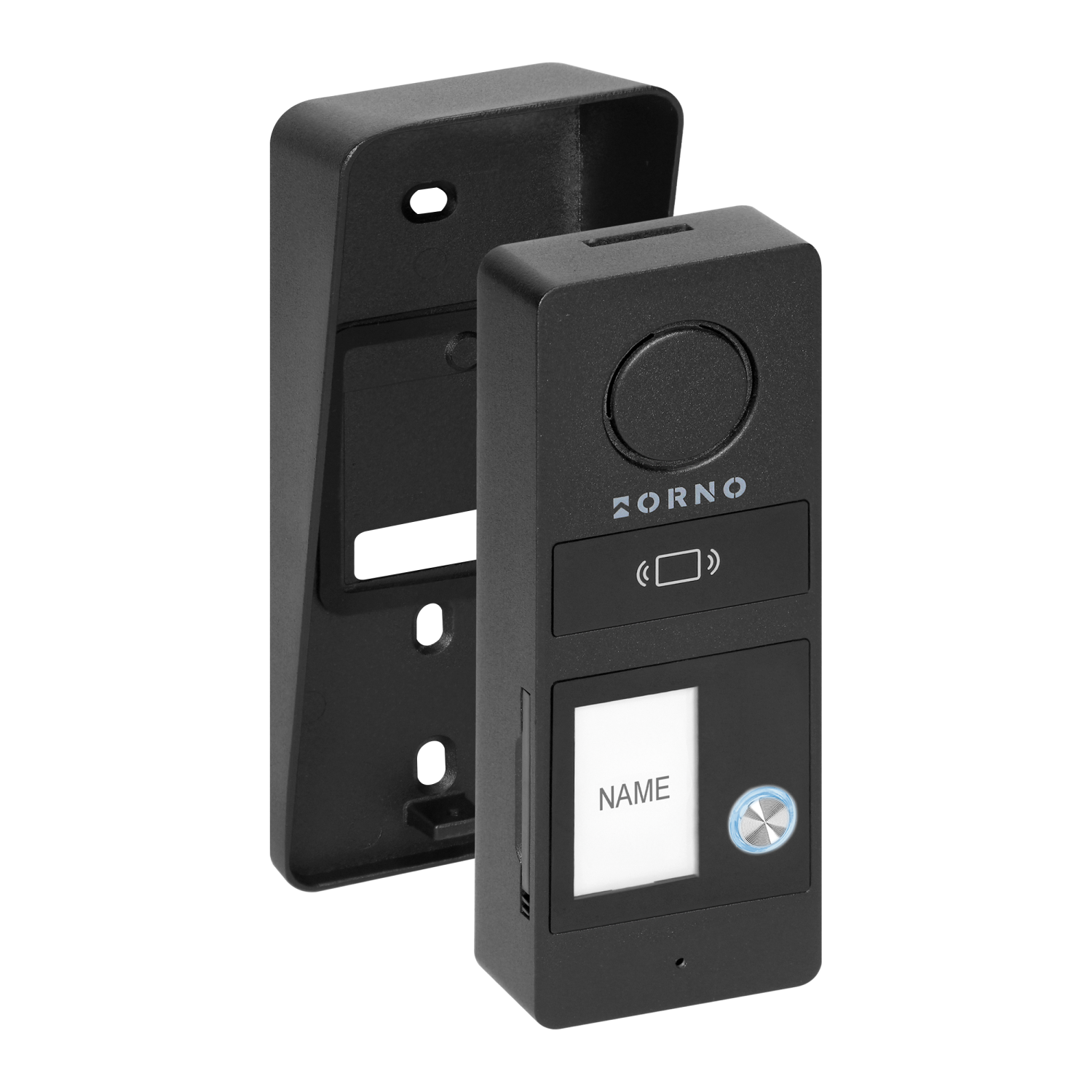

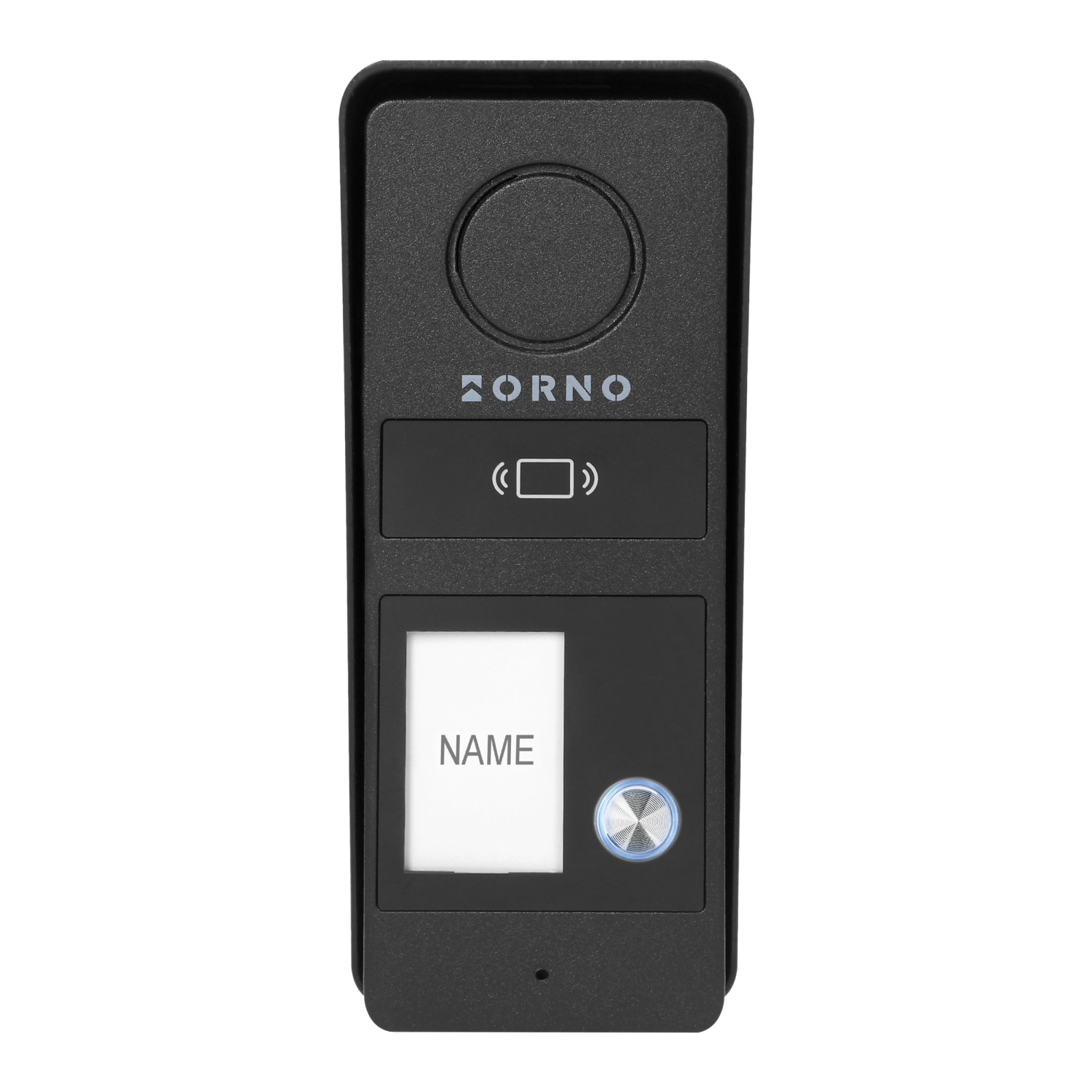

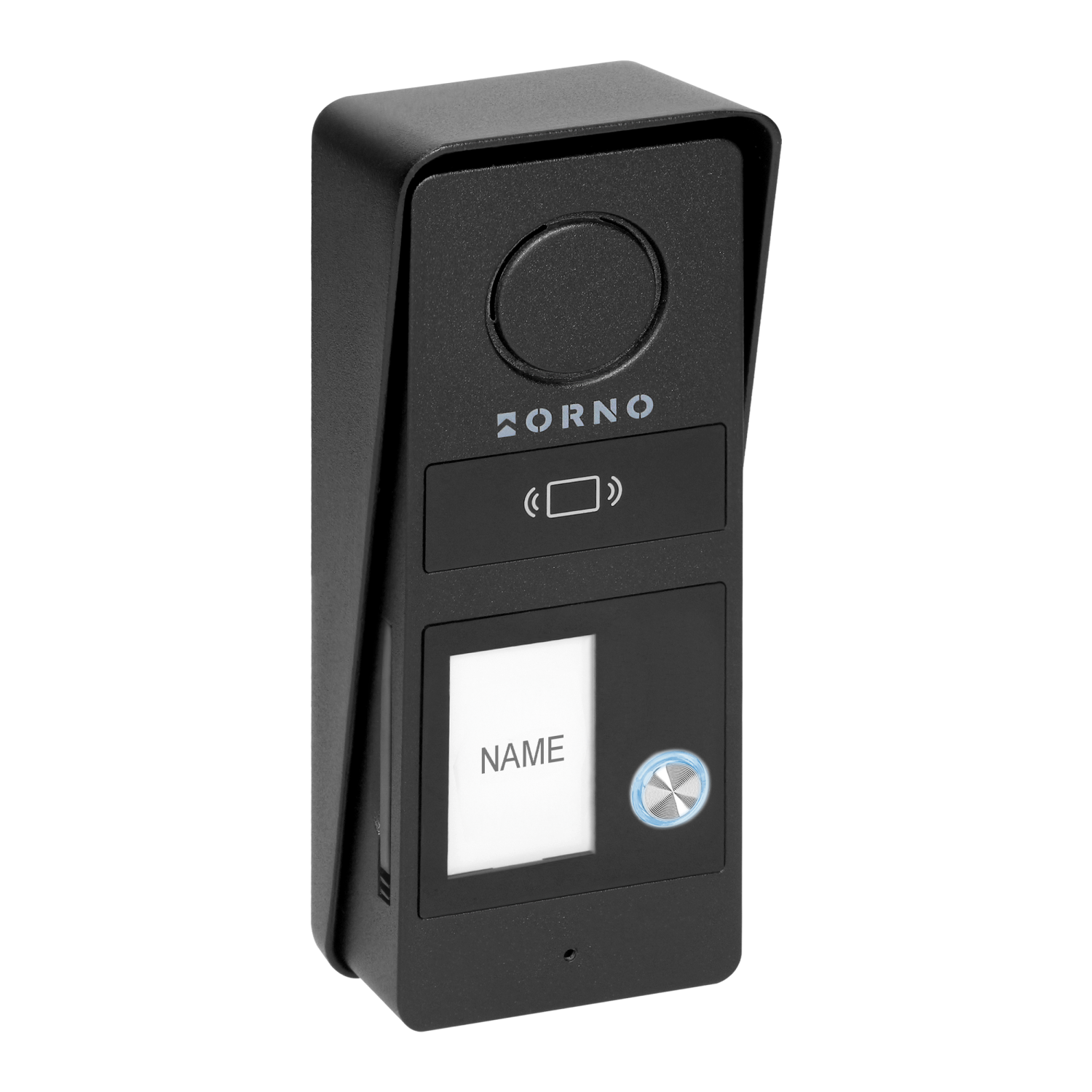

The outdoor unit features a protective cover and an IPX5 protection level, making it resistant to rain, wind, and frost. Its slim design (62 mm wide) allows for easy installation even on narrow fence posts. Thanks to the nameplate, your guests will always know they have reached the right address.

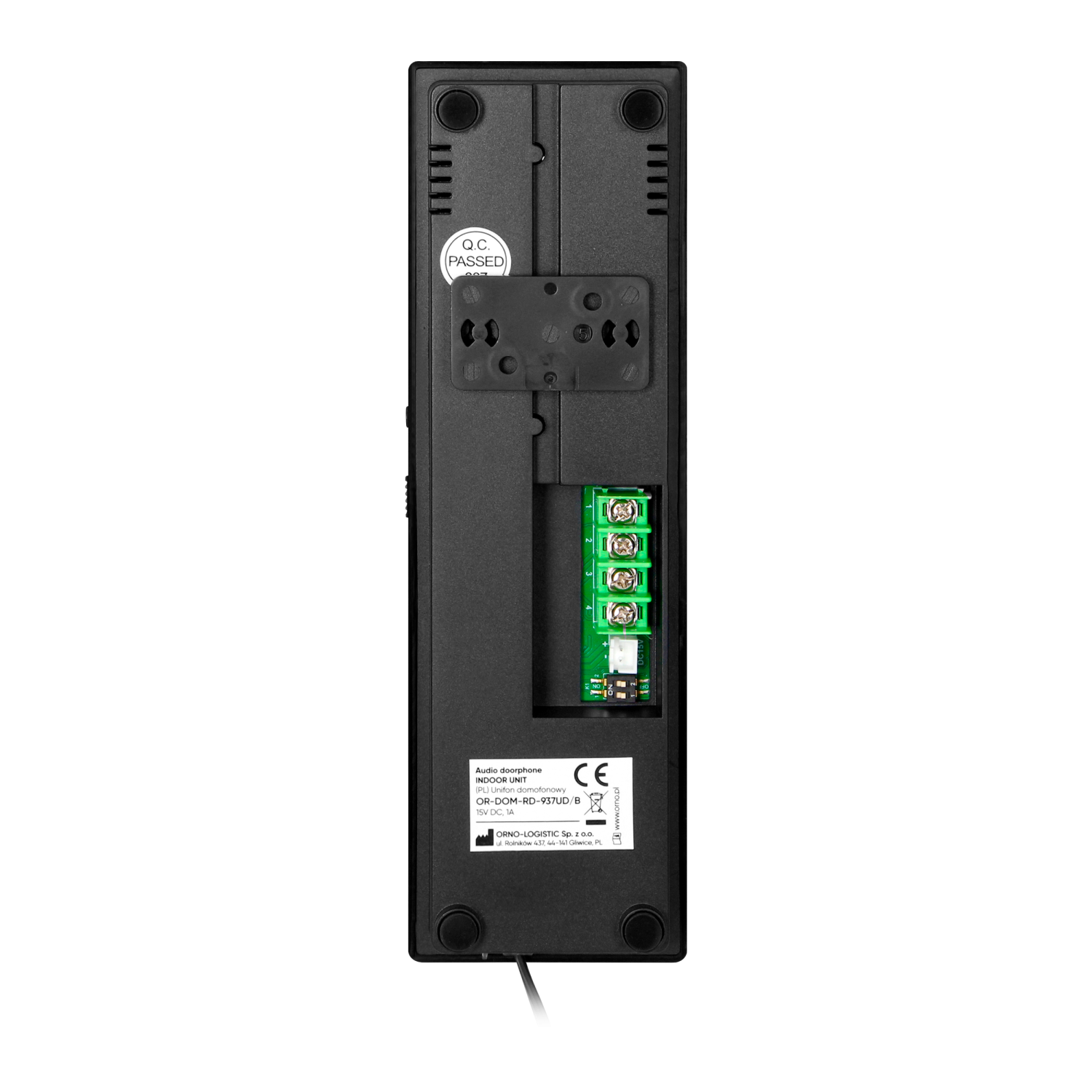

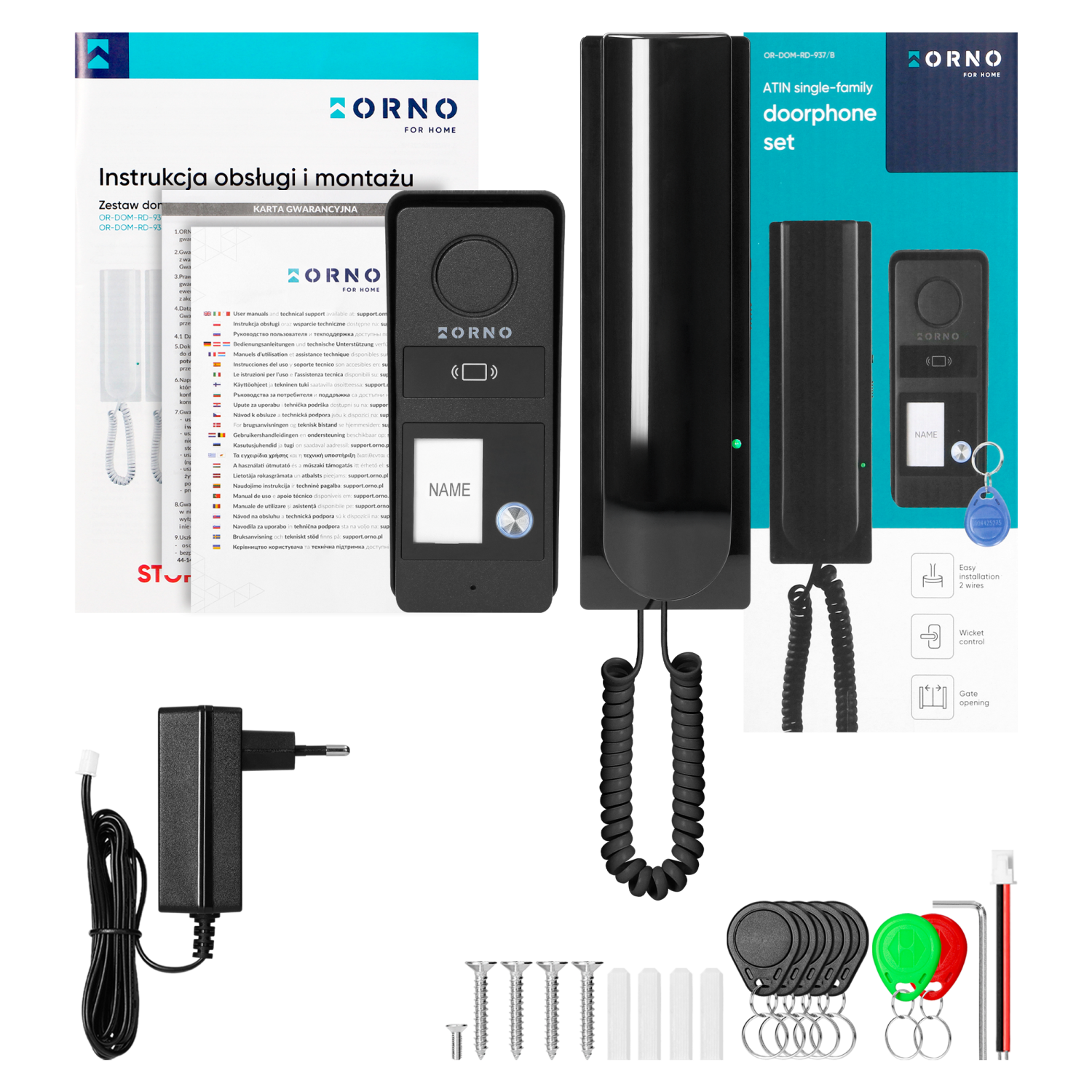

Only two wires are required to install the doorphone, so you can use the existing doorbell wiring. The set includes a plug-in power supply—just connect it to a socket and you’re ready to go.
Want to open the gate from the indoor unit? With the ATIN set, the wiring can be run directly from the outdoor unit mounted on the fence, with no need to route cables from the house to the gate.
Customize the device to suit your needs: choose from 16 ringtone melodies and set the desired volume level. You can also mute the doorphone completely.

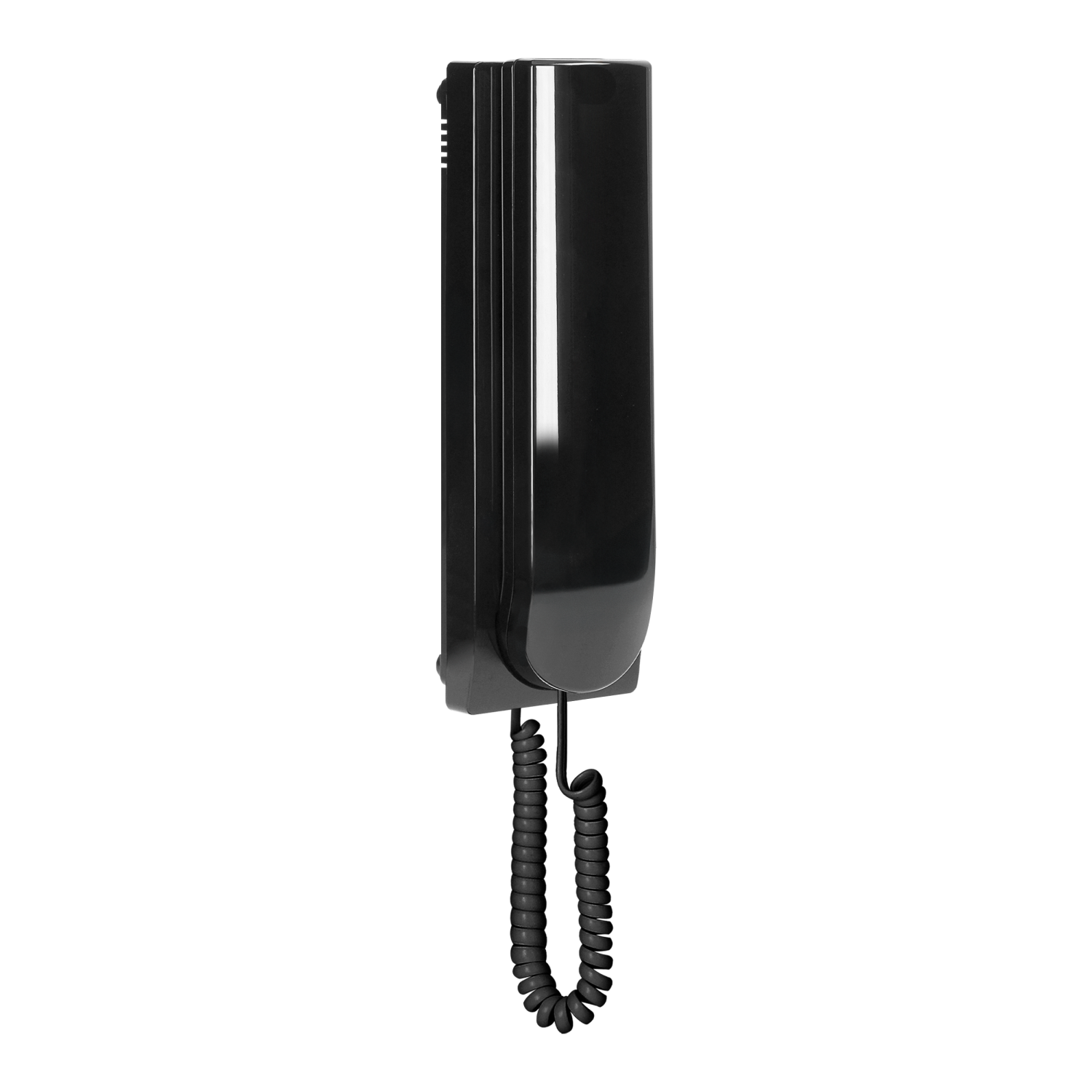

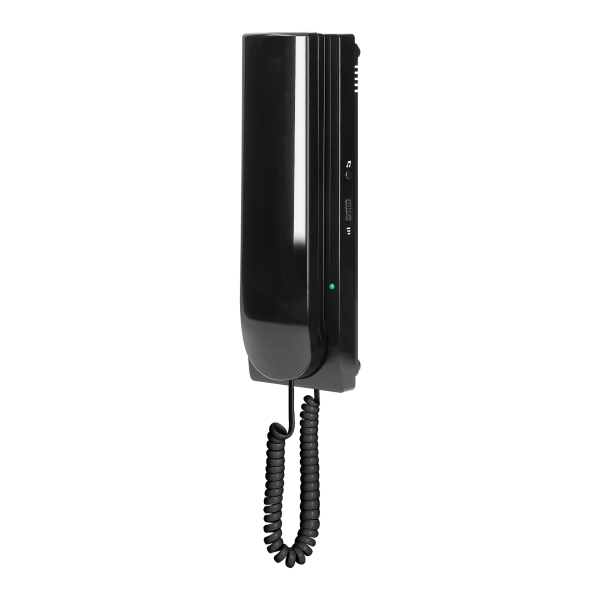

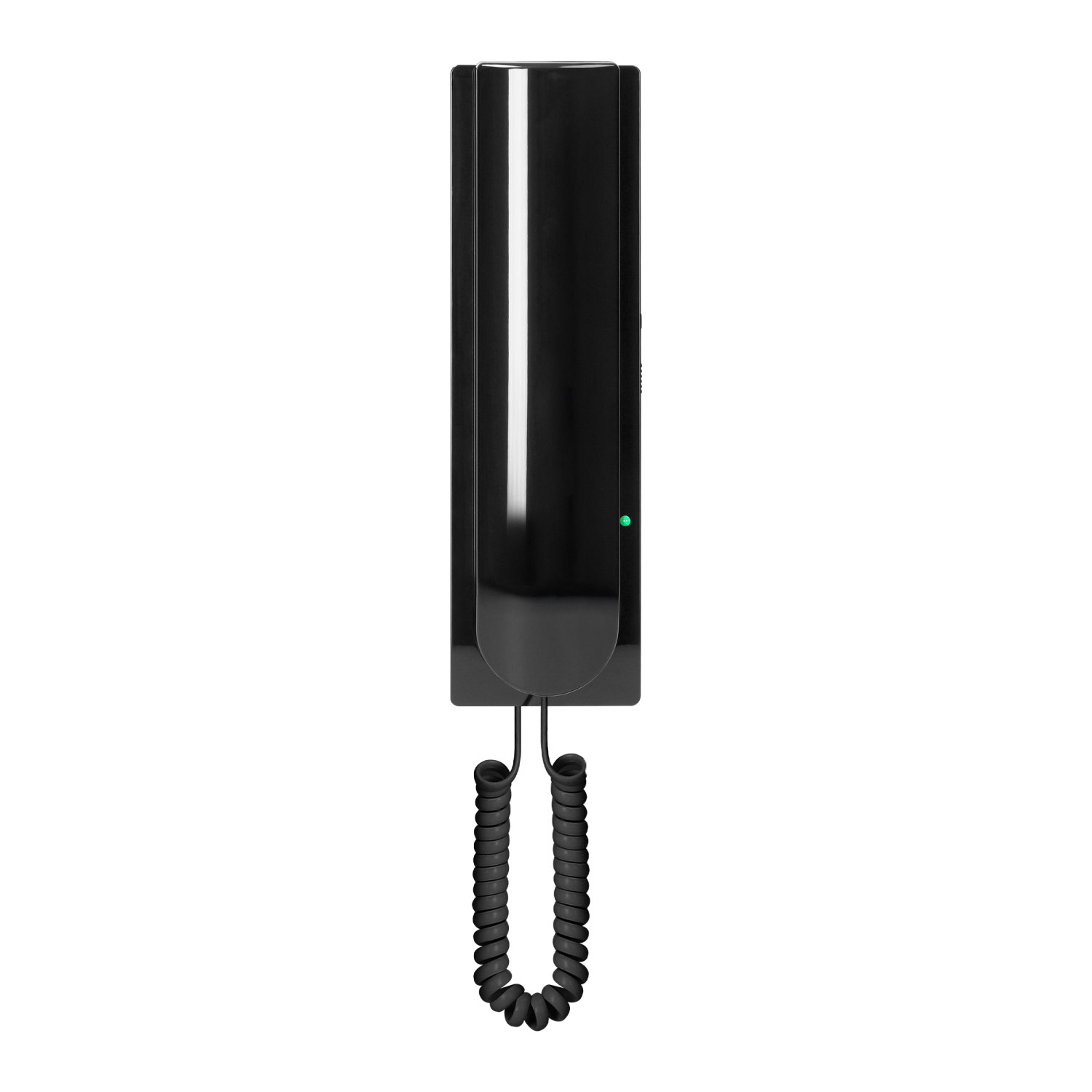

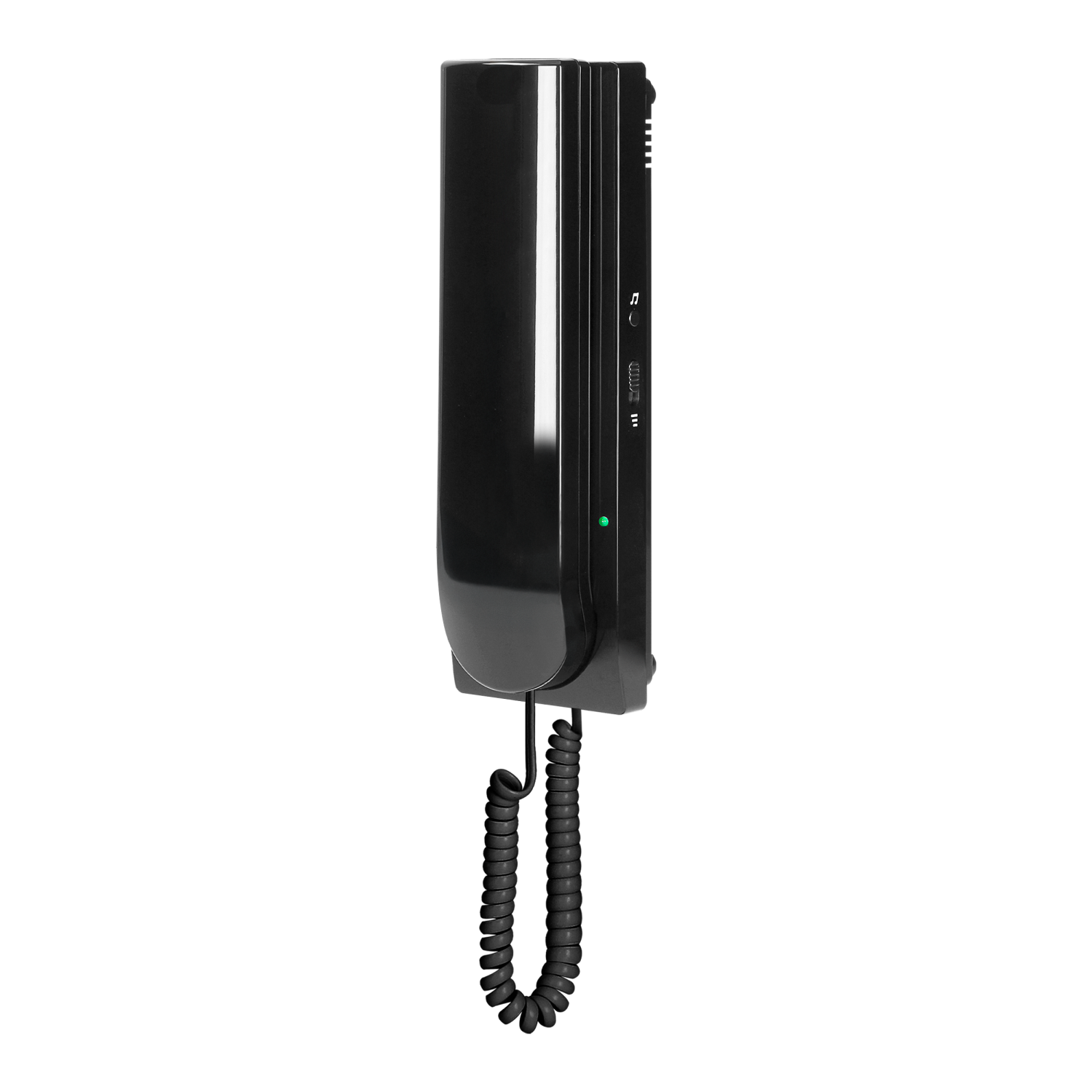

The black-colored set fits perfectly into modern interiors, while the slim indoor unit remains discreet against dark walls. It also works well as a contrasting accent in bright interiors.
| General information: |
|---|
| Type: | jednorodzinny |
| With video: | nie |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 15V DC 1A |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | Dwużyłowe |
| Number of wires (*from outdoor unit to electric strike): | 2 (+2)* |
| Number of indoor stations: | 1 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 1 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |

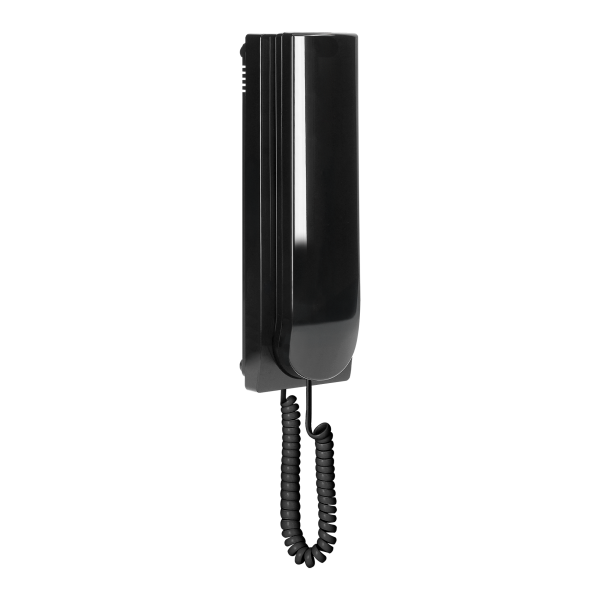

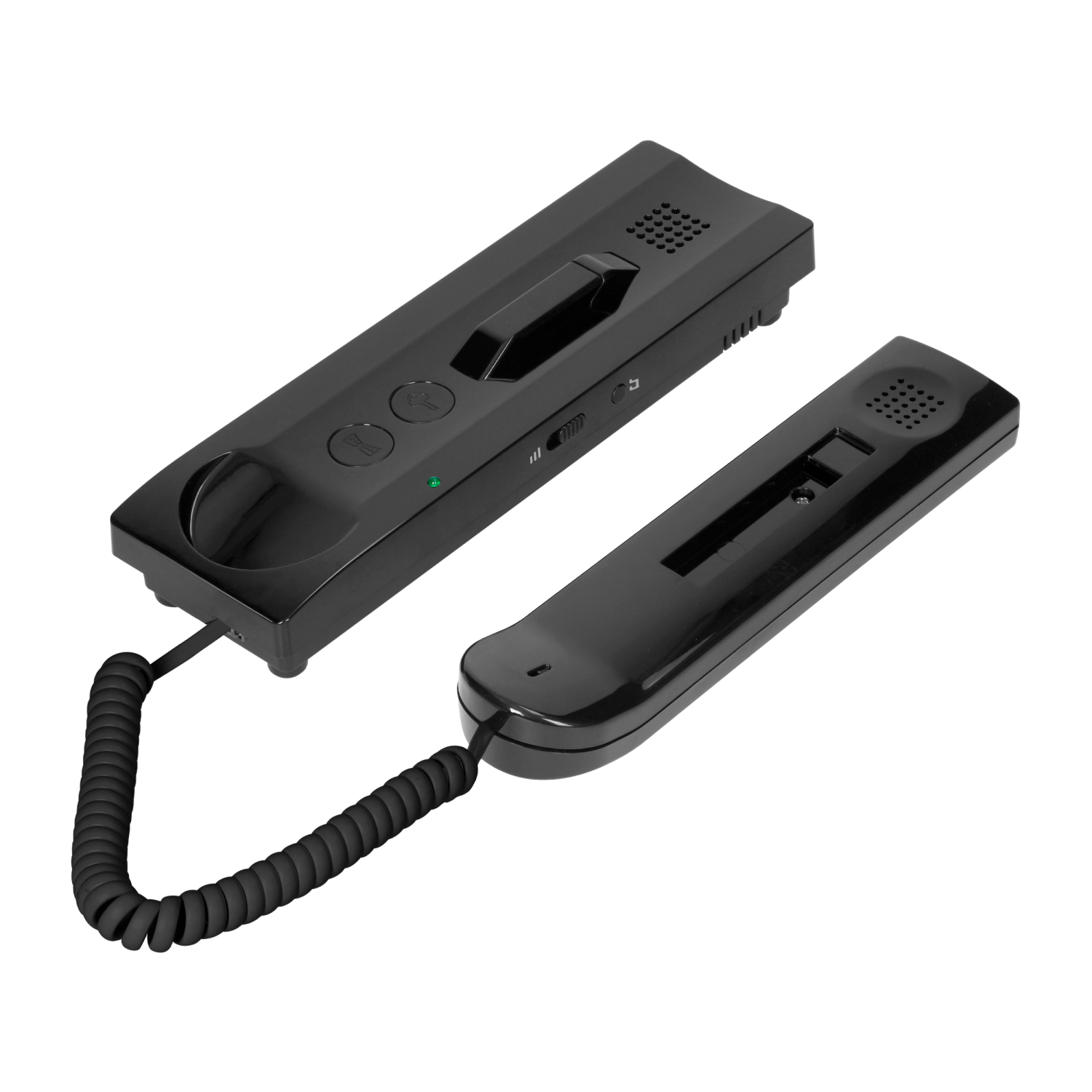

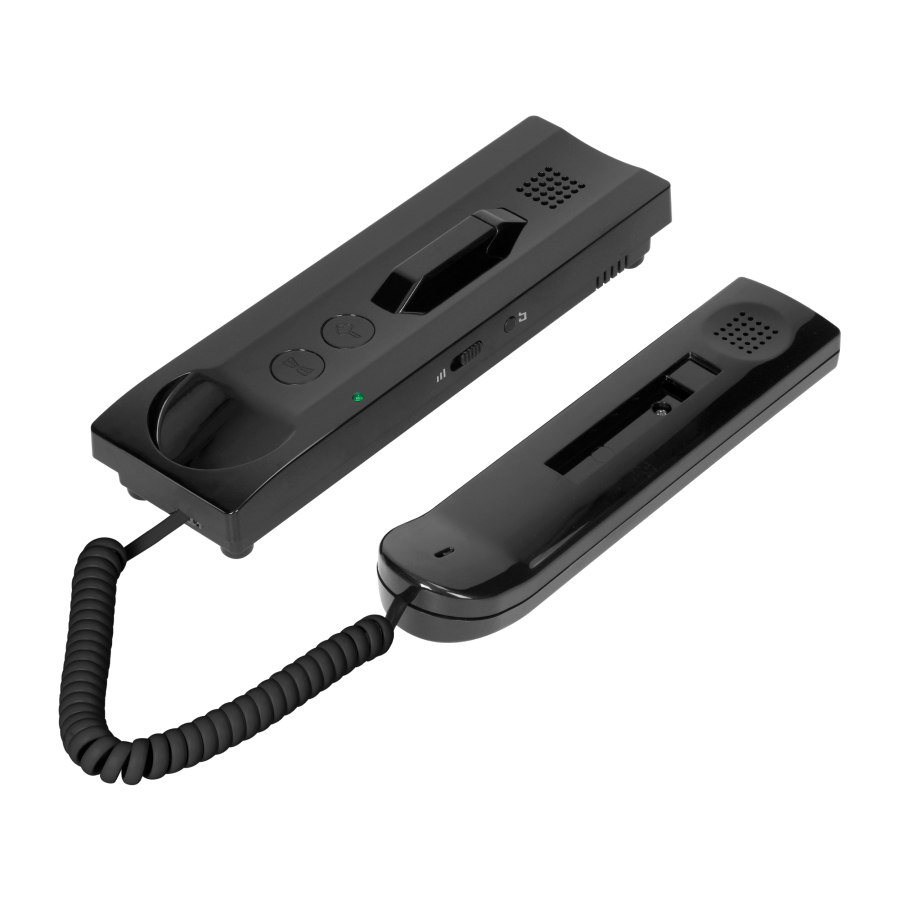

| Indoor unit: |
|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | nie |
| Number of ringtones: | 16 |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Czarny |
| Width [mm]: | 62 |
| Height [mm]: | 201 |
| Depth [mm]: | 54 |

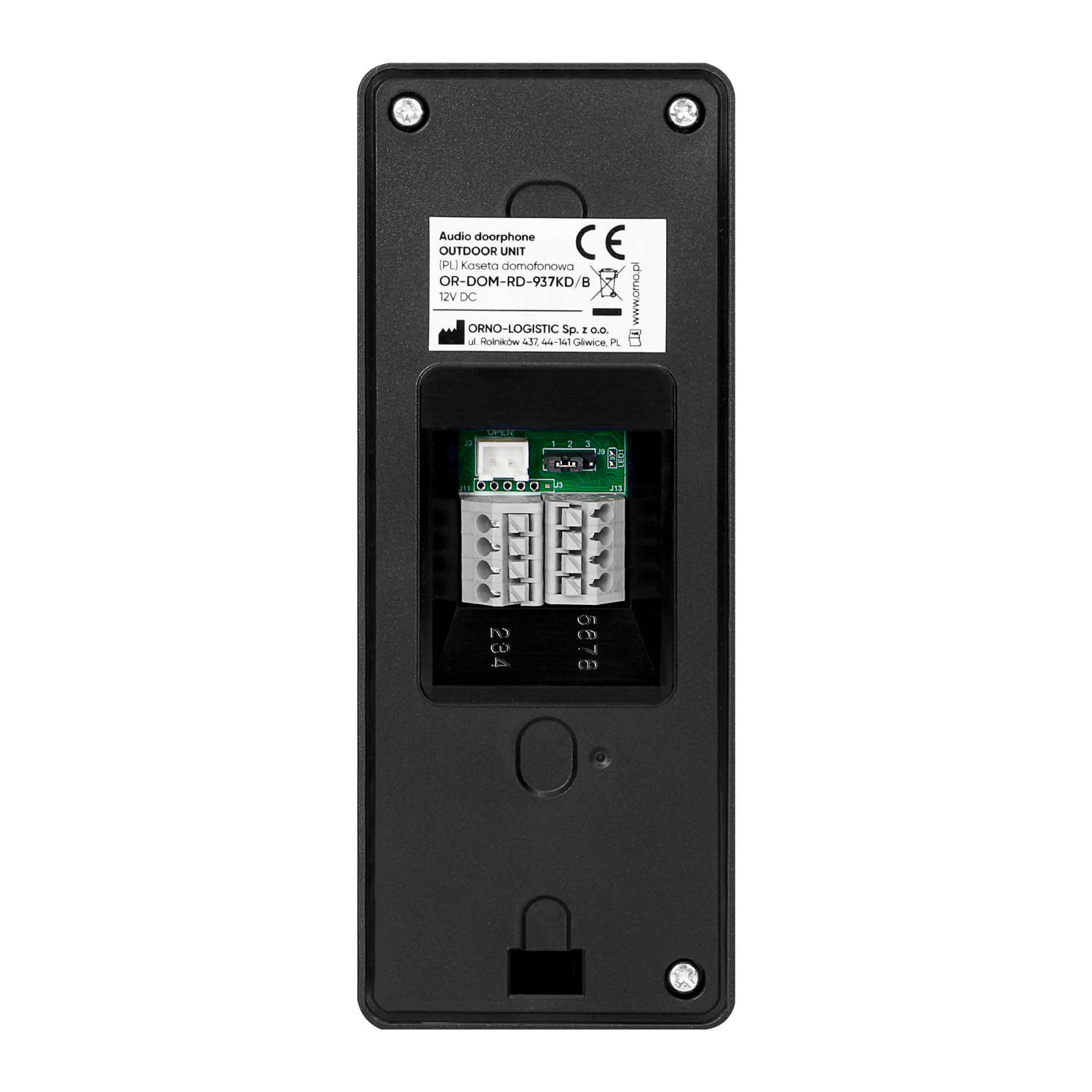

| Outdoor unit: |
|---|
| Number of call buttons: | 1 |
| Mounting method outdoor station: | Montaż natynkowy |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IPX5 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Czarny |
| Width [mm]: | 62 |
| Height [mm]: | 149 |
| Depth [mm]: | 41 |

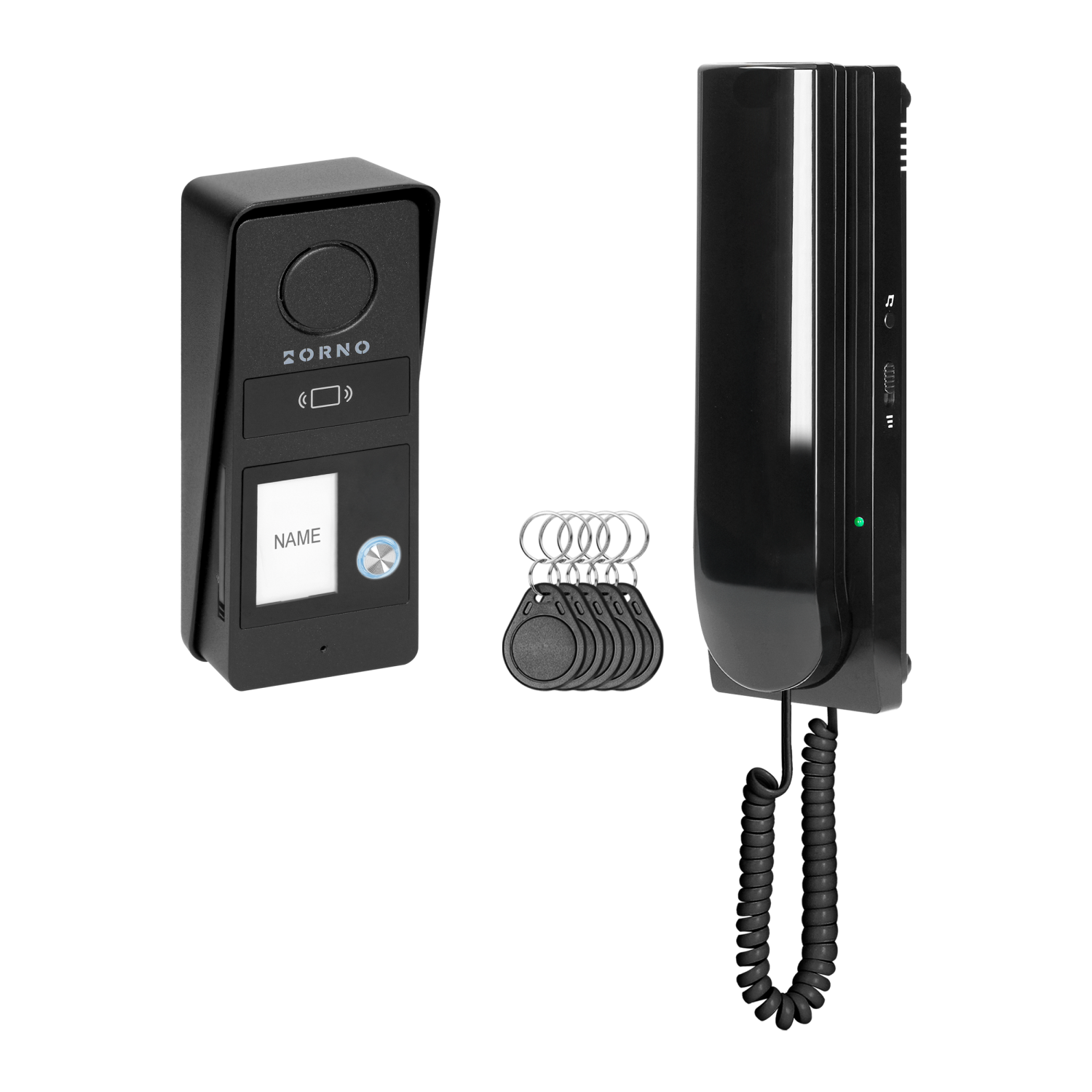

| Other features: | RFID - max. 100 użytkowników (breloki w zestawie: 5 użytkownika, 2 administracyjne) |
