Ring terminals
New

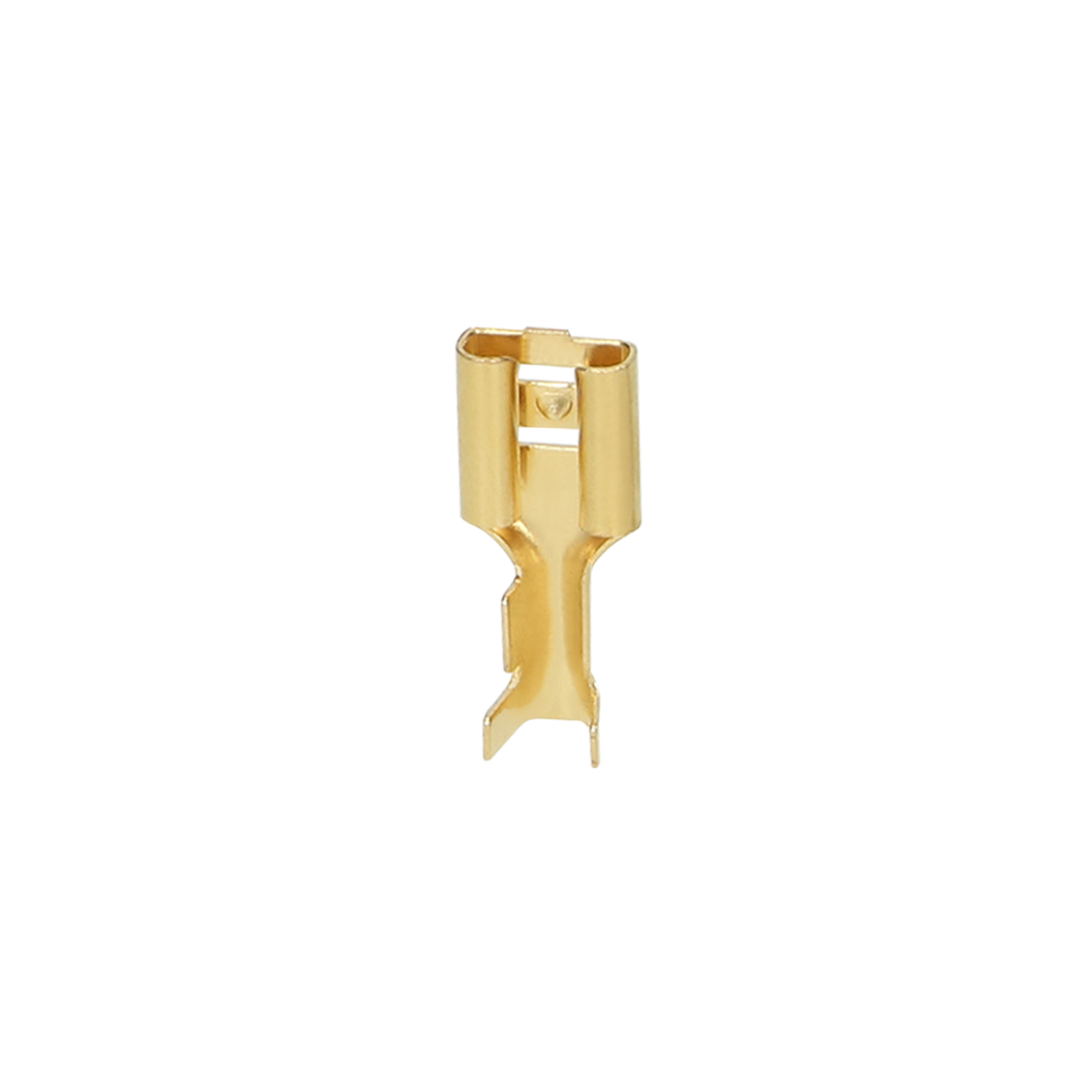

The non-insulated blade receptacle terminal is designed for quick and reliable connecting of electrical cables protecting them along the entire length of the contact. Suitable for multicore and flexible cables with a nominal cross-section of 0,5 to 1 mm². The connector guarantees a stable connection thanks to its 6.3 mm flat end and 0.7 mm thick conductive material.
Made of brass for good electrical conductivity and high durability of the connection. Gold colour.
The product meets the requirements of EN 60352-2:2006.
The pack contains 100 pieces.
| General information: | |
|---|---|
| Model: | Tuleja |
| Plug dimensions: | Płaski 6,3x0,7 mm |
| Pin width (flat-pin shape terminal) [mm]: | 6.3 |
| Nominal cross section [mm²]: | 0,5-1 |
| Colour: | Złoty |
| Material insulation: | nieizolowany |
| Material: | Mosiądz |
| Surface protection: | Bez pokrycia |
| Thickness of conductive material [mm]: | 0.7 |
| Suitable for stranded conductors: | Tak |
| Suitable for fine strand conductors: | Tak |
| Number of pieces in the package [szt.]: | 100 |
| Compliance with standards: | EN 60352-2:2006 |
