Ring terminals

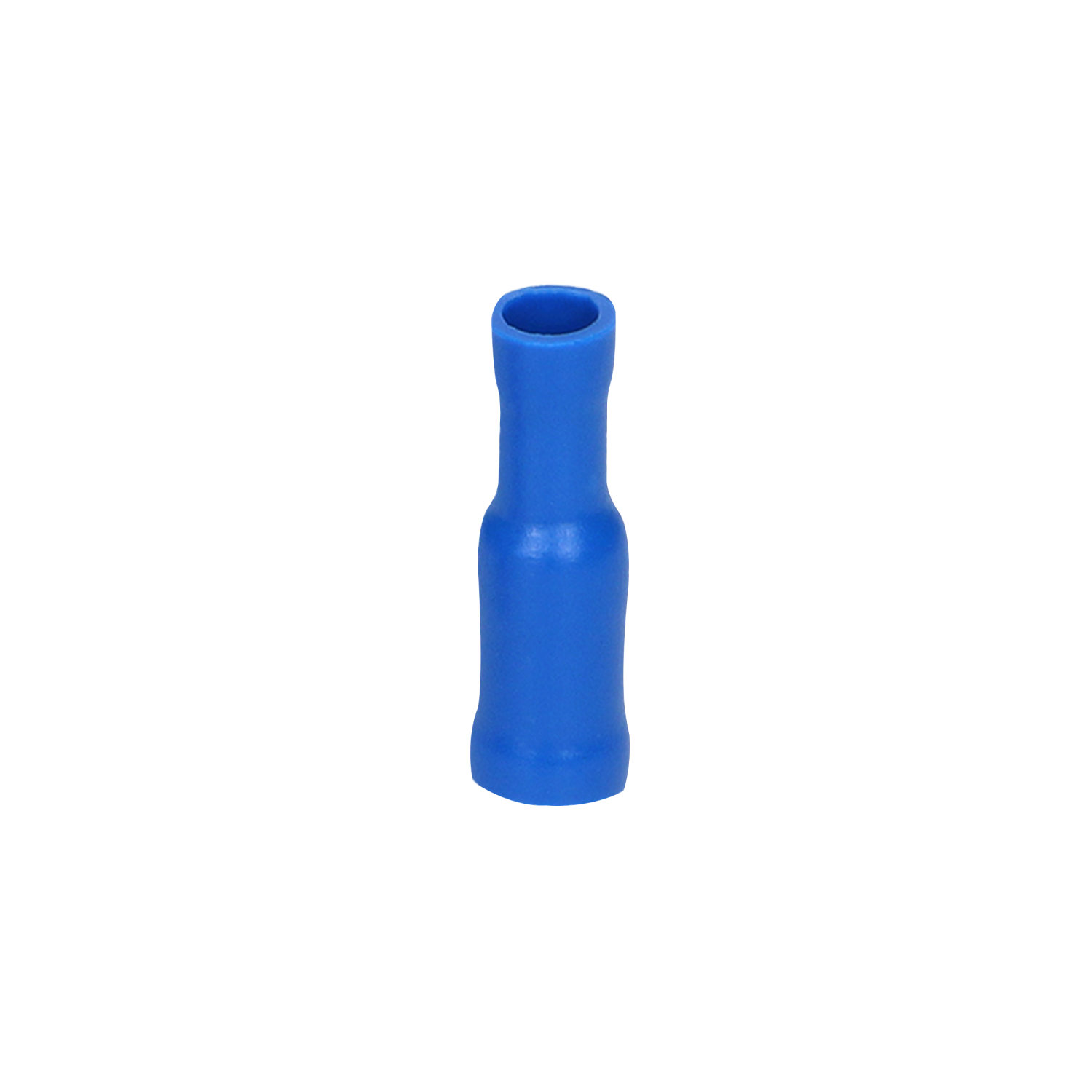

The fully insulated blade receptacle terminal is designed for quick and reliable connecting of electrical cables protecting them along the entire length of the contact. Suitable for multicore and flexible cables with a nominal cross-section of 1 to 2,5 mm². The connector guarantees a stable connection thanks to its 6.3 mm wide flat end and 0.7 mm thick conductive material.
Made of tin-coated brass for corrosion resistance and good electrical conductivity. The blue PVC insulation increases the safety of use.
The product meets the requirements of EN 60352-2:2006.
The pack contains 100 pieces.
| General information: | |
|---|---|
| Model: | Tuleja |
| Plug dimensions: | Płaski 6,3x0,7 mm |
| Pin width (flat-pin shape terminal) [mm]: | 6.3 |
| Nominal cross section [mm²]: | 1-2,5 |
| Colour: | Niebieski |
| Material insulation: | Polichlorek winylu (PVC) |
| Material: | Mosiądz |
| Surface protection: | Cynowanie |
| Thickness of conductive material [mm]: | 0.7 |
| Suitable for stranded conductors: | Tak |
| Suitable for fine strand conductors: | Tak |
| Number of pieces in the package [szt.]: | 100 |
| Compliance with standards: | EN 60352-2:2006 |
