Natural gas detectors

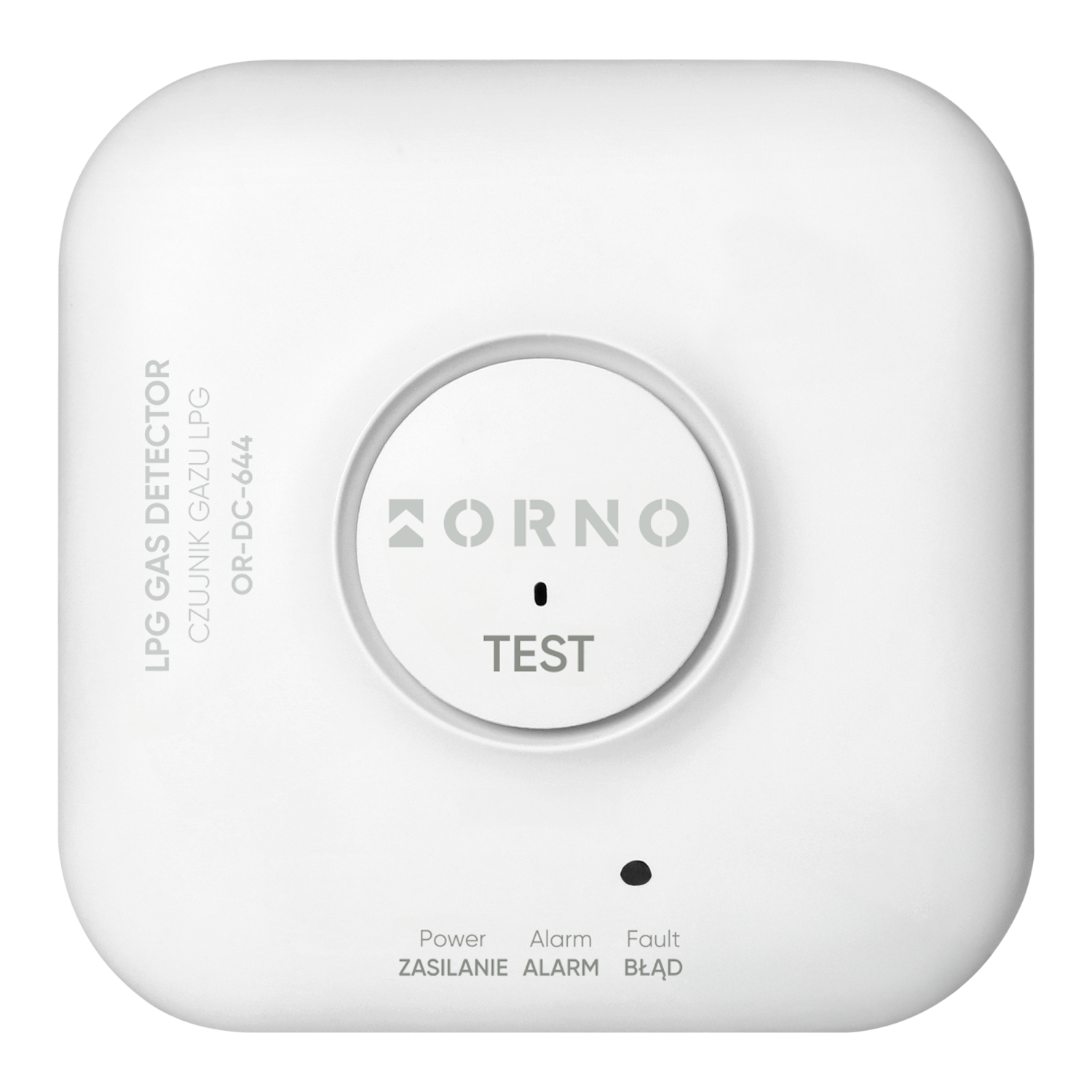

The LPG gas detector is a modern device with high detection efficiency of the popular butane-propane mixture. The built-in visual and sound alarm immediately informs the user of a detected gas, ensuring quick response to approaching danger.
The built-in Wi-Fi technology allows to connect the device to the Tuya Smart app, enabling integration with other smart devices and remote control from anywhere in the world. The app simply needs to be downloaded to the phone and synchronised with the product. Additionally, it may be connected via Bluetooth allowing to control the device in close proximity.
Surface mounting makes installation extremely simple, thus facilitating quick protection of the space from potential threat. It is recommended to mount the sensor approximately 15 cm from the floor for effective risk identification. The device operates autonomously, requiring only a 230V AC supply voltage.
The built-in TEST button allows to check the correct operation of the device at any time. The dimensions measure: 85x85x41 mm. The unit’s lifespan is 5 years.
Compliance with EN 50270:2015-04+AC:2016-10 and EN 50270:2015+AC:2016-08, certified by the certification body SGS.
| General information: | |
|---|---|
| Loudness [dB(A)]: | Stacjonarny |
| Response temperature [°C]: | Skład gazu |
| Smoke switcher: | LPG |
| Mounting method: | 230 |
| Self-adhesive: | 0 |
| Separate socket needed: | 40 |
| Cable entry: | Tak |
| Standalone: | Tak |
| Audible Alarm [dB]: | ≥70dB |
| Alarm level: | 10% LEL |
| Testing Range: | 0-20% LEL |
| Degree of protection (IP): | IP20 |
| Length [mm]: | 85 |
| Width [mm]: | 85 |
| Height/depth [mm]: | 41 |
| Sensor lifetime: | 5 lat |
| Sensor type: | półprzewodnikowy |
| Compliant standards: | PN-EN 50270:2015-04+AC:2016-10; EN 50270:2015+AC:2016-08 |
| Certification authority: | SGS |
| Type of test-/pause button: | Przycisk testowy |
| Mounting method: | Montaż powierzchniowy |
| Relative humidity [%RH]: | ≤95 |
| Operating system: | IOS/Android |
| Wi-Fi Standard: | IEEE 802.11 b/g/n, |
| Power Wi-Fi: | ≤0,2W |
| Bluetooth: | Bluetooth 4.2 |
| Tuya: | Tak |
