Natural gas detectors

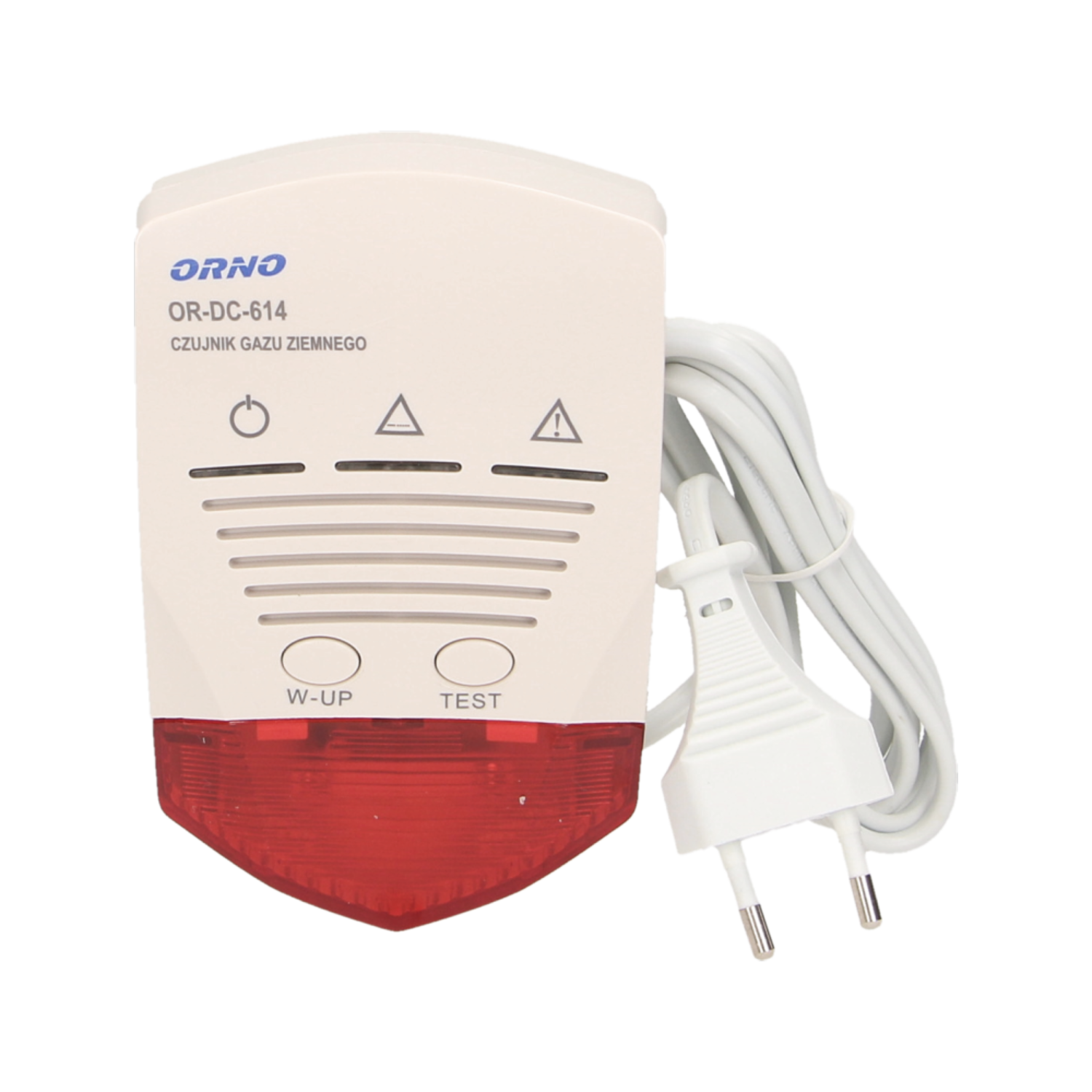

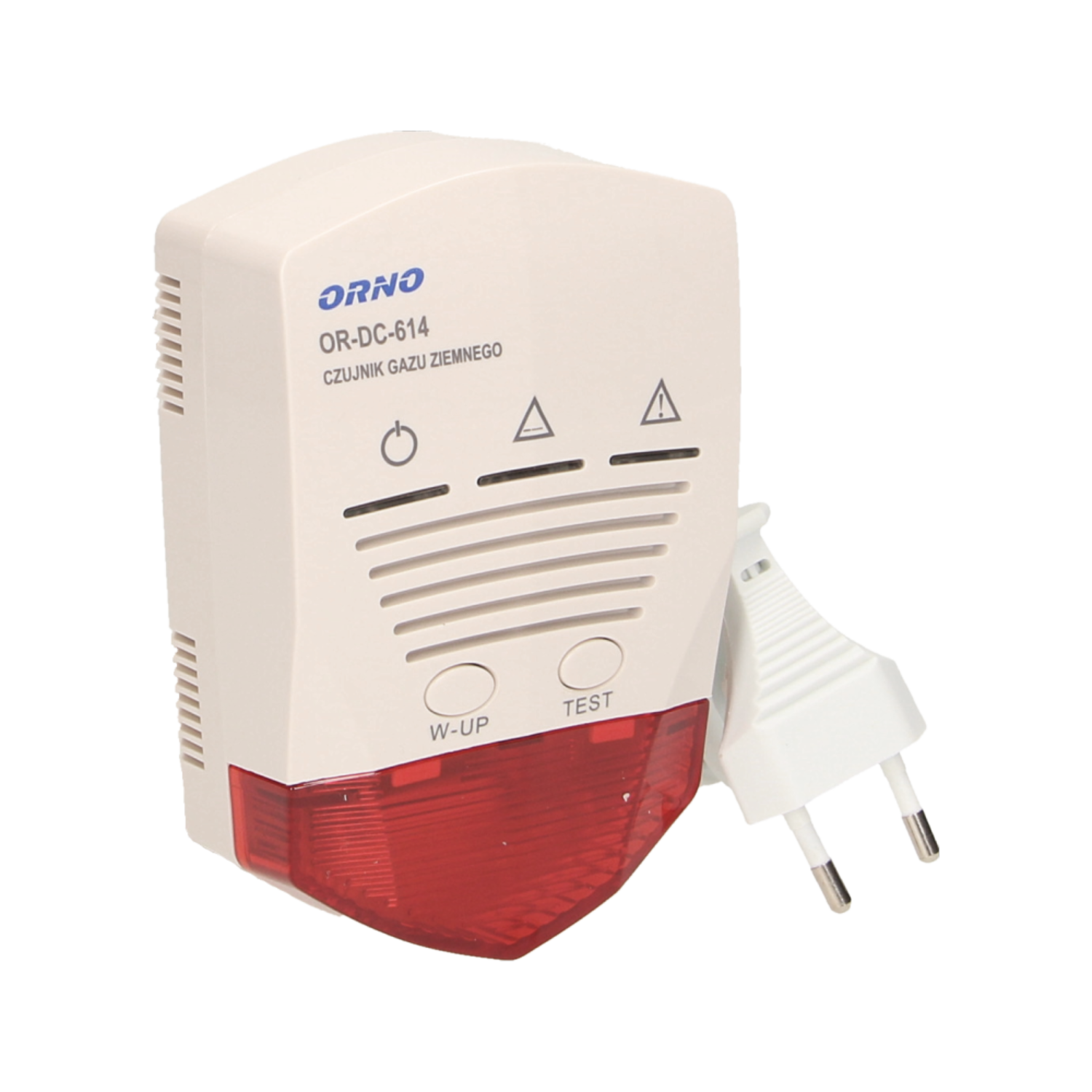

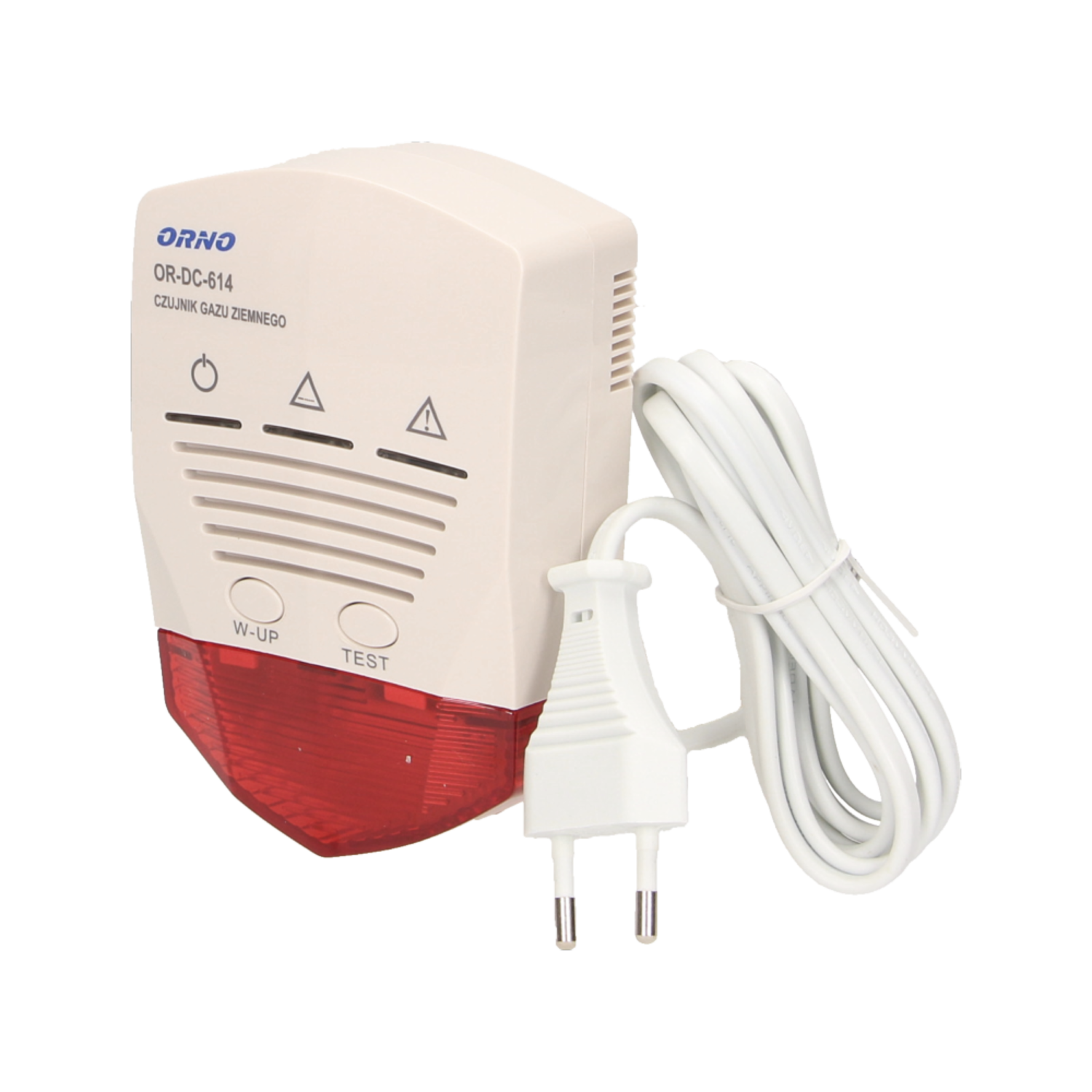

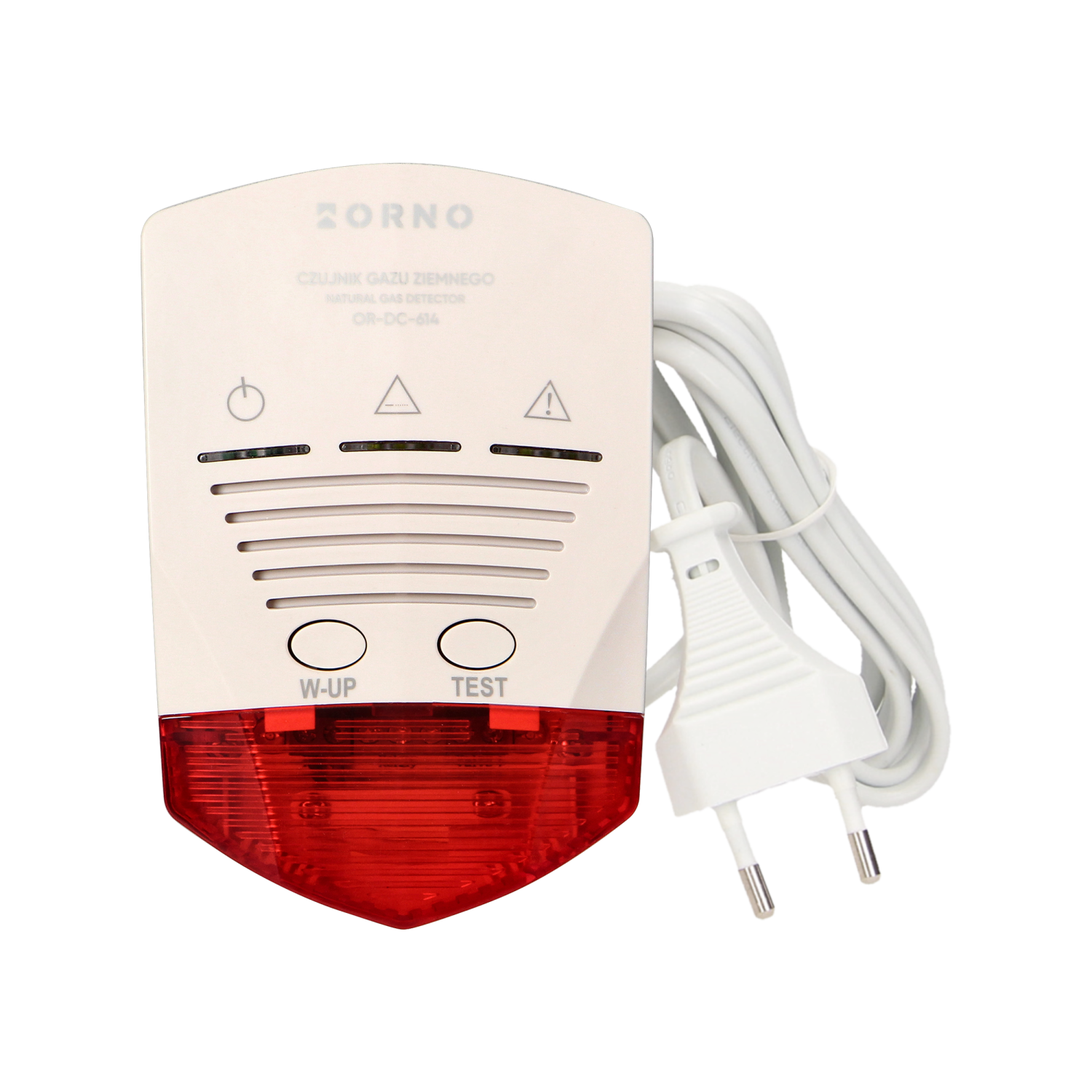

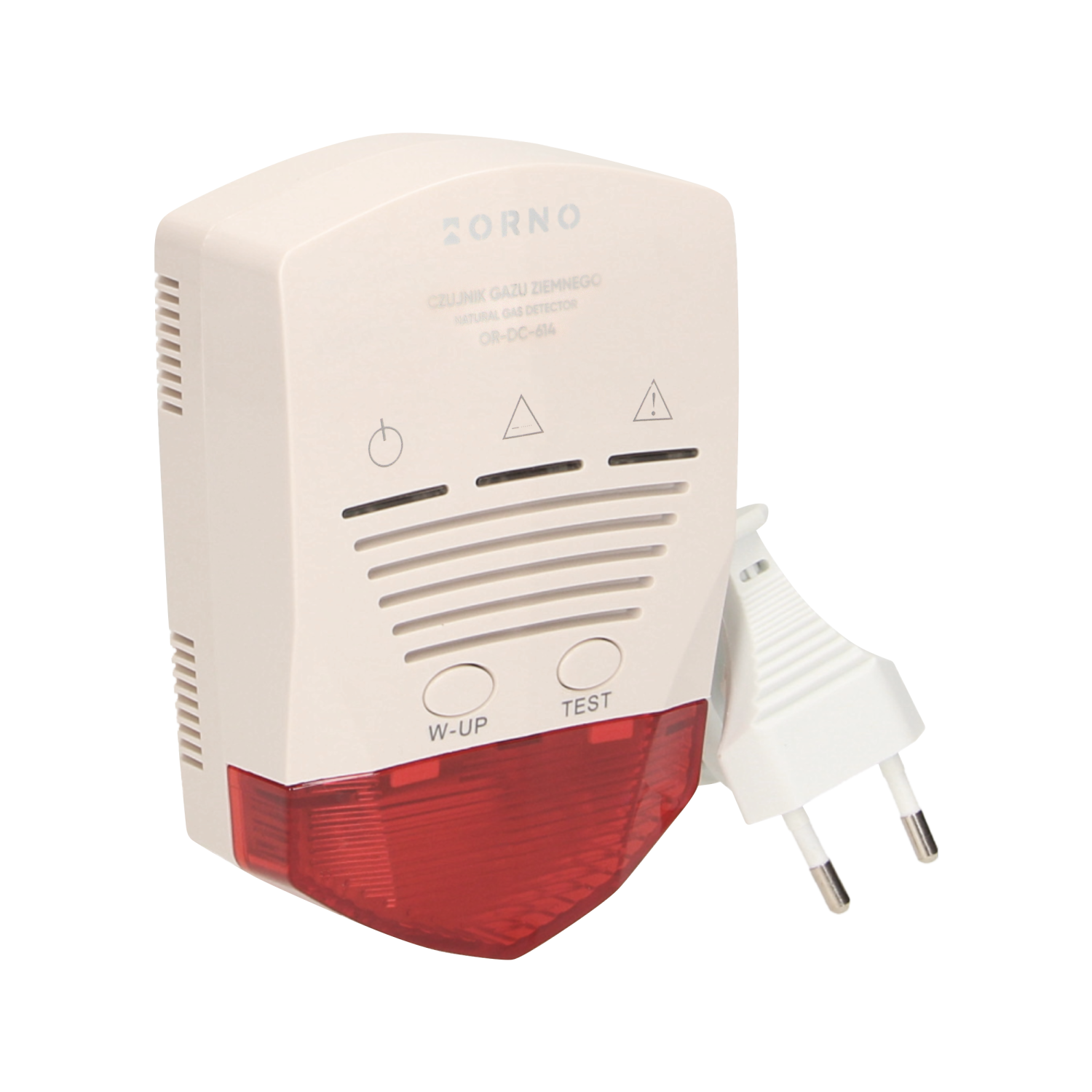

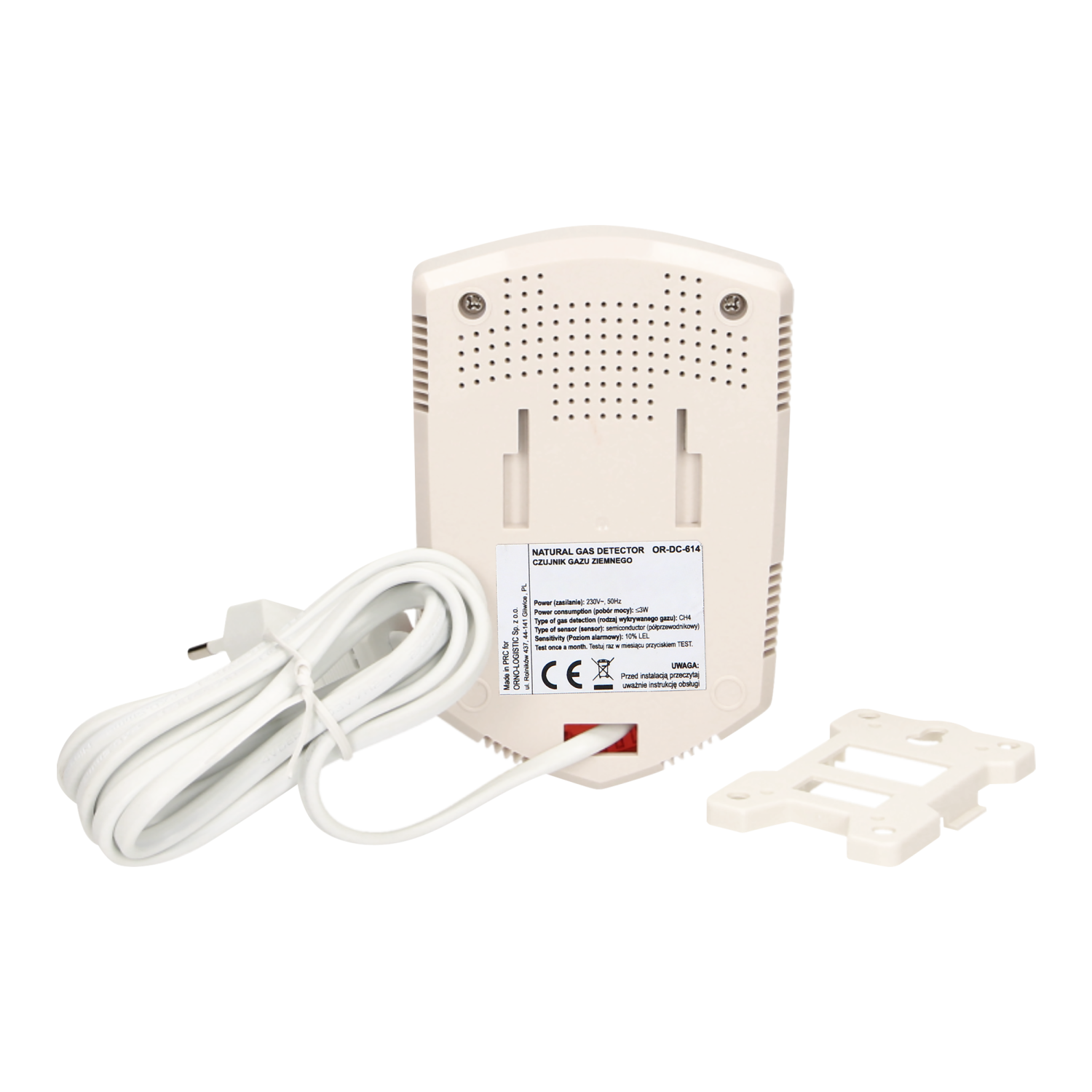

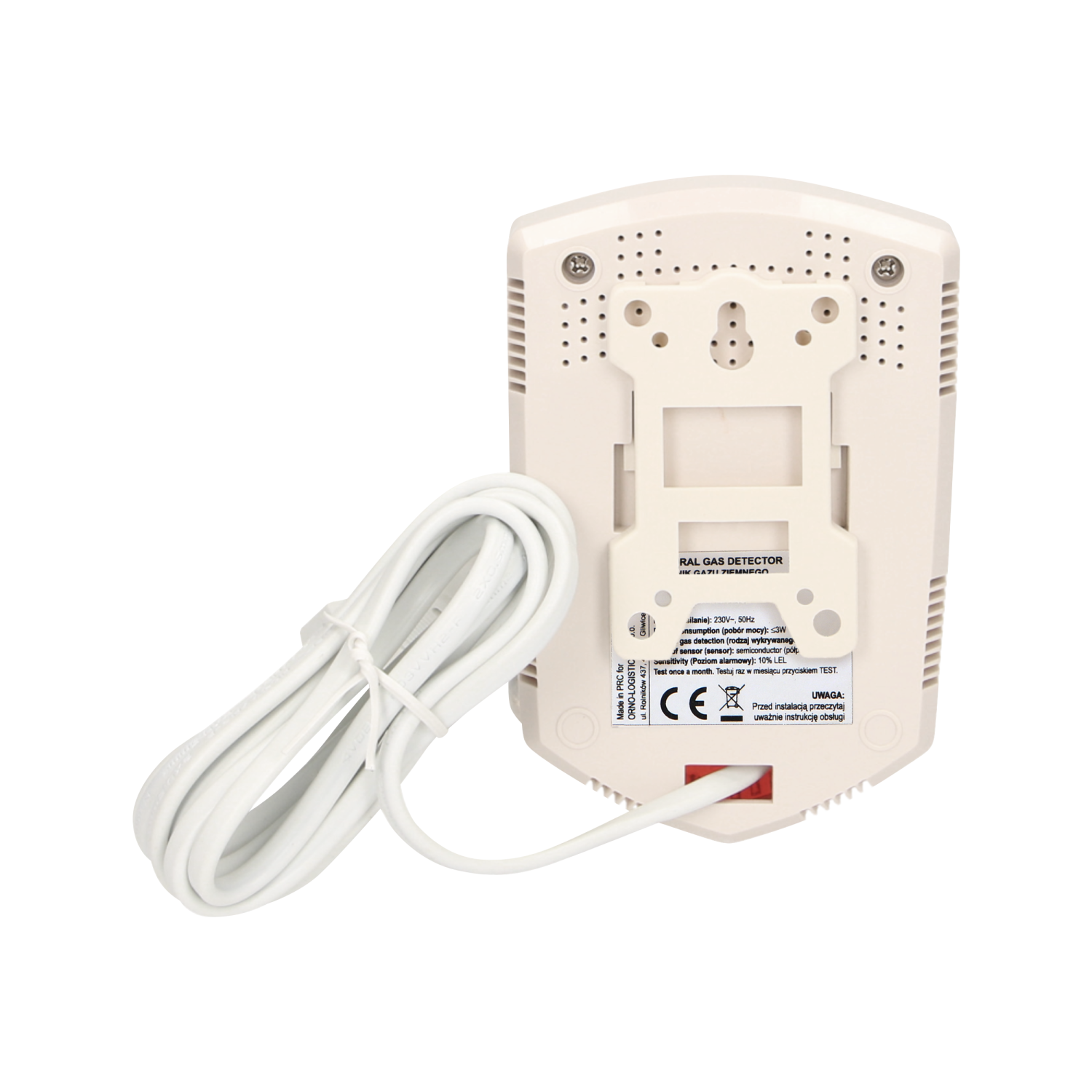

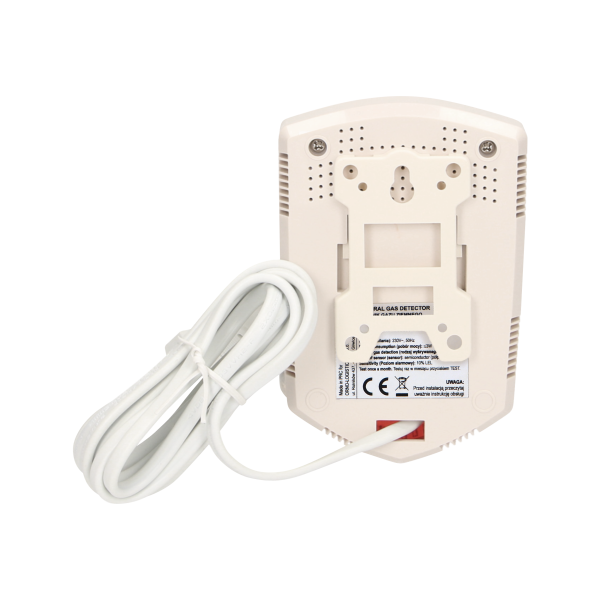

The OR-DC-614 sensor is a modern natural gas detector for indoor use. It is used for continuous monitoring of the presence and detection of natural gas escaping from leaks. The device uses a high quality semiconductor sensor to achieve a high detection rate. When a gas leak reaching the set alarm threshold is detected, the detector will emit a signal and a red LED will be activated
| General information: | |
|---|---|
| Nominal voltage: | 230V~, 50Hz |
| Types of detected threats: | natural gas |
| Type of power supply: | directly to 230V |
| Alarm volume (db): | ≥70 |
| Test button: | Yes |
| Hush button: | No |
| Failure indication: | Yes |
| End of life indication: | Yes |
| Dimensions - depth: | 41 mm |
| Life time of the sensor: | 5 years |
| Dimensions - width: | 82 mm |
| Dimensions - height: | 125 mm |
| Other features: | relay output, the function of closing the gas cut-off valve to the installation |
| Display: | nie " |
| Type of sensor: | semiconductor |
