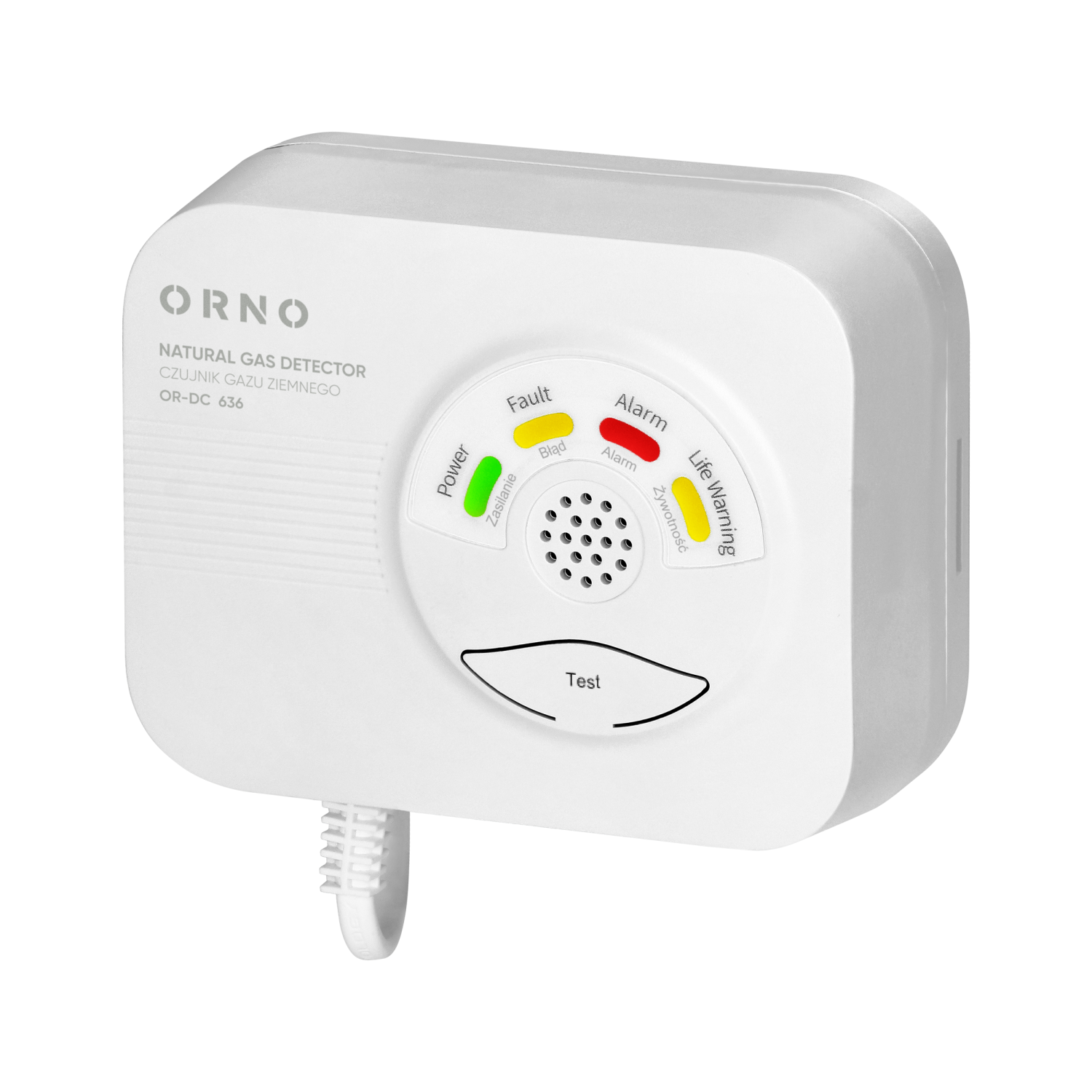

Natural gas detectors
The natural gas detector is a modern device which very effectively identifies methane. The built-in optical-acoustic indicator instantly informs the user of a detected gas and ensures quick reaction for imminent threat.
As it is surface mounted, the installation is extremely easy, thus, facilitating to quickly secure the space from potential danger. It is recommended to mount the sensor at about 15 cm from the floor for effective risk identification. The device operates autonomously, requiring only 230V AC supply voltage.
The white colour of the detector fits in a variety of interiors, and the modern design of the housing perfectly fits in, for example, kitchen furniture. The IP20 rate means that the best place for installation is dry surface not exposed to moisture.
Clear icons and easy status diagnostics ensure intuitive use, and a wired power supply eliminates the need for regular battery replacement.
The detector measures 108x86x36 mm.
| General information: | |
|---|---|
| Detect domestic gas: | Tak |
| Detect methane (CH4): | Tak |
| Alarm value [LEL] (Lower Explosive Limit): | 0.08 |
| Mounting method: | Montaż powierzchniowy |
| Standalone: | Tak |
| Voltage type (supply voltage): | AC |
| Supply voltage AC 50 Hz [V]: | 230 |
| Power consumption [W]: | ≤1,2 |
| Type of messaging: | Optyczny/akustyczny |
| Loudness [dB(A)]: | 70 |
| Response time [s]: | ≤30 |
| TEST button: | Tak |
| Colour: | Biały |
| Degree of protection [IP]: | IP20 |
| Length [mm]: | 108 |
| Width [mm]: | 86 |
| Height/depth [mm]: | 36 |
| Working temperature [°C]: | (-10 - +55) |
| Humidity [%]: | <93 |
| Weight [g]: | 190 |
| Sensor lifetime: | 7 lat |
| Compliance with: | EN 50194-1:2009 |
