Multi-family doorphones
New

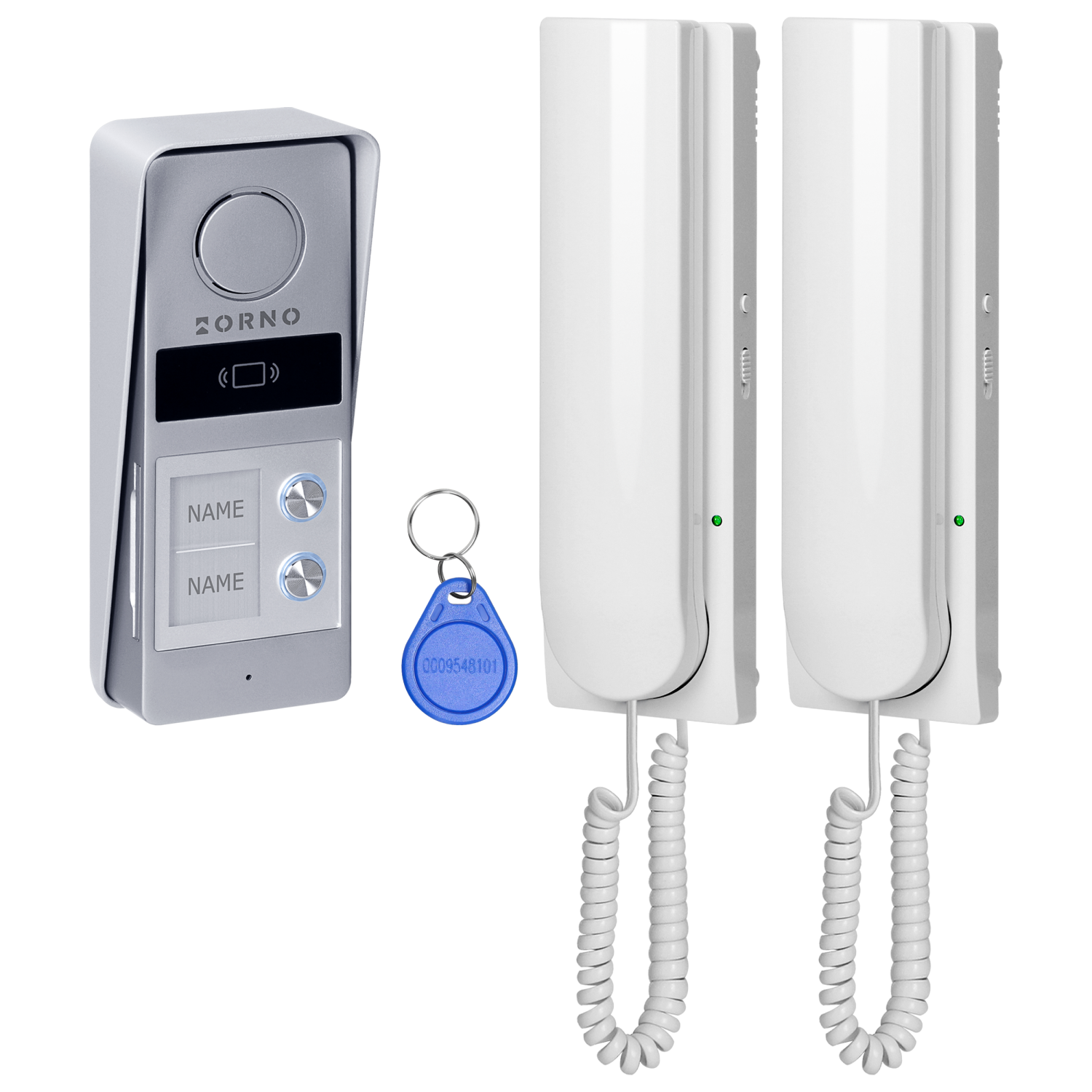

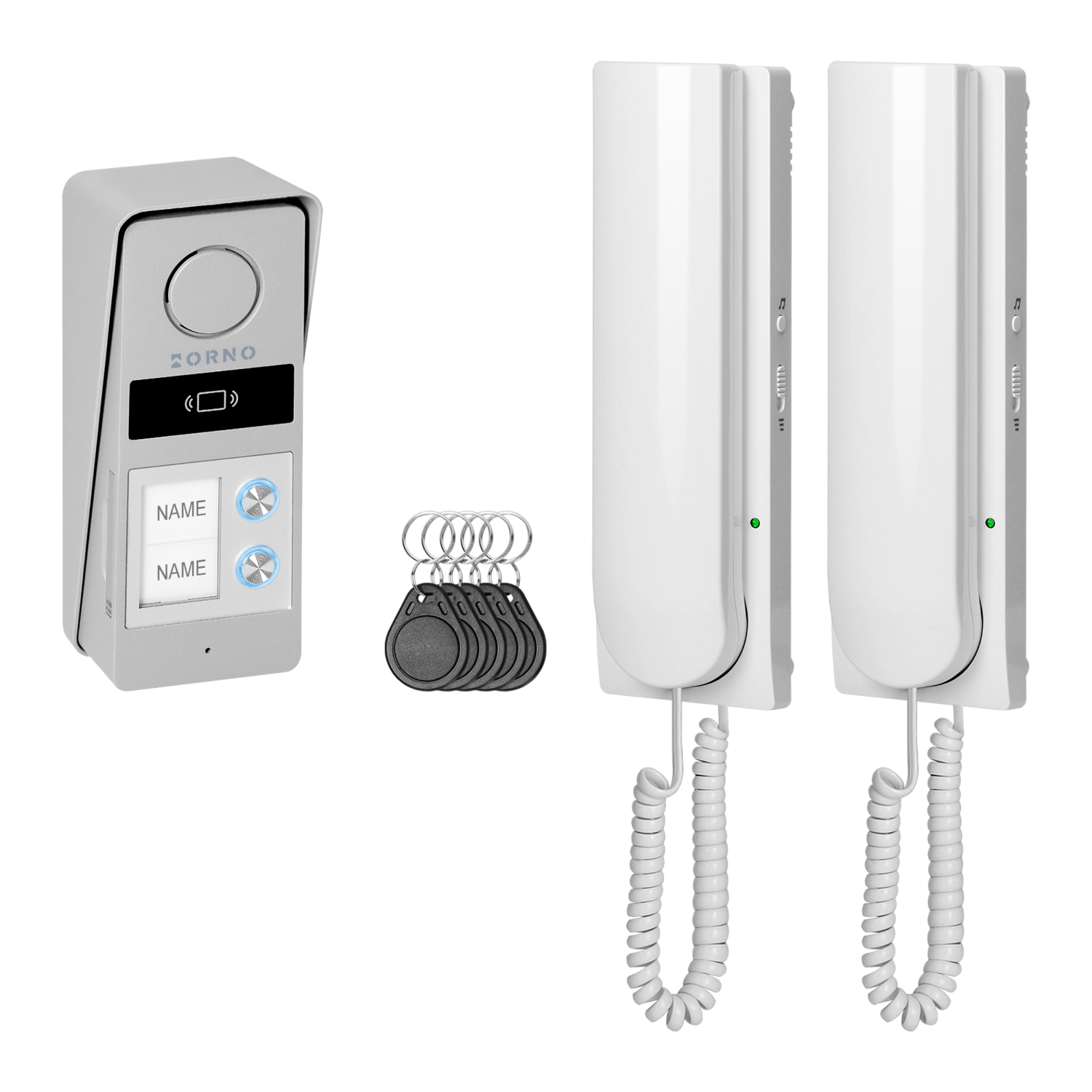

Open the wicket without leaving your home! Choose the ATIN two-family doorphone set to provide convenient and secure access for two independent households. Each resident has their own call button, and the built-in RFID card and tag reader enables quick, keyless entry to the property—simply hold the card or tag near the reader.

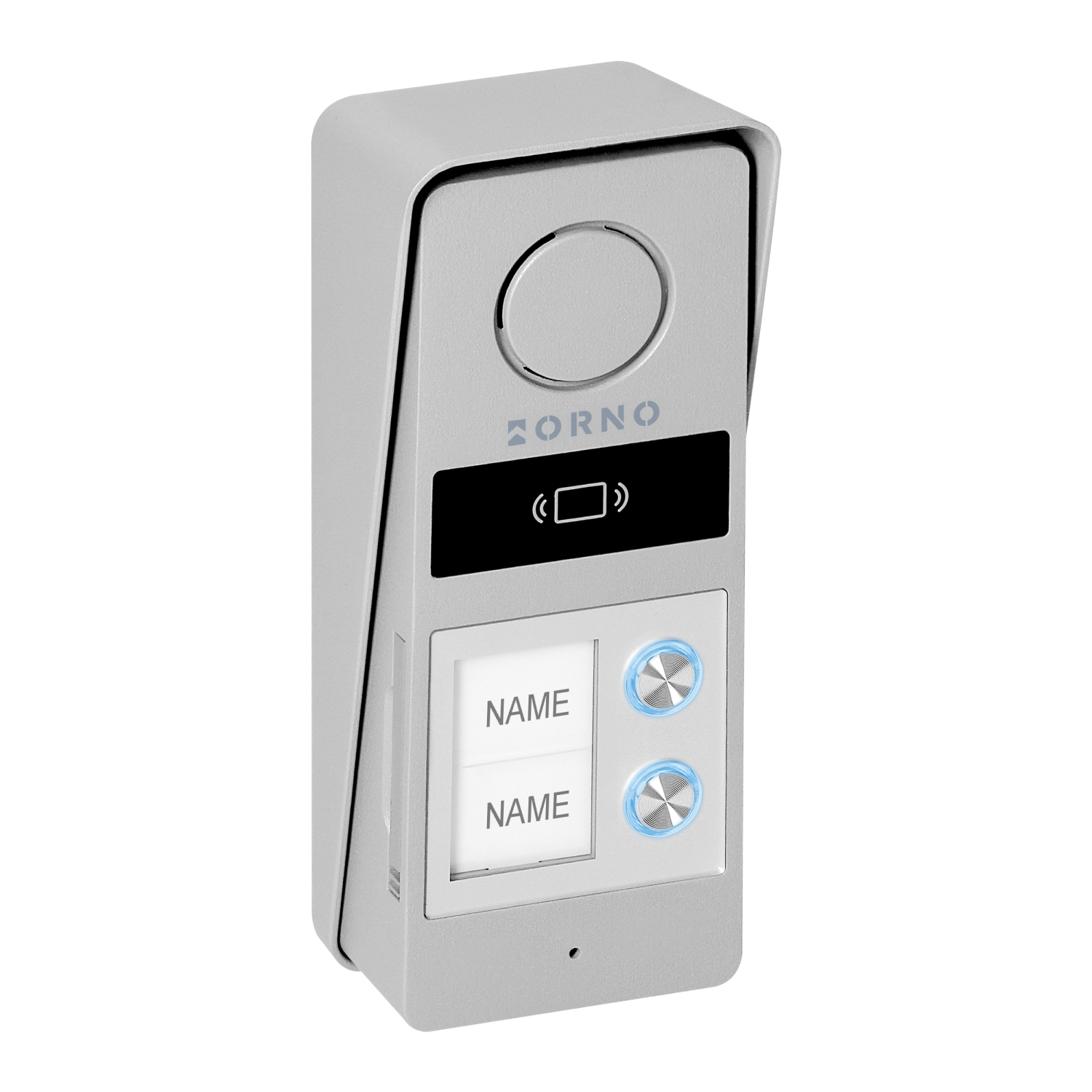

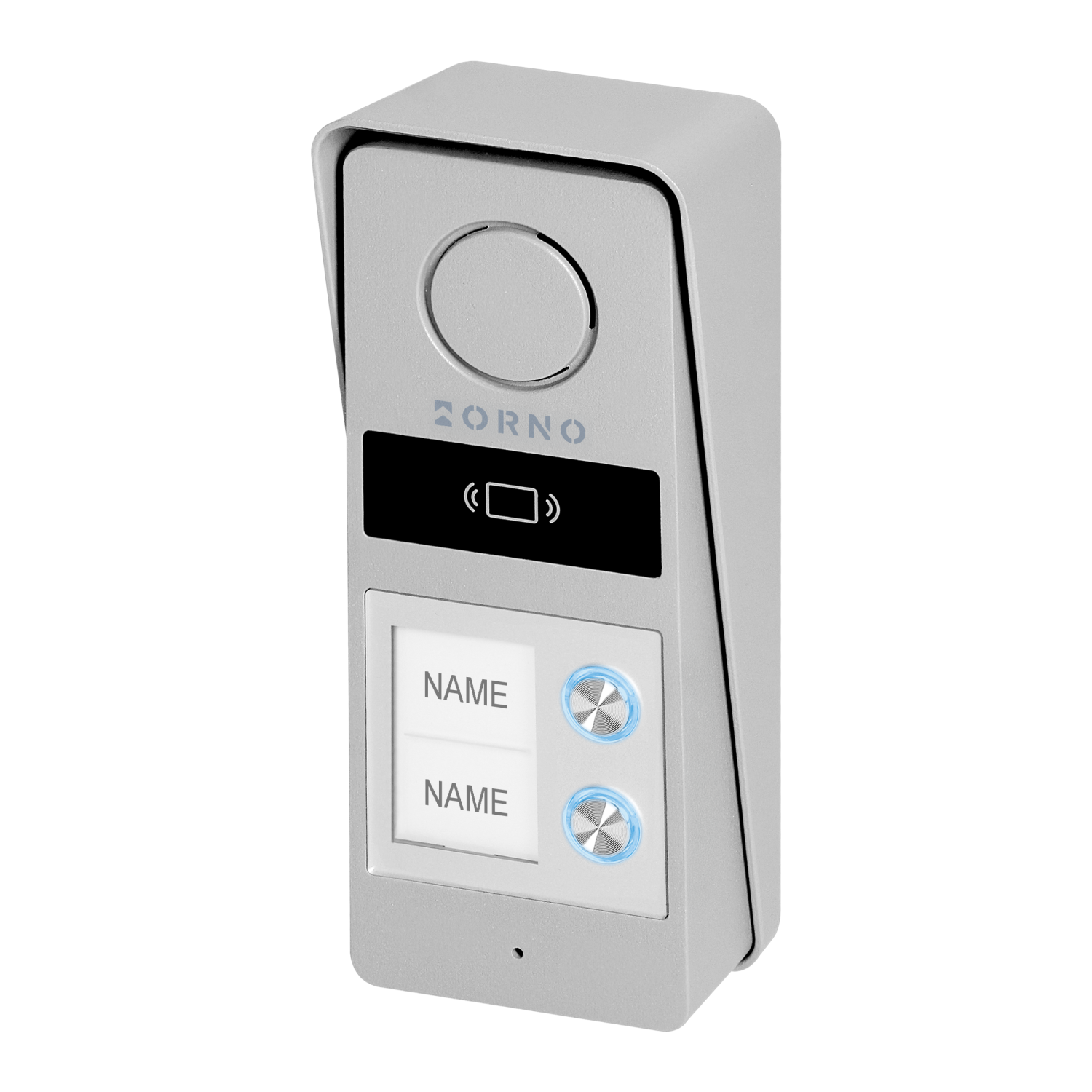

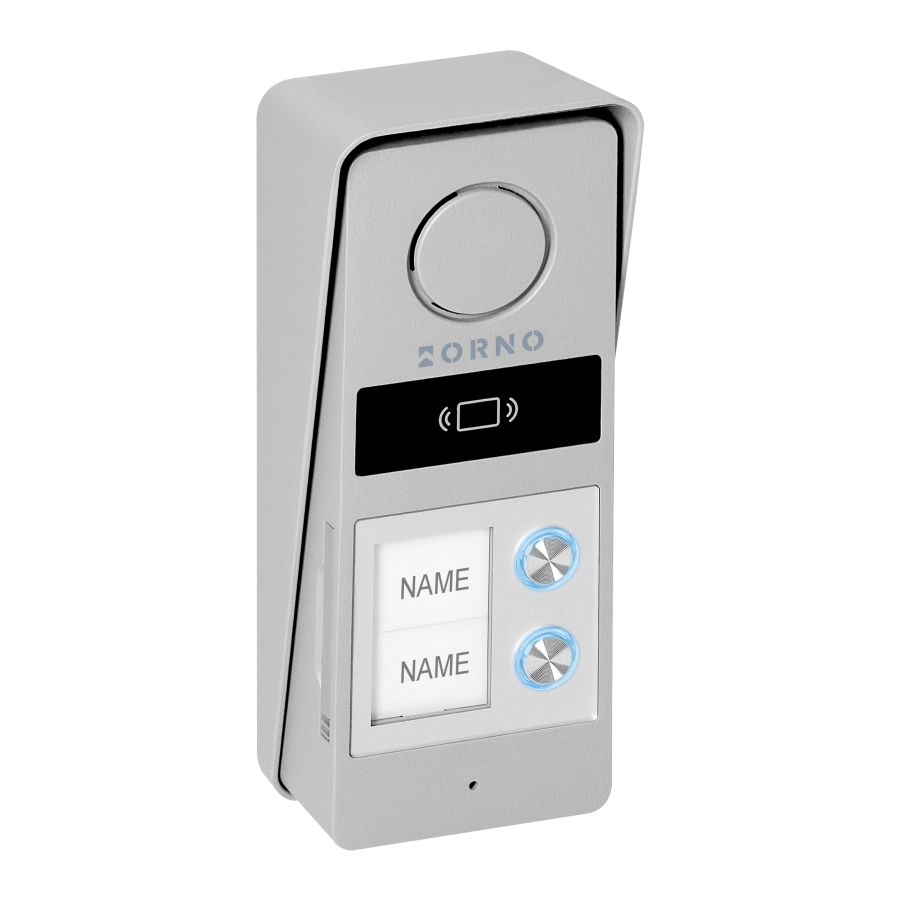

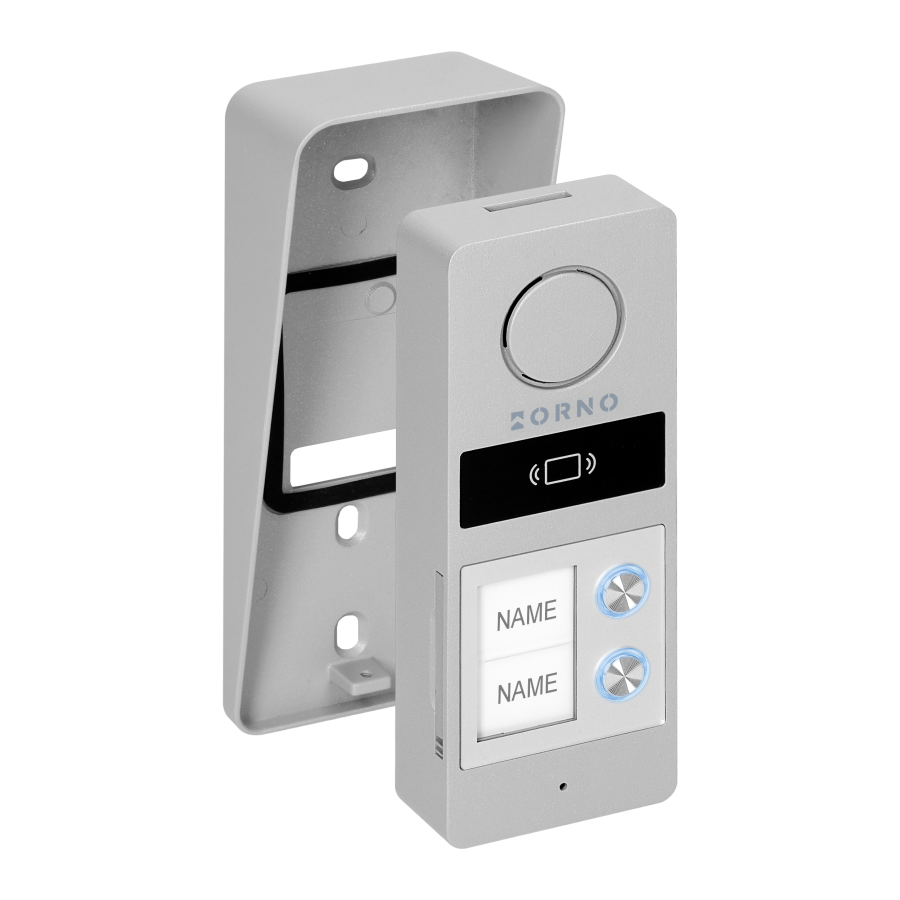

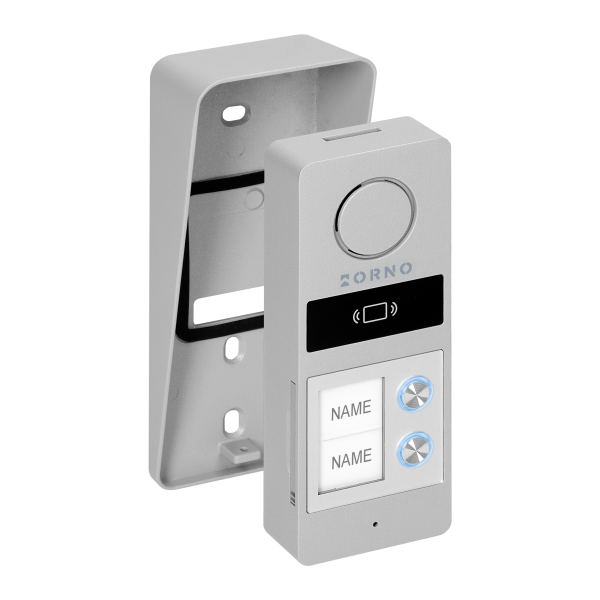

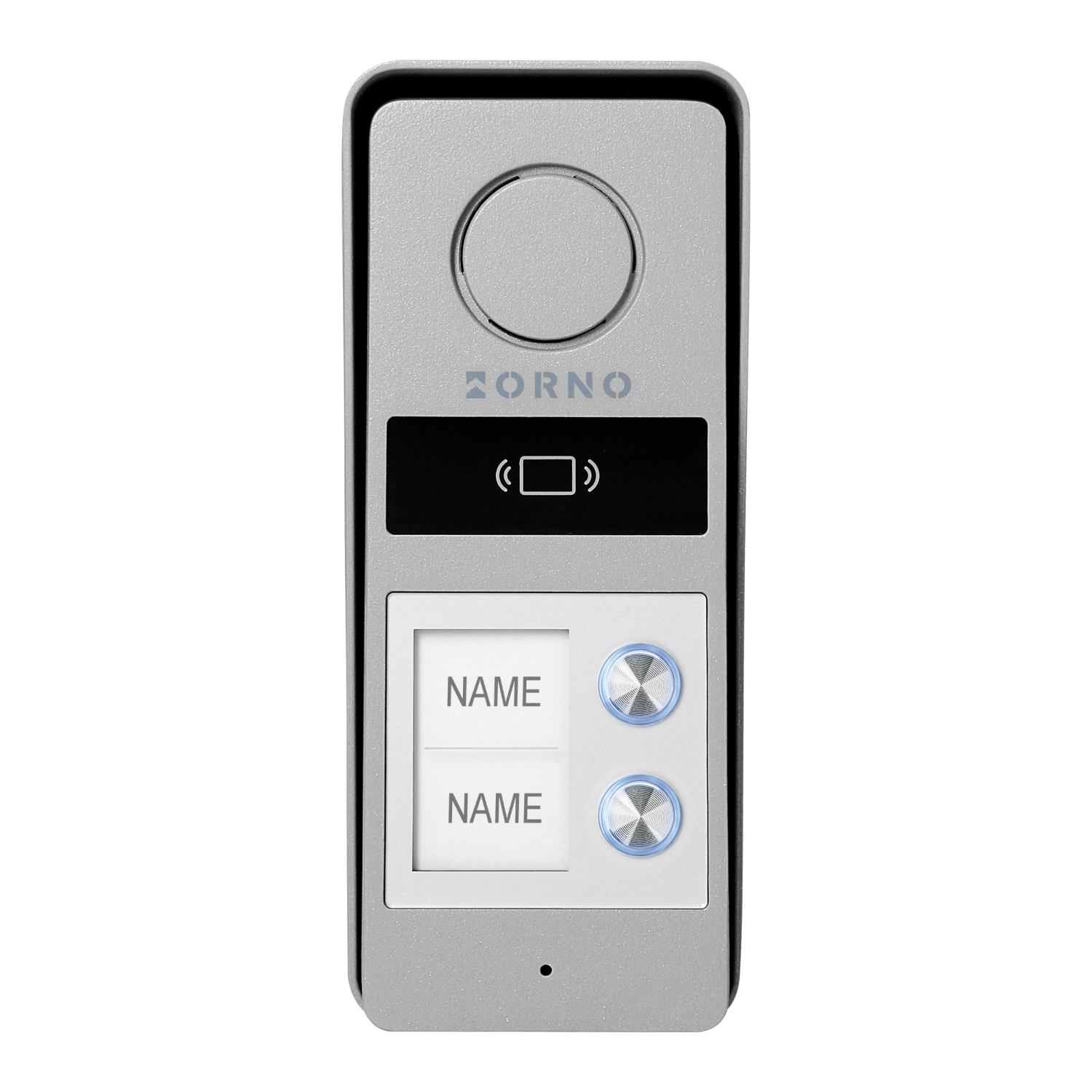

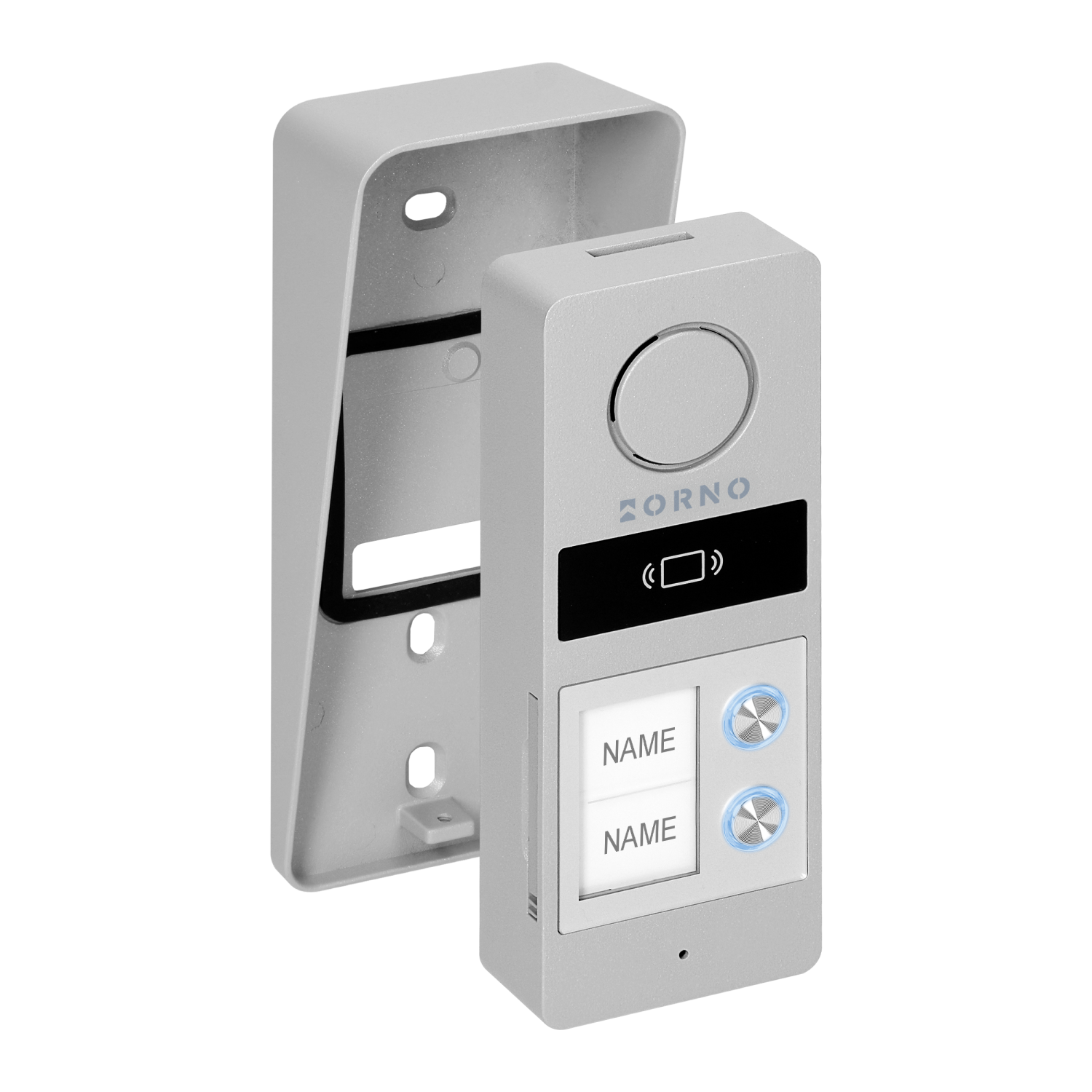

The aluminum outdoor unit with a protective hood is resistant to rain, sun, and frost (IPX5 rating). Its compact width (62 mm) allows the device to be installed even on narrow fence posts. Two nameplates or apartment numbers make it easy to identify each residence, ensuring visitors can easily find the correct address.

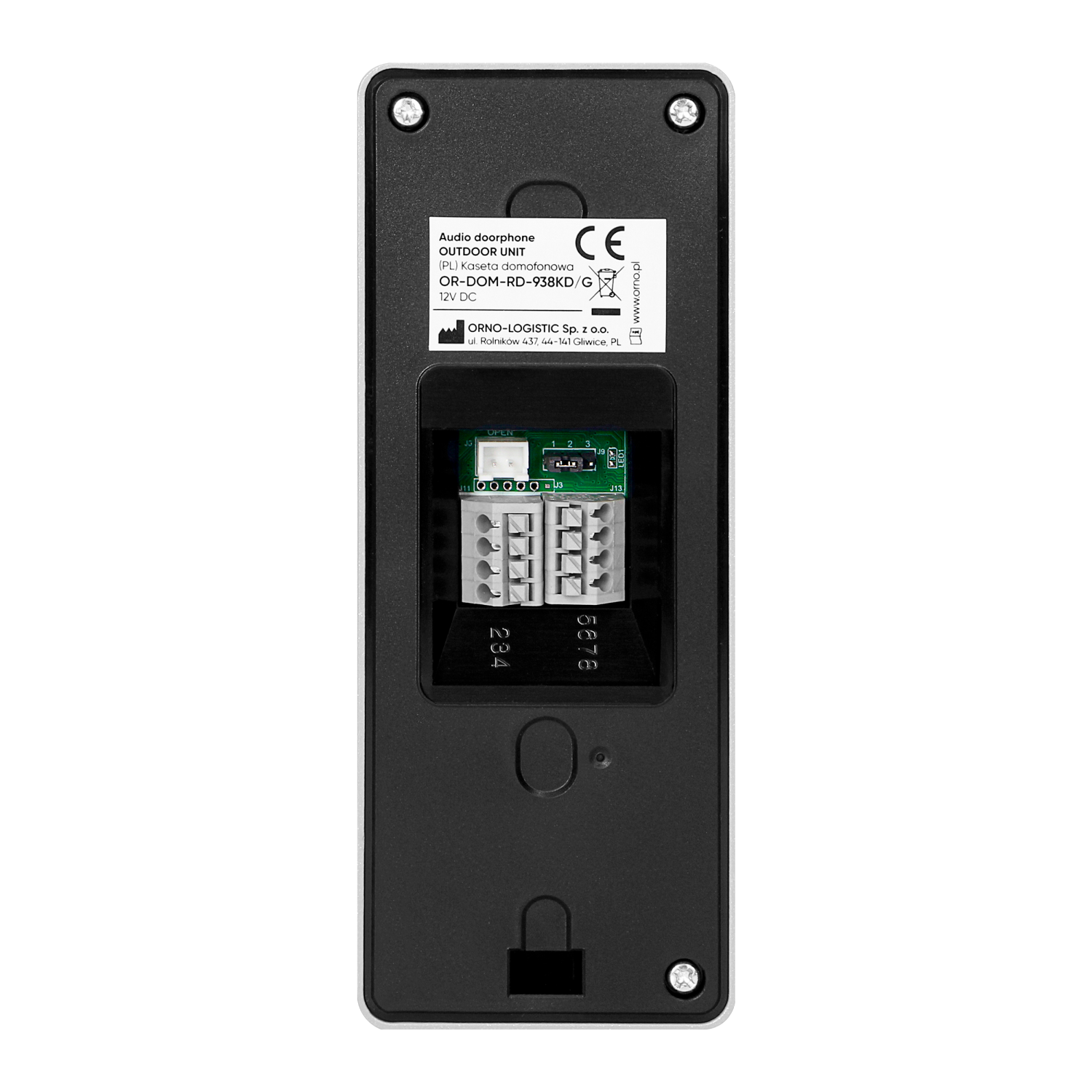

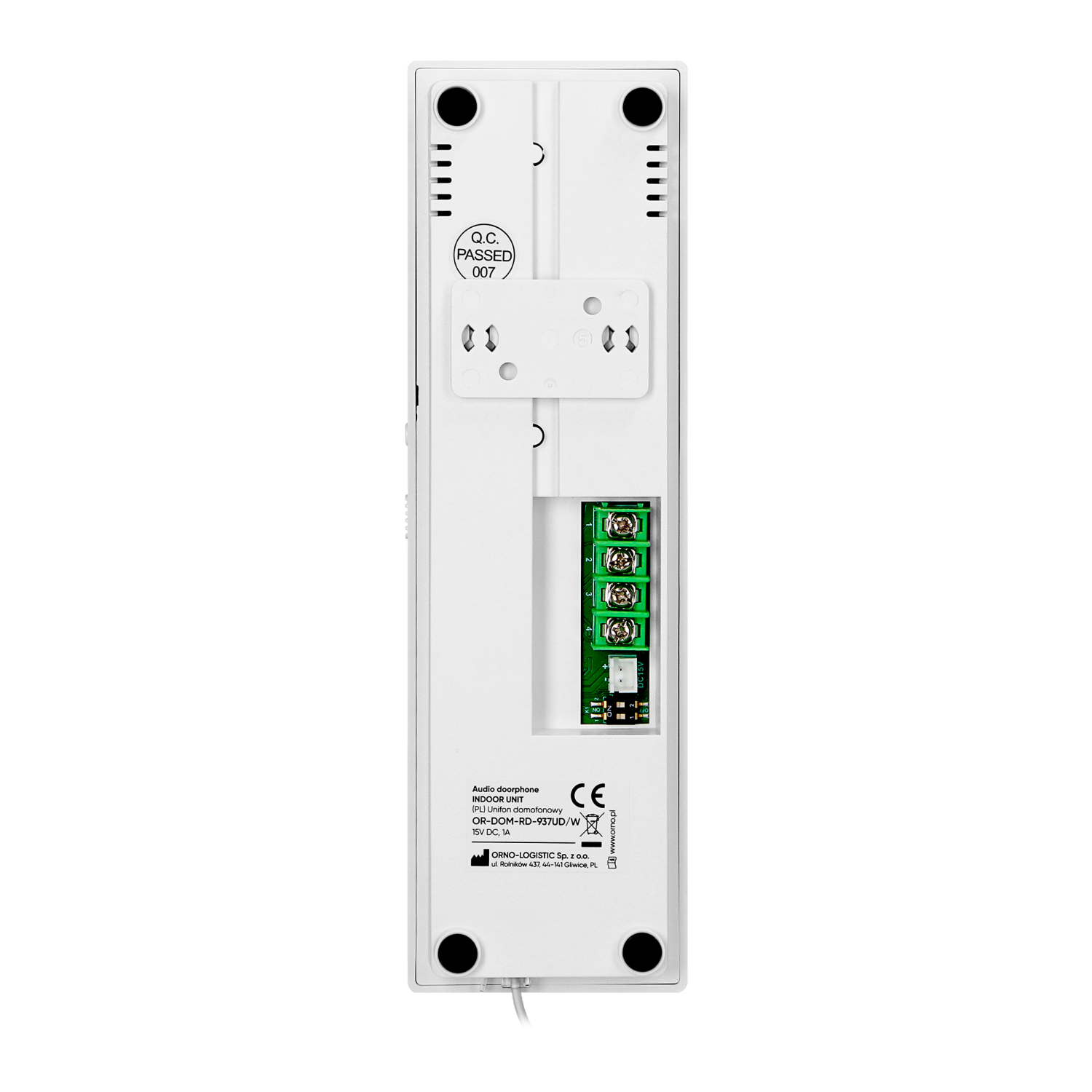

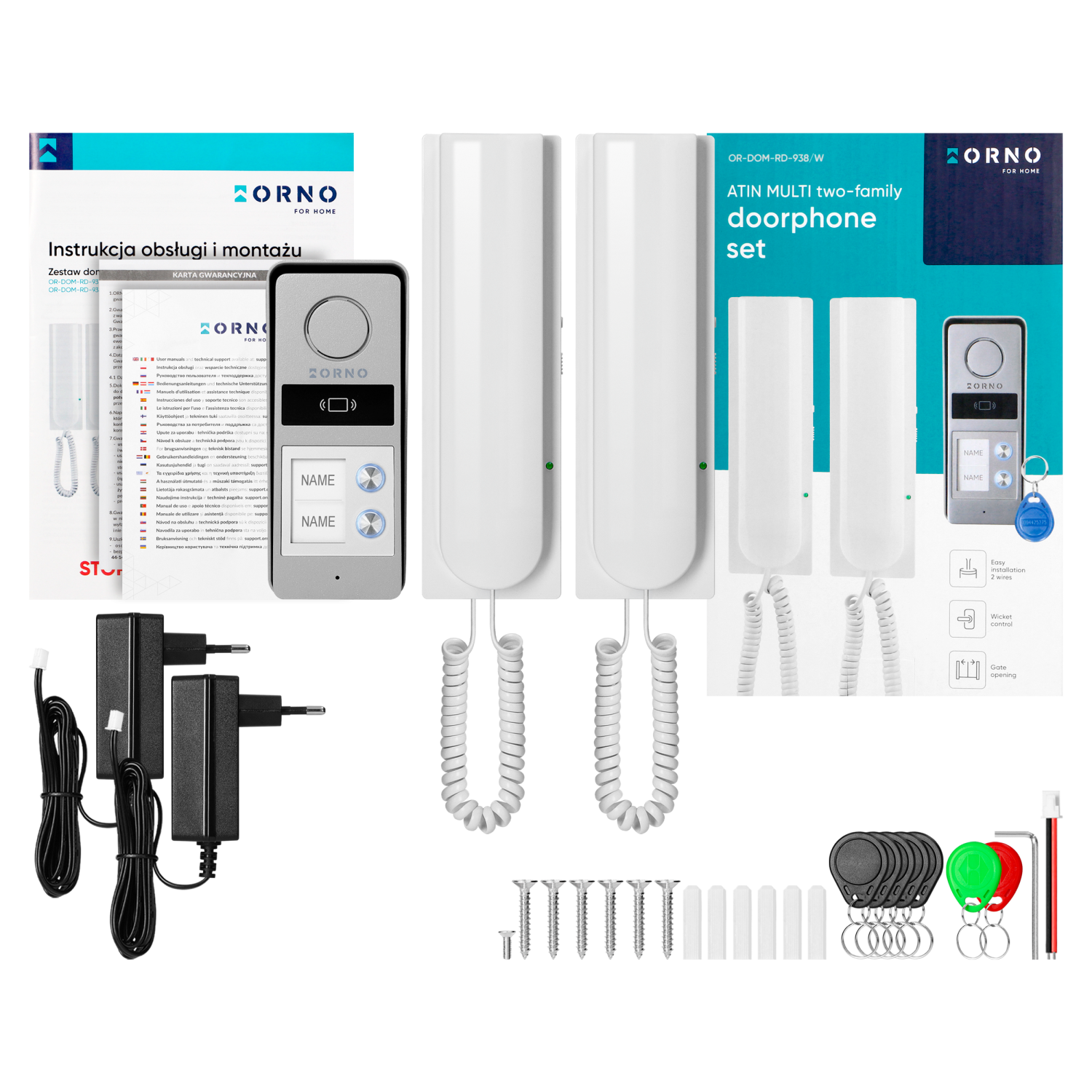

Installation is hassle-free—the system operates on a two-wire connection, so you can use the existing doorbell wiring. The set includes a power supply, so there’s no need to worry about additional accessories. If you want to control the gate from the indoor unit, simply run the wiring from the outdoor unit.

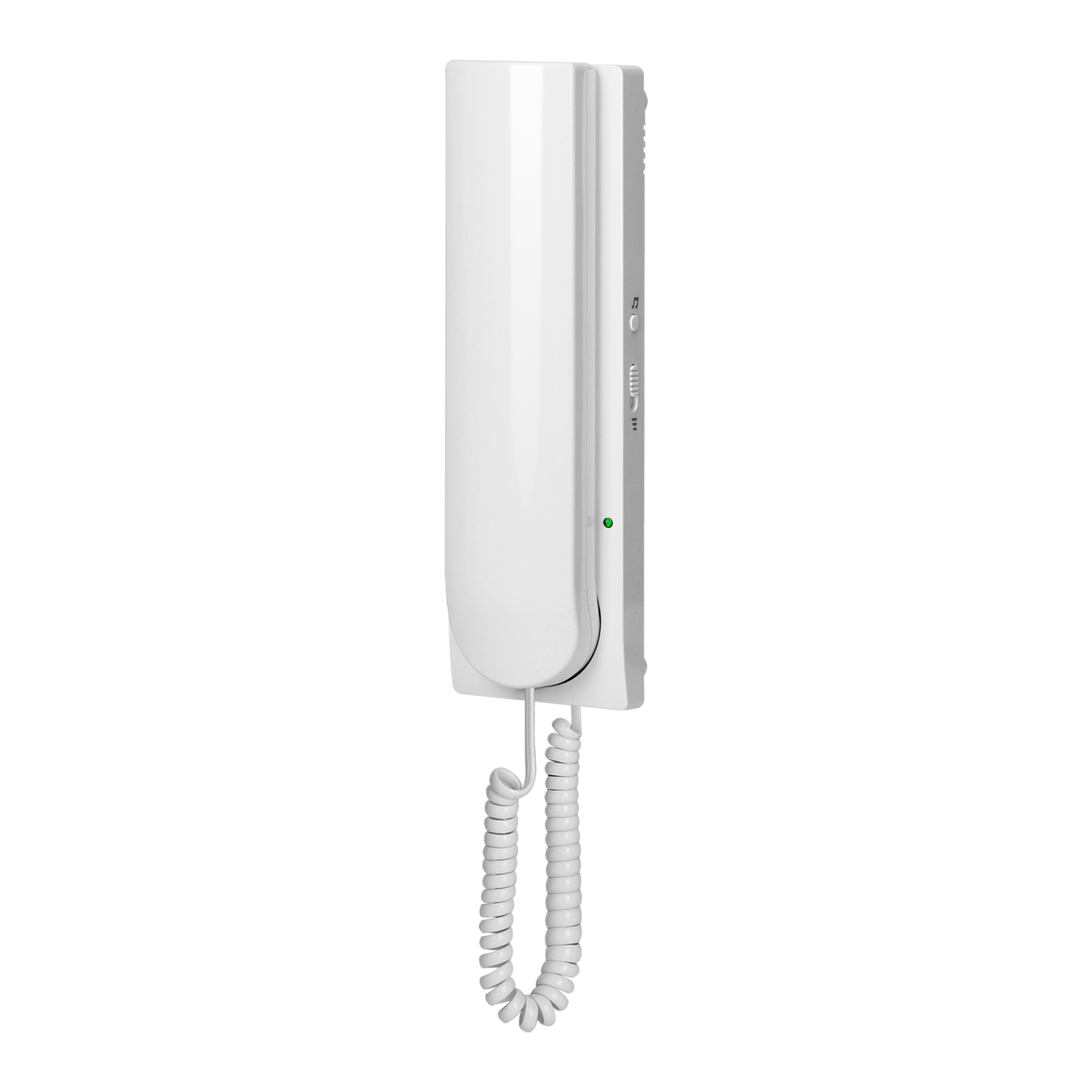

The doorphone allows you to choose from 16 ringtone melodies and features adjustable volume. You can also mute the device completely whenever you need some rest.
| General information: | |
|---|---|
| Type: | wielorodzinny |
| With video: | nie |
| Current supply: | Zasilanie sieciowe |
| Nominal voltage: | 15V DC 1A |
| Type of transmission: | przewodowy |
| Can be connected to smartphone: | nie |
| Installation technique: | Dwużyłowe |
| Number of wires (*from outdoor unit to electric strike): | 2 (+2)* |
| Number of indoor stations: | 2 |
| Number of outdoor stations: | 1 |
| Expandable to max. number of indoor stations: | 2 |
| Expandable to max. number of outdoor stations: | 1 |
| Operation door lock: | tak |
| Current supply of the electric strike: | dodatkowy zasilacz niewymagany |
| Connection system of the electric strike: | z panelem zewnętrznym |
| With automatic door opener: | tak |

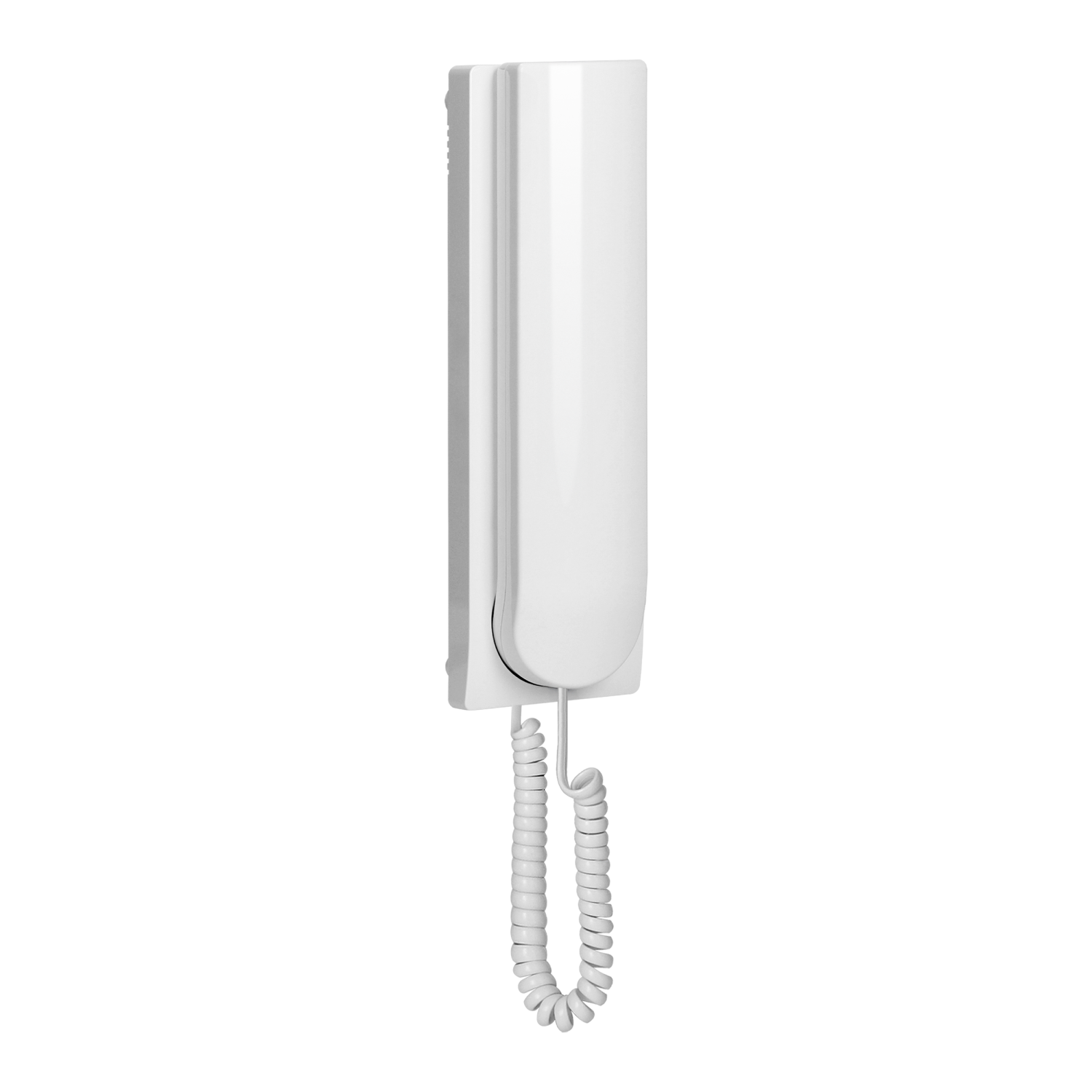

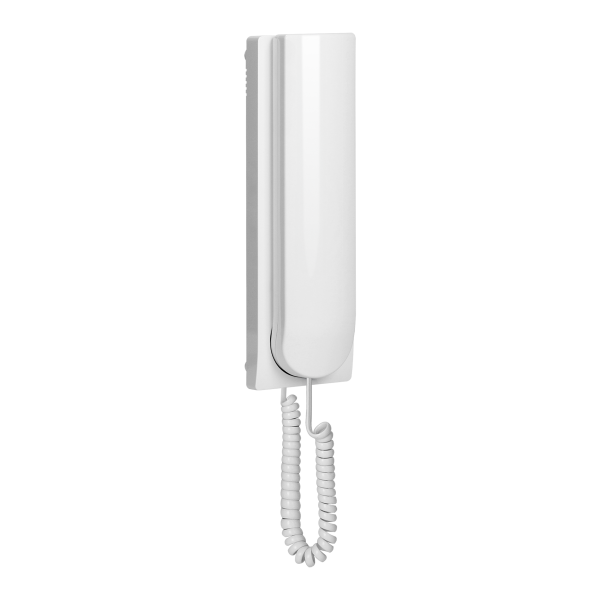

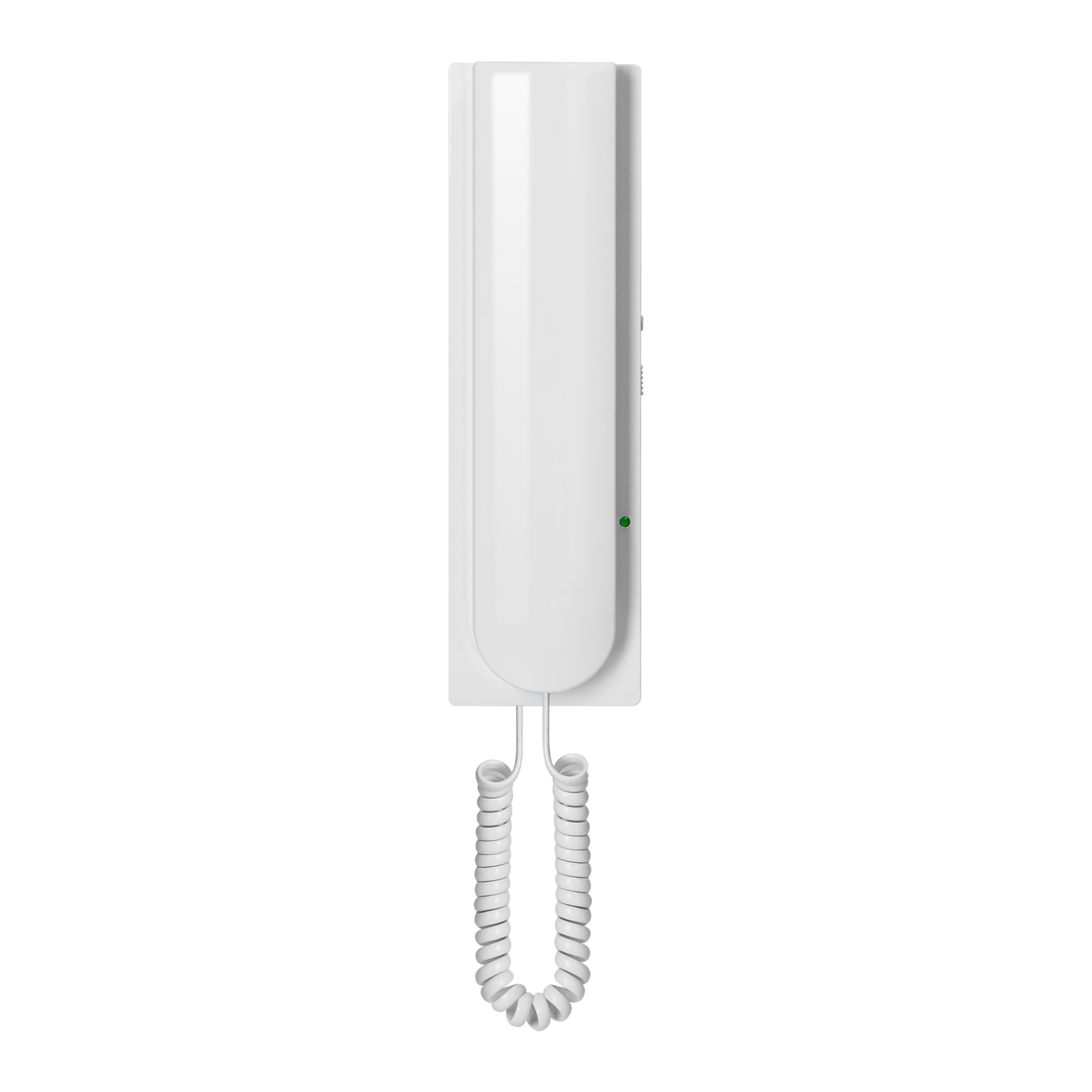

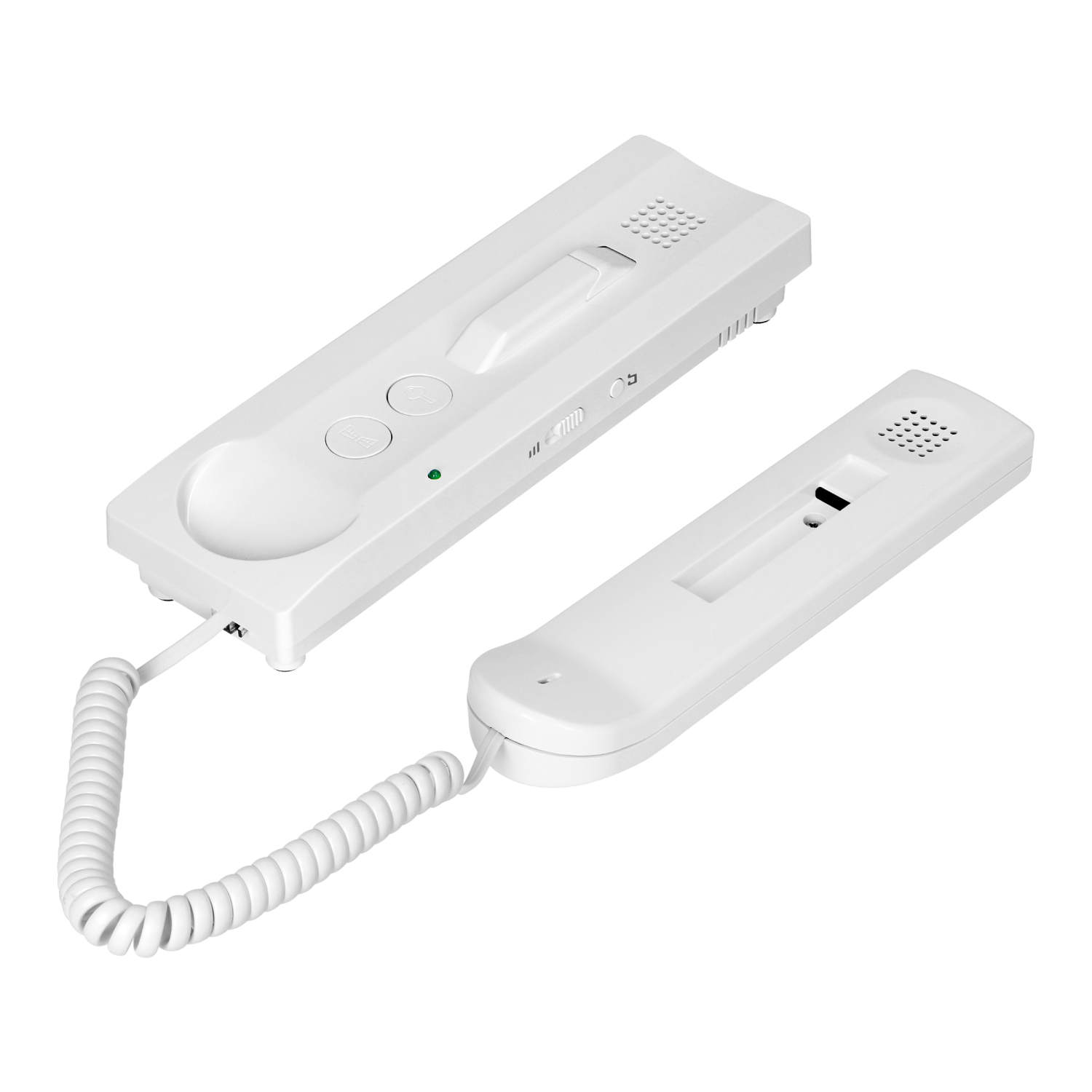

| Indoor unit: | |
|---|---|
| Mounting method indoor station: | Montaż natynkowy |
| Hands free: | nie |
| Internal communication: | nie |
| Number of ringtones: | 16 |
| Loudness control: | tak |
| Mutable call tone: | tak |
| Material indoor station: | Tworzywo sztuczne |
| Colour indoor station: | Biały |
| Width [mm]: | 62 |
| Height [mm]: | 201 |
| Depth [mm]: | 54 |

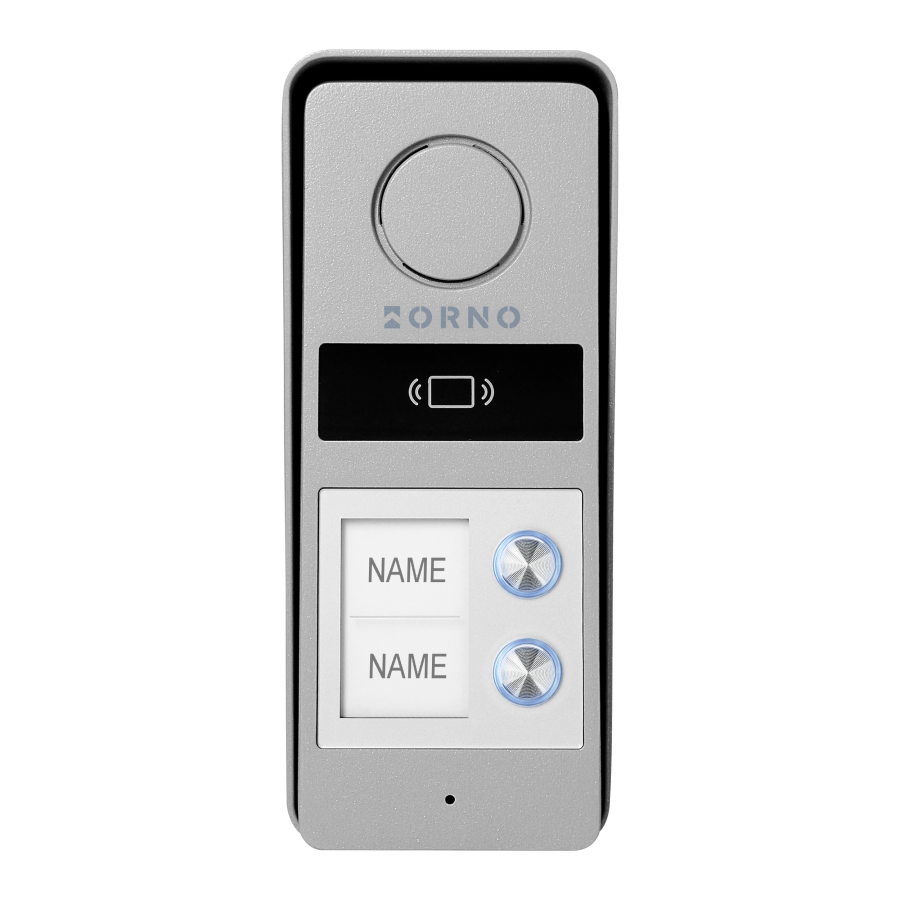

| Outdoor unit: | |
|---|---|
| Number of call buttons: | 2 |
| Mounting method outdoor station: | Montaż natynkowy |
| Card and proximity tags reader: | tak |
| Frequency of RFID tags: | 125kHz |
| Label space/information surface: | tak |
| With cover: | tak |
| Degree of protection (IP): | IPX5 |
| Material outdoor station: | Aluminium |
| Colour outdoor station: | Srebrny |
| Width [mm]: | 62 |
| Height [mm]: | 149 |
| Depth [mm]: | 41 |
| Other features: | RFID - max. 100 użytkowników (breloki w zestawie: 5 użytkownika, 2 administracyjne) |
