ENIR MULTI, two family audio doorphone set, 2-wire, DIN rail power supply RFID, white
ENIR MULTI, two family audio doorphone set, 2-wire, DIN rail power supply RFID, white

ENIR MULTI, two family audio doorphone set, 2-wire, DIN rail power supply RFID, white

OR-DOM-BA-936ZD/W
New

Description

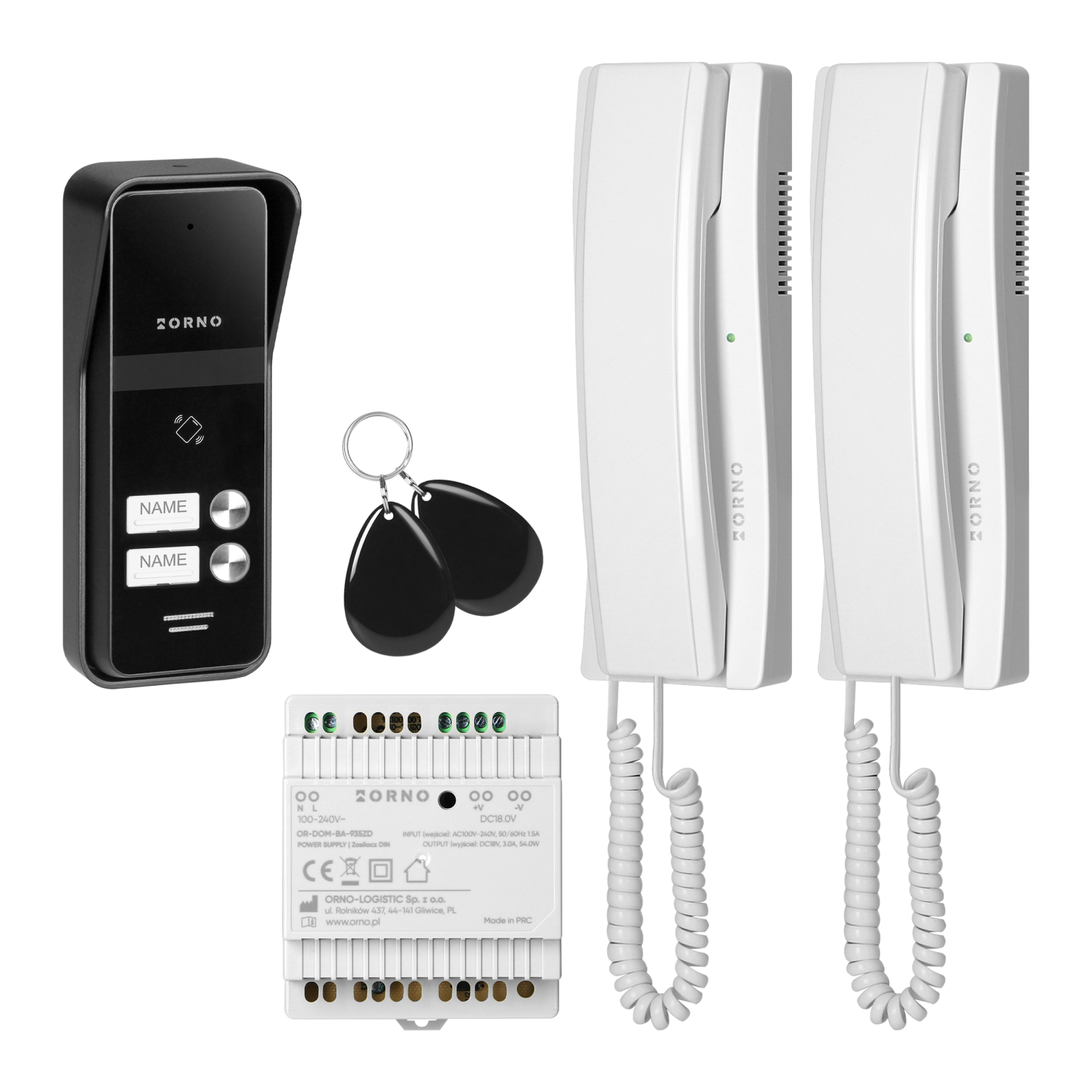

The ENIR MULTI doorphone set is a comprehensive solution designed for multi-family houses, which provides sense of security and comfortable management of access to the property.

The outdoor unit and the electric strike are controlled from the indoor unit; thus, there is no need to provide additional power supply or run wires throughout the garden. An easy and smooth installation of the set is possible, thanks to 2 wire connection. Cables for controlling gate and wicket are led directly to the outdoor unit. As a result, even a bell installation may be used to connect the ENIR set.

The indoor unit enables remote control over a wicket and a gate, and the RFID system supporting 13,56MHz cards and tags facilitates the operation of the device and allows independent control of the wicket and secure access management for household members or authorised users.

A DIN-rail power supply is also included for easy installation in the electrical switchboard. This solution provides a stable and secure power supply to the entire doorphone system. Thanks to the cables hidden in the wall, the installation of the device is aesthetic.

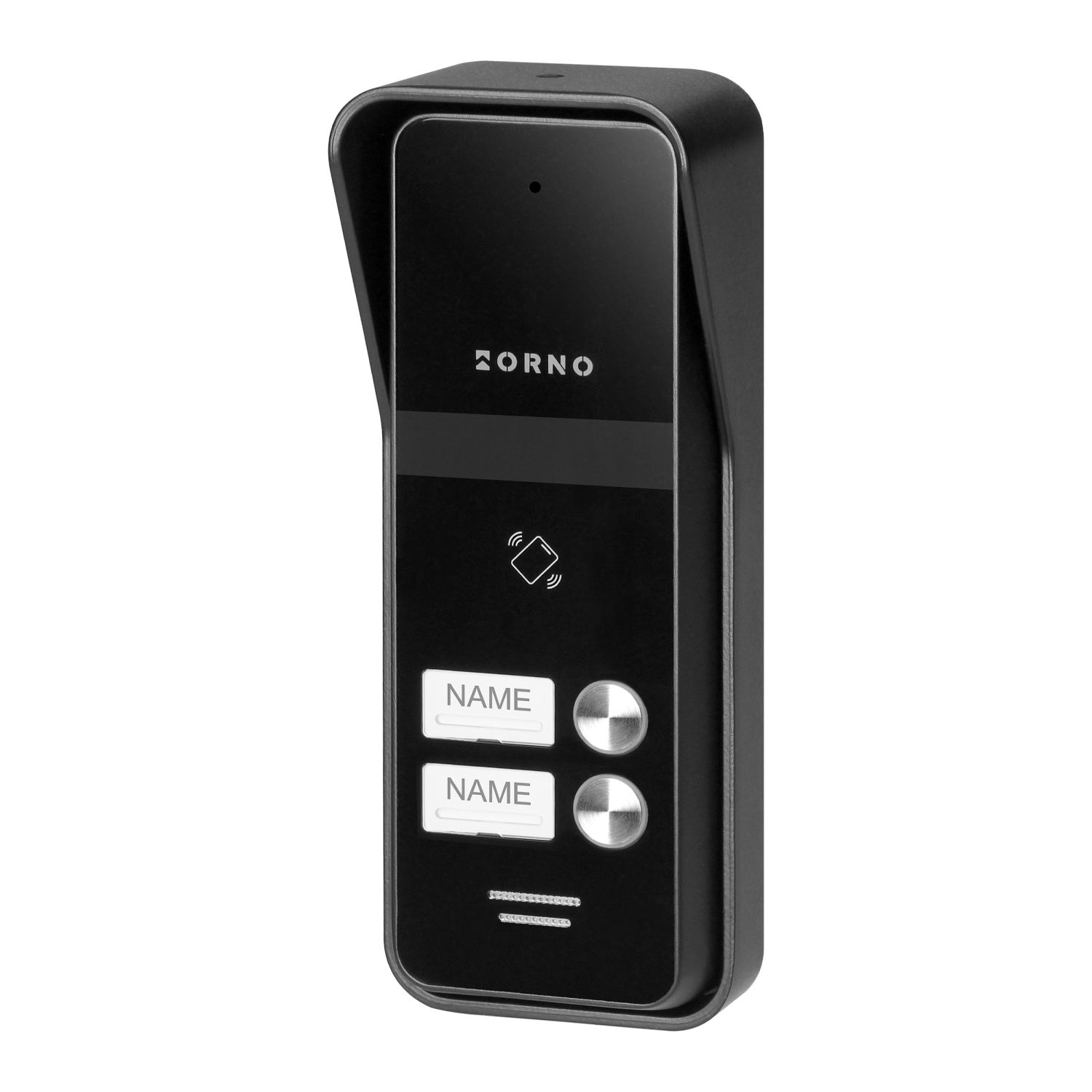

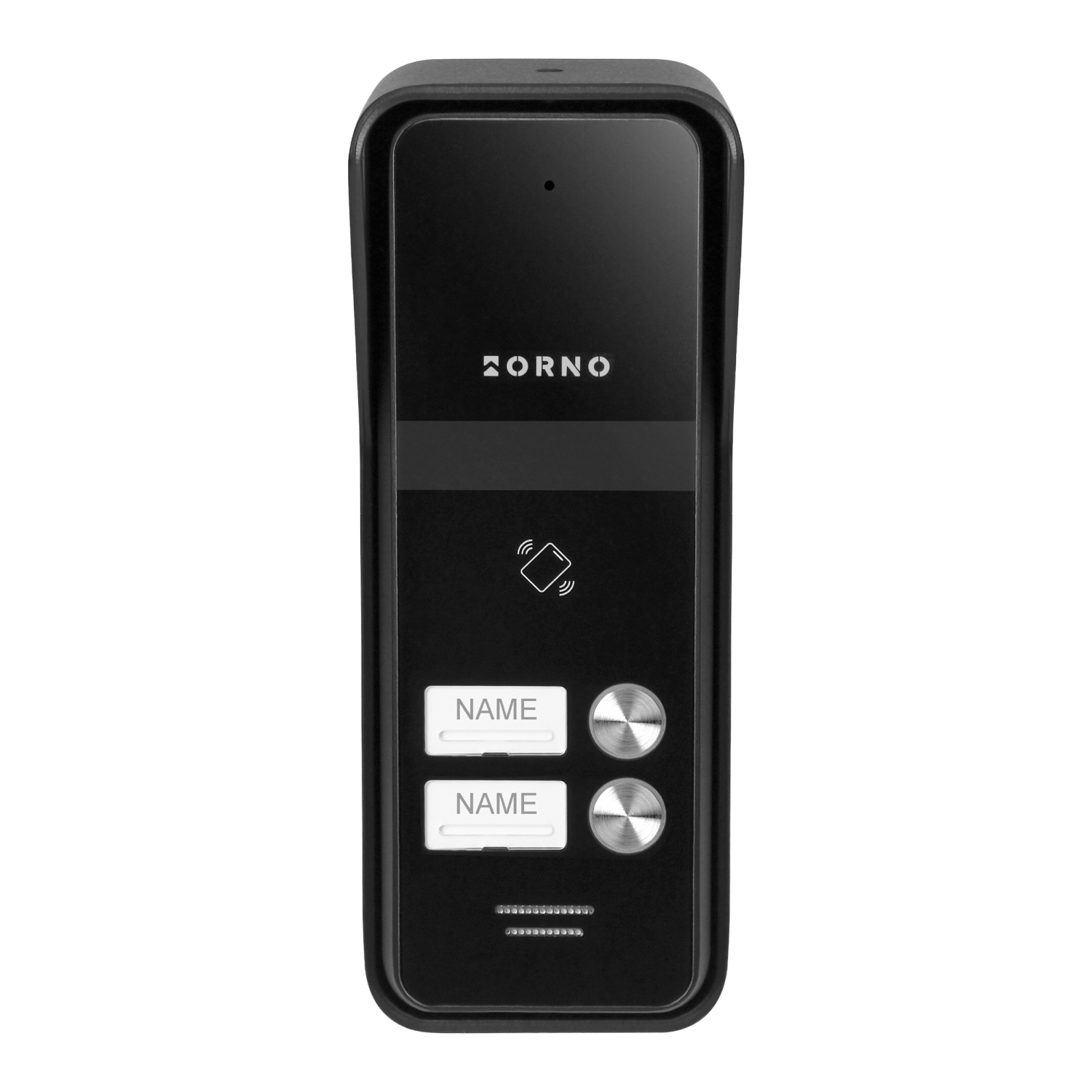

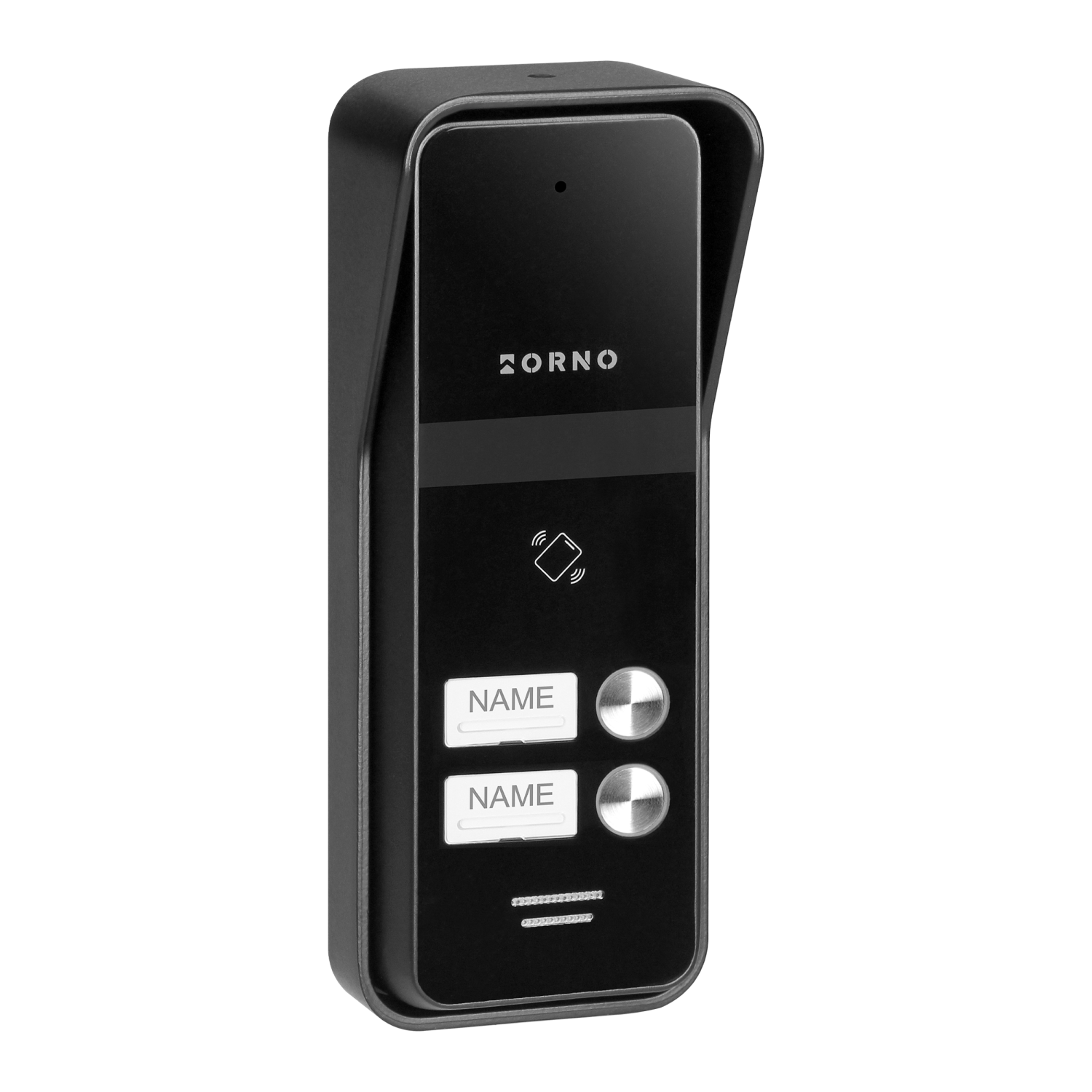

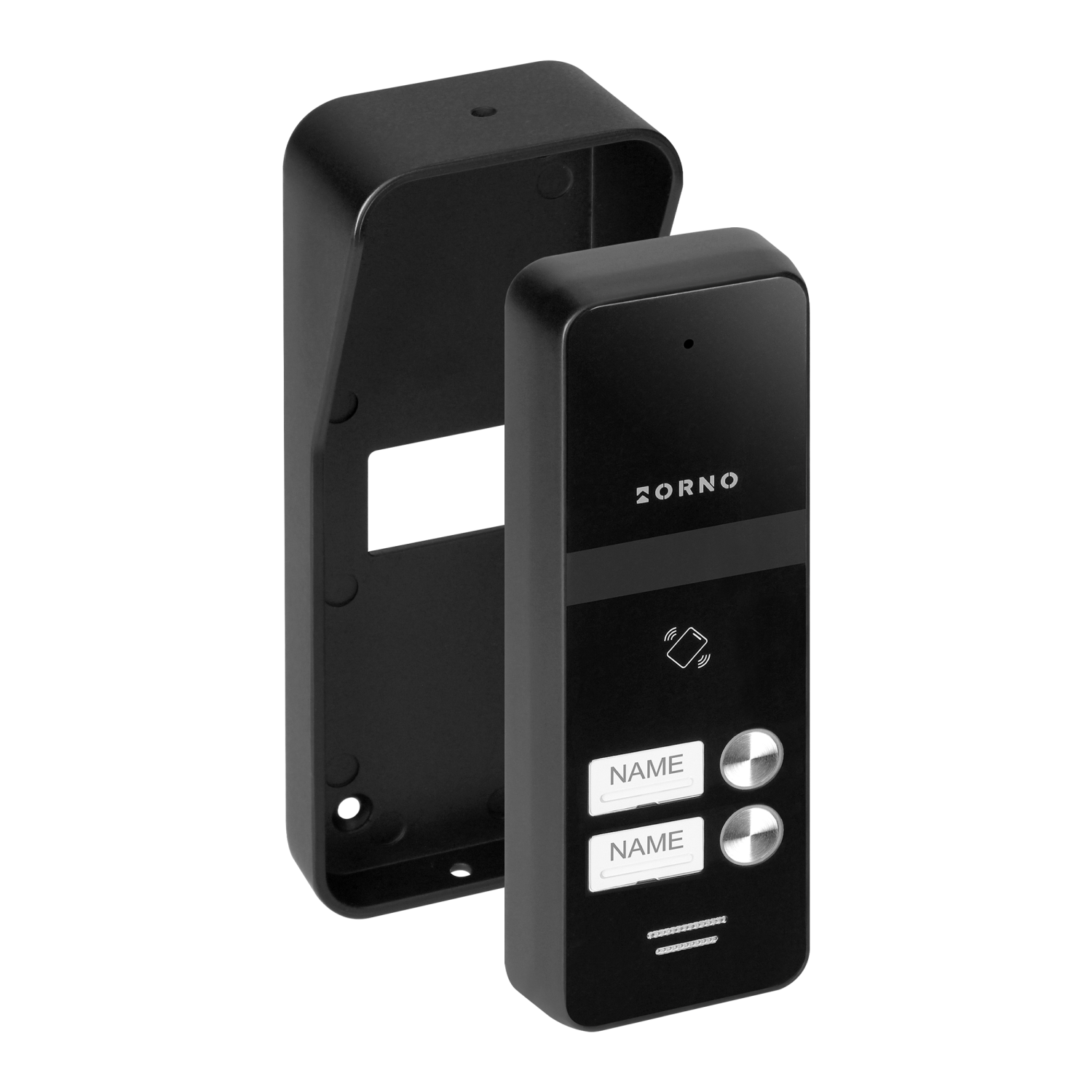

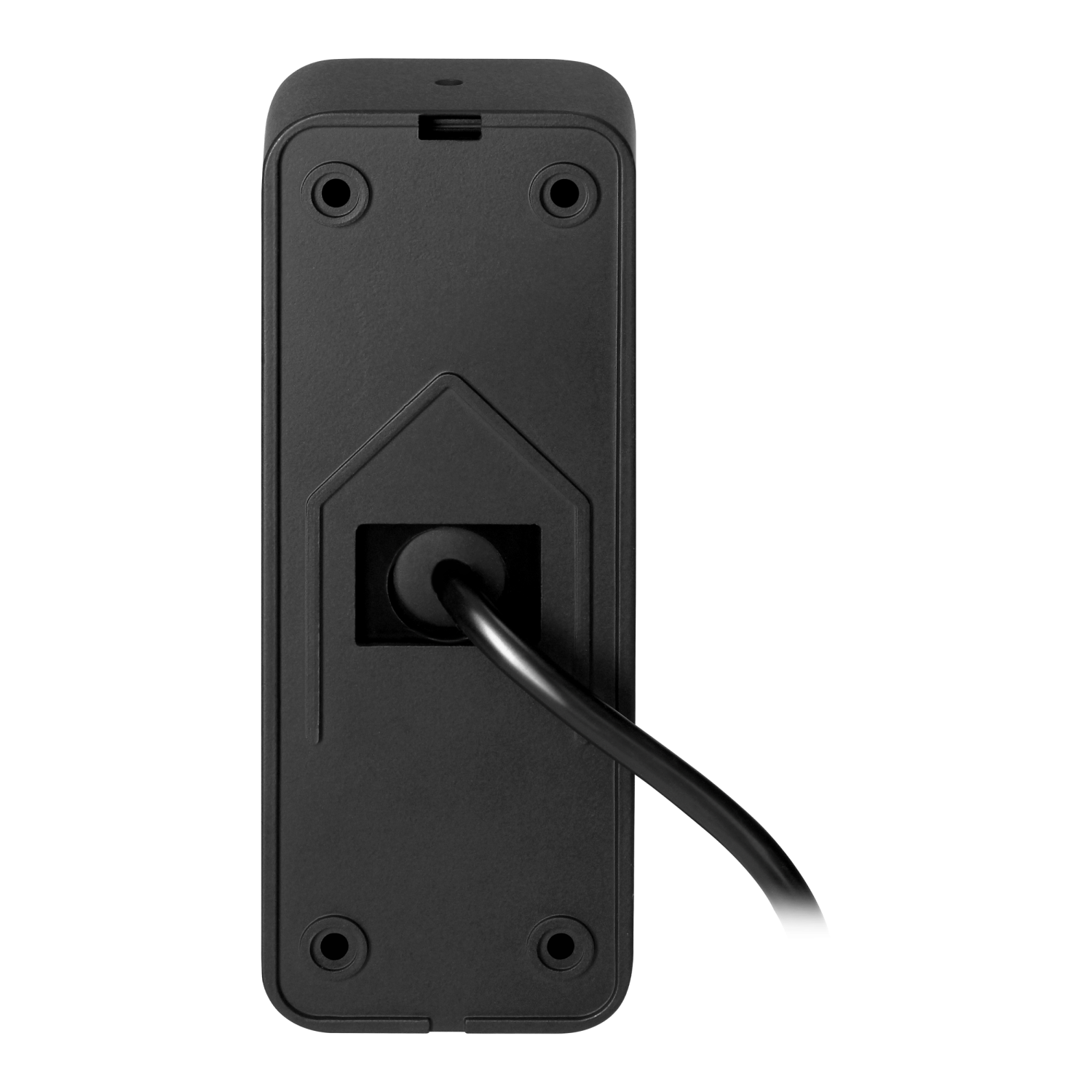

The outdoor unit is resistant to water splashing and weather conditions. It has IP65 rate which guarantees reliable operation for years. It is narrow (48mm wide), hence it may be placed even on a small fence post, or in a small niche. Black colour.

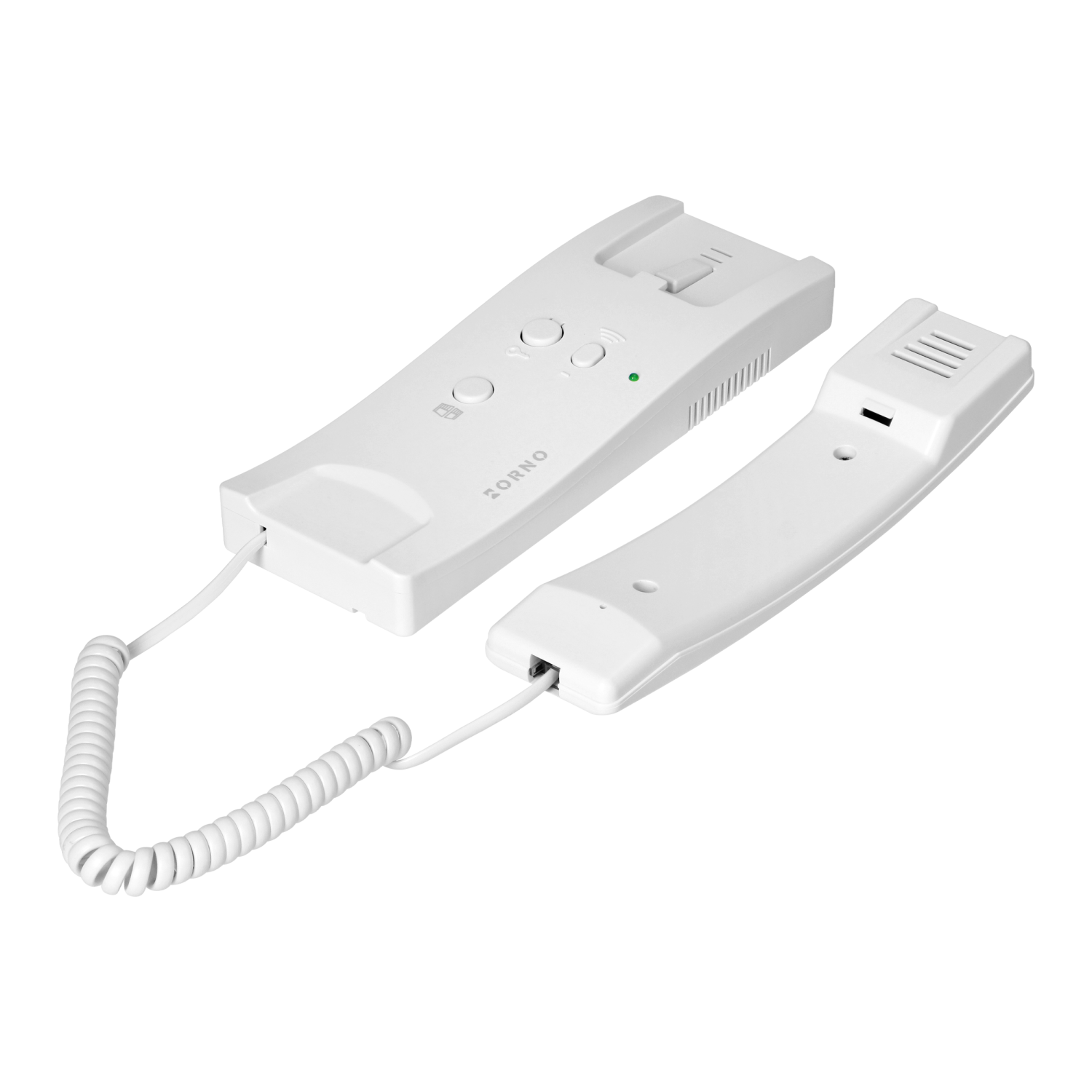

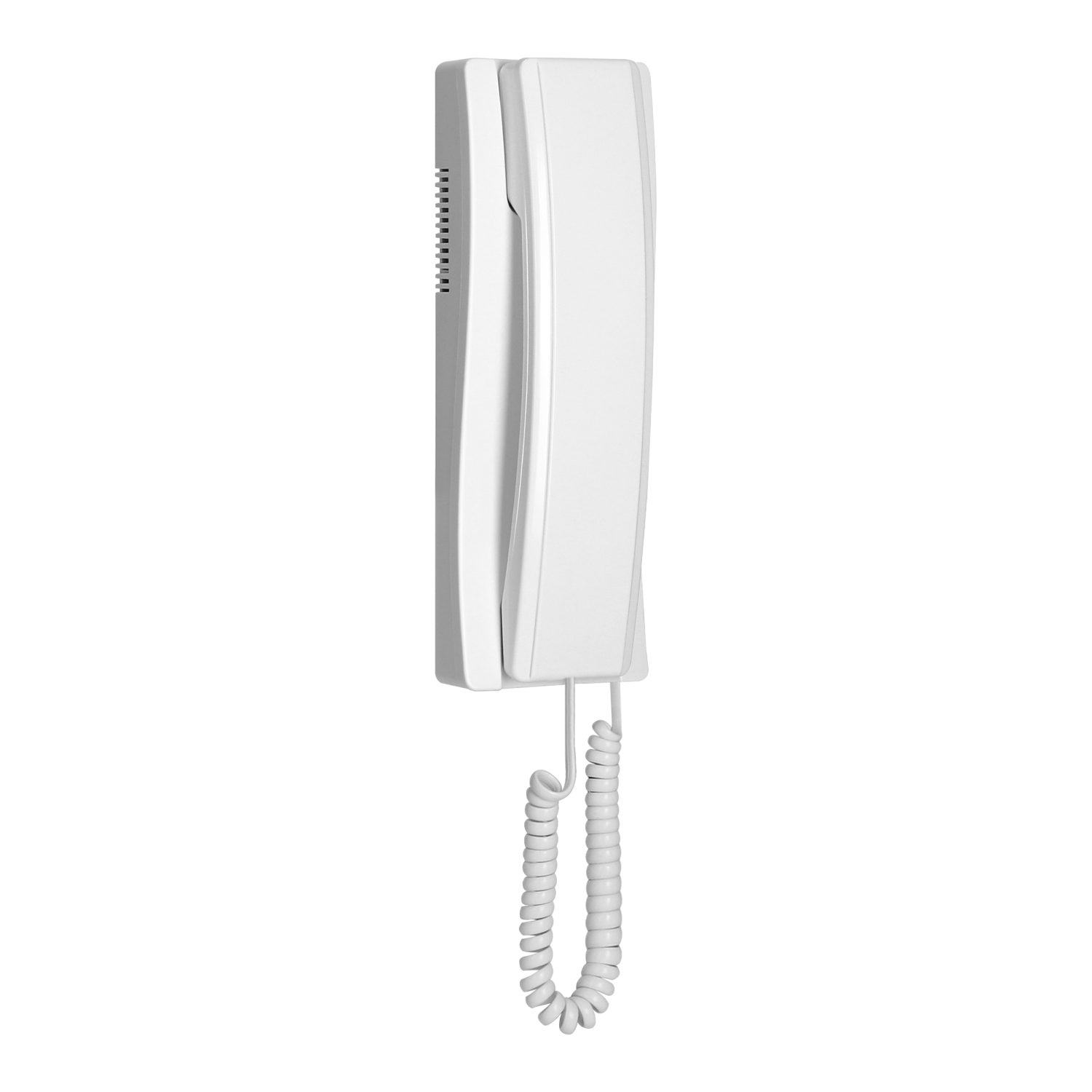

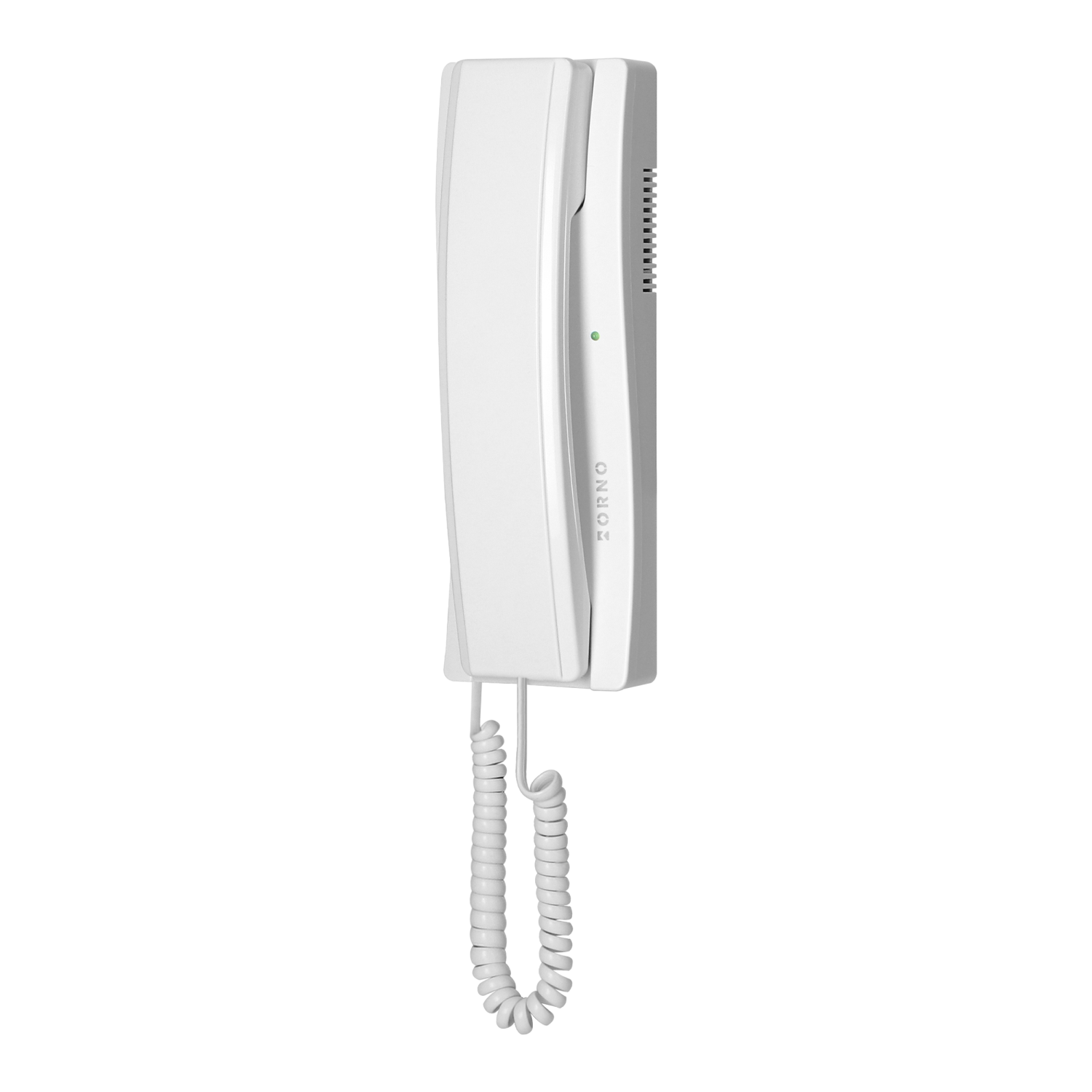

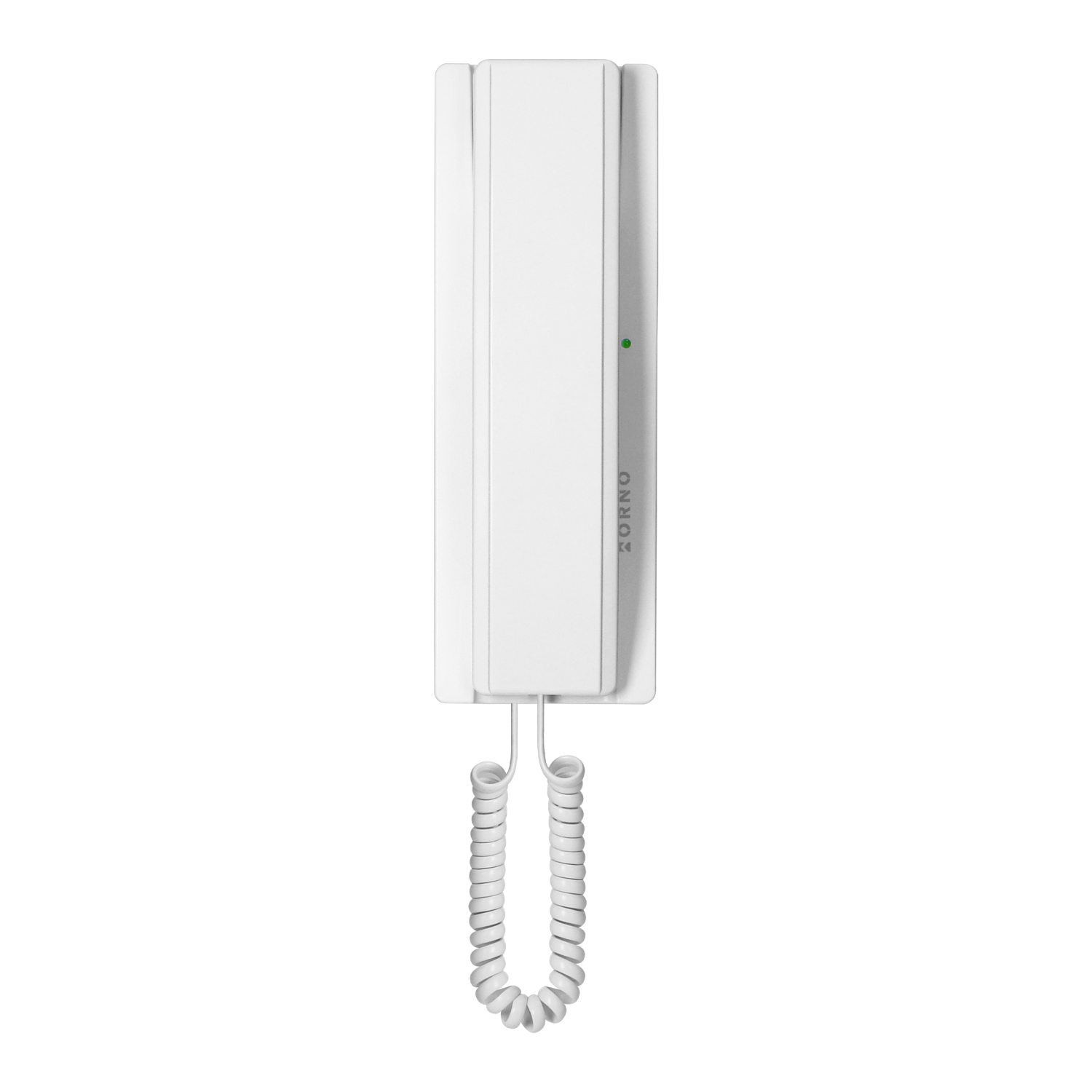

The surface-mounted indoor unit is made of high-quality material, which is not only aesthetic but, first of all, durable and dirt resistant. The design of ENIR set is simple and classic, and the white colour perfectly fits in almost every interior. The handset is firmly hanged and very handy. The device offers a number of conveniences, such as ringtone volume regulation or possibility of muting it, e.g. during child’s nap.

General information:
Type: wielorodzinny
With video: nie
Current supply: Zasilanie sieciowe
Nominal voltage: 18V DC
Type of transmission: przewodowy
Can be connected to smartphone: nie
Installation technique: Dwużyłowe
Number of wires: 2
Number of indoor stations: 2
Number of outdoor stations: 1
Expandable to max. number of indoor stations: 2
Expandable to max. number of outdoor stations: 1
Operation door lock: tak
Current supply of the electric strike: dodatkowy zasilacz niewymagany
Connection system of the electric strike: z panelem zewnętrznym
With automatic door opener: tak

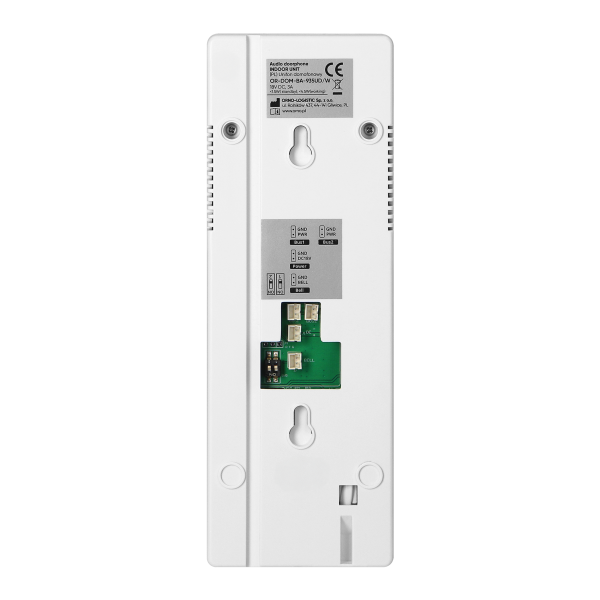

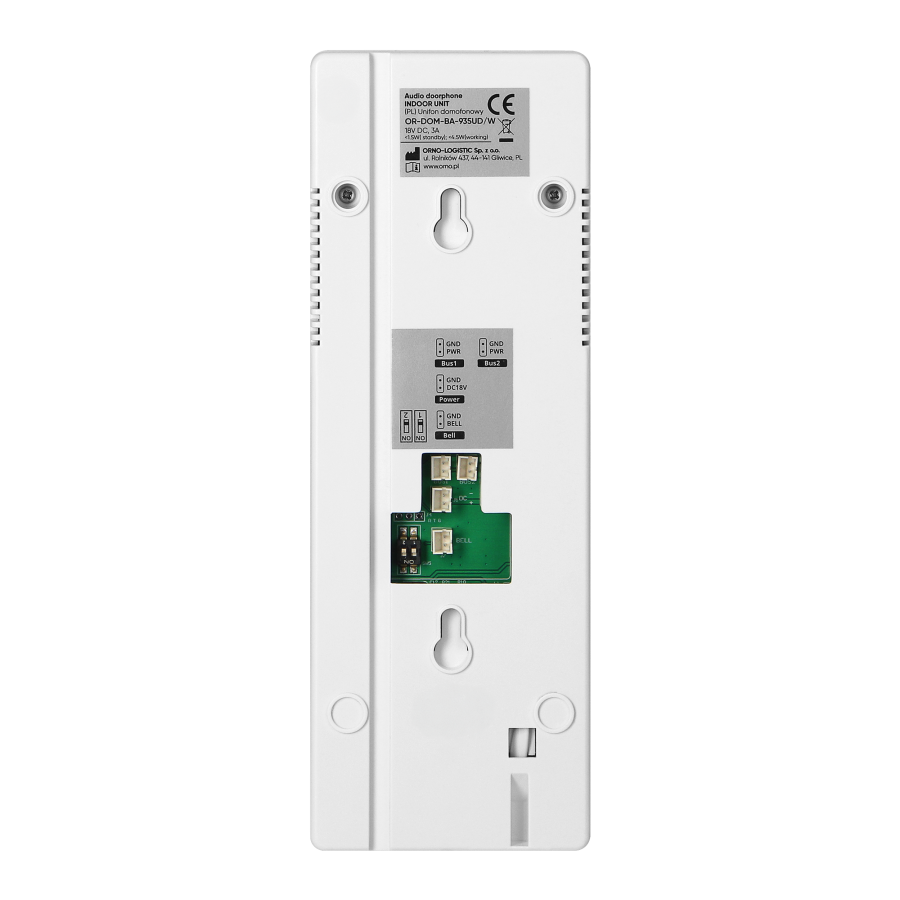

Indoor unit:
Mounting method indoor station: Montaż natynkowy
Hands free: nie
Internal communication: nie
Number of ringtones: 1
Loudness control: tak
Mutable call tone: tak
Material indoor station: Tworzywo sztuczne
Colour indoor station: Biały
Width [mm]: 70
Height [mm]: 201
Depth [mm]: 47
Outdoor unit:
Number of call buttons: 2
Mounting method outdoor station: Montaż natynkowy
Card and proximity tags reader: tak
Frequency of RFID tags: 13,56MHz
Label space/information surface: tak
With cover: tak
Degree of protection (IP): IP65
Material outdoor station: Stal nierdzewna + aluminium
Colour outdoor station: Czarny
Width [mm]: 53
Height [mm]: 138
Depth [mm]: 28
