OR-DOM-QH-912
Archived product

Description

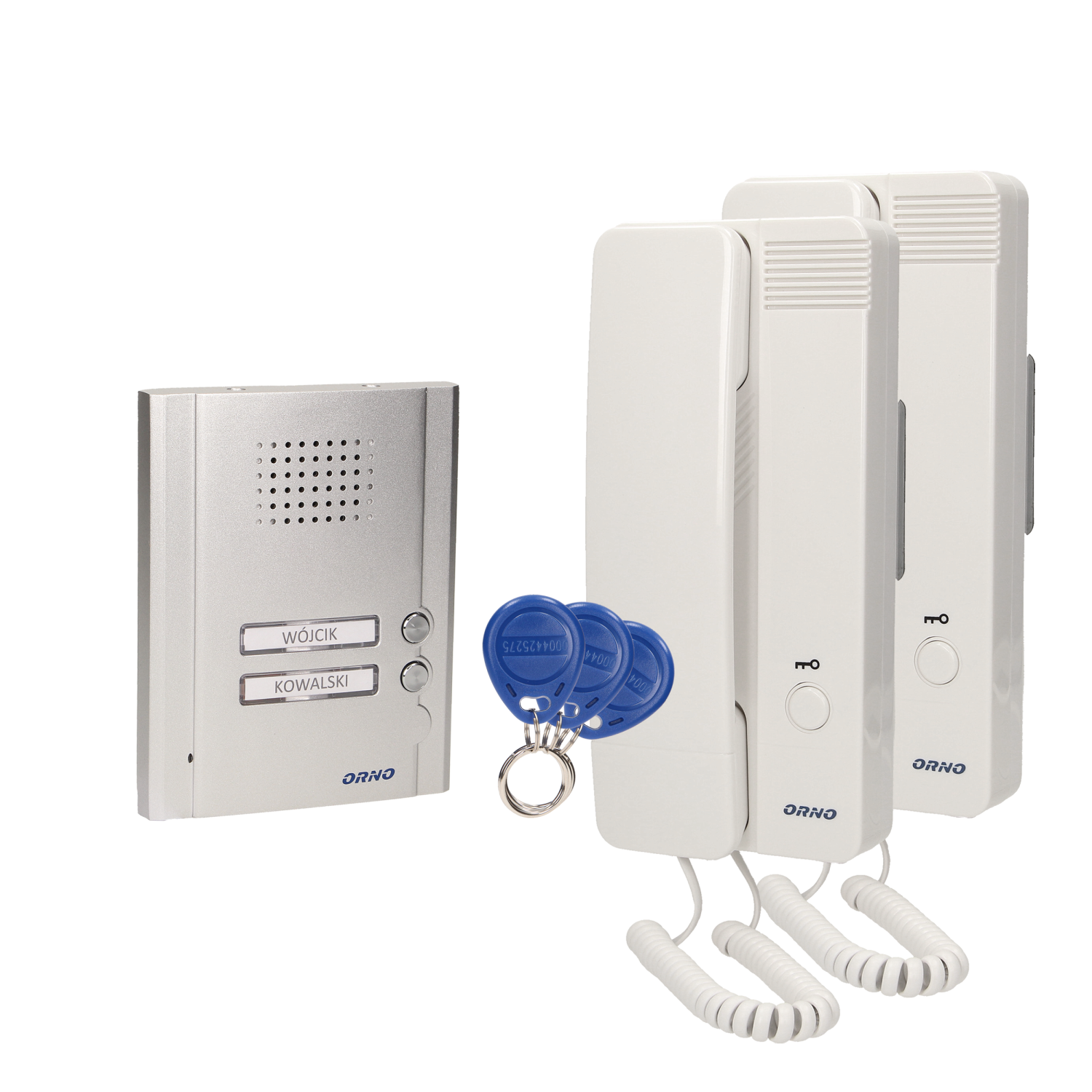

External panel requires flush mounting Classic and elegant uniphone equipped with a handset Direct control of an electric strike without any additional transformer Easy electric lock opening using the proximity tag.

General information:
Type: multi-family
Installation technique: Multi-wire system
Type of transmission: wired
Current supply: AC adapter
Number of indoor stations: 2
Number of outdoor stations: 1
Operation door lock: Yes
Current supply of the electric strike: from the external panel

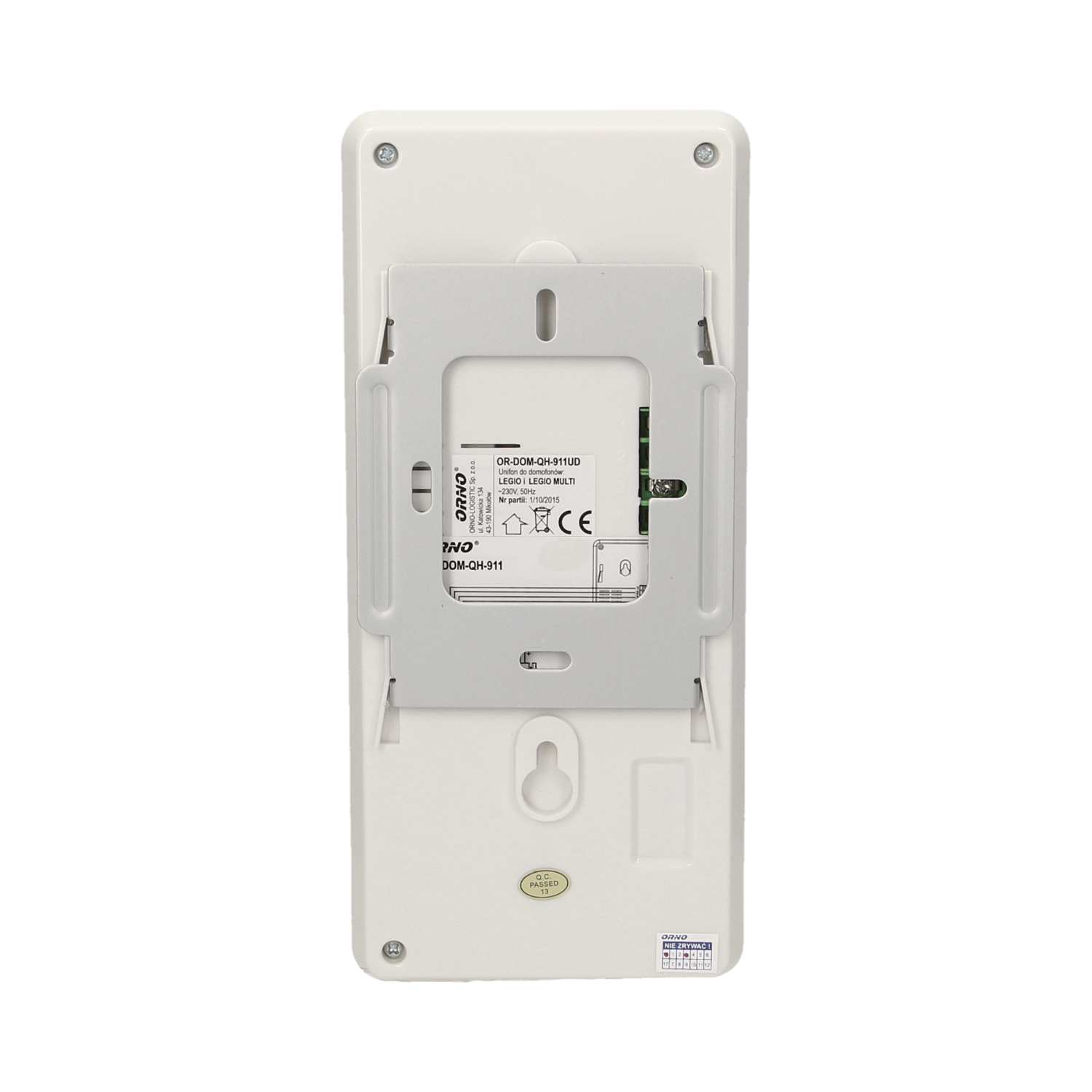

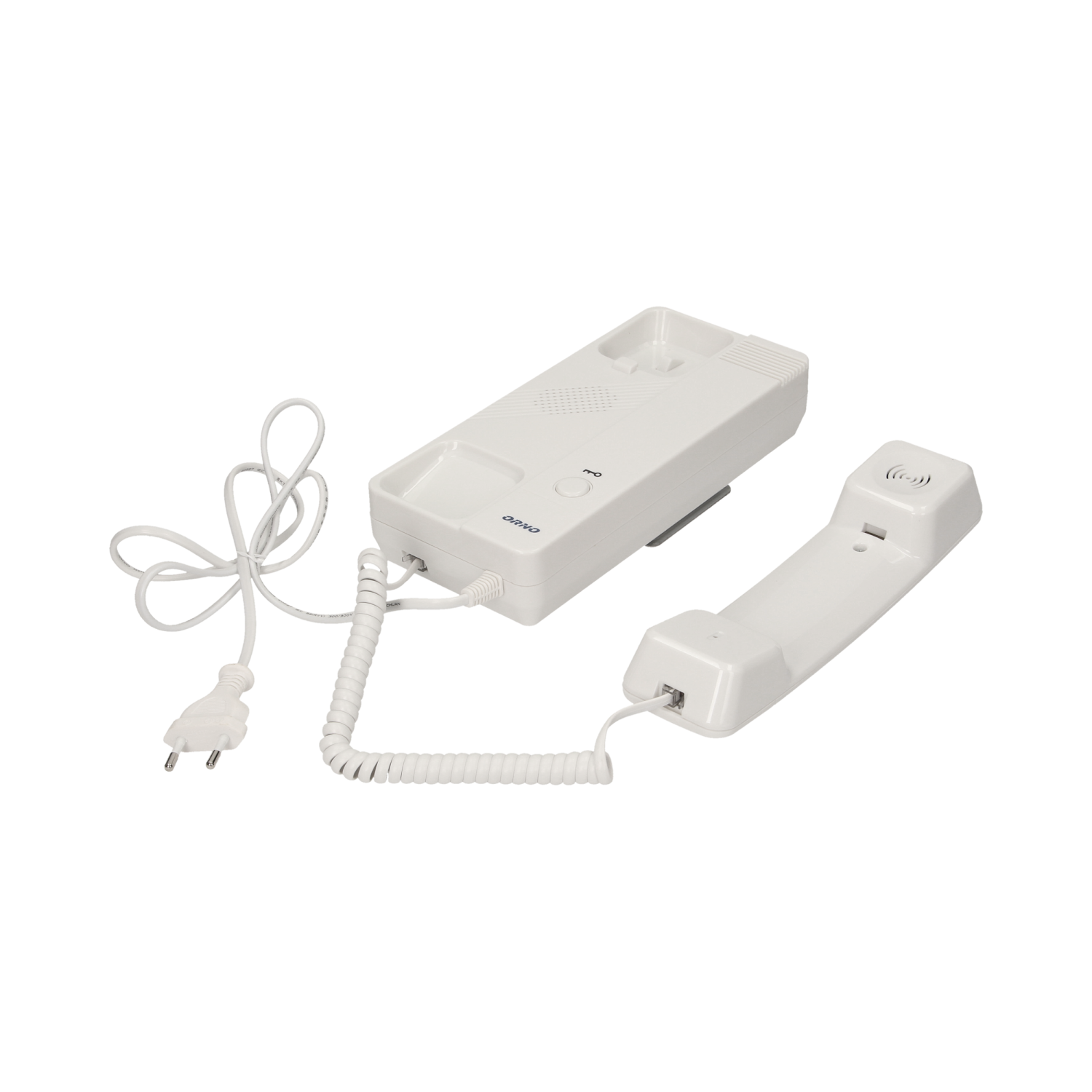

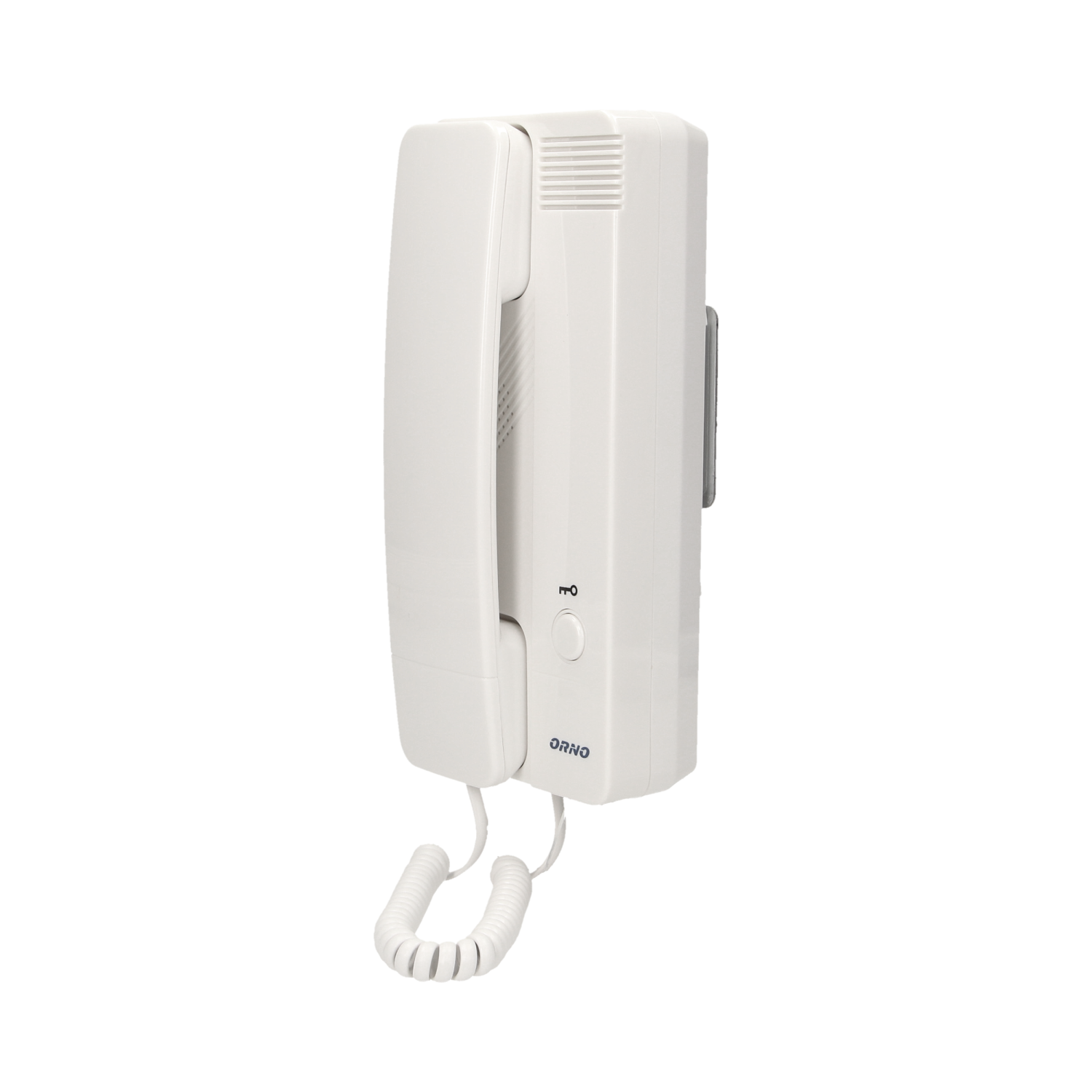

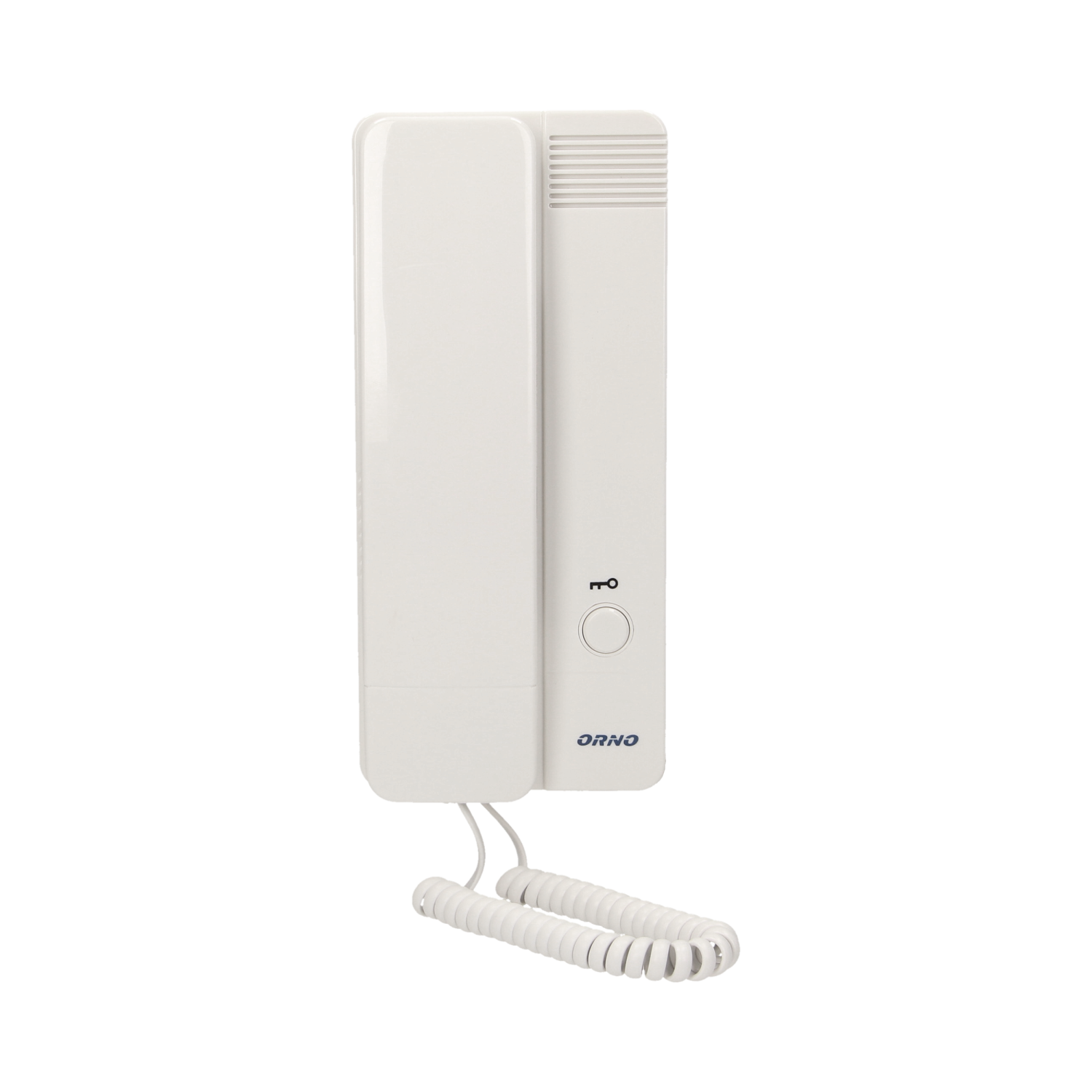

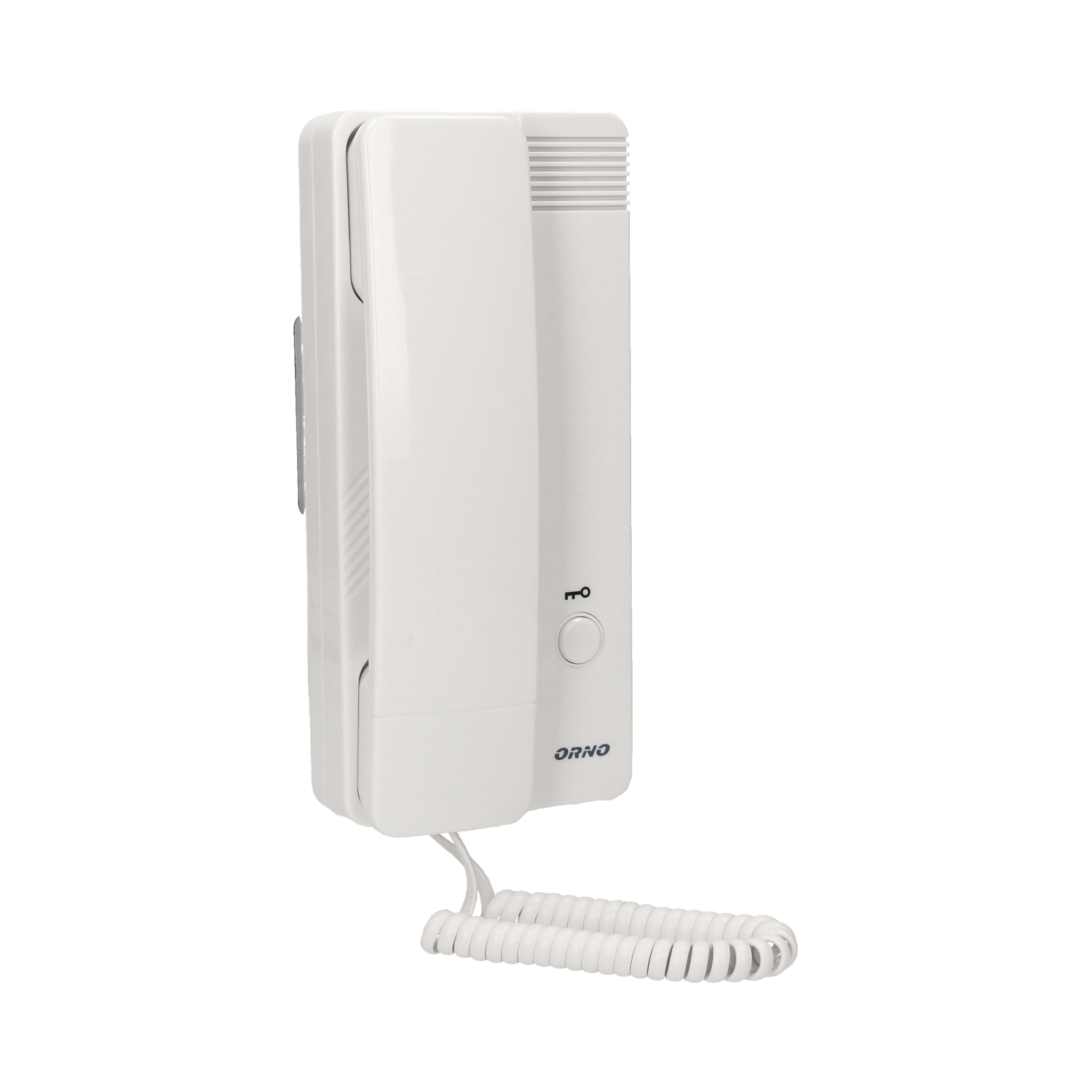

Indoor panel:
Mounting method - indoor station: Surface mounted (plaster)
Number of ringtones: 1
Material: Plastic
Indoor station colour: White
Width: 100 mm
Height: 217 mm
Depth: 45 mm

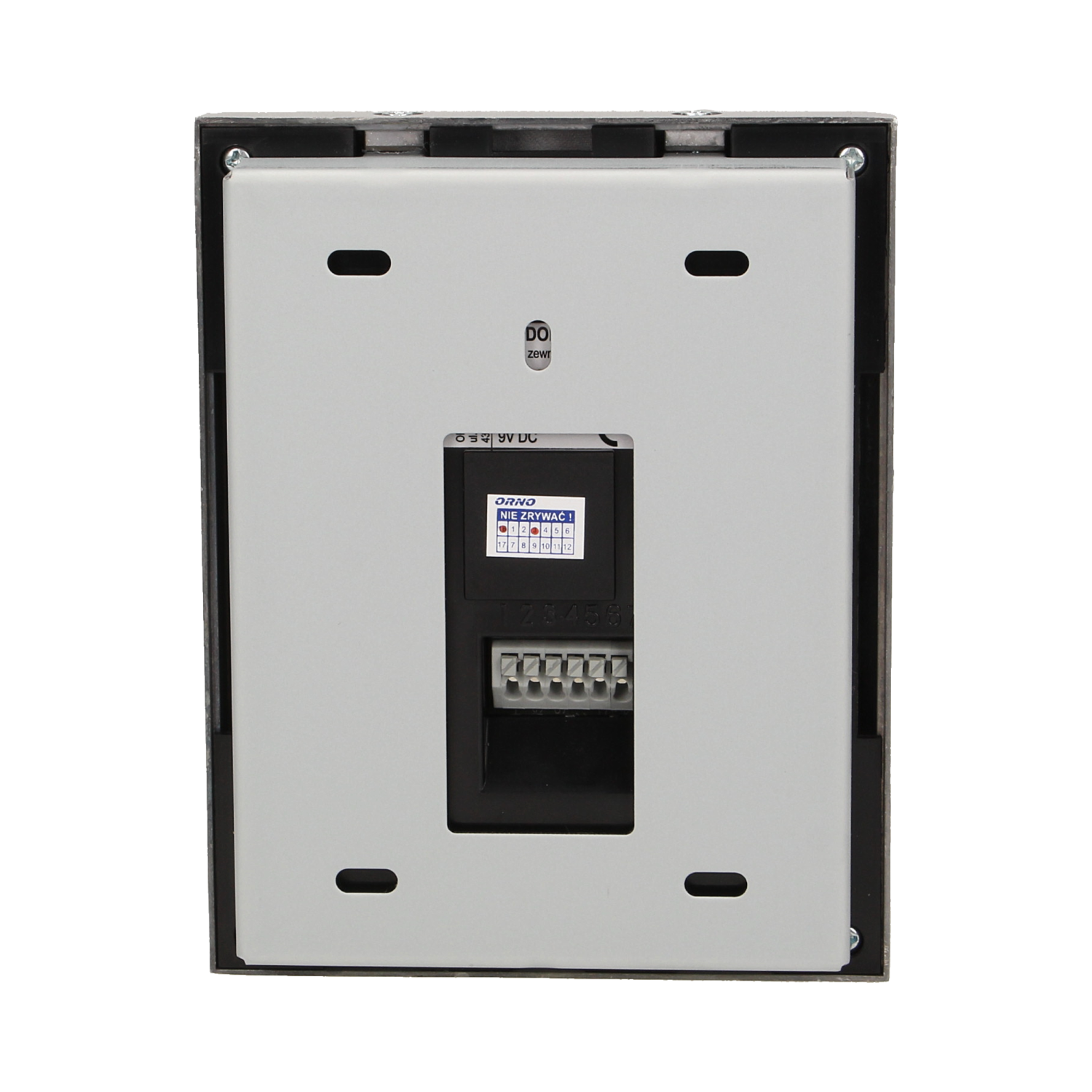

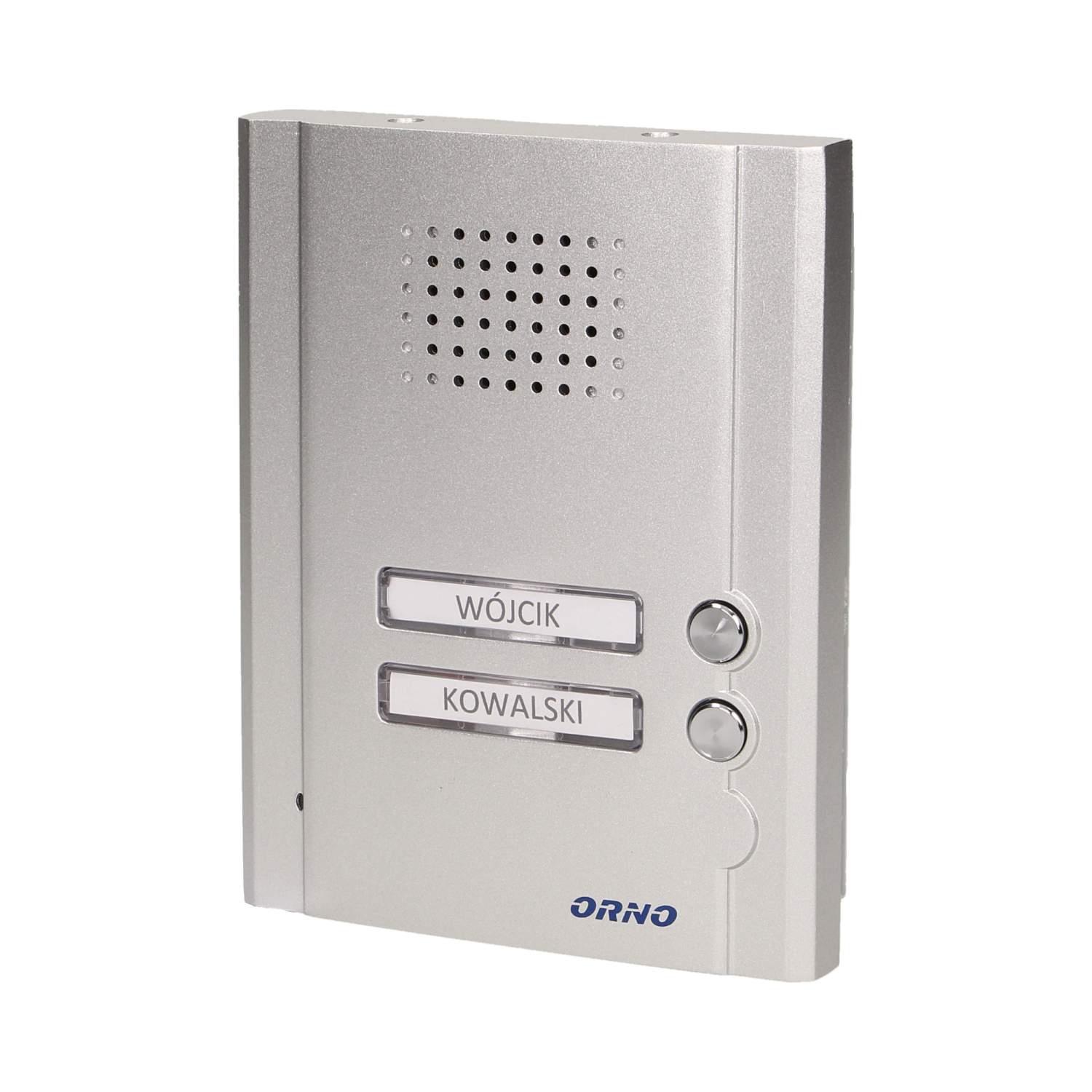

External panel:
Number of call buttons: 2
Mounting method: Flush mounted (plaster)

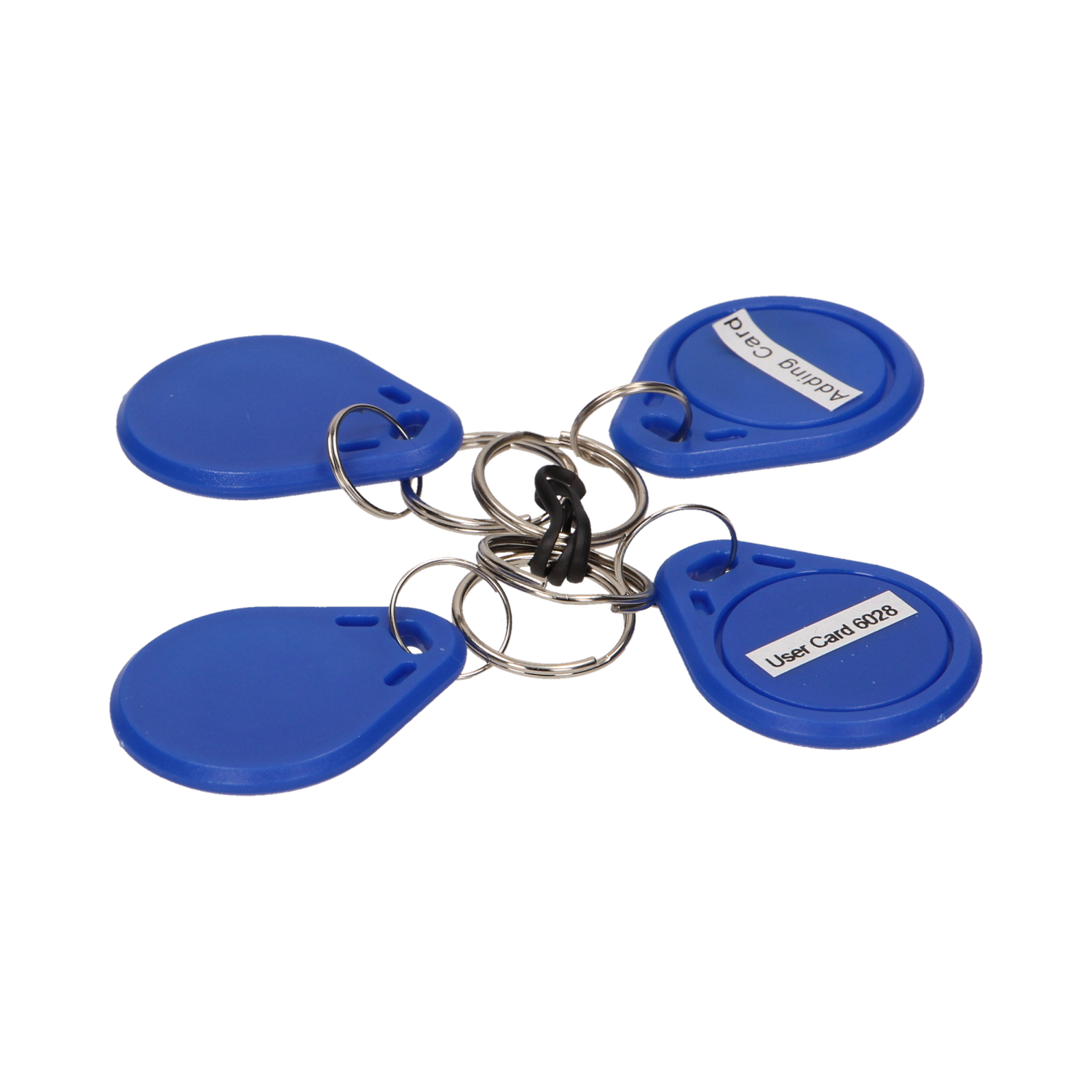

Card and proximity tags reader: Yes
Frequency of proximity cards and tags: 125 kHz
Label space/information surface: Yes
Colour: Silver
Width: 110 mm
Height: 140 mm
Depth: 35 mm
Built-in width: 100 mm
Built-in height: 130 mm
Built-in depth: 18 mm
