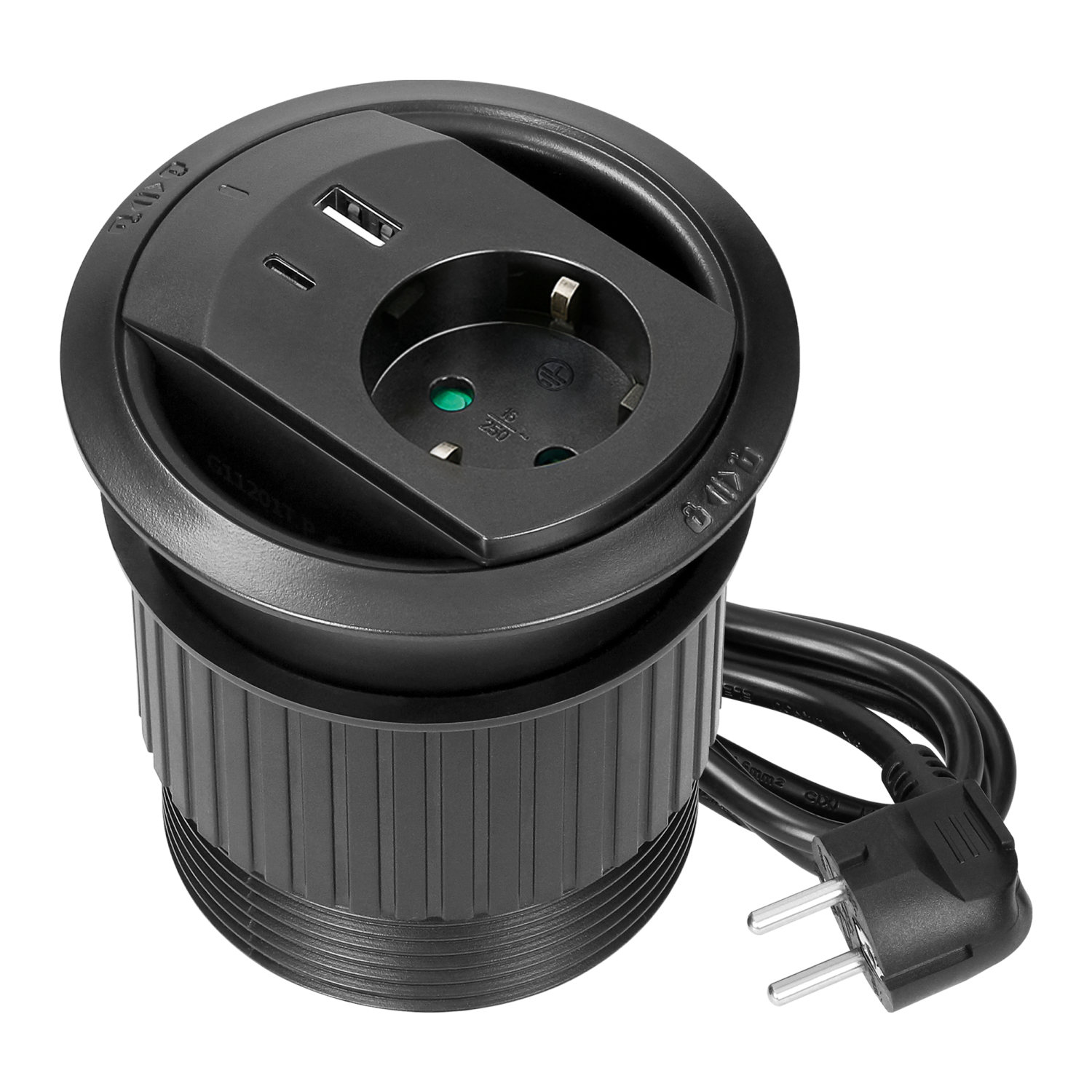

Flush-mounted sockets
Build this socket into your desk, conference table or kitchen island and always have power at hand. No more searching for free sockets and tangled wires on your work surface. One move is enough to connect a laptop, humidifier or small household appliances.

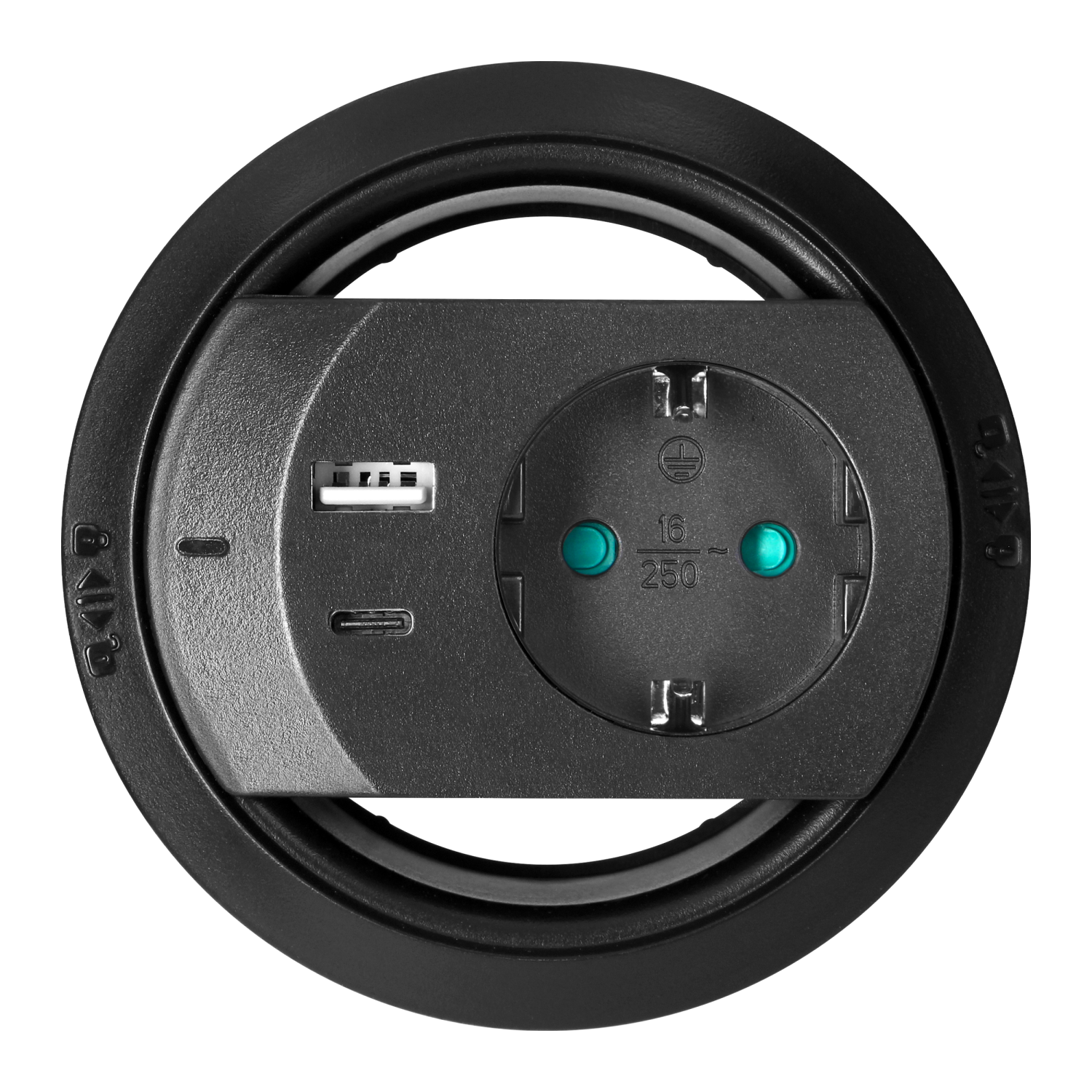

You may connect two devices to the USB ports at the same time (USB-A and USB-C).
The USB-A port supports 5V/3A, 9V/2A, and 12V/1.5-1.67A fast charging, and both ports together provide a total of 5V/3A. This allows you to conveniently charge your phone, tablet or headphones, even when using both outputs at the same time.
The cable grommet allows you to route the cables so that the countertop remains clean and the room remains tidy.

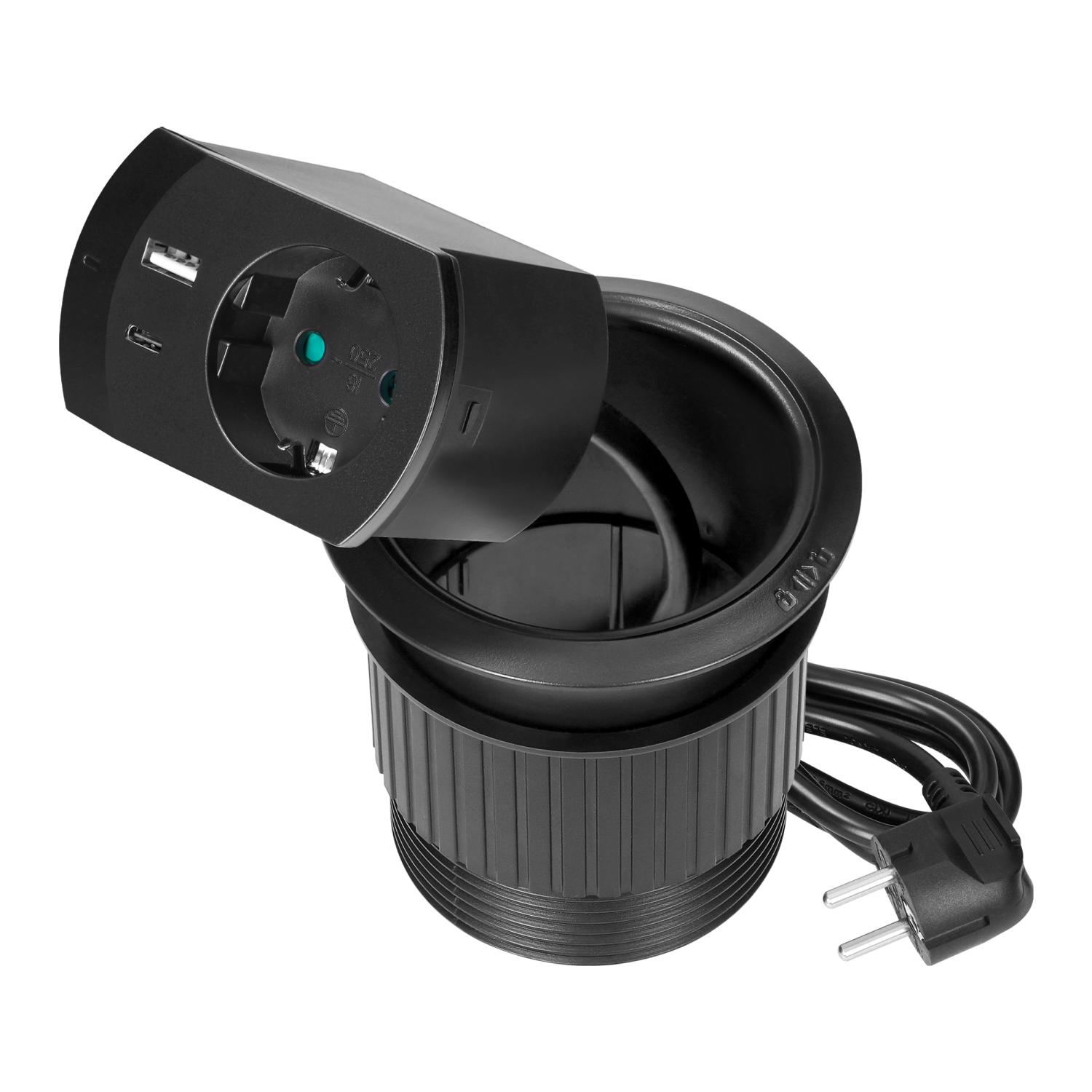

If you need to use the socket outside the countertop, remove it from the housing – in just a few moments you have a handy extension cord ready.

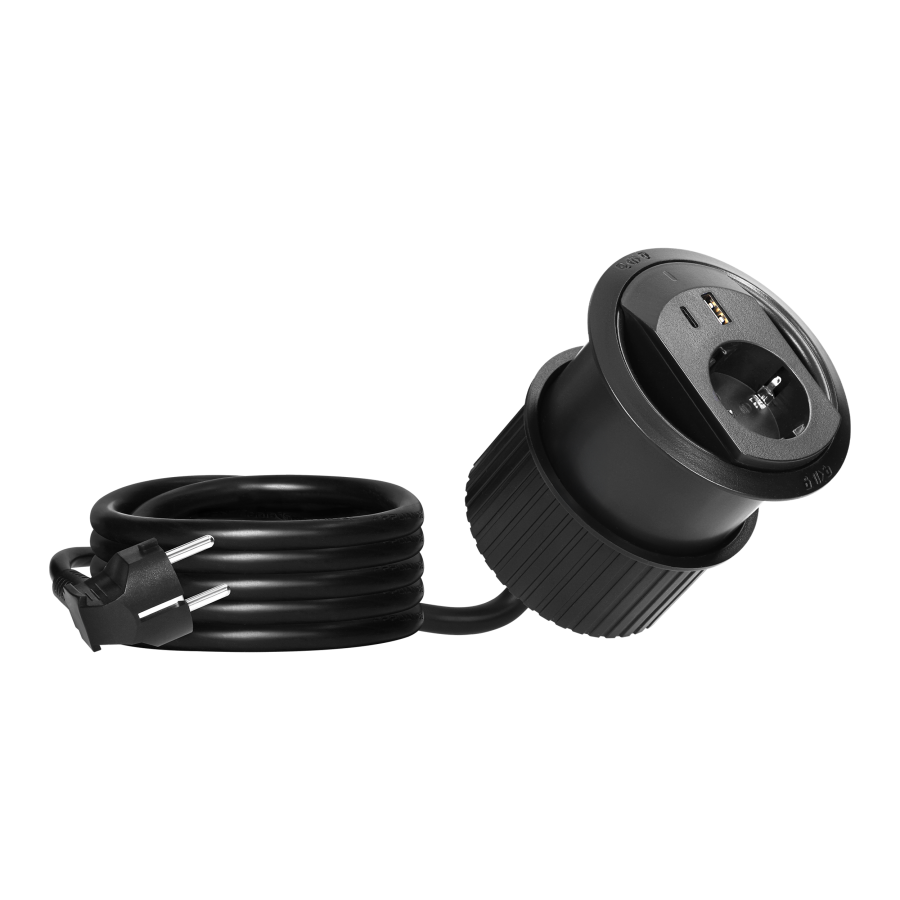

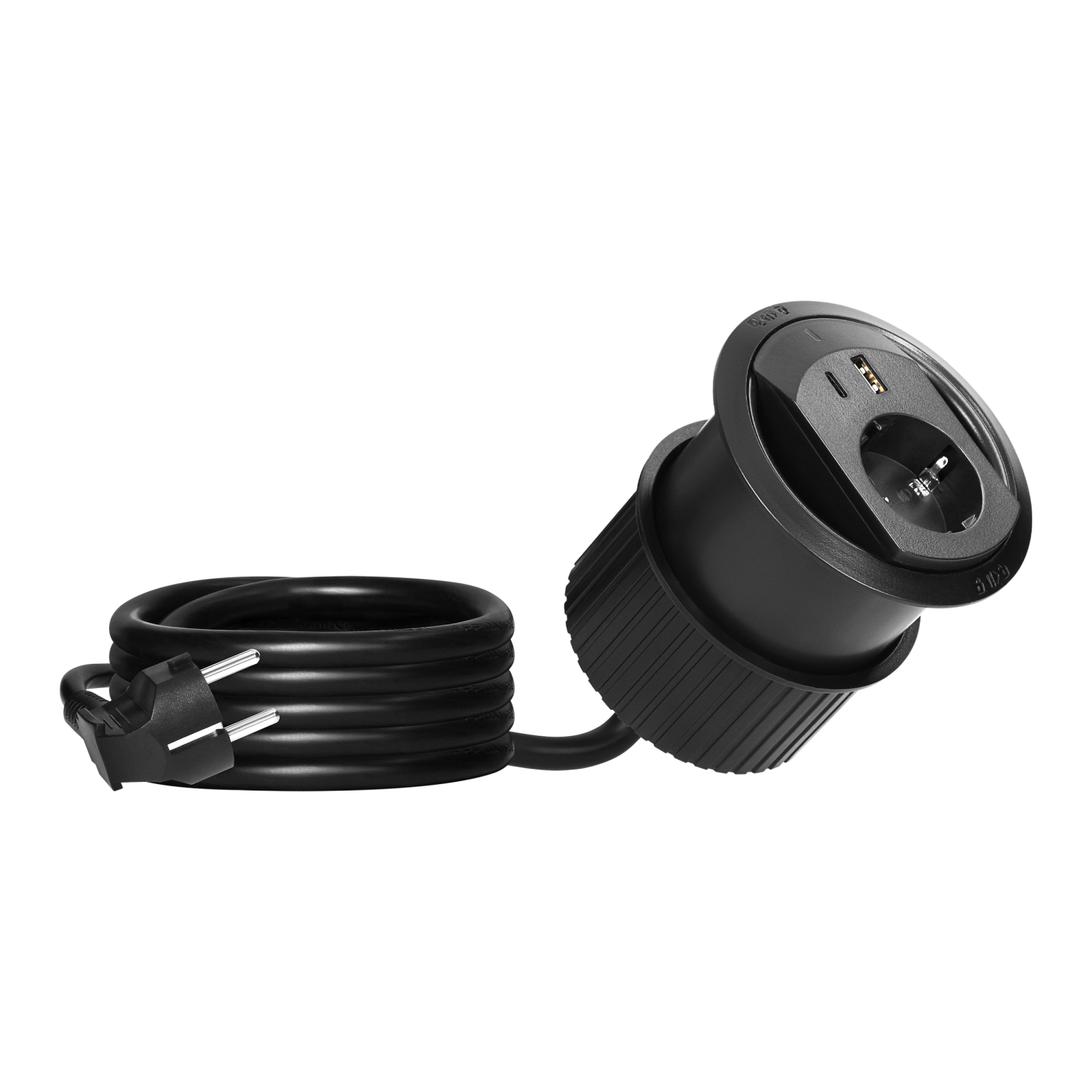

The long 1.4m cable makes it easy to connect the socket to the nearest power source. The module operates with a load of up to 3680W and has an IP20 rating.
| General information: | |
|---|---|
| Model: | Do wbudowania |
| Folding: | nie |
| Extendable: | tak |
| Nominal voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Max. Load [W]: | 3680 |
| Standard of the socket: | Schuko (typ F) |
| Number of socket outlets with protective contact (SCHUKO): | 1 |
| Number of USB connections: | 2 |
| USB port type: | 1xUSB-A, 1x USB-C |
| With built-in USB power supply: | tak |
| Output voltage of the USB charger: | USB-A: 5V / 3A, 9V / 2A, 12V / 1.5A ; USB-C: 5V / 3A, 9V / 2,22A, 12V / 1.67A ; USB A+C: 5V / 3A |
| Degree of protection (IP): | IP20 |
| Shape: | Okrągły |
| Diameter [mm]: | 101 |
| Height [mm]: | 110 |
| Hole diameter [mm]: | 80 |
| Built-in depth [mm]: | 120 |
| Material: | Tworzywo sztuczne |
| Color: | Czarny |
| Wire length [m]: | 1.4 |
| Type of cable: | H05VV-F3x1,5mm2 |
| Other: | Funkcja przedłużacza |
