Flush-mounted sockets

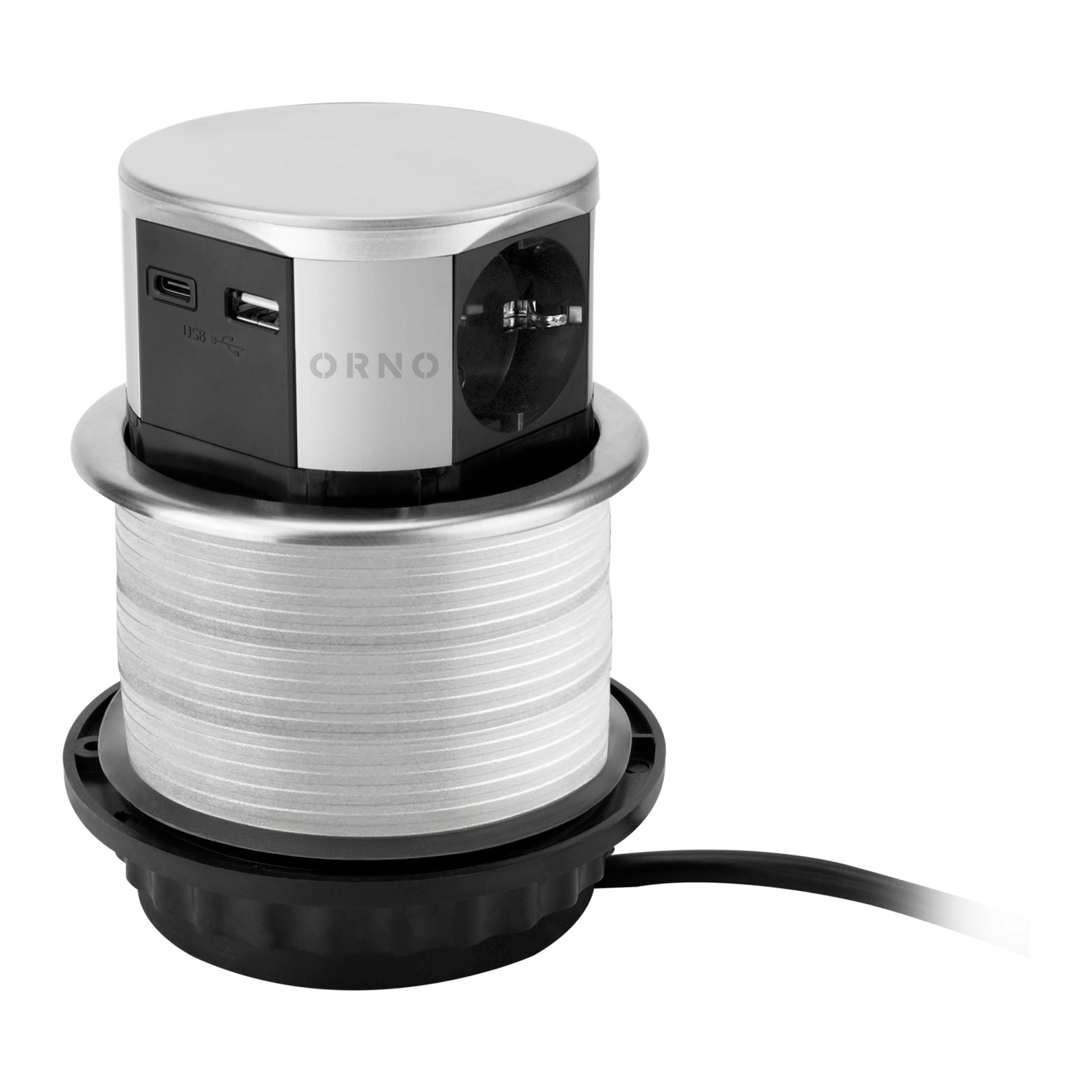

The vertical desk socket is not only a practical solution for connecting devices but also an elegant addition to every modern interior. It perfectly works both at home and in the office.
Three Schuko-type sockets (2P+E) and the 1.5m cable ensure smooth installation. The 1.5mm2 conductor cross-section guarantees safety of use. It is equipped with USB charger (USB-A: 5V/3A; 9V/2A; 12V/1.5A; USB-C 5V/3A, 9V/2.22A, 12V/1.67A; USB A+C: 5V/3A) which allows the connection of two additional mobile devices, such as a phone or tablet, and facilitates to charge them quickly.
The socket is made of high-quality plastic and aluminium, therefore, is damage resistant.
The socket is silver, with a round shape. It has a diameter of 115 mm and a height of 159.4 mm. Mounting hole diameter measures 104 mm, installation depth measures 102 mm.
Available also with a French-type socket.
| General information: | |
|---|---|
| Model: | Do wbudowania |
| Folding: | nie |
| Extendable: | tak |
| Nominal voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Max. Load [W]: | 3680 |
| Standard of the socket: | Schuko (typ F) |
| Number of socket outlets with protective contact (SCHUKO): | 3 |
| Number of USB connections: | 2 |
| USB port type: | 1xUSB-A, 1x USB-C |
| With built-in USB power supply: | tak |
| Output voltage of the USB charger: | USB-A: 5V / 3A, 9V / 2A, 12V / 1.5A ; USB-C: 5V / 3A, 9V / 2,22A, 12V / 1.67A ; USB A+C: 5V / 3A |
| Degree of protection (IP): | IP20 |
| Shape: | Okrągły |
| Diameter [mm]: | 115 |
| Height [mm]: | 159.4 |
| Hole diameter [mm]: | 104 |
| Built-in depth [mm]: | 102 |
| Material: | Tworzywo sztuczne + Aluminium |
| Color: | Srebrny |
| Wire length [m]: | 1.5 |
| Wire cross section: | 3x1.5mm2 |
