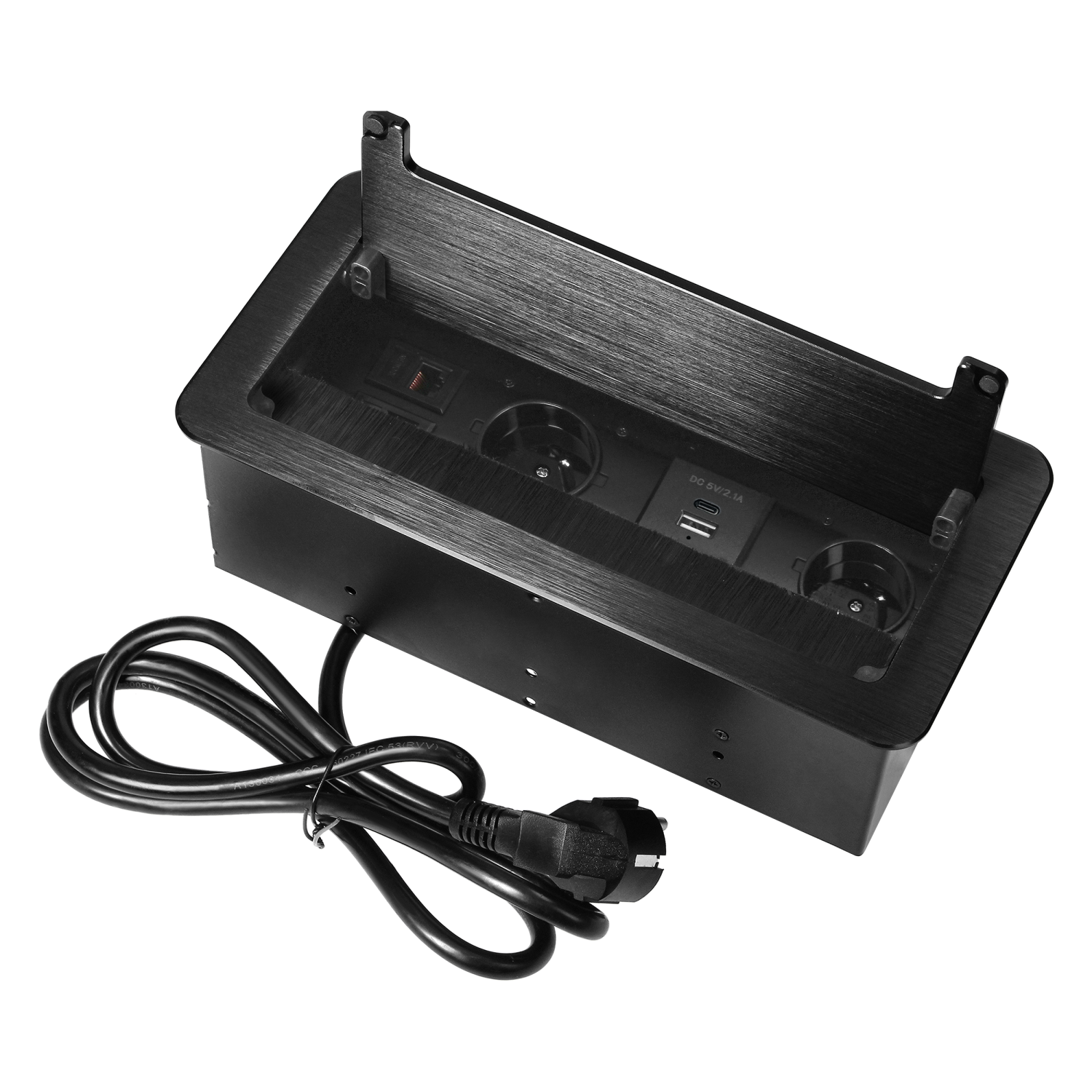

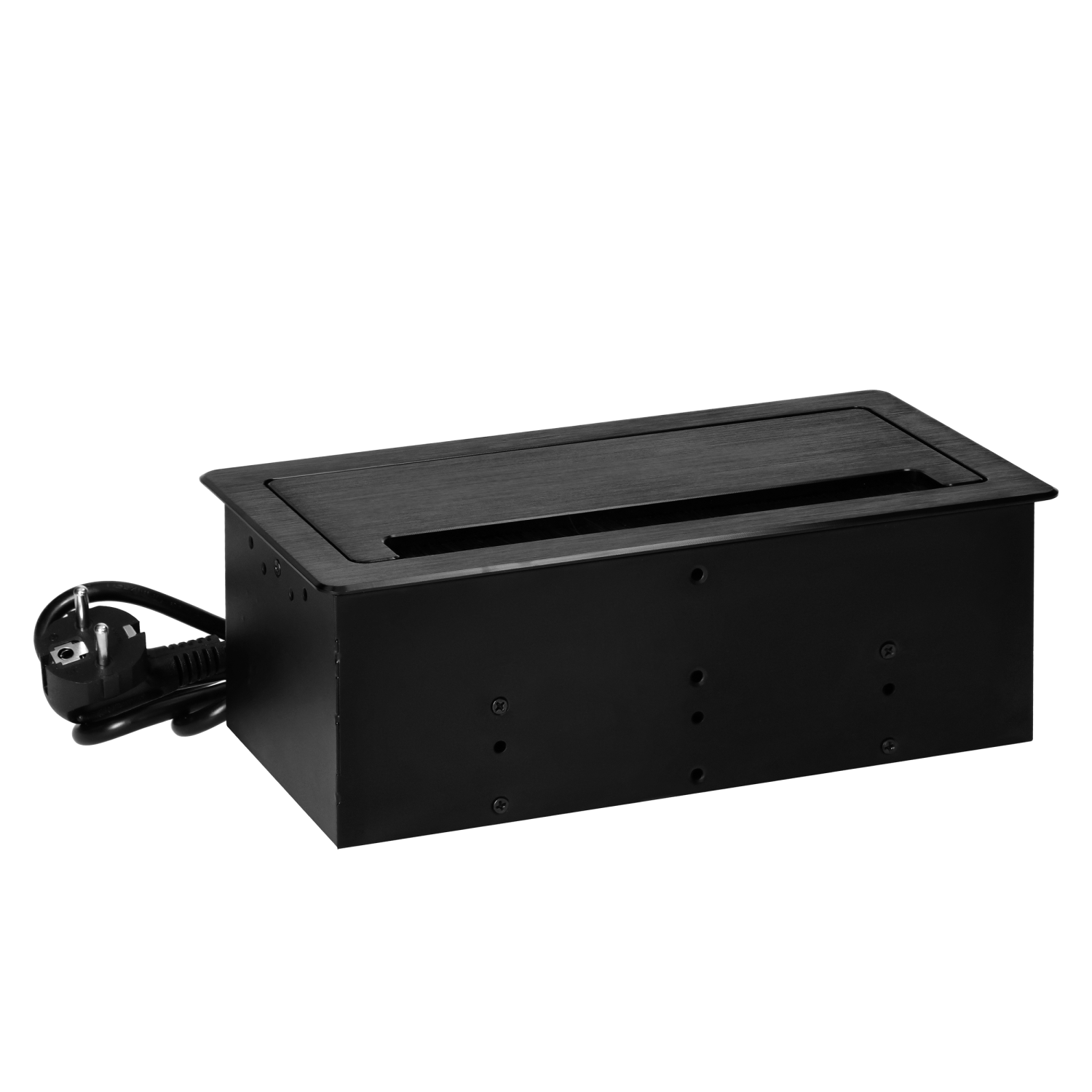

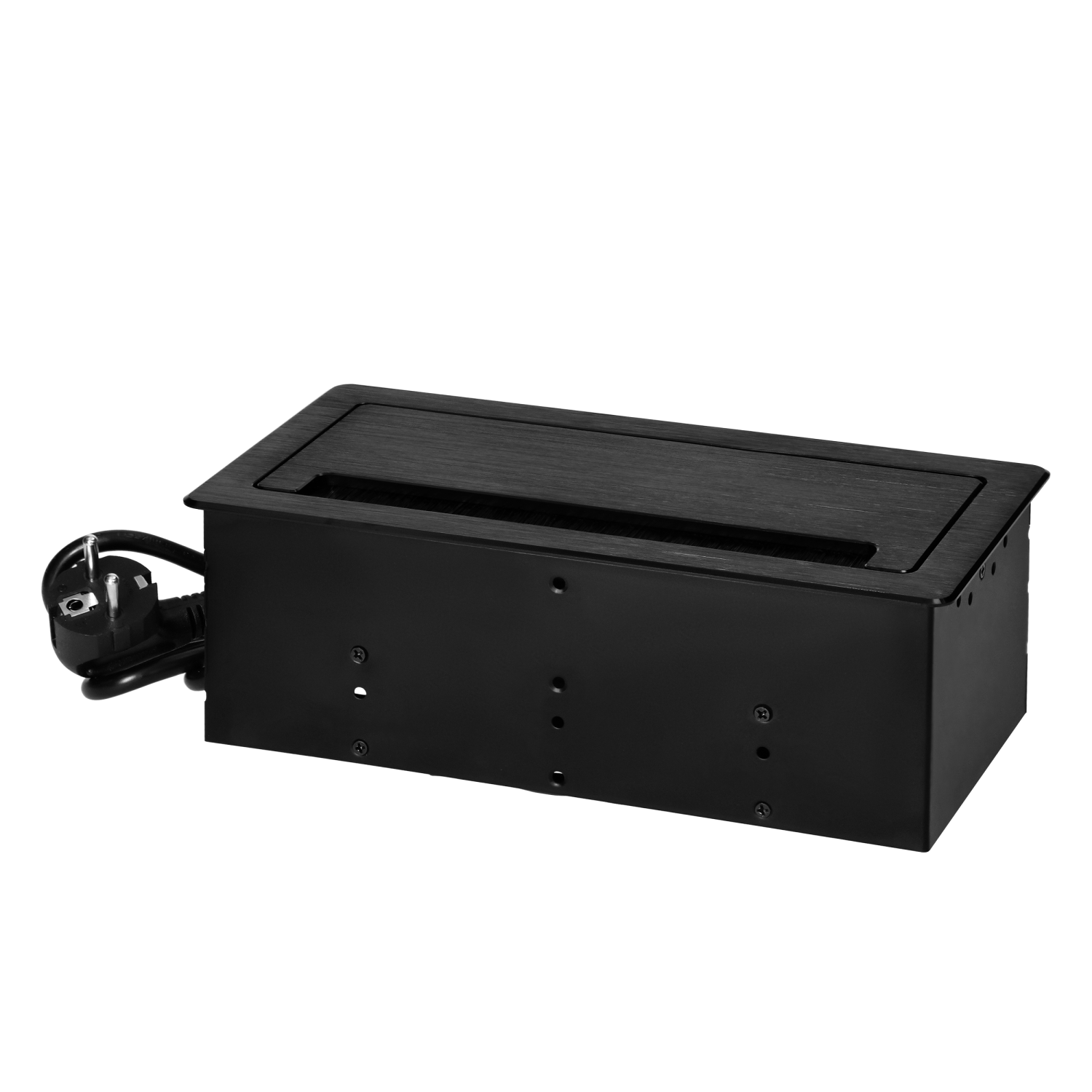

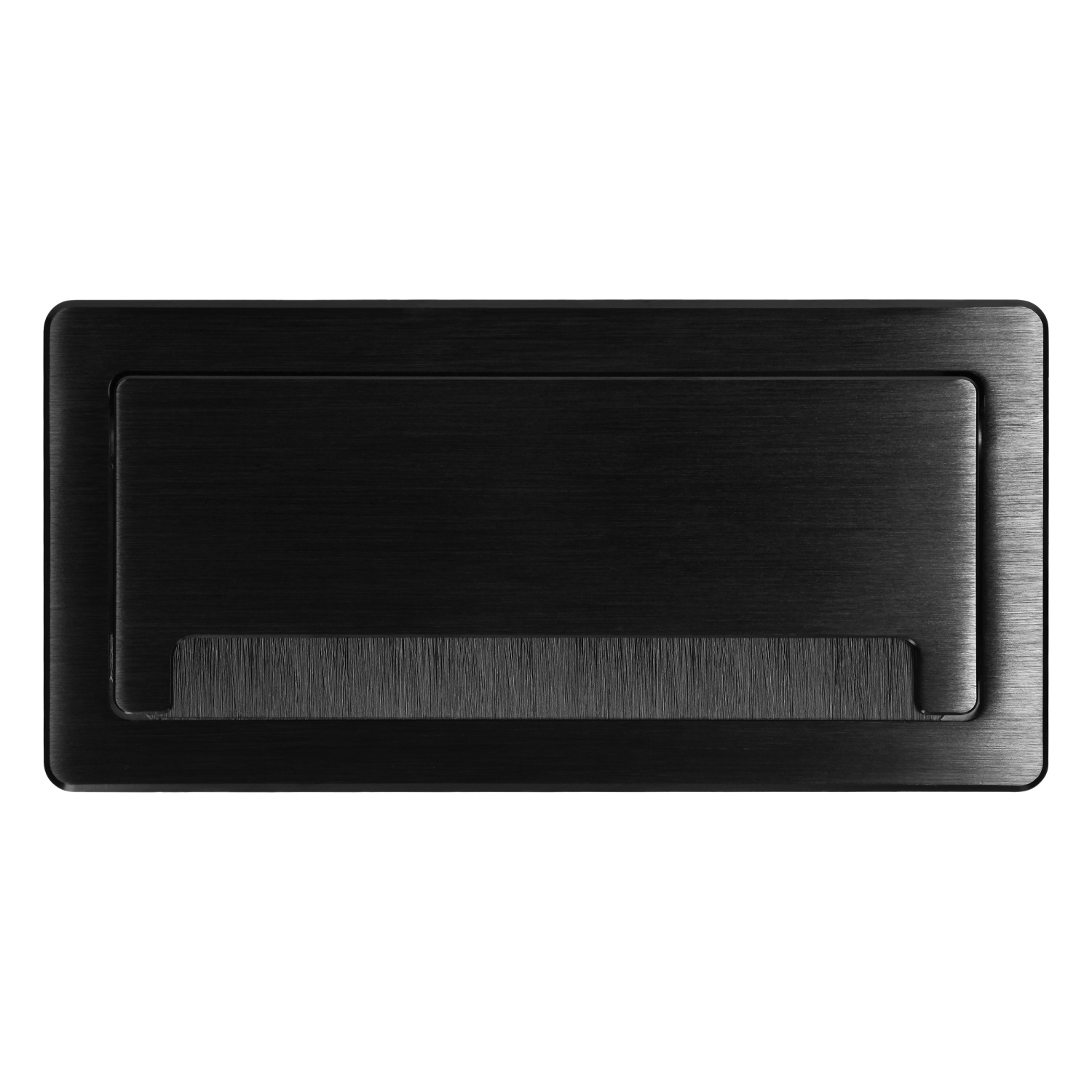

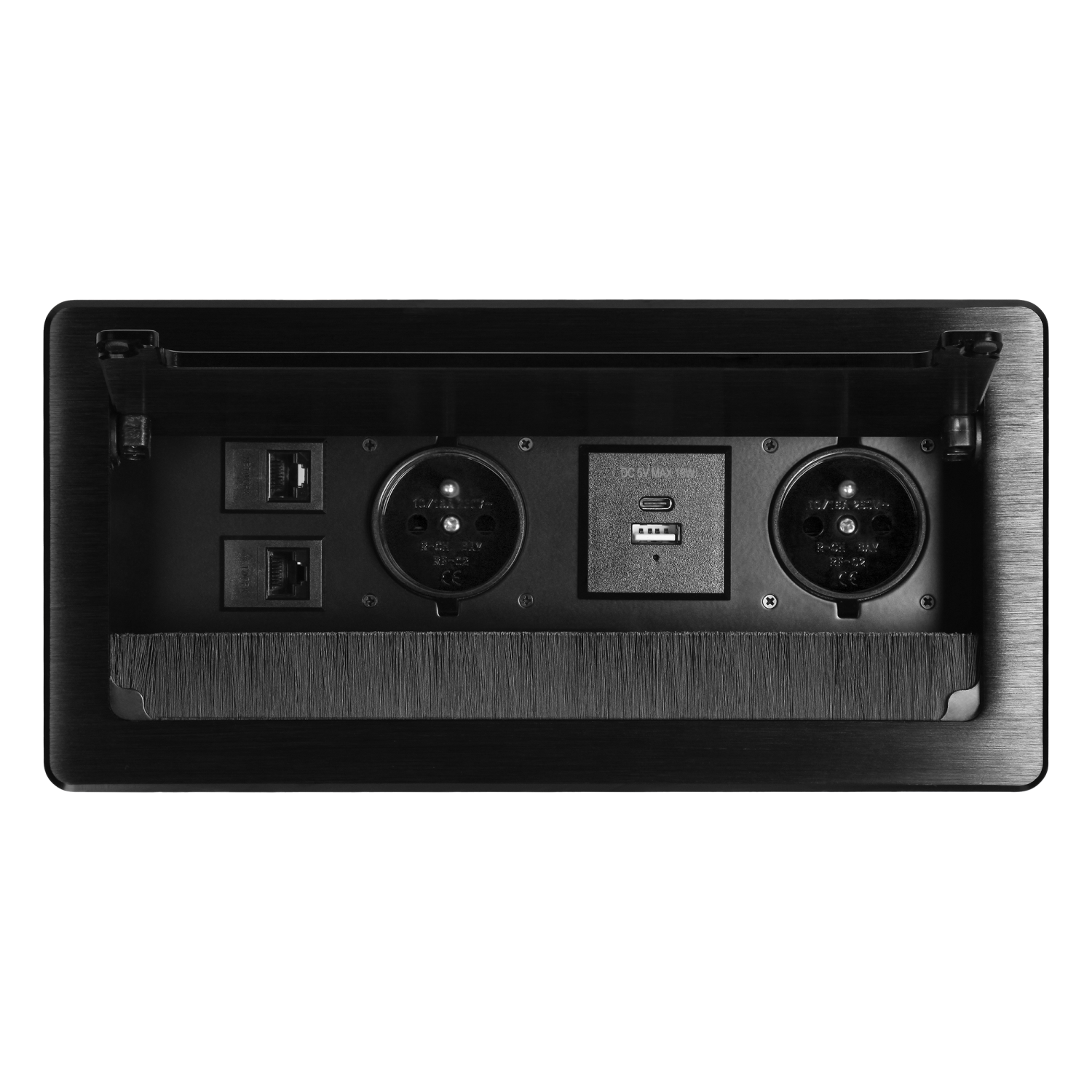

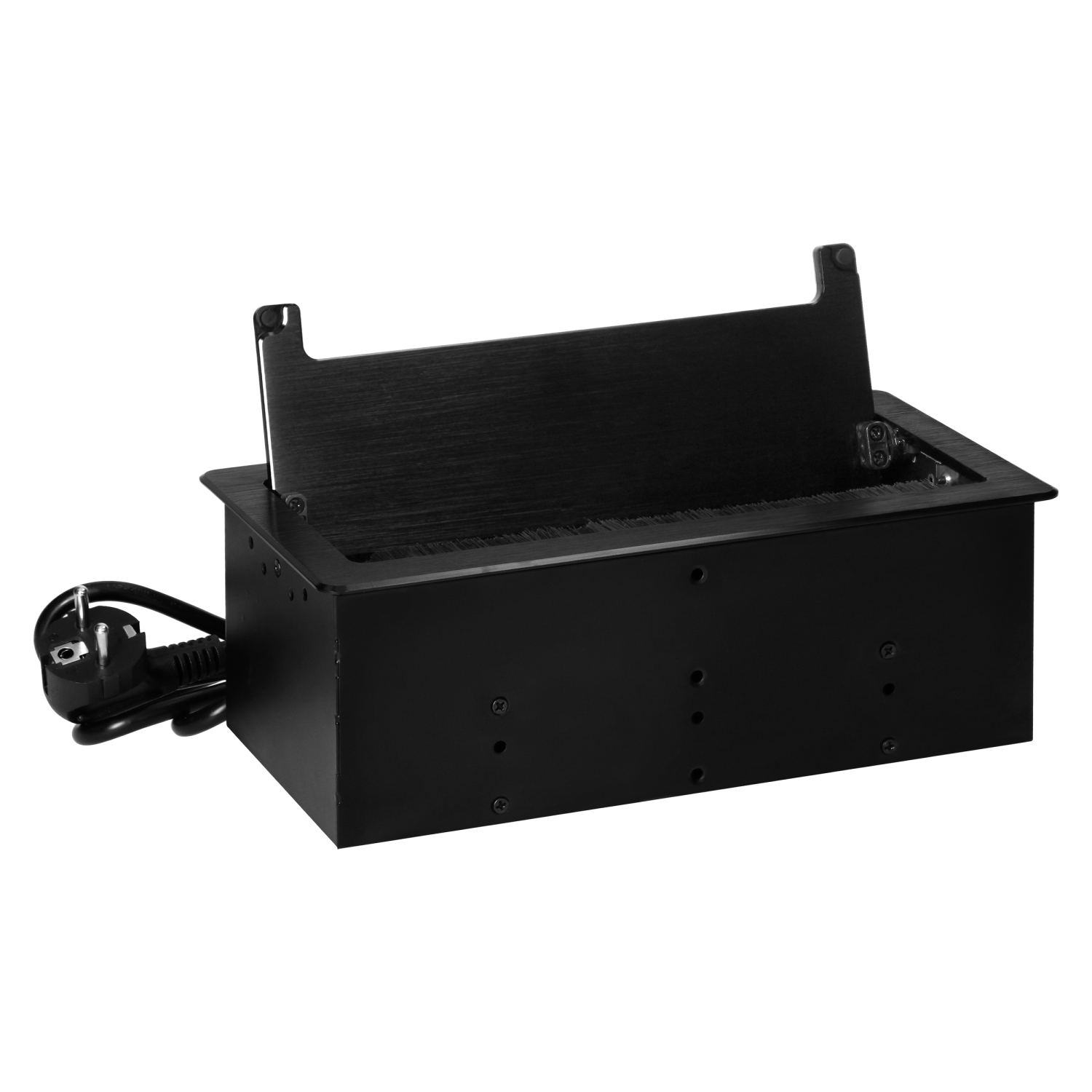

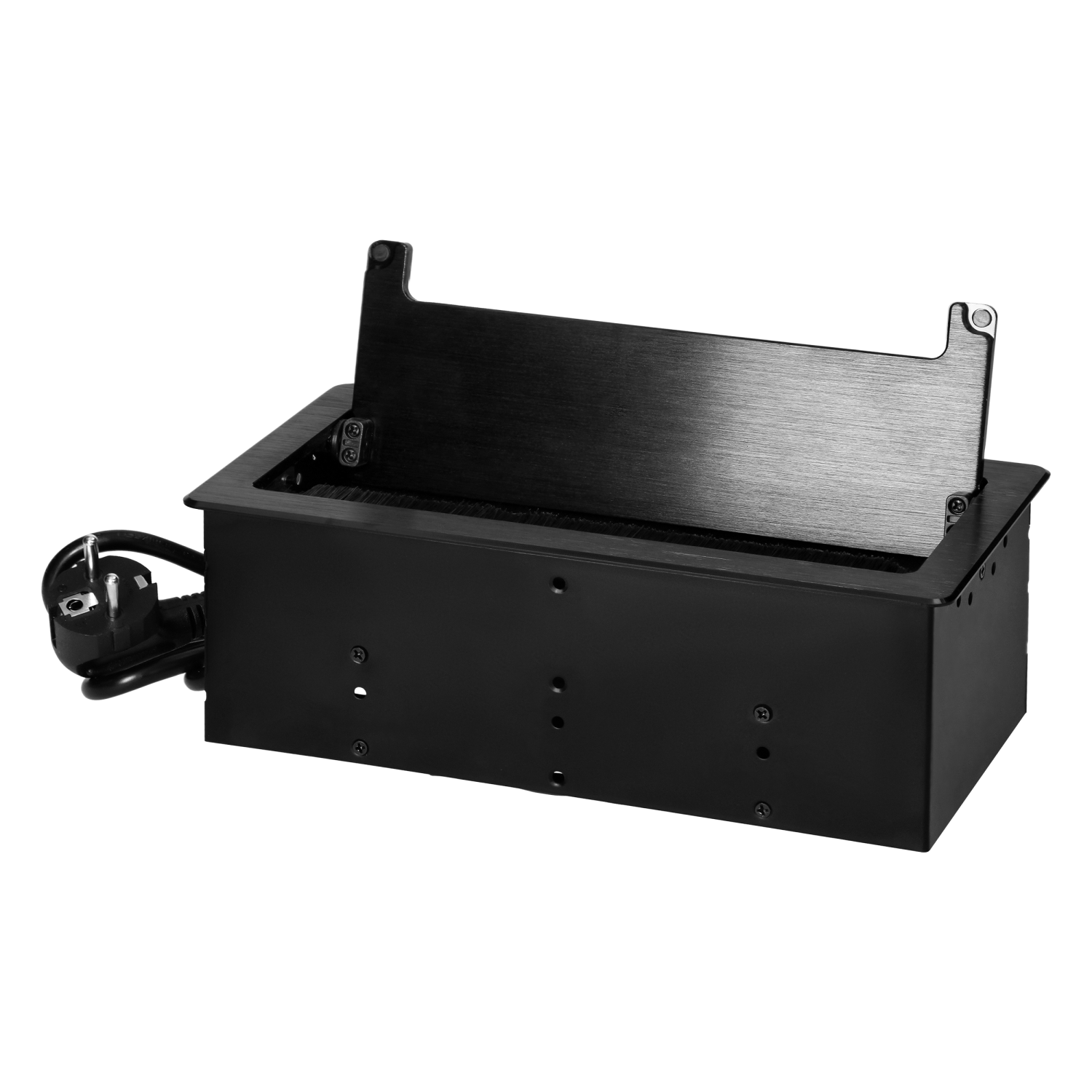

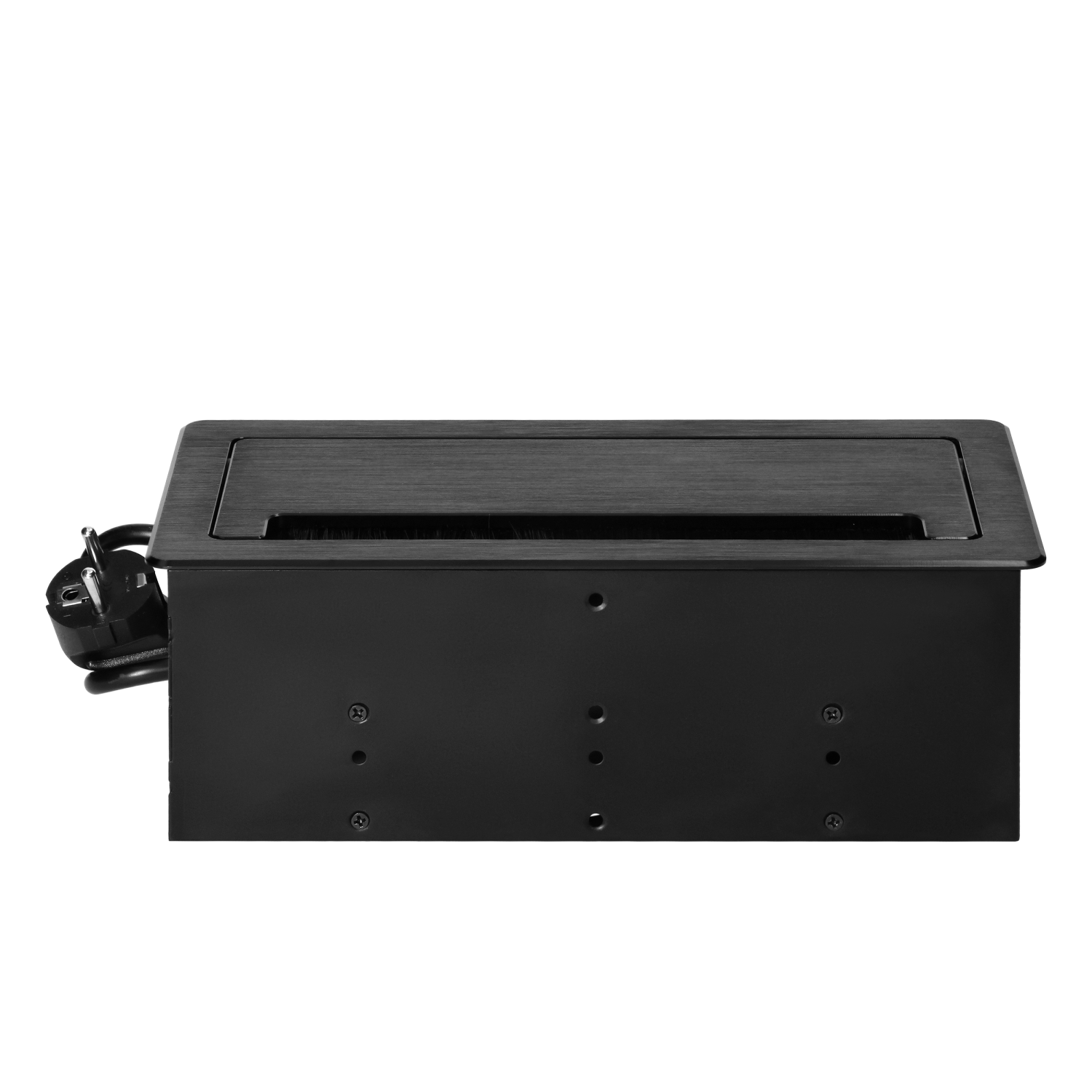

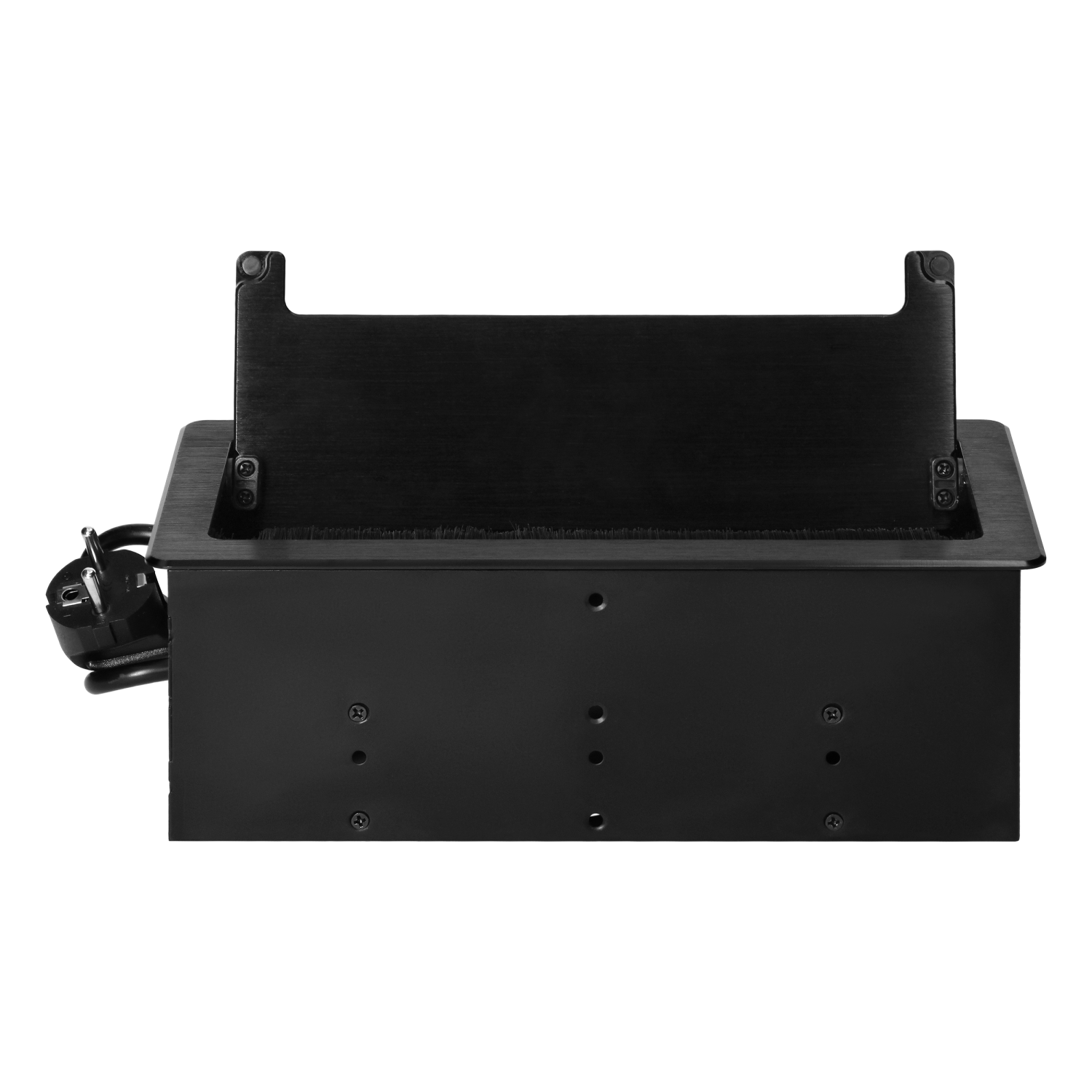

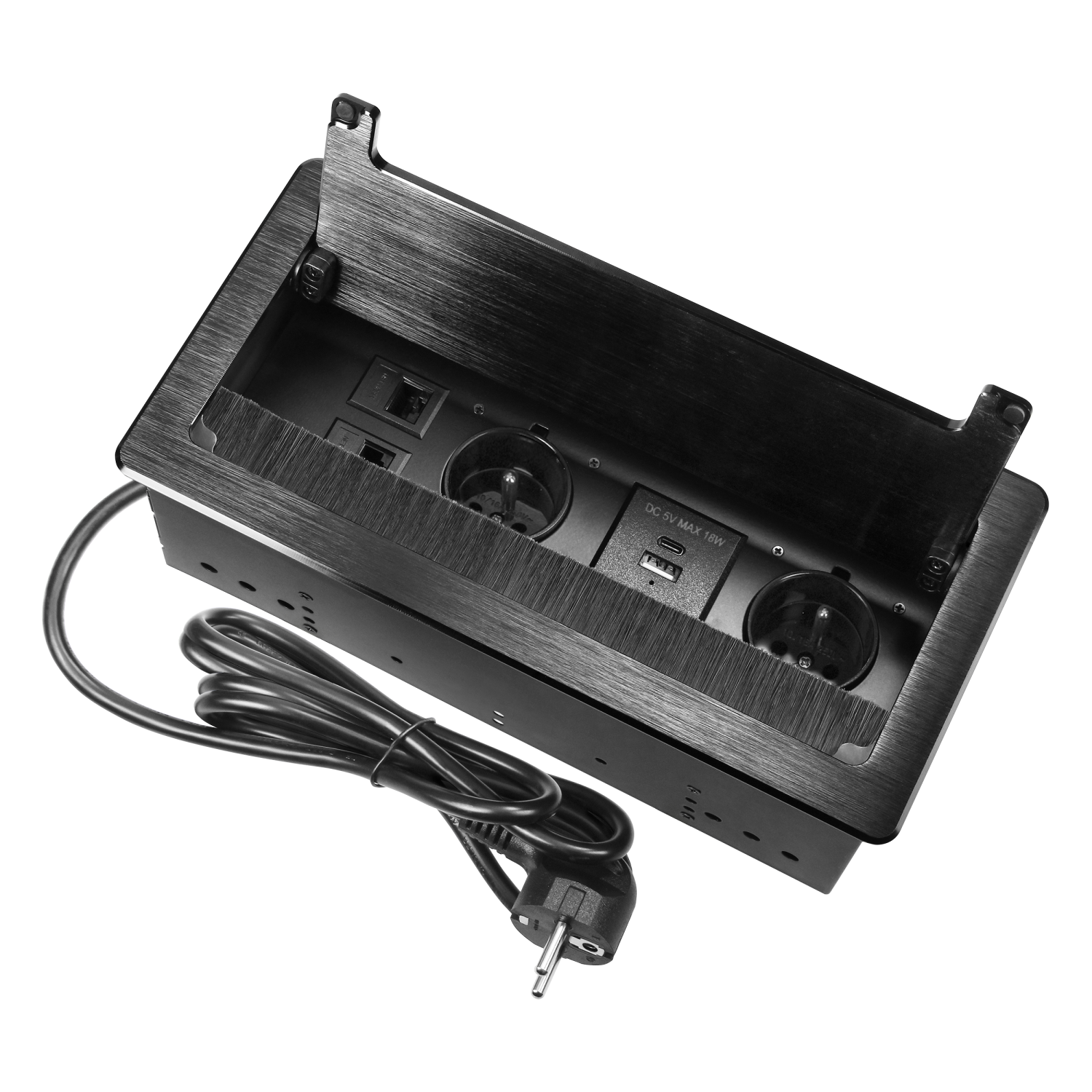

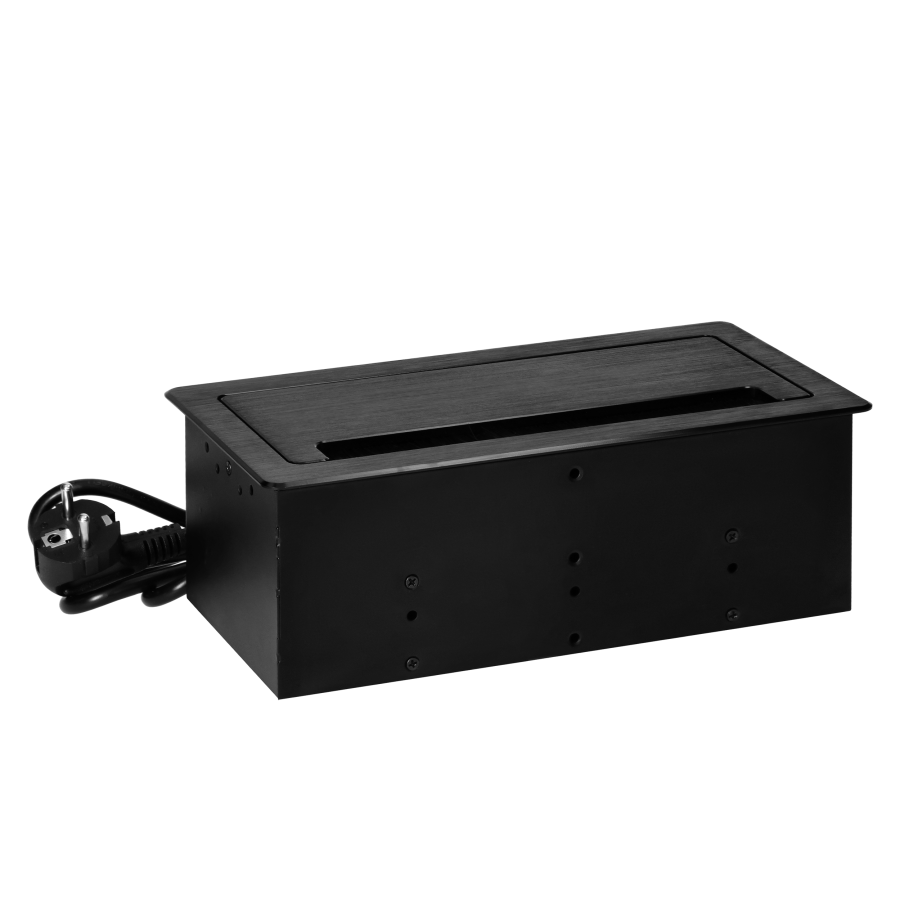

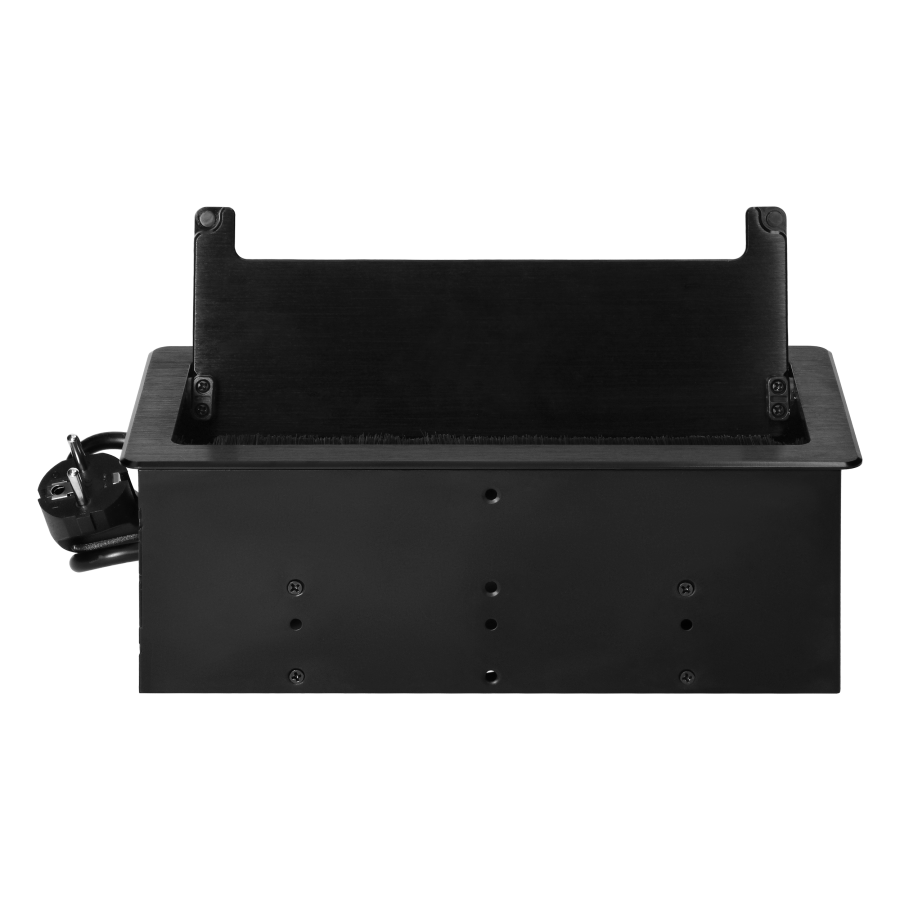

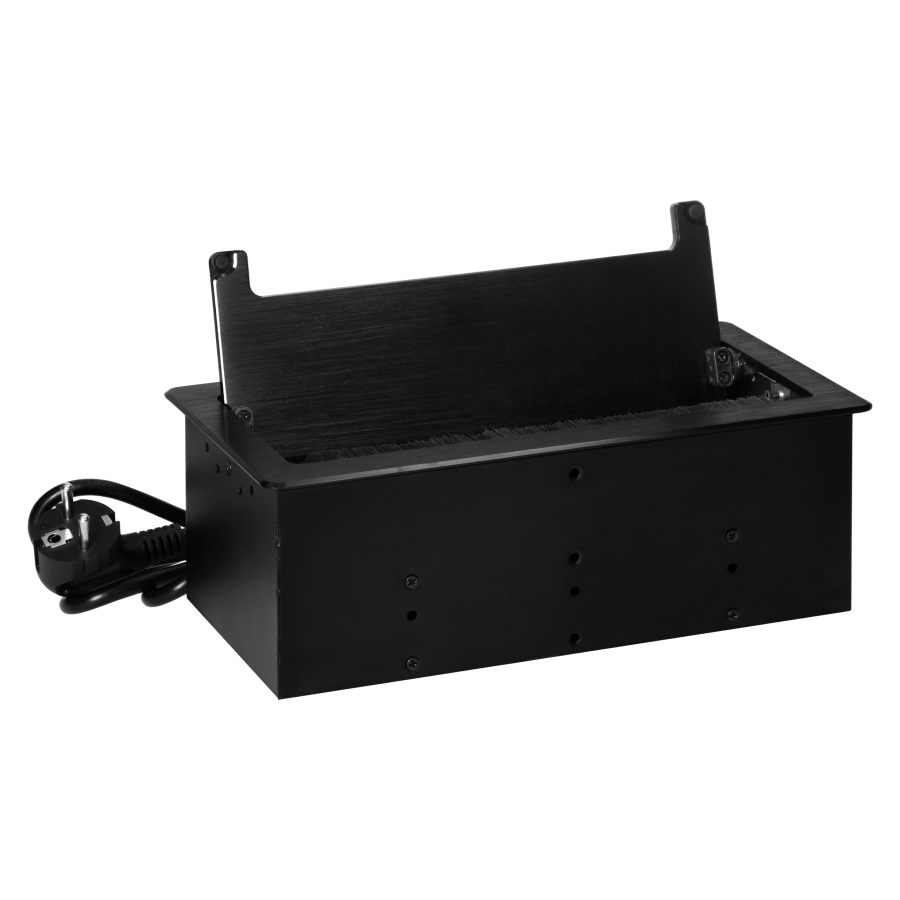

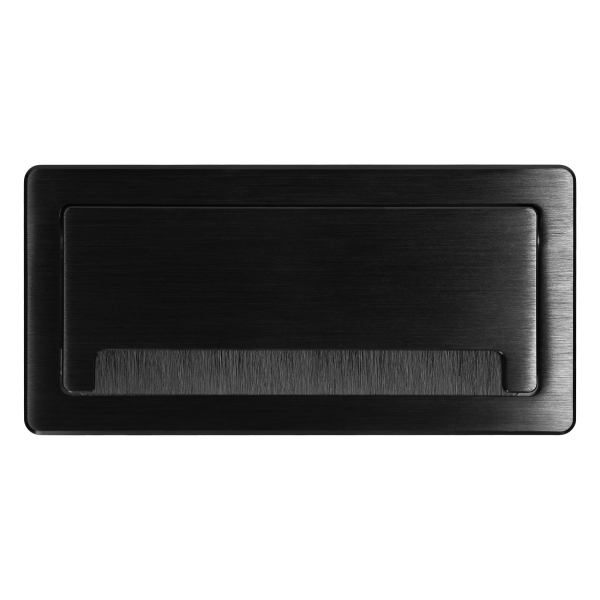

Recessed furniture socket with flat milled edge, anti-dust brush and 1.5m cable, 2x2P+E (French), 2x USB (type A+C,...
 Recessed furniture socket with flat milled edge, anti-dust brush and 1.5m cable, 2x2P+E (French), 2x USB (type A+C,...

Recessed furniture socket with flat milled edge, anti-dust brush and 1.5m cable, 2x2P+E (French), 2x USB (type A+C,...

OR-GM-9041/B
New

Description

General information:
Model: Do wbudowania
Folding: tak
Nominal voltage [V]: 230
Frequency [Hz]: 50
Max. Load [W]: 3680
Standard of the socket: French (typ E)
Number of socket outlets French standard (Type E): 2
Number of USB connections: 2
USB port type: 1xUSB-A, 1x USB-C
With built-in USB power supply: tak
Output voltage of the USB charger: 5V/3,6A
Number of RJ45 CAT 5E connections: 2
Degree of protection (IP): IP20
Shape: Prostokątny
Length [mm]: 130
Width [mm]: 265
Height [mm]: 90
Edge thickness [mm]: 2
Dimensions of the mounting hole -length [mm]: 252
Dimensions of the mounting hole - width [mm]: 117
Built-in depth [mm]: 100
Material: stop cynku i stal
Color: Czarny
Wire length [m]: 1.5
Wire cross section: 3x1,5mm²
Other: szczotka przeciwkurzowa

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:13:13Download
Product data sheetENpdf2024-07-17 10:21:07Download
User manualPL, EN, DE, FR, RUpdf2024-09-13 15:36:28Download
