Flush-mounted sockets

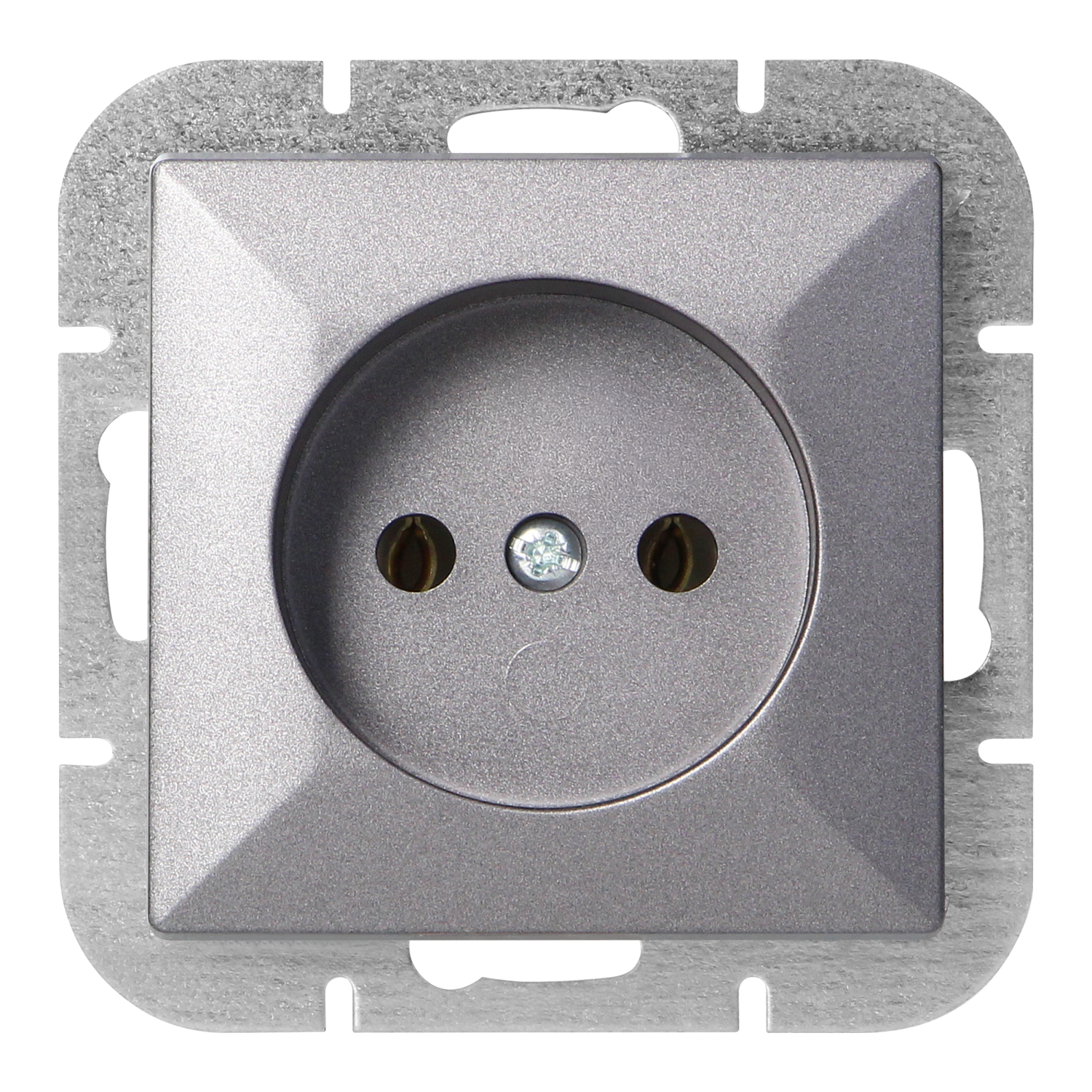

Do you want everything in your apartment to match? Choose the PT-15P single socket, which is part of the Pearl modular socket system. This allows you to assemble sockets, switches and frames in the same style.
You can connect, for example, a night lamp, a charger, or a radio to the Pearl single socket.
Installation will only take a moment – the socket is mounted flush, in a standard box, using screws or claws.
Screw terminals guarantee a stable and secure connection, ensuring that the socket operates reliably and for a long time without the need for corrections.
Do you already have a vision of what the interior of your home should look like, and anthracite is the main color of the accessories? The PT-15P socket, in combination with other Pearl system elements, will allow you to create an aesthetic space in which everything looks just as you planned.
| General information: | |
|---|---|
| Model: | CEE 7/1 bez uziemienia |
| Protective contact: | Brak |
| Number of units: | 1 |
| Number of modules (module system): | 1 |
| Number of phases: | 1 |
| Connection type: | Zacisk śrubowy |
| With enhanced contact protection: | Nie |
| Label space/information surface: | Nie |
| Colour: | Antracyt |
| Mounting method: | Montaż podtynkowy |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Matowy |
| Nominal current [A]: | 16 |
| Nominal voltage [V]: | 250 |
| Frequency [Hz]: | 50 |
| Suitable for degree of protection (IP): | IP20 |
| Device width [mm]: | 81 |
| Device height [mm]: | 81 |
| Device depth [mm]: | 11 |
| Built-in depth [mm]: | 30 |
| Min. depth of built-in installation box [mm]: | 30 |
