Flush-mounted sockets
New

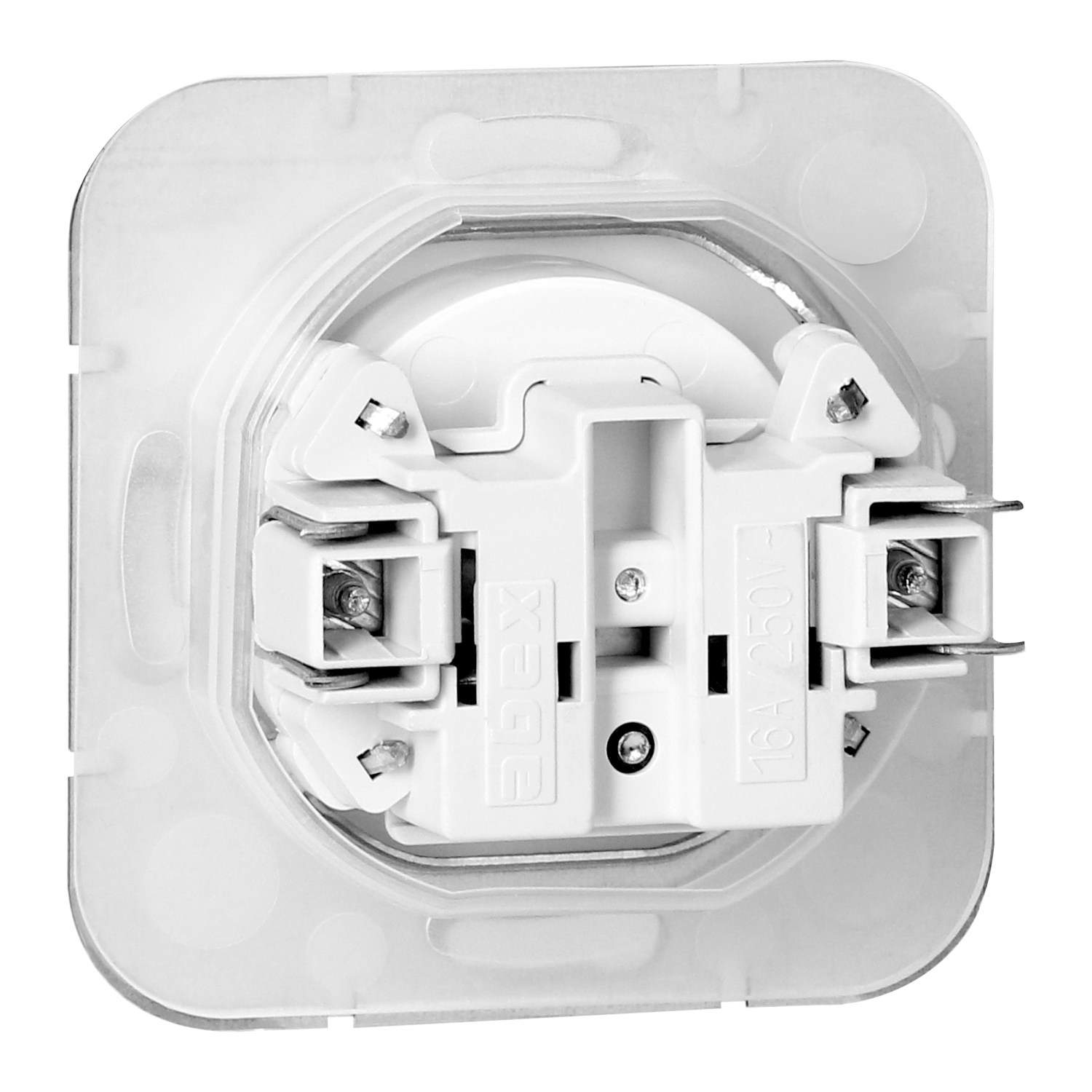

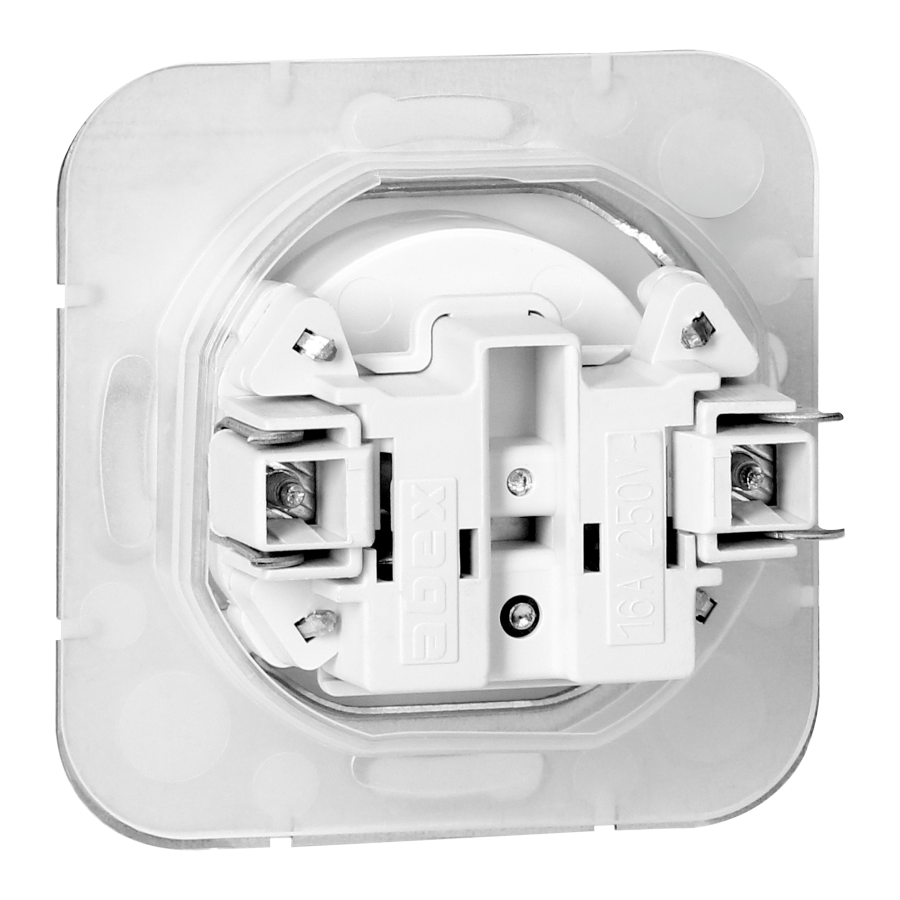

Modular series with a frame plate system. A series of modern switches and sockets harmoniously blending with original designer interiors. The switches' modern quick-connect mechanism (wires are connected by pushing them directly into the body) provides secure and safe wire installation and removal. The sockets are equipped with traditional screw connections. The internal design of the terminals guarantees secure connection of wires from 0.75 mm² to 2.5 mm². Strong and robust mounting plate grid and special mounting elements enable stable and secure installation in the box.

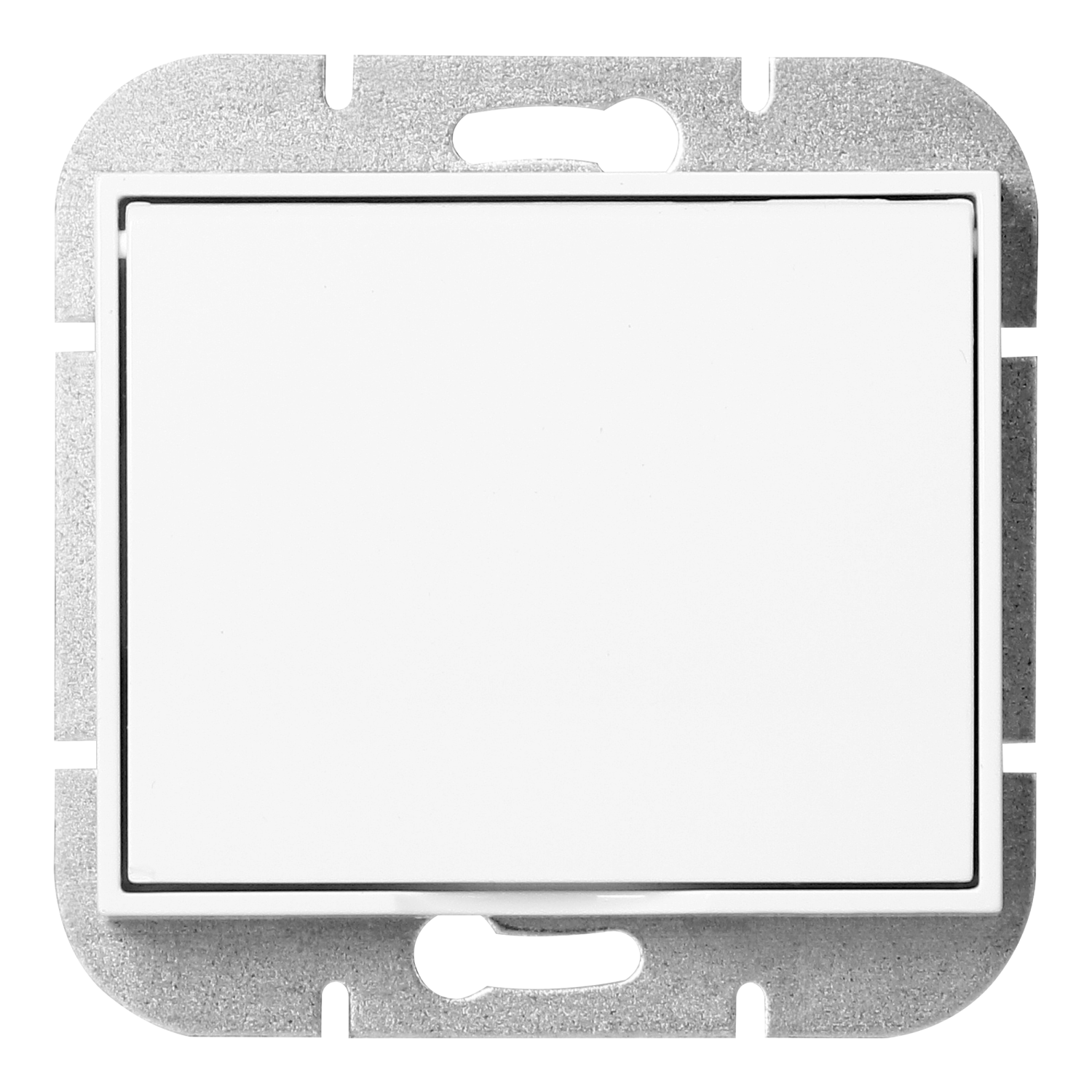

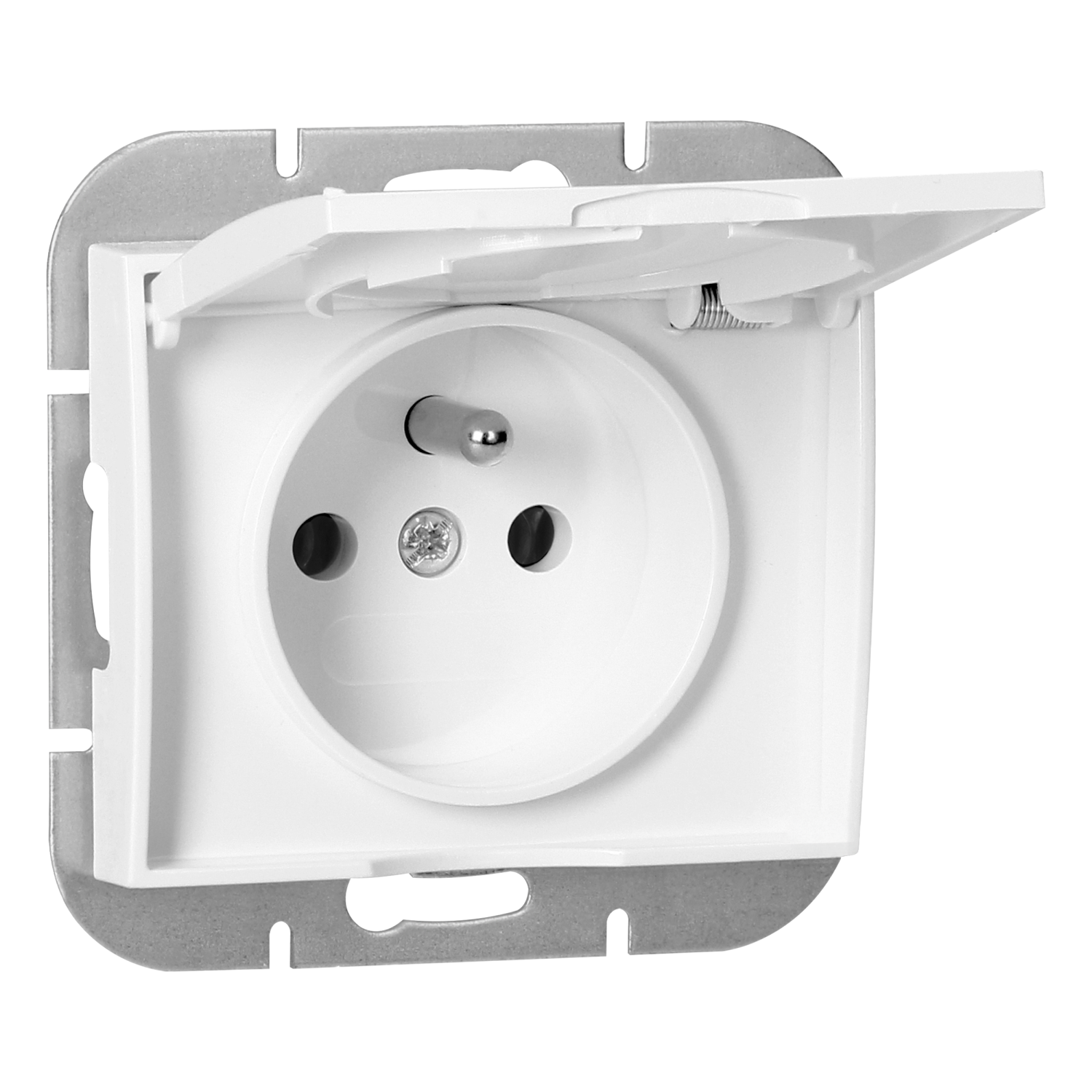

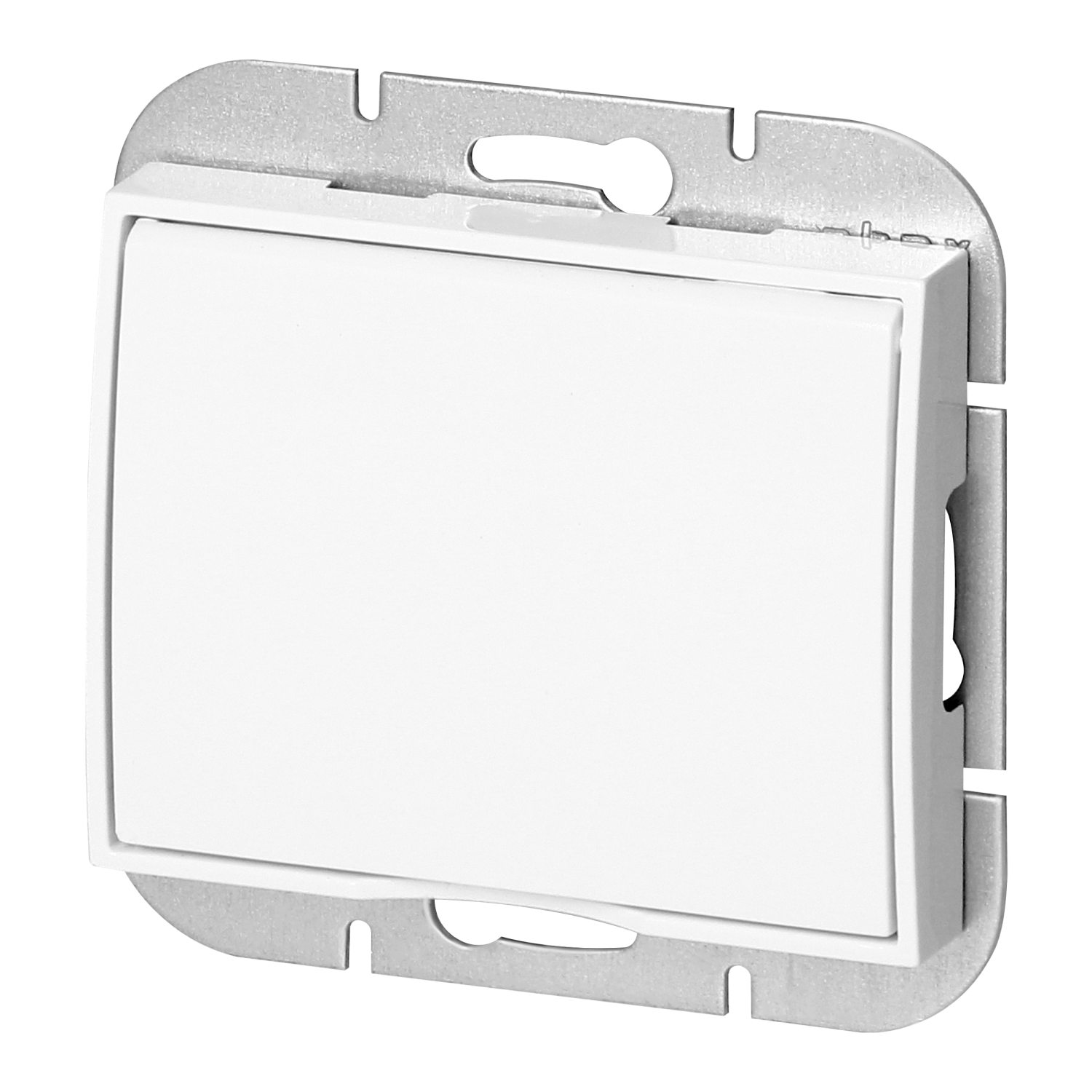

Single french-type socket 2P+E, weather proof with cover. Designed for flush mounting. It should be used indoors (IP20).
The product is available in two colors: white and black. Dimensions 82x98x40.5mm.
| General information: | |
|---|---|
| Model: | Ze stykiem ochronnym (bolec) |
| Protective contact: | Okrągły |
| Number of units: | 1 |
| Number of modules (module system): | 1 |
| Number of phases: | 1 |
| Connection type: | Zacisk śrubowy |
| With hinged lid: | Tak |
| With enhanced contact protection: | Nie |
| Label space/information surface: | Nie |
| Colour: | Biały |
| Mounting method: | Montaż podtynkowy |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Błyszczący |
| Nominal current [A]: | 16 |
| Nominal voltage [V]: | 250 |
| Frequency [Hz]: | 50 |
| Suitable for degree of protection (IP): | IP20 |
| Device width [mm]: | 98 |
| Device height [mm]: | 82 |
| Device depth [mm]: | 10.5 |
| Min. depth of built-in installation box [mm]: | 30 |
