Flush-mounted sockets
New

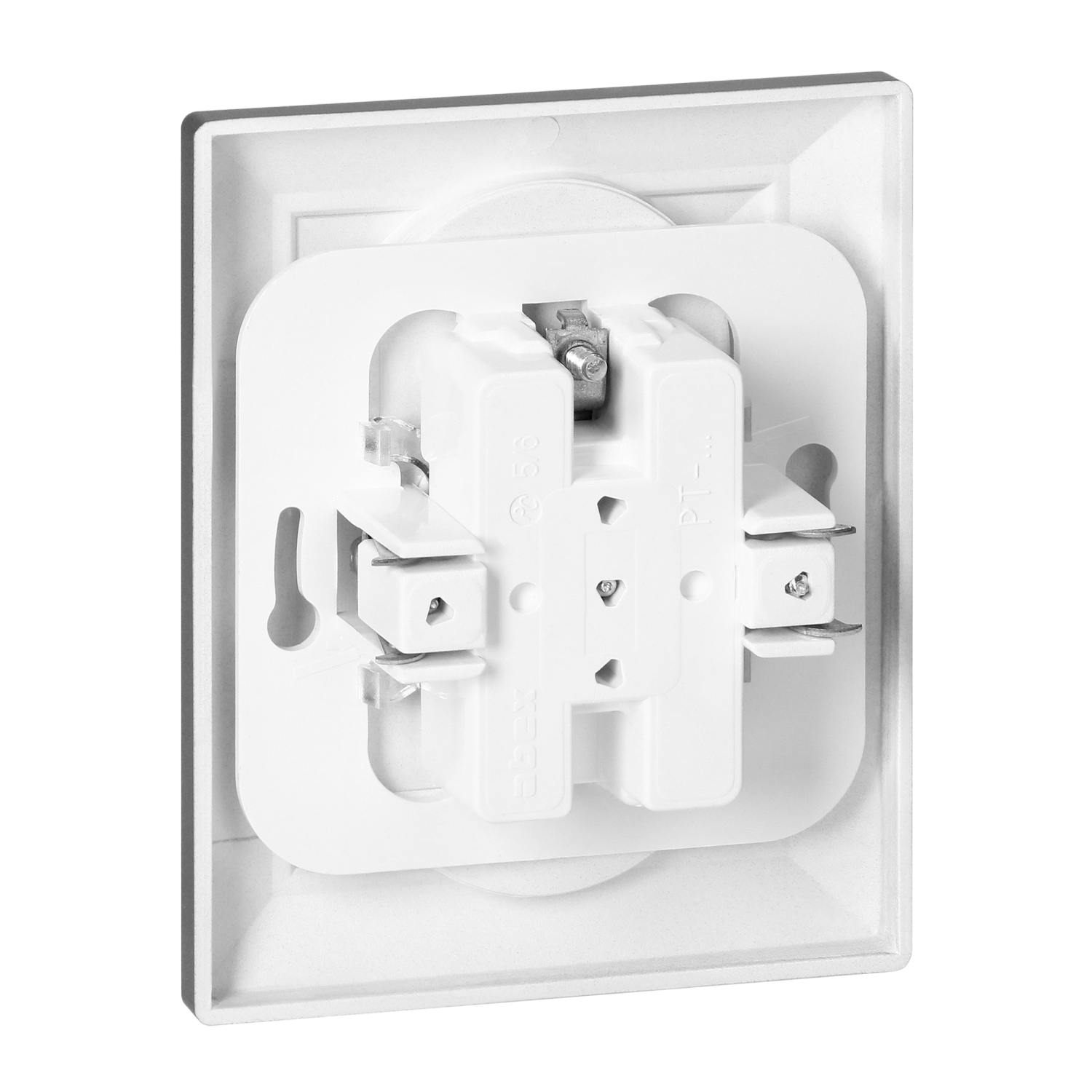

Modular series with a symmetrical frame plate system (for 1-, 2-, 3-, 4-, 5-modules) allowing the product to be mounted in both horizontal and vertical positions. The modern quick-connect mechanism (wires are connected by pushing them directly into the body) provides secure and safe wire installation and removal. The sockets are equipped with traditional screw connections. The internal design of the terminals guarantees secure connection of wires from 0.75 mm² to 2.5 mm². Strong and robust mounting plate grid and high-quality self-retracting elements enable stable and secure installation in the box. Special springing elements facilitate fitting the frame into the body.

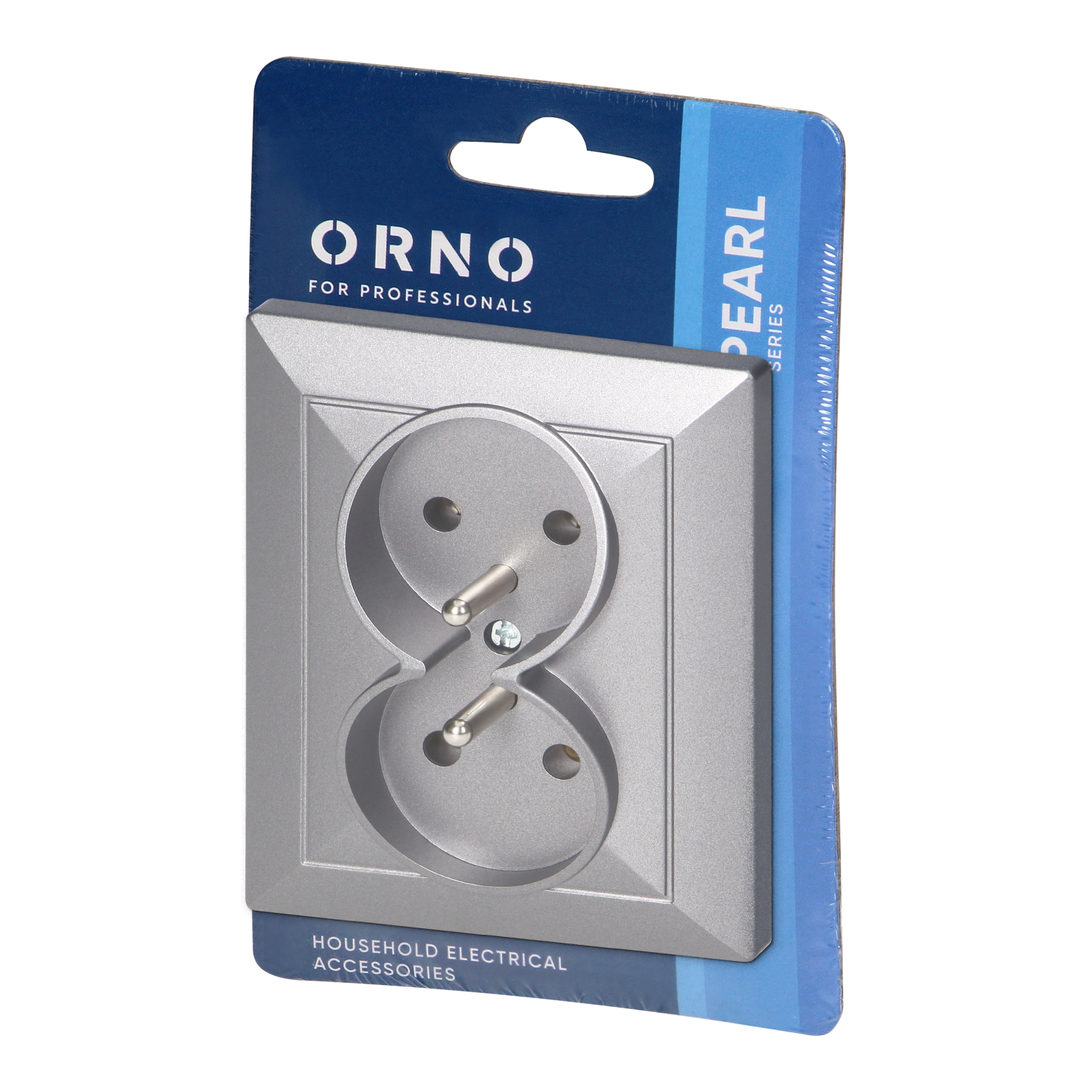

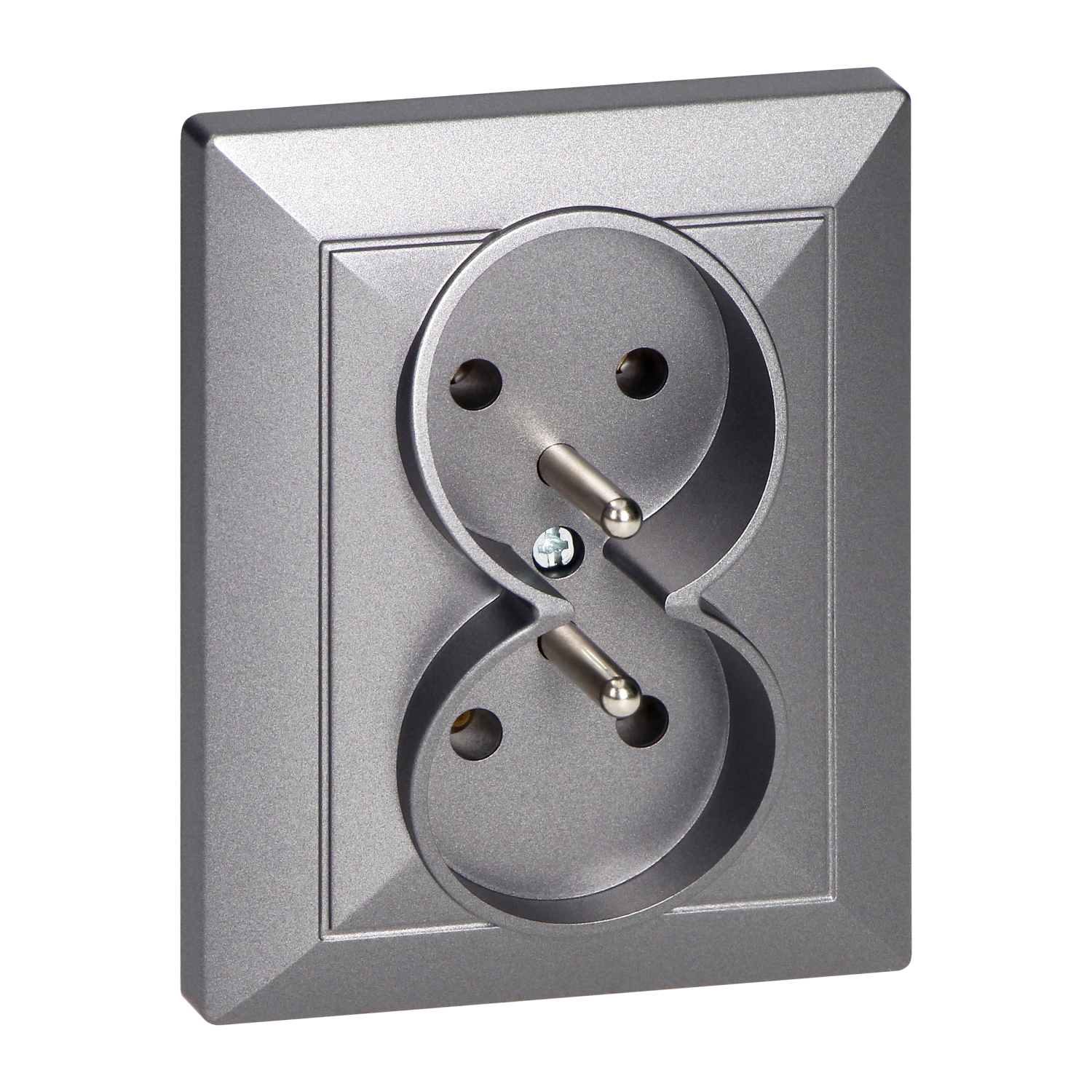

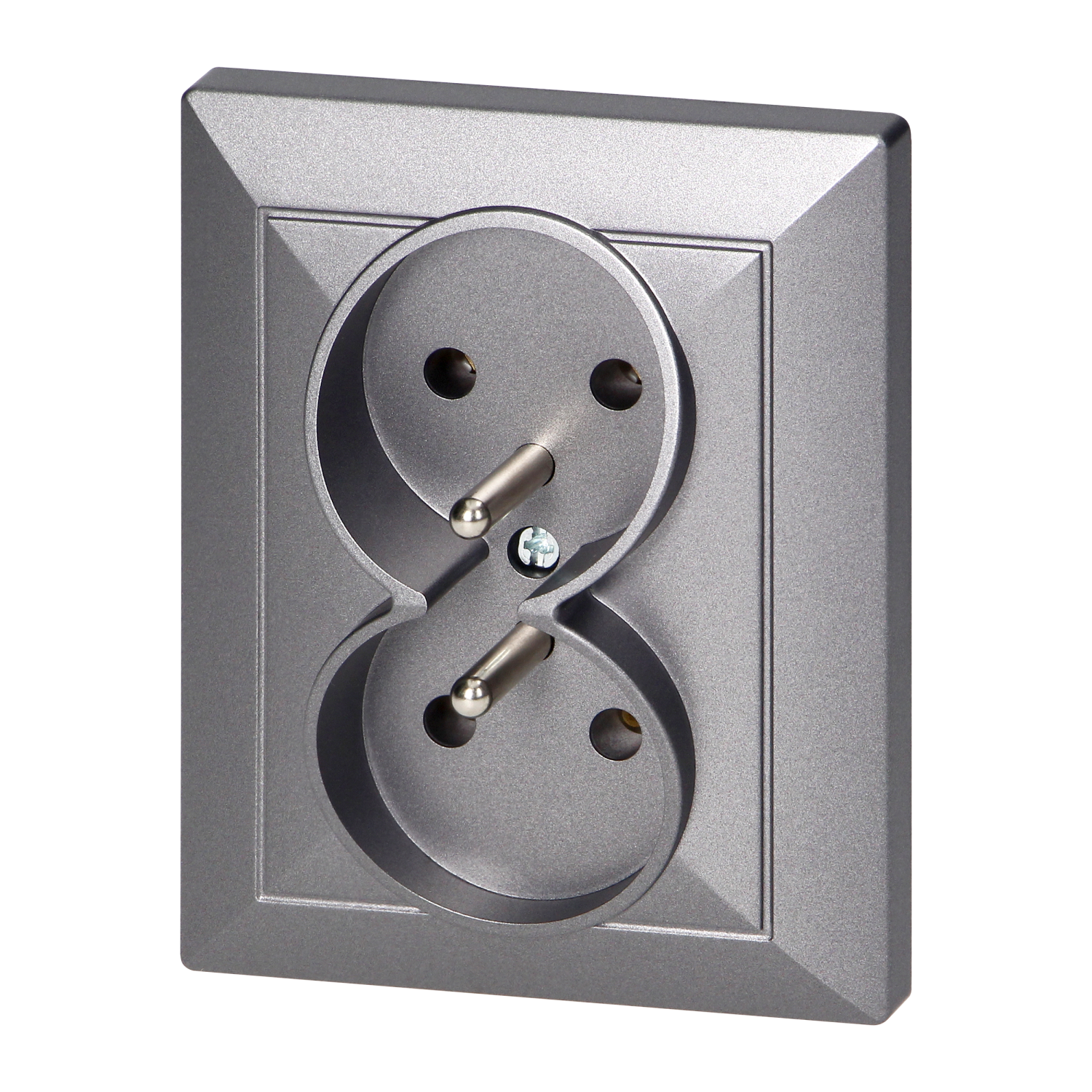

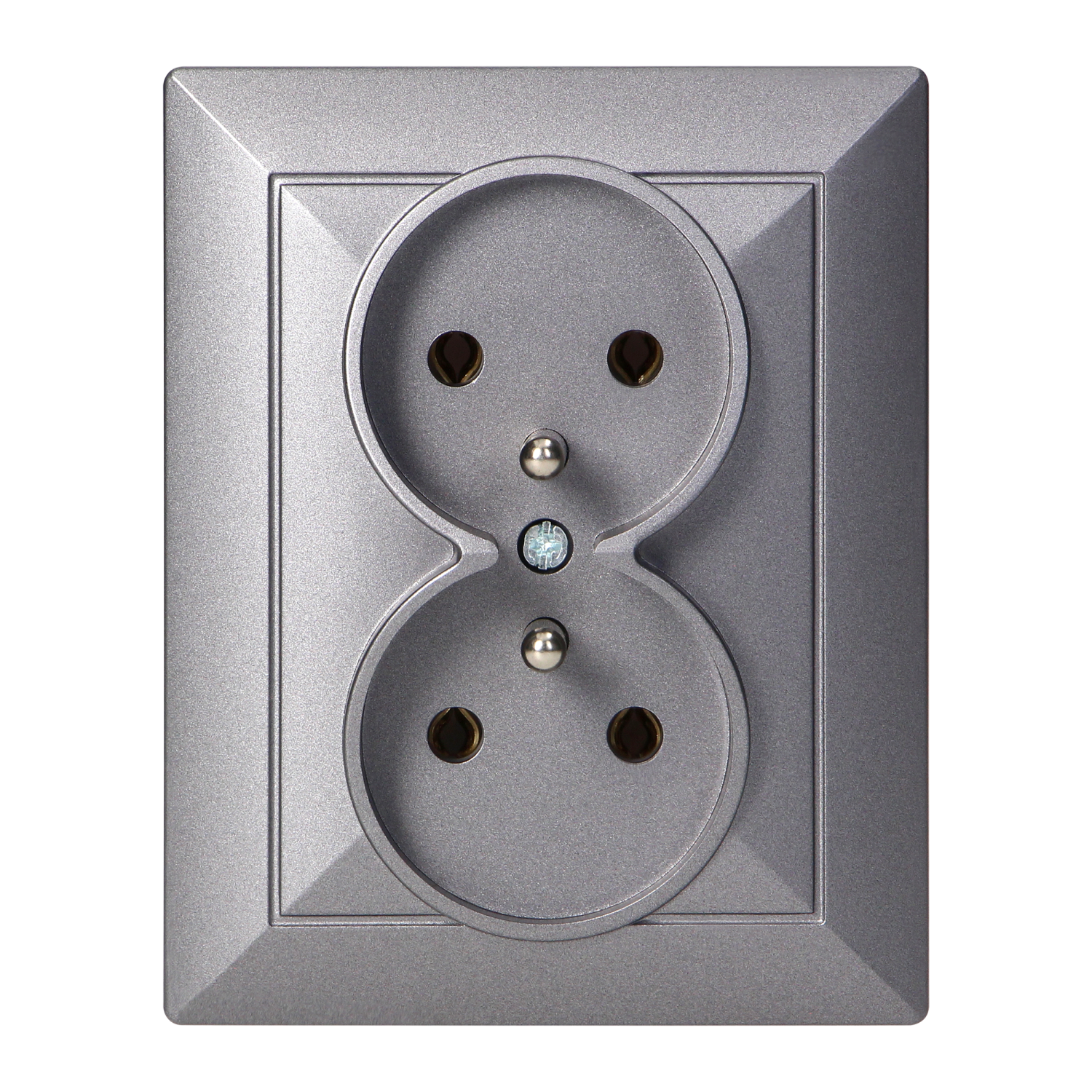

Double french-type socket, 2x2P+E. Designed for flush mounting. It should be used indoors (IP20).
The product is available in three colors: white, black and anthracite. Dimensions 81x102x36.5mm.
| General information: | |
|---|---|
| Model: | Ze stykiem ochronnym (bolec) |
| Protective contact: | Okrągły |
| Number of units: | 2 |
| Number of phases: | 1 |
| Connection type: | Zacisk śrubowy |
| With enhanced contact protection: | Nie |
| Label space/information surface: | Nie |
| Colour: | Antracyt |
| Mounting method: | Montaż podtynkowy |
| Type of fastening: | Montaż pazurkowy /-śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Matowy |
| Nominal current [A]: | 16 |
| Nominal voltage [V]: | 250 |
| Frequency [Hz]: | 50 |
| Suitable for degree of protection (IP): | IP20 |
| Device width [mm]: | 81 |
| Device height [mm]: | 102 |
| Device depth [mm]: | 17.5 |
| Min. depth of built-in installation box [mm]: | 19 |
