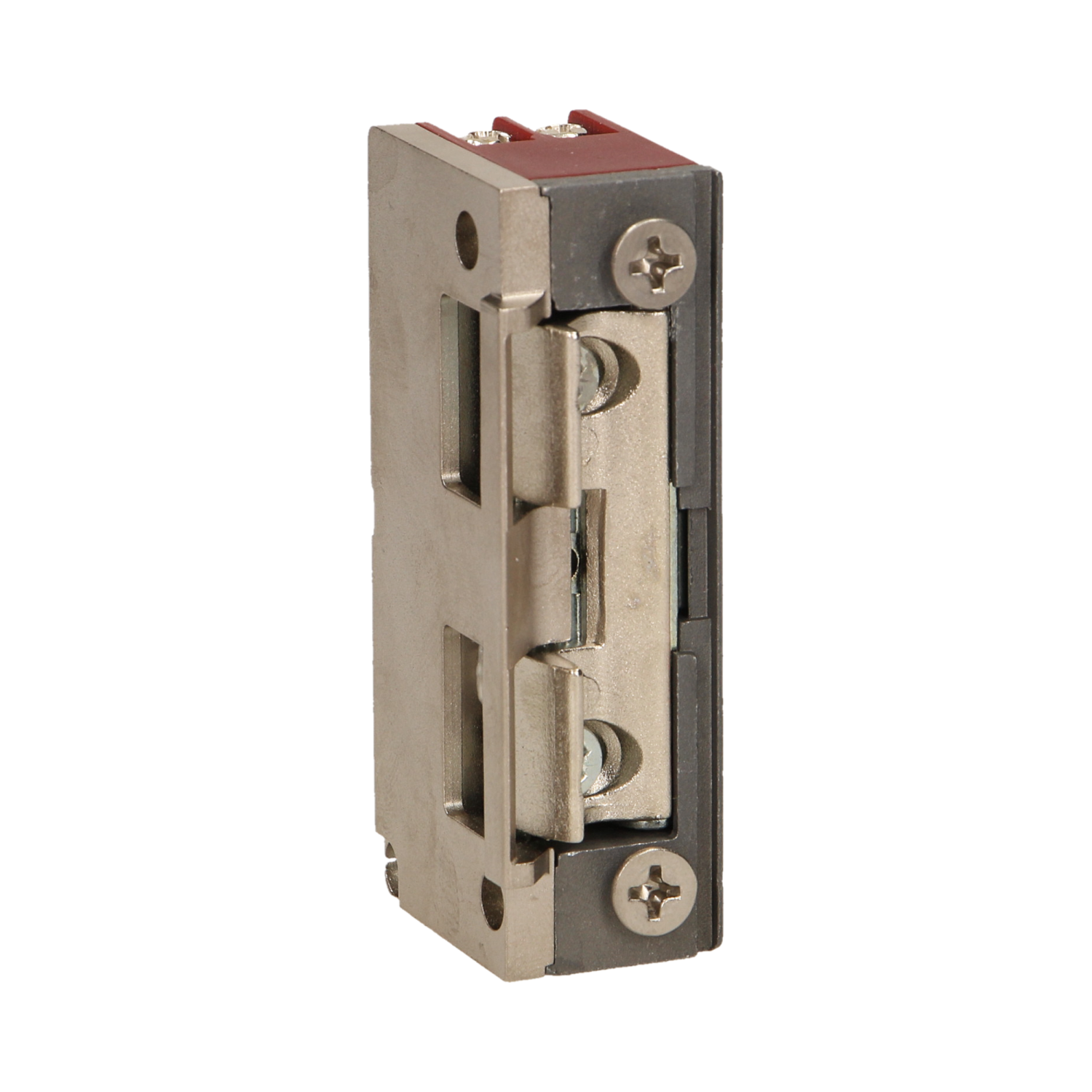

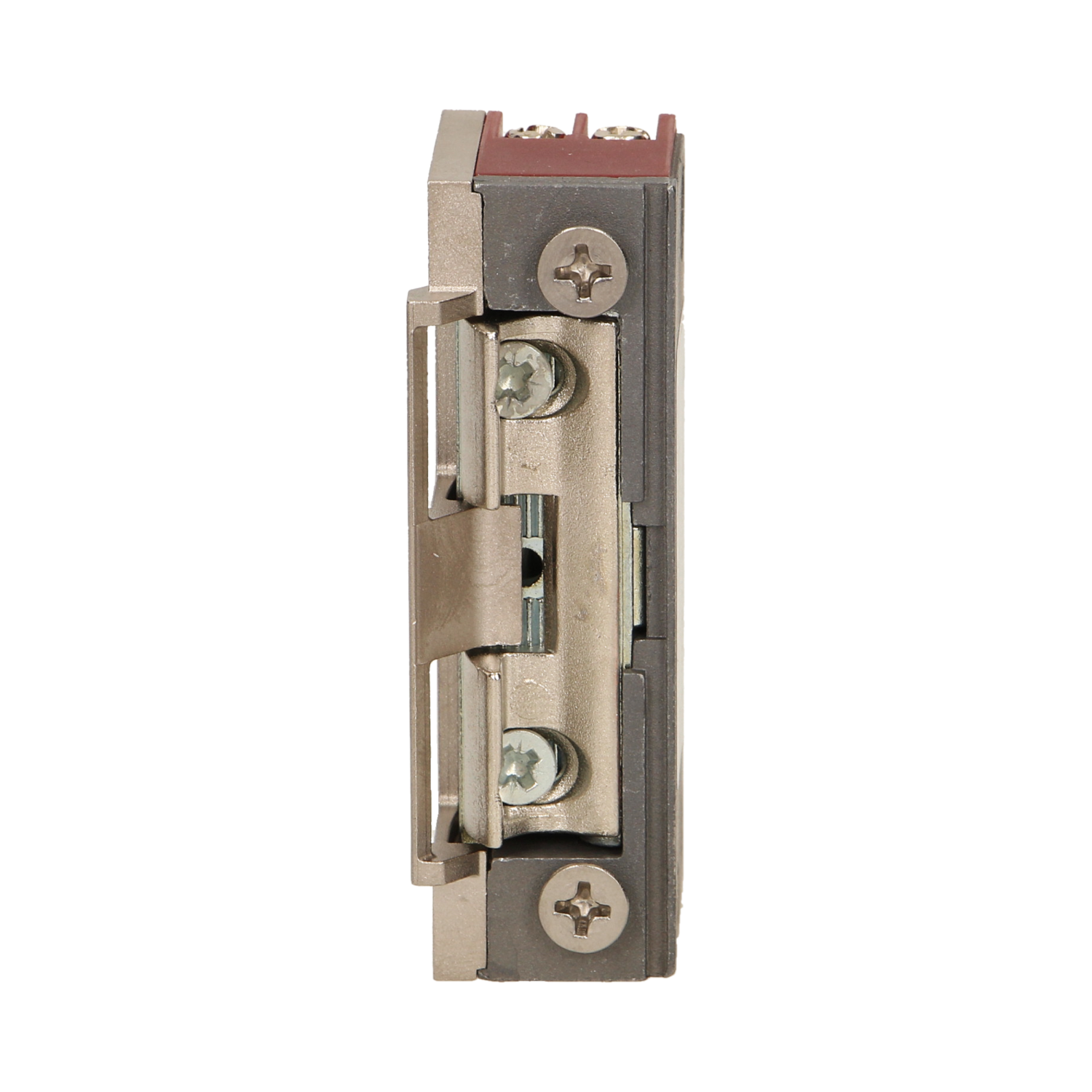

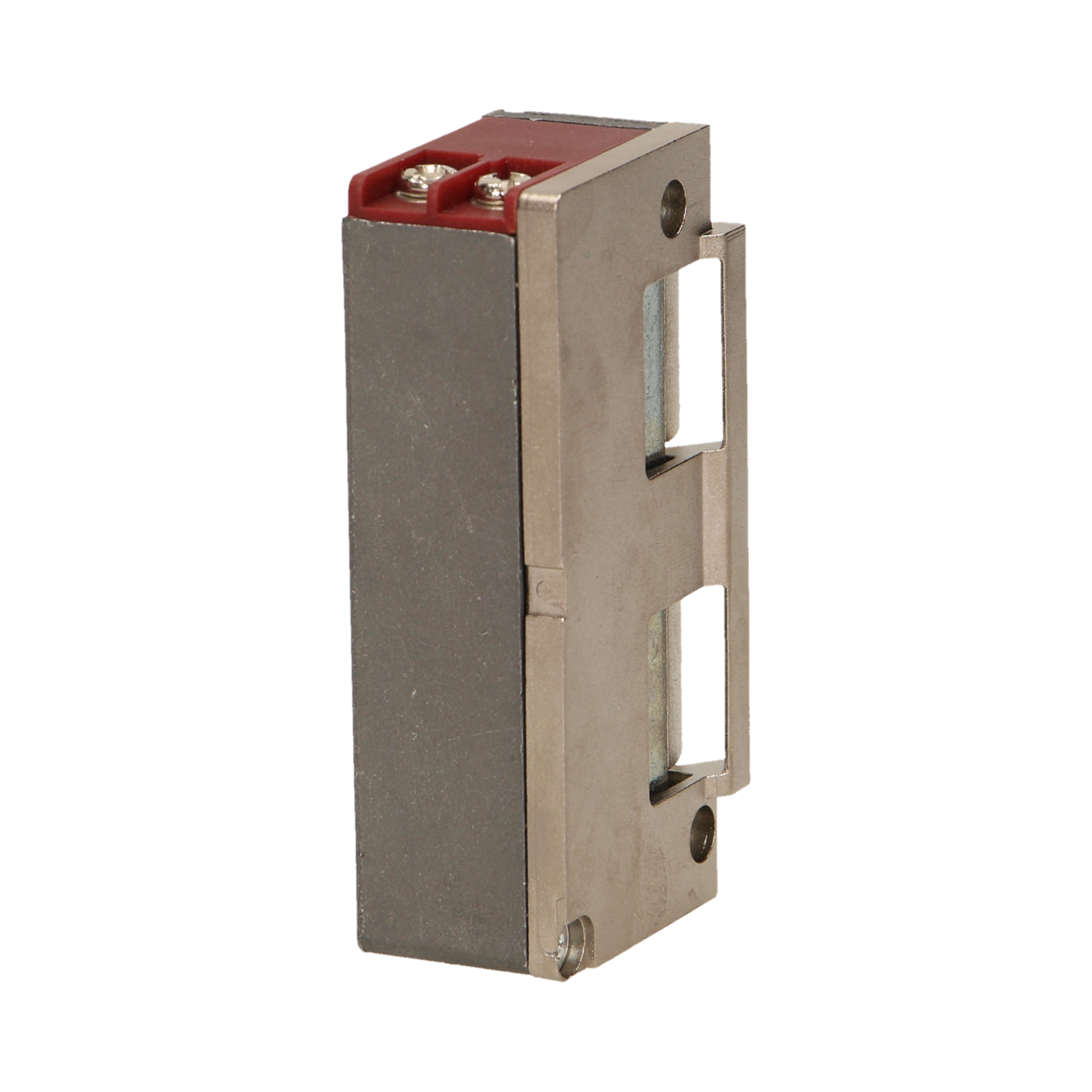

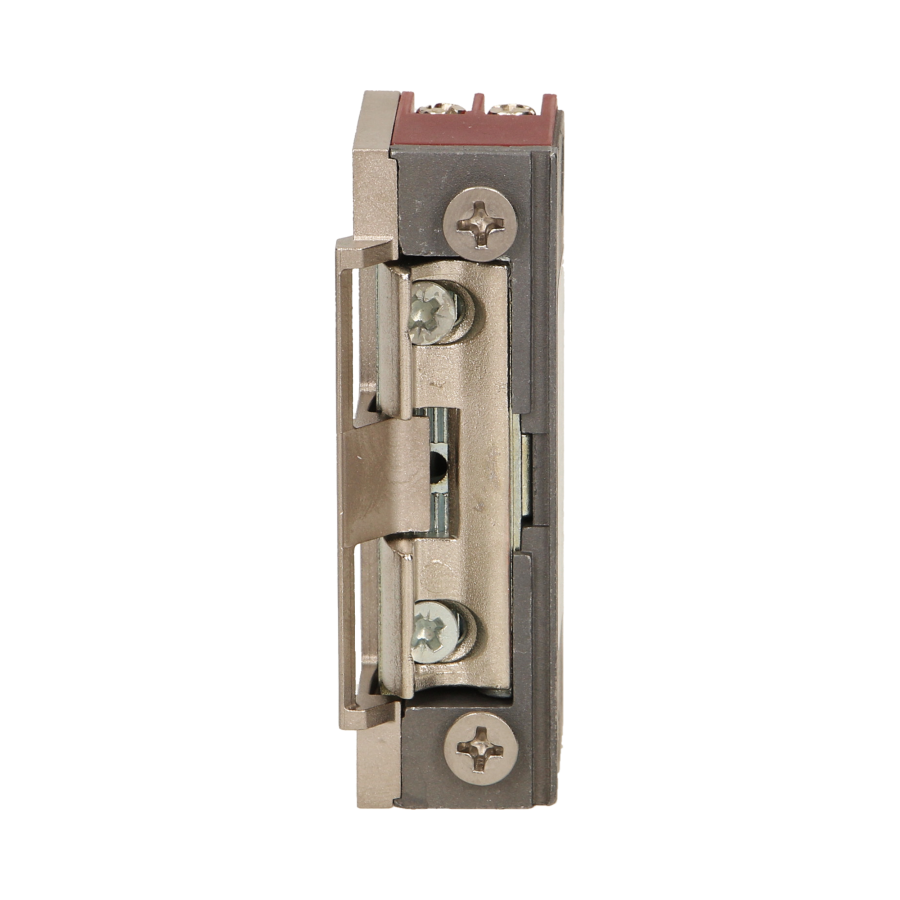

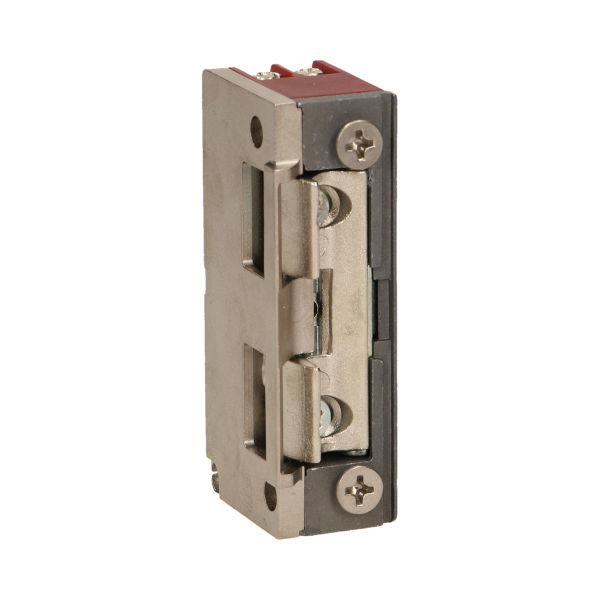

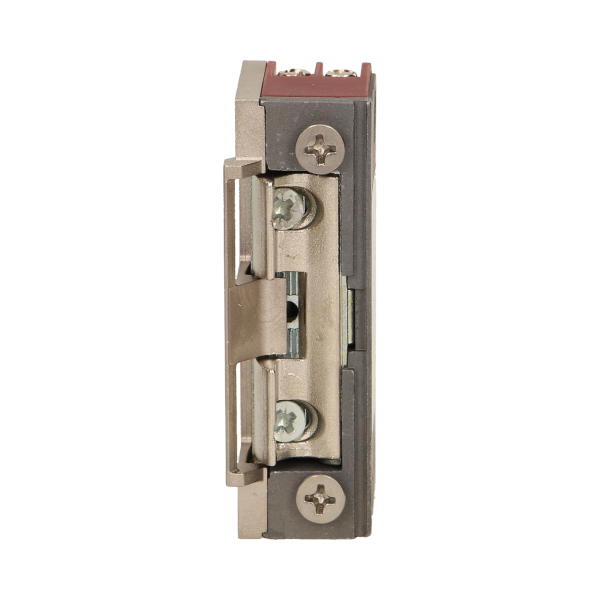

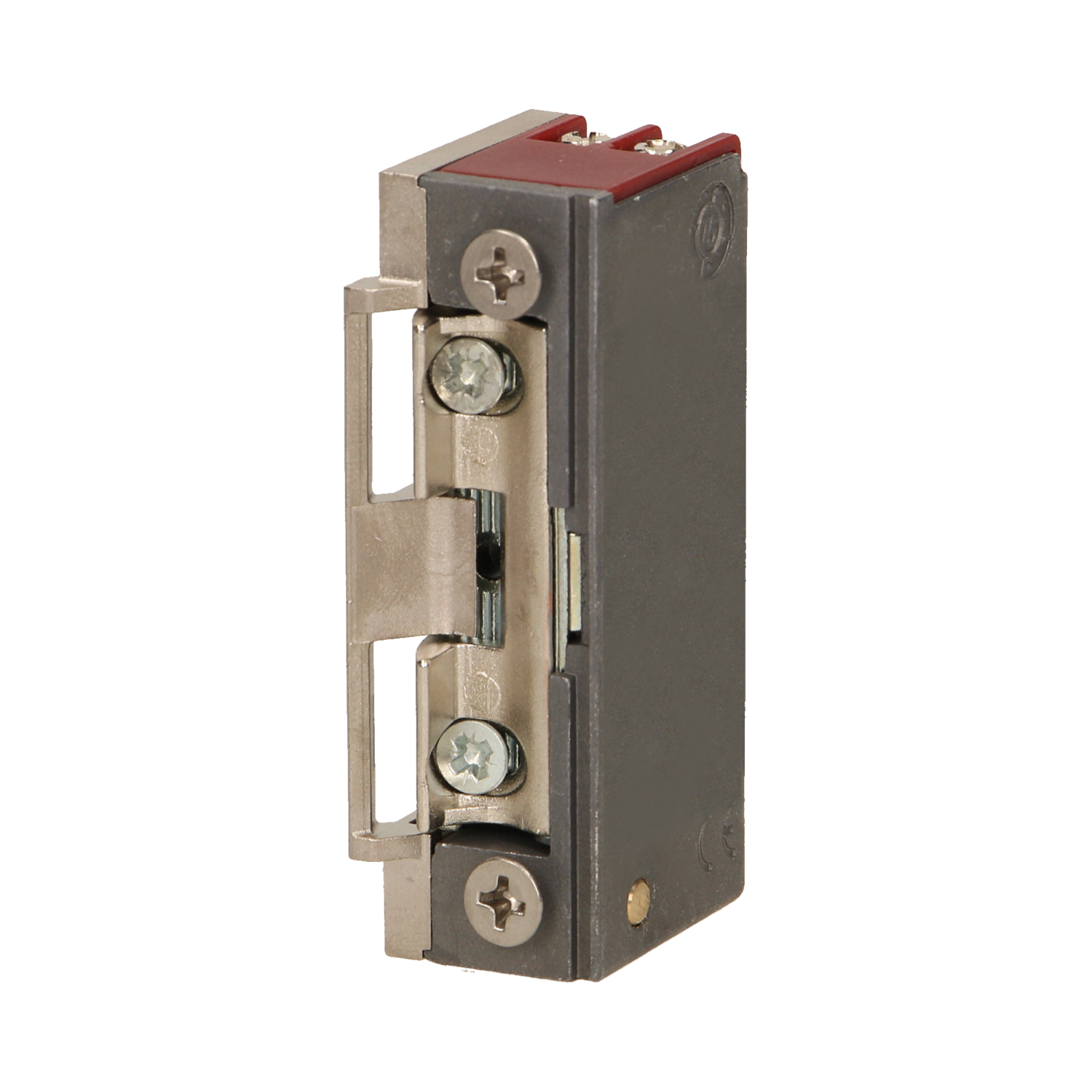

Electric strikes
It can work with the doorphones and video doorphones installation at the front of single- and multi-family doors Made from Alloy Zamak, which is extremely durable and resistant to corrosion It can be mounted on the outside of the standard faceplate Symmetrical design and small dimensions enable the use in sliding gates systems, narrow pots and door frames Equipped with safe, patented and adjustable latch keeper mechanism. Electric strike has been equipped with Low current coil with wide voltage range , current consumption is 280mA for 12V direct current and 250mA for 12V alternating current.
| General information: | |
|---|---|
| Model: | Do drzwi standardowych |
| Type of latch: | Zatrzask standardowy |
| Construction type: | Symetryczny |
| Built-in position: | Pionowy |
| Height [mm]: | 66 |
| Width [mm]: | 18 |
| Depth [mm]: | 28 |
| Assembly arrangement: | Część ramowa (Elektro zaczep) |
| Voltage [V]: | 10-24 |
| With locking: | Nie |
| With Memory: | Nie |
| With latch regulation: | Tak |
| With feedback signal: | Nie |
| Opening direction according to DIN: | Lewy/prawy |
| Water protected: | Nie |
| Mounting method: | Do wbudowania |
| Type of current: | AC/DC |
| Principle of operation: | Prąd pracy |
| Unlocking method: | Model standardowy |
| Continuous operation (100 % ED): | Tak |
| Suitable for smoke protection door: | Tak |
| Utility category according to EN 14846: | 3 |
| Lasting functionability according to EN 14846: | C |
| Mass of door, clamp force according to EN 14846: | 3 |
| Suitable for fire- and smoke protection doors according to EN 14846: | A |
| Safety - personal protection according to EN 14846: | 0 |
| Environmental condition according to EN 14846: | L |
| Safety - burglary protection according to EN 14846: | 0 |
| Protection effect electric operating mode according to EN 14846: | 0 |
| Protection effect mechanic operating mode according to EN 14846: | 0 |
| Connection voltage [V]: | 10-24 |
| Voltage type: | AC/DC |
| Power consumption during operation [mA/V DC]: | 290/12 |
