Electric strikes

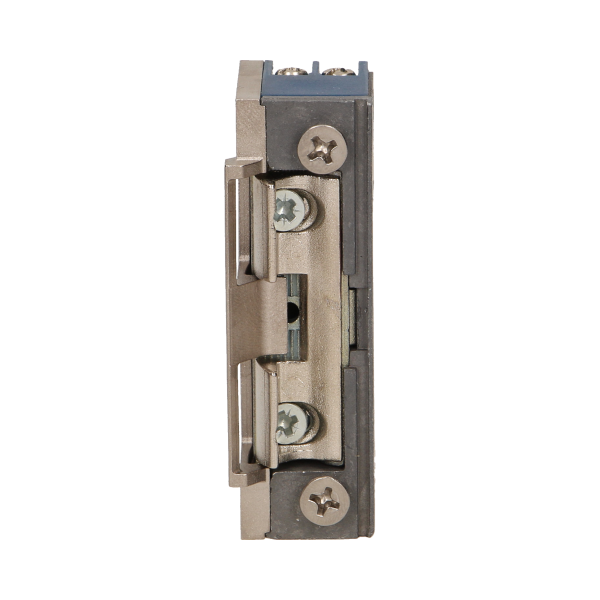

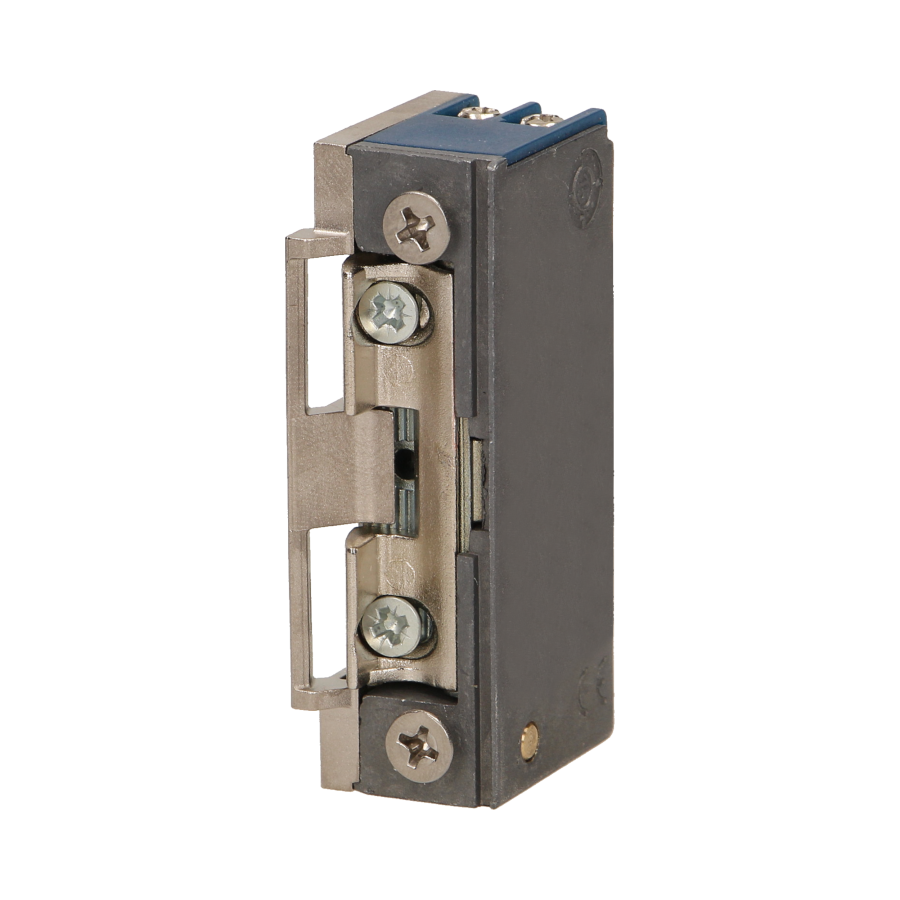

The smallest electric strike available on the market. It can work with the doorphones, video doorphones installation and code locks in the front of single- and multi-family doors It can be mounted on the outside of the standard faceplate Symmetrical design and small dimensions Made of corrosion resistant materials (aluminum and zinc alloy) Equipped with: safe, patented and adjustable latch keeper mechanism (2 mm). Electric strike has been equipped with Low current coil with wide voltage range , current consumption is 280mA for 12V direct current and 250mA for 12V alternating current.
| General information: | |
|---|---|
| Power consumption during operation: | 280mA / 12VDC |
| Direction of opening: | right/left |
| MINI size: | yes |
| Latch adjustment: | Yes |
| Nominal voltage: | 9-24V AC/DC |
| Door open indicator: | No |
| Latch guide: | Yes |
| Mechanical unlocking: | No |
| Dimensions - depth: | 17.7 mm |
| Dimensions - width: | 17.7 mm |
| Dimensions - height: | 65.6 mm |
| Memory: | No |
