Code locks

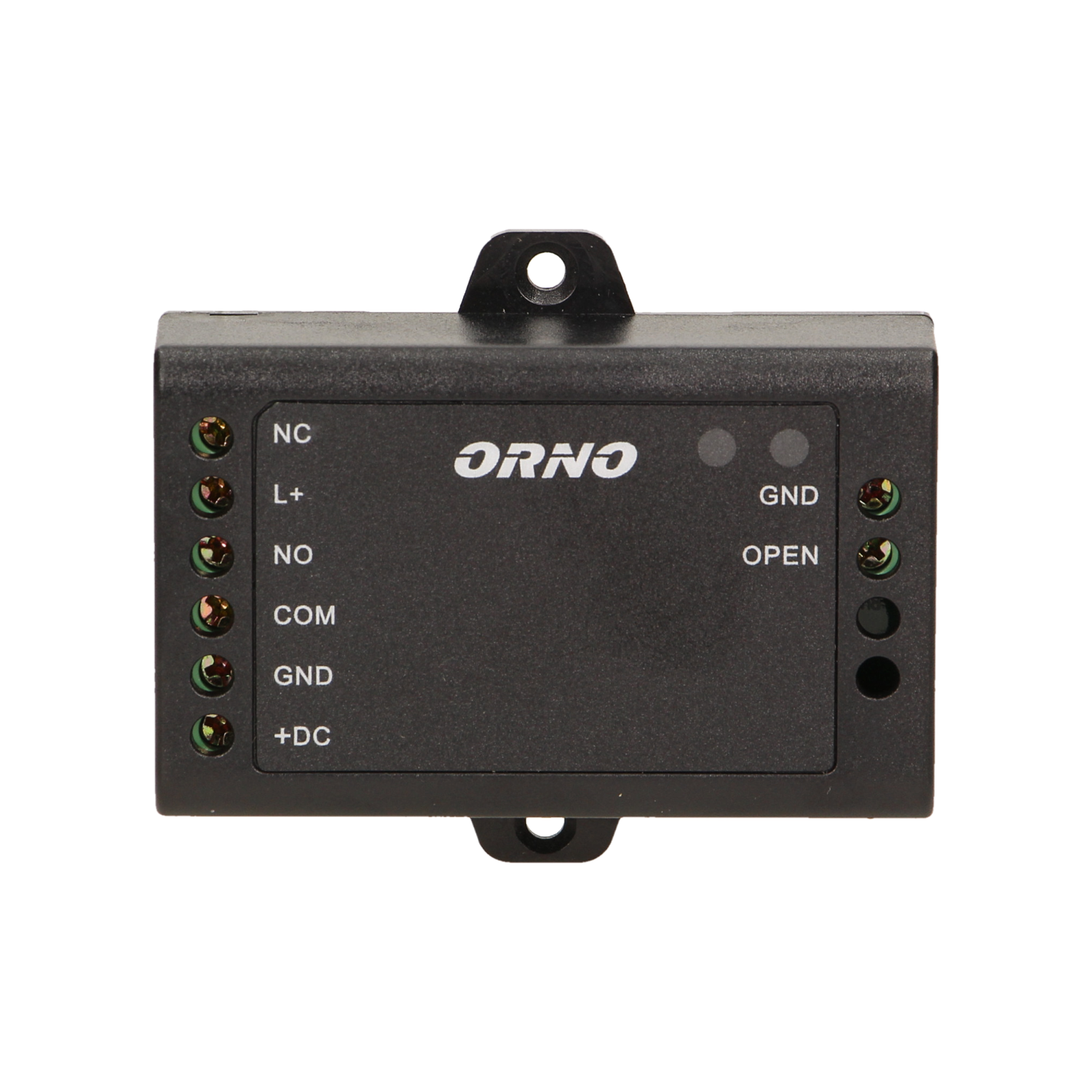

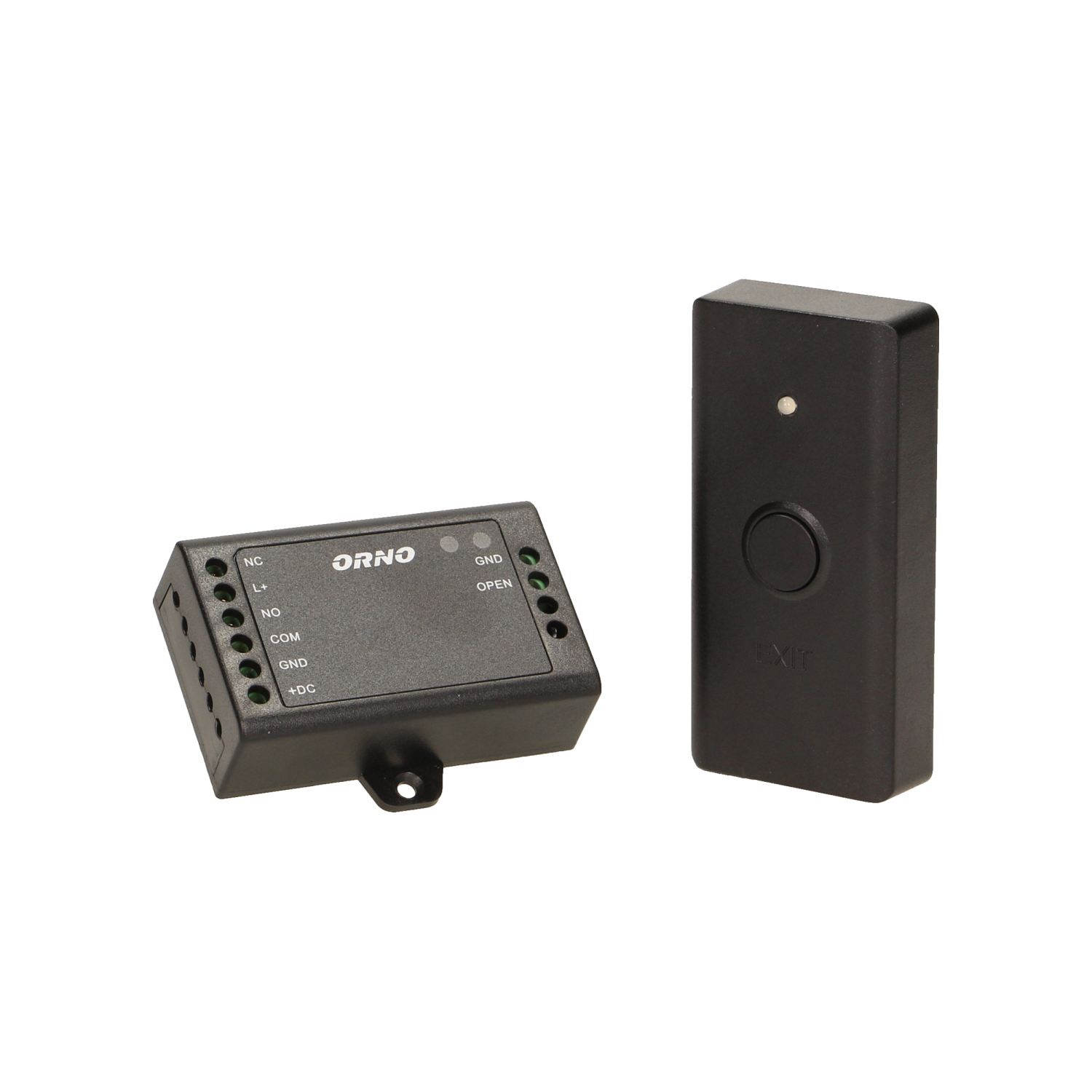

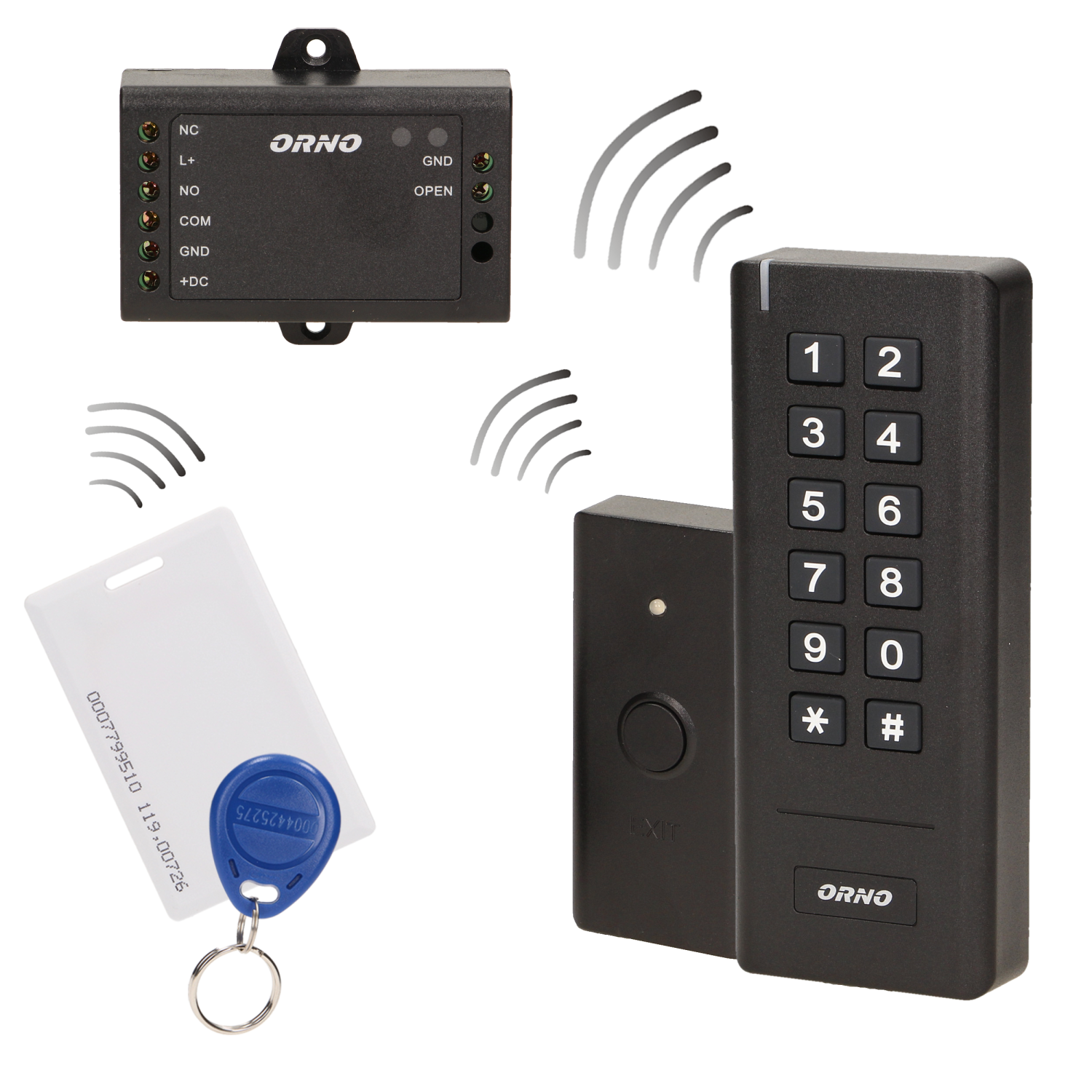

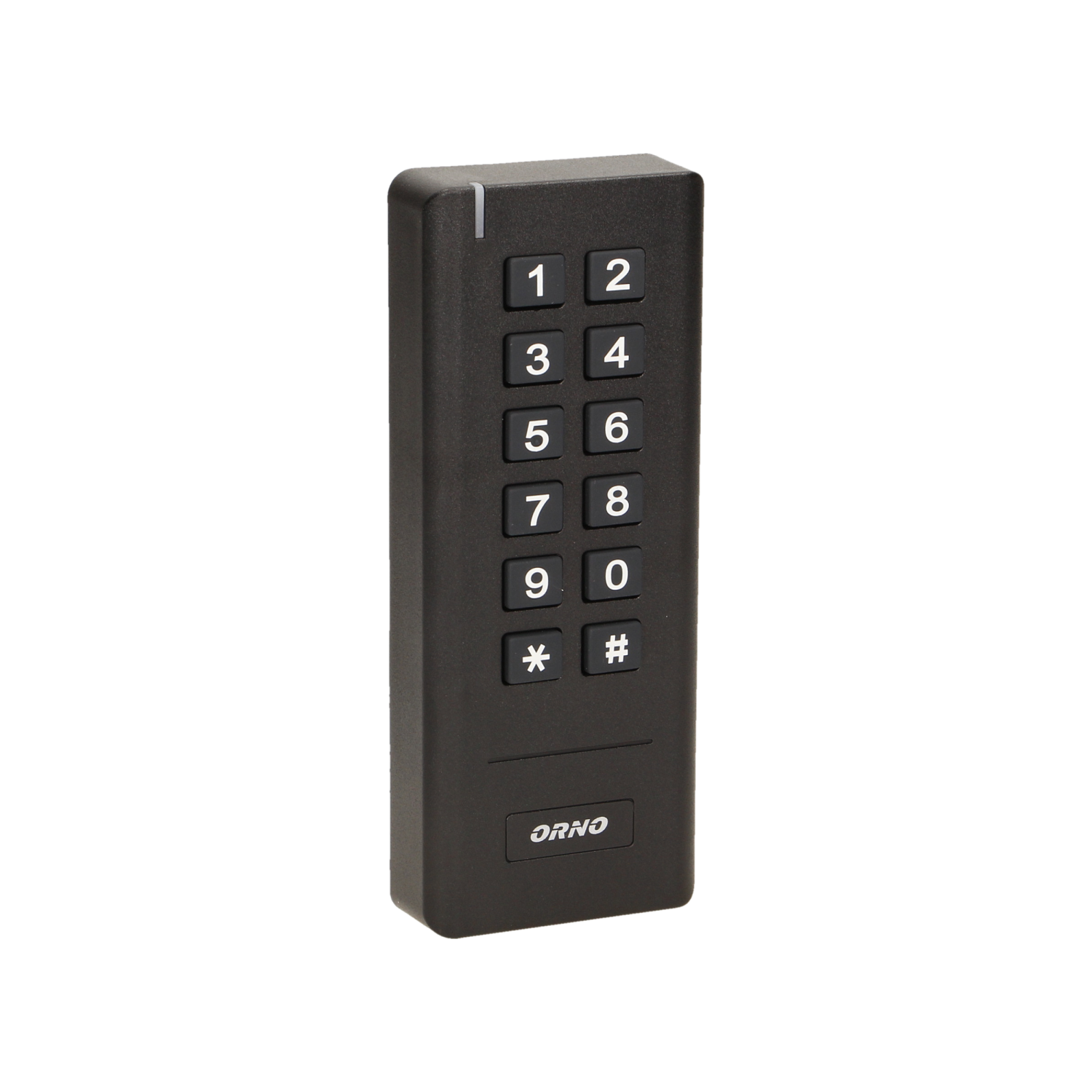

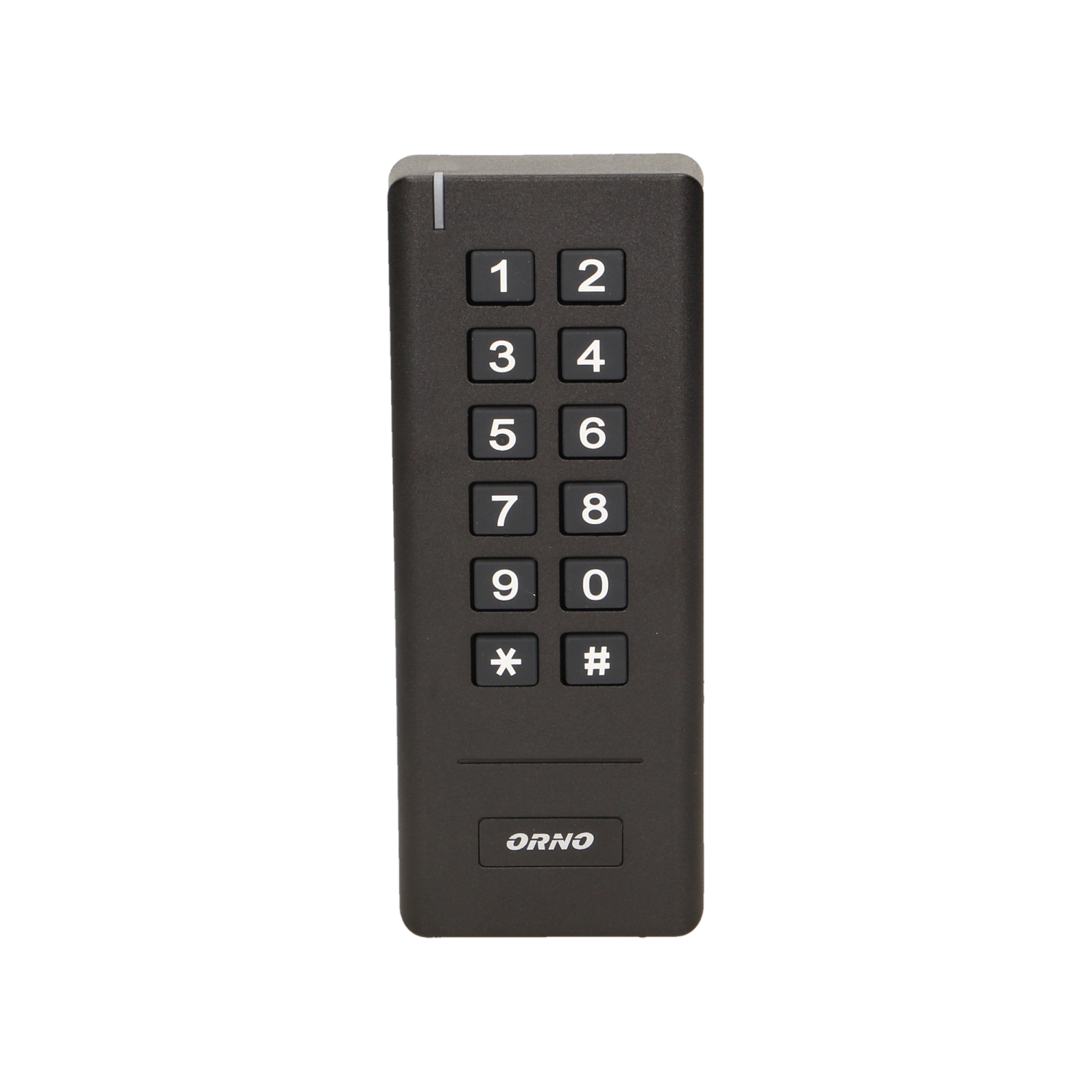

Works with electromagnetic locks and access control systems 1 relay output Supports cards and PIN codes (500 possible combinations) Remembers saved codes and parameters in case of the power failure Surface mounting Signalling of the operating keypad status using LEDs Anti-tamper protection Adjustable door opening time and alarm duration Learning system Low battery in keypad and exit button indication. Two tags (OR-ZS-890) and two proximity card (OR-ZS-892) included.
| General information: | |
|---|---|
| Touch keyboard: | No |
| Doorbell button: | No |
| Operating mode: | roximity tag / proximity tag + card / proximity tag or code |
| Degree of protection (IP): | 20 |
| Type of transmission: | wireless |
| Number of relay outputs: | 1 |
| Nominal voltage: | 12V DC |
| Max. number of users: | 500 |
| Installation: | surface mounting |
| Range in the open area: | 15 m |
| Dimensions - depth: | 19 mm |
| Proximity reader: | Yes |
| Dimensions - width: | 54 mm |
| Keypad: | Yes |
| Dimensions - height: | 135 mm |
| Frequency: | 125 kHz |
| Temporary access can be granted: | No |
| Permanent access can be granted: | No |
| Backlight: | No |
| Fingerprint reader: | No |
