OR-ZS-831

Description

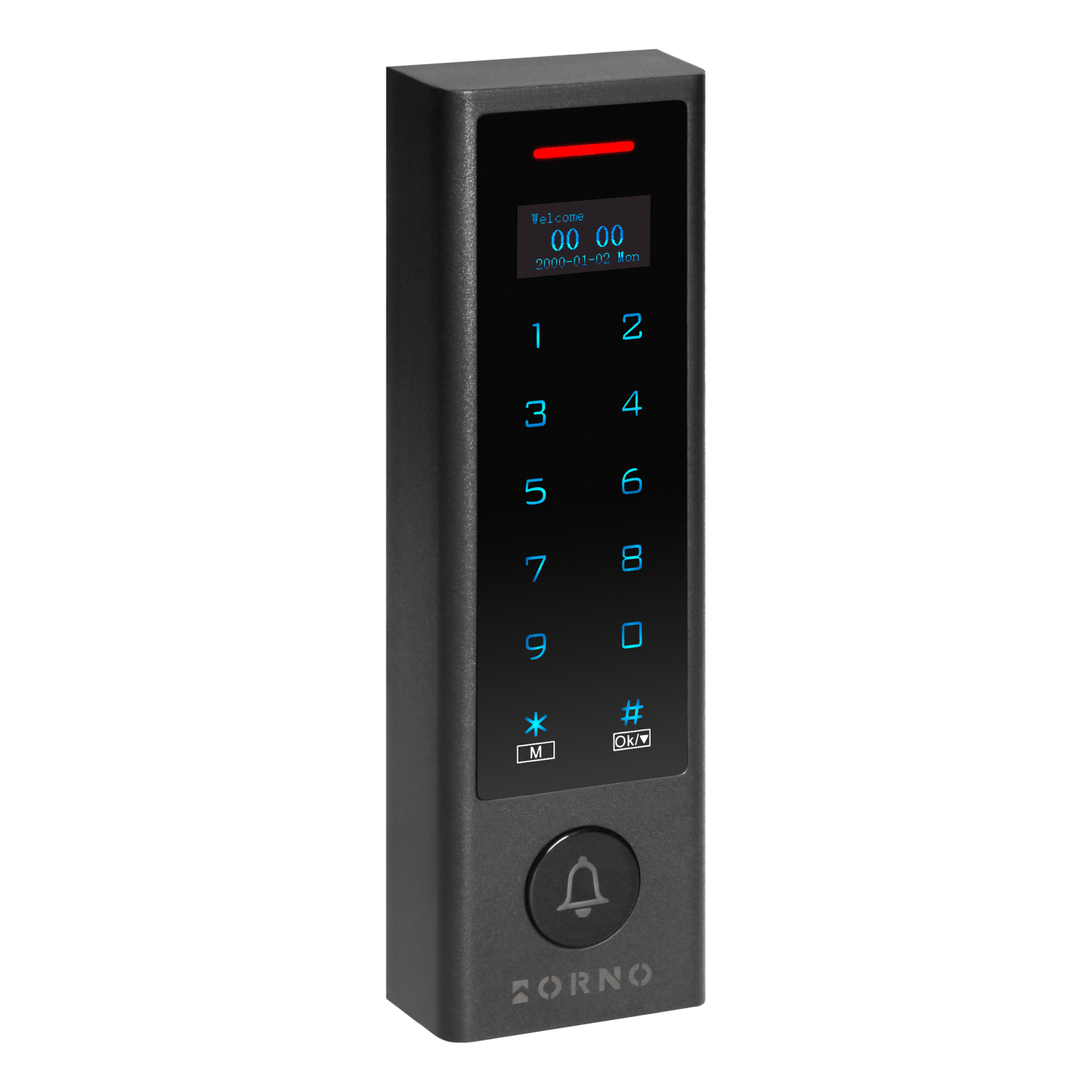

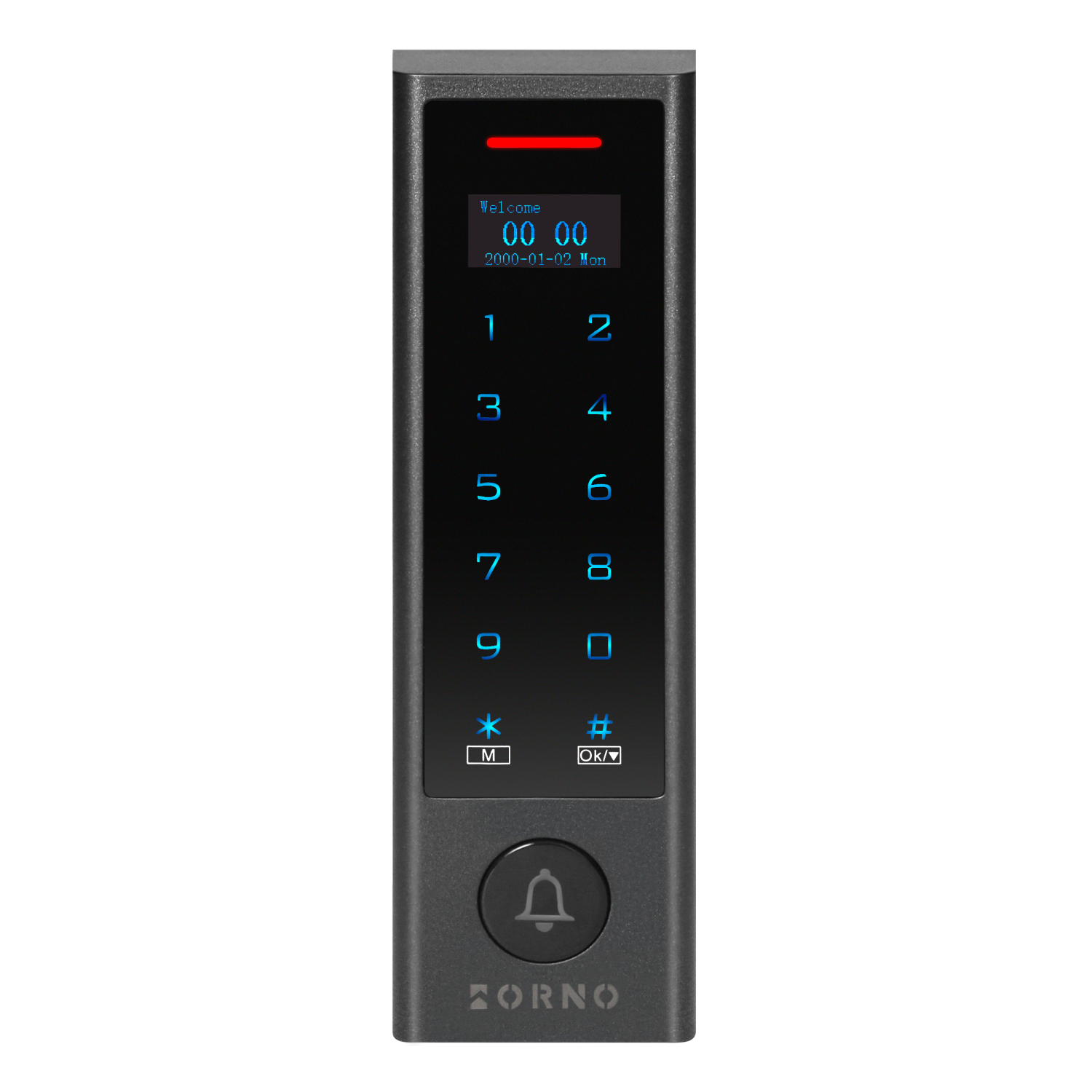

The code lock is a device that combines modern technologies with security and convenience of use.

It uses Wi-Fi, thanks to which the lock may be managed remotely via Tuya Smart app on a smartphone. Simply install the platform (supports Android and iOS systems) and pair it with the lock. In this way, you may control the entrance from any place in the world checking, for example, if the door is closed, or opening a visitor even if you are away. This, undoubtedly, increases the comfort and safety of use of this advanced lock.

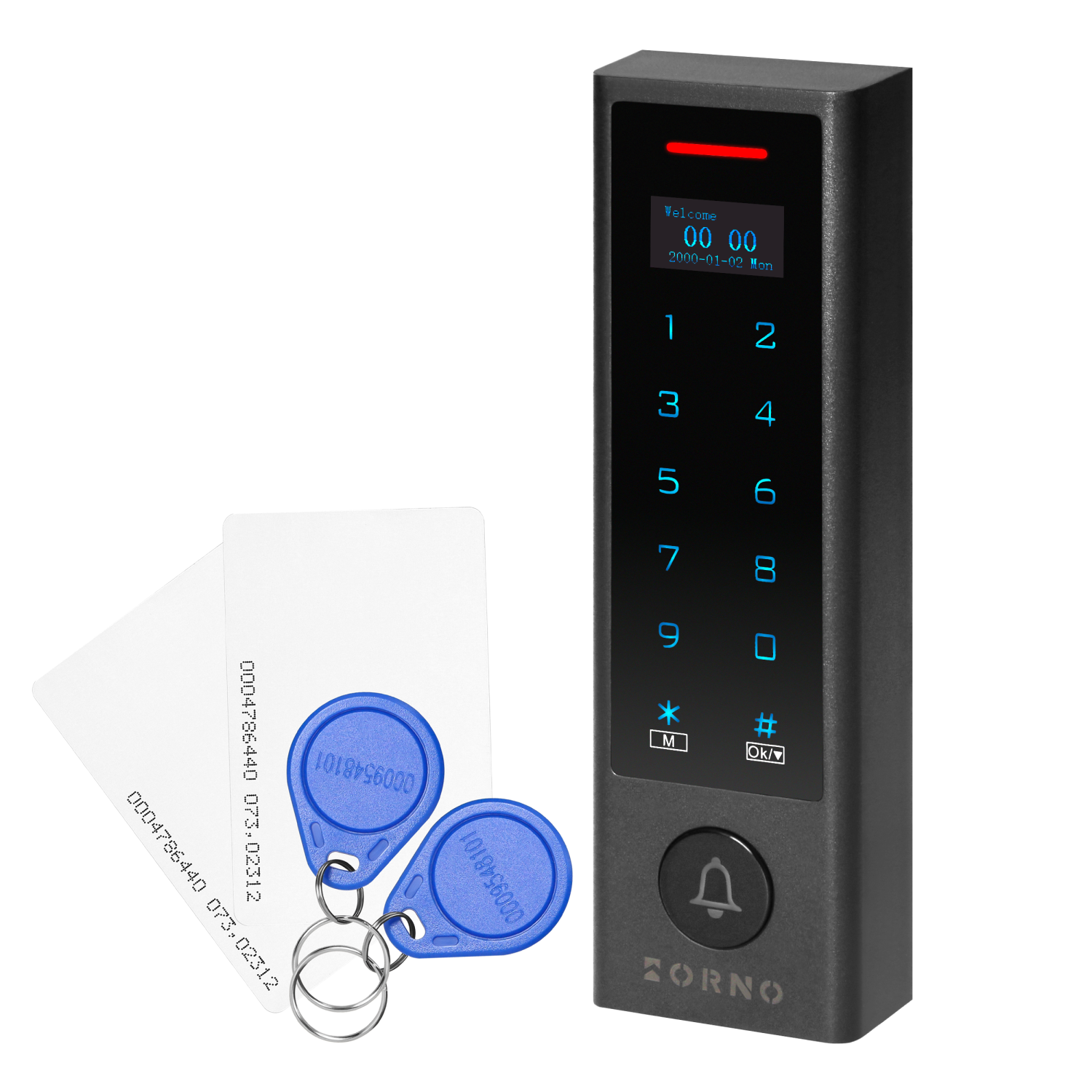

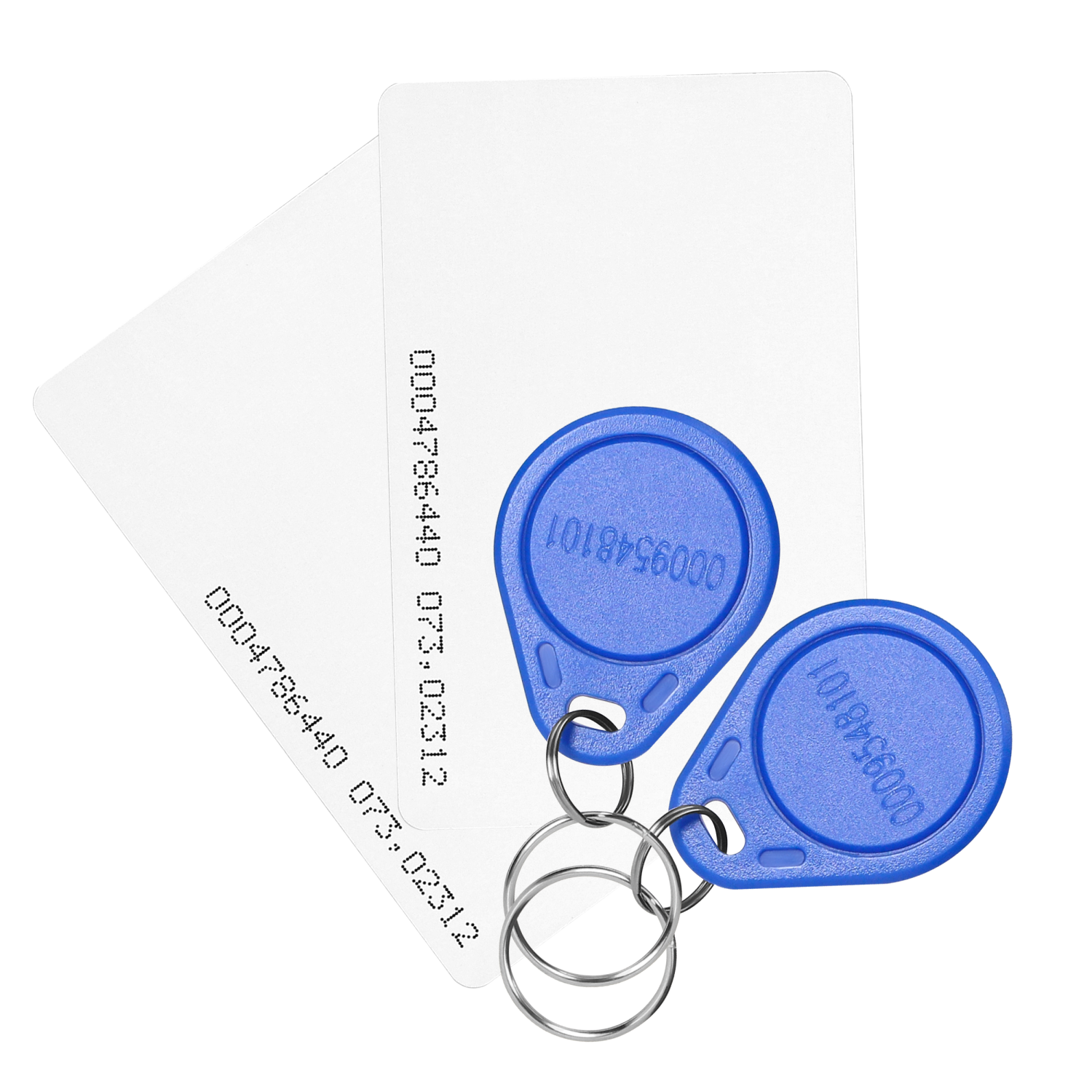

The lock has built-in card and proximity tags reader in order to easily adjust the way in which home or office are accessed, as well as it has fingerprints reader, which is the most personalized access option. The system offers also code locking. This flexible solution enables to adjust the security options to one’s needs.

The IP68 rate guarantees resistance to very harsh weather conditions, protecting against moisture, dust or even rain. The housing is made of high-quality plastic.

The 2A relay output additionally enhances universality of the device facilitating the use of various locks and gates. It is extremely narrow and may be installed on a fence post.

The built-in OLED display facilitates intuitive configuration of the device.

The dimensions measure 43,5x148x22 mm. Black colour.

General information:
Proximity reader: Tak
Card type: EM 125 kHz
Code lock: Tak
Fingerprint reader: Tak
Max number of users: 1000
Power supply [V]: 12 DC
Number of relay outputs: 1
Relay output load [A]: 2
Anti-tamper protection: Tak
Mounting method: Montaż natynkowy
Material: Tworzywo sztuczne
Surface protection: Stan surowy
Surface finishing: Matowy
Colour: Czarny
Degree of protection [IP]: IP68
Stand-by current [mA]: ≤60
Working current [mA]: ≤150
Width [mm]: 43.5
Height [mm]: 148
Depth [mm]: 22
Wi-Fi: Tak
Wi-Fi frequency: IEEE 802,11b
Wi-Fi frequency [GHz]: 2.4
Wi-Fi power: ≤0.2W
Powered by TUYA: Tak
Card Reading Distance [cm]: (2~6)
Working temperature [℃]: (-40~60)
WORKING Humidity [% RH]: (0~98)
Other features: Wąska obudowa
