Code locks

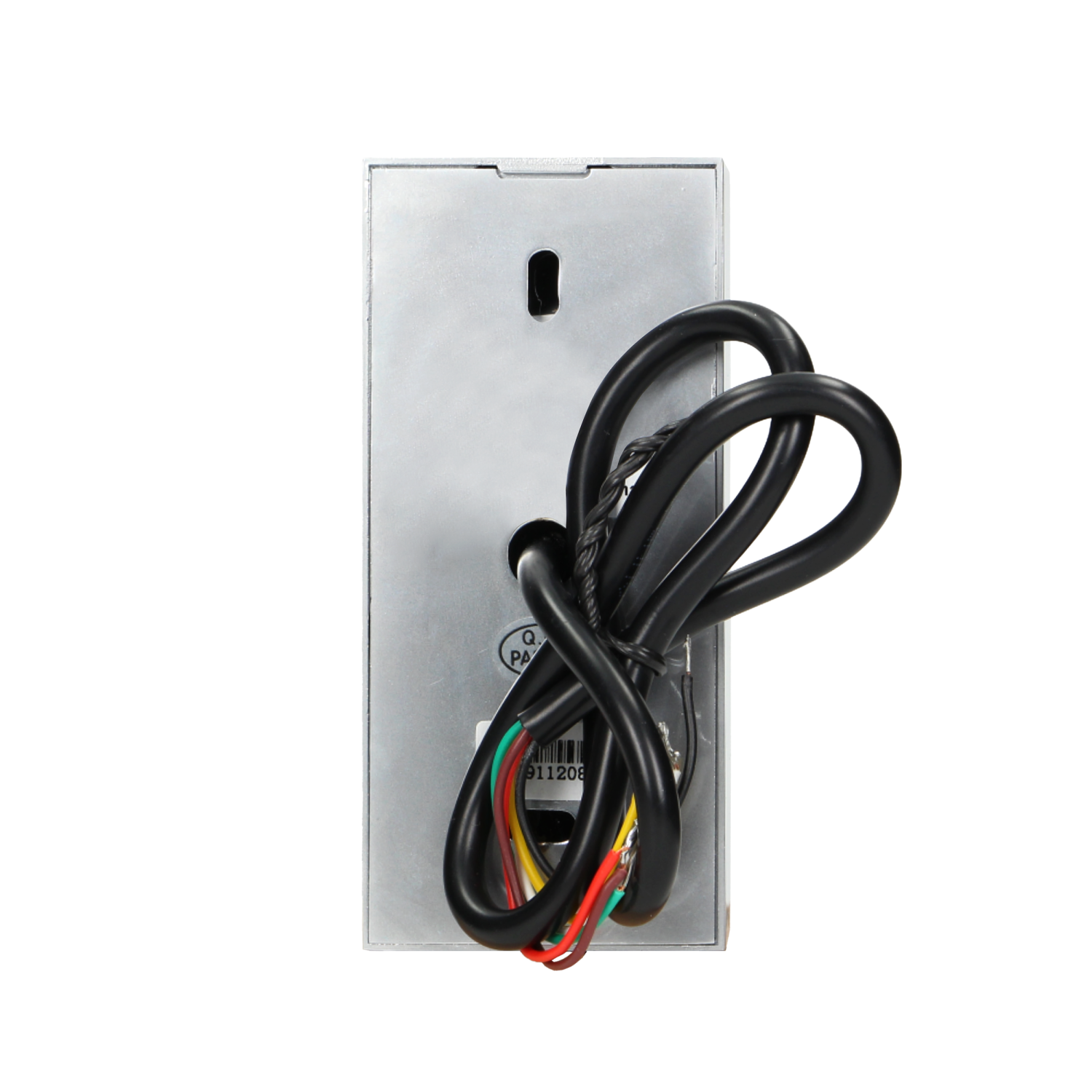

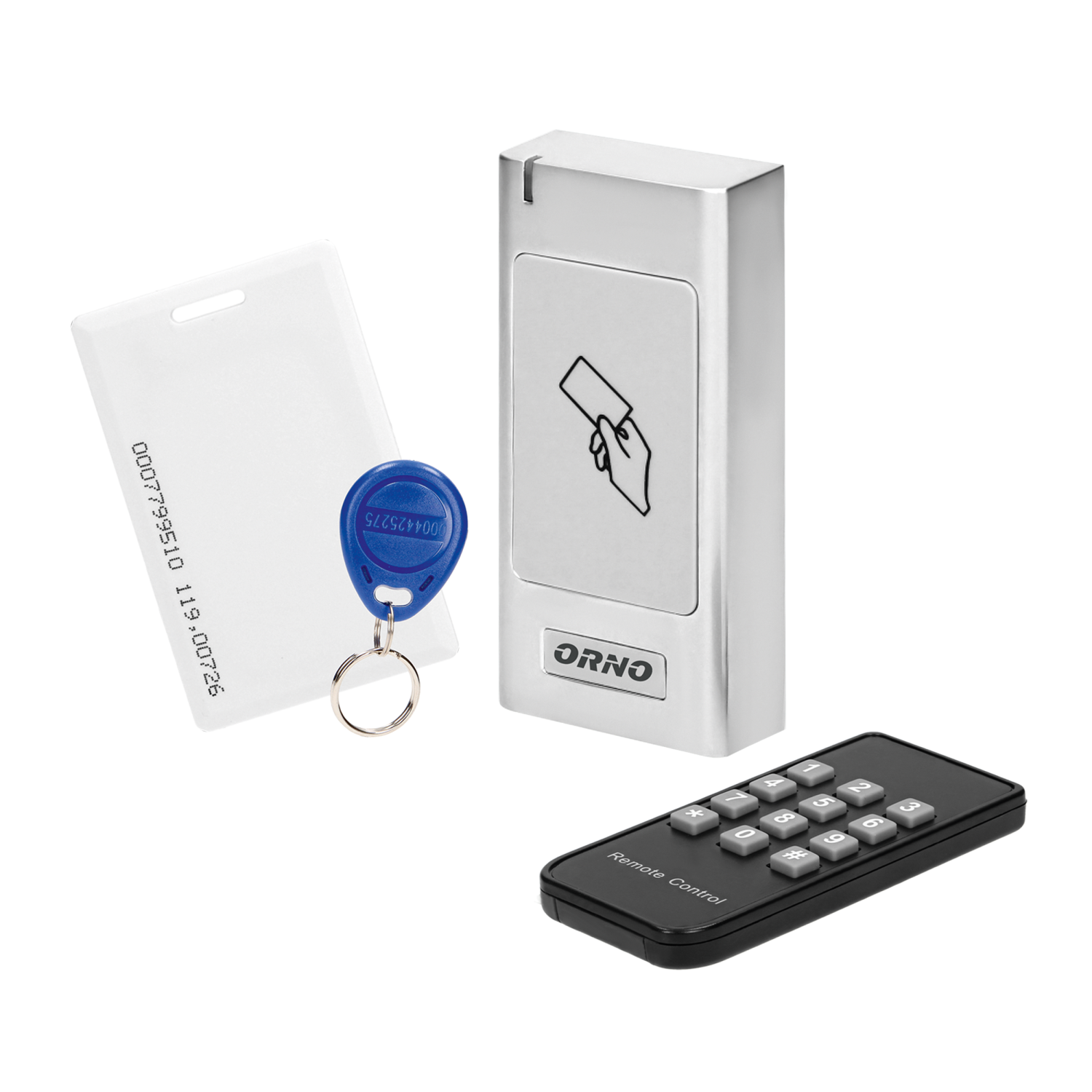

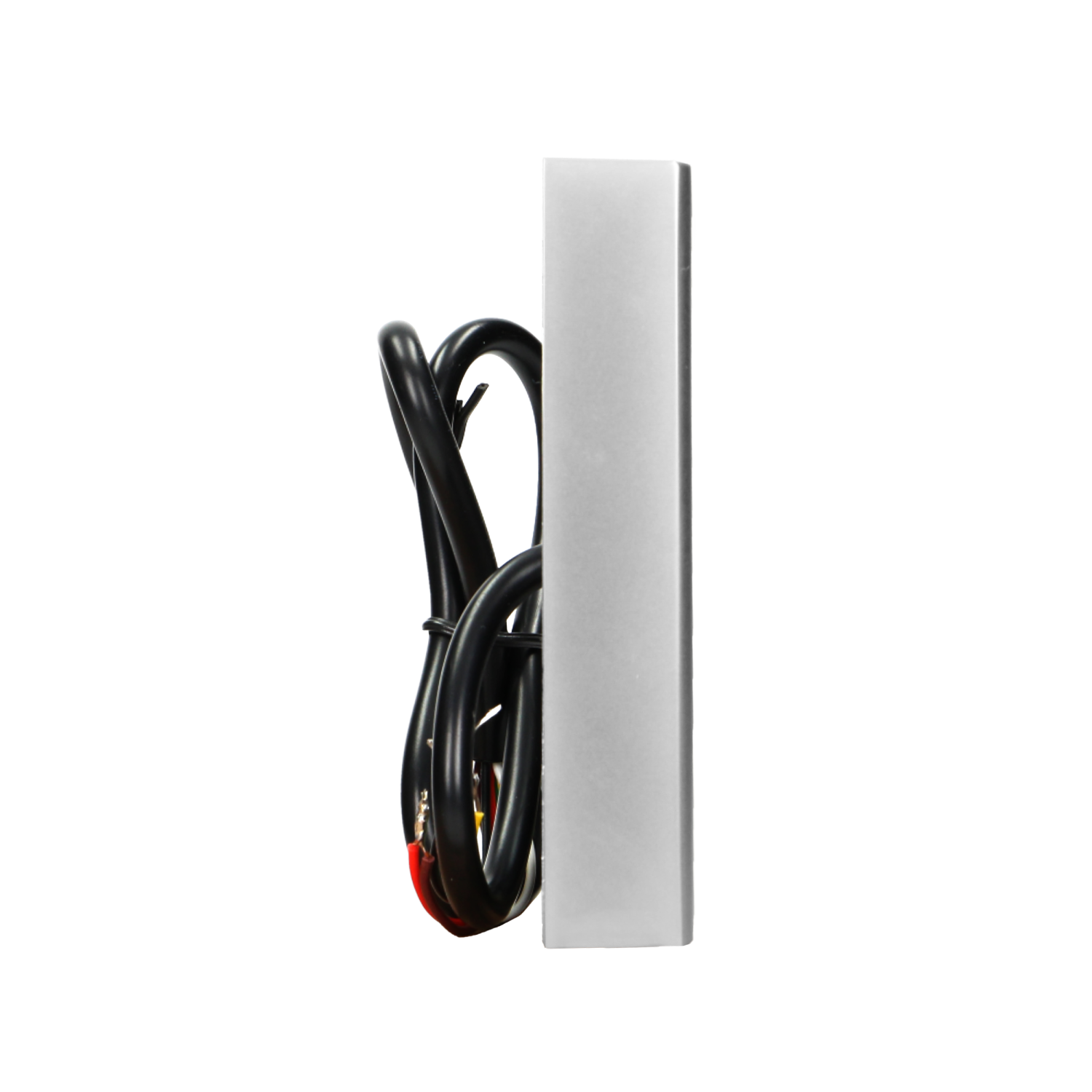

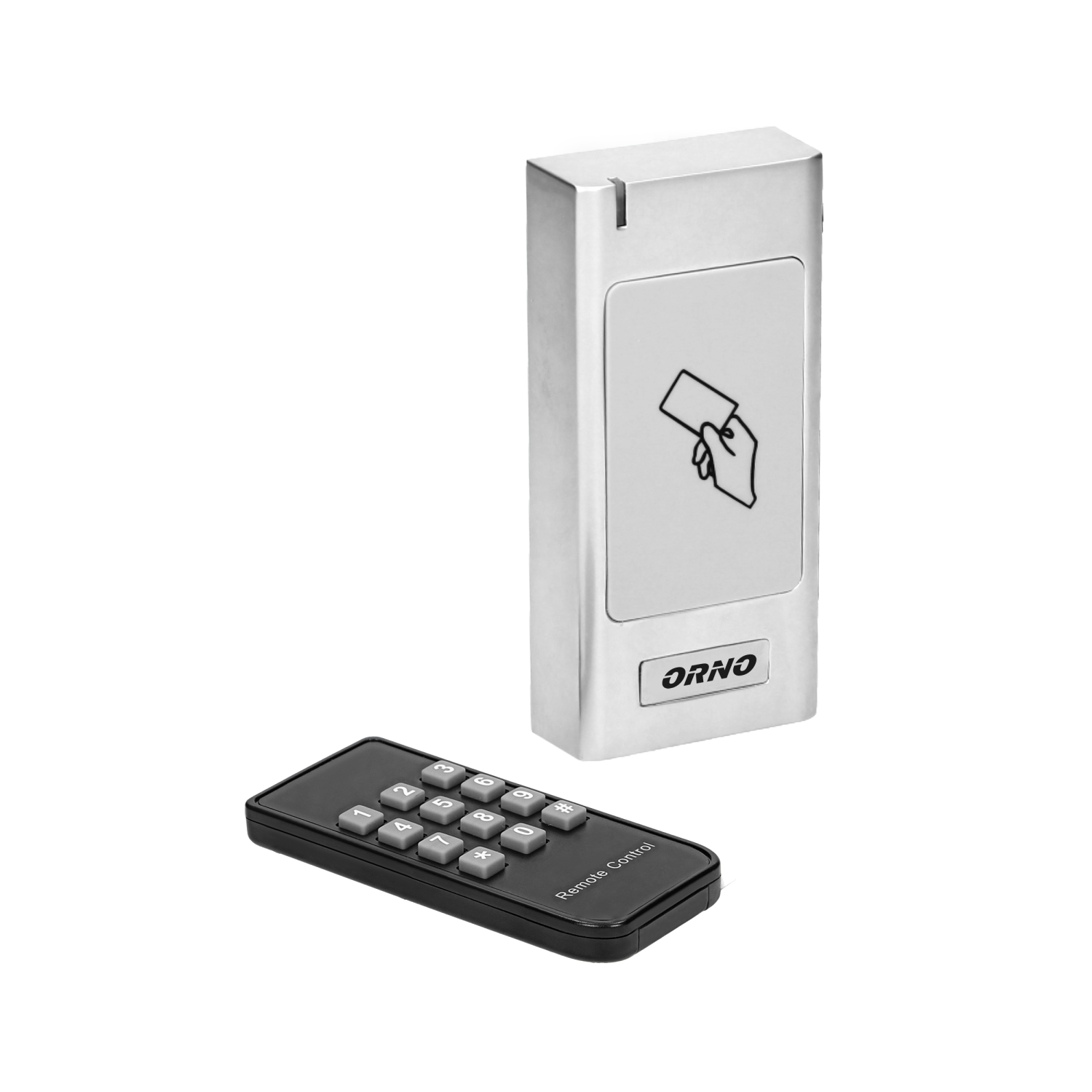

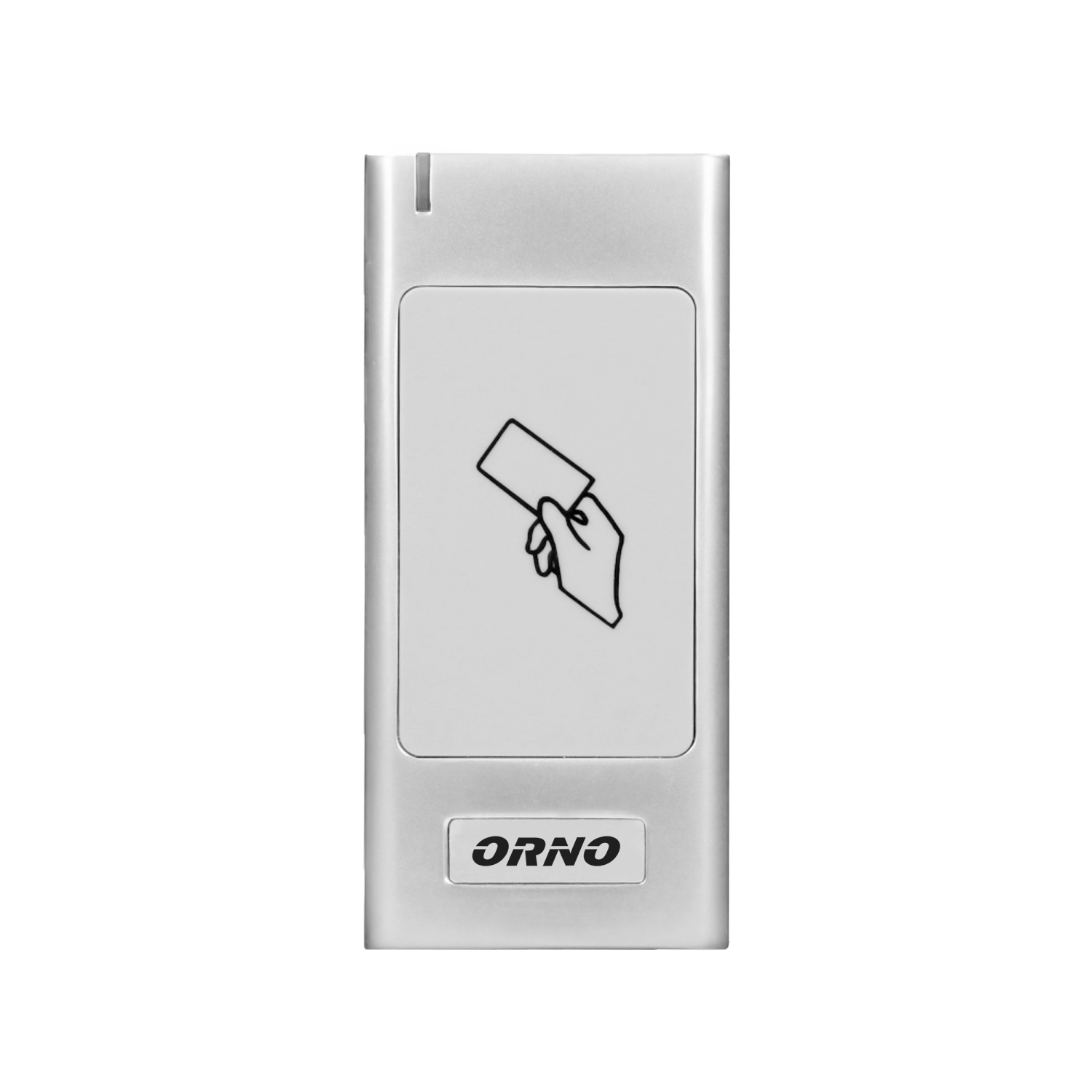

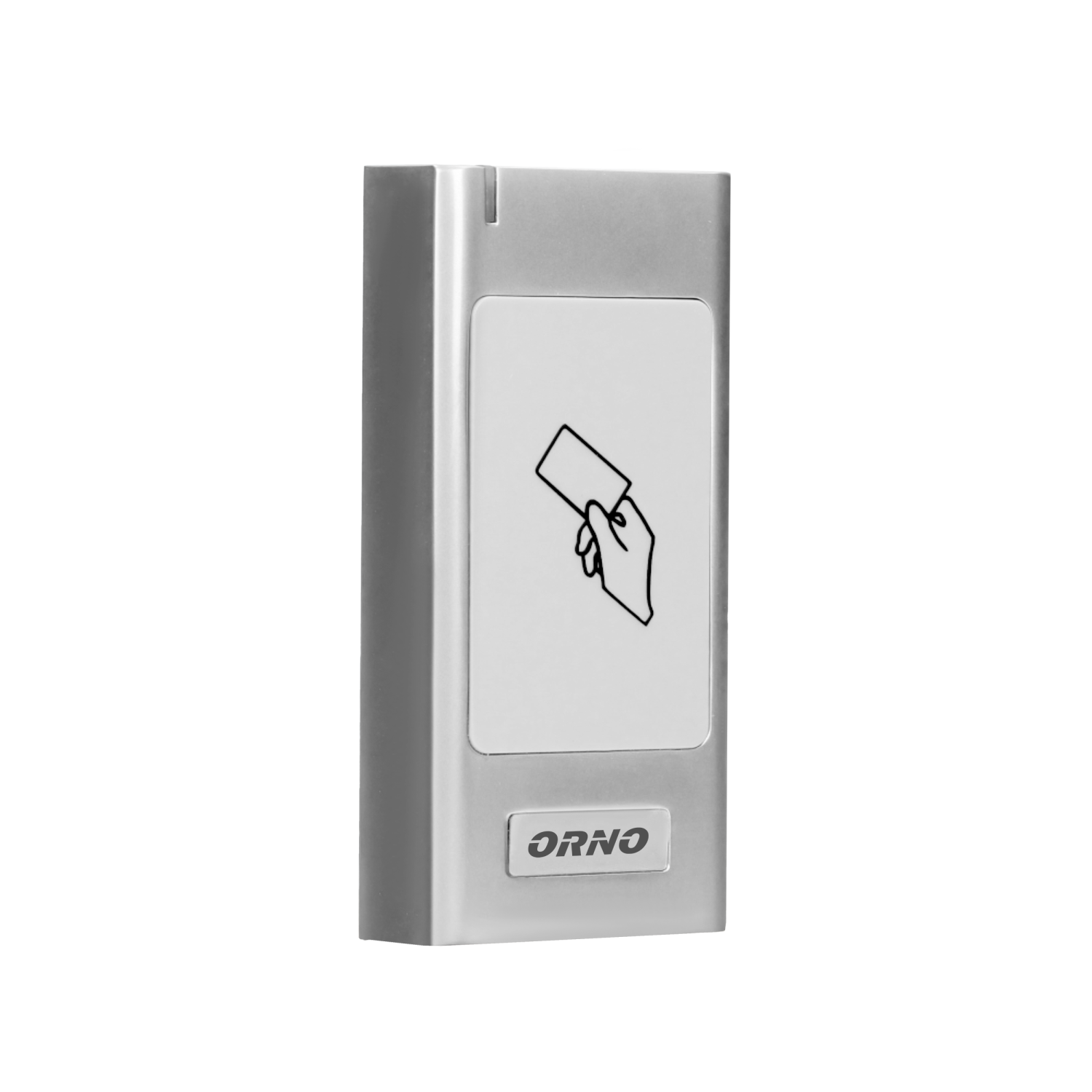

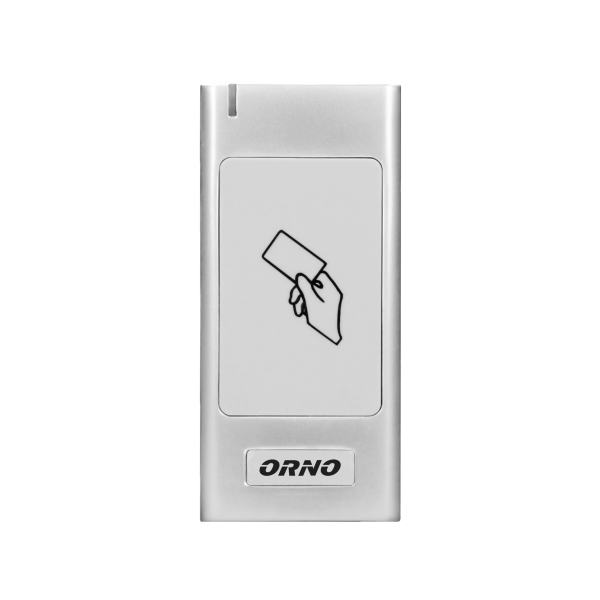

This proximity reader helps to grant authorized access to protected areas. It works with proximity tags and cards on 125kHz radio frequency and can support electromagnetic locks. The device has one relay output and one doorbell relay. Administrators can log in up to 2000 users and adjust door release time from 1 to 99 seconds. Additional features: automatic strike-out alarm, anti-tamper protection, hermetic case (IP66) enables indoor and outdoor installation, LED indicator. Two tags (OR-ZS-890) and two proximity card (OR-ZS-892) included.
| General information: | |
|---|---|
| Type: | Czytnik kart |
| Work mode: | brelok / brelok+ karta / brelok lub kod |
| Type of transmission: | Przewodowy |
| Proximity reader: | Tak |
| Card type: | EM 125 kHz |
| Proximity reader: | Tak |
| Code lock: | Nie |
| Fingerprint reader: | Nie |
| Max number of users: | 2000 |
| Power supply [V]: | 12 DC |
| Frequency [kHz]: | 125 |
| Number of relay outputs: | 1 |
| Relay output load [A]: | 2 |
| Anti-tamper protection: | Nie |
| Mounting method: | Montaż natynkowy |
| Material: | Metal |
| Surface protection: | Stan surowy |
| Surface finishing: | Matowy |
| Colour: | Aluminium |
| Degree of protection [IP]: | IP66 |
| Doorbell button: | Nie |
| Touch keypad: | Nie |
| Width [mm]: | 42 |
| Height [mm]: | 101 |
| Depth [mm]: | 30 |
| Weigh [g]: | 225 |
| Card Reading Distance [cm]: | (2~5) |
| Working temperature [℃]: | (-40~60) |
| WORKING Humidity [% RH]: | (10~90) |
