Code locks

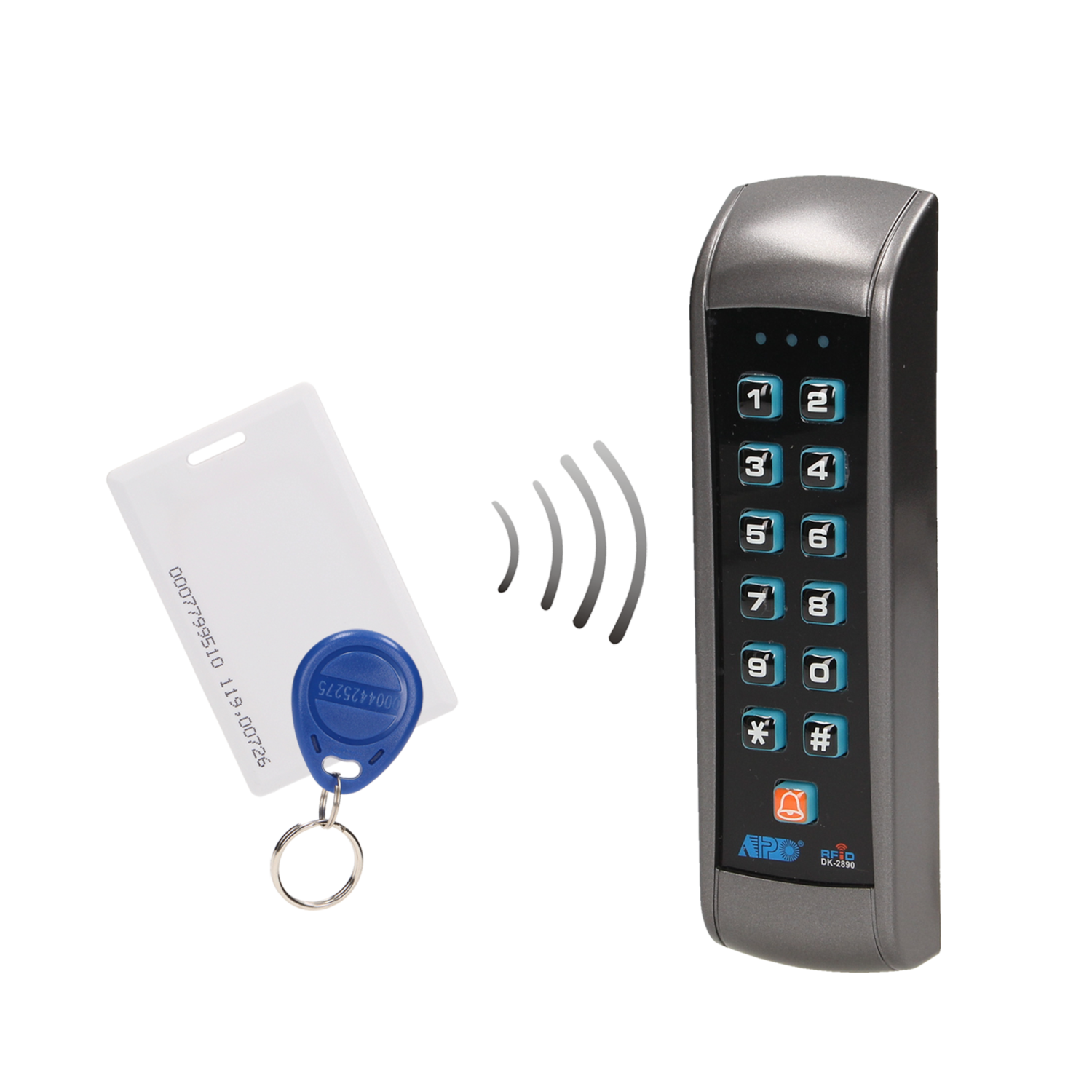

Works with electromagnetic locks and access control systems Controls other electrical or alarm devices 1 Relay output, 1 Relay for ringing Supports cards and PIN codes (100 million combinations, 1000 PINs) User's identification number (ID) Remembers saved codes and parameters in case of the power failure Smart exit button 50 ID numbers for guests Backlit keyboard covered with epoxy coating The bell button Light and sound signalling.
| General information: | |
|---|---|
| Touch keyboard: | No |
| Doorbell button: | No |
| Type of power supply: | 12V DC |
| Operating mode: | proximity tag / proximity tag + card / proximity tag or code |
| Degree of protection (IP): | 55 |
| Type of transmission: | wired |
| Number of relay outputs: | 1 |
| Nominal voltage: | 12V DC |
| Max. number of users: | 1000 |
| Installation: | flush mounting |
| Dimensions - depth: | 19 mm |
| Proximity reader: | Yes |
| Dimensions - width: | 46 mm |
| Keypad: | Yes |
| Dimensions - height: | 160 mm |
| Other features: | additional call button (doorbell) |
| Frequency: | 125 kHz |
| Backlight: | Yes |
