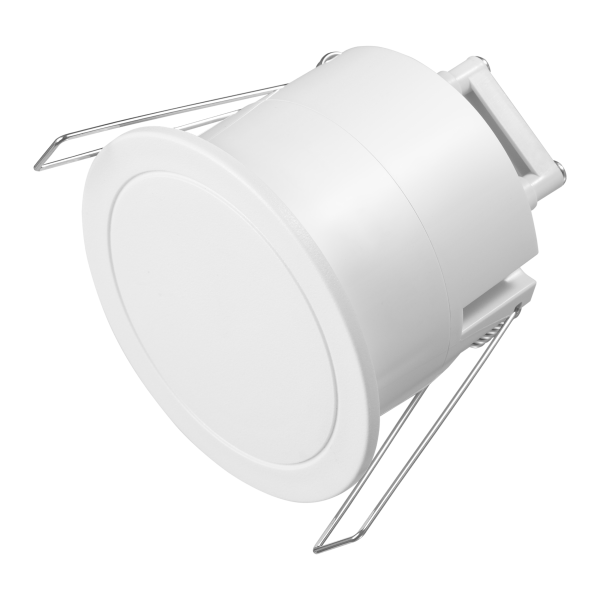

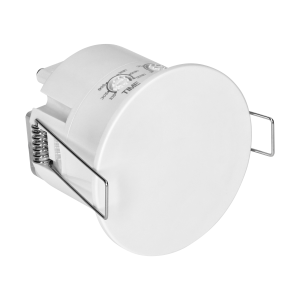

Install an ultrasonic motion and presence sensor in your home or business and the lights will turn on and off automatically! This model precisely detects even the smallest movements. The ultrasound technology used registers even subtle actions – not only walking but also gestures and small head movements. The sensor works well where standard PIR sensors fail: in open space offices, bathrooms, corridors, warehouses and conference rooms. It detects movement at speeds of 0.6 to 1.5 m/s.
The sensor operates with a maximum load of up to 2000 W, and 1000 W for LEDs – this allows it to control both individual LED luminaires and entire lighting systems.

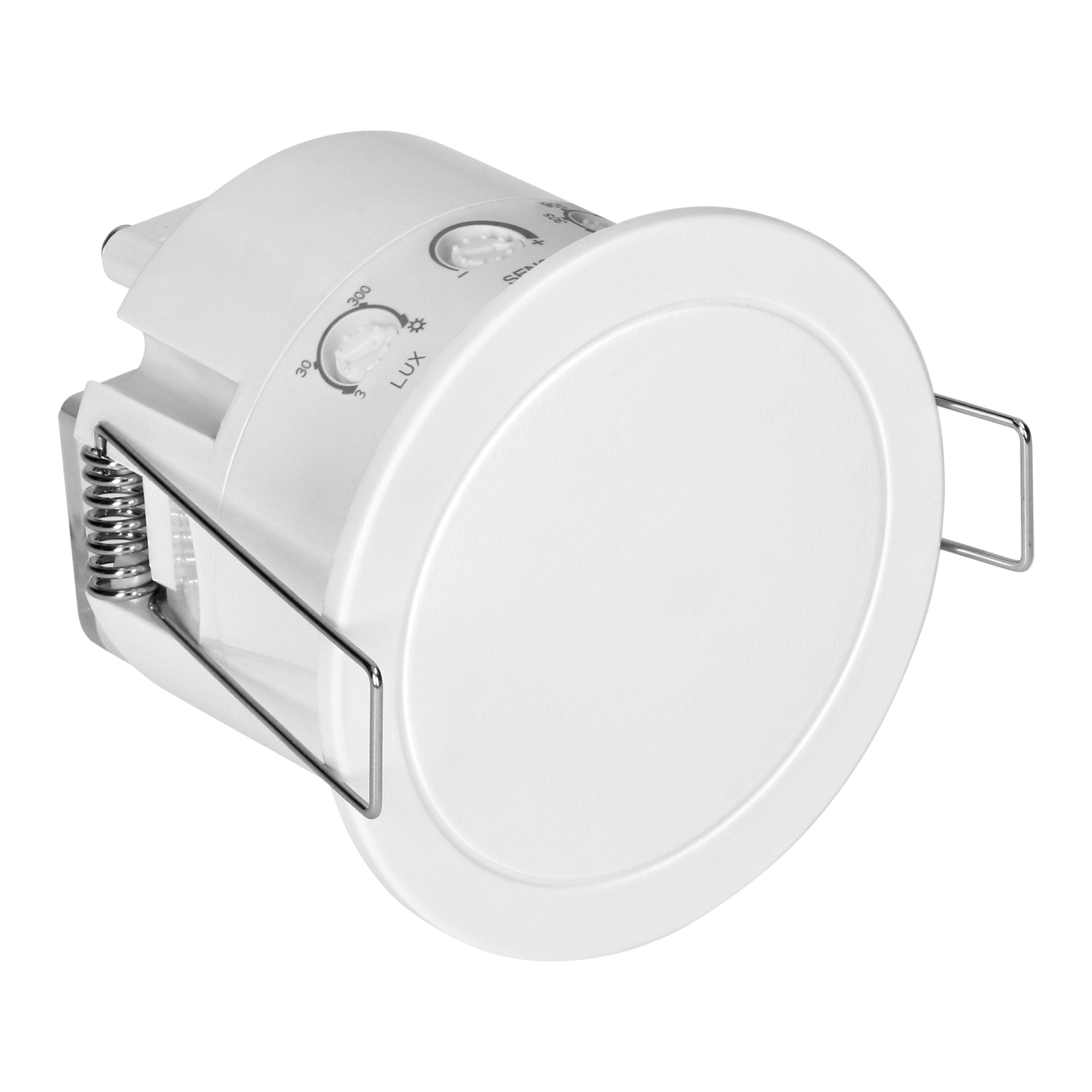

By adjusting the light intensity from <3 to 2000 lx, you decide at what brightness level the light should turn on (for example, only after dark or with limited daylight).

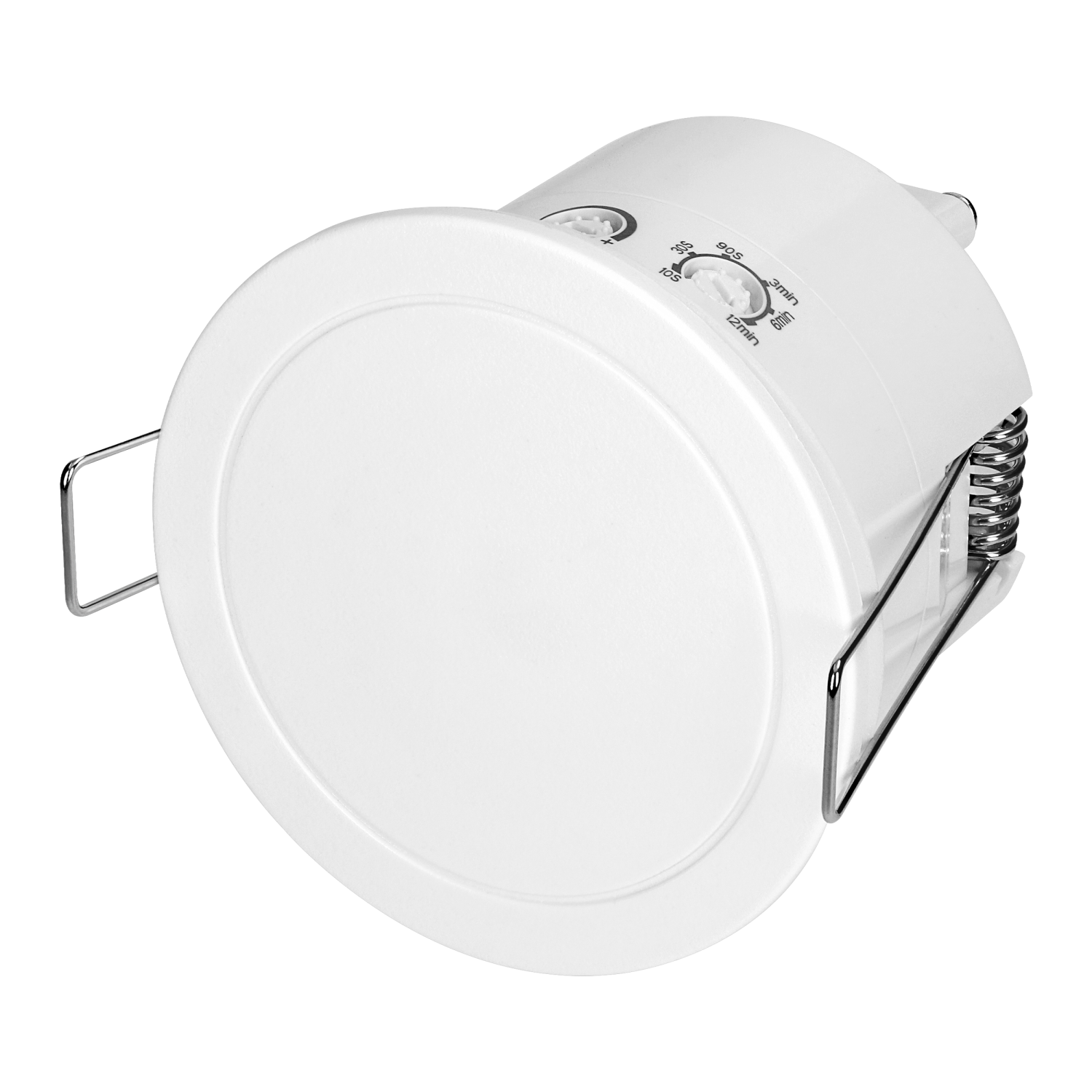

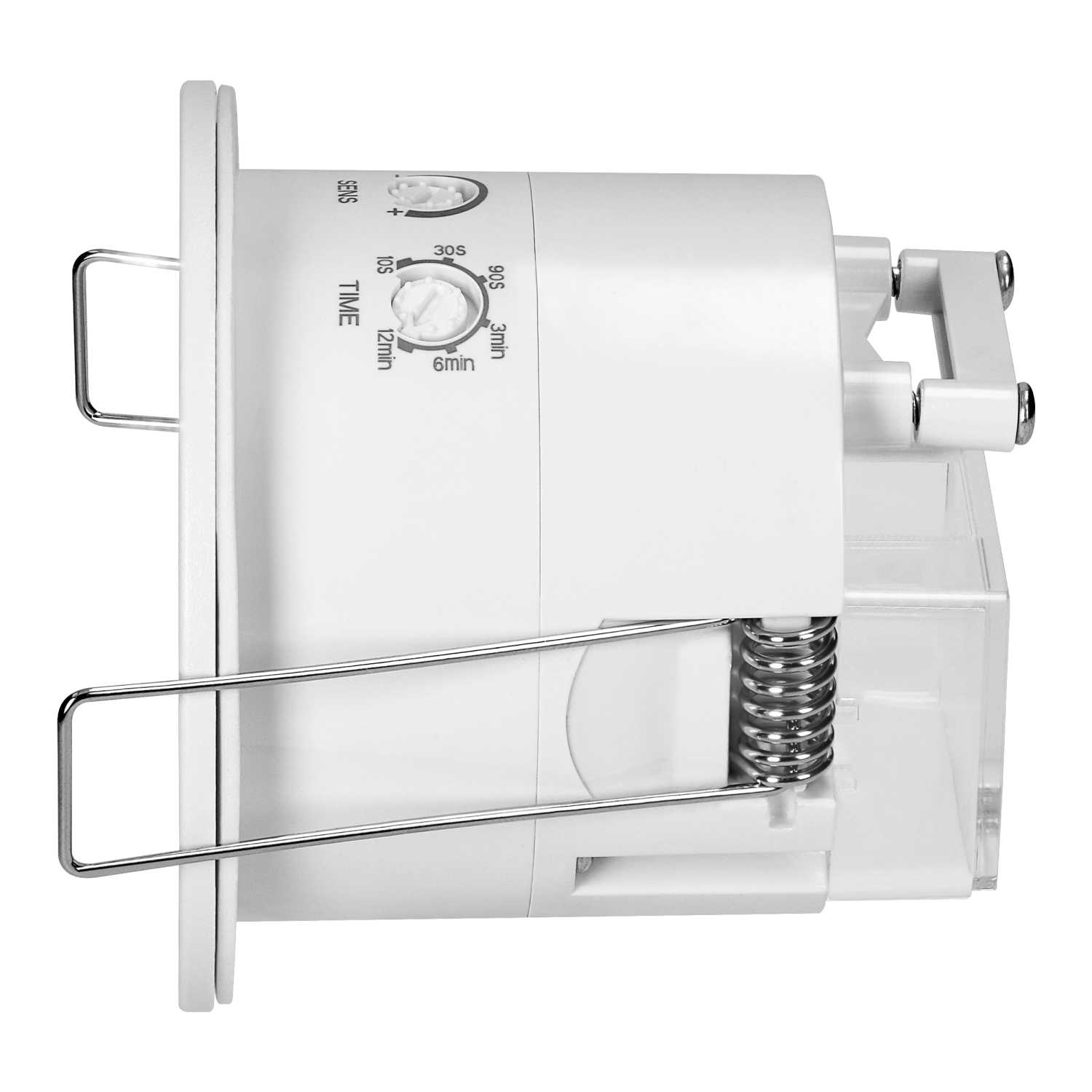

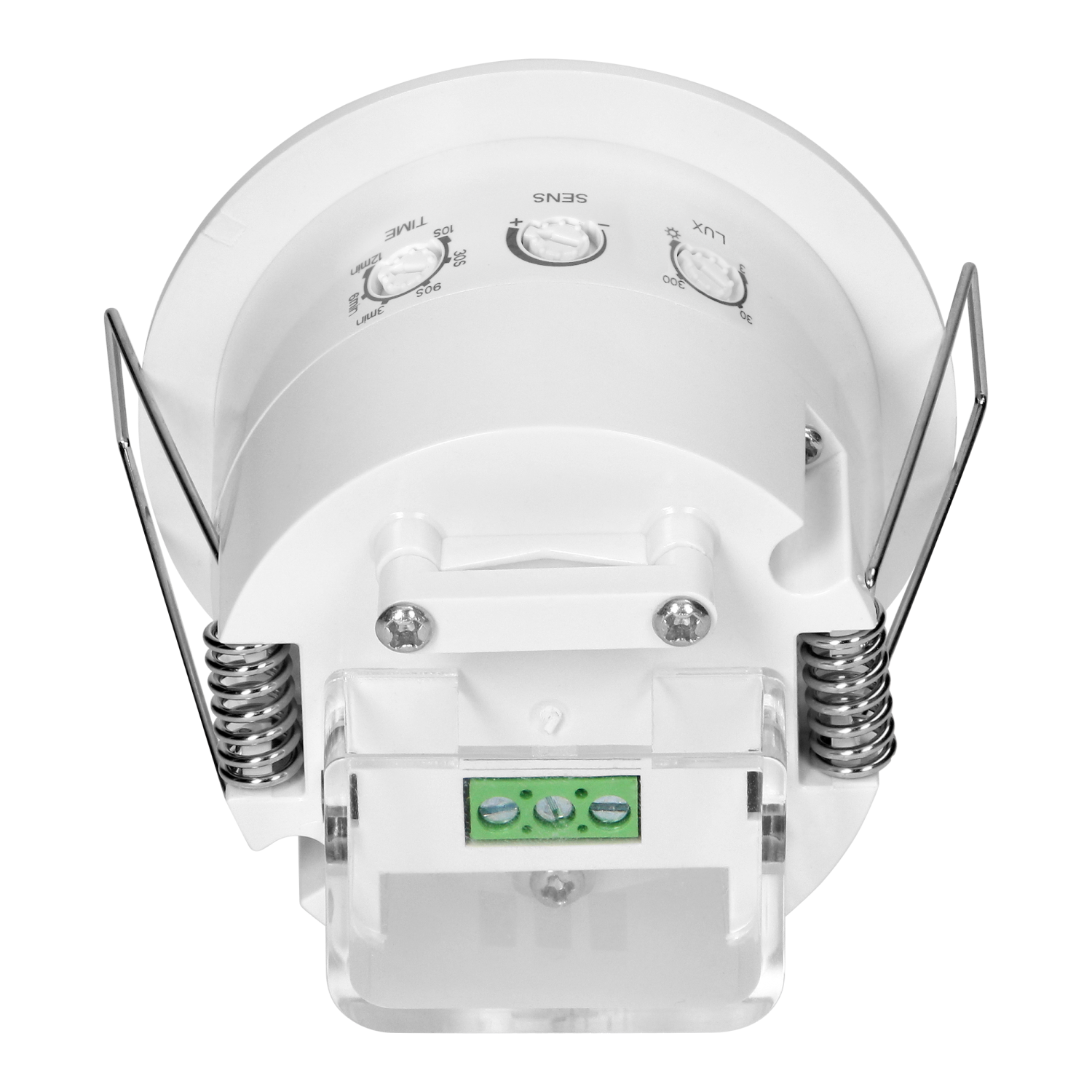

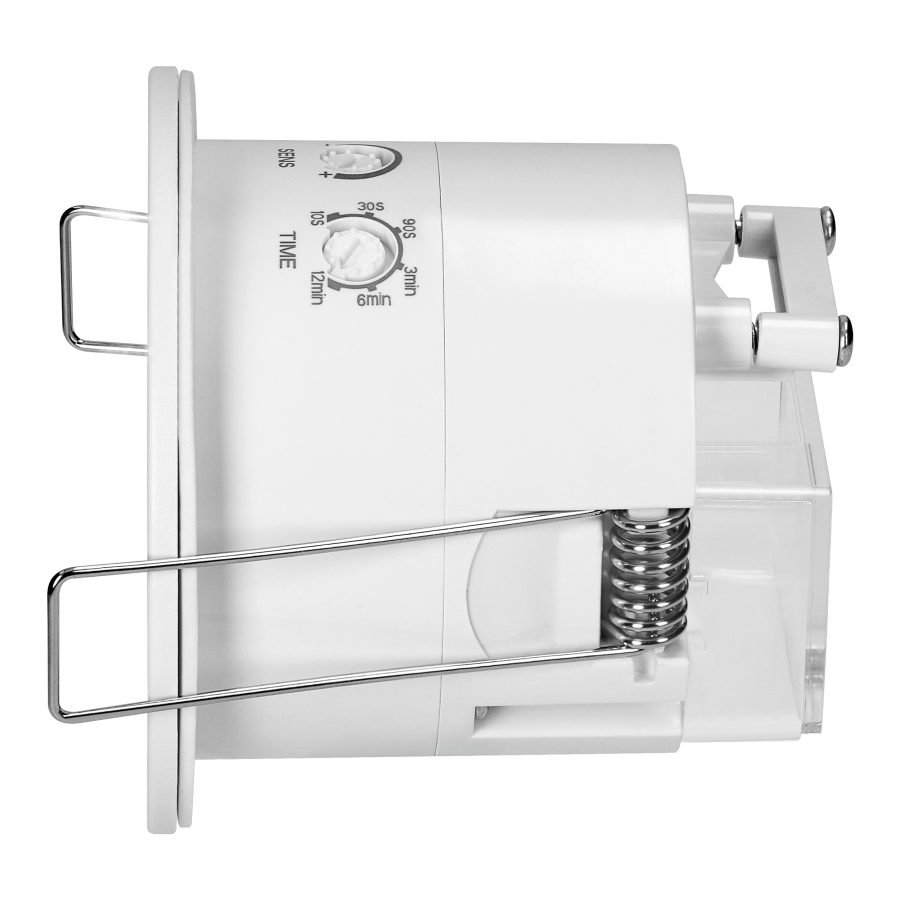

The light will turn off automatically after selected time from 10 seconds to 12 minutes has elapsed. When you want to change the settings, you can adjust the device with a single turn of the knob.

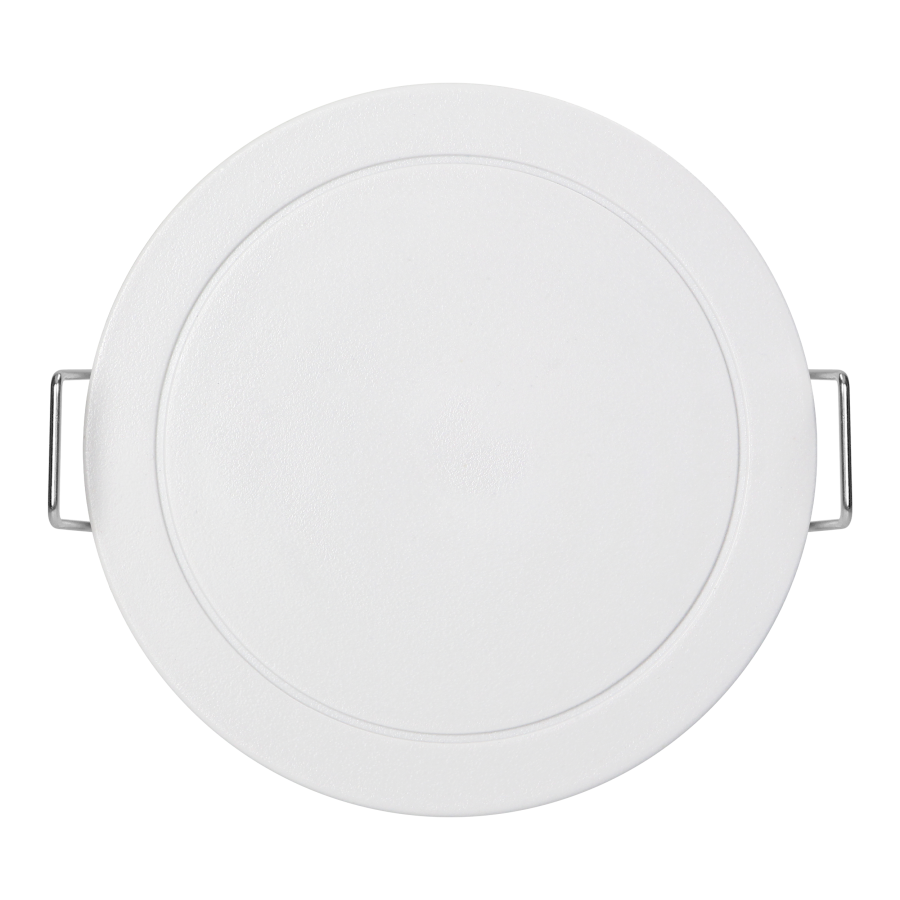

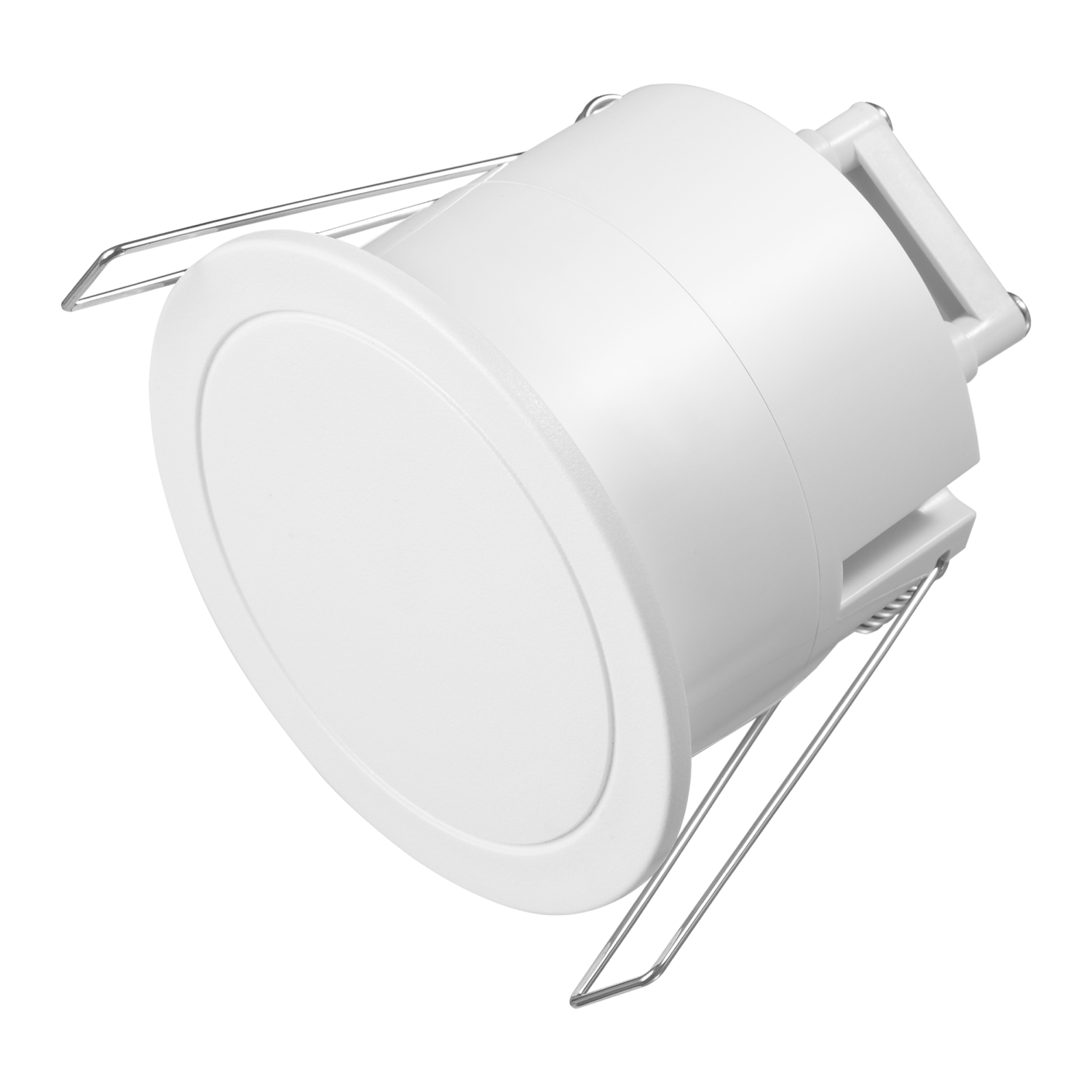

The sensor is designed for flush mounting in suspended ceilings. The optimal installation height is 2–4 meters. The adjustable diameter of the detection field on the surface (up to 6 m) allows it to effectively scan the entire room.
Thanks to the IP65 protection rate, it may also be used in places exposed to moisture and dust – in bathrooms, staircases, halls or technical rooms. The unit operates in a wide temperature range within -20°C to +50°C.
Choose this sensor to save energy and ensure safety. The light turns on when you need it. It turns off when no one is using it, so you don't have to remember to look for the switch. Furthermore, the device is energy-efficient, consuming only 0.5 W.
| General information: | |
|---|---|
| Model: | Czujnik obecności |
| Sensor type: | Ultradźwięki |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2-4 |
| Max. presence range [m²]: | 28 |
| Max. reach frontally [m]: | 3 |
| Diameter reach of presence sensor on floor [m]: | 2-6 |
| Diameter reach on floor [m]: | 2-6 |
| Working frequency: | 24 |
| Detection moving speed [m/s]: | 0,6 - 1,5 |
| Response value sensitivity adjustable: | Tak |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lux]: | <3-2000 |
| Mounting method: | Montaż podtynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Nie |
| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP65 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 12 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 2000 |
| Max. switching power LED [W]: | 1000 |
| Power consumption [W]: | 0,5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +50 |
| Working humidity: | <93% |
| Real presence sensor: | Tak |
| Depth [mm]: | 66 |
| Diameter [mm]: | 75 |
| Weight [g]: | 95 |
| Built-in depth [mm]: | 63 |
| Built-in diameter [mm]: | 61 |
