Ceiling sensors

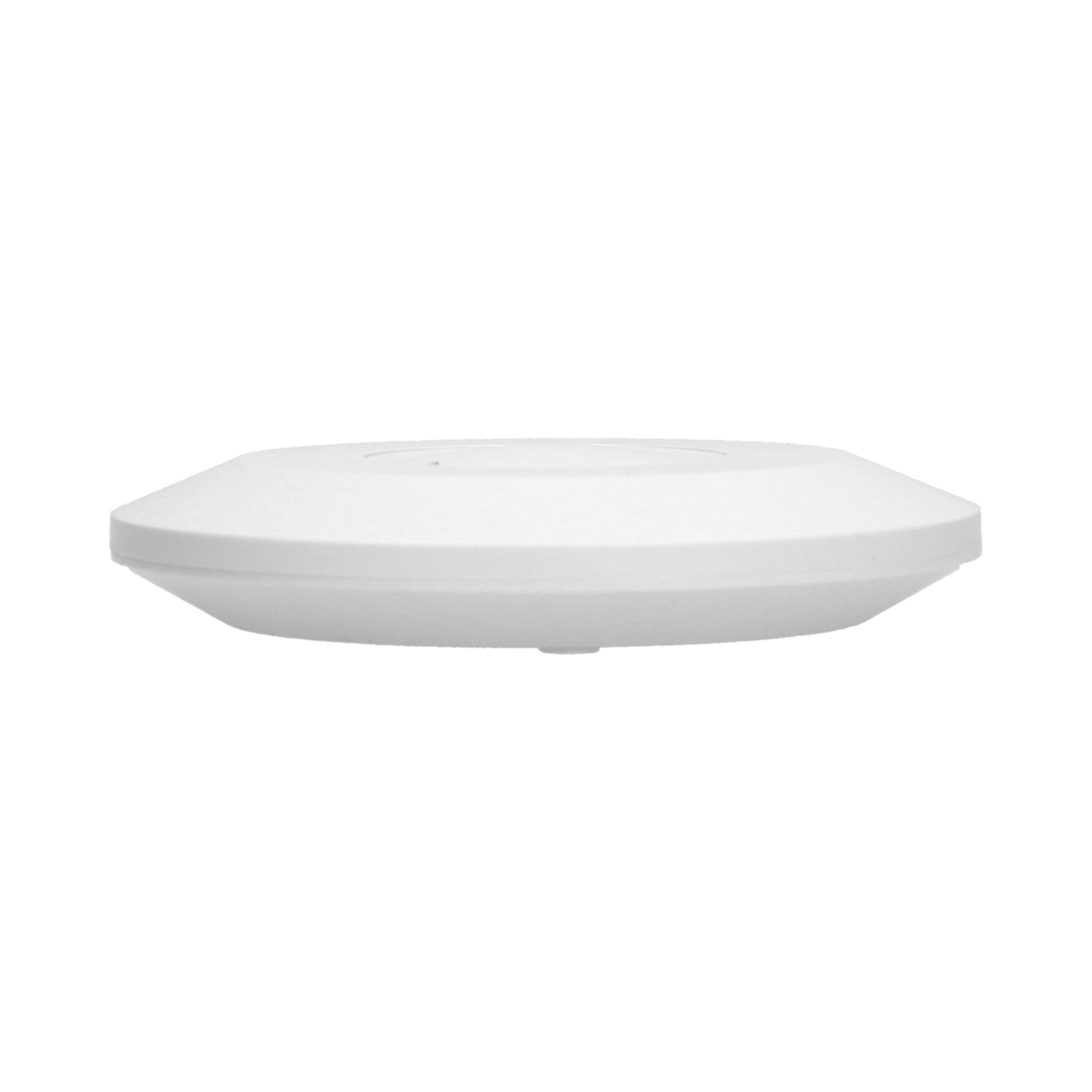

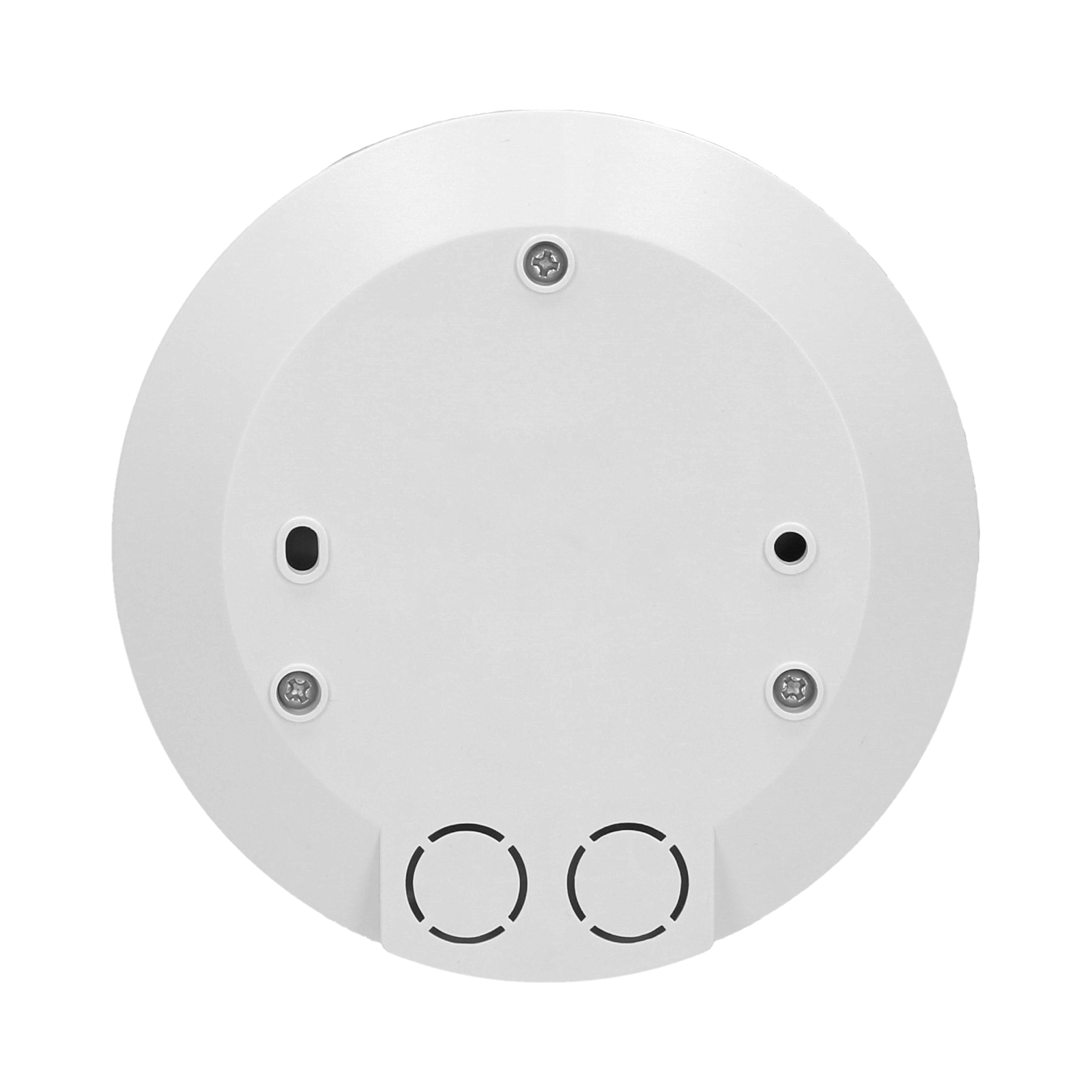

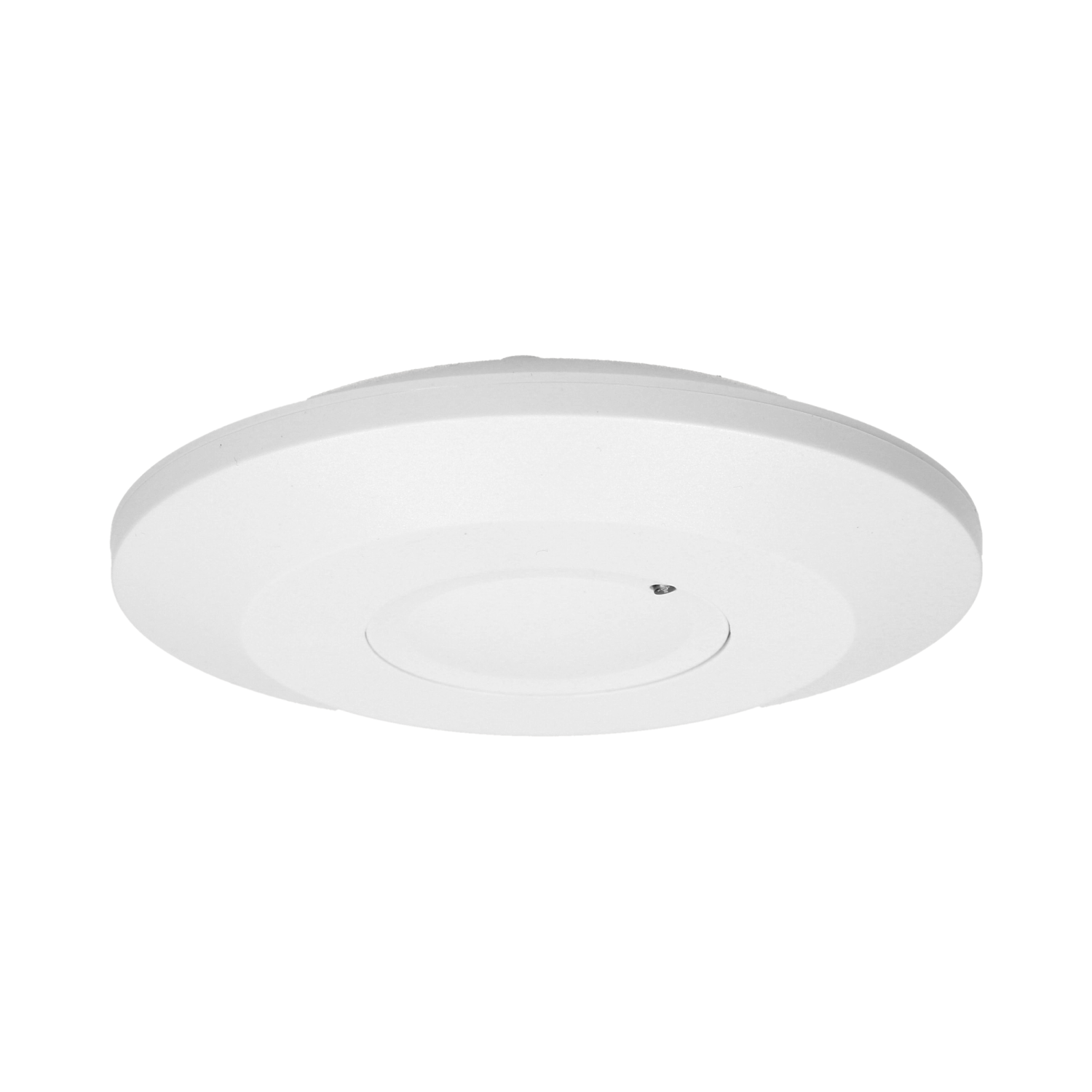

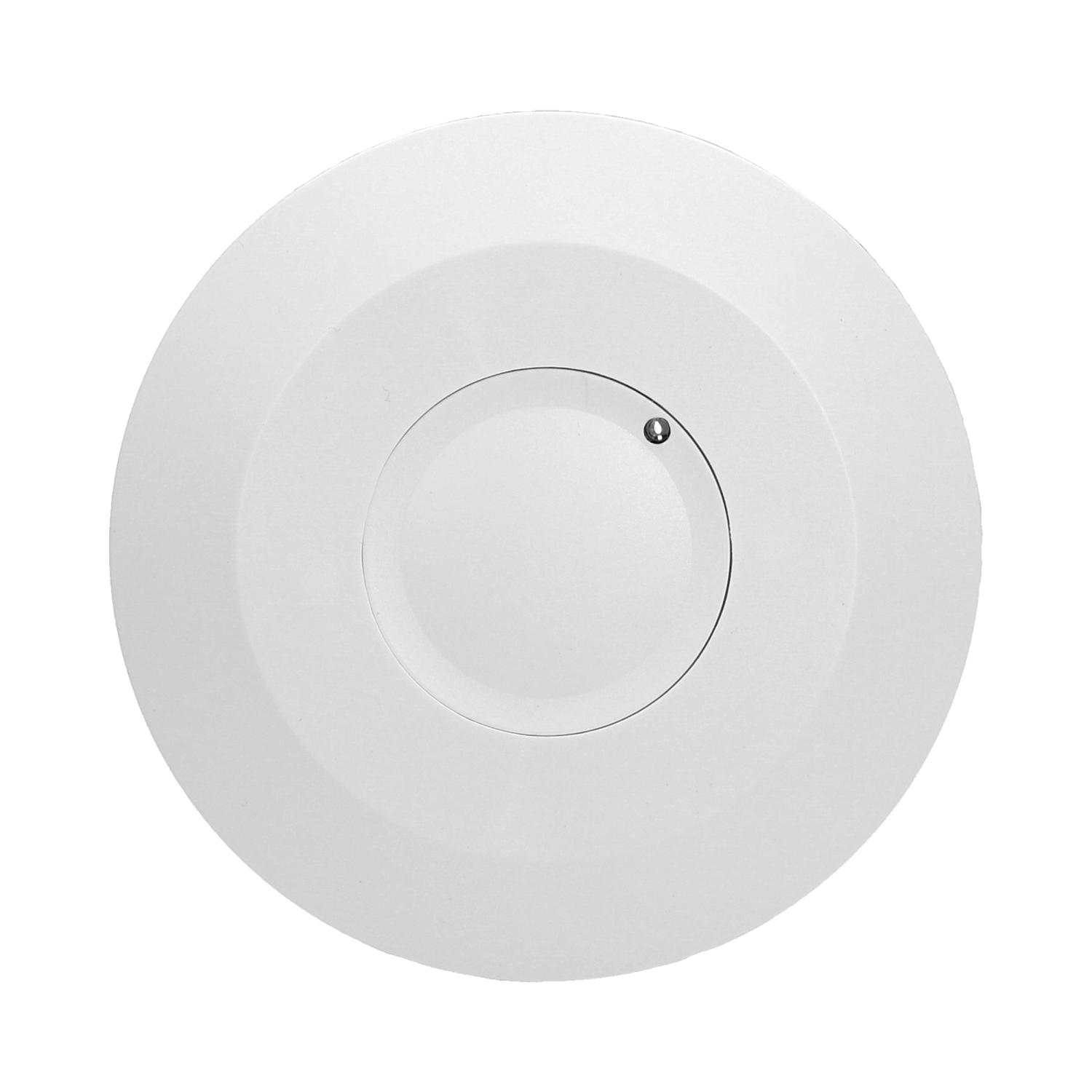

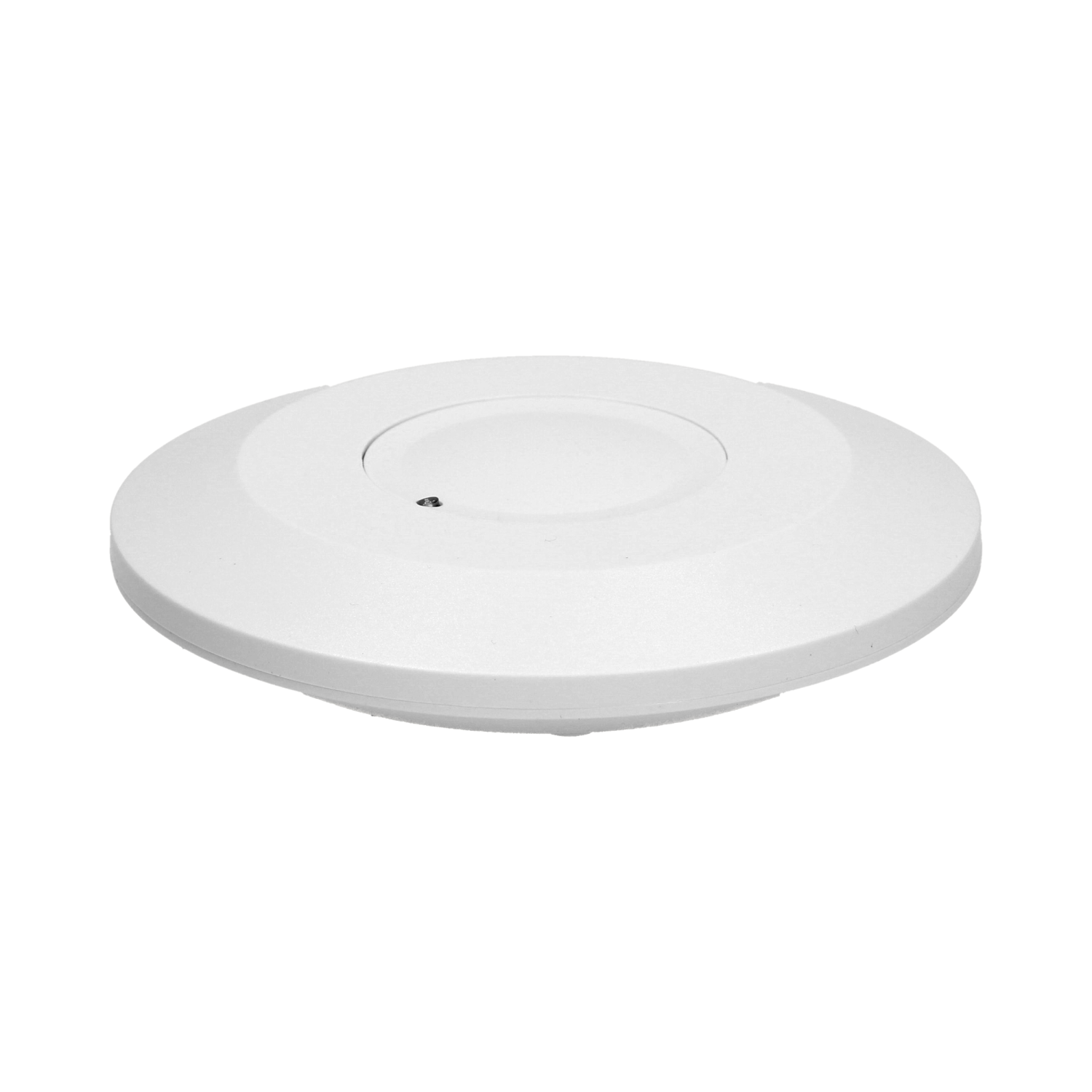

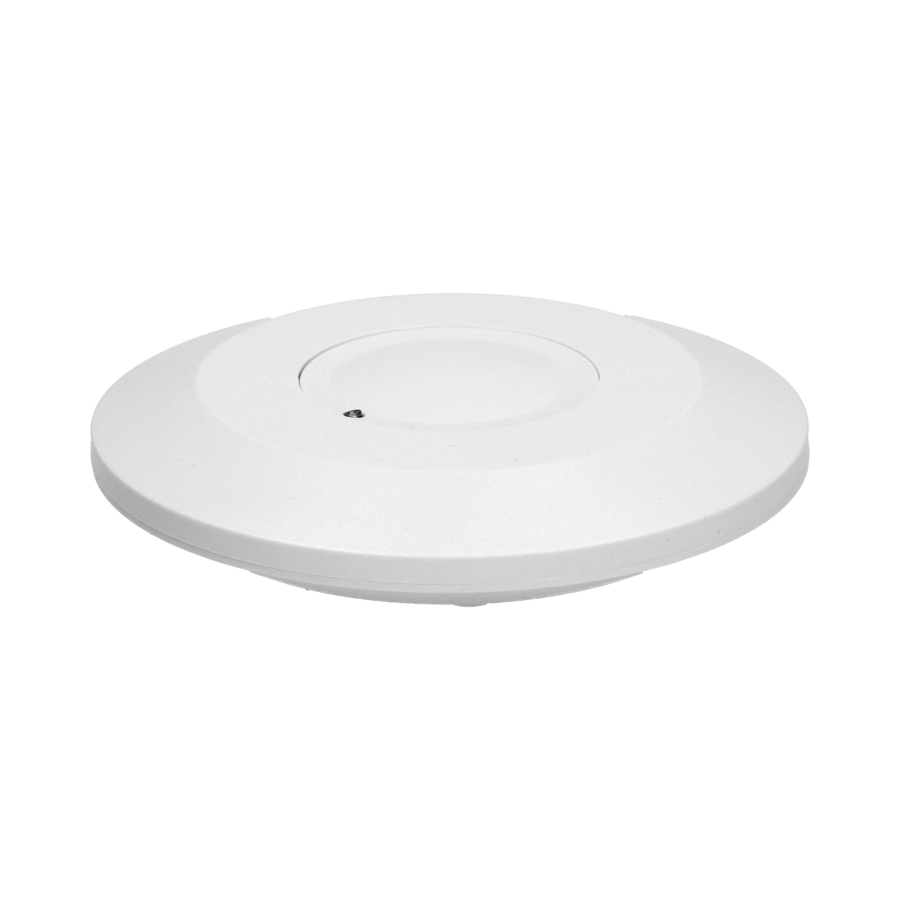

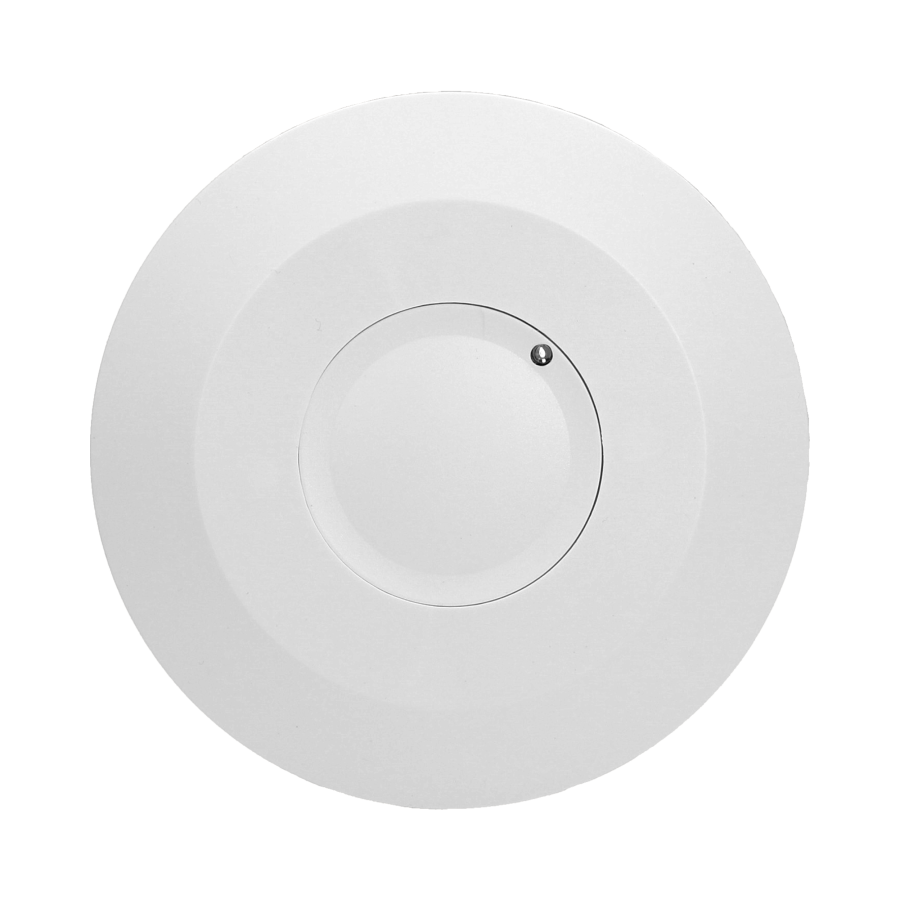

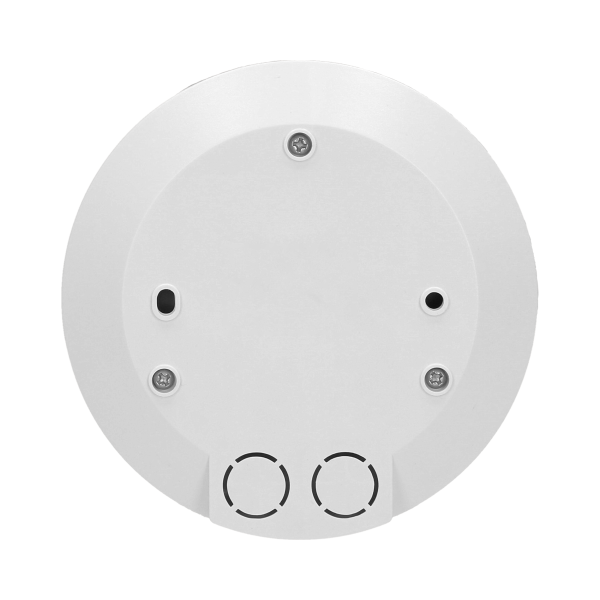

Microwave (radar) motion detector For indoor usage Collaborates with LED lighting Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) and the range of motion detection (SENS) Temperature does not affect the detection.
| General information: | |
|---|---|
| Model: | Czujnik ruchu |
| Sensor type: | Ultradźwięki |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2-6 |
| Max. reach sideways [m]: | 1-8 |
| Diameter reach on floor [m]: | 2-16 |
| Detection moving speed [m/s]: | 0,6-1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lx]: | <3-2000 |
| Mounting method: | Montaż natynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Nie |
| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 12 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 2000 |
| Max. switching power LED [W]: | 500 |
| Power consumption [W]: | 0.9 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Depth [mm]: | 25 |
| Diameter [mm]: | 115 |
| Weight [g]: | 100 |
