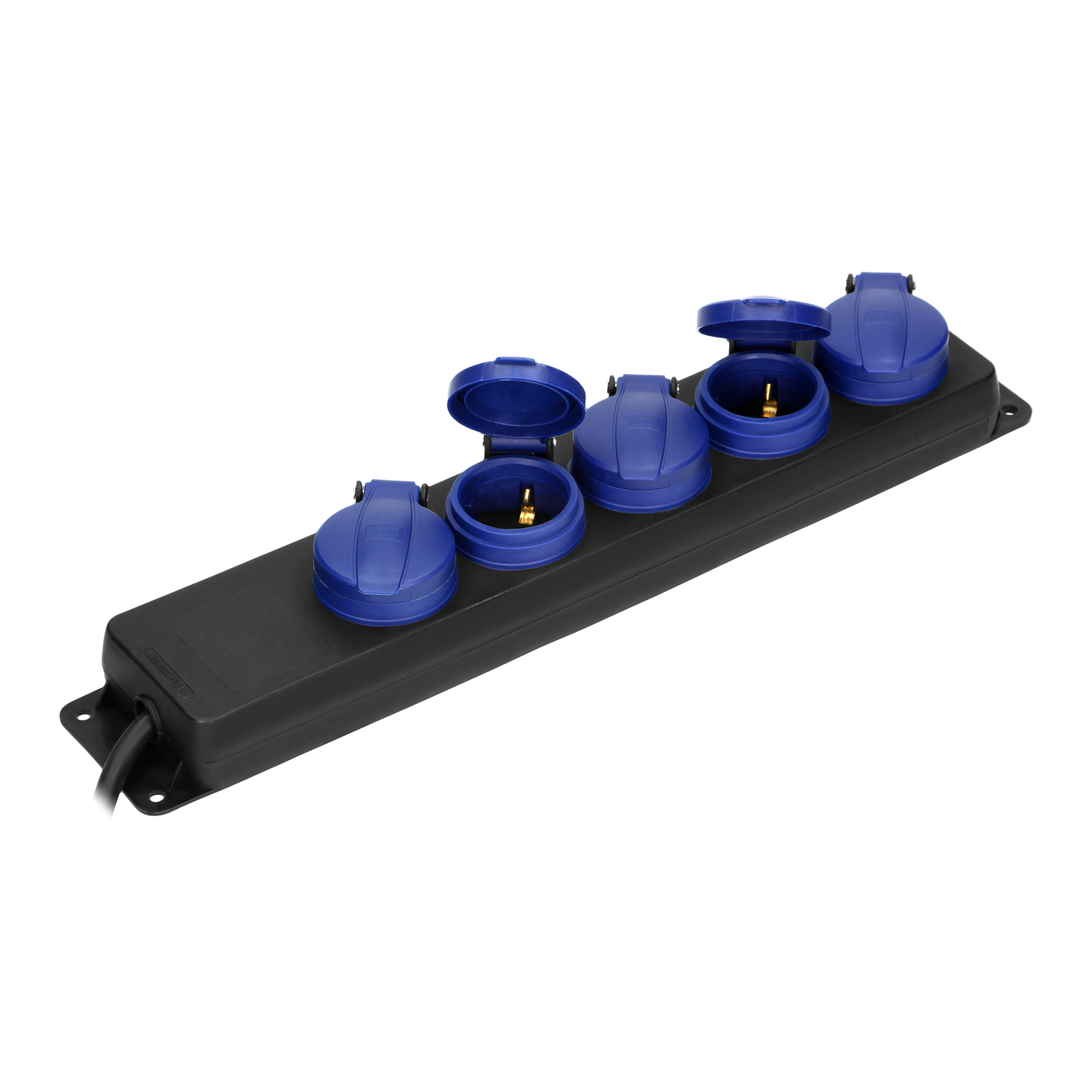

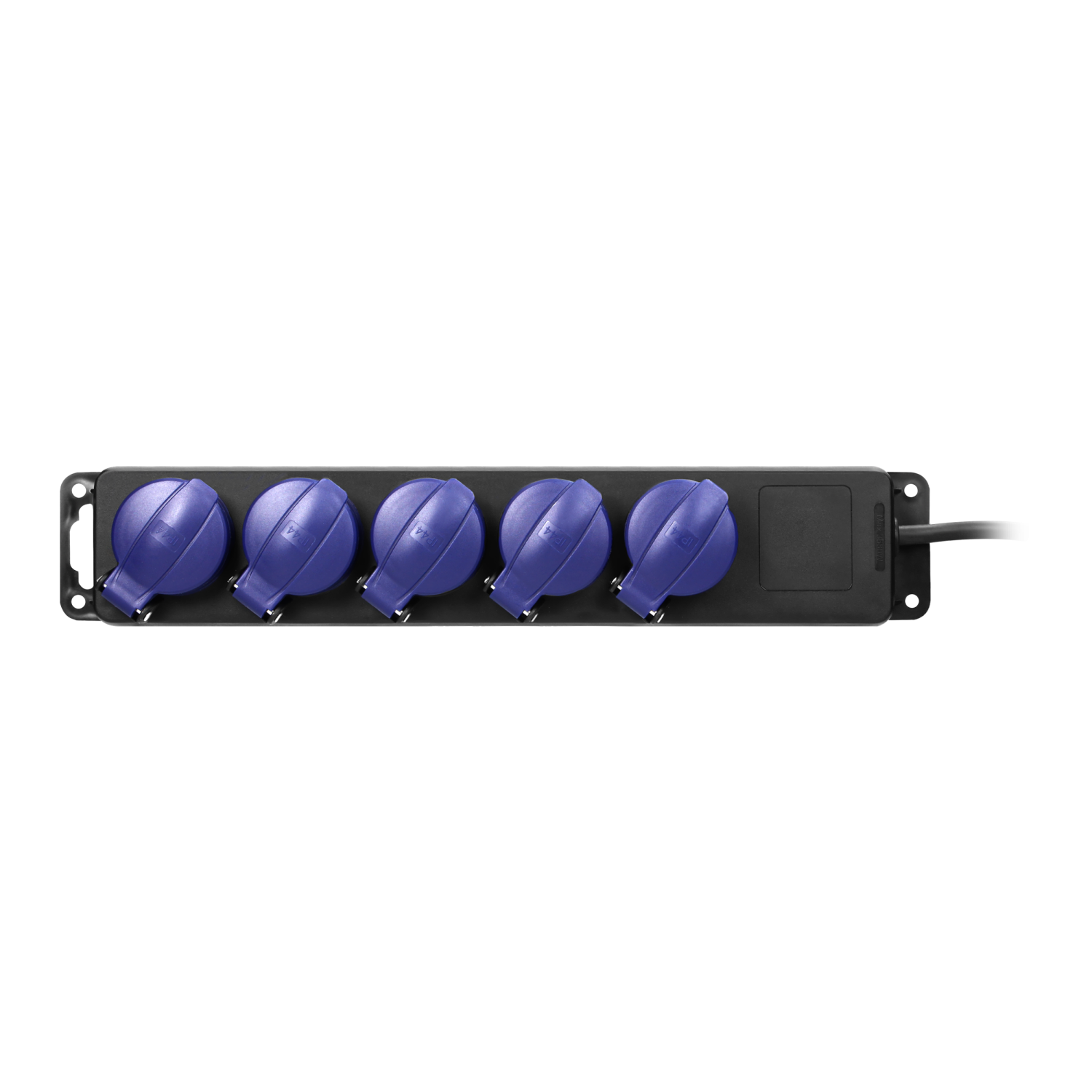

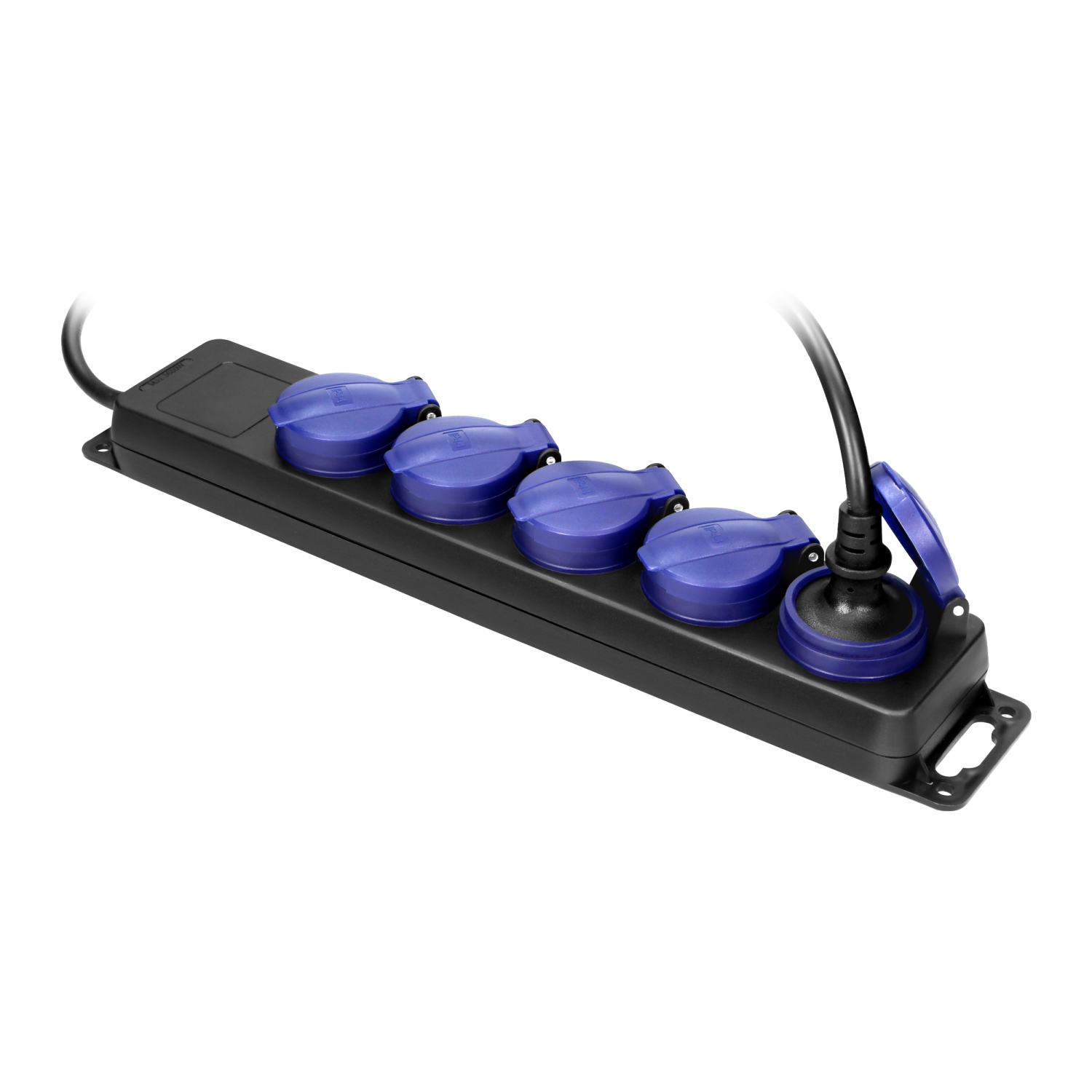

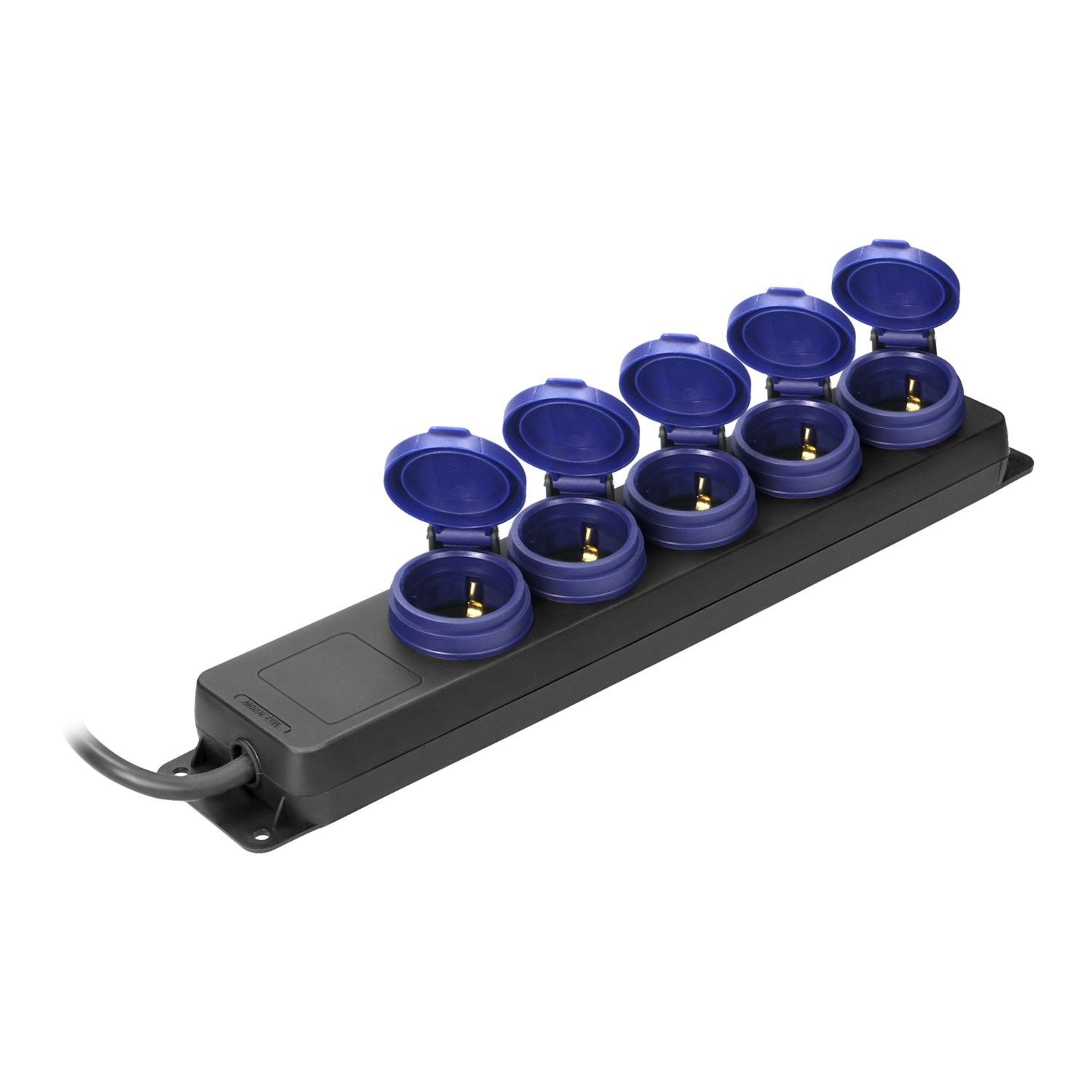

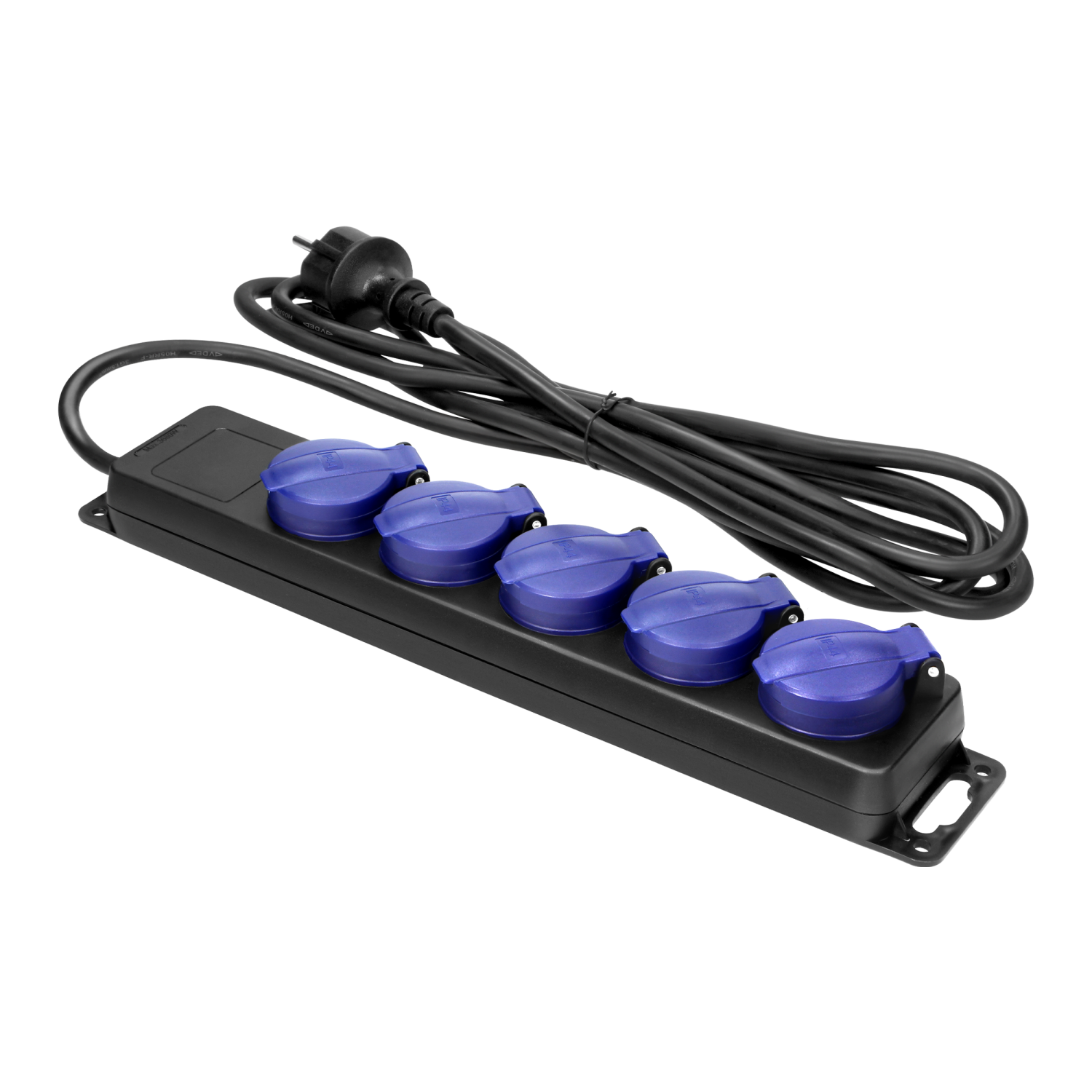

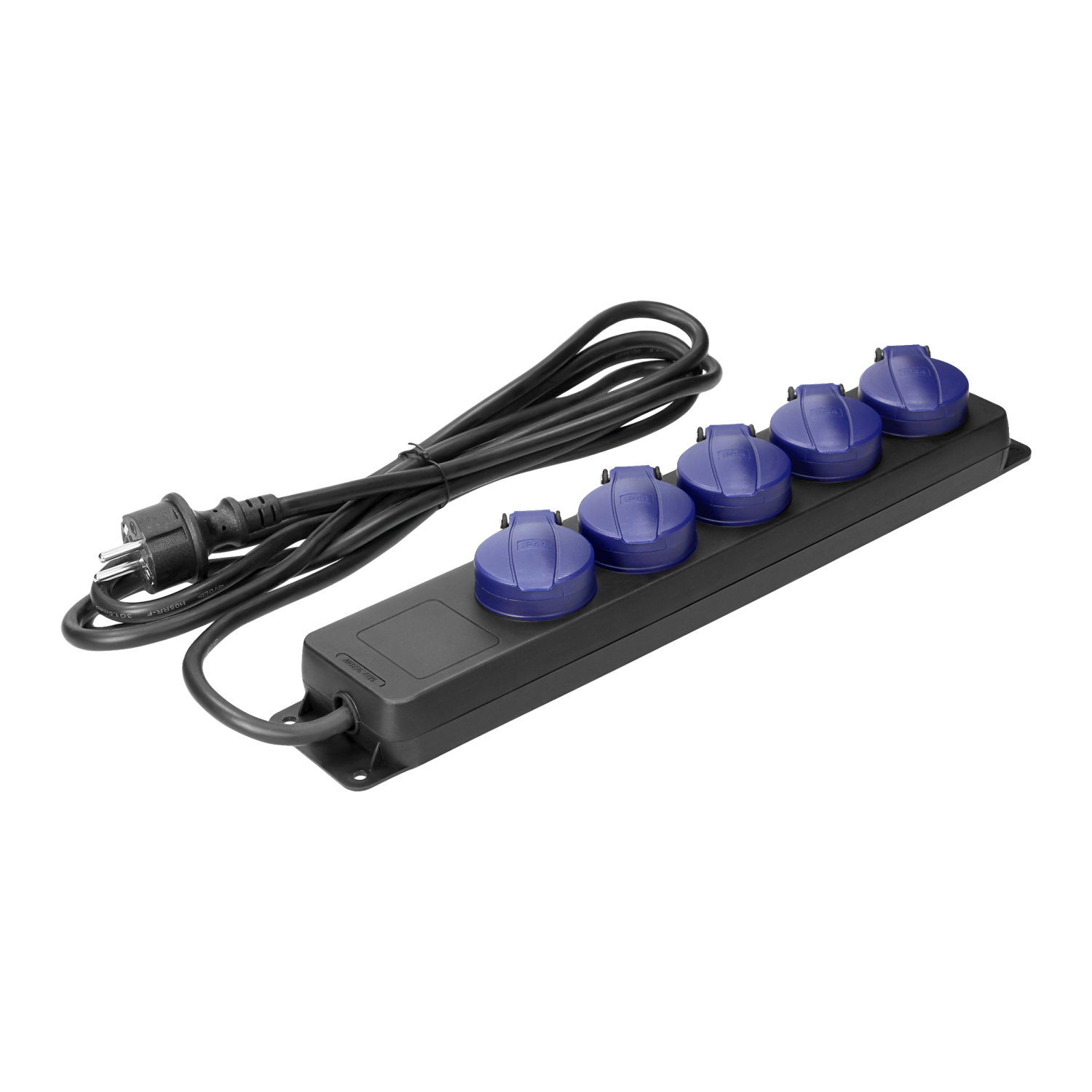

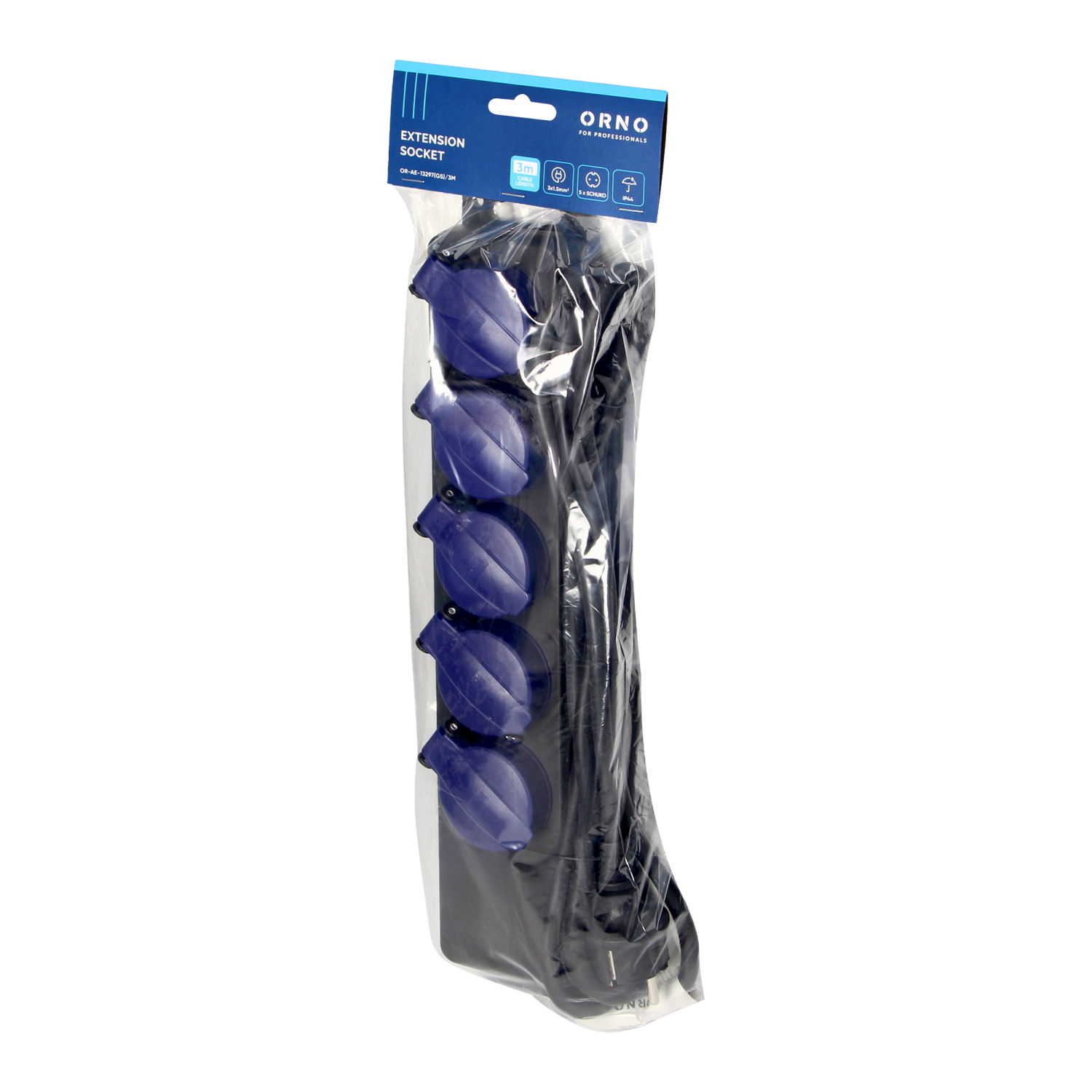

Workshop extension sockets
The splash-proof heavy-duty extension sockets is solid and functional device designed for safe use in demanding conditions.
The unit is equipped with 5 Schuko-type mains sockets 2P+E which ensure save connection of five different devices and electrical appliances at the same time. It is designed to operate with a nominal voltage of 230V, 50Hz and a rated current of 16A and a maximum load of up to 3680W.
The sockets are equipped with safety shutters and protective covers, characteristic for the top-quality products of ORNO for PROFESSIONALS, which effectively protect against dirt and moisture. The IP44 rate means that the device may be used both indoors and outdoors.
The body is rectangular and made of solid plastic. It ensures durability and resistance to mechanical damage. The cable 3 m long has a cross-section of 3x1.5 mm² and H05RR-F insulation.
The device is equipped with a hook that allows to conveniently attach it in a safe place as well as holes for permanent installation at the workplace, which increase functionality and stability of the unit.
The dimensions measure 122x413x64 mm.
| General information: | |
|---|---|
| Housing shape: | Prostokątny |
| Number of socket outlets with earth pin: | 5 |
| Socket type: | 2P+Z |
| Standard socket: | Schuko (typ F) |
| Current path apertures: | Tak |
| With on/off switch: | Nie |
| Supply voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Nominal current [A]: | 16 |
| Max. connected load [W]: | 3680 |
| Number of conductors: | 3 |
| Core cross section [mm²]: | 1.5 |
| Cable type: | H05RR-F |
| Insulation type: | guma |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface finishing: | Matowy |
| Colour: | Czarno-granatowy |
| Degree of protection (IP): | IP44 |
| Length of power cord [m]: | 3 |
| Dimensions - width [mm]: | 105 |
| Dimensions - height [mm]: | 370 |
| Dimensions - depth [mm]: | 70 |
| Weight [kg]: | 0.65 |
