OR-AE-13296(GS)/5M

Description

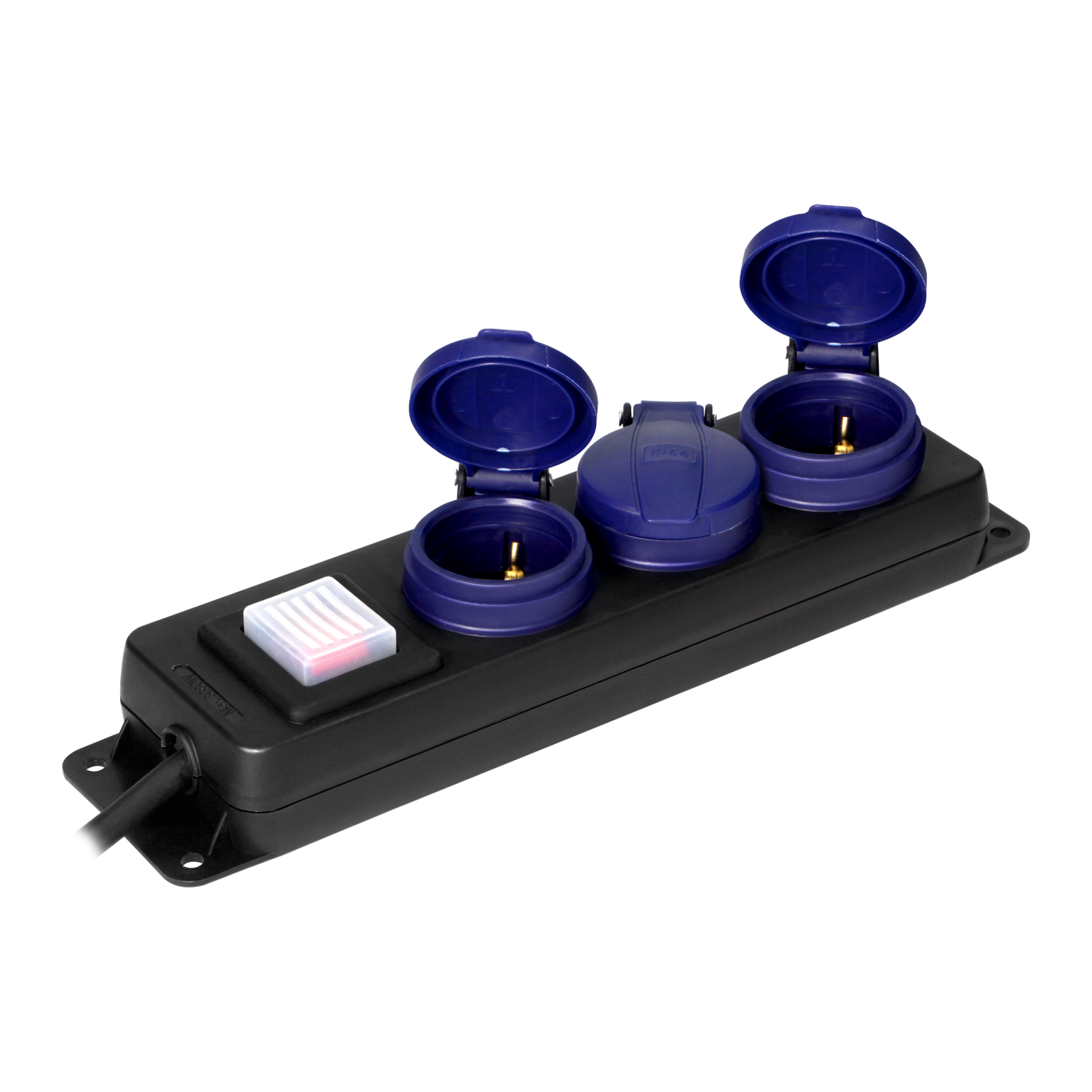

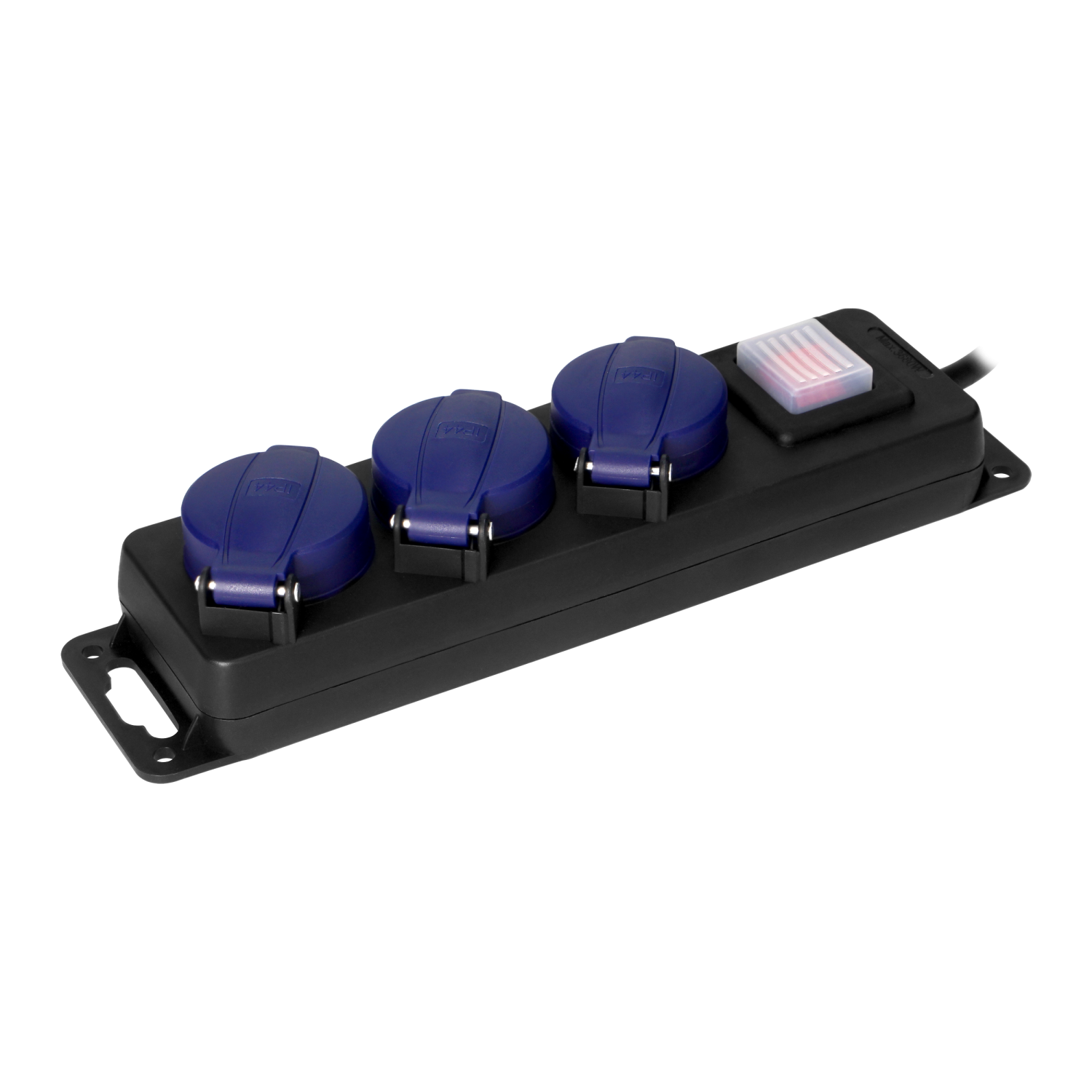

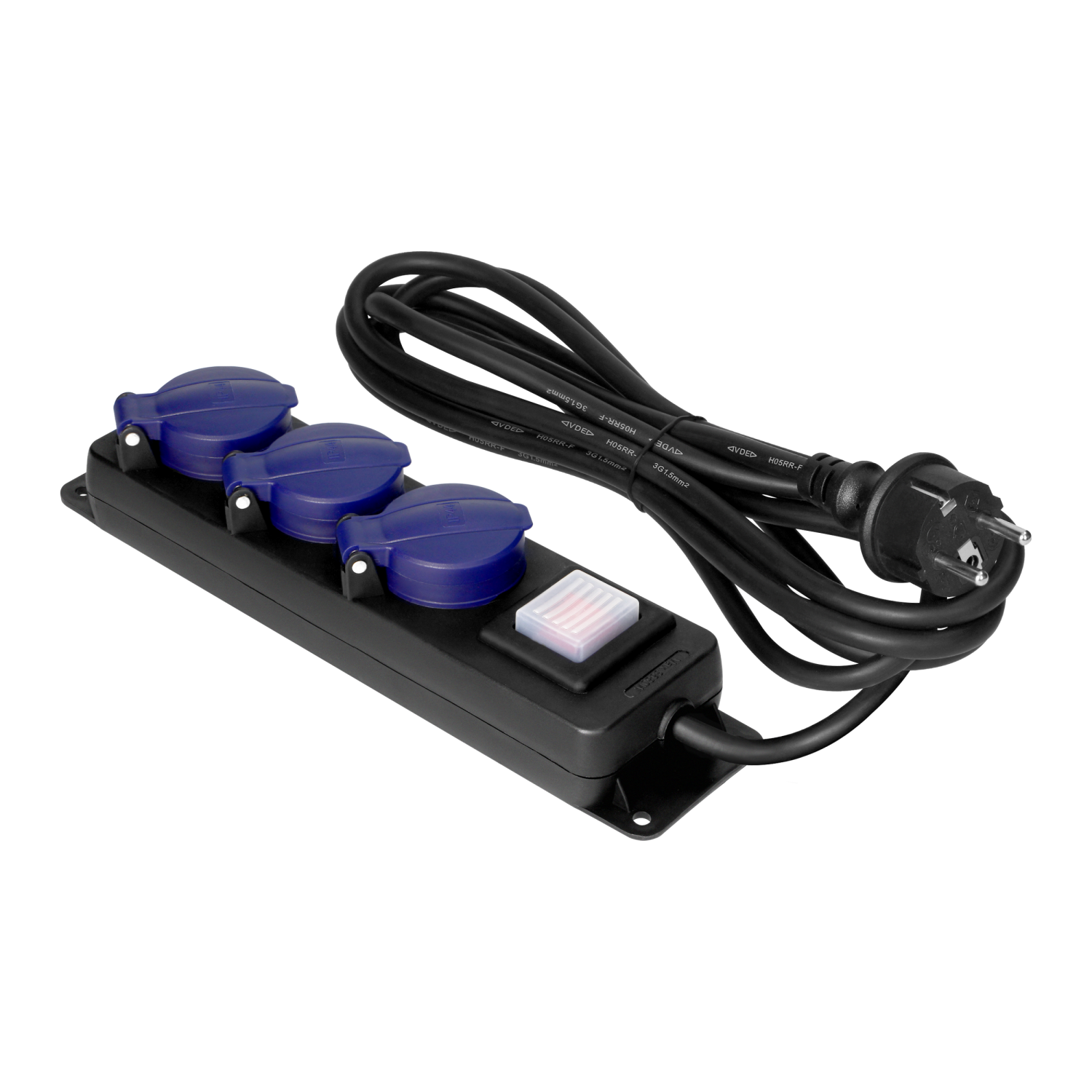

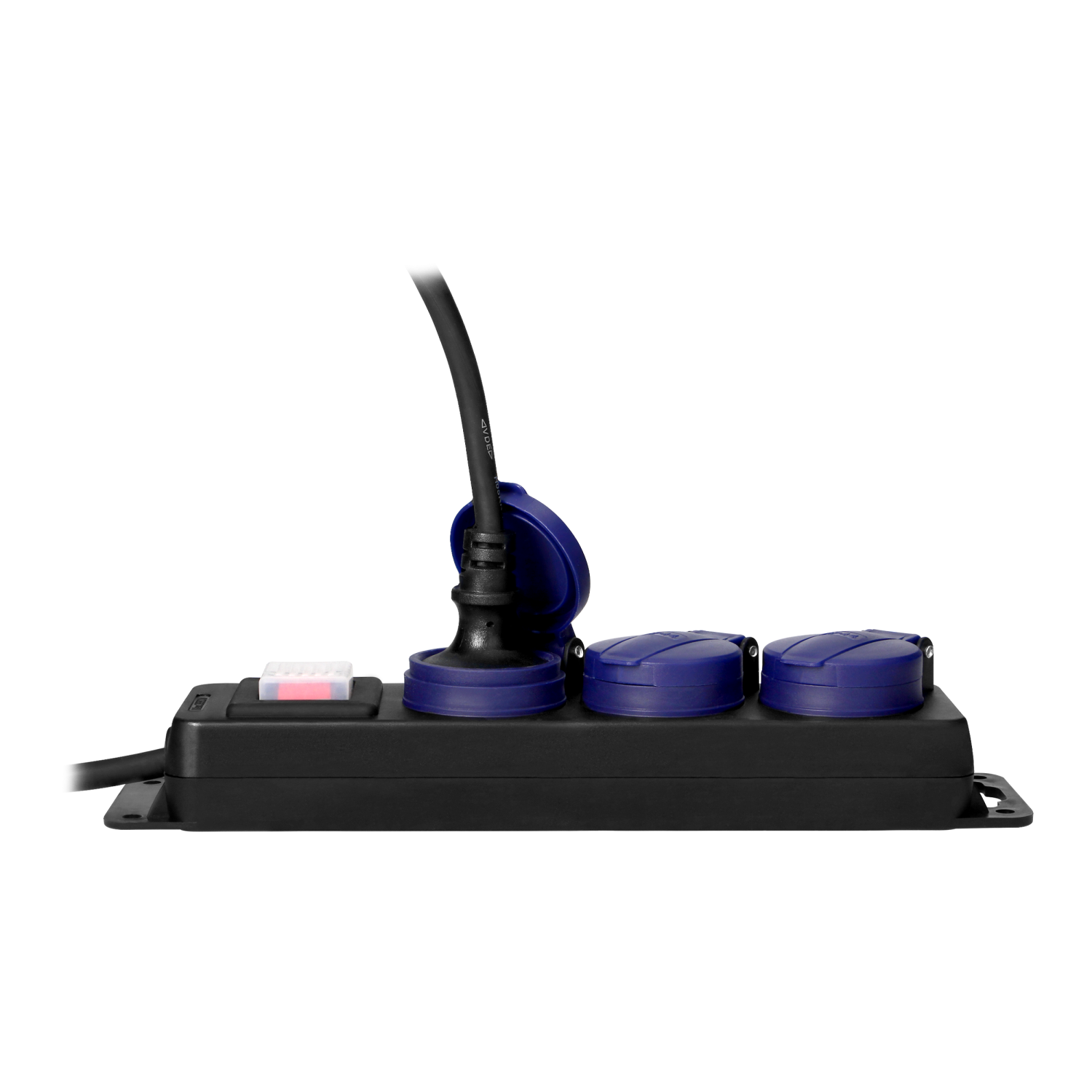

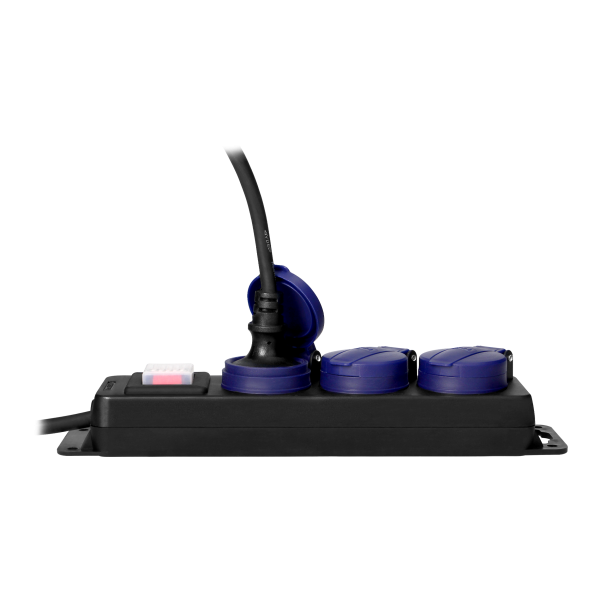

The splash-proof heavy-duty extension socket with cable 5 m long is a solid and functional device designed for safe use in demanding conditions.

The unit is equipped with 3 Schuko-type sockets 2P+E which ensure safe connection of three different devices and electrical appliances at the same time. The extension socket is designed to operate with a nominal voltage of 230V, 50Hz and a rated current of 16A and a maximum load of up to 3680W.

The sockets are equipped with safety shutters and special blue protective covers which are characteristic for the top-quality products of Orno for Professionals brand and effectively protect against the ingress of dirt and moisture. The IP44 rate means that the device may be used both indoors and outdoors.

The extension socket is also equipped with a built-in switch, which facilitates safe management of the connected devices, without having to unplug them from the socket. This solution increases the user’s comfort, especially in situations where frequent power checks are required.

The body is rectangular and made of durable PP plastic. It ensures durability and resistance to mechanical damage. The surface of the body is matt and aesthetic. The cable insulation is made of H05RR-F rubber and has a cross-section of 3x1.5 mm².

The device is equipped with a hook that allows to conveniently attach it in a safe place, as well as holes for permanent installation at the workplace, which increases its functionality and stability.

The dimensions of the device measure 101x308x89 mm.

General information:
Body shape: Prostokątny
Number of sockets with protective contact (SCHUKO): 3
Socket type: 2P+Z
Standard socket: Schuko (typ F)
Current path apertures: Tak
With on/off switch: Tak
Supply voltage [V].: 230
Frequency [Hz].: 50
Rated current [A].: 16
Max. load [W].: 3680
Number of conductors: 3
Cable cross section [mm²]: 1.5
Cable type: H05RR-F
Insulation type: guma
With lid: Tak
Material: Tworzywo sztuczne
Grade of material: Tworzywo termoplastyczne
Surface protection: Matowy
Color: Czarny
Degree of protection (IP): IP44
Power cord length [m]: 5
Angle-turned center insert: Tak
Dimensions - width [mm]: 101
Dimensions - height [mm]: 308
Dimensions - depth [mm]: 89
Weight [kg]: 0.869

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-05-07 12:44:24Download
Product data sheetENpdf2025-05-07 12:57:31Download
