Wall sensors

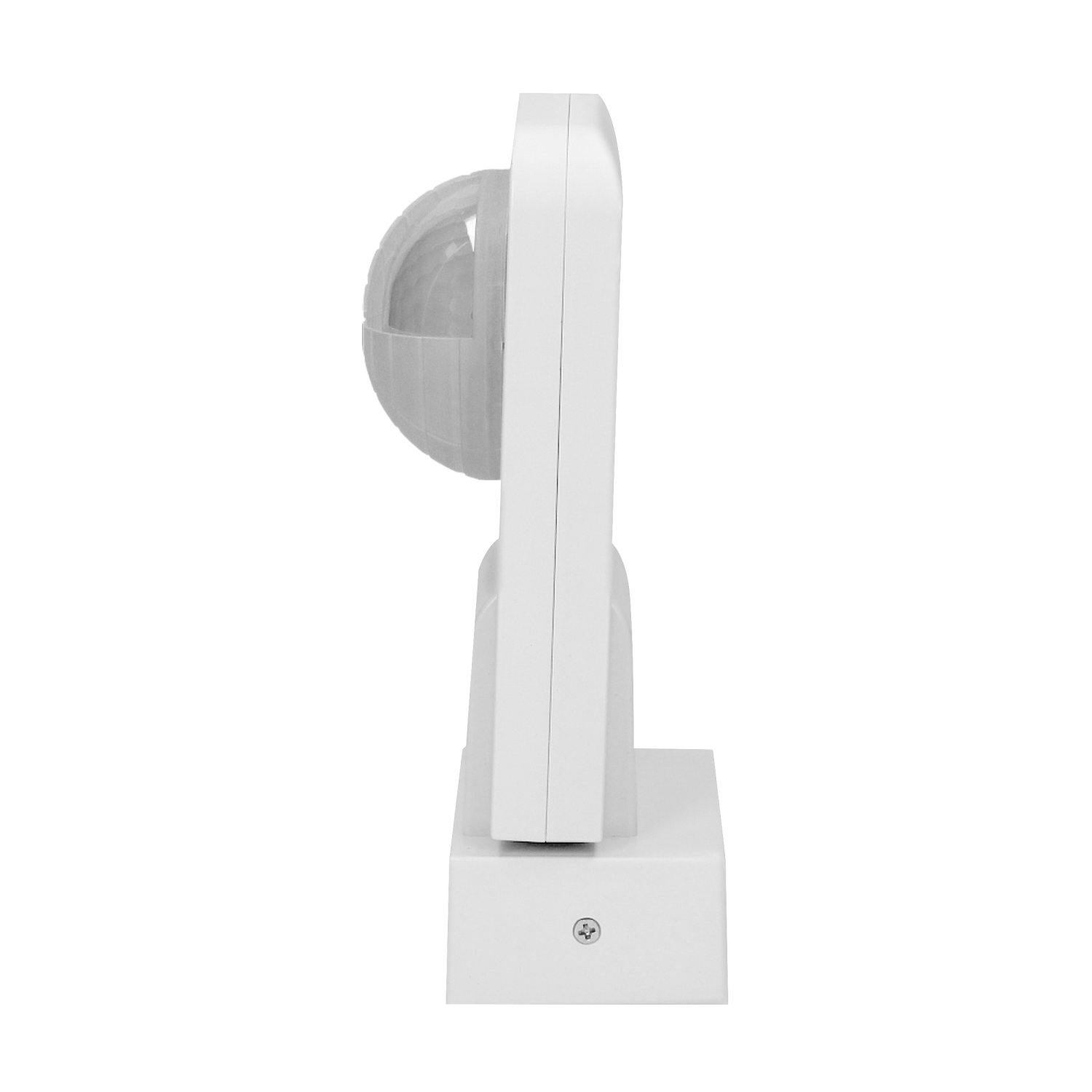

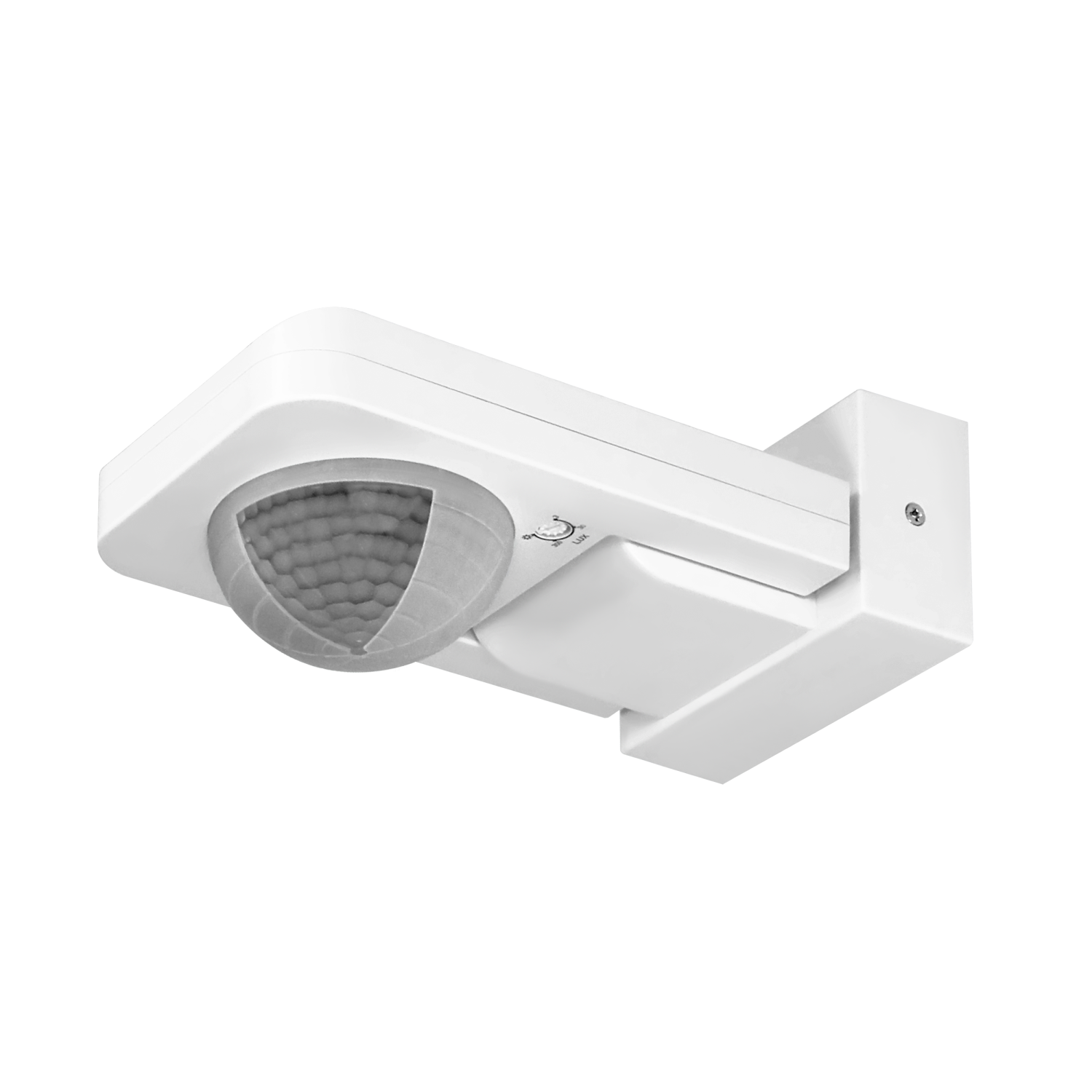

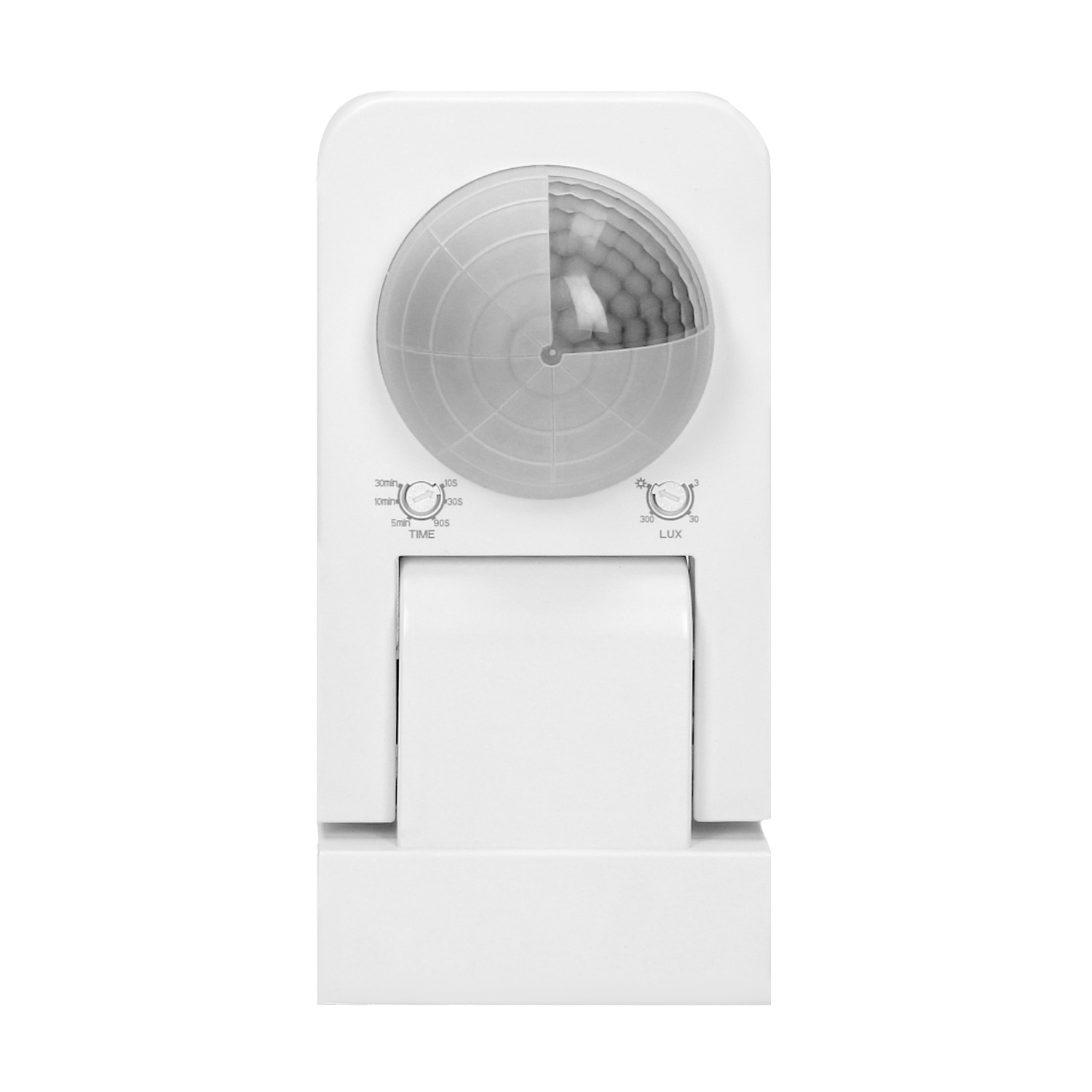

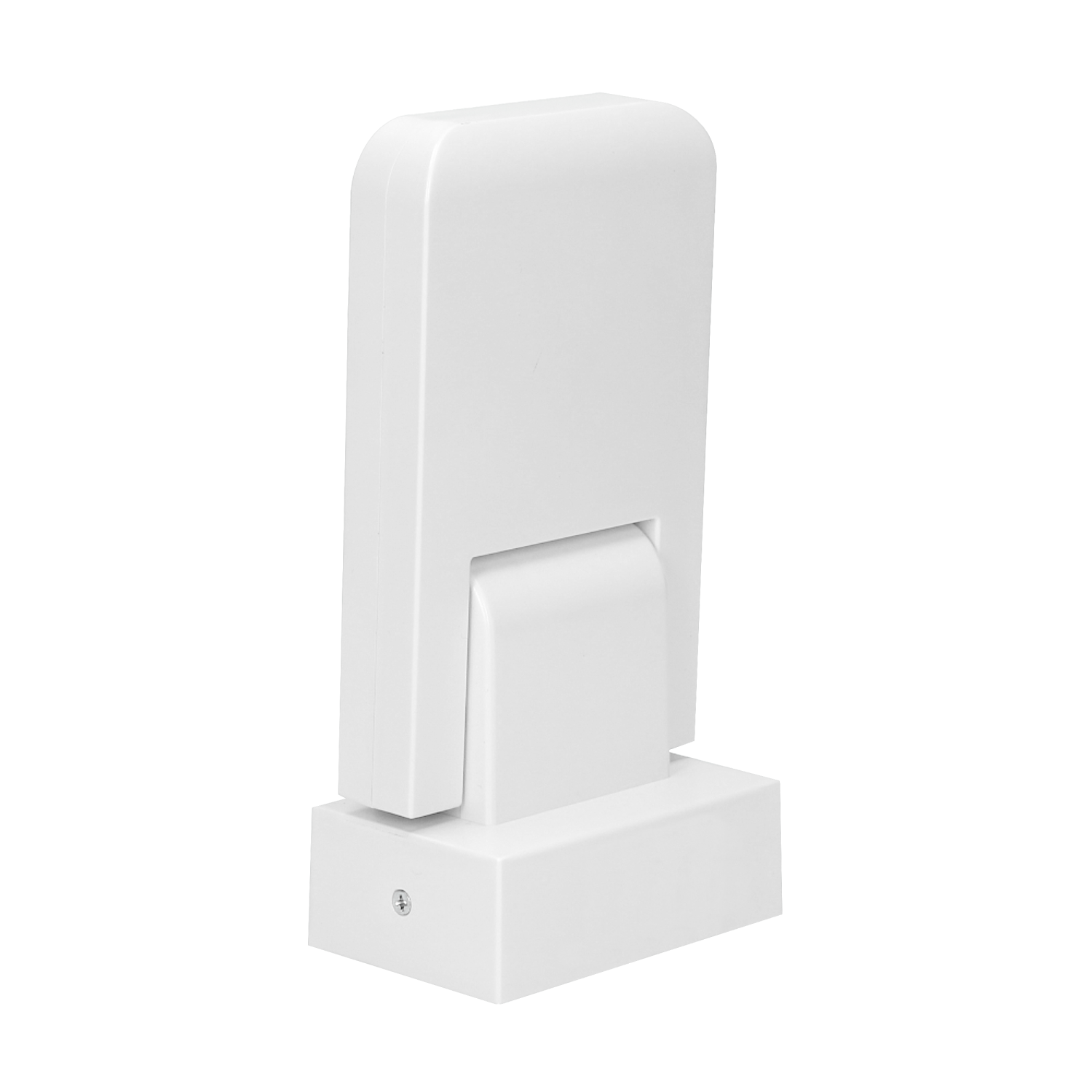

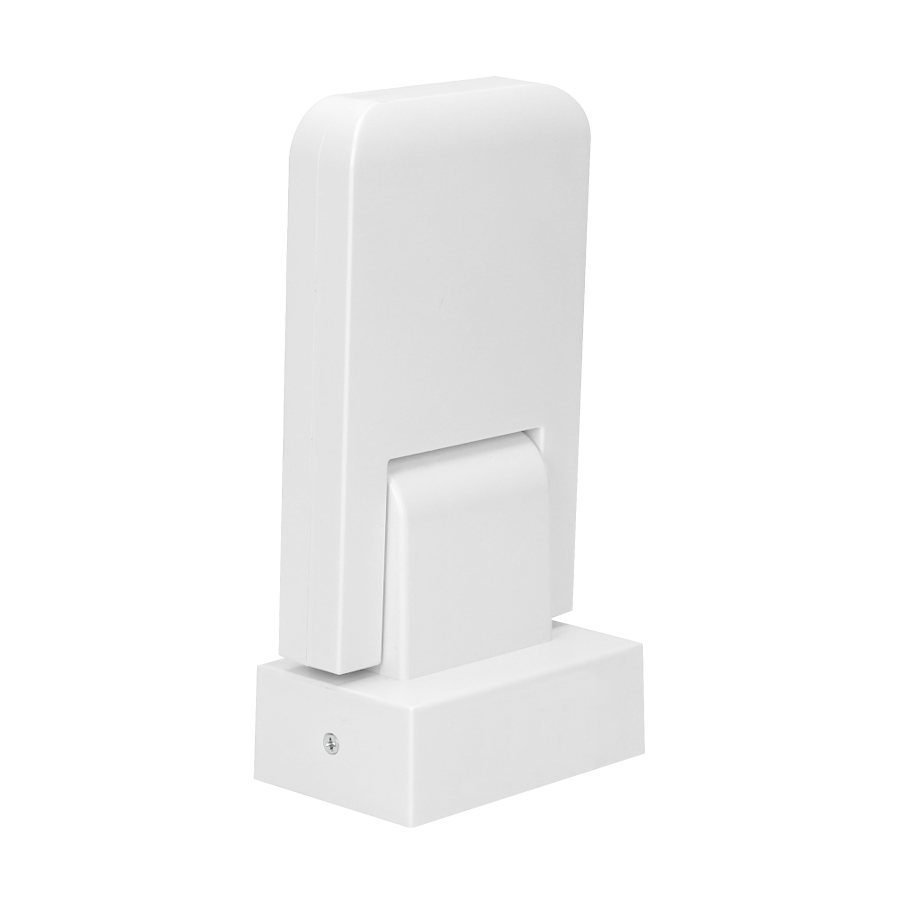

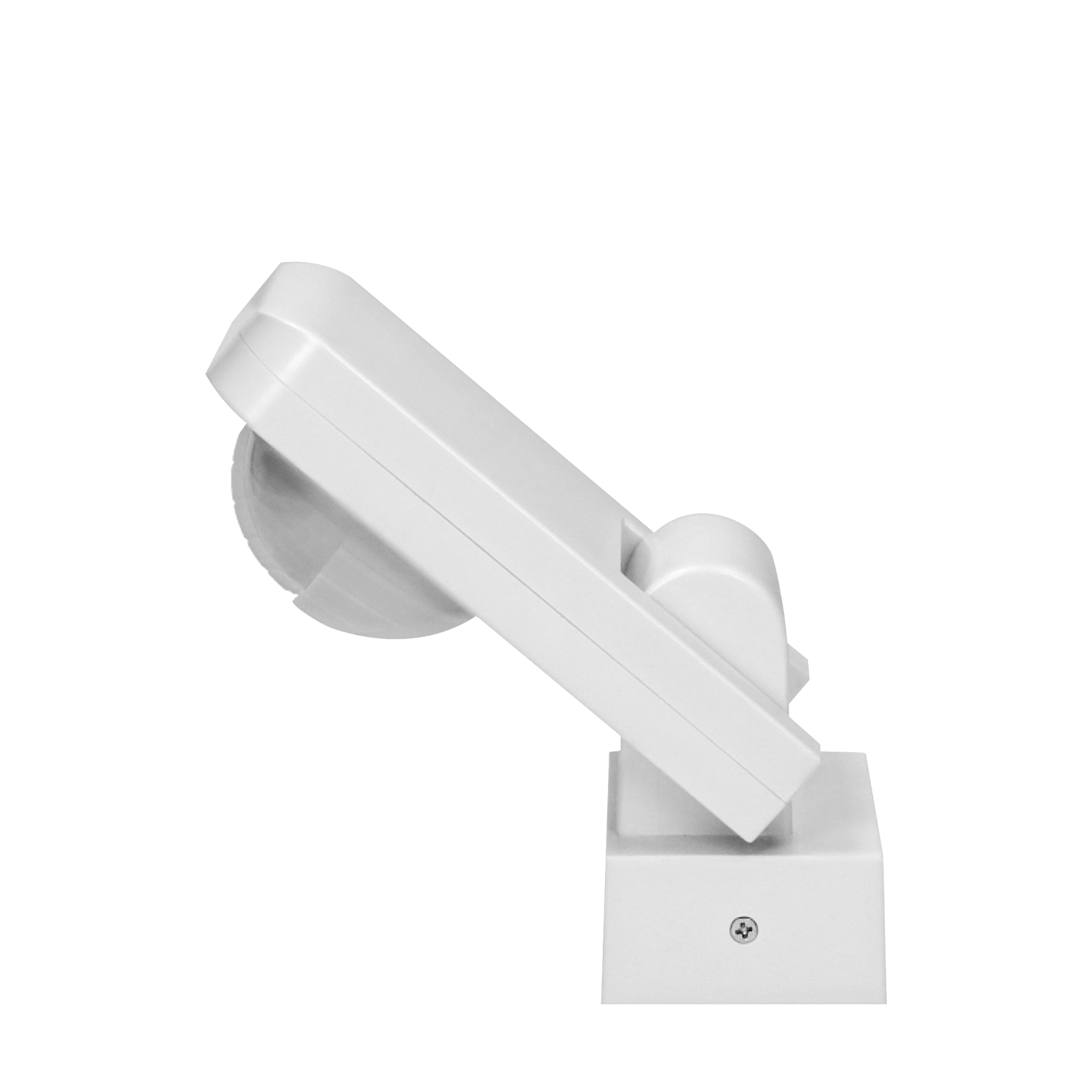

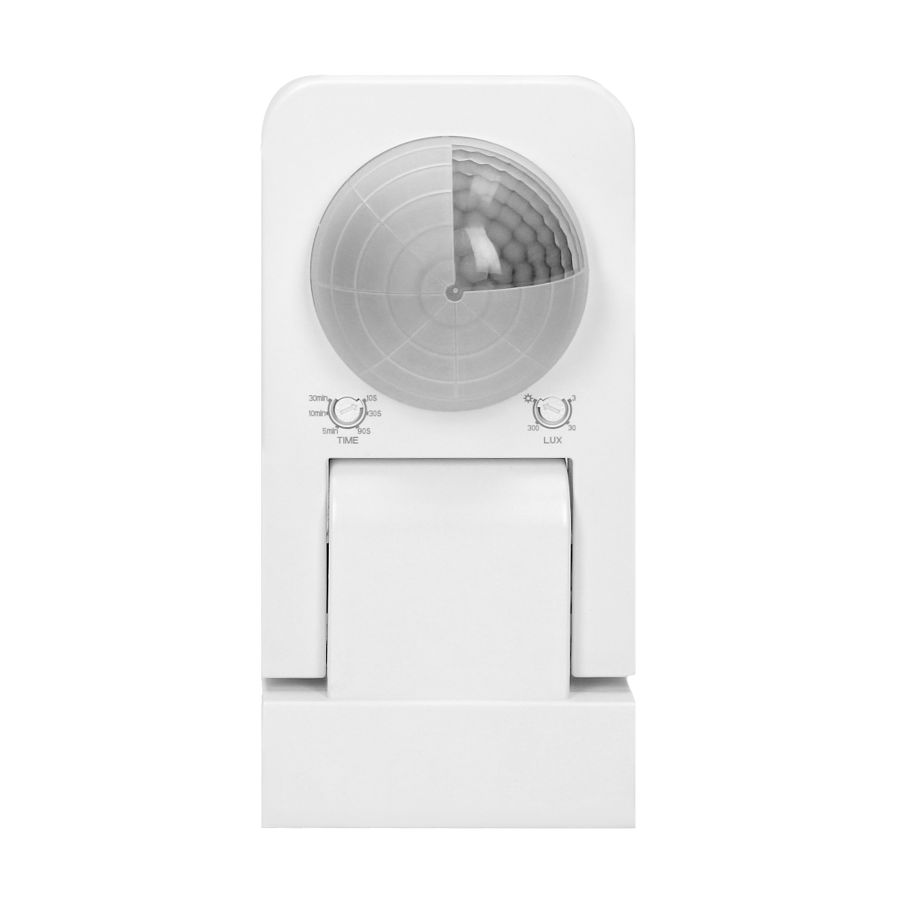

The motion sensor is designed for an automatic control of lighting or other electrical equipment. Triple system of sensors with detectors placed at a special angle provides control of the entire area. The device is suitable for use in large rooms, e.g.: warehouse halls, waiting rooms. The sensor is characterized by higher intelligence and greater accuracy, which allows detection of even the smallest movements. Potentiometers for regulation: lighting time and sensitivity of light intensity. The sensor collaborates with LED lighting.
| General information: | |
|---|---|
| Model: | Czujnik obecności |
| Sensor type: | Podczerwień pasywna |
| Scan angle [°]: | 360 |
| Optimum mounting height [m]: | 2,2-6 |
| Max. reach sideways [m]: | 10 |
| Max. reach frontally [m]: | 10 |
| Diameter reach on floor [m]: | 20 |
| Detection moving speed [m/s]: | 0,6-1,5 |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lx]: | <3-2000 |
| Mounting method: | Montaż natynkowy |
| Suitable for ceiling mounting: | Tak |
| Suitable for wall mounting: | Tak |
| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP65 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Min. switch-on time [s]: | 10 |
| Max. duty cycle [min]: | 30 |
| Detection angle horizontal [°]: | 360 |
| Max. switching power [W]: | 2000 |
| Max. switching power LED [W]: | 500 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Width [mm]: | 87 |
| Height [mm]: | 52 |
| Depth [mm]: | 175 |
| Weight [g]: | 240 |
