Twilight sensors

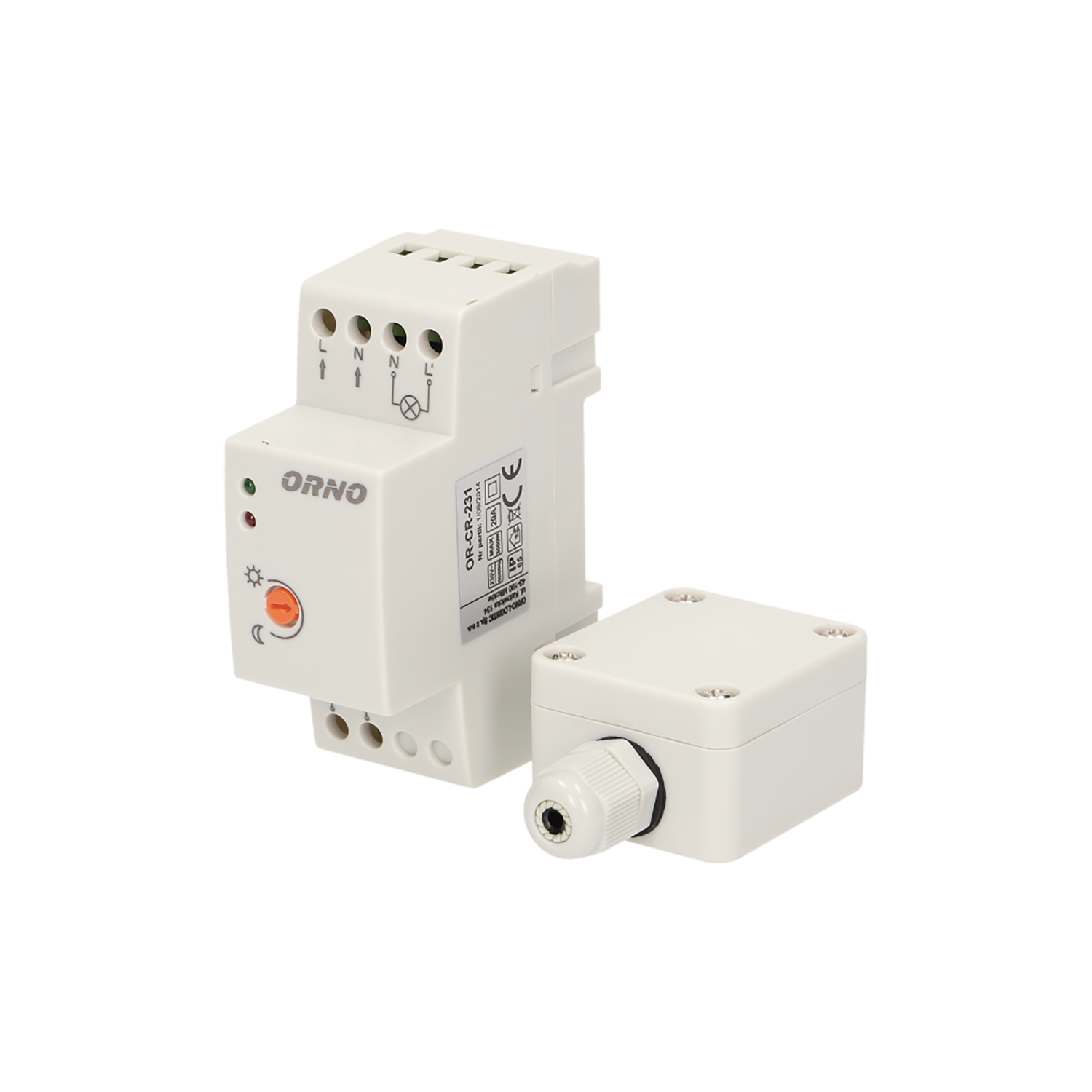

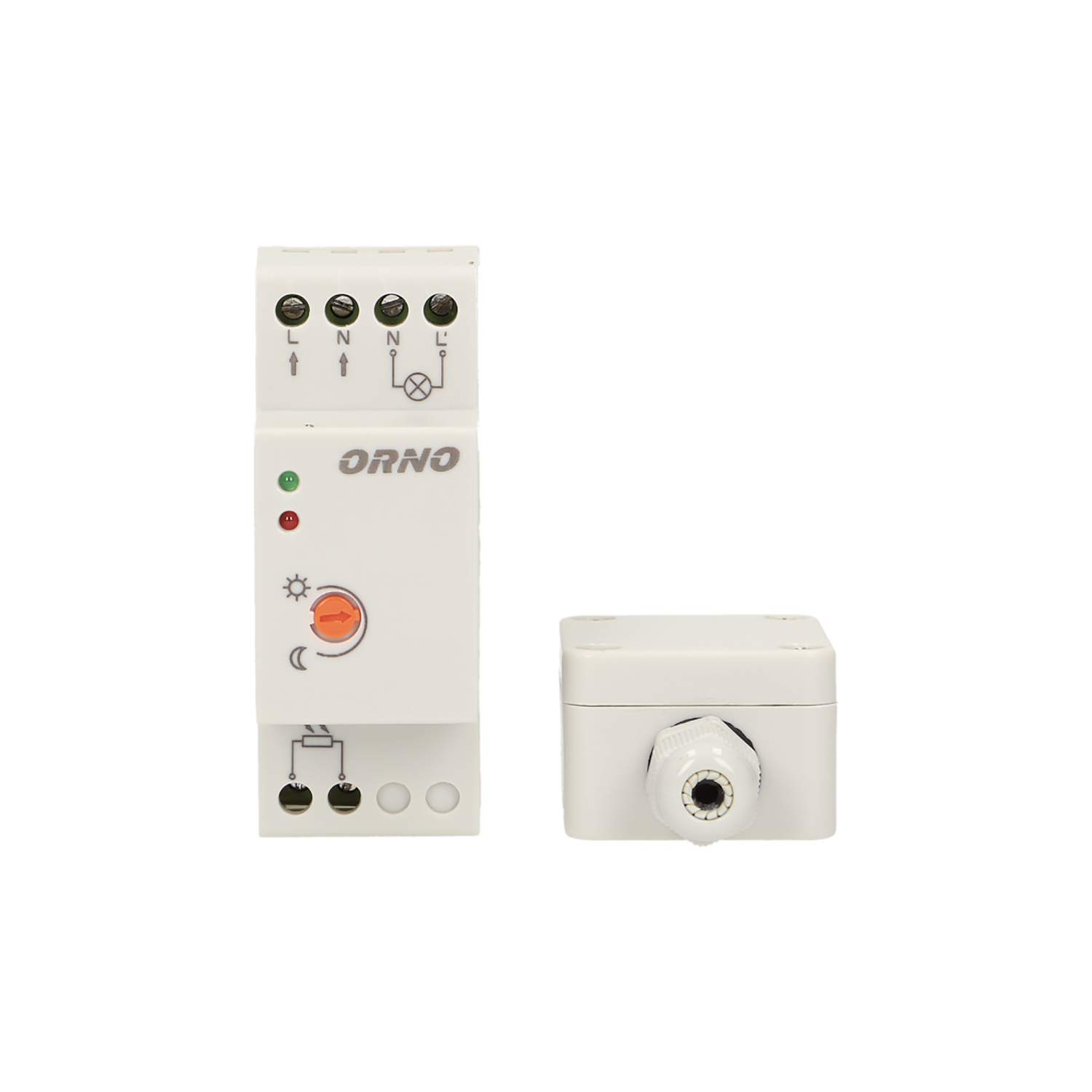

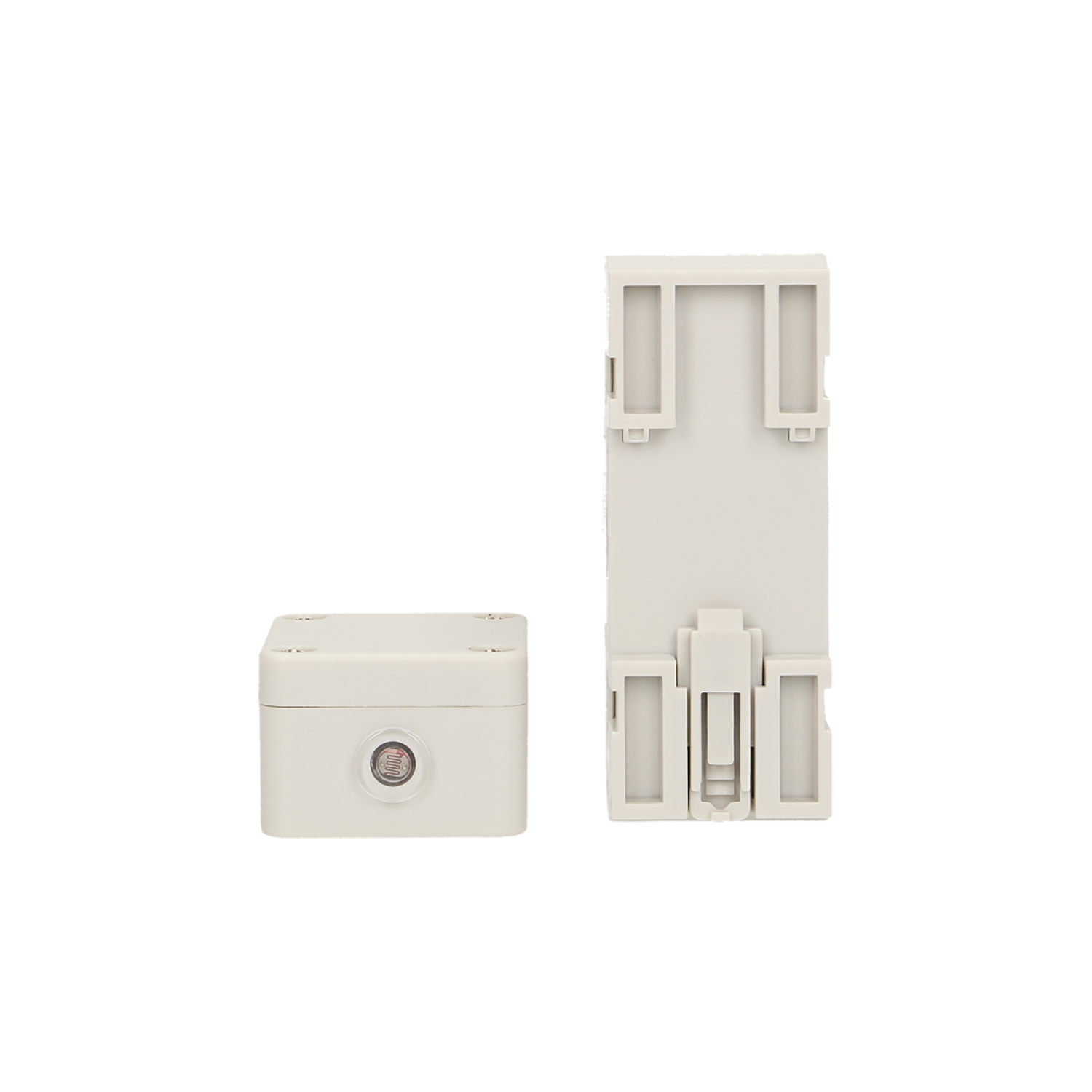

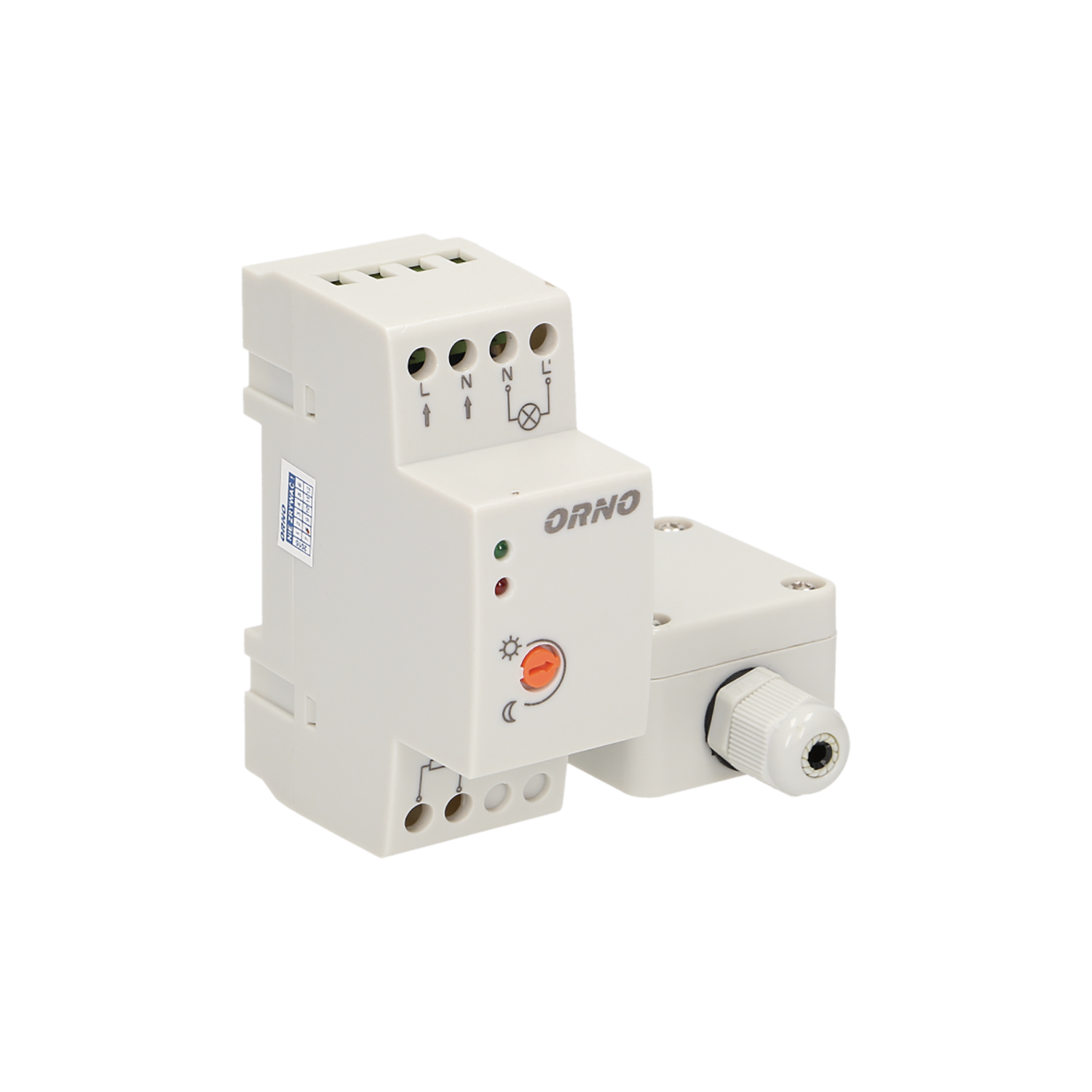

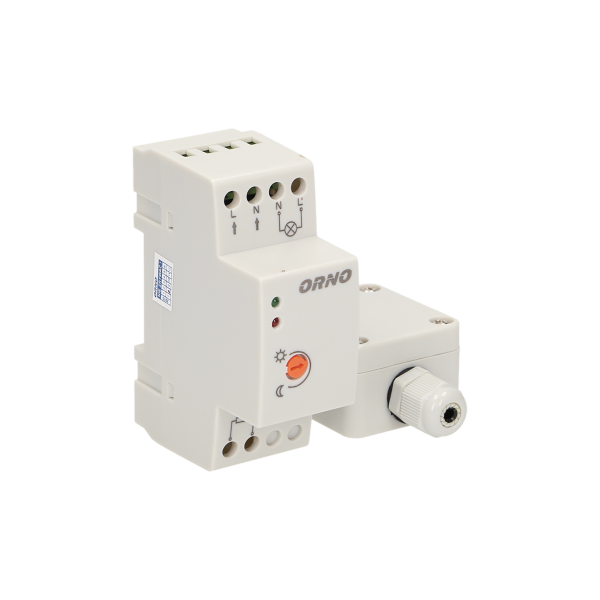

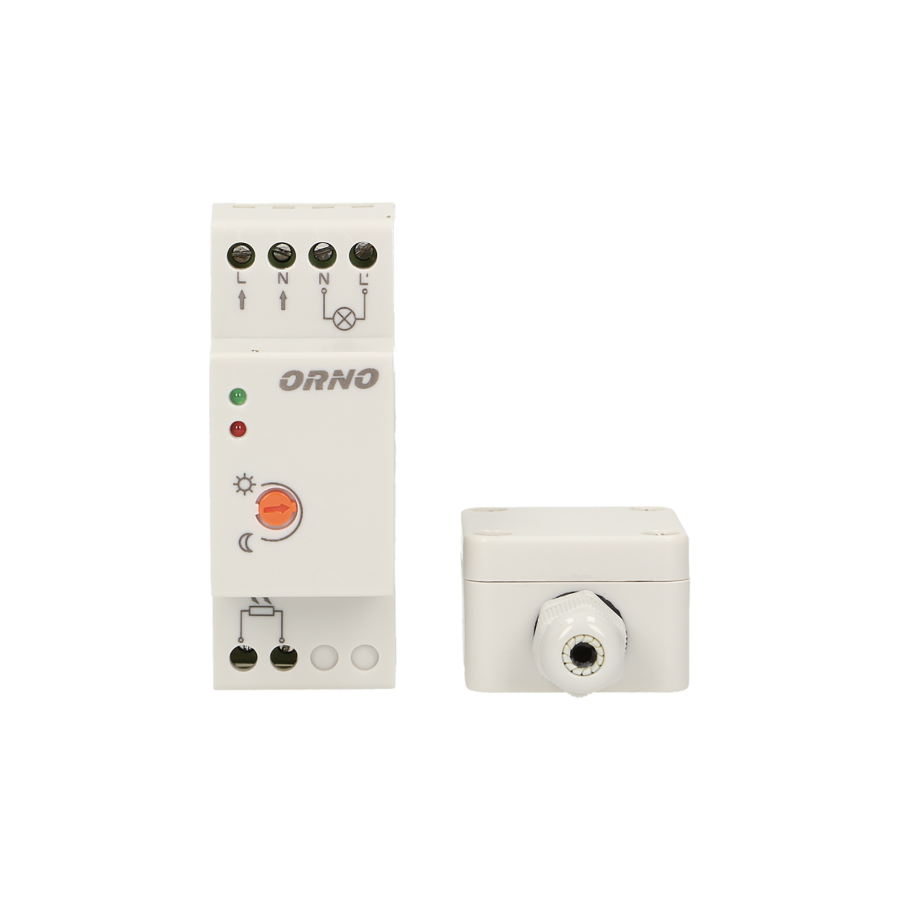

Twilight sensor with hermetic probe in the outside box (connected through a choke cable length max. 15m) For indoor and outdoor usage Collaborates with LED lighting Regulation: the sensitivity of the light intensity (LUX) Small size and easy installation on a DIN rail Light-sensitive sensor is located in a special, small tin.
| General information: | |
|---|---|
| Model: | Inny |
| Response value luminosity adjustable: | Tak |
| Light intensity adjustment range [lx]: | <2-100 |
| Mounting method: | Na szynę DIN |
| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection: | IP65/IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Max. switching power [W]: | 3000 |
| Max. switching power LED [W]: | 750 |
| Power consumption [W]: | 0.5 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Width [mm]: | 42 |
| Height [mm]: | 48 |
| Depth [mm]: | 30 |
| Weight [g]: | 136 |
