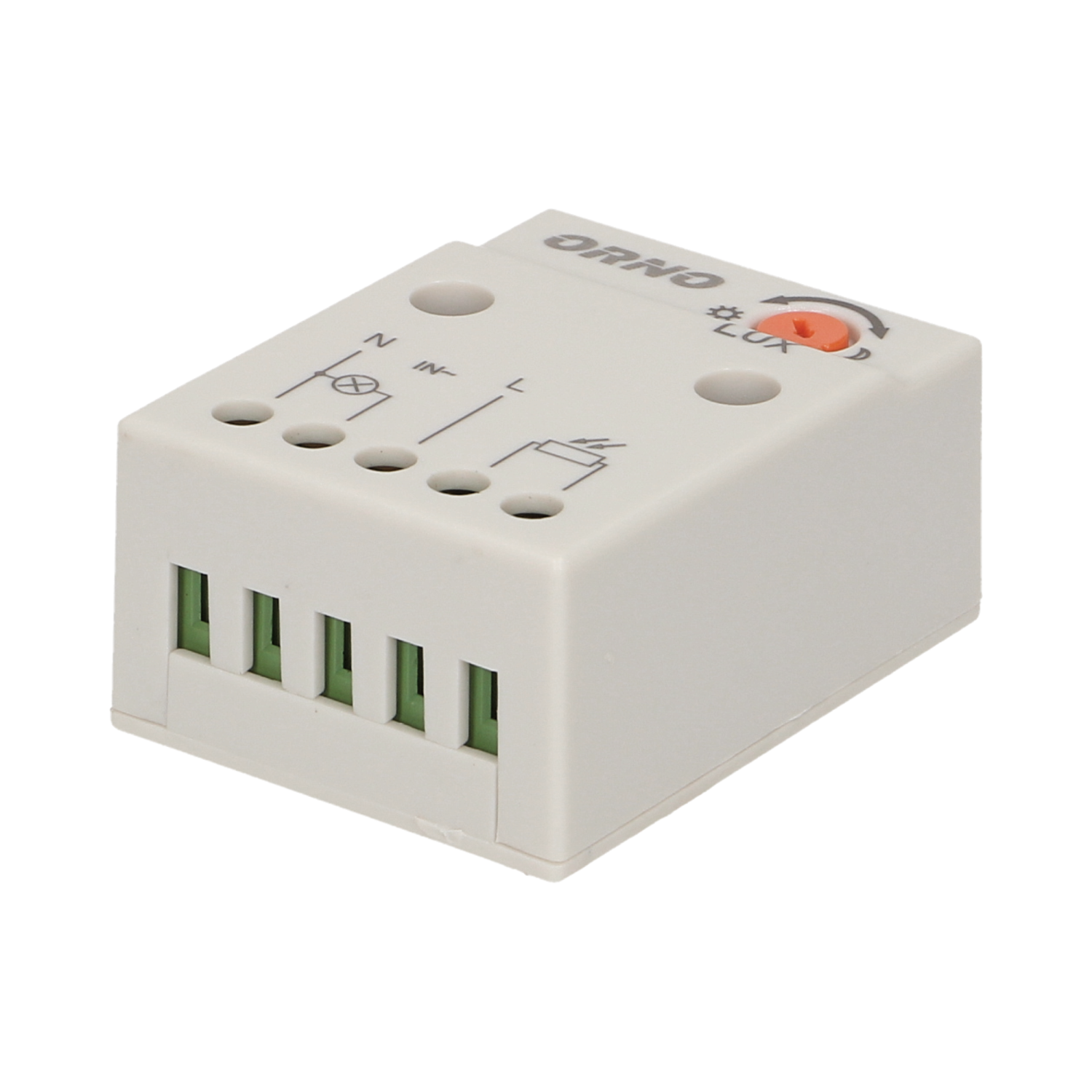

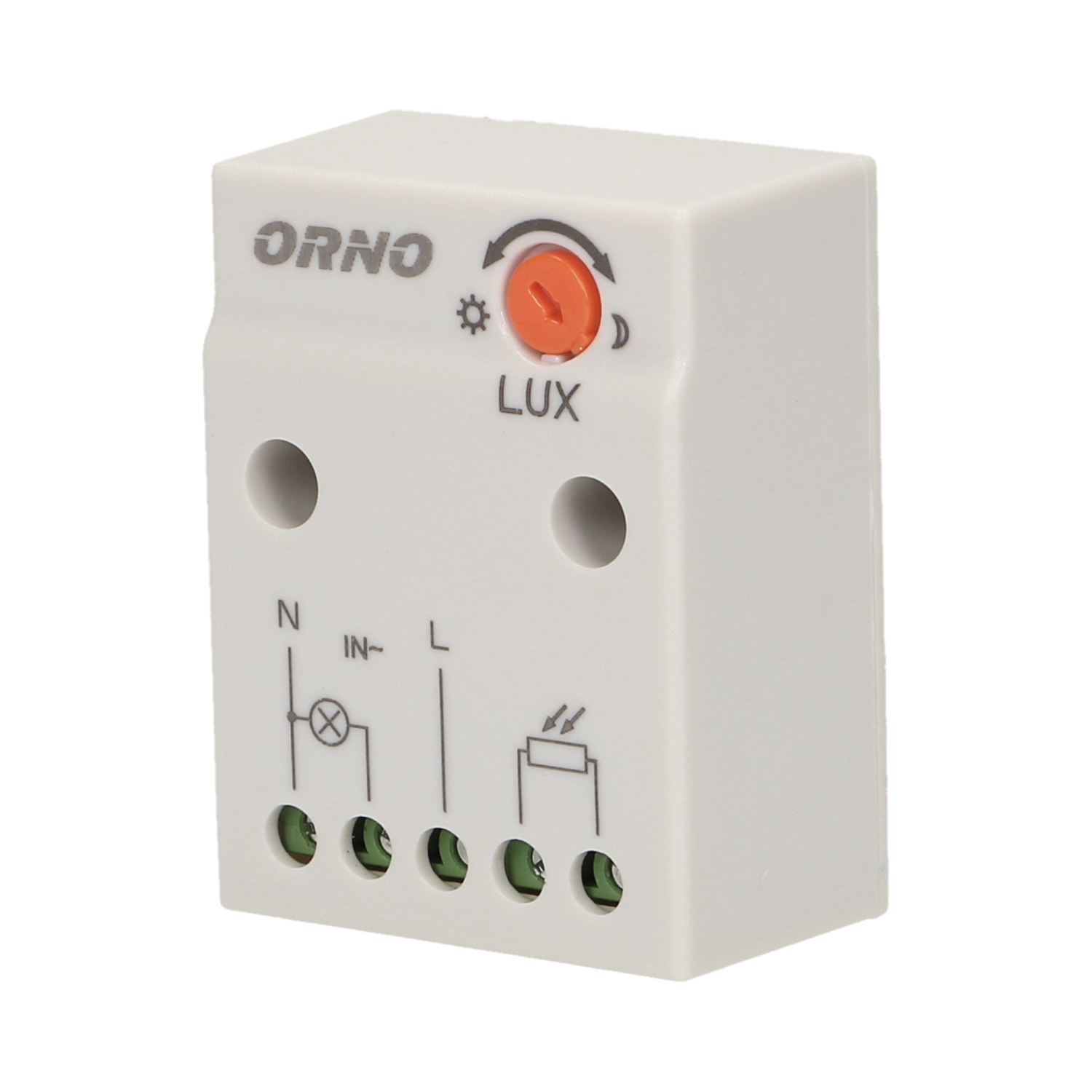

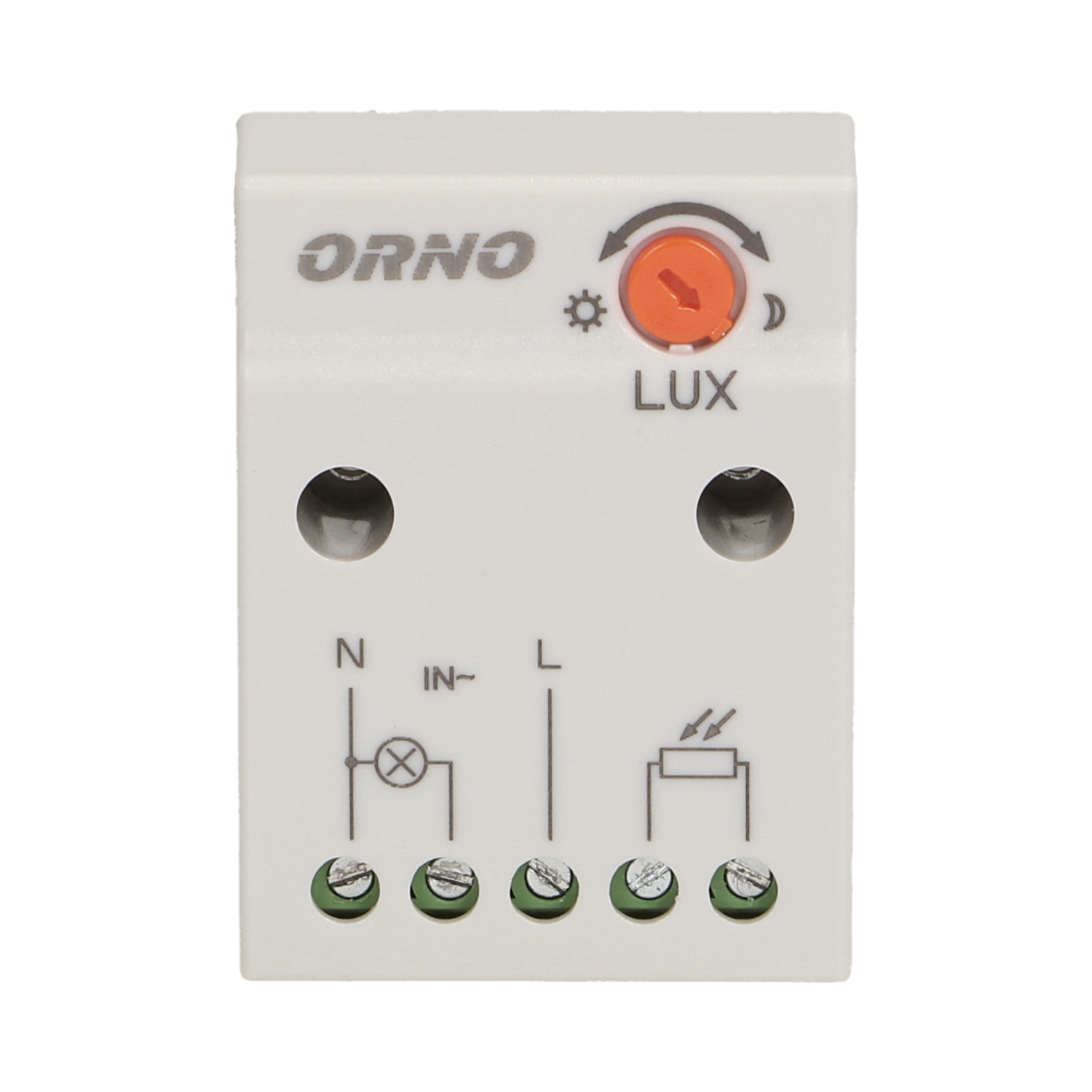

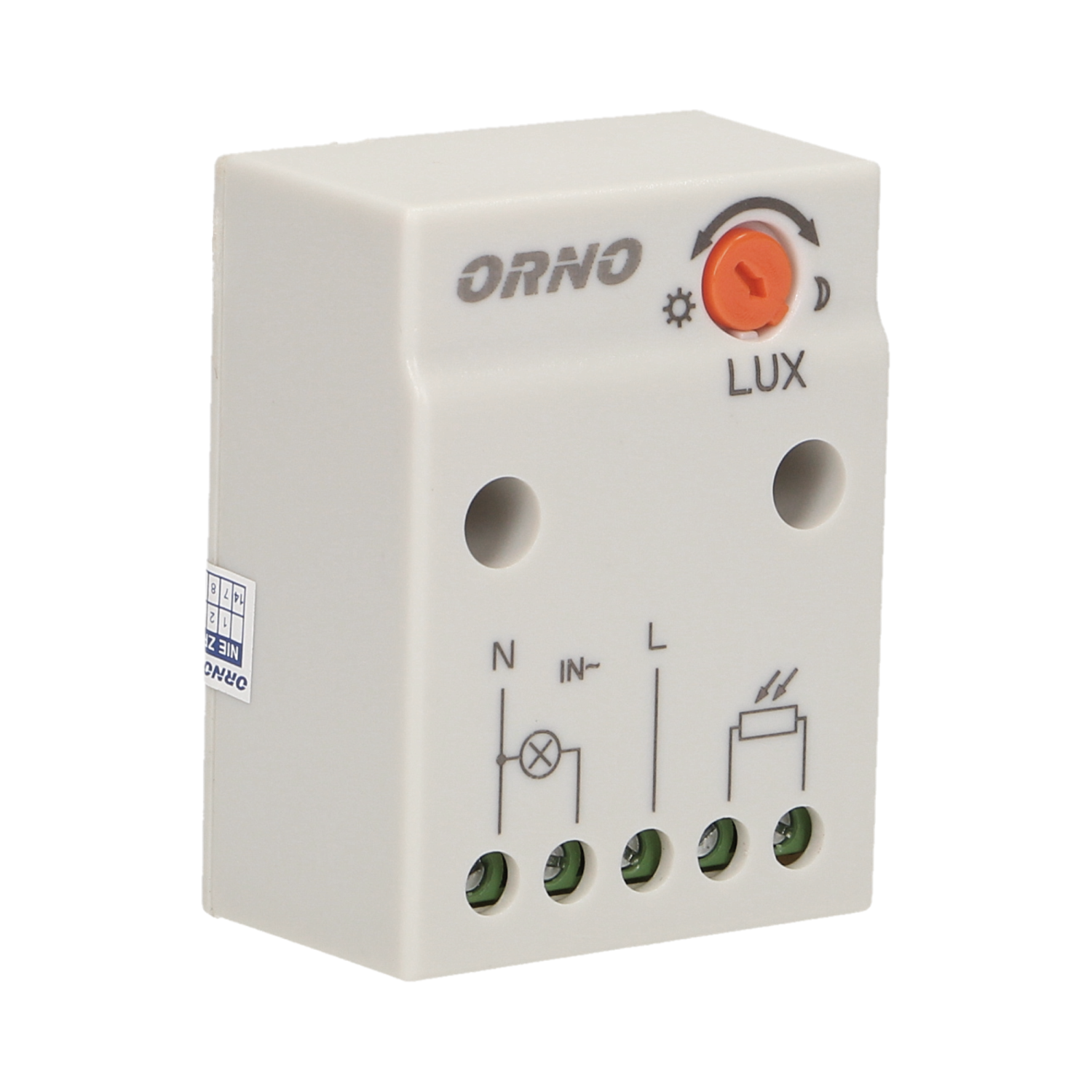

Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65
Twilight sensor with external probe, IP65

Twilight sensor with external probe, IP65

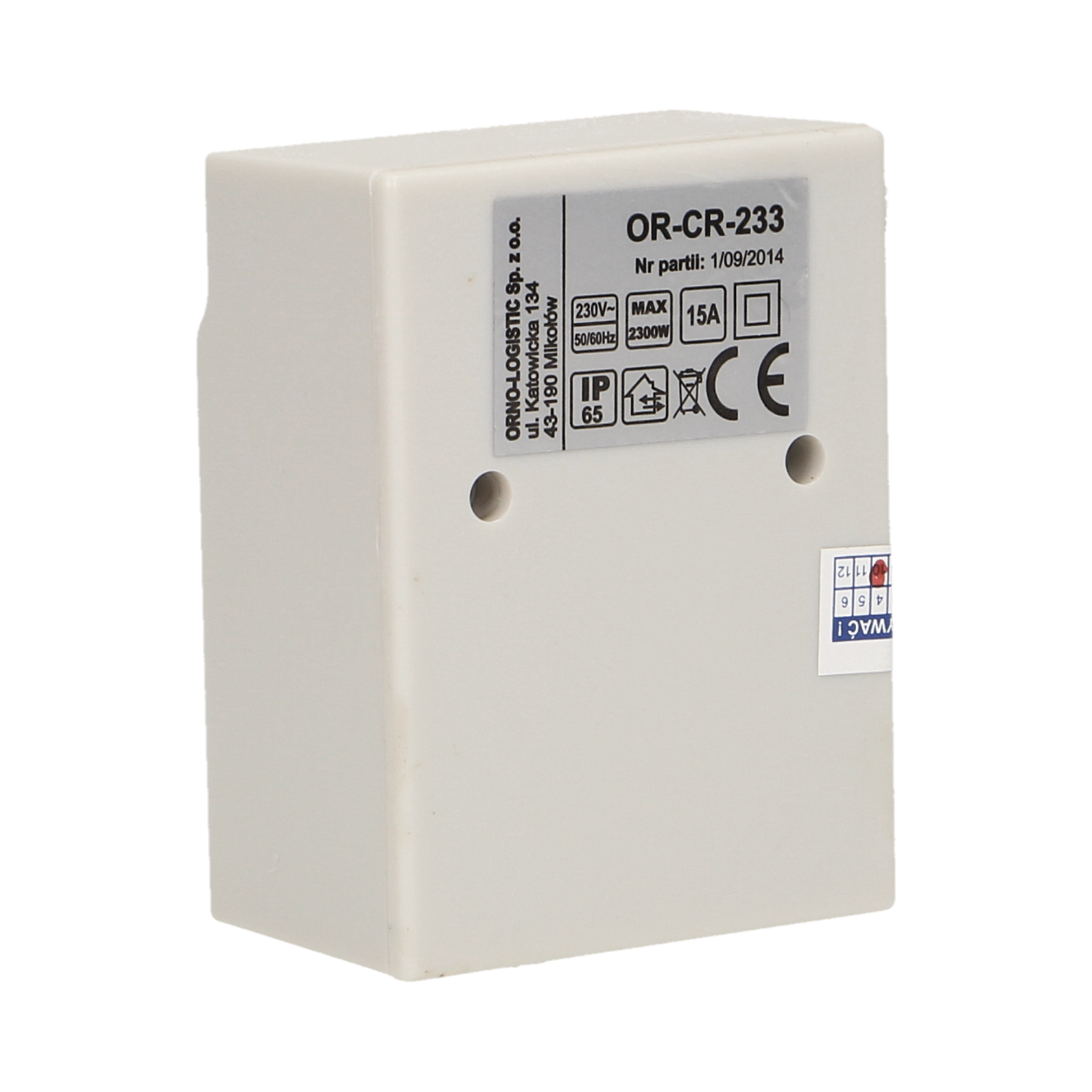

OR-CR-233

Description

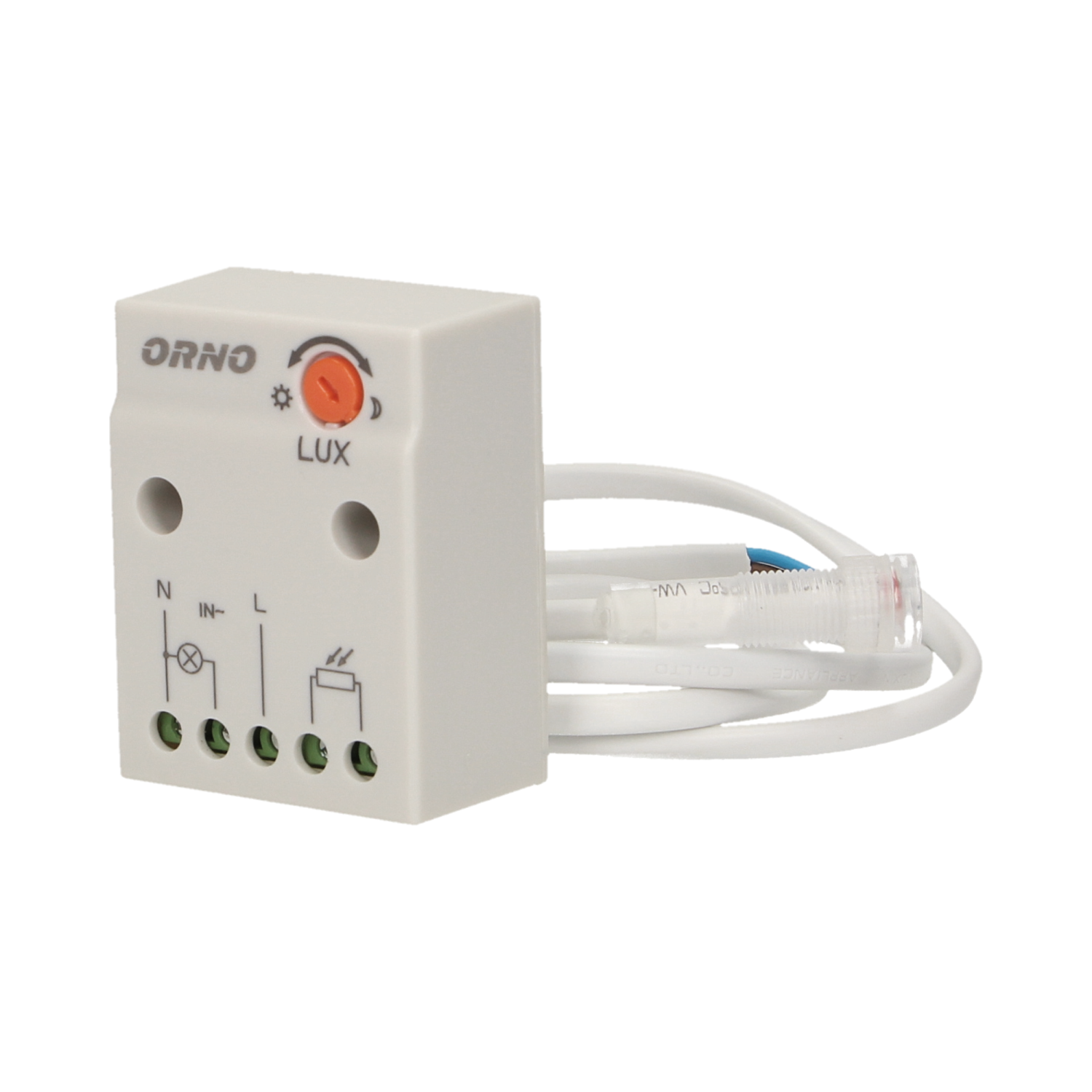

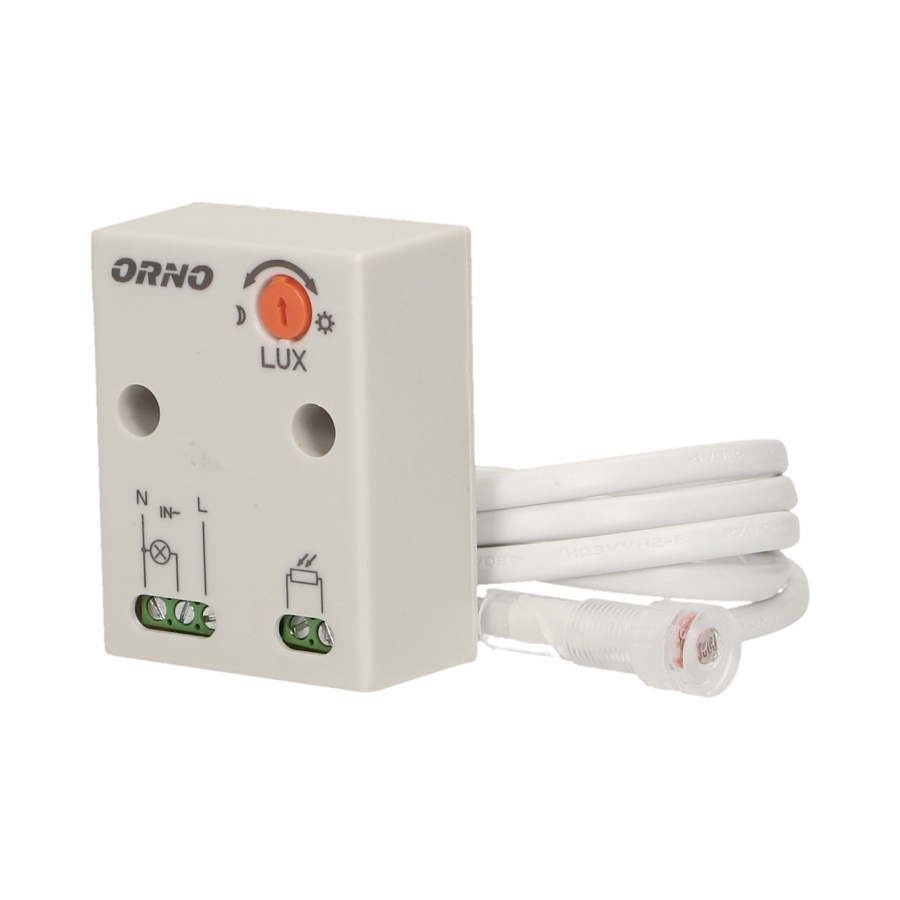

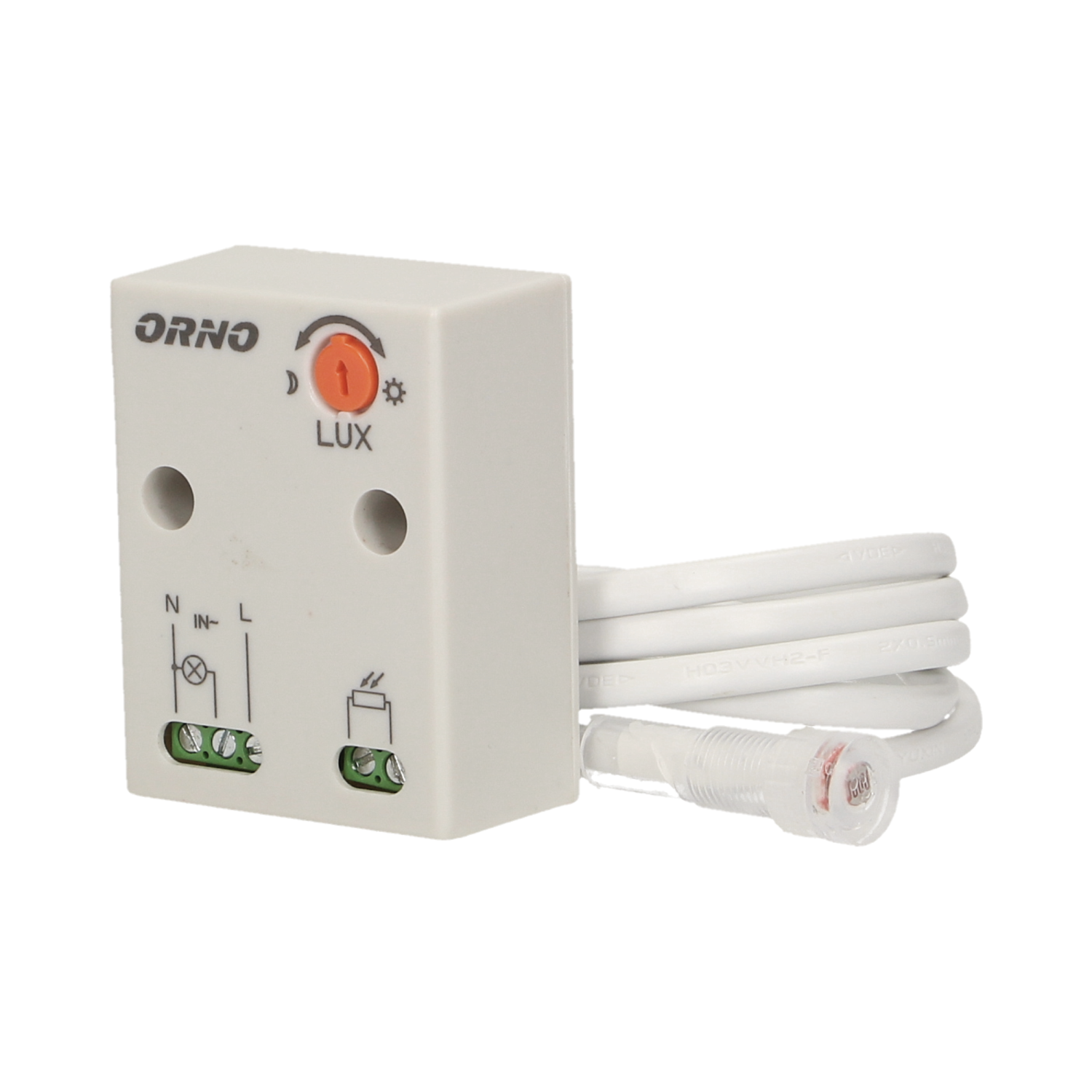

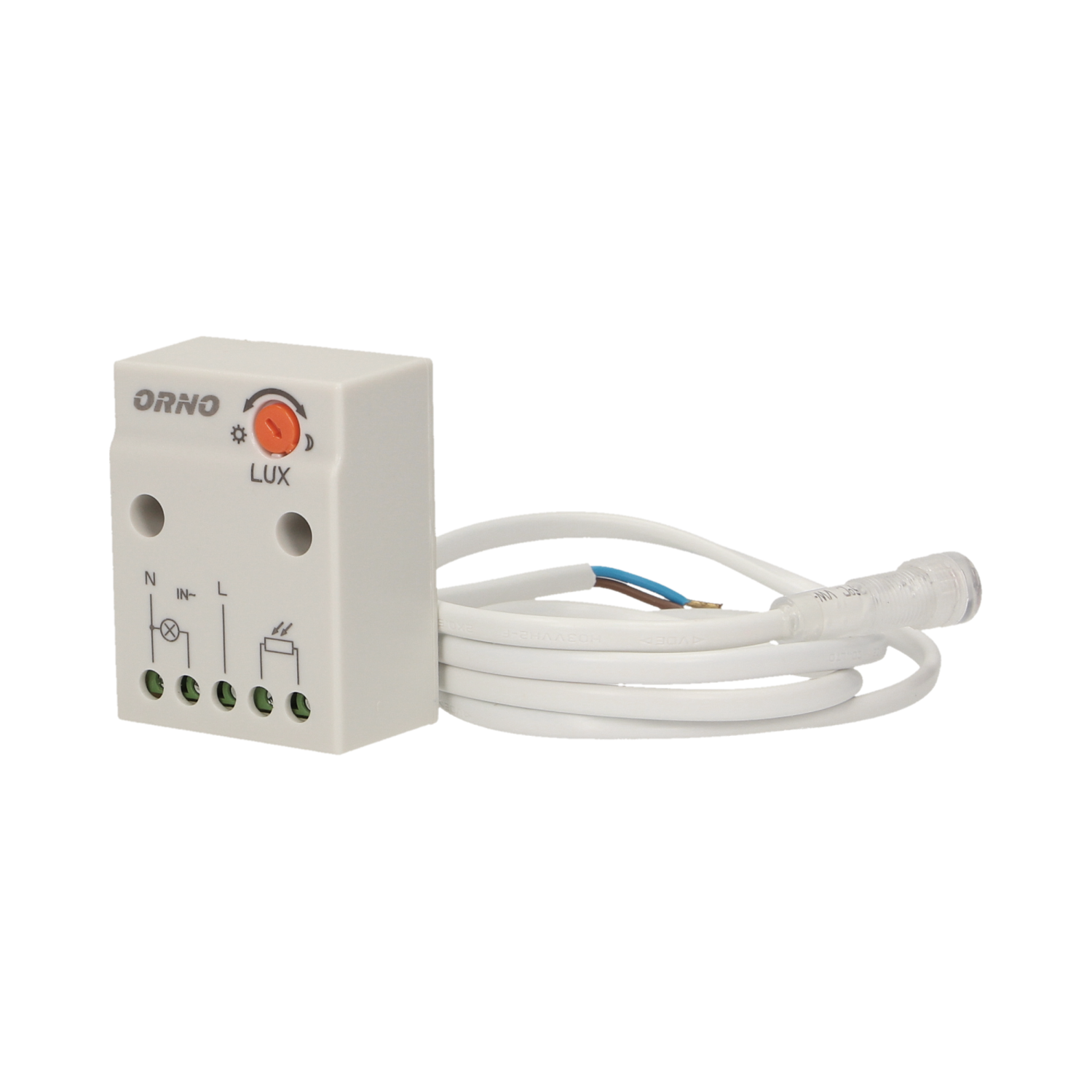

Twilight sensor with hermetic external probe For indoor and outdoor usage Collaborates with LED lighting Regulation: sensitivity of the light intensity (LUX) Small size and easy installation Light-sensitive sensor with approx. 1 meter cable (2x0.5mm2) with possibility of extension.

General information:
Model: Inny
Response value luminosity adjustable: Tak
Light intensity adjustment range [lx]: <2-100
Mounting method: Montaż natynkowy
Connection type: Zacisk śrubowy
Material: Tworzywo sztuczne
Material quality: Tworzywo termoplastyczne
Colour: Biały
Degree of protection: IP65/IP20
Voltage type: AC
Frequency [Hz]: 50
Nominal voltage [V]: 230
Max. switching power [W]: 2300
Max. switching power LED [W]: 575
Power consumption [W]: 0.5
Relay output: Tak
Temperature [°C]: -20 - +40
Working humidity: <93%
Width [mm]: 48
Height [mm]: 54
Depth [mm]: 29

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-10-21 00:06:08Download
Product data sheetENpdf2025-10-21 00:20:16Download
User manualPL, EN, DEpdf2025-06-25 15:28:55Download
User manualROpdf2025-06-25 15:28:55Download
User manualSLpdf2025-06-25 15:28:55Download
