Surface-mounted switches
ToDo series combines simple solutions suitable for domestic and professional use. It is a basic electrical equipment series applied in every building thanks to thought-out and simple design. You may use ToDo in service rooms and offices, but also in private residences or flats.
It is aesthetic and minimalistic. Premium quality materials ensure high resistance to UV radiation and mechanical damages.

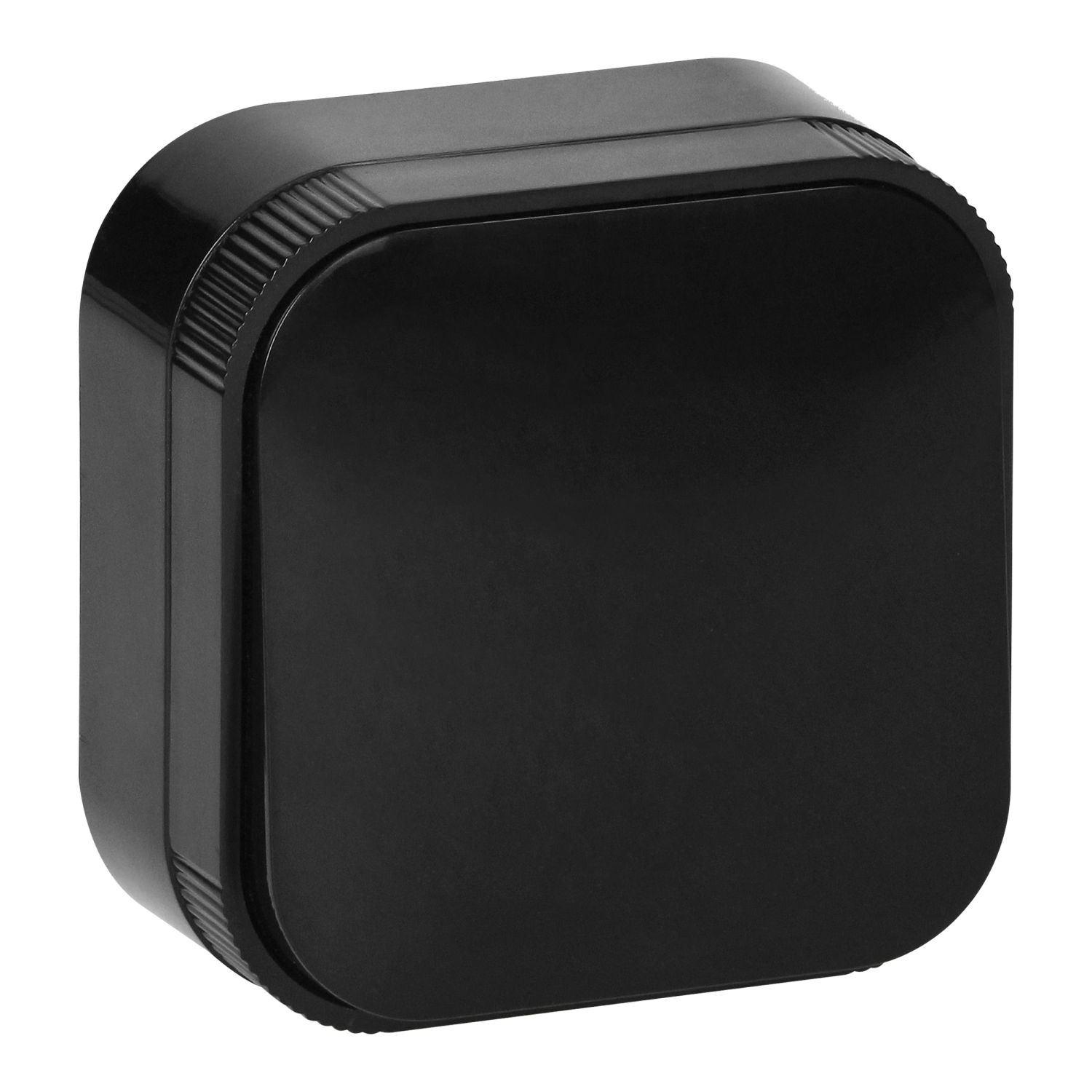

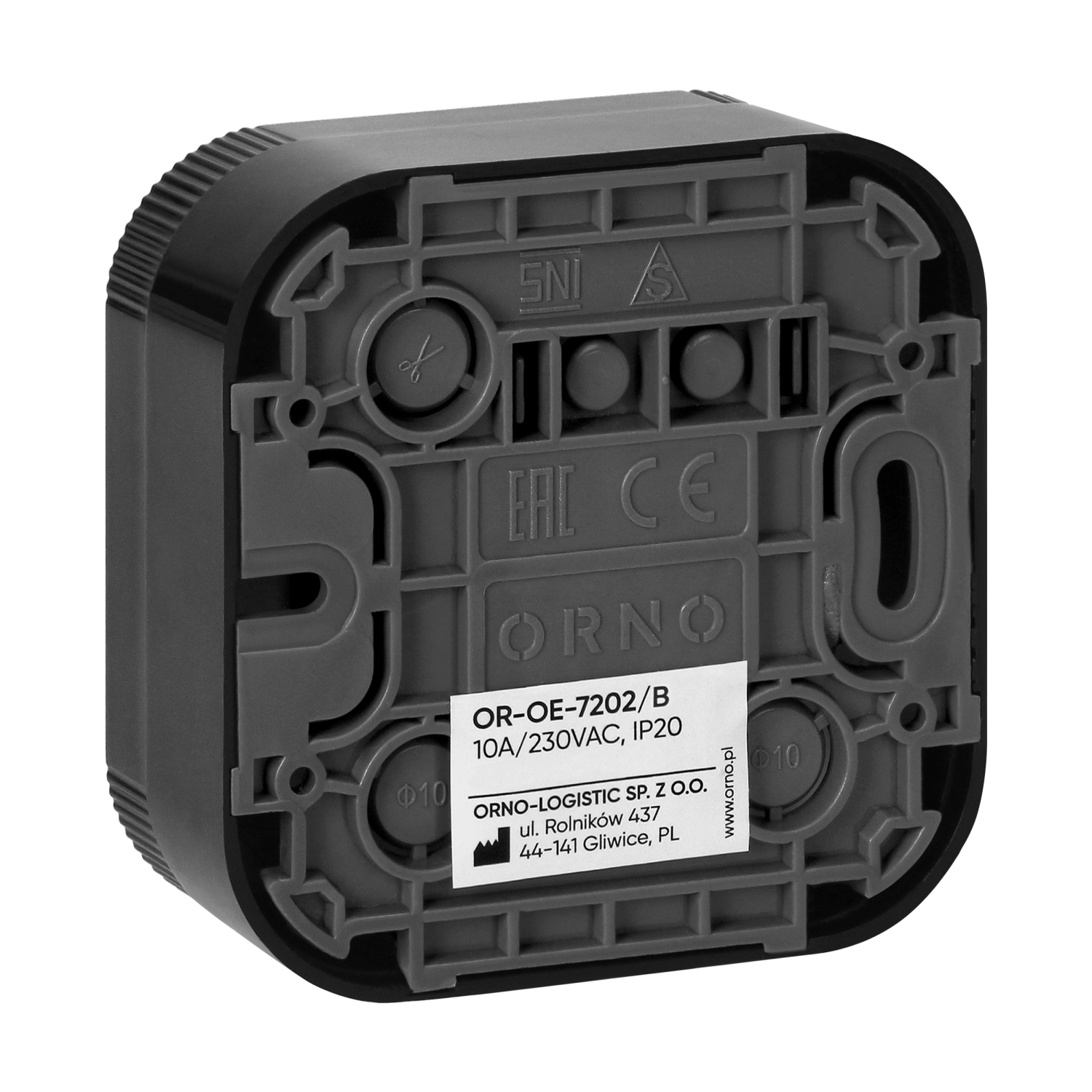

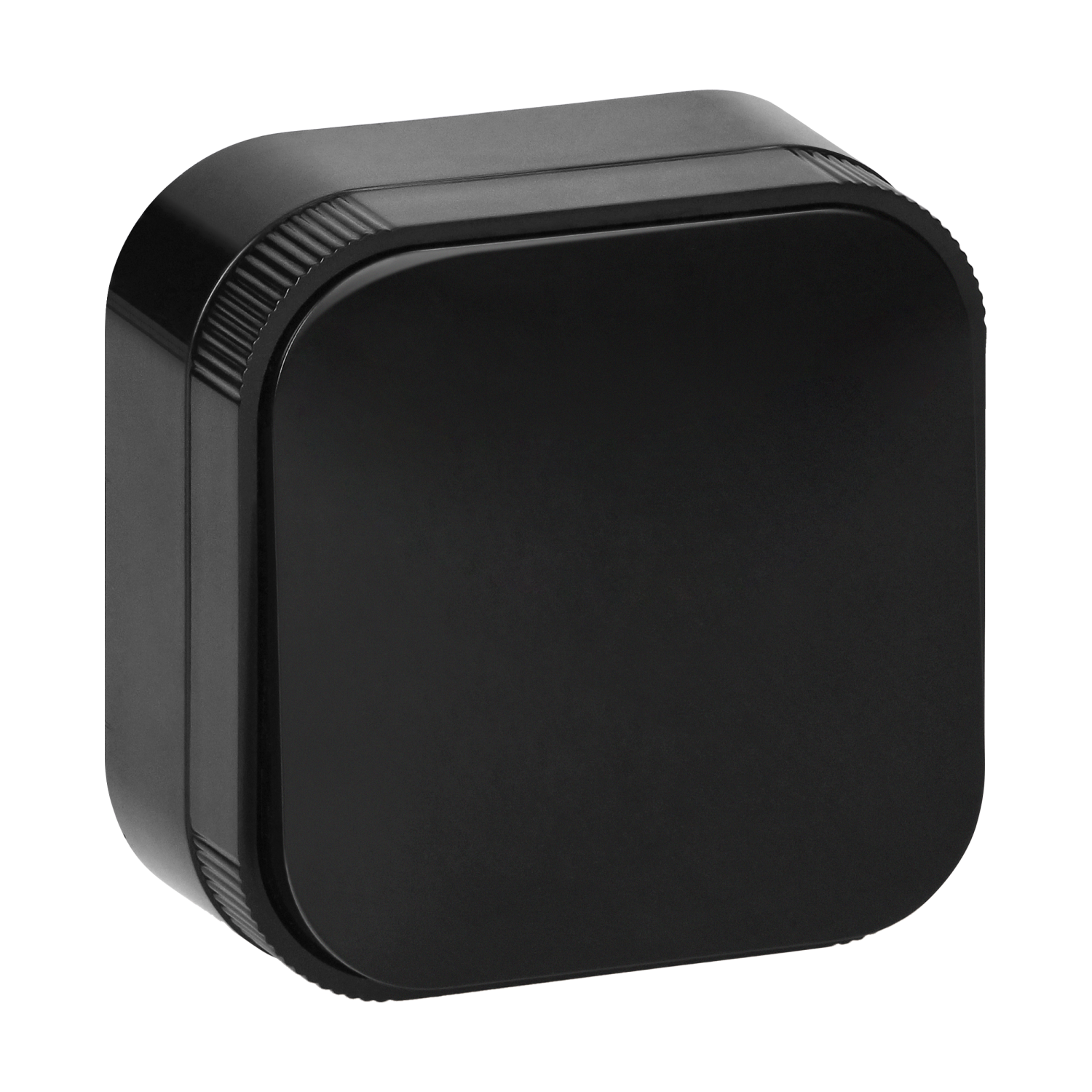

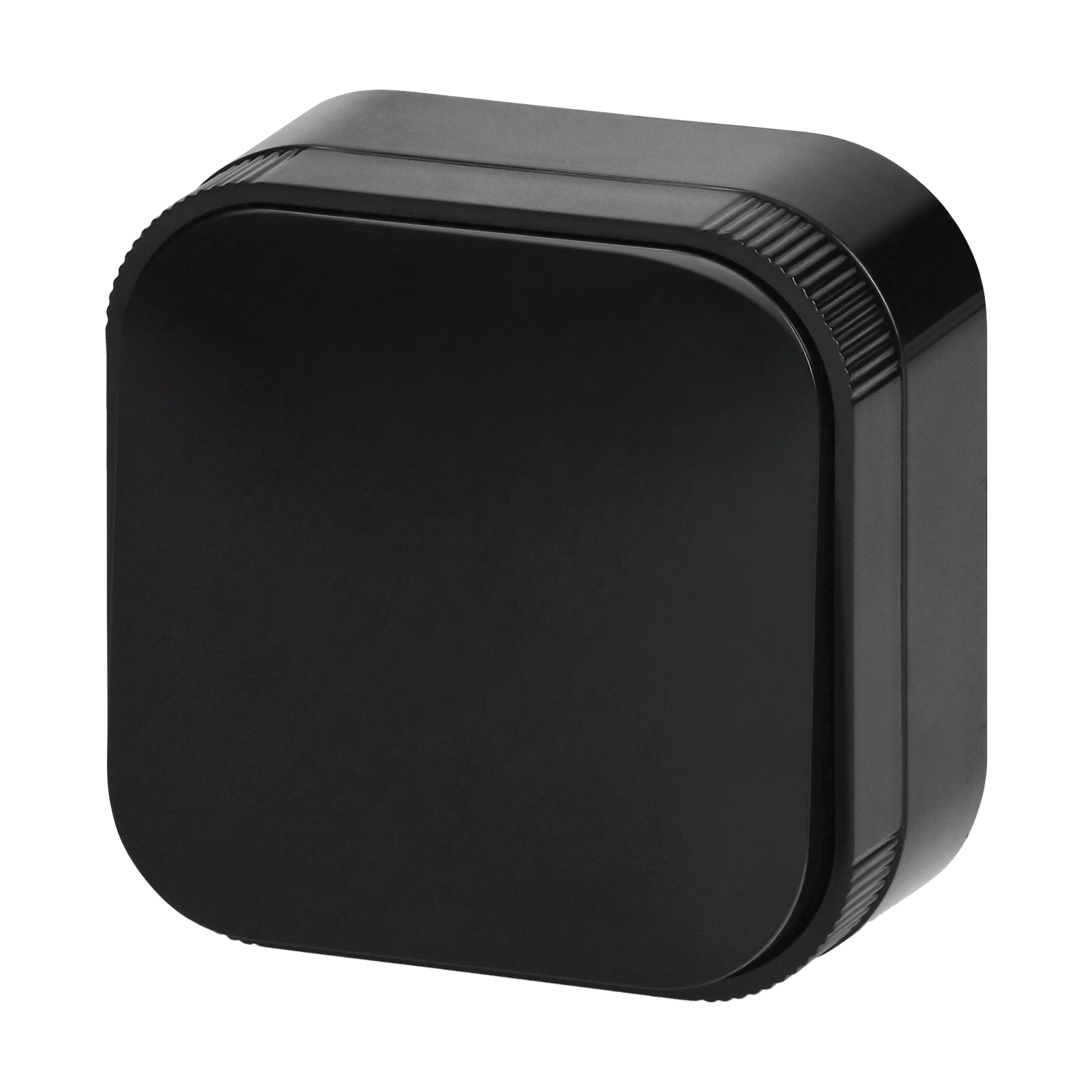

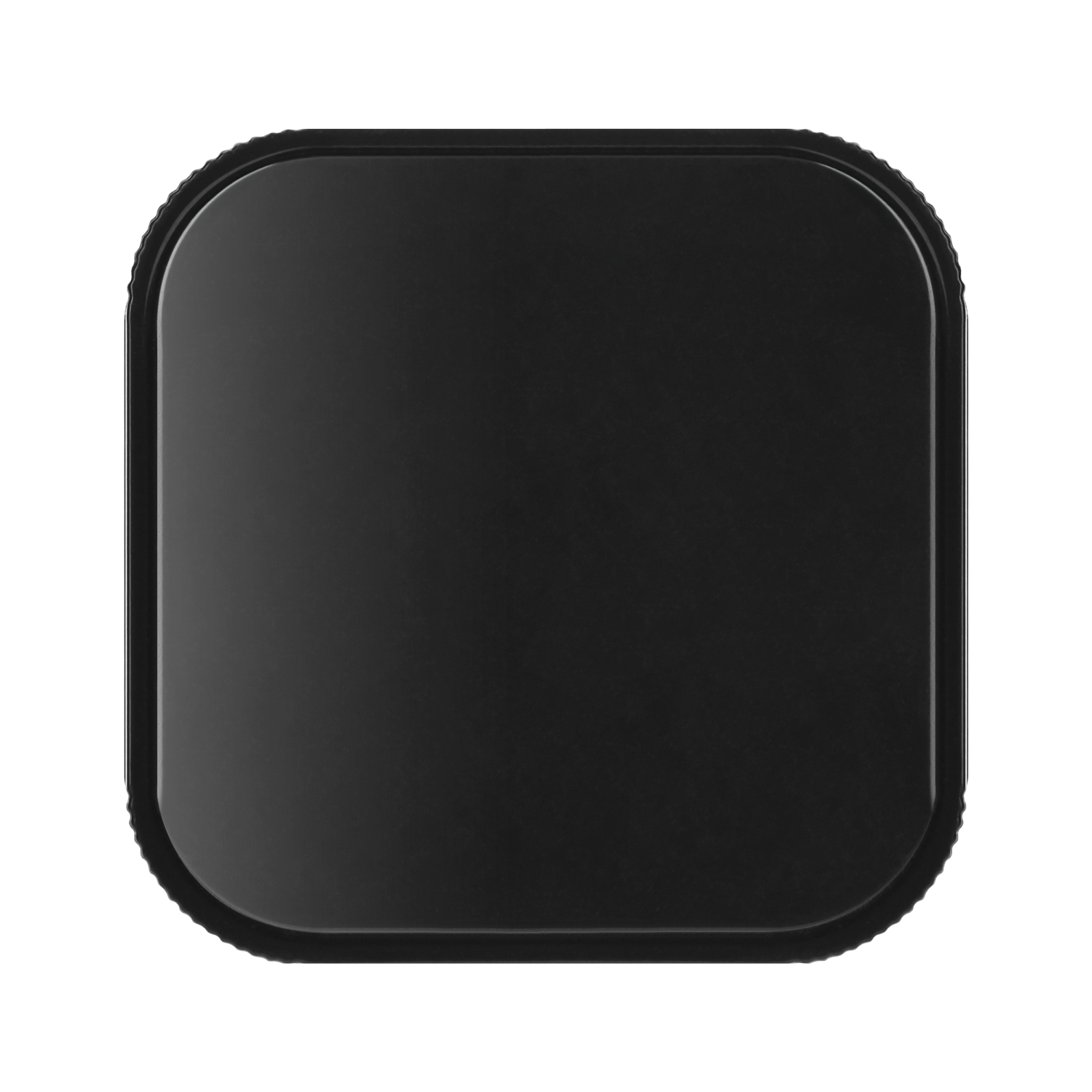

The three-way switch is intended for surface mounting. The product is used to connect and disconnect the circuit with the stair lighting. This type of switches is always installed in pairs. Its function is to activate, for example, lighting from different places or floors. Similarly, you may install lighting in the bedroom that turns on when you enter the room. You can turn it off right next to your bed, without having to go back to the main switch.
Surface mounted. For indoor use (IP20).
Dimensions: 65x65x35 mm.
The product is also in white and black and in a set of 10 pieces.
| General information: | |
|---|---|
| Wiring system: | Łącznik schodowy |
| Method of operation: | Przycisk wahadłowy |
| Assembly arrangement: | Element podstawowy |
| Number of rockers: | 1 |
| Mounting method: | Montaż natynkowy |
| Type of fastening: | Mocowanie śrubowe |
| Material: | Tworzywo sztuczne |
| Surface finishing: | Błyszczący |
| Colour: | Czarny |
| Colour of switch operator: | Czarny |
| Illumination: | Nie |
| Suitable for degree of protection (IP): | IP20 |
| Nominal voltage [V]: | 230 |
| Frequency [Hz]: | 50 |
| Rated current [A]: | 10 |
| Connection type: | Zacisk śrubowy |
| Device width [mm]: | 63 |
| Device height [mm]: | 63 |
| Device depth [mm]: | 35 |
| Series: | ToDo |
| Weight [g]: | 42 |
| Quantity [pcs]: | 1 |
