Socket splitters

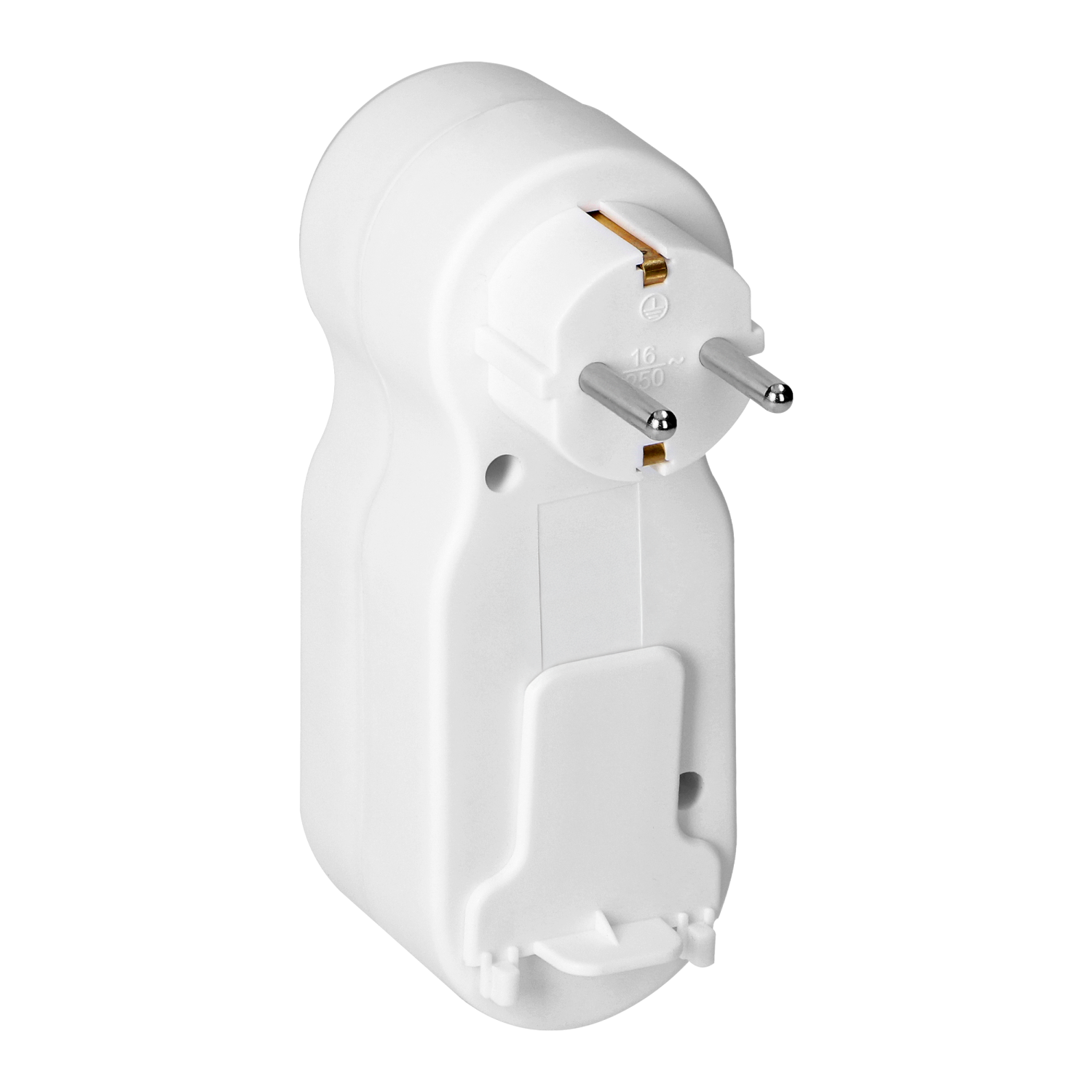

The rounded socket splitter allows three electrical devices to be connected simultaneously to a single mains socket. Thanks to its compact design, it is perfect for rooms with limited space and the built-in hook allows for easy and secure installation in the desired location.
The splitter is equipped with three Schuko type sockets (2P+E) with safety shutters, which enable secure and stable connection. The central insert has been angularly rotated by 45°, making it easier to connect devices with larger plugs. The unit is designed for operation at 230V and a maximum load of 3680W with a rated current of 16A.
The housing is made of white plastic. The IP20 rate allows for use in dry indoor conditions, at temperatures ranging from -15°C to +35°C. The dimensions measure: 52x136x76 mm.
| General information: | |
|---|---|
| Housing shape: | Prostokątny |
| Number of socket outlets with protective contact CEE 7/3 (type F): | 3 |
| Socket type: | 2P+Z |
| Standard socket: | Schuko (typ F) |
| Current path apertures: | Tak |
| Supply voltage [V].: | 230 |
| Frequency [Hz]: | 50 |
| Nominal current [A]: | 16 |
| Max. connected load [W]: | 3680 |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface finishing: | Matowy |
| Colour: | Biały |
| Degree of protection (IP): | IP20 |
| Rotated central insert: | Tak |
| Angle rotated central insert [°]: | 45 |
| Operating temperature [°C]: | -15 - +35 |
| Dimensions - width [mm]: | 52 |
| Dimensions - height [mm]: | 136 |
| Dimensions - depth [mm]: | 76 |
| Weight [kg]: | 0.1 |
