Socket splitters

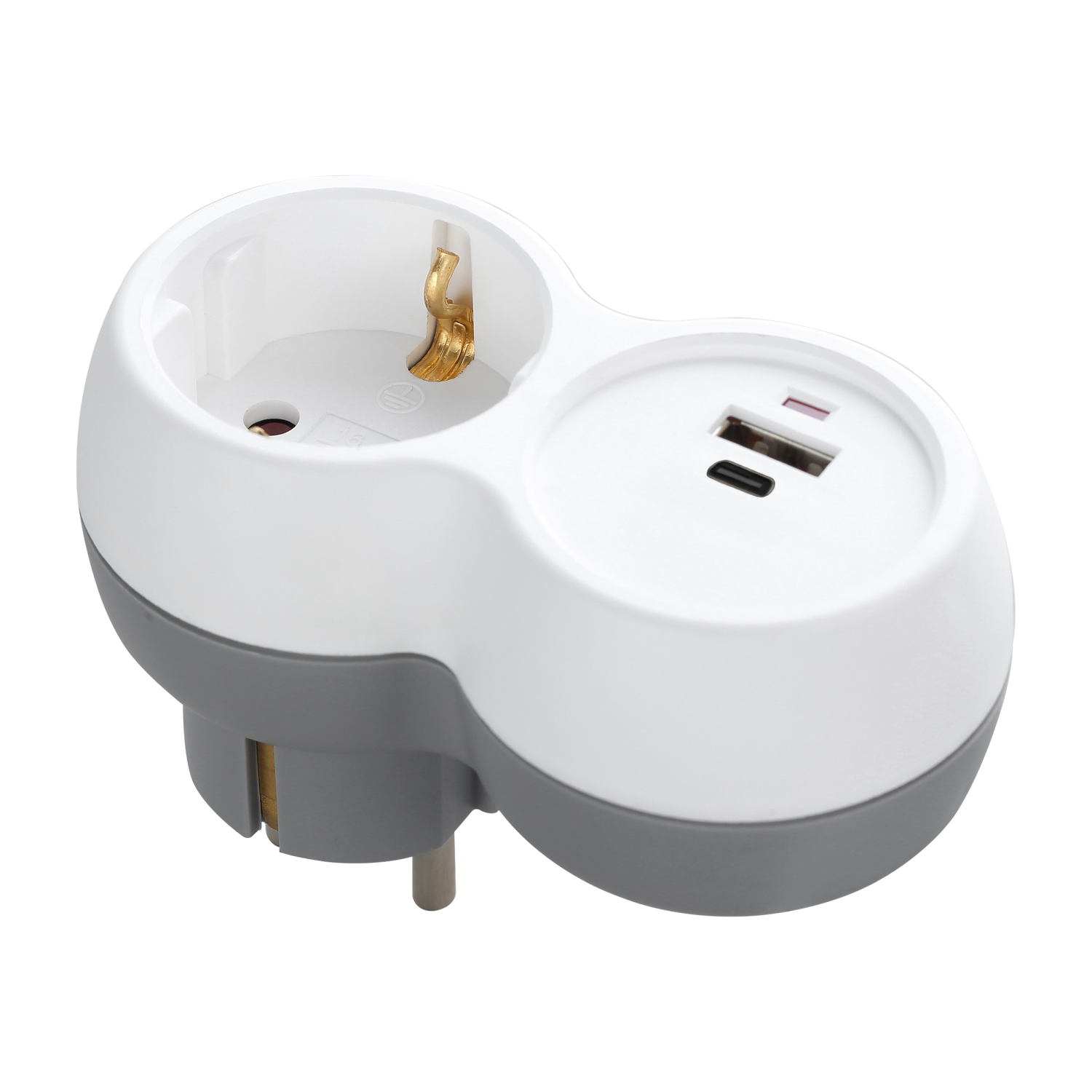

The power socket splitter with a USB charger is a functional solution for connecting two network devices and charging two mobile devices simultaneously.
The unit is equipped with one 2P+E Schuko-type protective contact socket and two USB ports (A+C). The rated current is 16 A and the maximum load reaches 3680 W, ensuring a stable and safe power supply. The supply voltage is 230V. The USB charger delivers an output current of 2.4A, a voltage of 5V and an output power of 12W.
Thanks to the safety shutters, the device offers additional safety against possible electrocution, and the thermoplastic material used guarantees high durability. The splitter is designed for use in dry rooms not exposed to moisture (IP20).
The compact dimensions of the splitter (99x55x59 mm), allow it to be positioned in various locations. The matt surface finish gives the unit an aesthetically pleasing appearance. White-grey colour.
| General information: | |
|---|---|
| Housing shape: | Prostokątny |
| Number of socket outlets with protective contact CEE 7/3 (type F): | 1 |
| Socket type: | 2P+Z |
| Standard socket: | schuko (typ F) |
| Current path apertures: | Tak |
| Supply voltage [V].: | 230 |
| Frequency [Hz]: | 50 |
| Nominal current [A]: | 16 |
| Max. connected load [W]: | 3680 |
| USB charger: | Tak |
| USB port type: | USB-A+USB-C |
| Number of USB ports: | 2 |
| USB charger output voltage [V]: | 5V/3A; 9V/2,22A; 12V/1,67A |
| USB charger output power [W]: | 15 |
| Average active efficiency : | 0.877 |
| Efficiency at low load (10%): | 0.83 |
| No-load power consumption: | <0,1 |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface finishing: | Matowy |
| Colour: | Biało-szary |
| Degree of protection (IP): | IP20 |
| Dimensions - width [mm]: | 56 |
| Dimensions - height [mm]: | 100 |
| Dimensions - depth [mm]: | 59 |
| Weight [kg]: | 0.1 |
