OR-DC-628
Archived product

Description

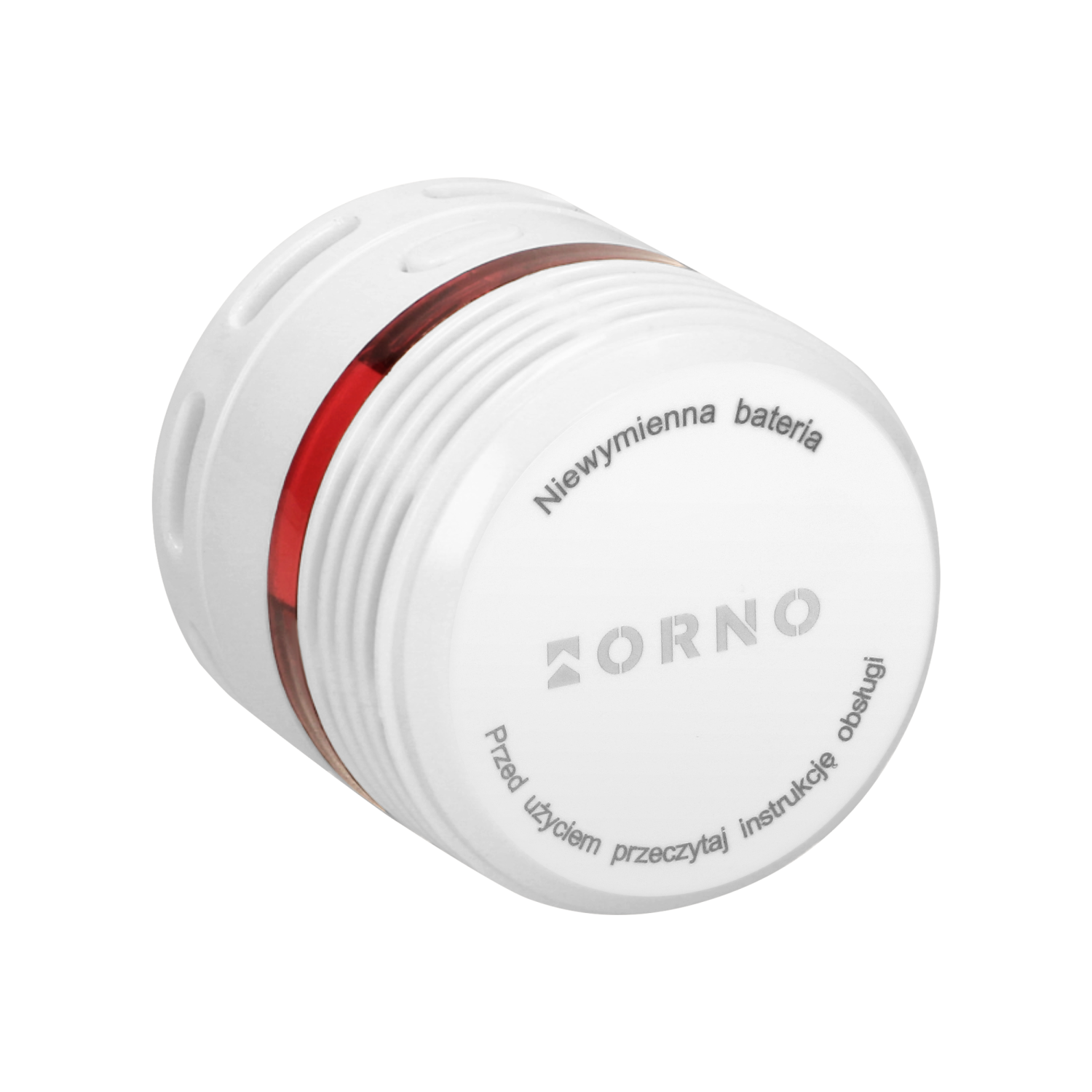

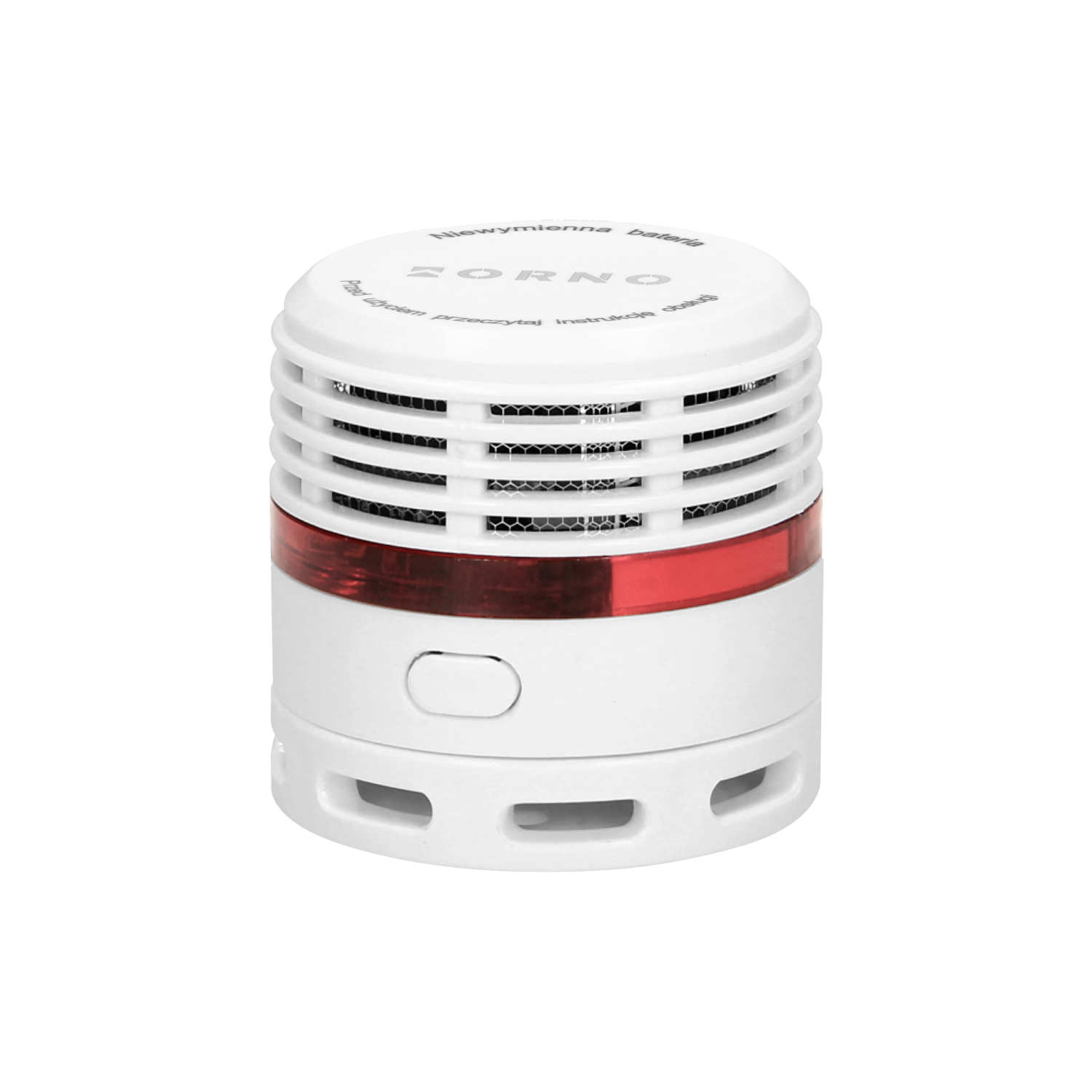

The world's smallest battery-operated smoke detector designed for a continuous monitoring of presence of smoke and early detection of fire. Photoelectric sensor located in unit detects visible smoke produced in the initial, flameless stage of fire. Equipped with a low battery indication, TEST/HUSH button and visual and sound alarm. It complies with the EN 14604: 2005 + AC1: 2008 standard, confirmed by the BSI-KM514007 certification body. Simple installation and operation.

General information:
Types of detected threats: smoke
Low battery indication: Yes
Type of power supply: integrated, lifelong power supply
Alarm volume (db): ≥85/3m
Test button: Yes
Nominal voltage: 1 x 9V DC
Hush button: Yes
Failure indication: No
End of life indication: Yes
Battery included: Yes
Life time of the sensor: 10 Years
Dimensions - width: 45 mm
Dimensions - height: 42 mm
Compliance with standards: EN 14604:2005/AC1:2008
Other features: certyfikat BSI
Type of sensor: photoelectric

Files to download

File category File language File type File update date
Product data sheetPLpdf2025-05-07 12:44:56Download
Product data sheetENpdf2025-05-07 12:58:04Download
User manualPL, EN, DEpdf2025-06-25 15:28:55Download
