Smoke detectors

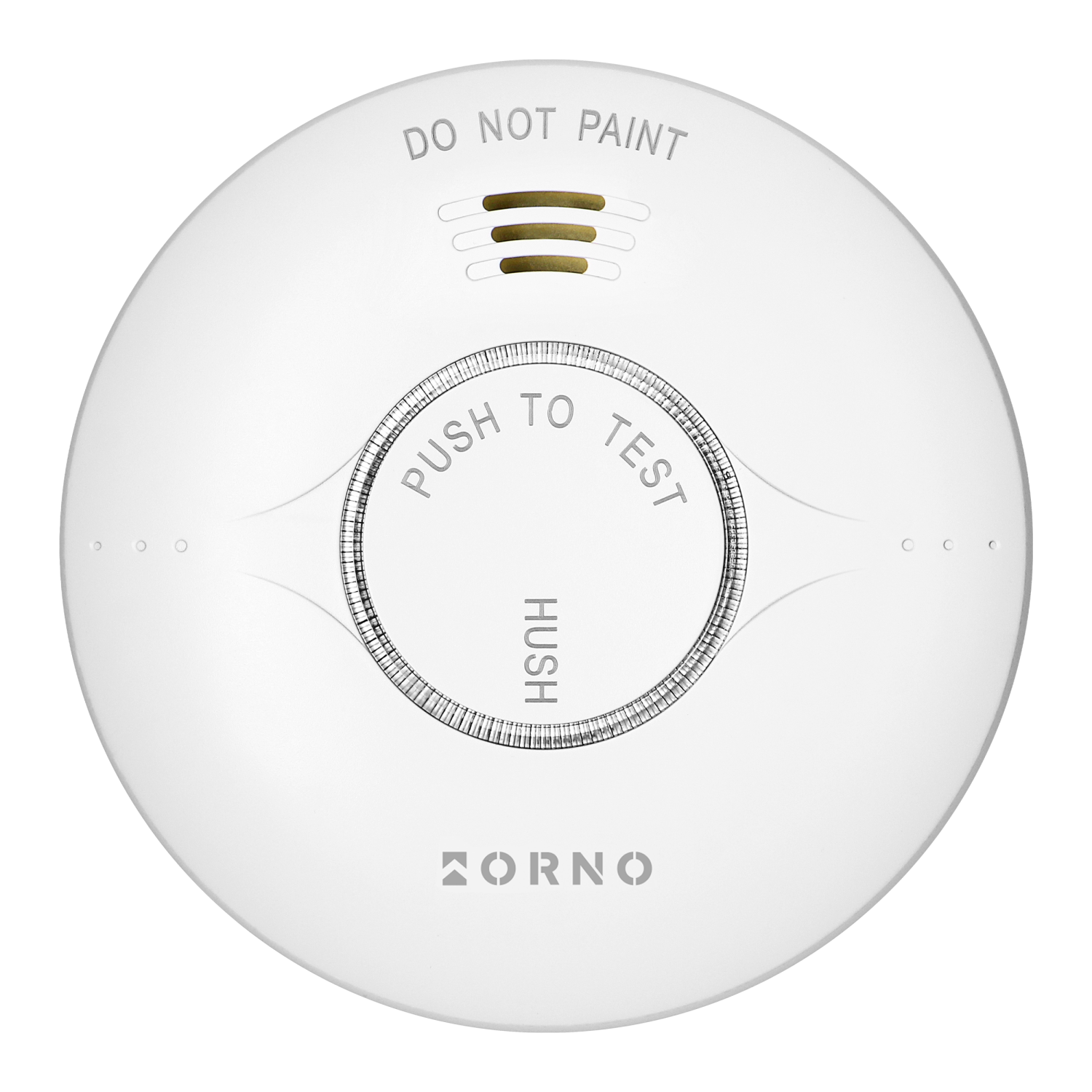

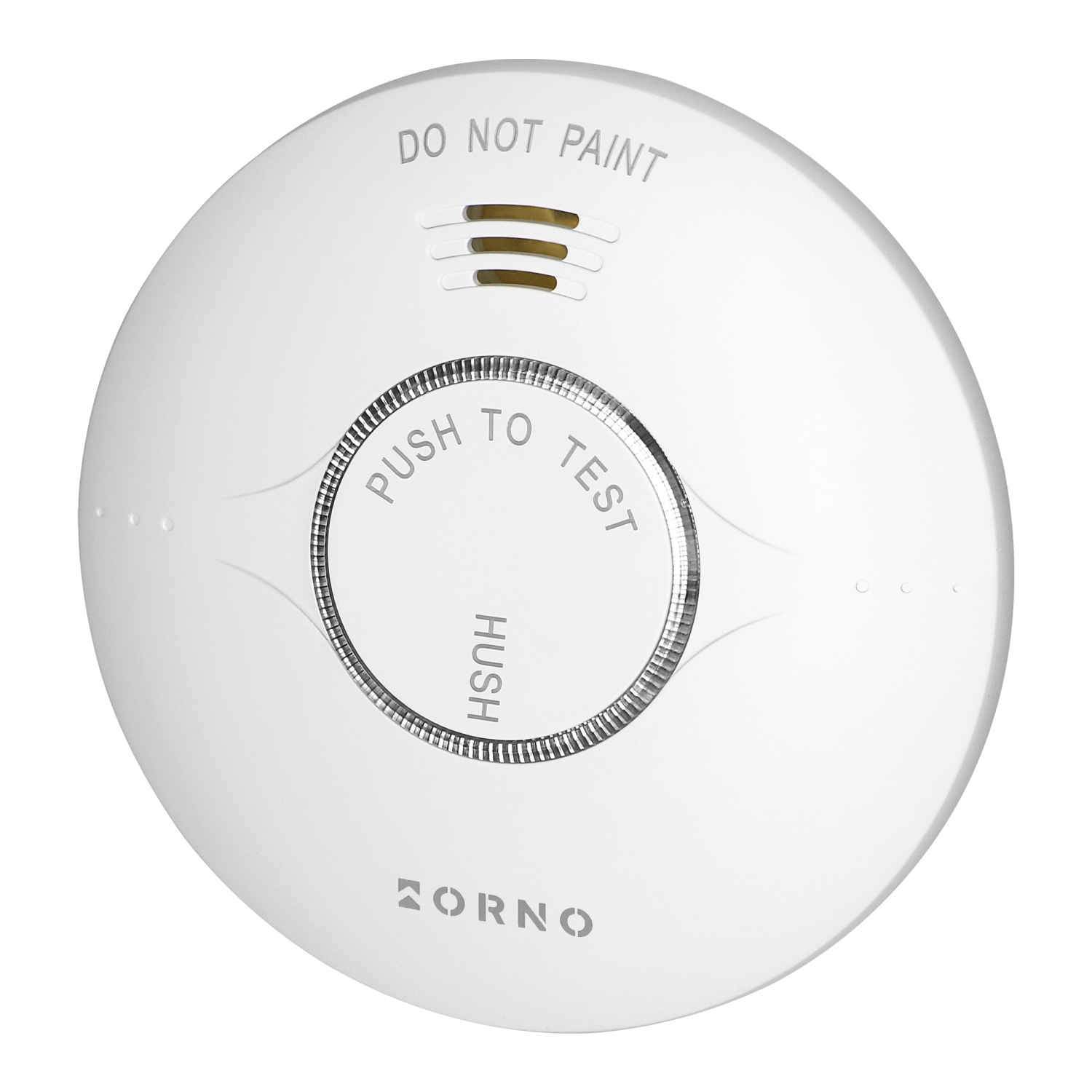

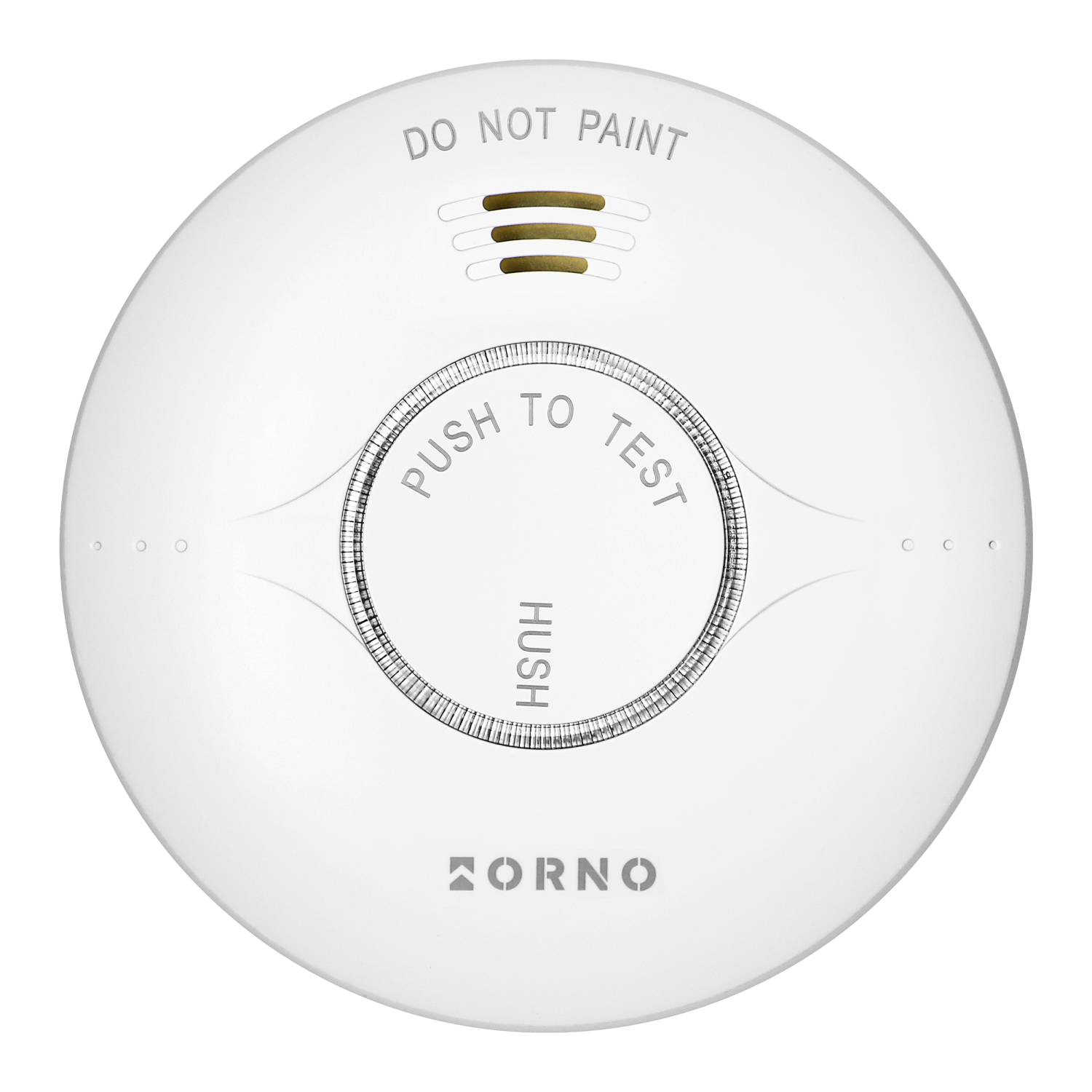

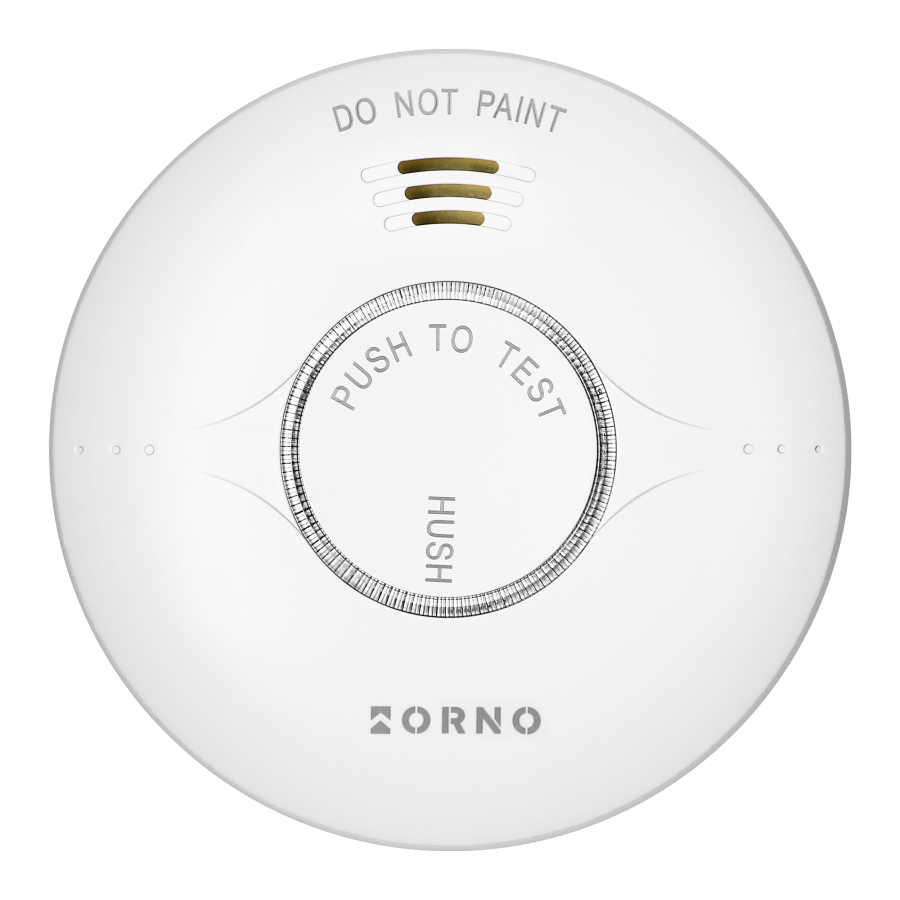

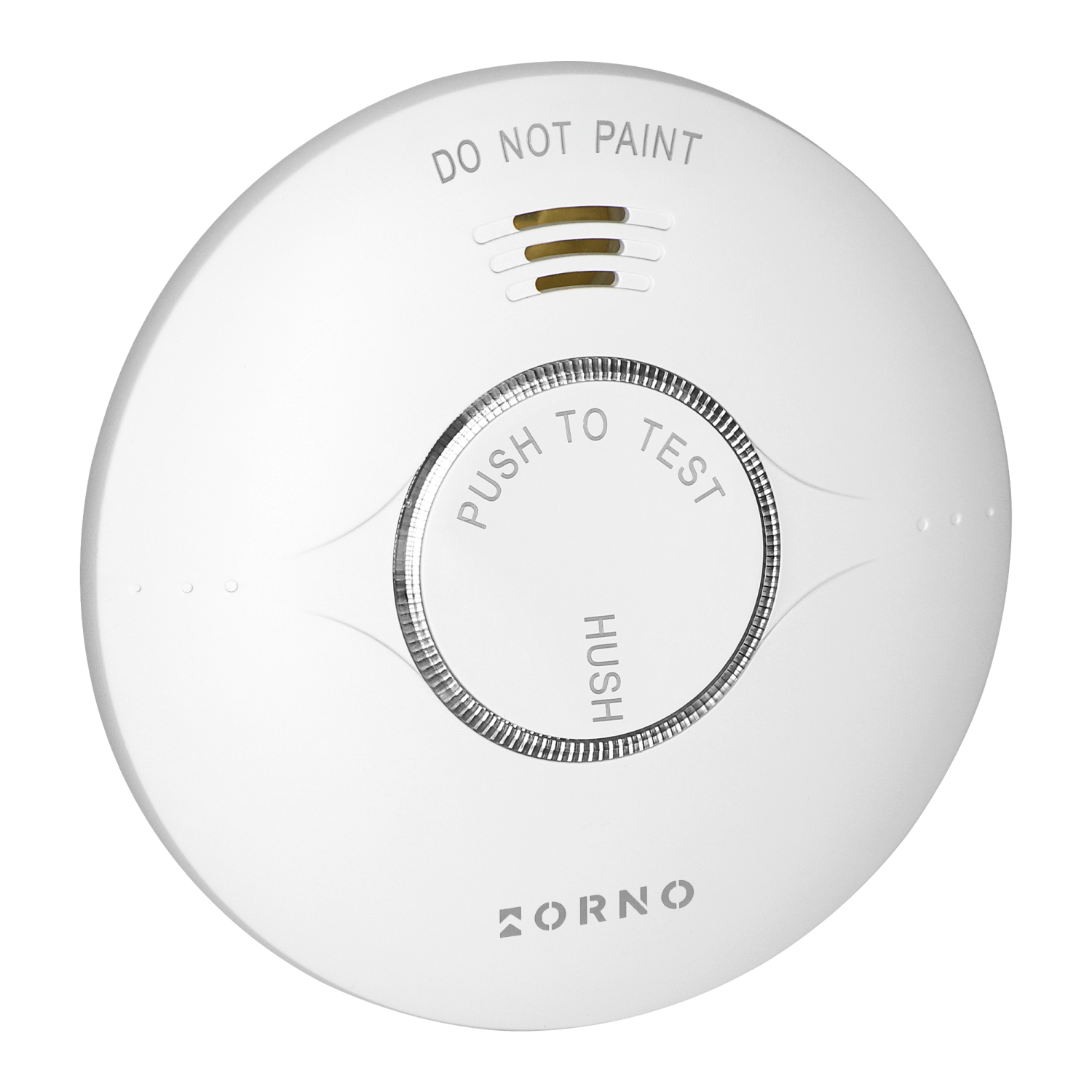

A battery-powered smoke detector is a device that detects smoke particles in a closed room and alerts of the threat at an early stage of a possible fire. The photoelectric unit works well as an additional means of monitoring the threat and thus providing protection wherever there is a risk of fire.
Small and lightweight, autonomous detector (⌀120x36.6 mm) is designed for self-installation and operation. It is powered by a built-in CR123A battery with a 10-year lifespan. The device signals a threat - the alarm volume is 85 dB. It also indicates when to replace the dying battery. Additionally, it is equipped with a diode that allows visual alarm.
The sensor lifespan is 10 years, and the device complies with the standards: PN-EN 14604:2006+AC:2009, EN 14604:2005+AC:2008, which was confirmed by the CNPP certification body.
The battery-powered smoke detector has also a TEST feature that allows to check the correct operation of the device.
| General information: | |
|---|---|
| Operating principle: | Optyczny |
| Optical notification: | Tak |
| Acoustic notification: | Tak |
| Loudness [dB(A)]: | ≥85db/3m |
| Response temperature [°C]: | 0°C ~ +40°C |
| Smoke switcher: | Tak |
| Type of test-/pause button: | Kombinowany |
| Current supply primary: | Bateria/akumulator |
| Voltage type (supply voltage): | DC |
| Supply voltage DC [V]: | 3 |
| Battery included: | Litowo-jonowy |
| Voltage type (operating voltage): | DC |
| Colour: | Biały |
| Degree of protection (IP): | IP20 |
| Height/depth [mm]: | 36.6 |
| Diameter [mm]: | 120 |
| Sensor lifetime: | 10 lat |
| Battery lifetime: | 10 lat |
| Compliant standards: | EN 14604:2005+AC:2008; PN-EN 14604:2006+AC:2009 |
| Certification authority: | CNPP |
| Manufacturer Name: | ZHEJIANG JIABOER ELECTRONIC TECHNOLOGY CO., LTD |
| Relative humidity [%RH]: | ≤93 |
| Hush time [min]: | 8 |
| Alarm Current [uA]: | ≤60 |
| Standby Current [uA]: | ≤10 |
