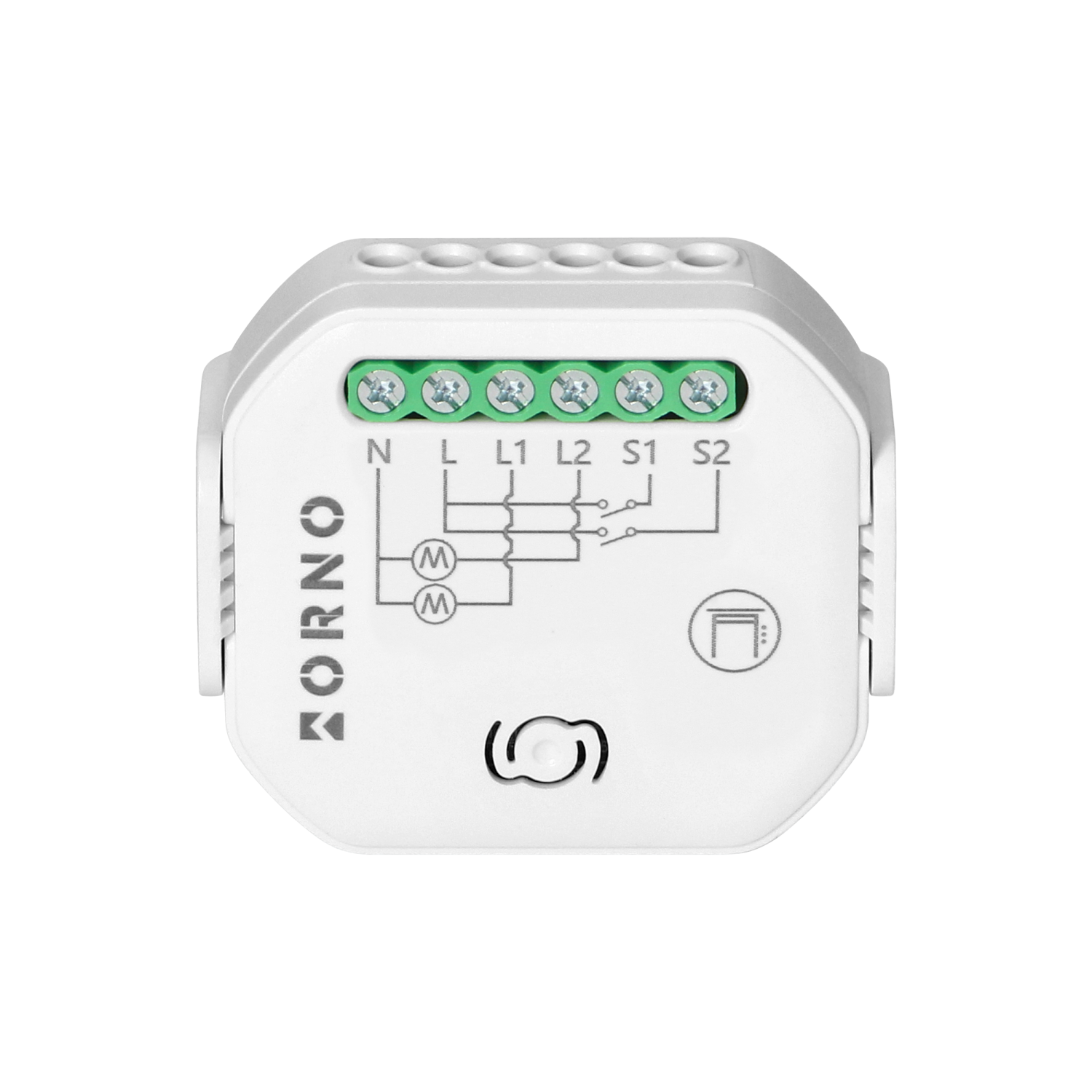

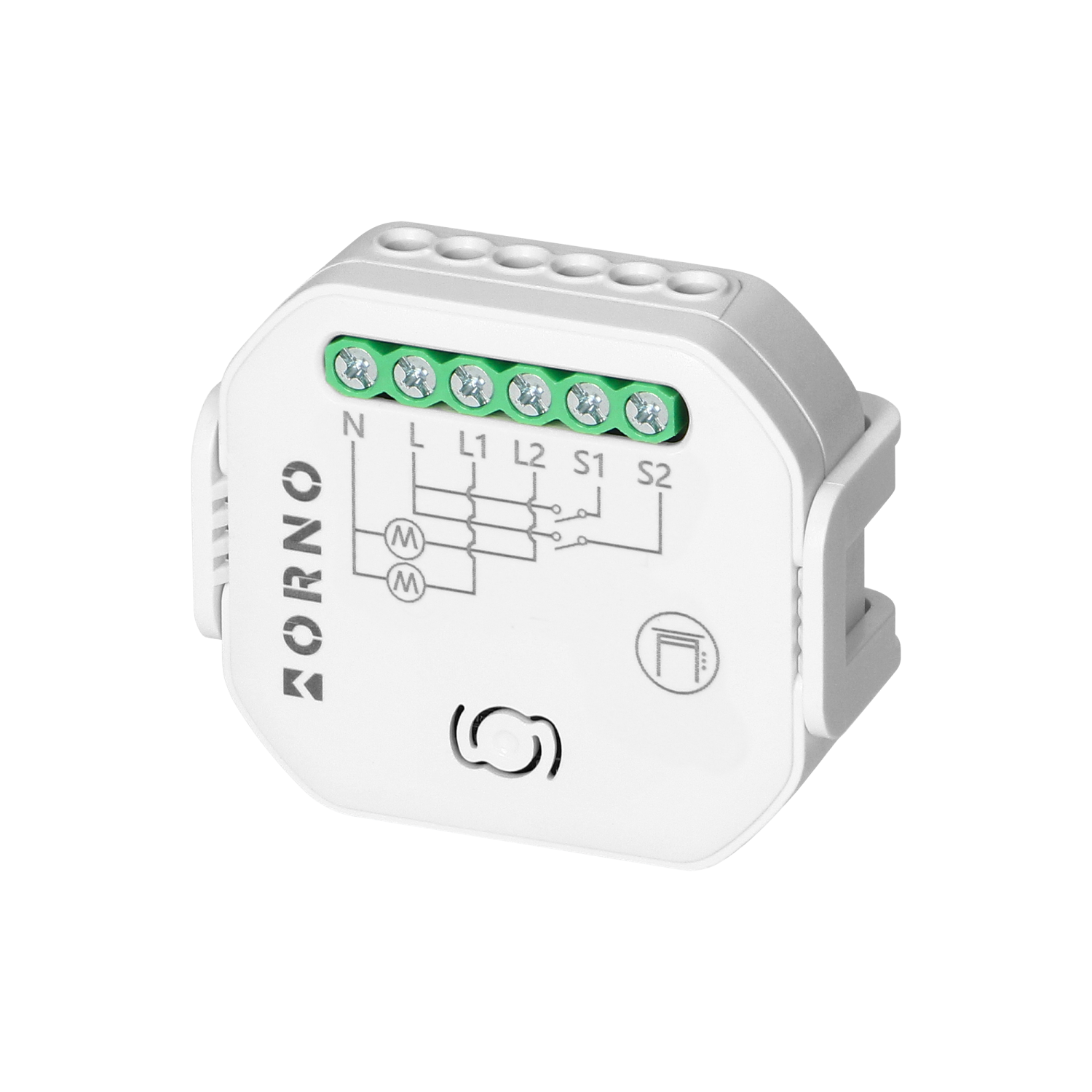

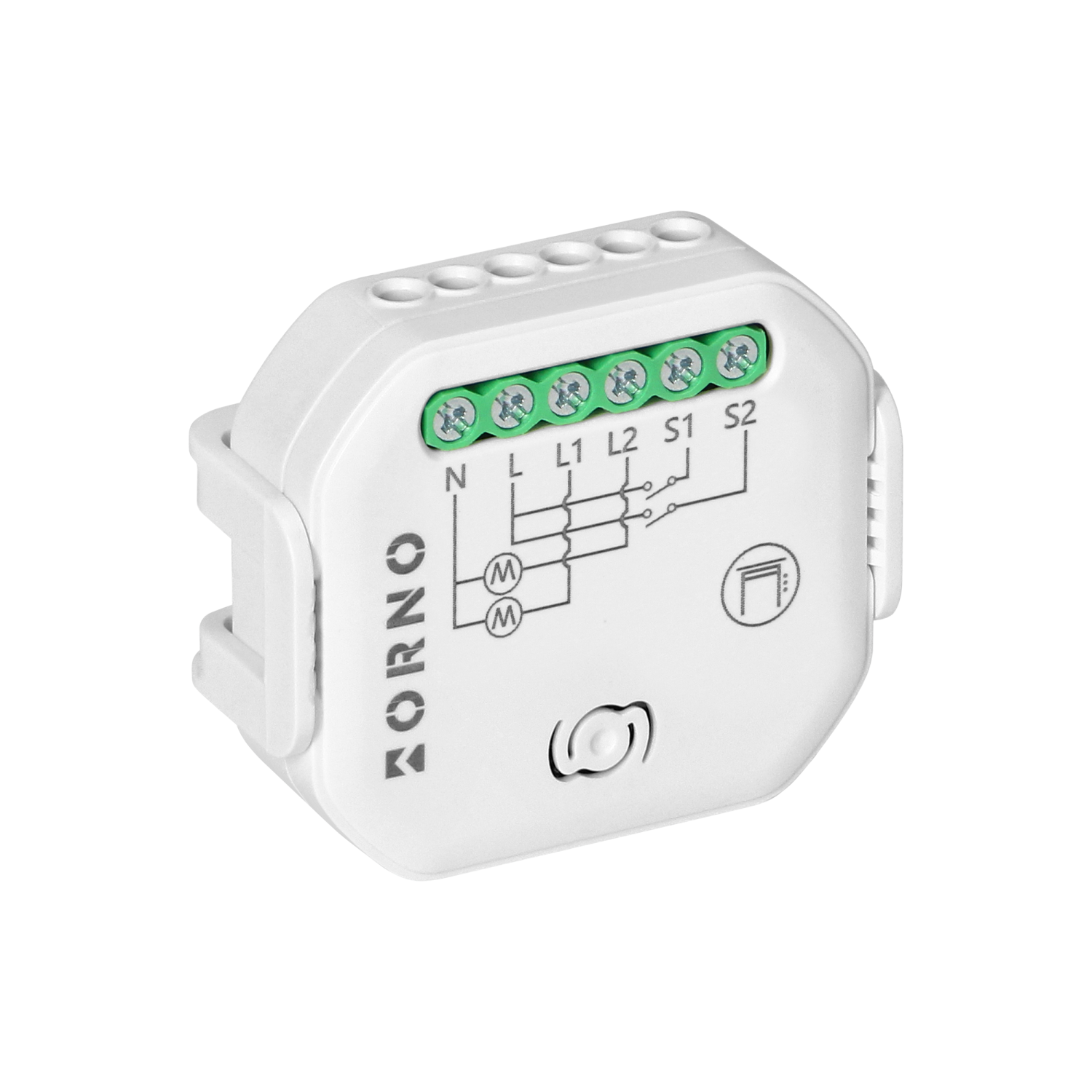

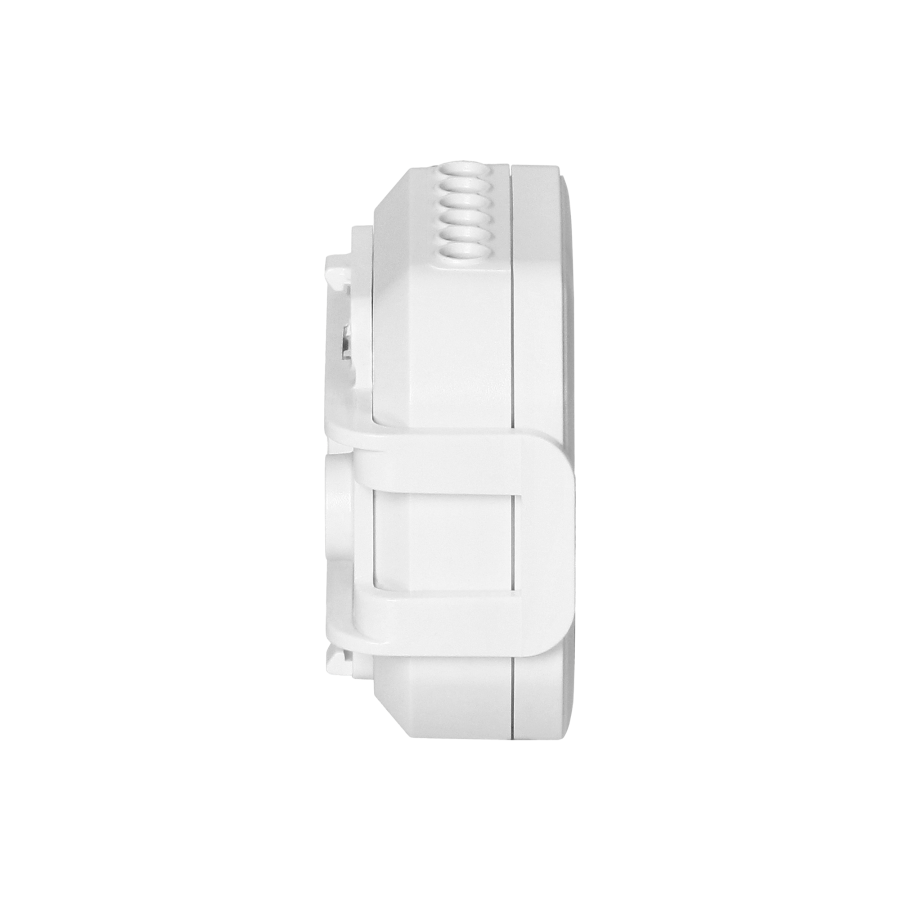

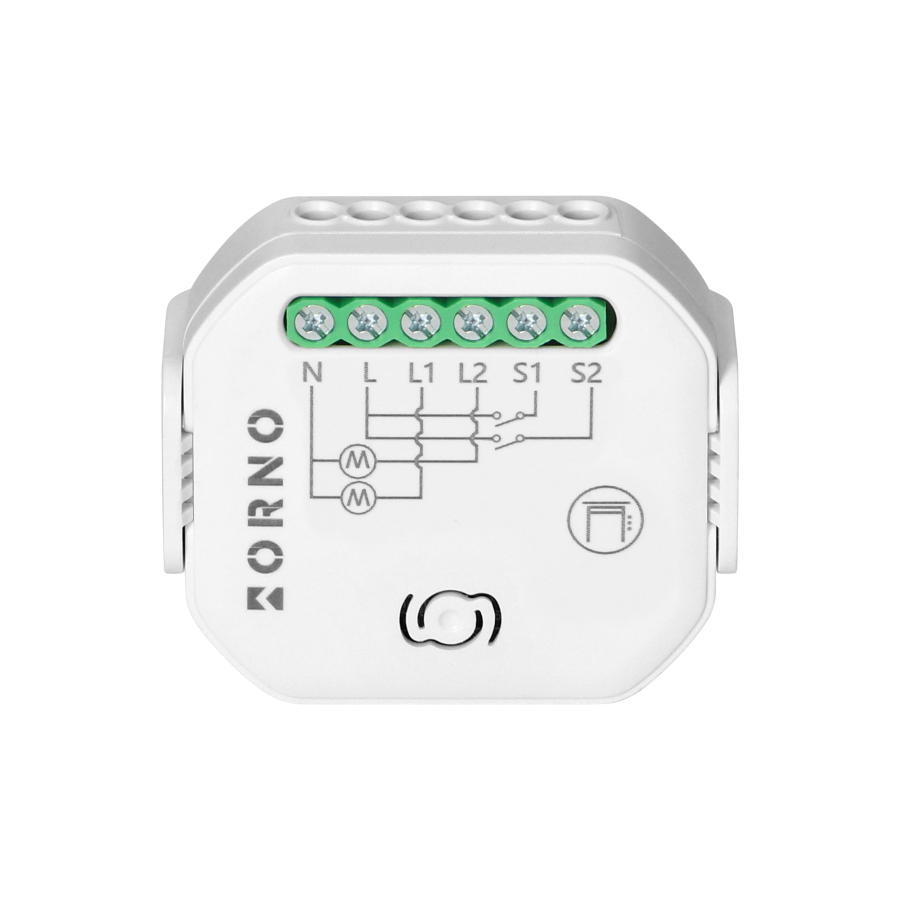

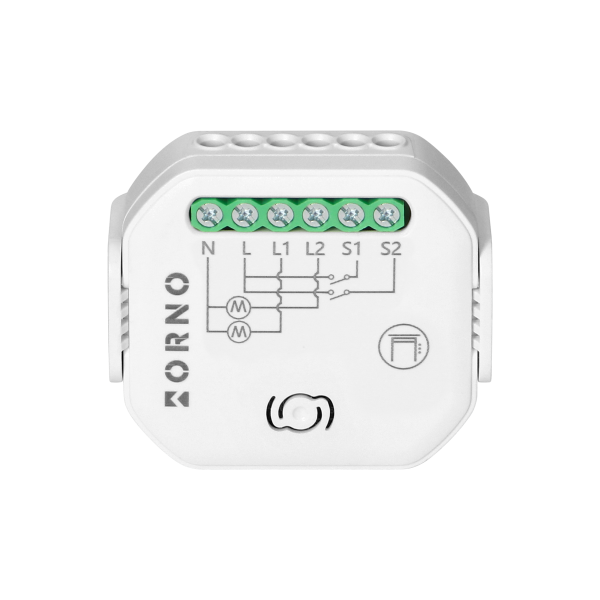

The roller shutter relay with a dimmer is a modern device equipped with smart home technology enabling not only local but also remote control over roller blinds and shutters.

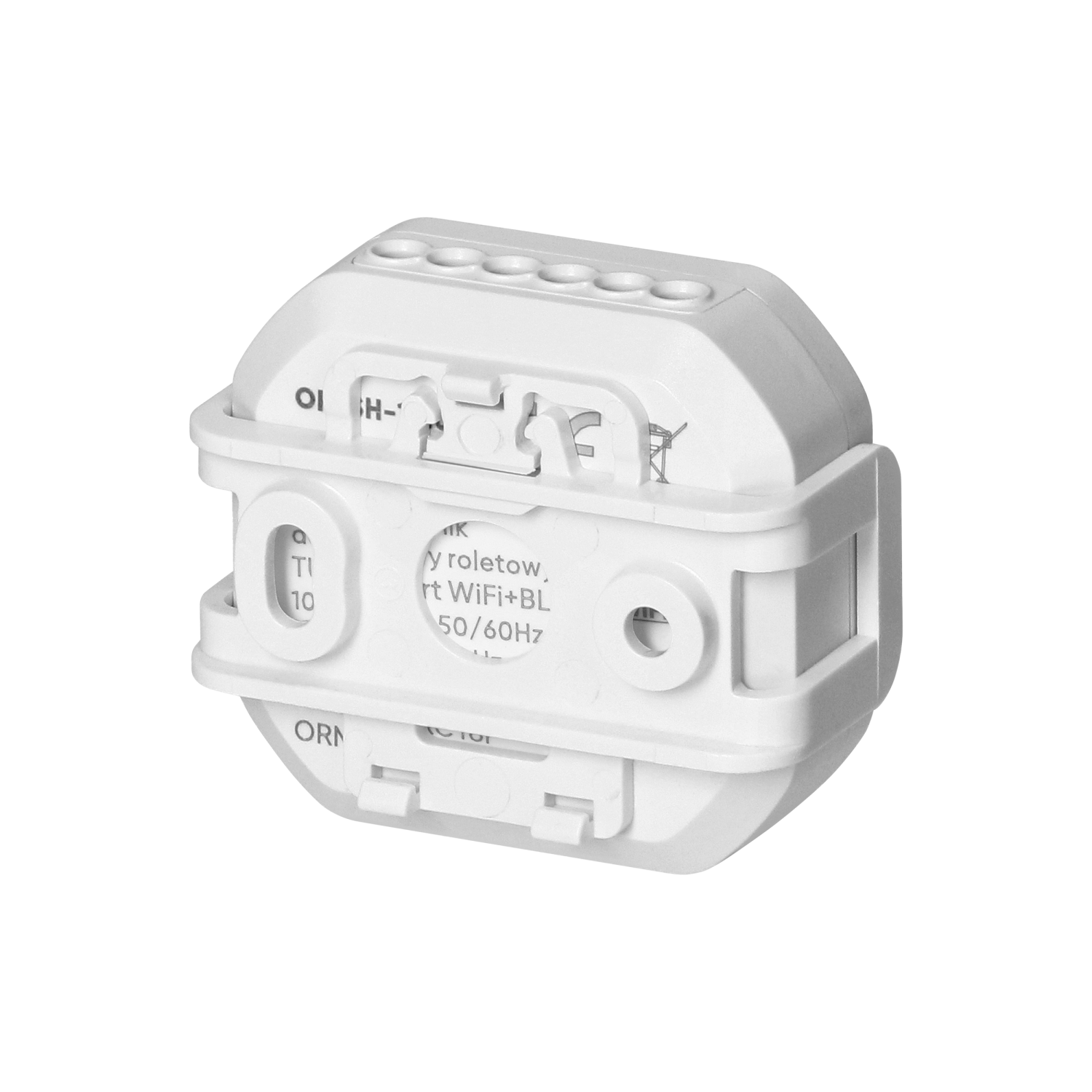

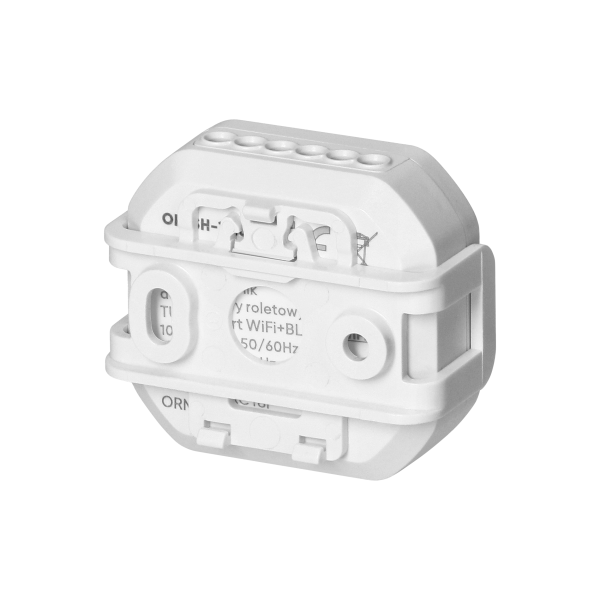

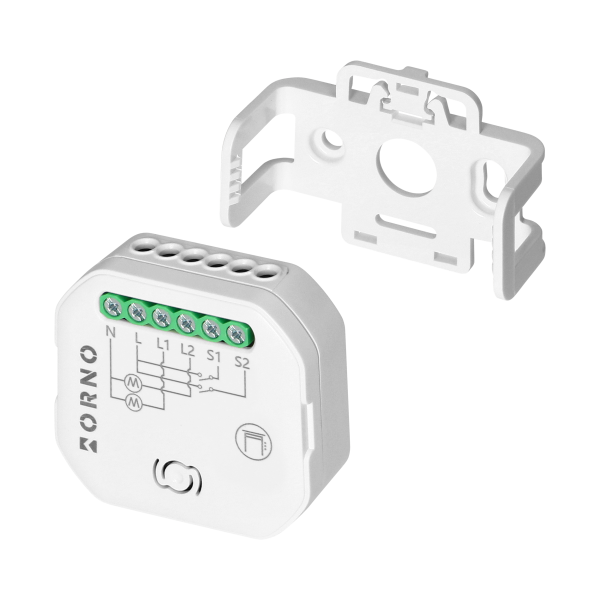

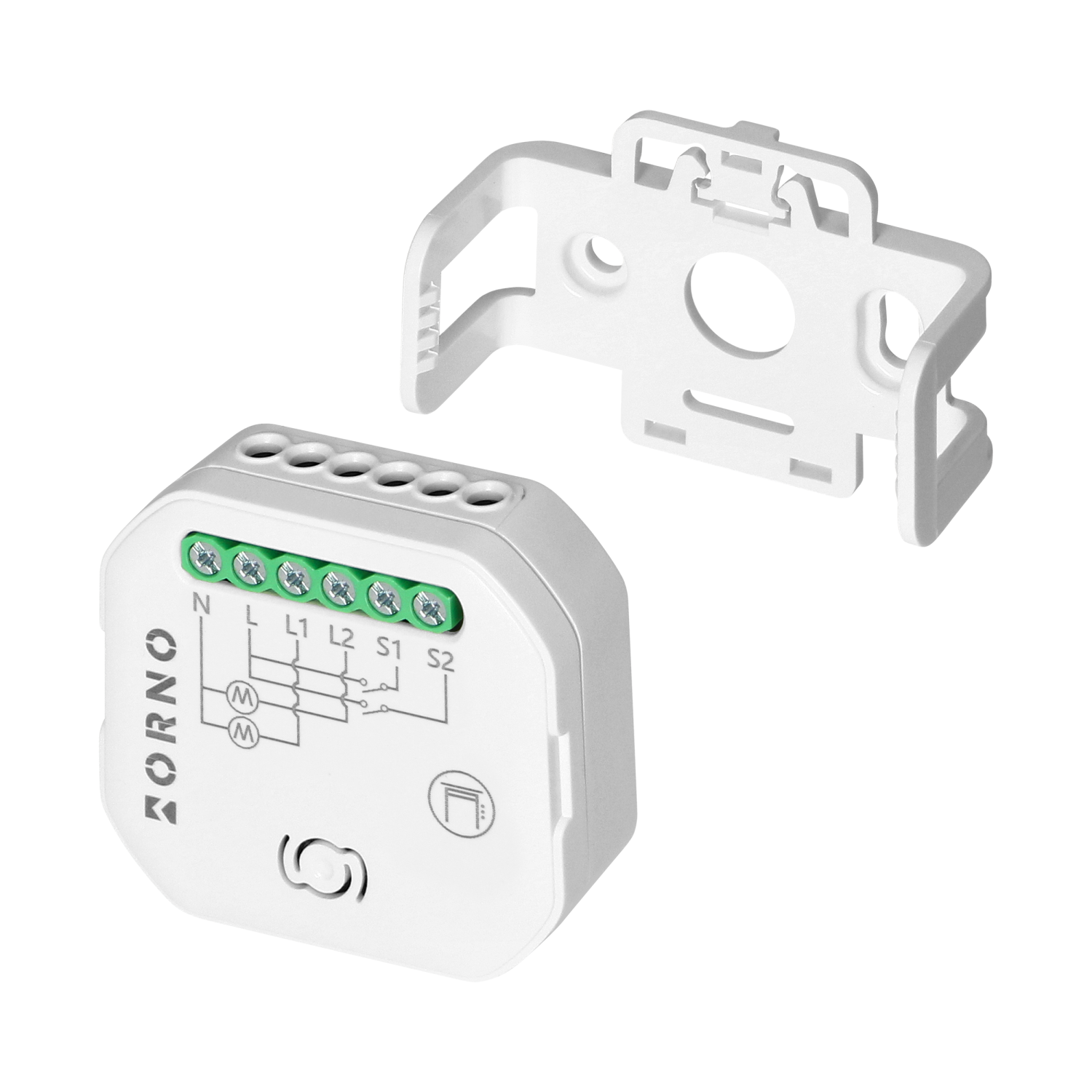

Thanks to the option of flush or DIN rail mounting, the appliance enables installation in a distribution board or in a junction box. Using a relay as a switching element ensures movement in one direction, which protects the roller blind motor from failure.
The built-in advanced smart home technology facilitates to remotely control the device via Wi-Fi or Bluetooth with the help of Tuya Smart app from any place in the world. Simply install Tuya Smart platform on a smartphone supporting Android or iOS systems and pair it with the relay. Thanks to Tuya Smart, the app may be easily integrated with other devices compatible with this technology.
The relay may also be adapted to an existing switch, thus adding new smart features. The device may be used both locally and remotely.
The light source must be adjusted for dimming. The user may then adjust the light level to one's own preference.
The dimensions measure 48x55 mm.
| General information: | |
|---|---|
| Mounting method: | Adapter szyny DIN , Montaż podtynkowy |
| Number of connectable motors: | 1 |
| Nominal voltage [V]: | 100-240 |
| Frequency [Hz]: | 50/60 |
| Rated current [A]: | 10 |
| Rated power [W]: | 600 |
| Local control: | Tak |
| Wi-Fi: | Tak |
| Bluetooth: | Tak |
| Powered by TUYA: | Tak |
| Google: | Tak |
| Alexa: | Tak |
| Life time: | 100000 |
| Operating system: | IOS/Android |
| Wi-Fi Standard: | IEEE 802.11 b/g/n, 2.4GHz |
| Bluetooth: | Bluetooth 3.0 |
| Operating Temperature [°C]: | (-20 °C 70 °C) |
| Wi-Fi power [W]: | ≤0.2W |
| Height [mm]: | 48 |
| Width [mm]: | 55 |
| Depth [mm]: | 23 |
