Switch modules

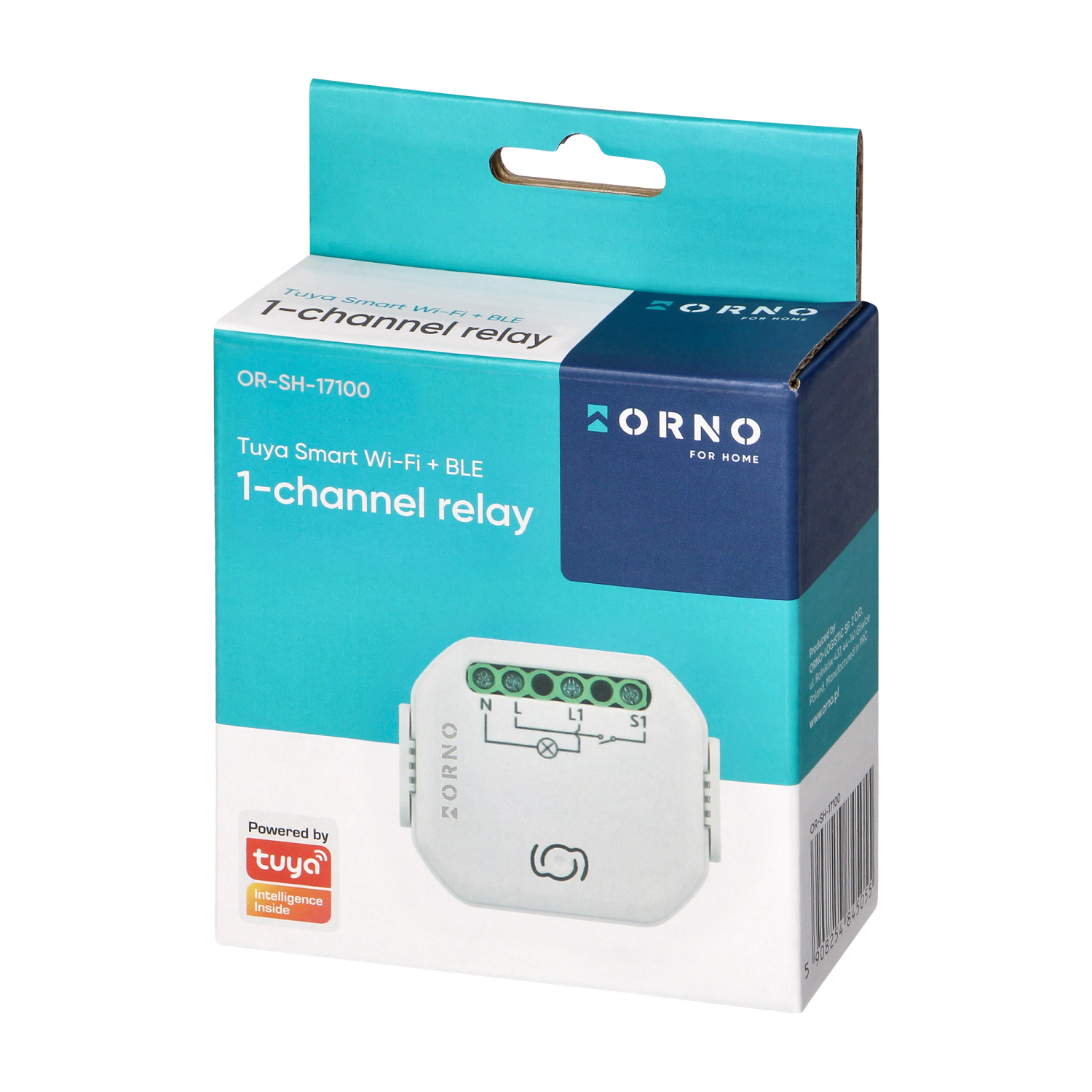

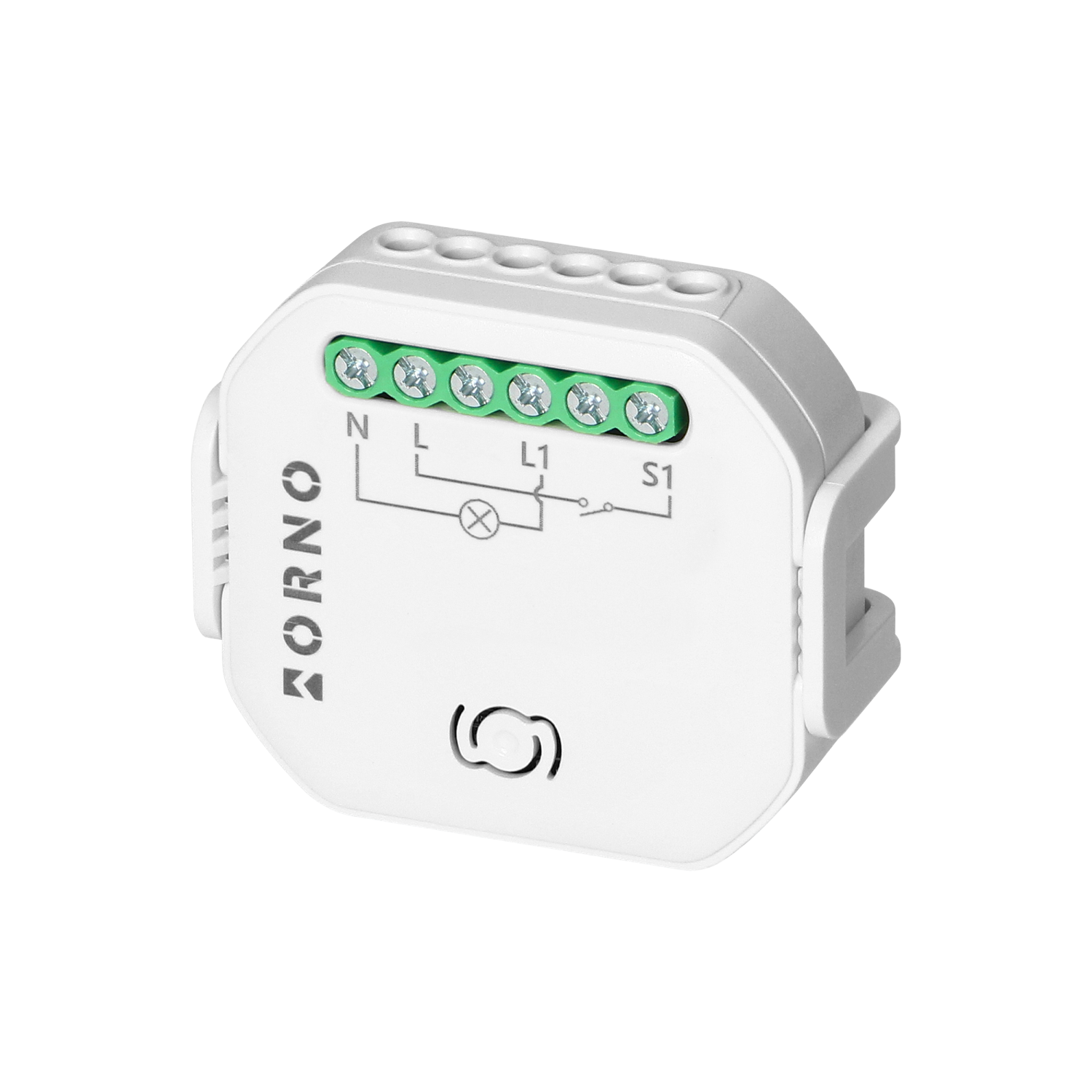

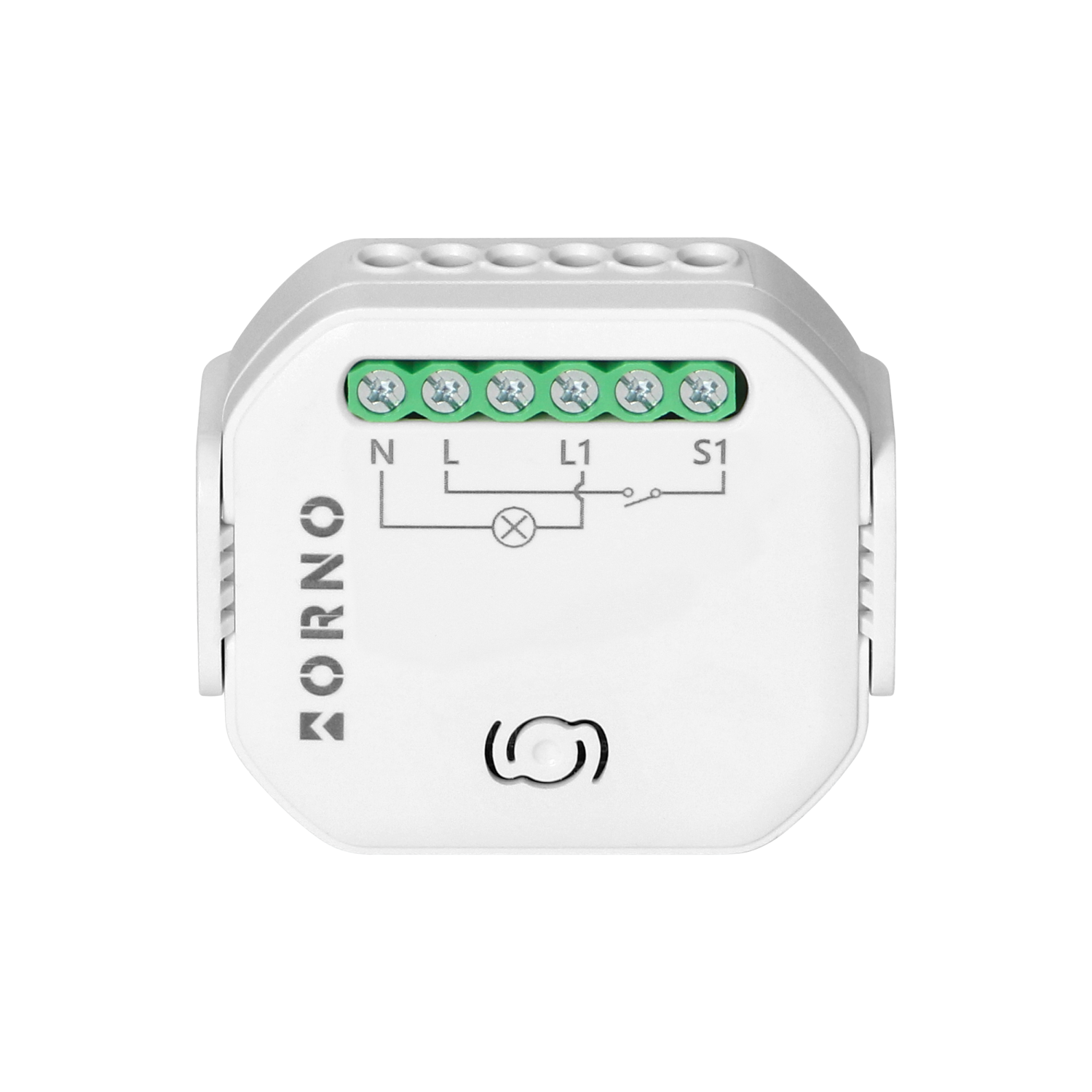

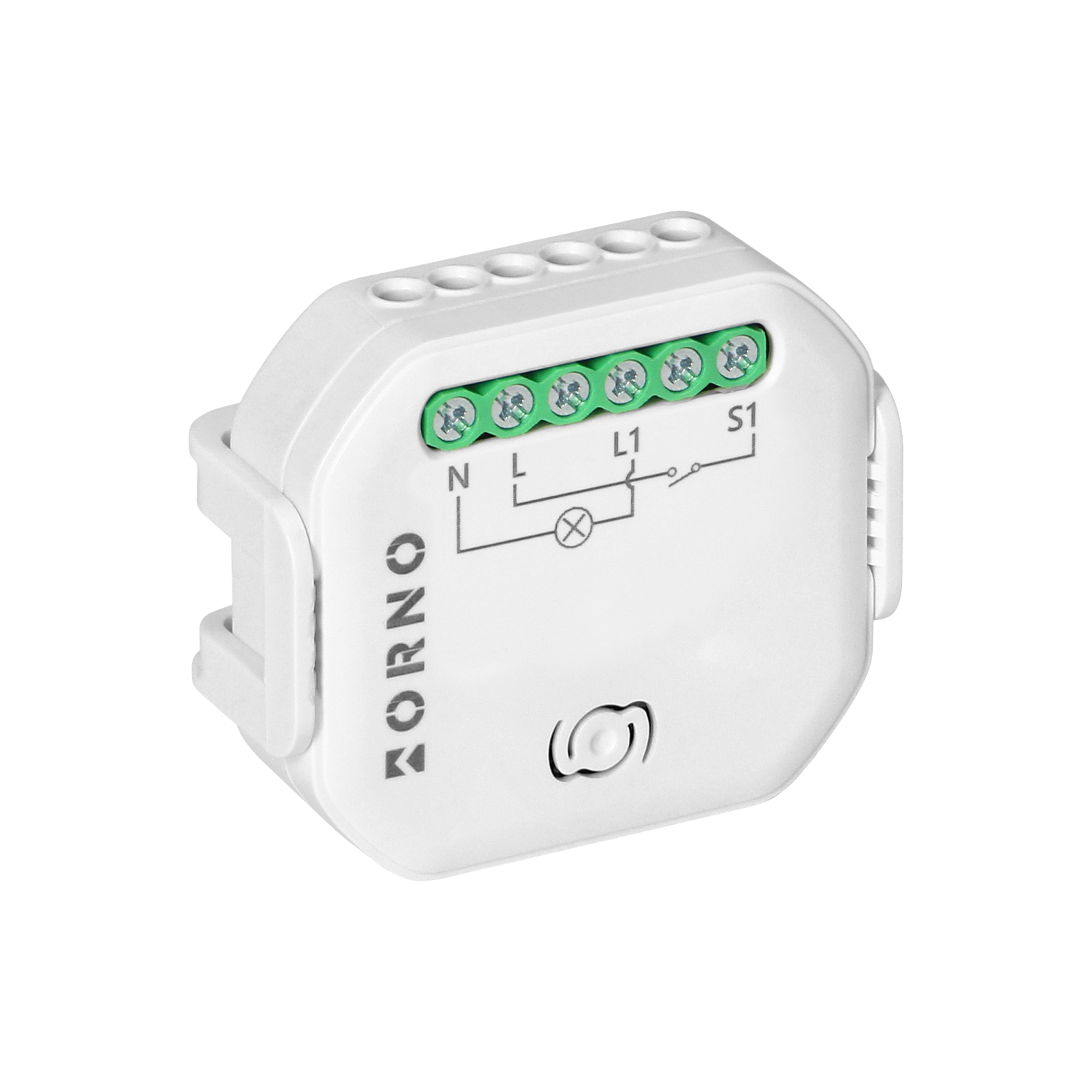

The 1-channel relay is a modern device equipped with smart home technology enabling not only local but also remote control over lighting or other electrical appliances.

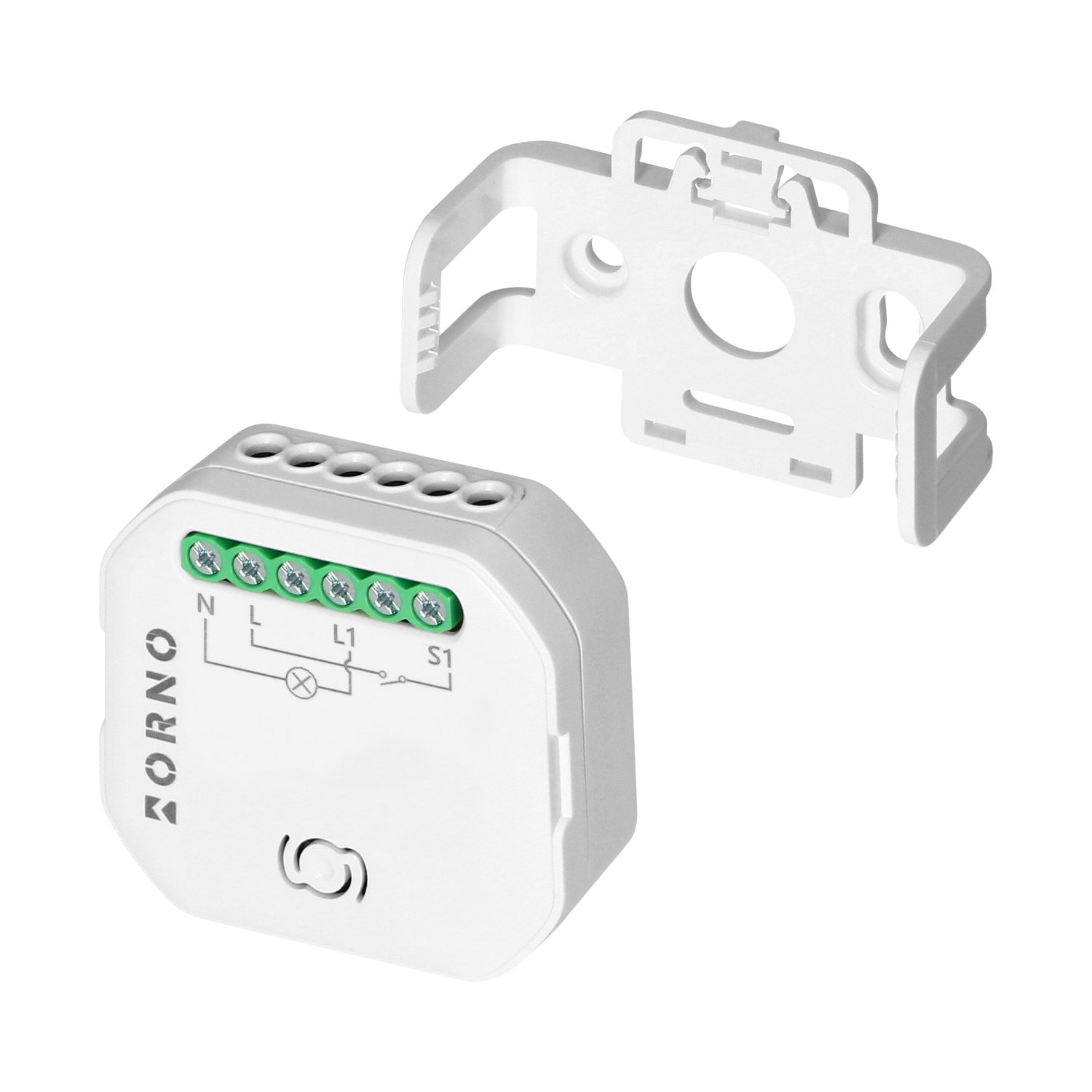

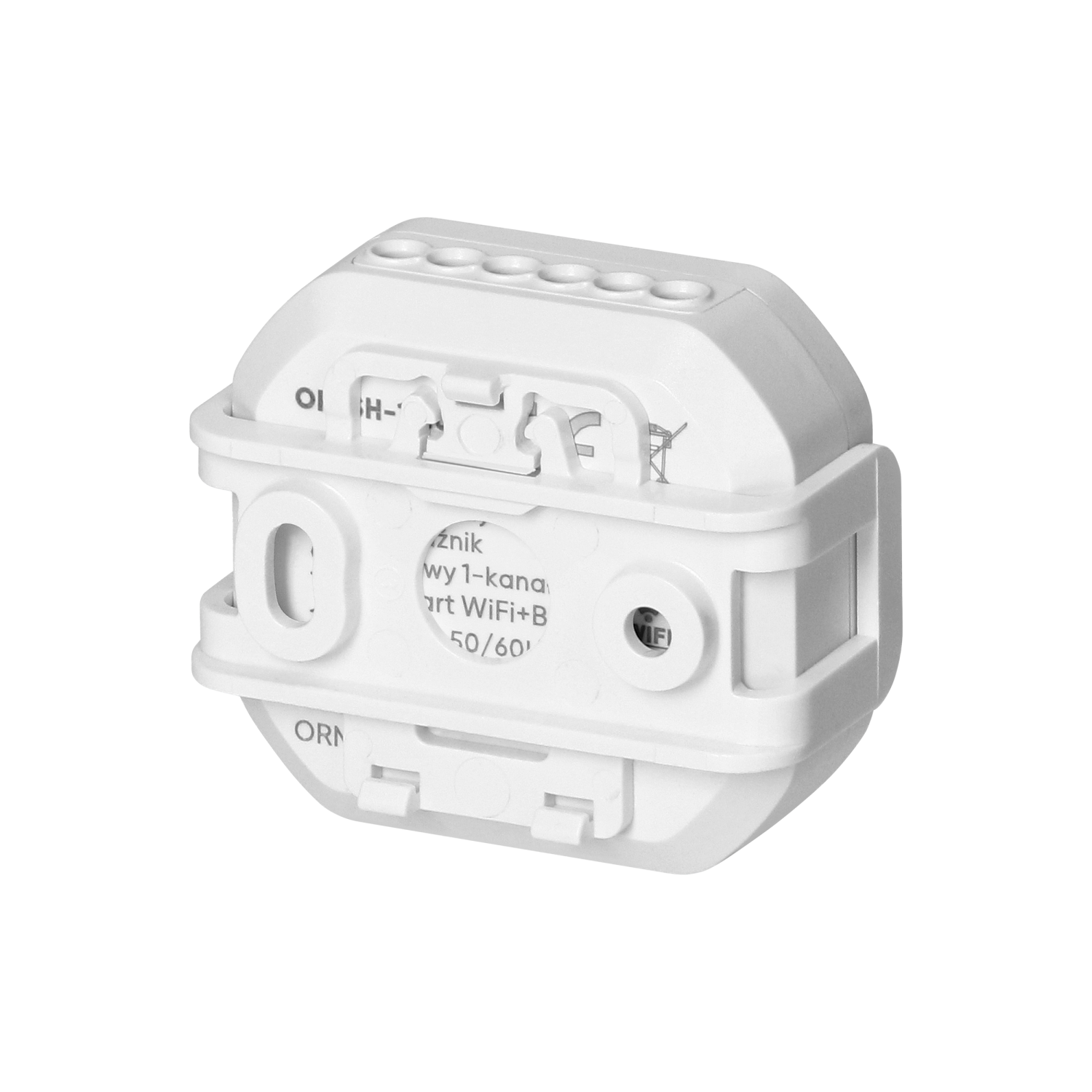

Thanks to the option of flush or DIN rail mounting, the appliance enables installation in a distribution board (width measured in number of 3,1 modules, built-in depth 23mm and 1 No contact) or in a junction box.
The built-in advanced smart home technology facilitates to remotely control the device via Wi-Fi or Bluetooth with the help of Tuya Smart app from any place in the world. Simply install Tuya Smart platform on a smartphone supporting Android or iOS systems and pair it with the relay. Thanks to Tuya Smart, the app may be easily integrated with other devices compatible with this technology.
The relay may also be adapted to an existing switch, thus adding new smart features. The device may be used both locally and remotely.

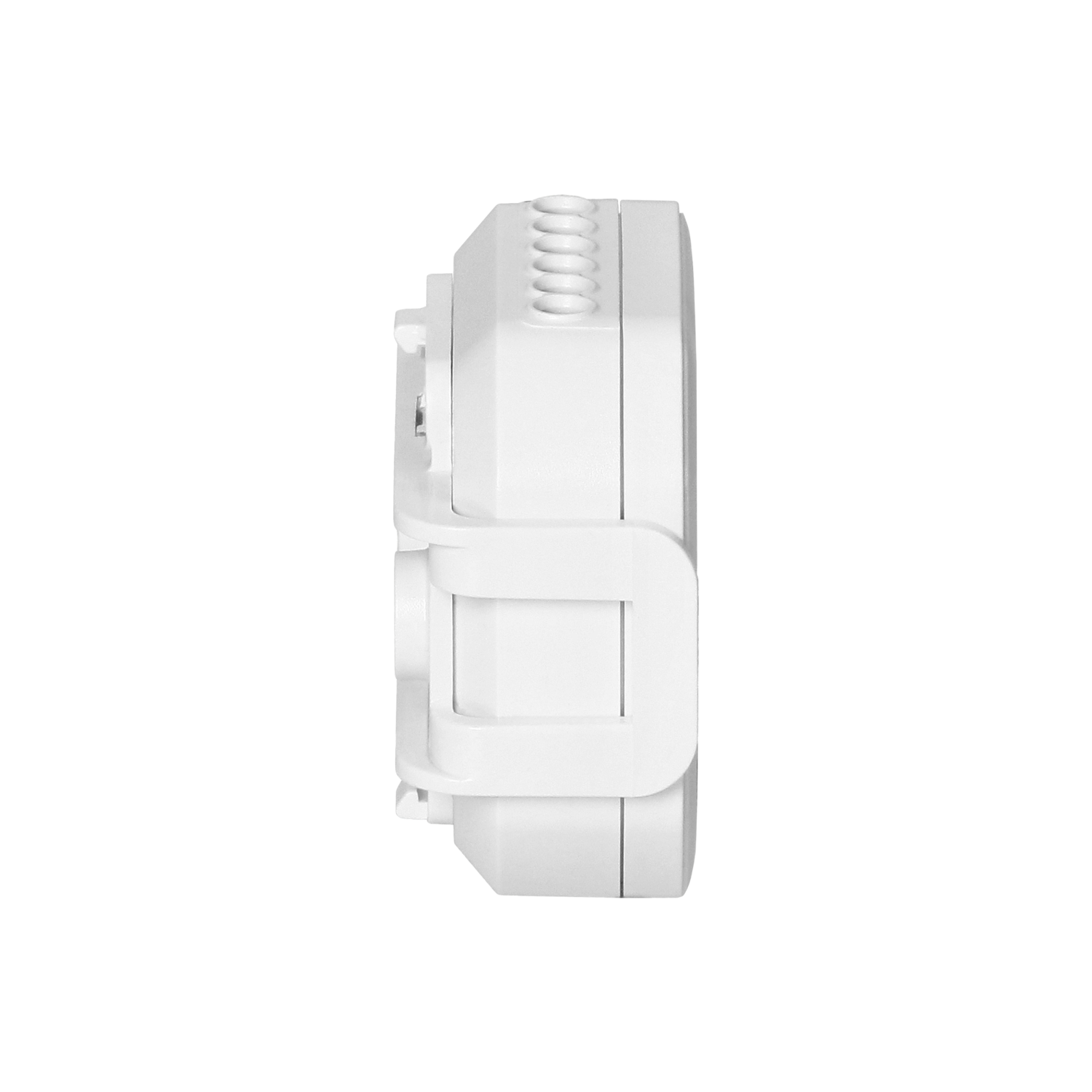

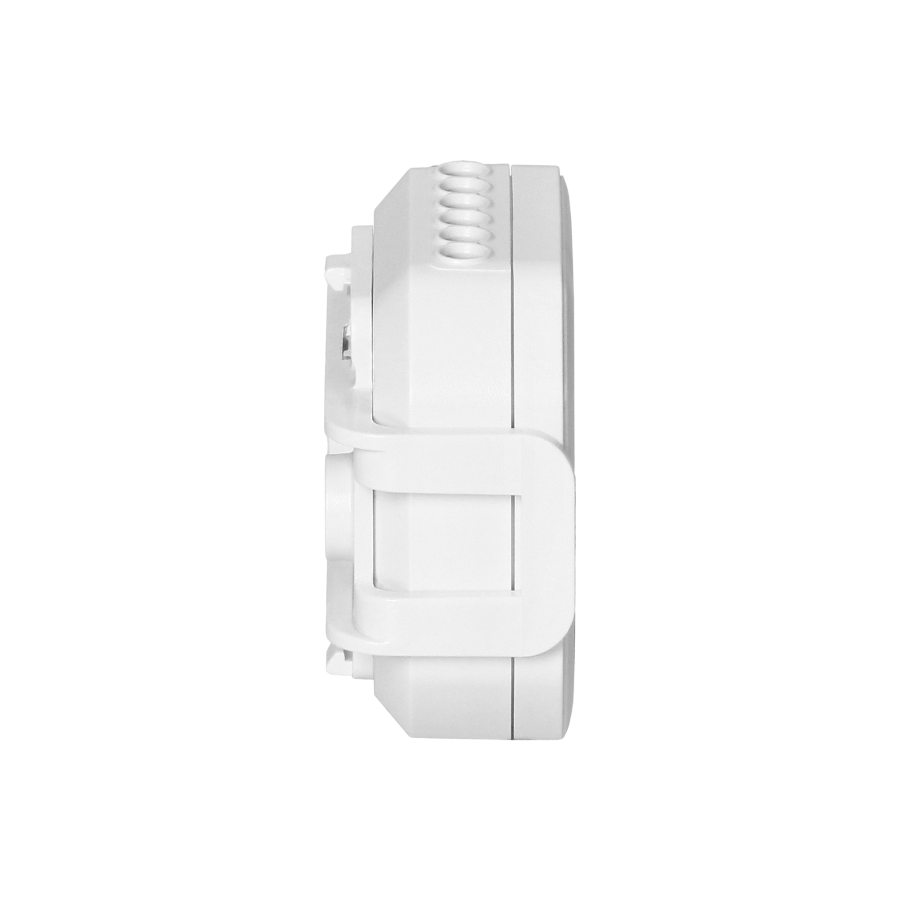

The dimensions measure 48x55 mm.
| General information: | |
|---|---|
| Function: | Mechaniczna |
| Mounting method: | Montaż podtynkowy, Szyna DIN |
| Width in number of modular spacings: | 3.1 |
| Built-in depth [mm]: | 23 |
| Number of contacts as normally open contact: | 1 |
| Control voltage 1 [V]: | 100-240 |
| Type of control voltage 1: | AC |
| Frequency control voltage 1 [Hz]: | 50/60 |
| Rated current [A]: | 10 |
| Supply voltage [V]: | 100-240 |
| Voltage type (supply voltage): | AC |
| Max. incandescent lamp load [W]: | 2300 |
| Max. switching current (cos phi = 0.6) for LED [A]: | 575 |
| Life time: | 100000 |
| Local control: | Tak |
| Tuya: | Tak |
| Bluetooth: | Tak |
| Wi-Fi: | Tak |
| Operating system: | IOS/Android |
| Wi-Fi Standard: | IEEE 802.11 b/g/n, 2.4GHz |
| Wi-Fi power [W]: | ≤0,2W |
| Standard Bluetooth: | Bluetooth 3.0 |
| Operating Temperature [°C]: | -20 - 70 |
| Height [mm]: | 48 |
| Width [mm]: | 55 |
| Depth [mm]: | 23 |
