Power meters

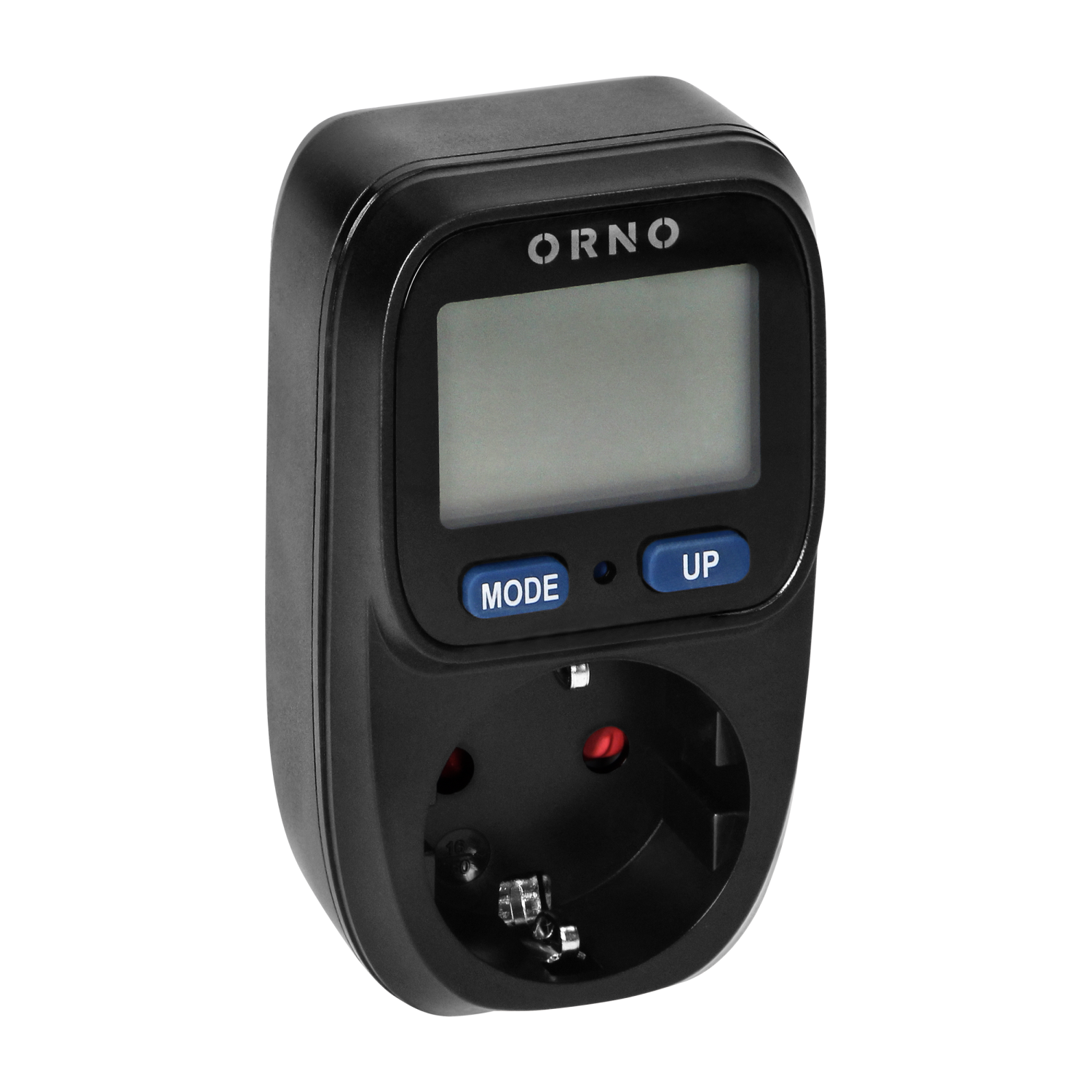

Power meter with LCD display, black. The power meter is designed to analyse the energy consumption of electrical appliances and calculate the cost of the energy consumed by the connected appliance.

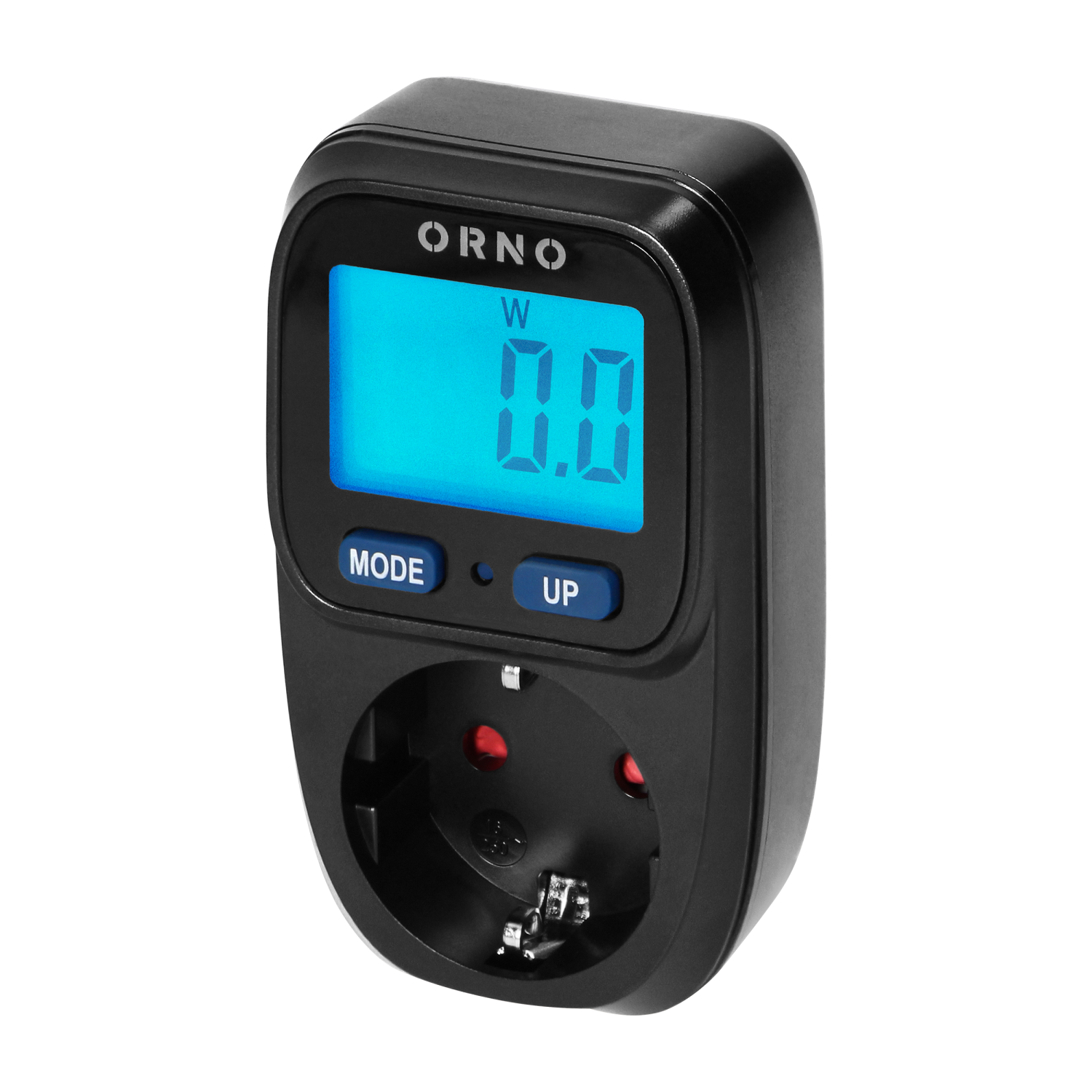

The energy calculator has a backlit LCD display and simple configuration of the cost measurement setting (simply hold down the MODE button to enter the electricity cost setting). Voltage measurement: 200V~ 276V~.
The IP20-rated wattmeter is suitable for indoor use in all dry areas, meaning that measurements cannot be taken in damp locations and in unsuitable conditions, such as areas exposed to dust, splashes, etc.
The device has a single 2P+E Schuko-type socket that will provide safe access to power. The socket allows a continuous current flow of 16A, with a maximum power of 3680W.
Dimensions of the device 63 x 75 mm.
| General information: | |
|---|---|
| Type of meter: | Elektroniczny |
| Nominal current (In) [A]: | 16 |
| Max. current (Imax) [A]: | 200 |
| : | 270 |
| Nominal voltage (Un) N-L [V]: | 230 |
| Frequency [Hz]: | 50 |
| Accuracy class: | A |
| Pole type: | Jednofazowe |
| Model: | Pomiar bezpośredni |
| Energy type: | Moc czynna |
| Suitable for: | Pobór |
| Tariff type: | Jednotaryfowe |
| Type of indication: | Cyfrowy |
| Backlight: | Tak |
| Mounting method: | Wtyk |
| Standard: | Ze stykiem ochronnym (SCHUKO) |
| Width [mm]: | 58 |
| Depth [mm]: | 54 |
| Height [mm]: | 102 |
| Number of positions total (counter): | 9999 |
| Degree of protection (IP): | 20 |
