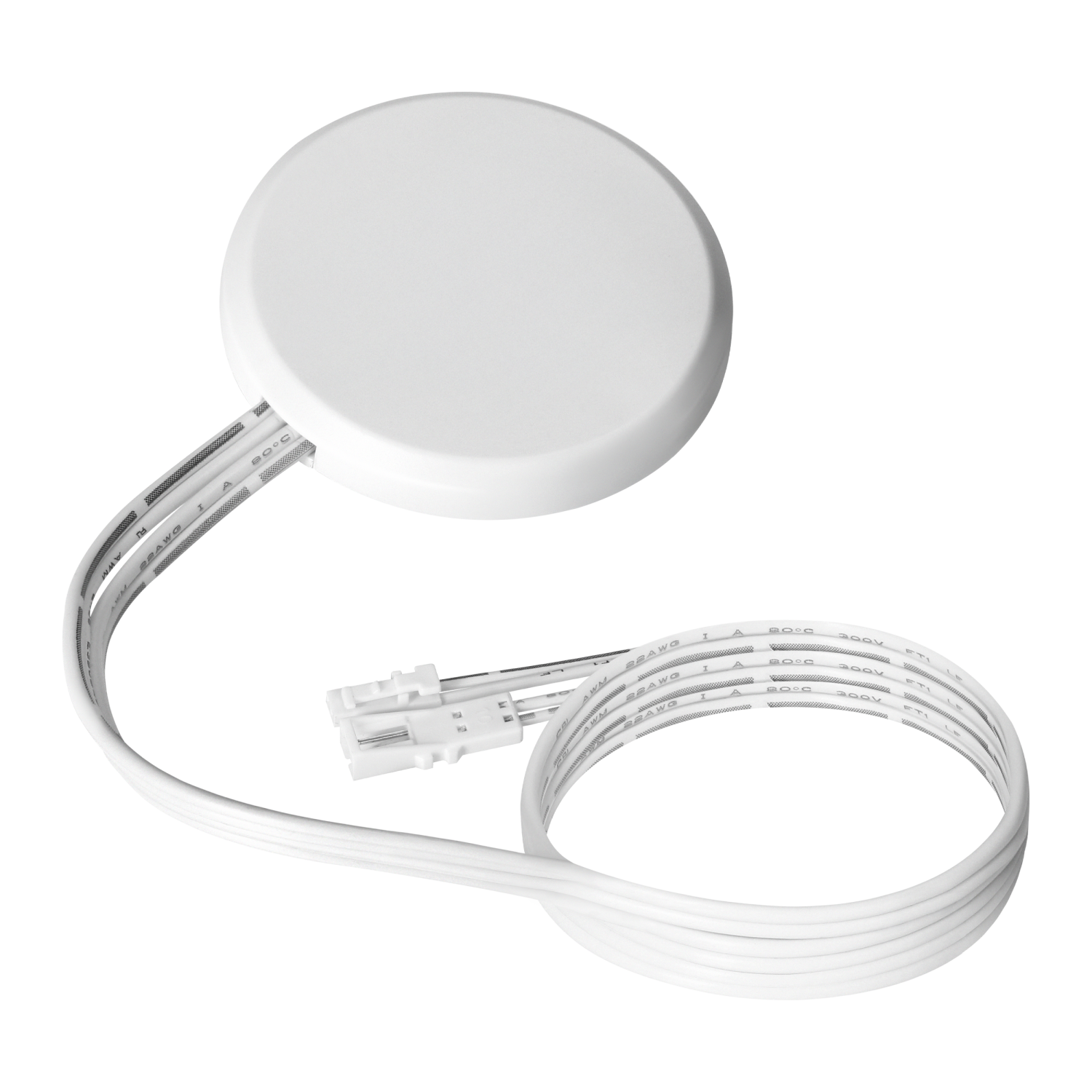

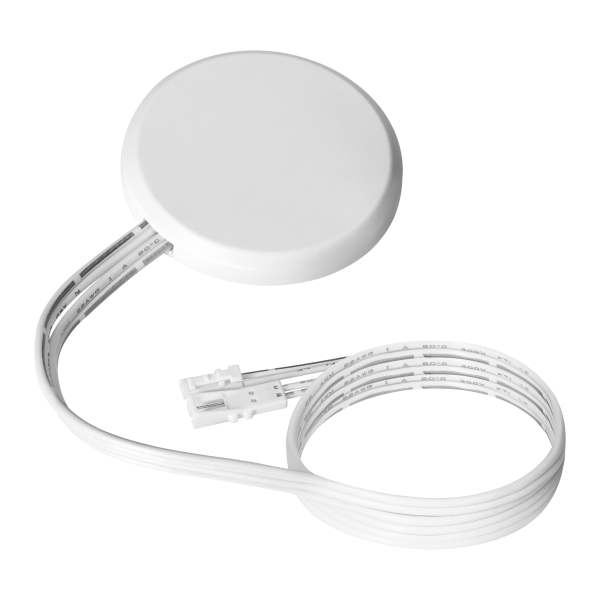

Undercounter switch 60W, white
Undercounter switch 60W, white

Undercounter switch 60W, white

OR-CR-285/W
New

Description


Control your light with one touch! The device allows to turn the light on and off by touching the surface of the furniture under which the switch is installed. No need to search for a button or to wave your hand; simply tap or touch the tabletop above the sensor to activate the light. Place your hand where the sensor is located to activate the LED with a power of up to 60 W.

The capacitive sensor reacts immediately, making light operation quick and hygienic, which is particularly important when your hands are busy or dirty, e.g. in the kitchen. Thanks to the use of capacitive technology, the switch detects changes in the electrostatic field created when a hand comes into contact with the surface. This means that it works even through a layer of material: through a kitchen worktop, furniture board or shelf up to 40 mm thick.

The switch is designed primarily for under-counter mounting – it is hidden under the surface of the furniture so that it remains completely invisible and does not disarrange the appearance of the kitchen. The touch sensor is perfect for use in the kitchen under countertops or cabinets, in the dressing room to illuminate shelves and closets, in the office or studio, on display cabinets, shelving, and display furniture.

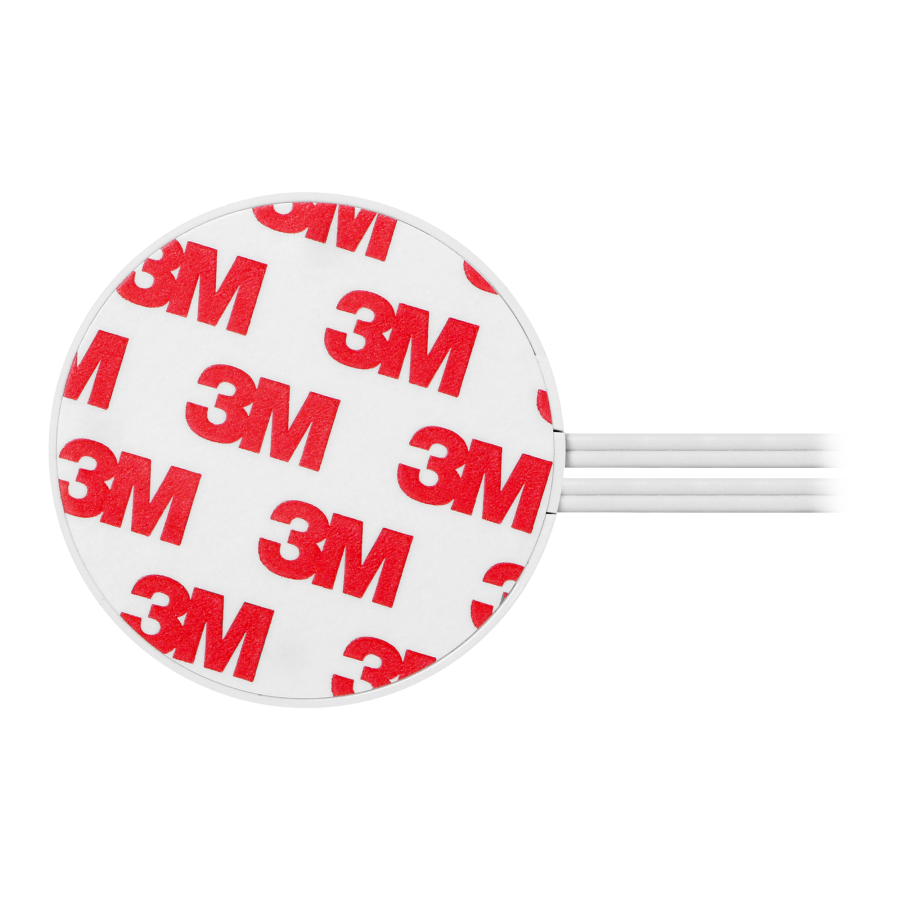

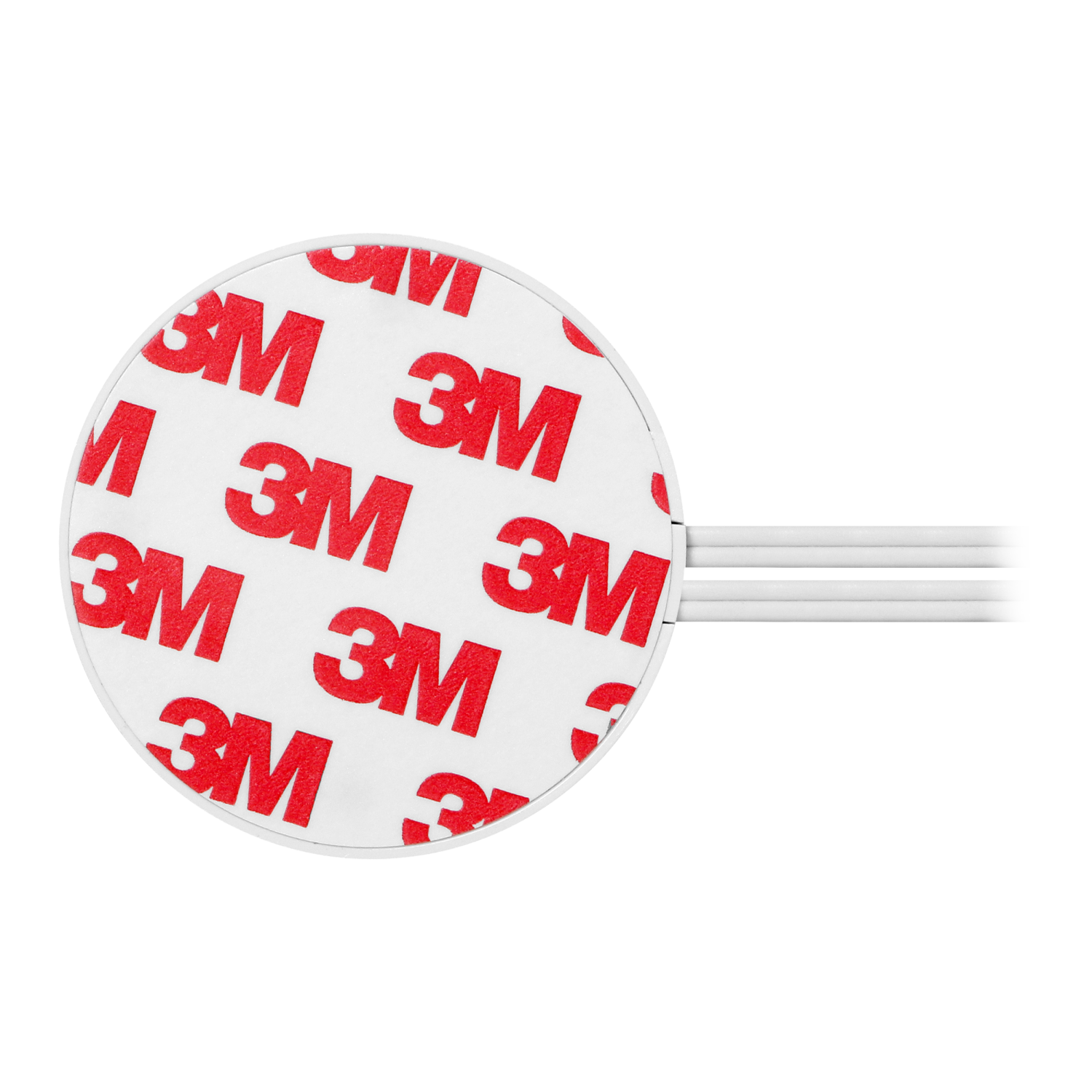

Installation is trouble-free: the device can be attached using the included tape, and DC connectors allow direct connection to the power supply and to the LED strip without soldering.

With a power supply of 12–24 V DC and 60 W, the device is compatible with LED furniture lighting: strips, panels, profiles, and under-cabinet luminaires.

General information:
Model: Podblatowy
Sensor type: Pojemnościowy
Max. countertop/door thickness [mm]: 40
Mounting method: Montaż podblatowy
Material: Tworzywo sztuczne
Material quality: Tworzywo termoplastyczne
Colour: Biały
Degree of protection: IP20
Voltage type: DC
Nominal voltage [V]: 12-24
Max. switching power LED [W]: 60
Height [mm]: 7
Diameter [mm]: 50
Weight [g]: 27
With connection cable: Tak
Connection cable length [mm]: 500

Files to download

File category File language File type File update date
Product data sheetPLpdf2026-03-04 08:36:36Download
Product data sheetENpdf2026-03-04 08:48:03Download
User manualPL, EN, DE, FR, RUpdf2025-06-25 15:28:55Download
