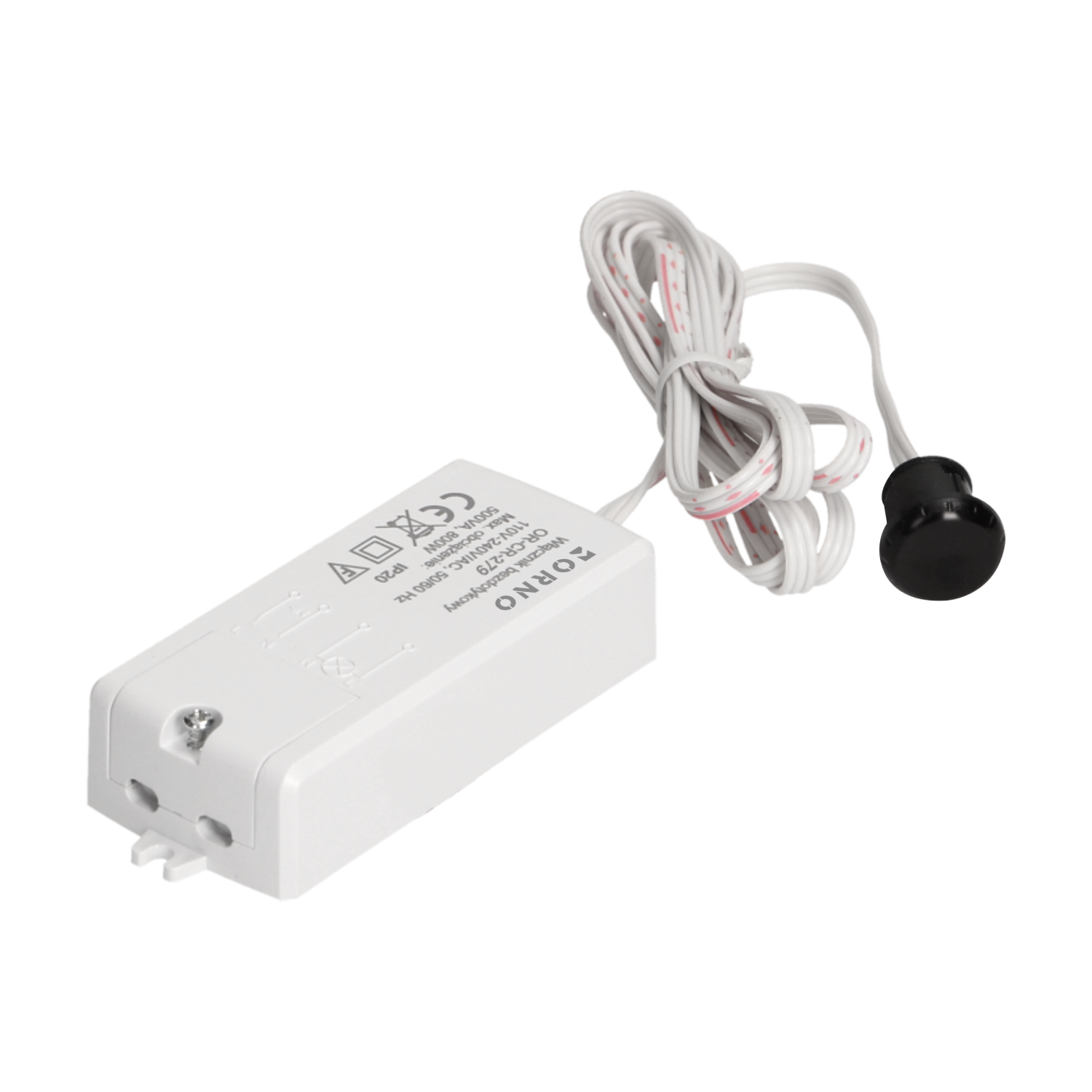

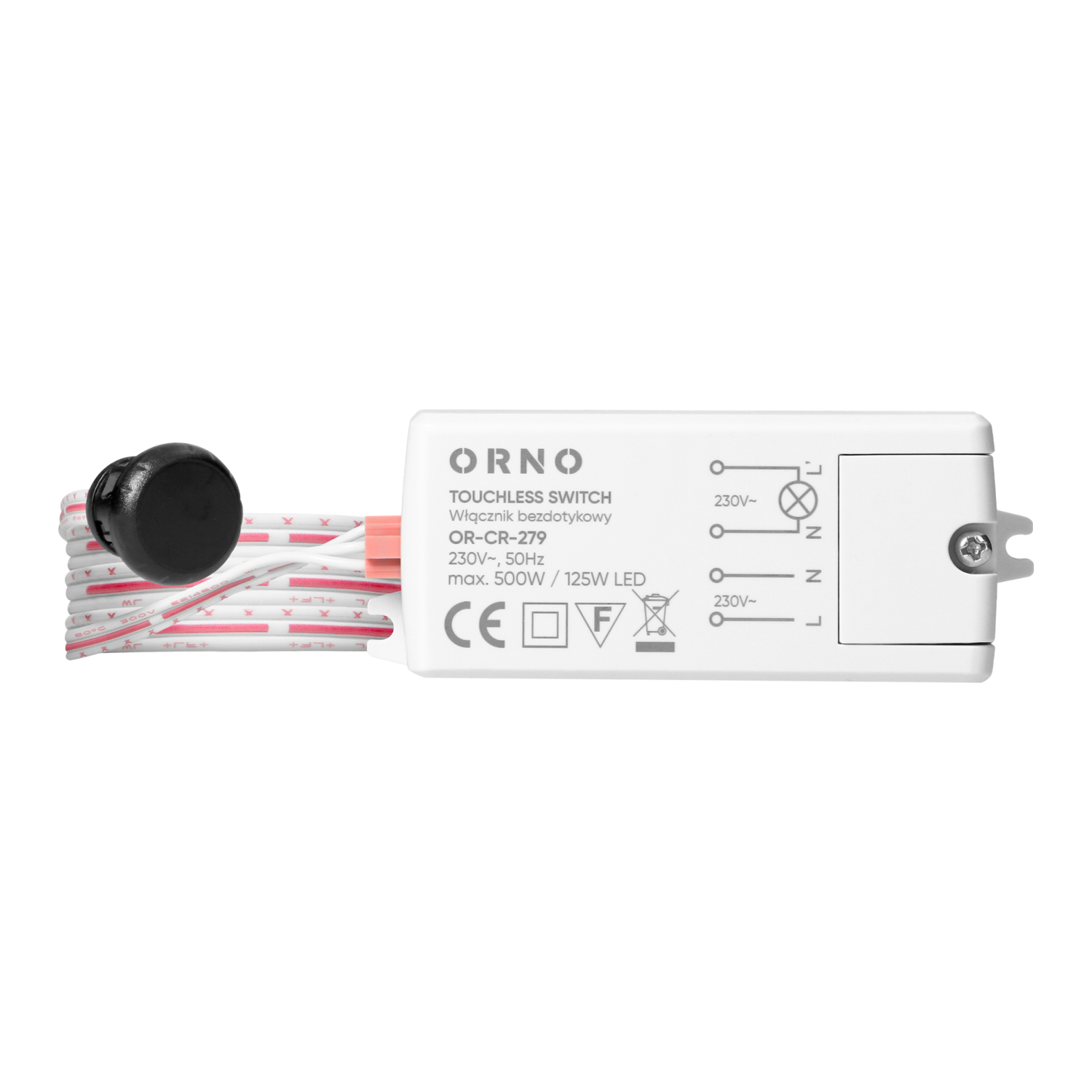

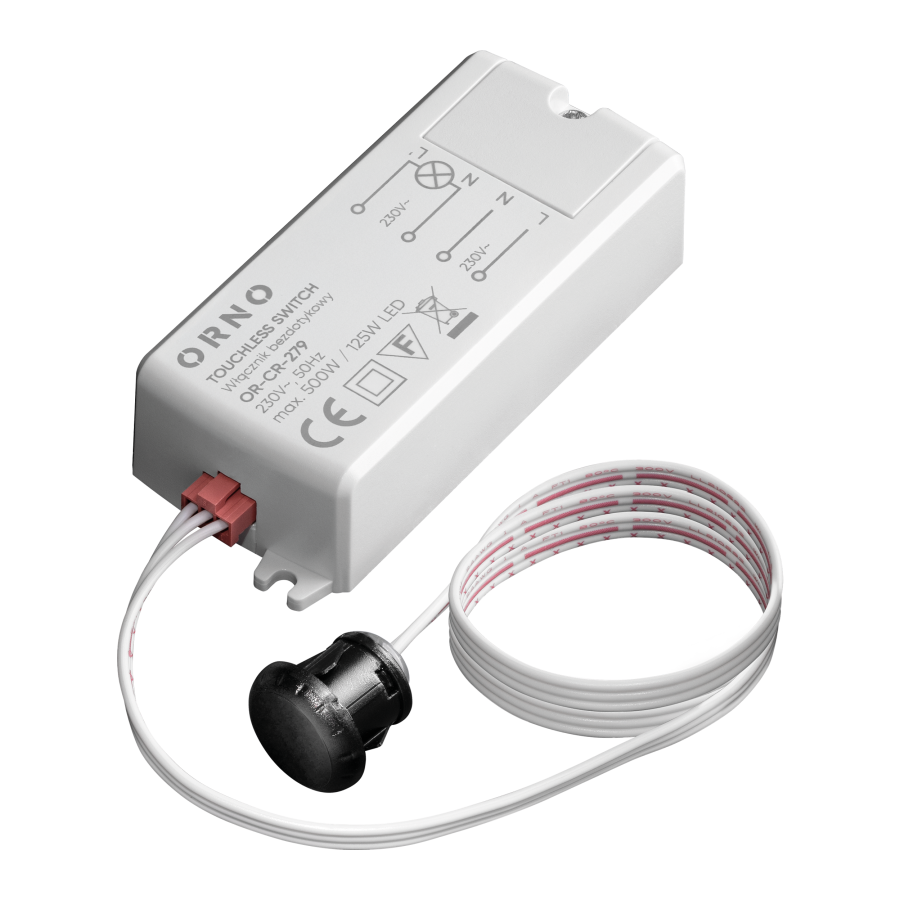

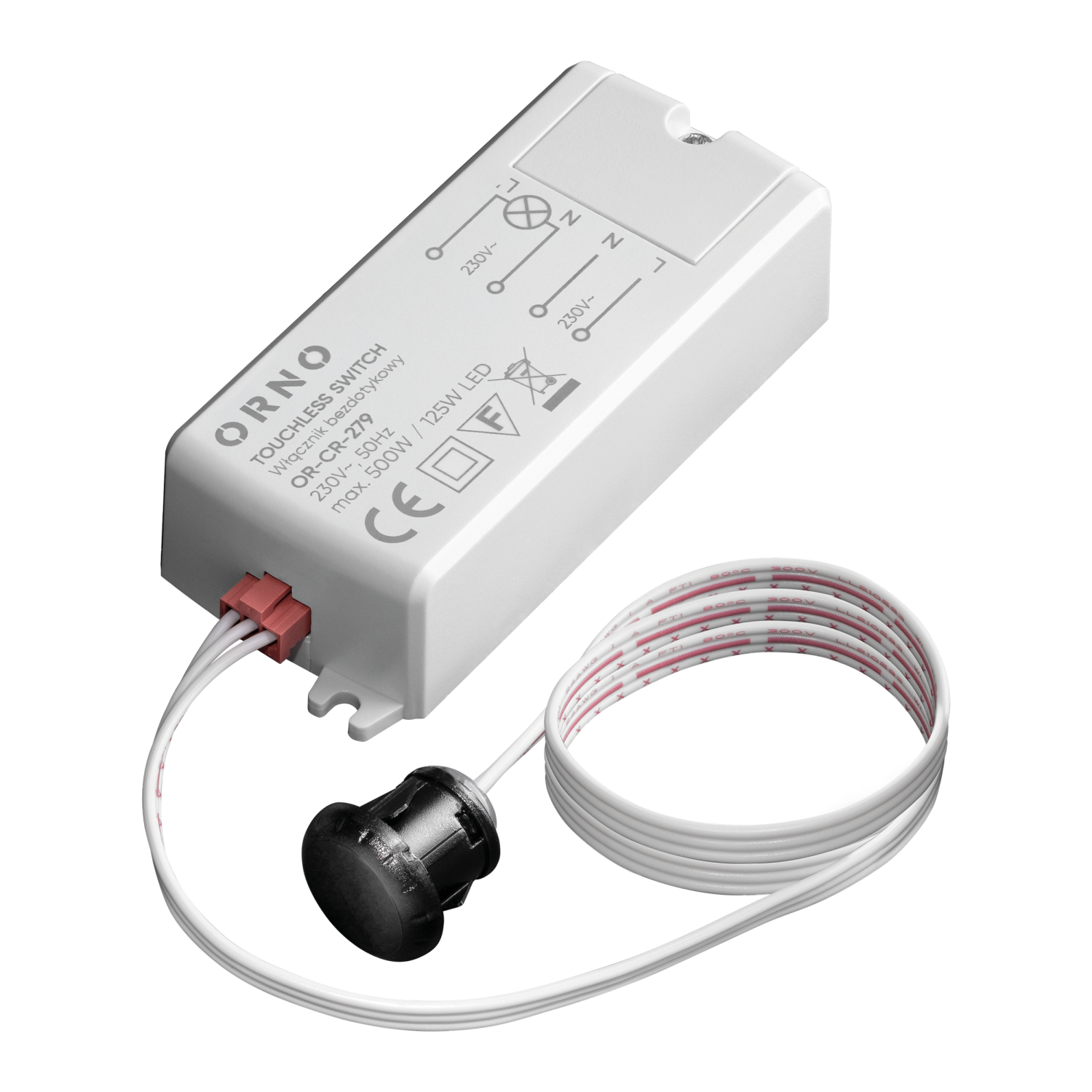

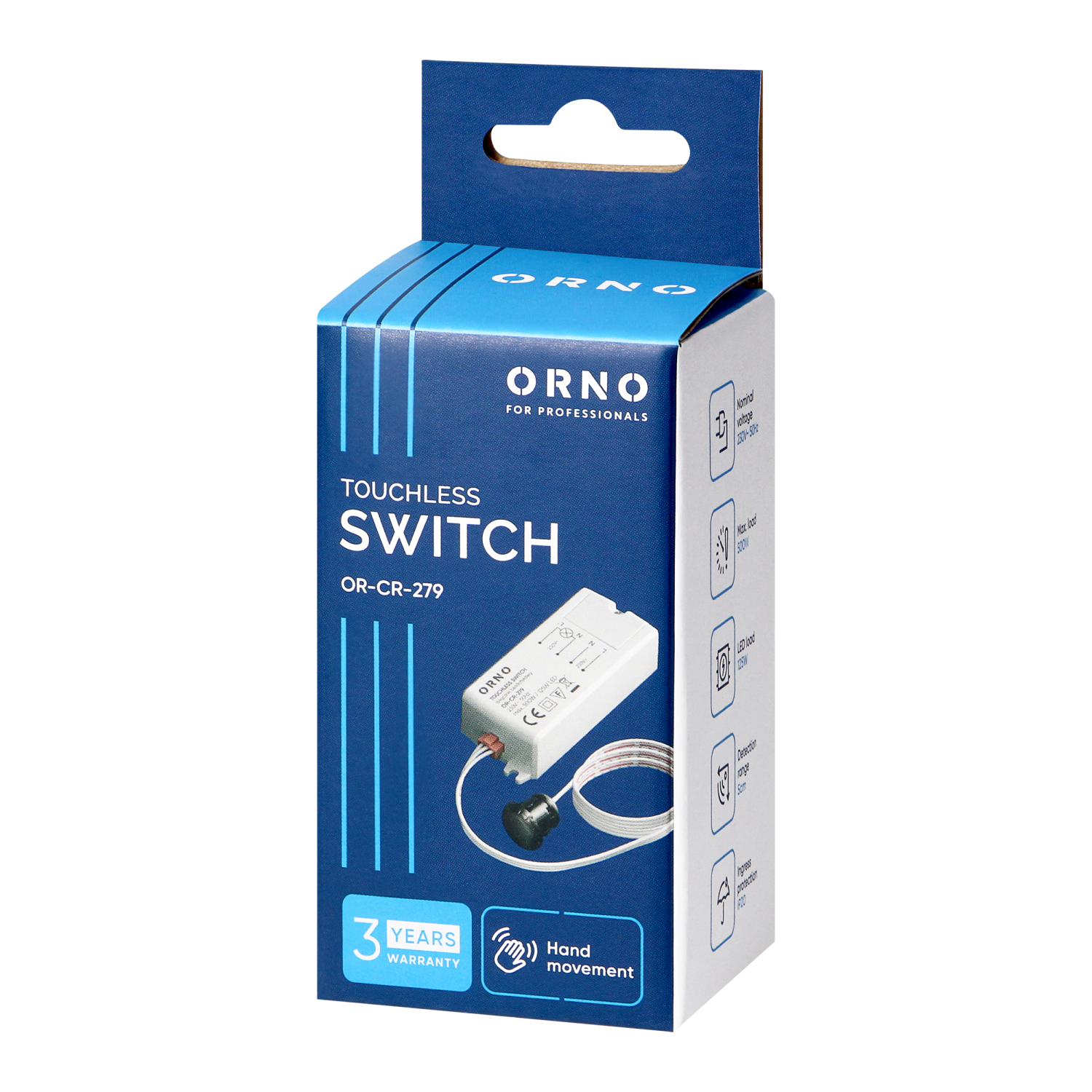

The touchless switch is a modern and convenient solution that facilitates touchless lighting control. With its proximity function, it responds to movement within a maximum range of up to 5 cm straight ahead.
The device features high precision, detecting movement at a speed of 0.6 to 1.5 m/s. Equipped with a relay output, it supports a rated voltage of 230V AC. The maximum switching power is 500W allowing the connection of various lighting sources or LEDs with a total power of 125W.
The switch is made of durable plastic in white, providing aesthetics and durability. Designed for indoor use (IP20).
The unit's compact dimensions (87x35x20 mm) and 12 mm built-in depth make it easy to install, even in confined spaces. The mounting hole diameter is 13 mm, and the additional connection cable has a length of 1500 mm.
| General information: | |
|---|---|
| Model: | Inne |
| Sensor type: | Zbliżeniowy |
| Max. reach frontally [m]: | 0.05 |
| Detection moving speed [m/s]: | 0,6 - 1,5 |

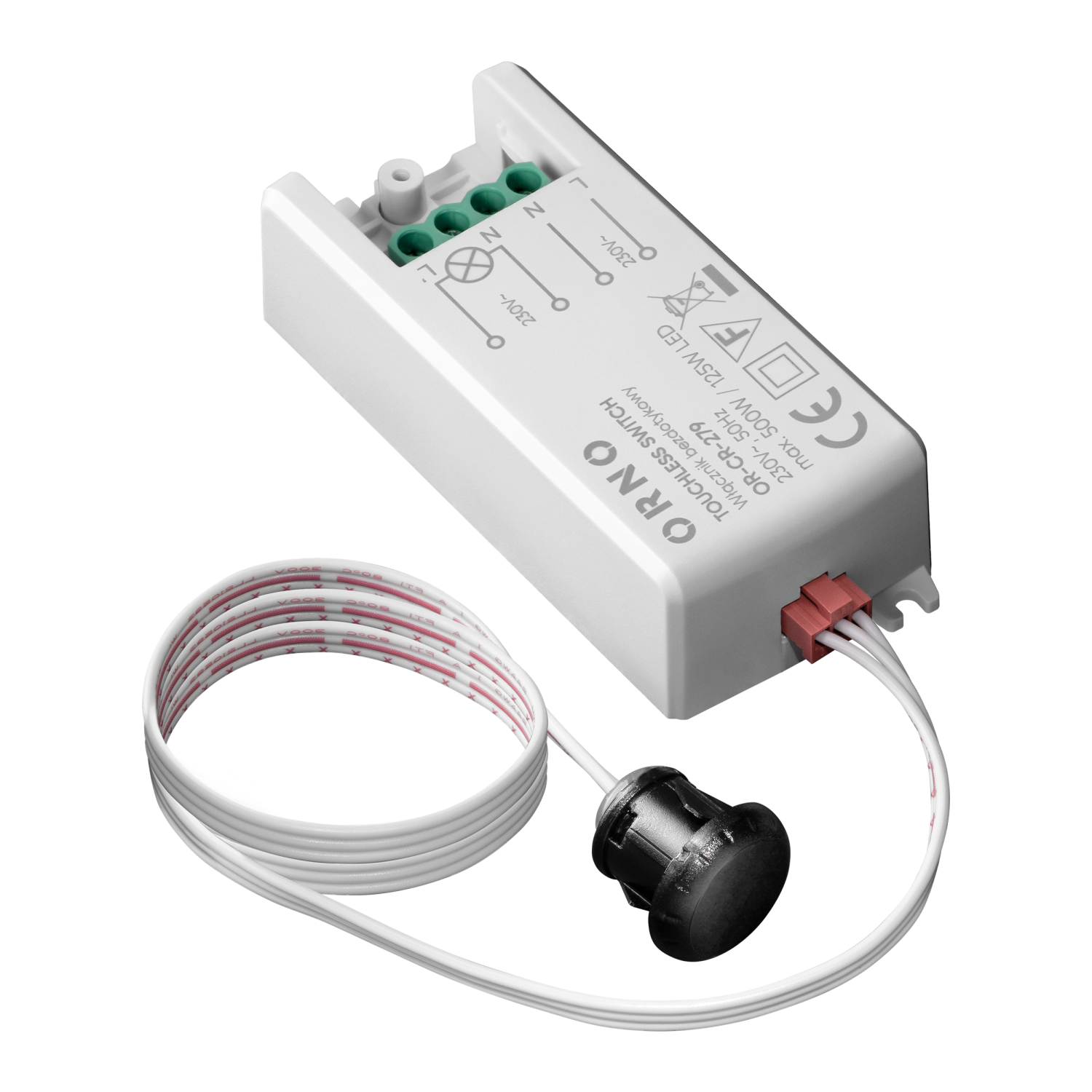

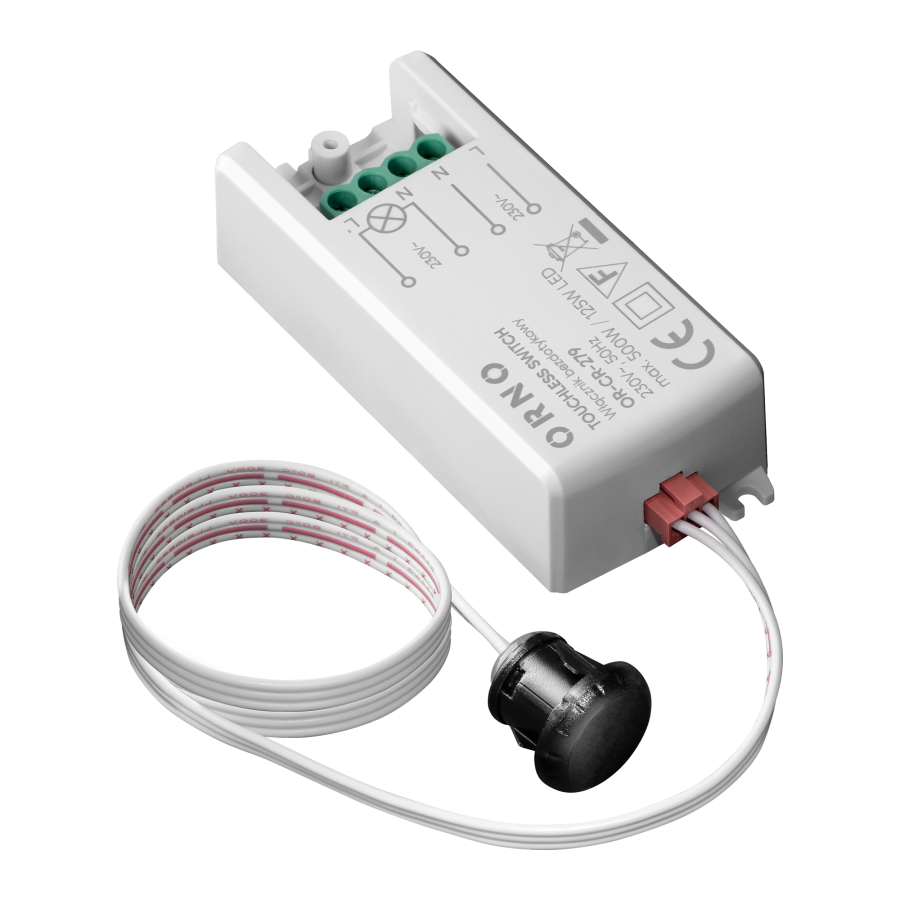

| Connection type: | Zacisk śrubowy |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Colour: | Biały |
| Degree of protection (IP): | IP20 |
| Voltage type: | AC |
| Frequency [Hz]: | 50 |
| Nominal voltage [V]: | 230 |
| Max. switching power [W]: | 500 |
| Max. switching power LED [W]: | 125 |
| Relay output: | Tak |
| Temperature [°C]: | -20 - +40 |
| Working humidity: | <93% |
| Width [mm]: | 87 |
| Height [mm]: | 35 |
| Depth [mm]: | 20 |
| Weight [g]: | 60 |
| Built-in depth [mm]: | 12 |
| Built-in diameter [mm]: | 13 |
| With connection cable: | Tak |
| Connection cable length [mm]: | 1500 |
