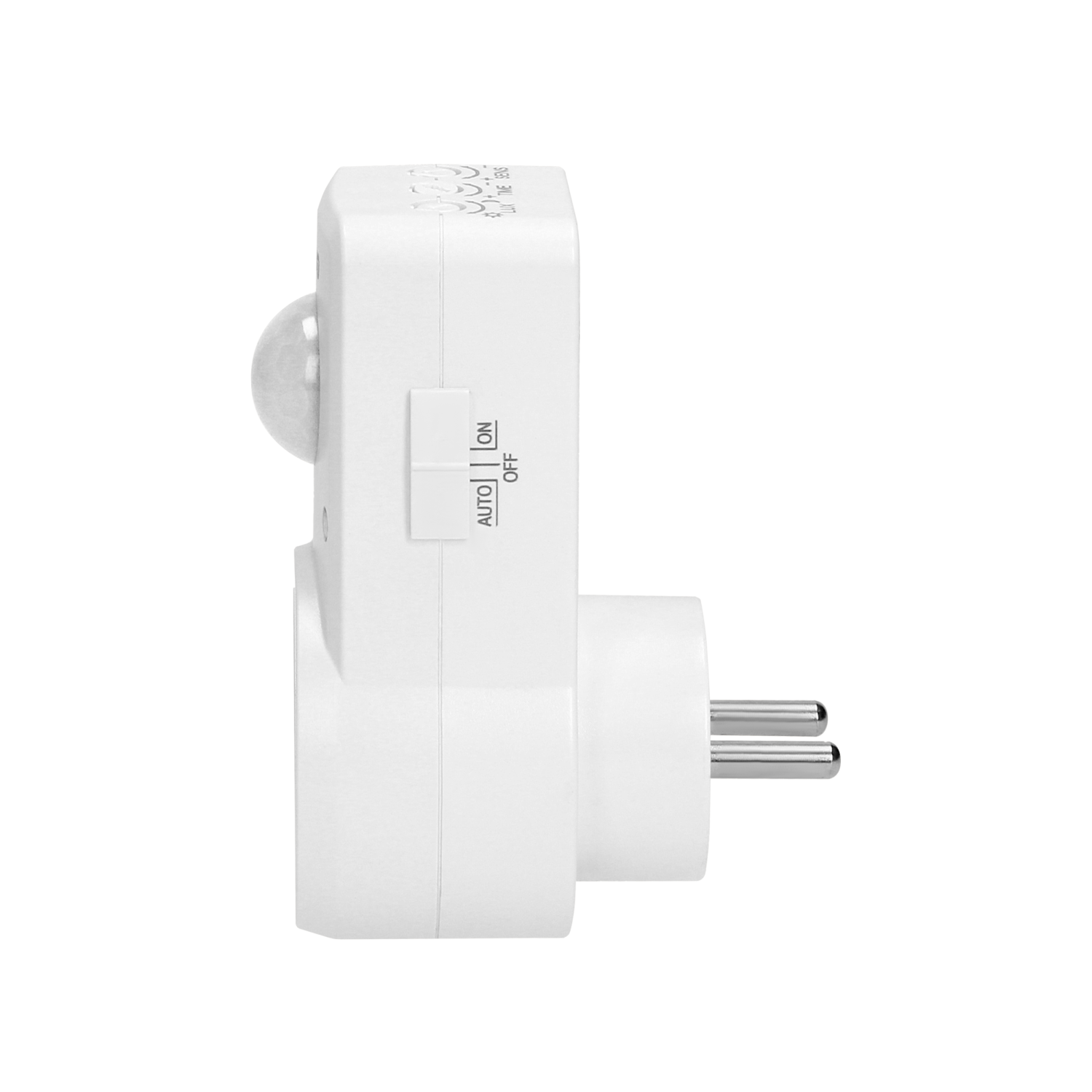

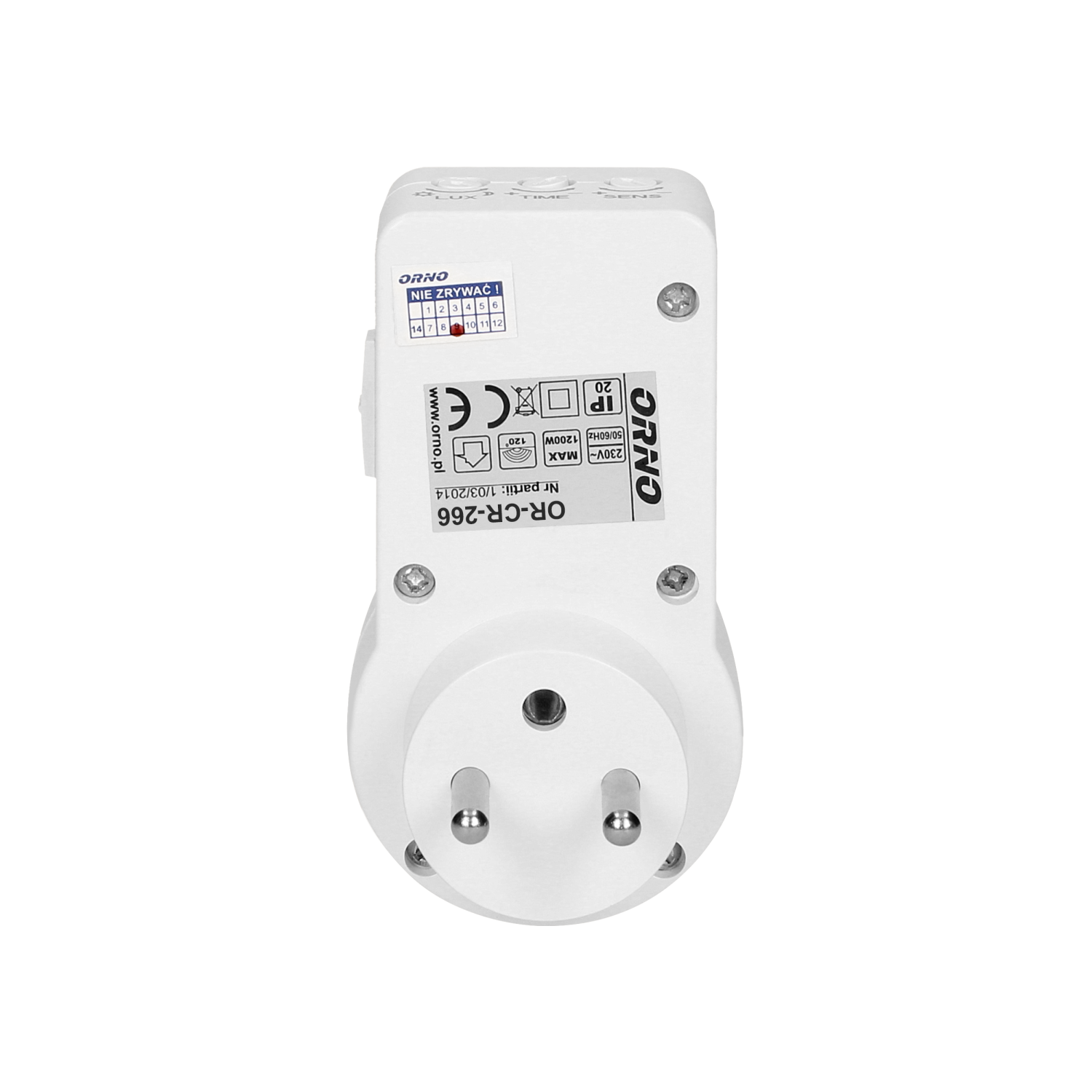

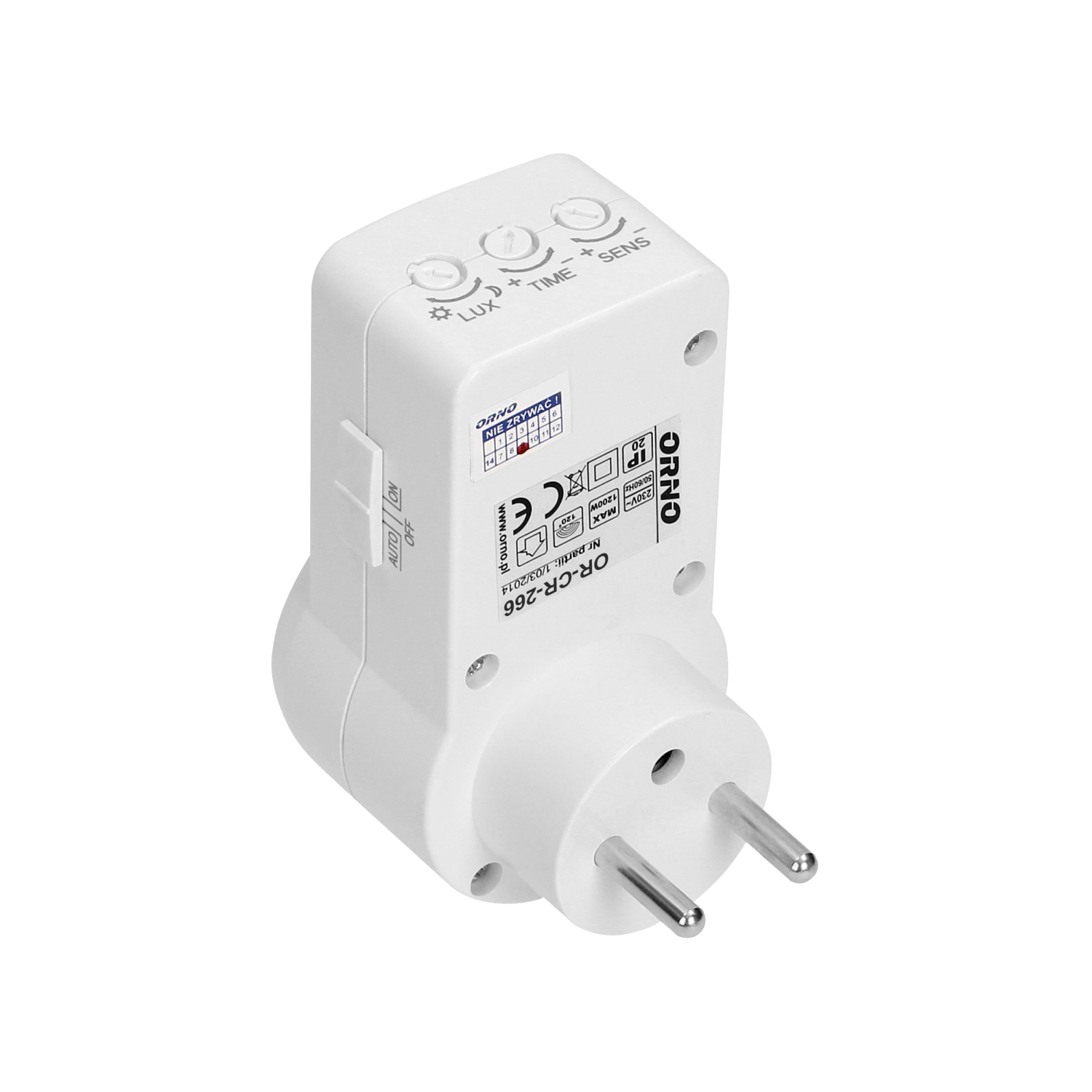

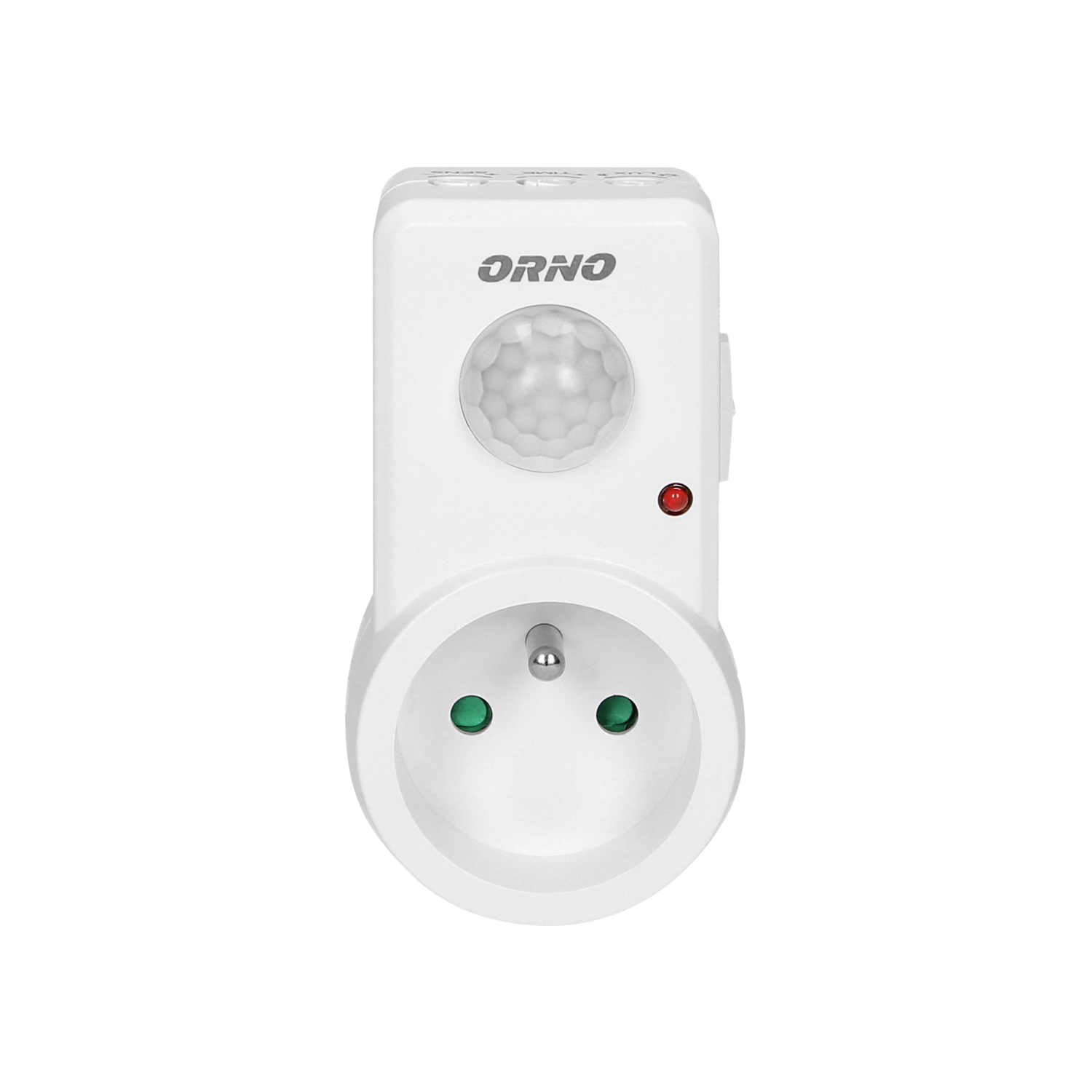

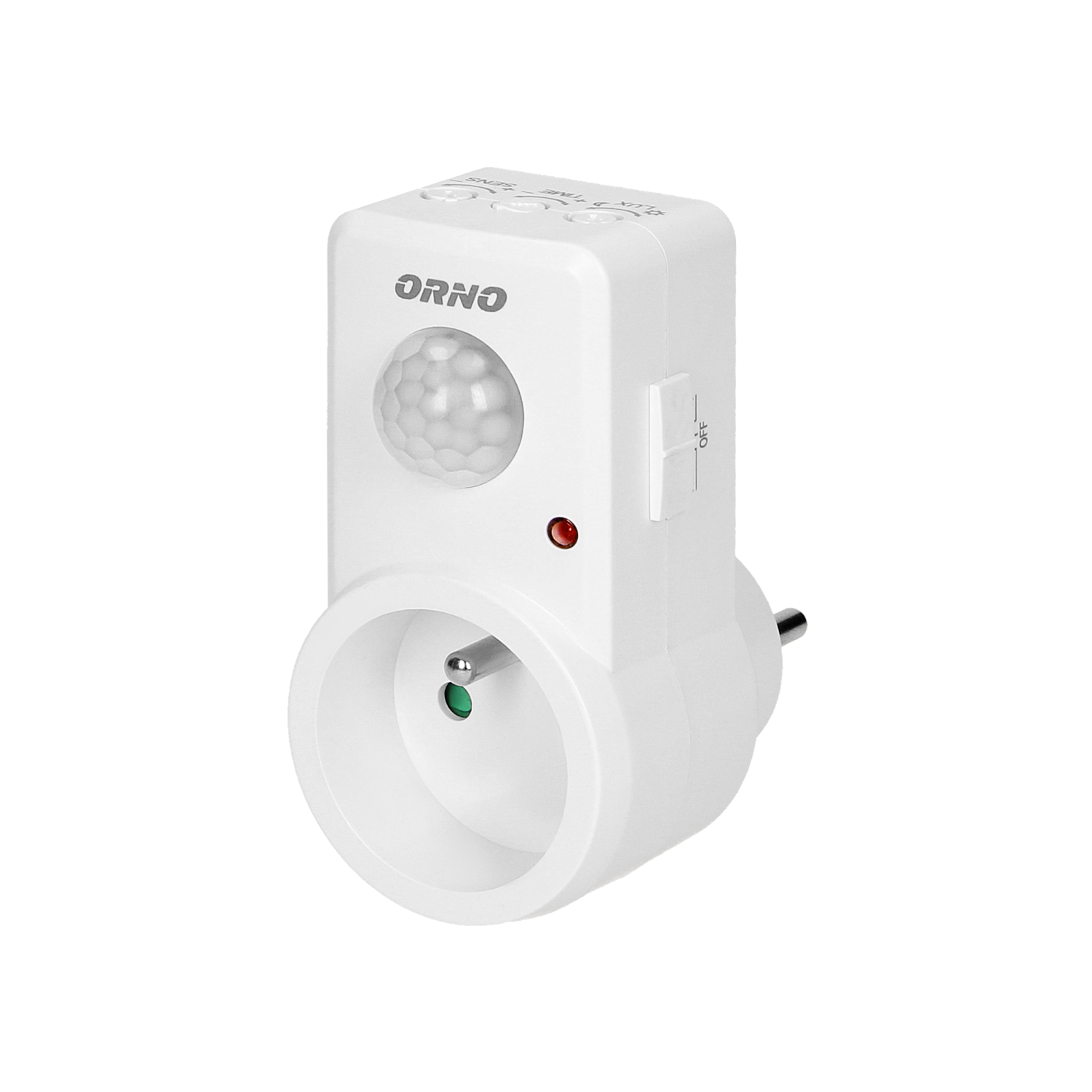

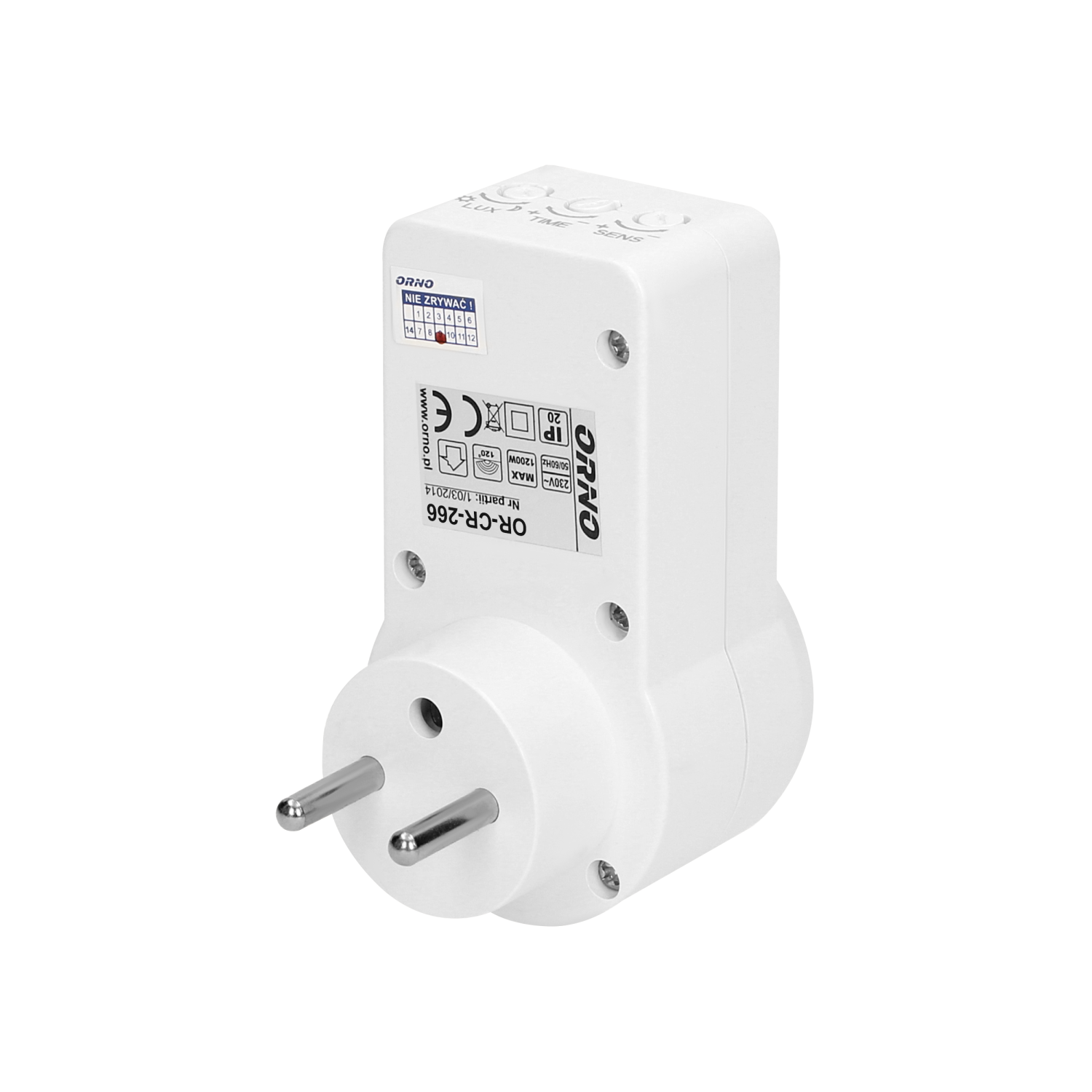

An electrical device designed to automatically switch on and off other electrical devices whenever motion is detected by a PIR sensor. The sensor is activated at an appropriate light intensity.
| General information: | |
|---|---|
| Max. load: | 1200 W |
| Max. load of the LED light source: | 300W W |
| Degree of protection (IP): | 20 |
| Relay output: | Yes |
| Nominal voltage: | 230V~, 50Hz |
| Presence detector: | No |
| Colour: | white |
| Installation: | network socket |
| Dimensions of the sensor - width (mm): | 45 mm |
| Dimensions of the sensor - height (mm): | 98.3 mm |
| Dimensions of the sensor - depth (mm): | 81.5 mm |
| Working temperature: | -20℃~+40℃ |
| Detection angle: | 120° |
| Type of sensor: | Socket motion detector |
| Detection range: | 9 m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <3—2000lux |
| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | min.: 10 sek. ± 3 sek., max.: 15min.±2min |
| Adjustment of motion detection range (SENS): | Yes |
