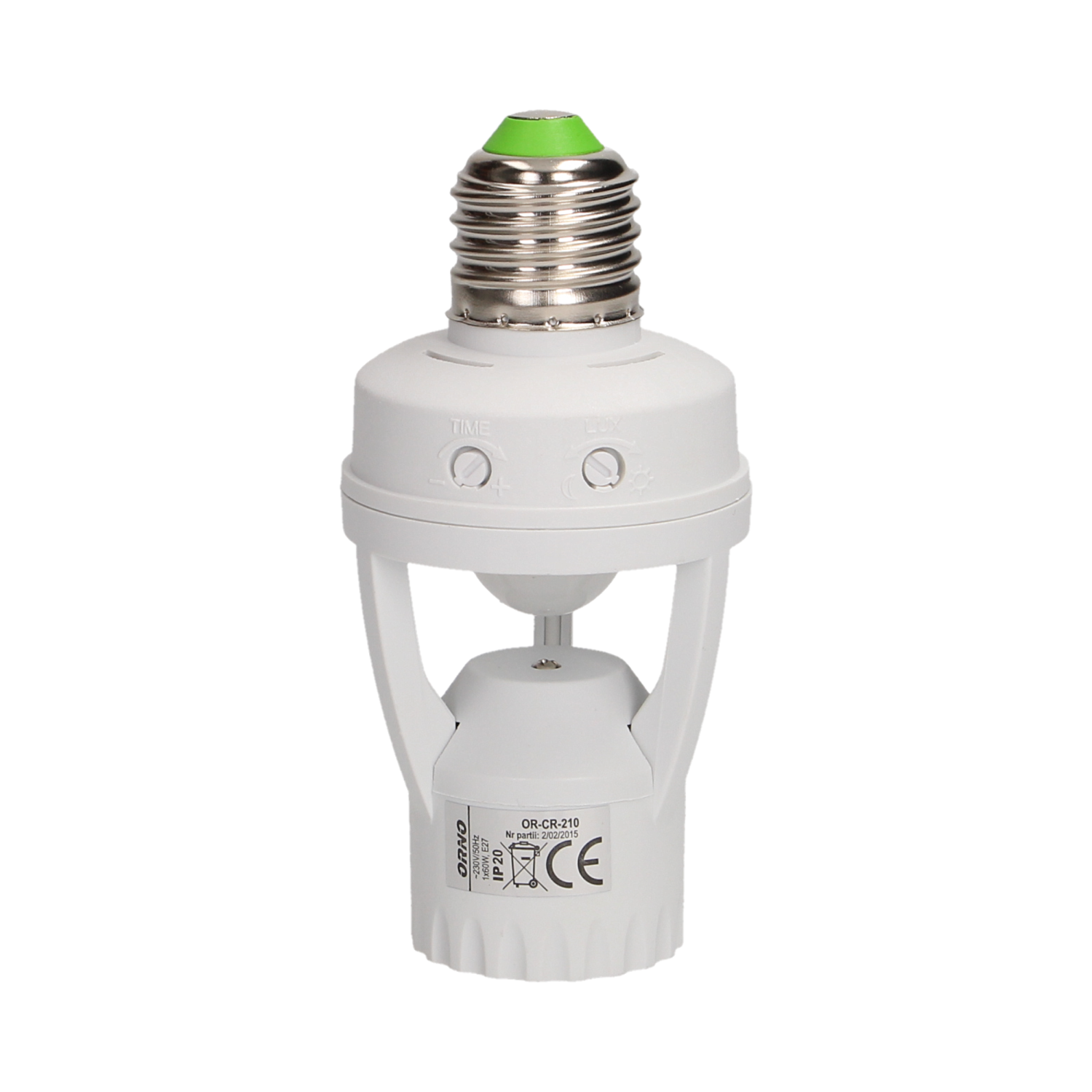

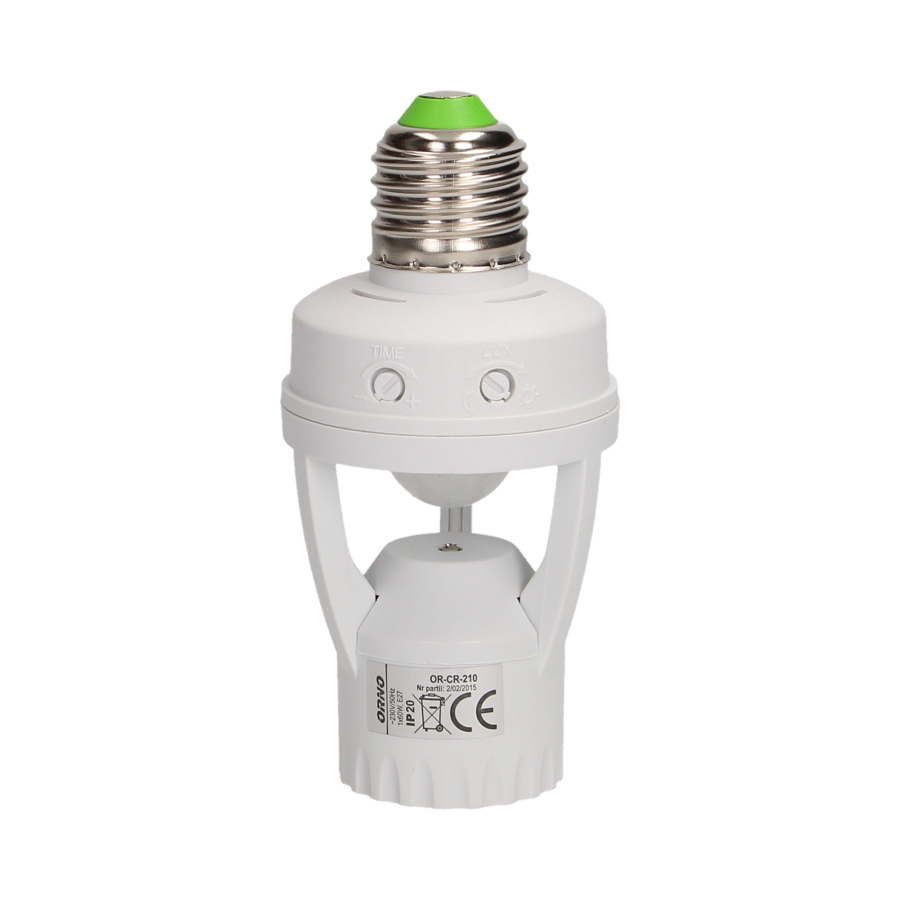

It controls any connected electrical device using a passive infrared sensor For indoor usage It works with ordinary light bulbs, LED and fluorescent lights Regulation: lighting time (TIME), the sensitivity of the light intensity (LUX) No need of installation.
| General information: | |
|---|---|
| Max. load: | 1x60W |
| Max. load of the LED light source: | 15 W |
| Degree of protection (IP): | 20 |
| Relay output: | No |
| Nominal voltage: | 230V~, 50Hz |
| Presence detector: | No |
| Colour: | white |
| Installation: | bulb socket |
| Dimensions of the sensor - width (mm): | Ø50 mm |
| Dimensions of the sensor - height (mm): | Ø50 mm |
| Dimensions of the sensor - depth (mm): | 130 mm |
| Working temperature: | -20℃~+40℃ |
| Detection angle: | 360° |
| Type of sensor: | infrared |
| Detection range: | Ø6 m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <3—2000lux |
| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | min: 10 sek. ± 3 sek.; max: 5 min. ± 1 min. |
| Adjustment of motion detection range (SENS): | No |
