Modular series with a frame plate system. A series of modern switches and sockets harmoniously blending with original designer interiors. The switches' modern quick-connect mechanism (wires are connected by pushing them directly into the body) provides secure and safe wire installation and removal. The sockets are equipped with traditional screw connections. The internal design of the terminals guarantees secure connection of wires from 0.75 mm² to 2.5 mm². Strong and robust mounting plate grid and special mounting elements enable stable and secure installation in the box.

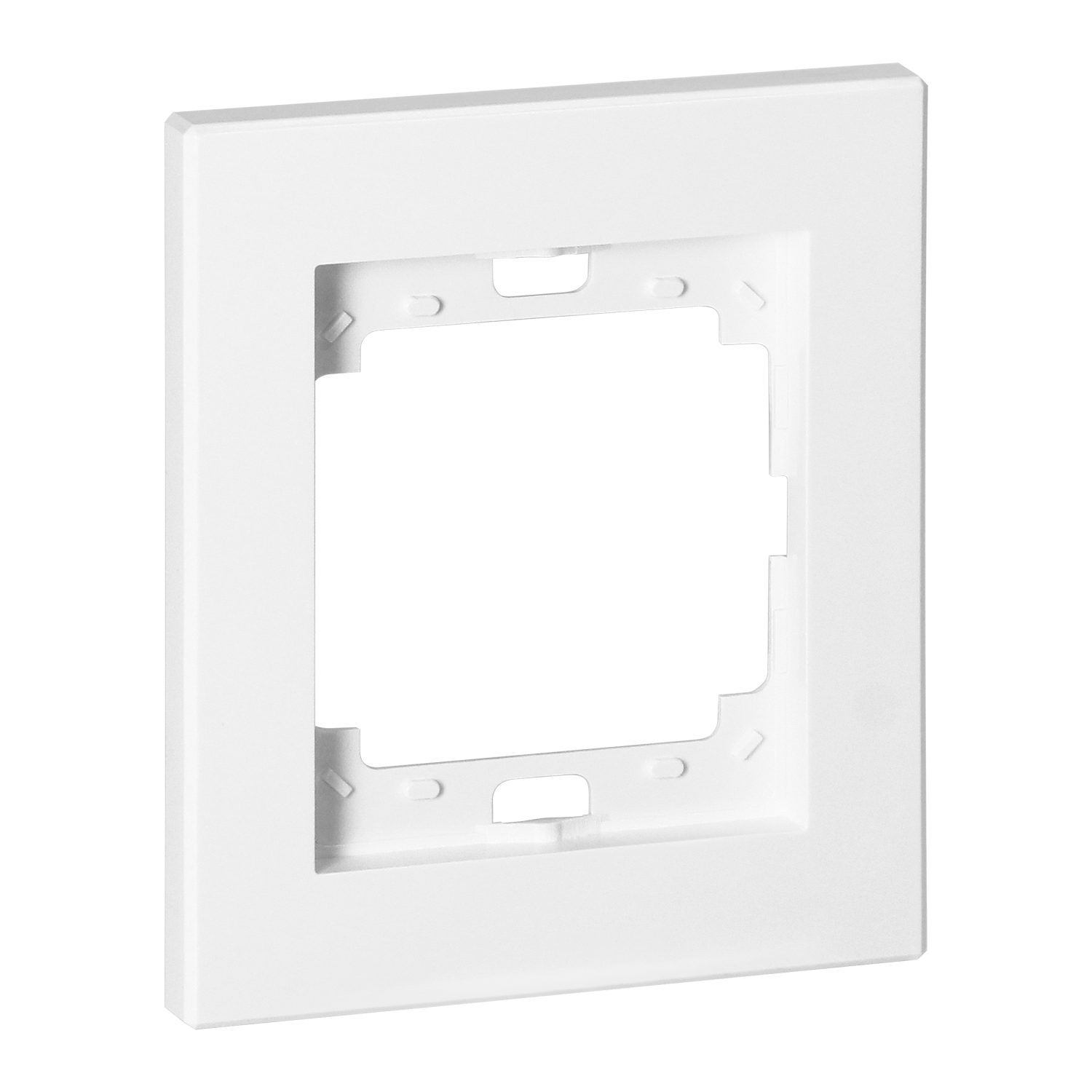

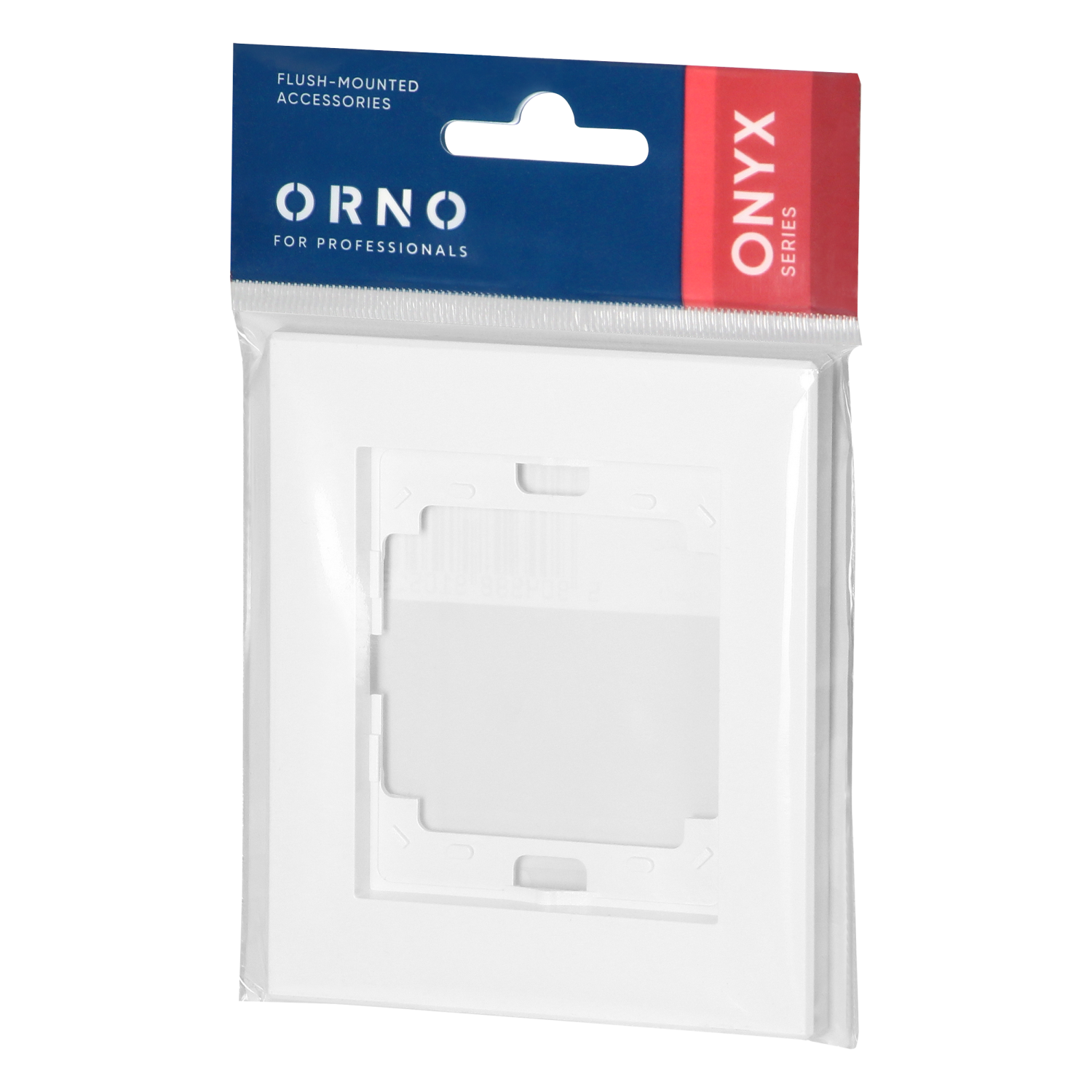

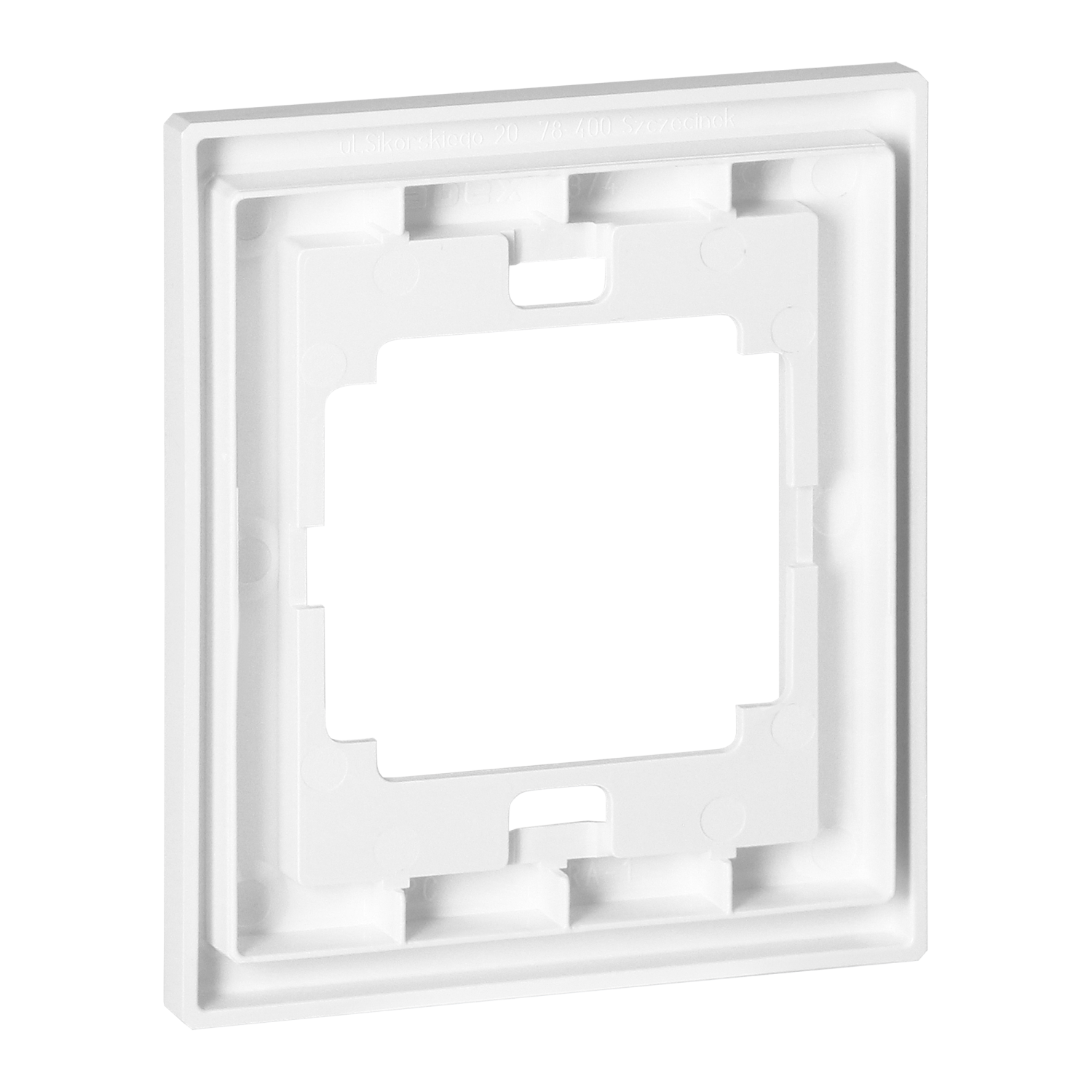

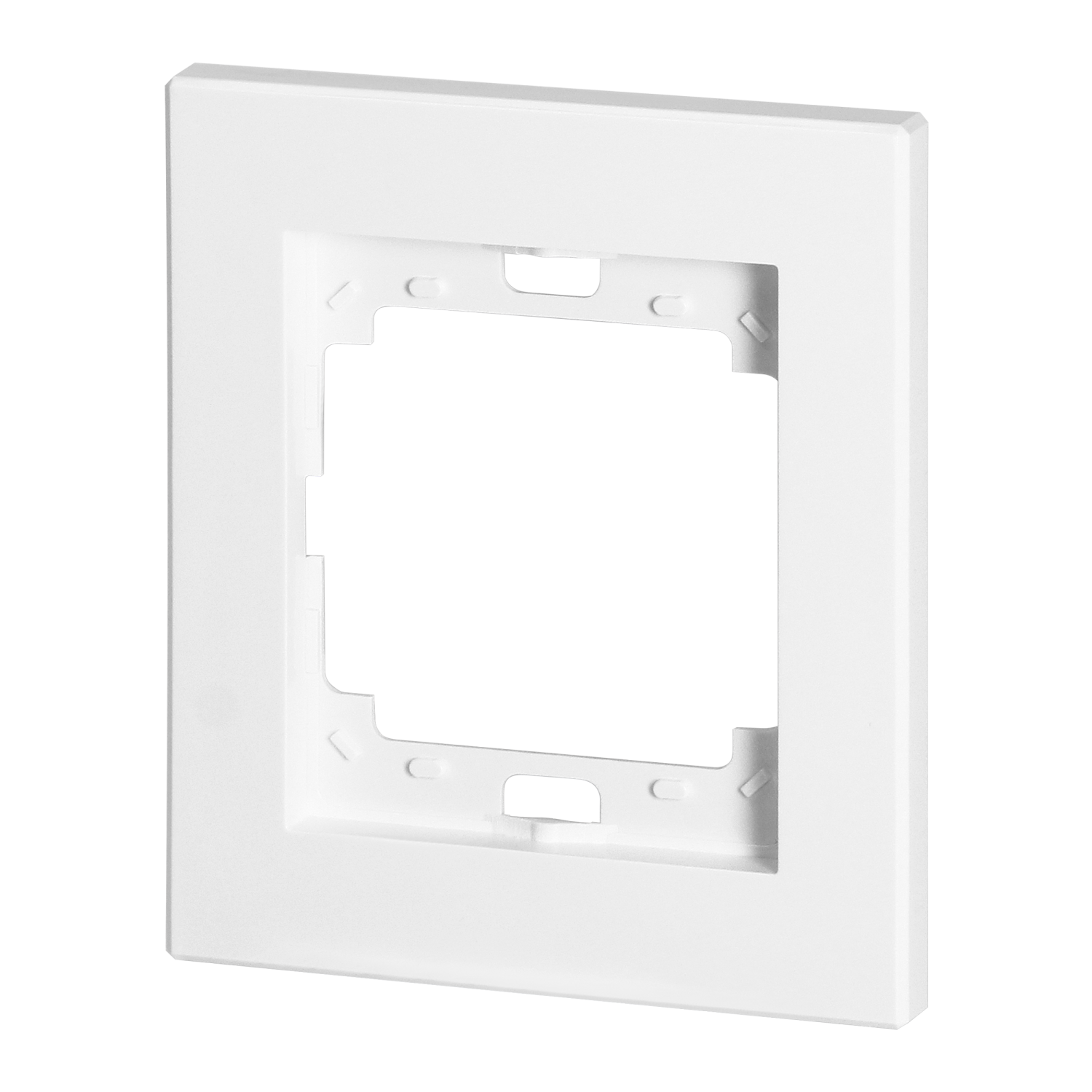

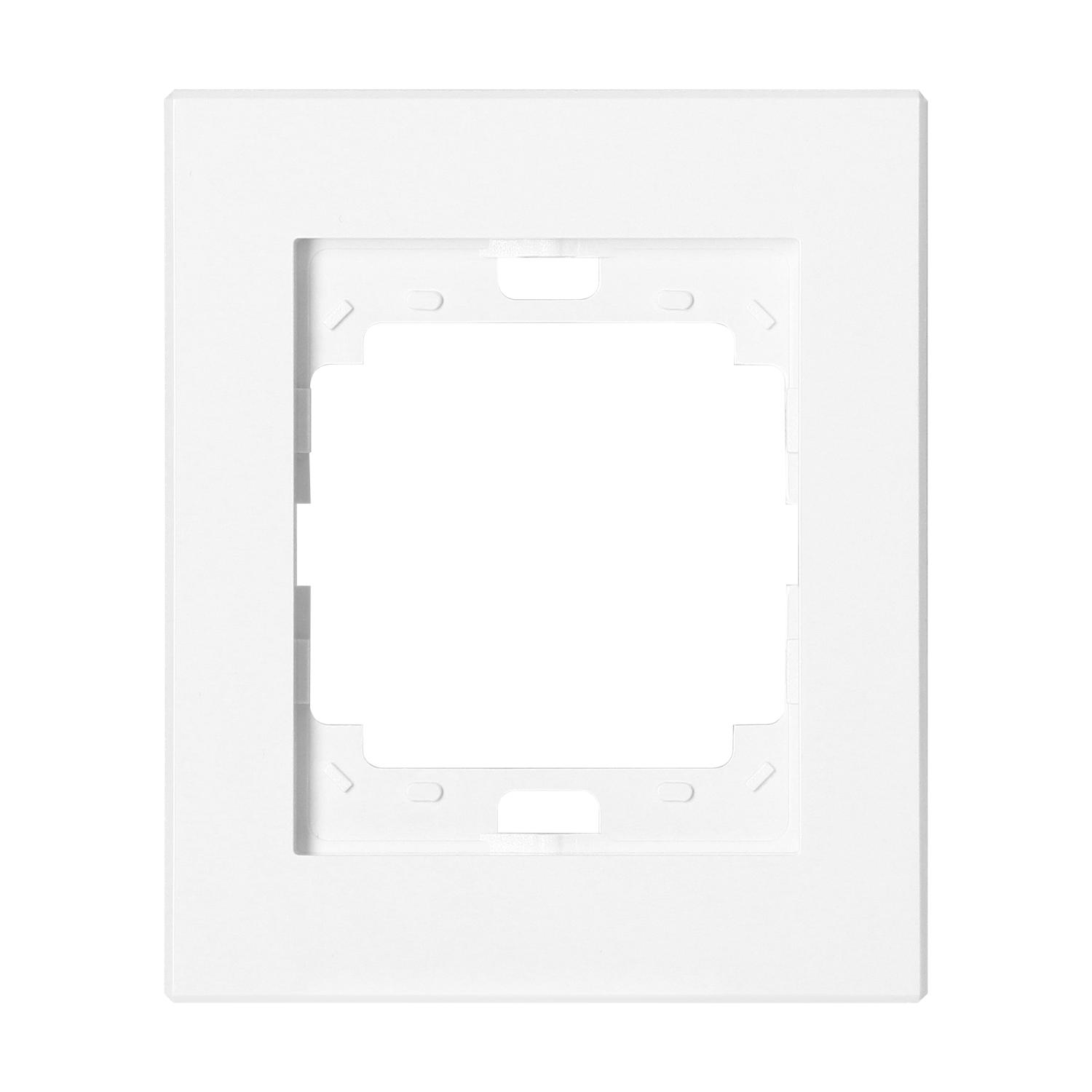

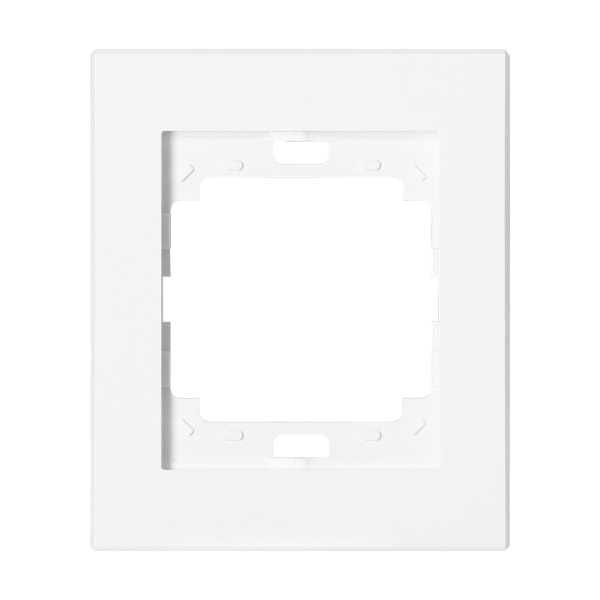

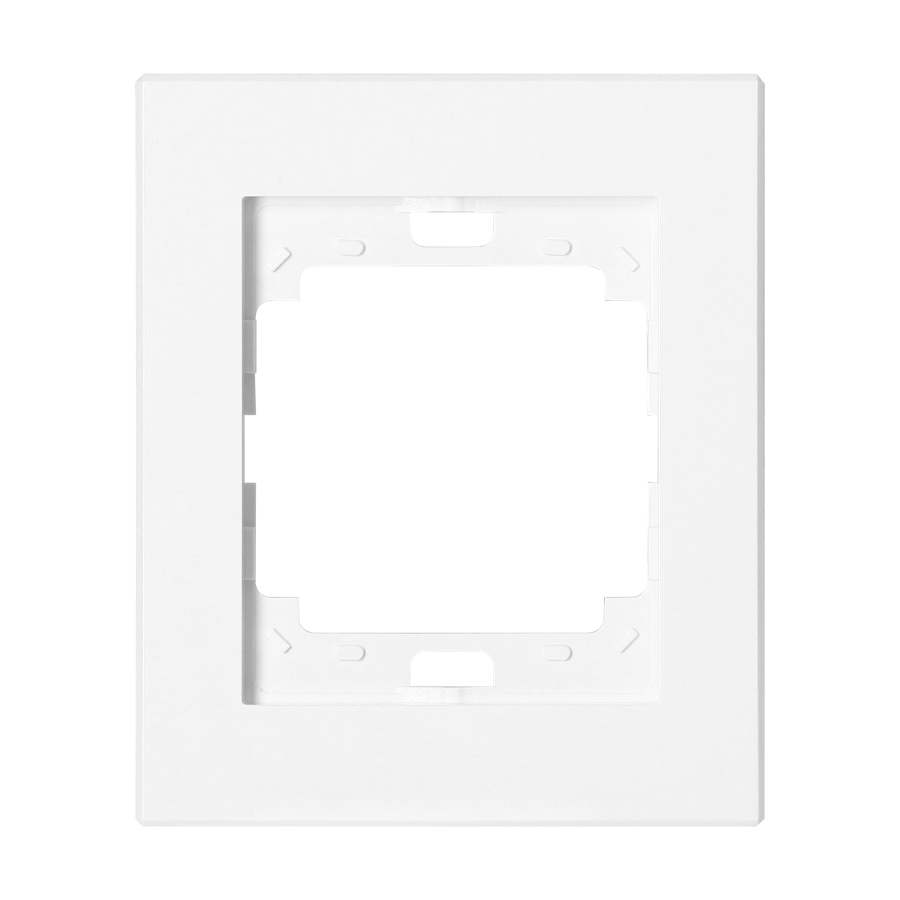

Single frame for ONYX series. It should be used indoors (IP20).
The product is available in two colors: white and black. Dimensions 82x98x8.6mm.
| General information: | |
|---|---|
| Number of units: | 1 |
| Mounting direction: | Poziomy |
| Number of modules horizontal (module system): | 1 |
| Label space/information surface: | Nie |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Błyszczący |
| Colour: | Biały |
| Degree of protection (IP): | IP20 |
| Type of fastening: | Zatrzask |
| Width [mm]: | 98 |
| Height [mm]: | 82 |
| Depth [mm]: | 8.6 |
