Modular series with a symmetrical frame plate system (for 1-, 2-, 3-, 4-, 5-modules) allowing the product to be mounted in both horizontal and vertical positions. The modern quick-connect mechanism (wires are connected by pushing them directly into the body) provides secure and safe wire installation and removal. The sockets are equipped with traditional screw connections. The internal design of the terminals guarantees secure connection of wires from 0.75 mm² to 2.5 mm². Strong and robust mounting plate grid and high-quality self-retracting elements enable stable and secure installation in the box. Special springing elements facilitate fitting the frame into the body.

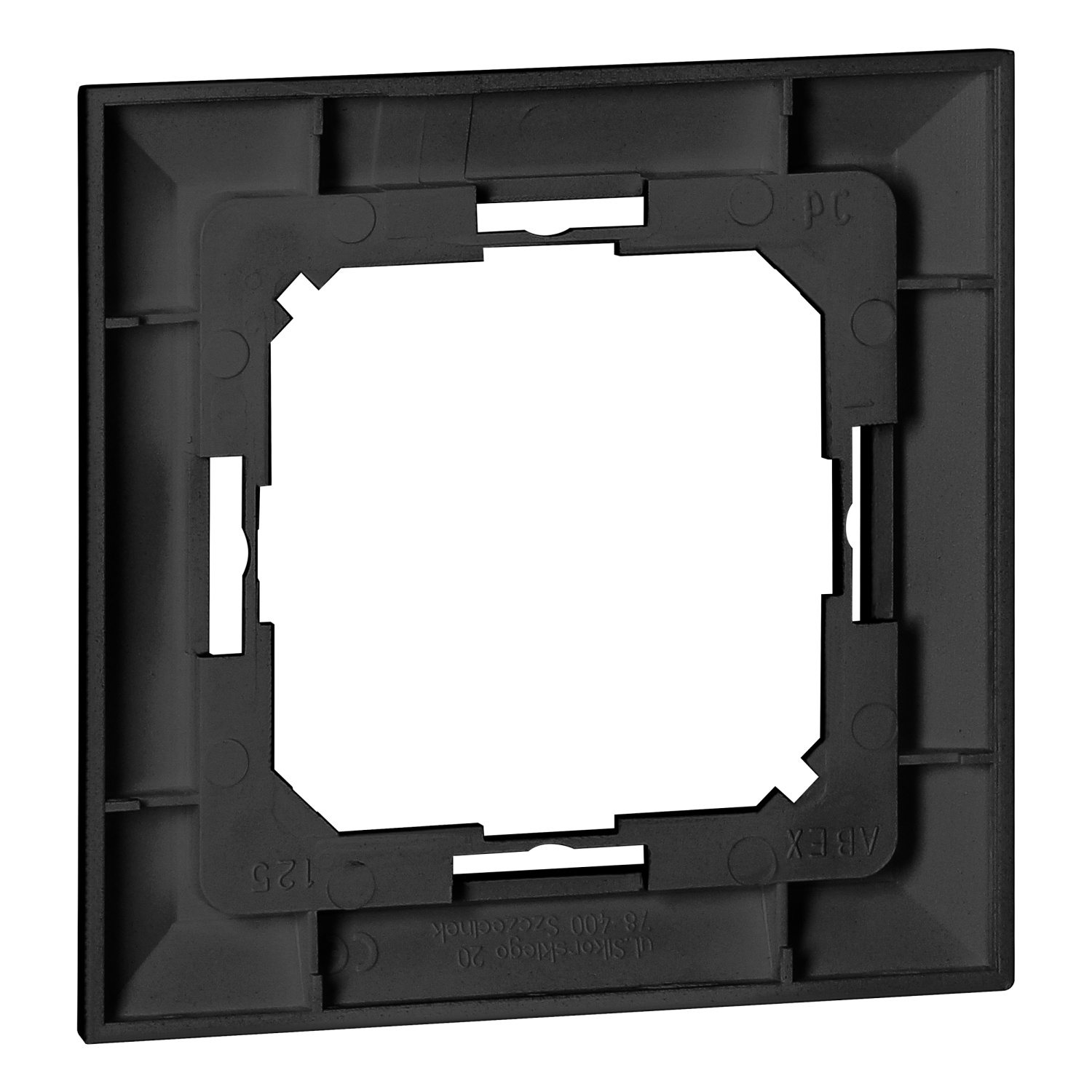

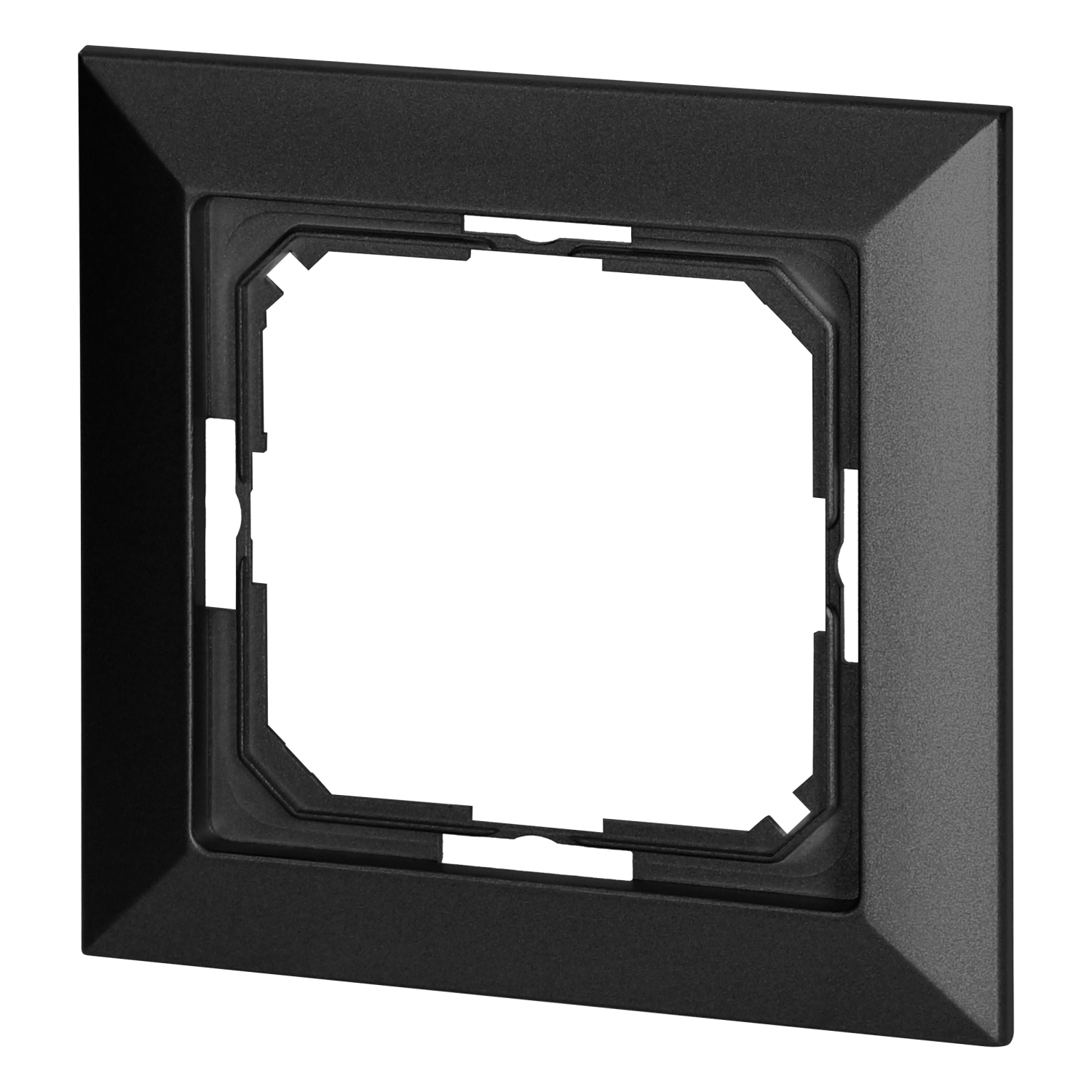

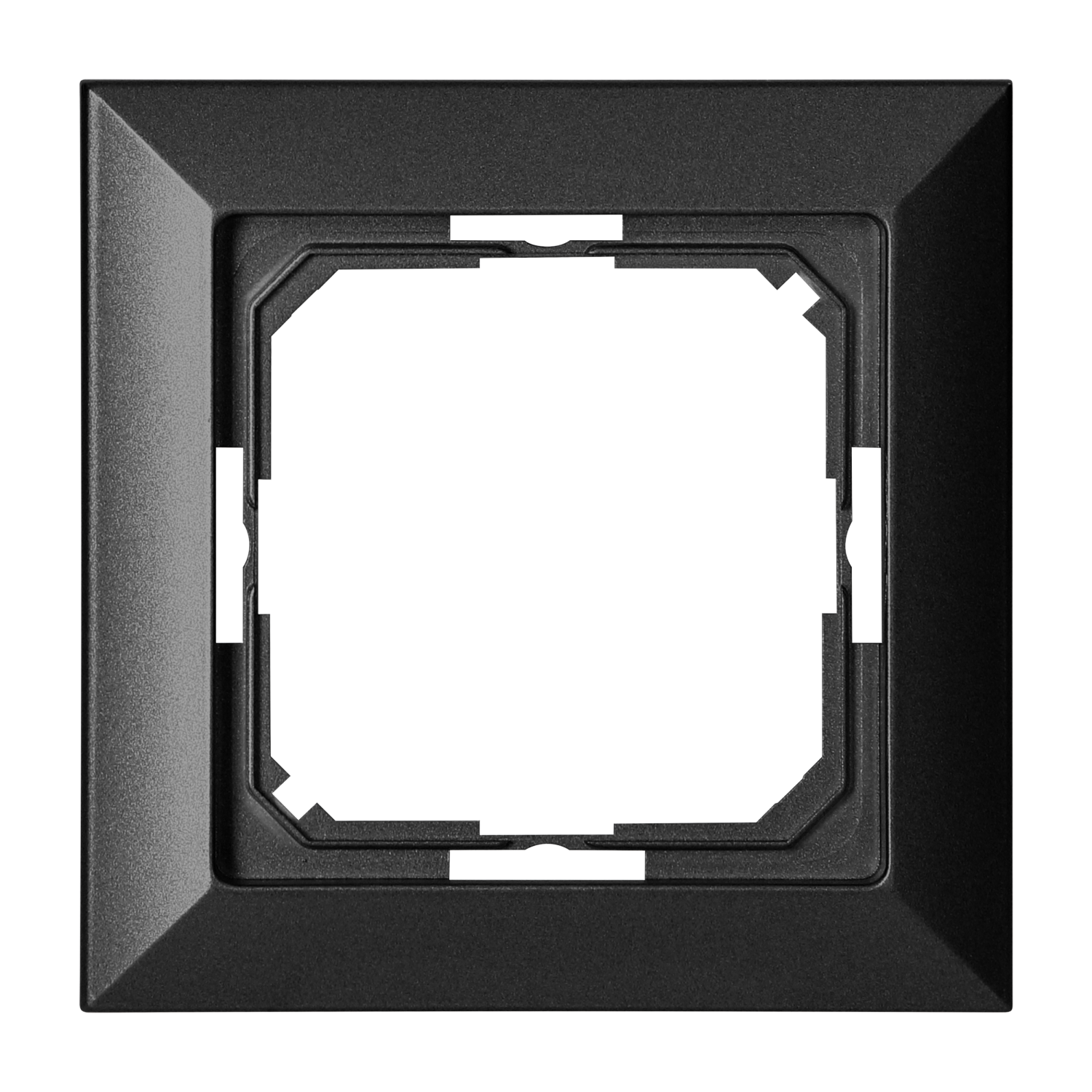

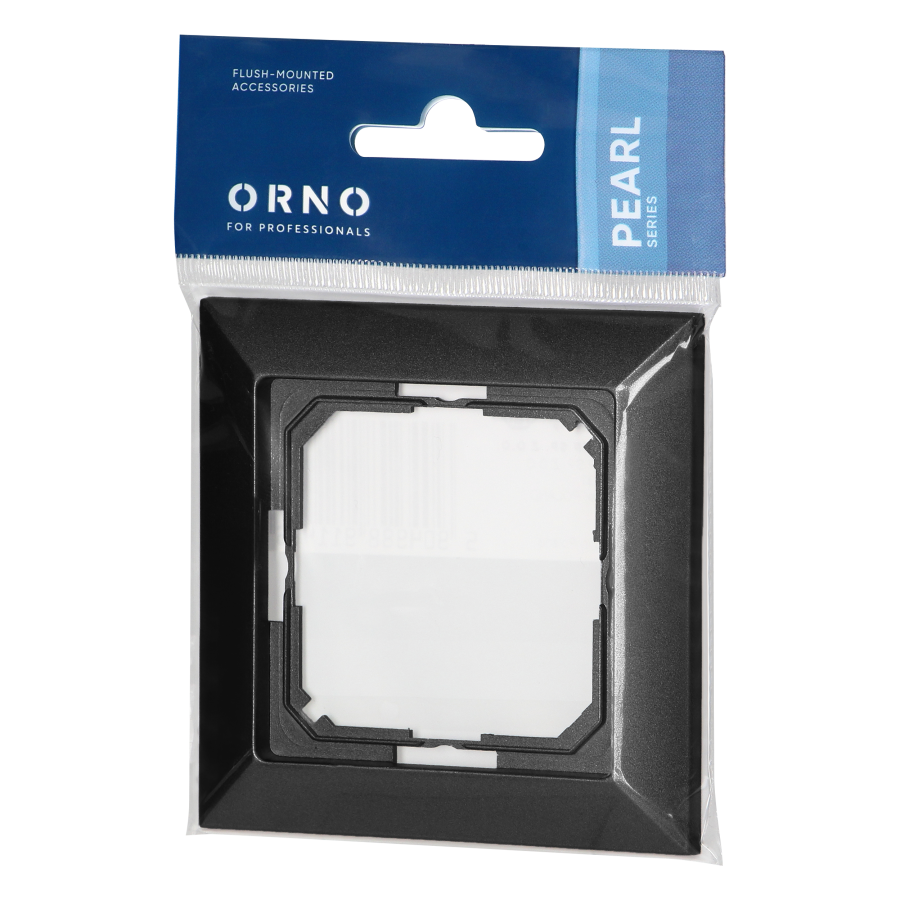

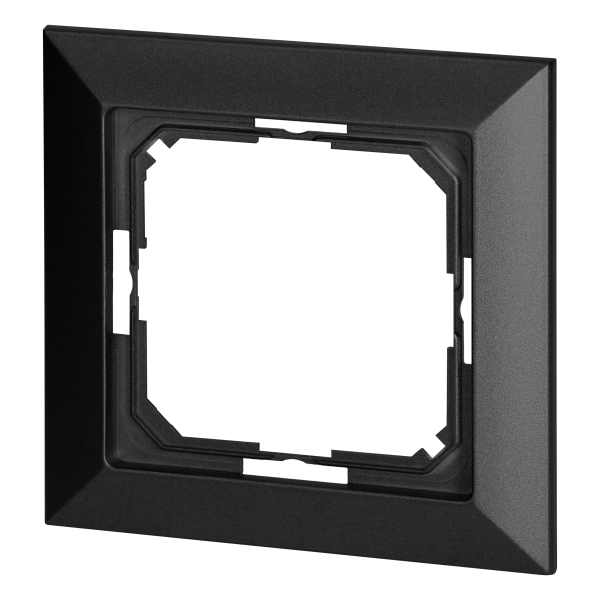

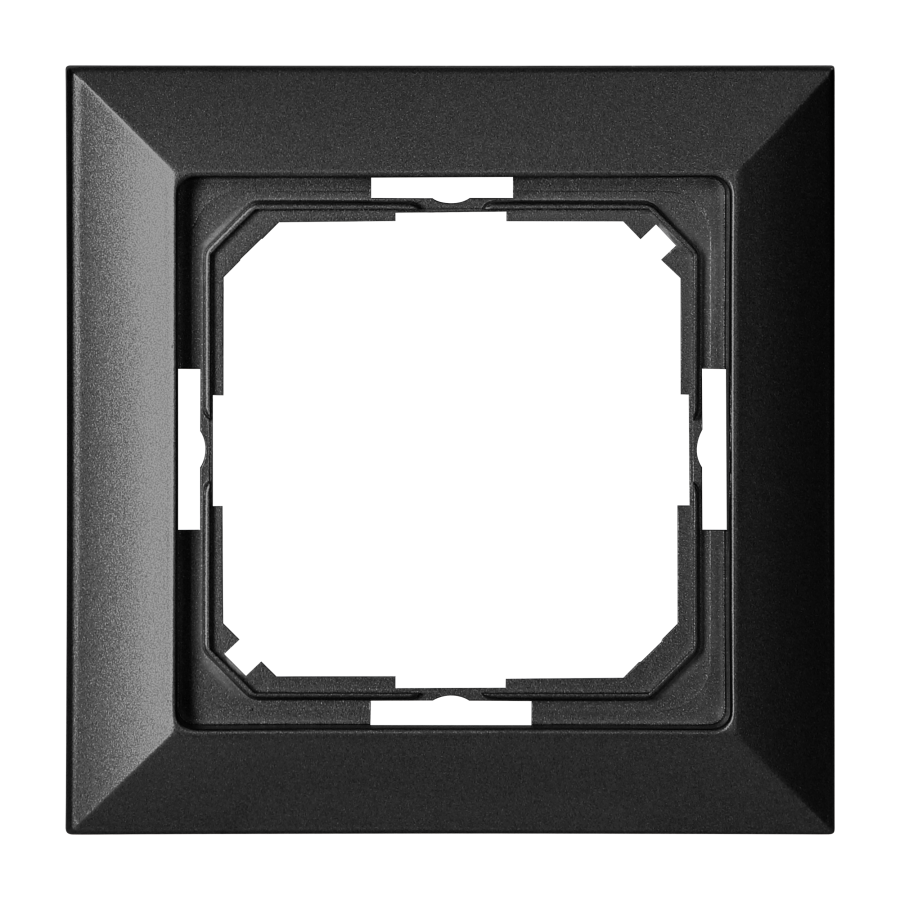

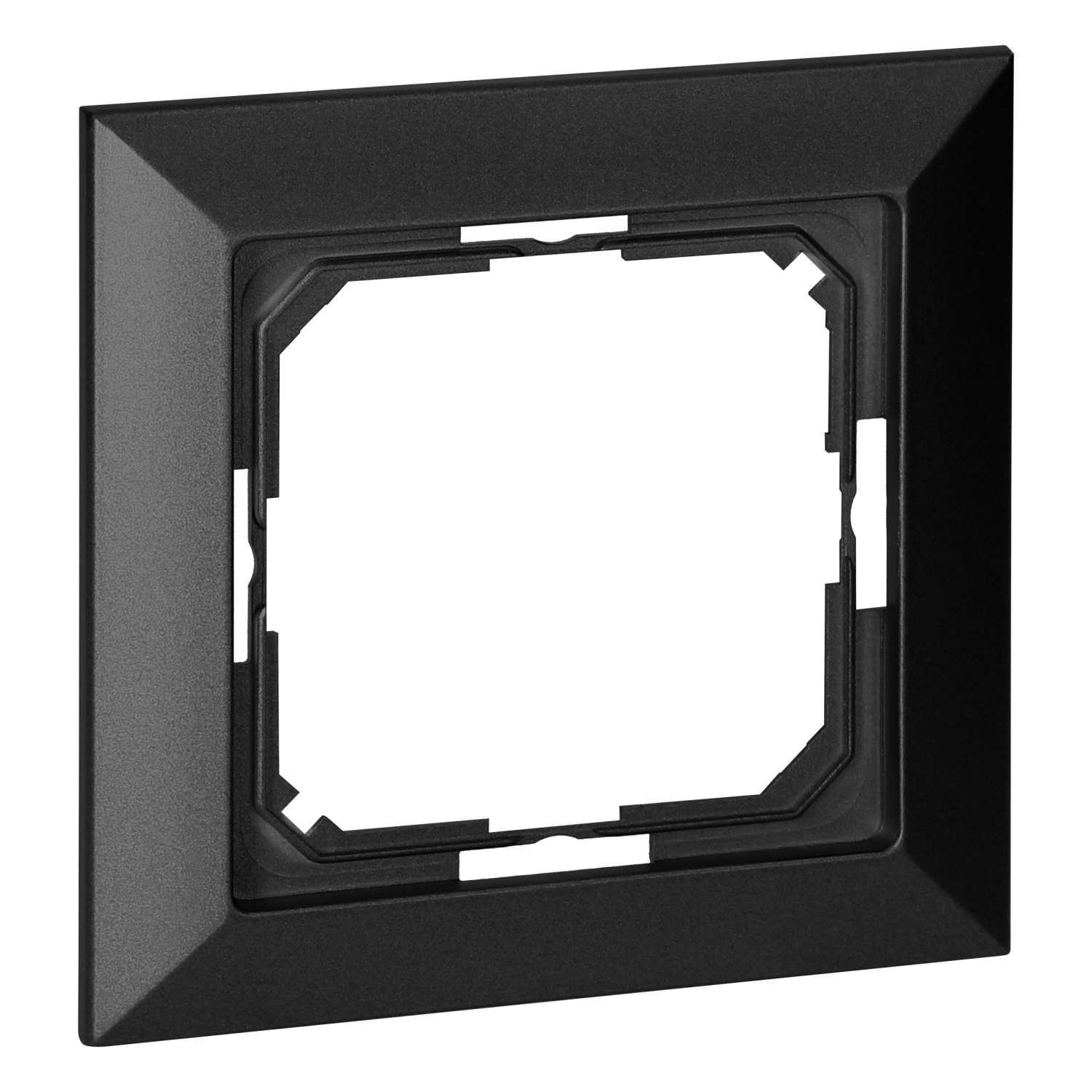

Single frame for Pearl series. It should be used indoors (IP20).
The product is available in three colors: white, black and anthracite.
| General information: | |
|---|---|
| Number of units: | 1 |
| Mounting direction: | Poziomy i pionowy |
| Number of modules horizontal (module system): | 1 |
| Label space/information surface: | Nie |
| Material: | Tworzywo sztuczne |
| Material quality: | Tworzywo termoplastyczne |
| Surface protection: | Malowanie |
| Surface finishing: | Matowy |
| Colour: | Czarny |
| Degree of protection (IP): | IP20 |
| Type of fastening: | Zatrzask |
| Width [mm]: | 81 |
| Height [mm]: | 81 |
| Depth [mm]: | 7.6 |
